EFILive CM2350B User manual

Cindy Myers
Cummins 6.7L CM2350B CSP5
User Guide

EFILive, EFILive FlashScan and EFILive AutoCal are registered trademarks of EFILive Limited.
All other trademarks belong to their respective owners.
Cummins 6.7L CM2350B CSP5
User Guide
© 1998 EFILive Limited
All rights reserved
First published
6 May 2015
Revised
6 April 2021

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 1 - www.efilive.com
Contents
............................................................................................................4
Prerequisites....................................................................................................................4
Intended Audience.......................................................................................................4
Computer Knowledge...................................................................................................4
Tuning Knowledge .......................................................................................................4
......................................................................................................5
Introduction......................................................................................................................5
What is EFILive?..........................................................................................................5
What is EFILive CSP5? ................................................................................................5
Software Version Overview..........................................................................................6
...............................................................................................................7
CSP5Upgrade.................................................................................................................7
CSP5Upgrade Checklist..............................................................................................7
Upgrade Operating System to CSP5............................................................................7
Tune Switch Password.................................................................................................9
CSP5CAN Tunes.......................................................................................................10
Supported Switching Methods ...................................................................................10
..........................................................................................................11
V8 Scan and Tune Scan................................................................................................11
Pass-Thru Data Logging............................................................................................11

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 2 - www.efilive.com
Pass-Thru Licence and Flash a Controller.................................................................12
..........................................................................................................14
Configure FlashScan/AutoCal for BBX..........................................................................14
EDA Data Logging .....................................................................................................14
Configure Tuning........................................................................................................15
Tune File Switching....................................................................................................15
Configure DTCs .........................................................................................................15
Quick Setup ...............................................................................................................15
.............................................................................................................17
FlashScan Menu Navigation..........................................................................................17
FlashScan/AutoCal V3...............................................................................................17
Data Logging..........................................................................................................17
License and Flash a Controller...............................................................................17
Switch Tunes using FlashScan/AutoCal V3 ...........................................................18
FlashScan V2.............................................................................................................18
Data Logging..........................................................................................................18
License and Flash a Controller...............................................................................19
Switch Tunes using FlashScan V2.........................................................................20
.............................................................................................................21
Support..........................................................................................................................21
Trouble Shooting........................................................................................................21
Error Codes................................................................................................................21
Test for Rogue Modules.............................................................................................21
Trace Files .................................................................................................................21
V8 Scan and Tune *.htx files ..................................................................................21
FlashScan/AutoCal V3 *.xalm files.........................................................................22

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 3 - www.efilive.com
FlashScan V2 Trace Files ......................................................................................22
Knowledgebase..........................................................................................................22
EFILive Authorized Dealer.........................................................................................23
How to Tune?.............................................................................................................23
EFILive Service Desk.................................................................................................23

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 4 - www.efilive.com
Prerequisites
Intended Audience
EFILive Customers using the V8 Scan and Tune Tool software.
Computer Knowledge
It is expected that readers have a basic understanding of:
The Windows operating system;
Starting and using Windows applications;
Navigating folders using Windows Explorer.
Tuning Knowledge
It is expected that readers have a basic understanding of:
Electronic Fuel Injection;
On Board Diagnostics.

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 5 - www.efilive.com
Introduction
What is EFILive?
EFILive is tuning software and hardware - it is not a tune. Together the software
and hardware give users the tools to write tunes. EFILive does not provide tune
files, tuning advice or support, but do provide software support and hardware
support.
What is EFILive CSP5?
EFILive's CSP5 custom operating systems for Cummins controllers allows
customers to be able to switch 'on the fly' between multiple tunes, all stored in the
ECM's flash memory. Historically, Cummins Switchable Programming had 5 tune
positions; however as supported Cummins platforms have expanded this no
longer holds true. ECM memory now defines the number of tunes that are
available for switching for each ECM type as per the table below.
CSP Controller Matrix
CMB (CM849)
2006-2007 5.9L
CSP5
5 tunes accessible through CAN
bus switching, and a 6th tune that is
switched using an input on one of
the ECM connectors.
CMC (CM2100A)
2007-2009 6.7L
CSP5
CMD (CM2200)
Pick Up Trucks
2010-2012 6.7L
CSP5
5 Tunes accessible through CAN
bus switching.
CMD (CM2200)
Cab & Chassis
2010-2012 6.7L
CSP2
2 tunes accessible through CAN
bus switching.
CME (CM2350B)
2013-2018 6.7L
CSP4
4 tunes accessible through CAN
bus switching.
CMF (CM2450B)
2019+ 6.7L
CSP5
5 tunes accessible through CAN
bus switching.
Whilst different controllers contain different numbers of tunes, collectively this
feature is still referred to as CSP5.
Having multiple tunes instantly accessible means changing tunes to suit different
driving conditions no longer requires the ECM to be reflashed each time you
choose to run a different tune. (E.g. racing, towing, or power limiting.) Simply build
multiple tunes to fill the CSP5slots, flash the ECM once and then select your
desired tune through your EFILive hardware (or other approved switching devices)
at any time.
CSP5delivers scanning enhancements to customers via Enhanced Data
Acquisition (EDA). EDA, EFILive’s custom scanning mode is the first of its kind
and aims to simplify the task of information sharing between users as every
individual data parameter has been selected with tuning feedback in mind. EDA
allows customers to log 45 individual data parameters specifically chosen to

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 6 - www.efilive.com
complement tuning at up to 50 frames per second for V8 BBL & V7.5 pass through
logging.
EDA scanning is only available on CSP5upgraded ECM's.
Software Version Overview
This version of the Cummins 6.7L CM2350B CSP5User Guide migrates all
processes to EFILive V8 Scan and Tune software. Functionality is still available in
V7.5 software, however software support and bug fixes will cease in 2021.
FlashScan/AutoCal V3 and AutoCal V2 are not compatible with V7 software. V7
functions are only supported by FlashScan V2. The following is a brief view of the
activities that are performed with the different software versions:
Feature
V7
V8
Scanning
OBDII Diagnostics
Reading
Flashing
Tune Editing
VIN License Management
Firmware Management

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 7 - www.efilive.com
CSP5 Upgrade
CSP5Upgrade Checklist
CSP5upgrades are only available on specific factory operating systems. Typically
these are based on the latest factory update (at time of development). If you have
a truck that has an OS not listed below, you will need to upgrade your base file
first.
Supported CSP5 operating systems are listed in the table below. These were the
latest factory updates as of early 2018; released 7 years after this ECM type was
introduced.
EFILive will not be offering CSP on older, obscure or obsolete OS's. No further
EFILive development is scheduled for the Dodge Cummins CME platform.
CSP4Operating System - Pickup
32130601
32150101
32180100
32130902
32150102
32180101
32140204
32150200
33140100
32140305
32160202
34140100
32140602
32170403
32150101
32170404
CSP4Operating System - Cab & Chassis
31130501
51140302
51150102
Where a vehicle has been previously tuned with a product other than EFILive, the
conversion process may fail and render the ECM non-functional and not
recoverable.
EFILive recommends users source a good known base file for CSP5.
To upgrade to CSP5 exclusively in EFILive V8 Scan and Tune software you must
be running the following (or higher) software versions.
1. EFILive V8.3.5 or later.
2. FlashScan V3 / AutoCal V3 Firmware –V3.00.060.
3. FlashScan V2 / AutoCal V2 Firmware - V2.08.170.
The latest software versions are available for download from EFILive's website.
Upgrade Operating System to CSP5

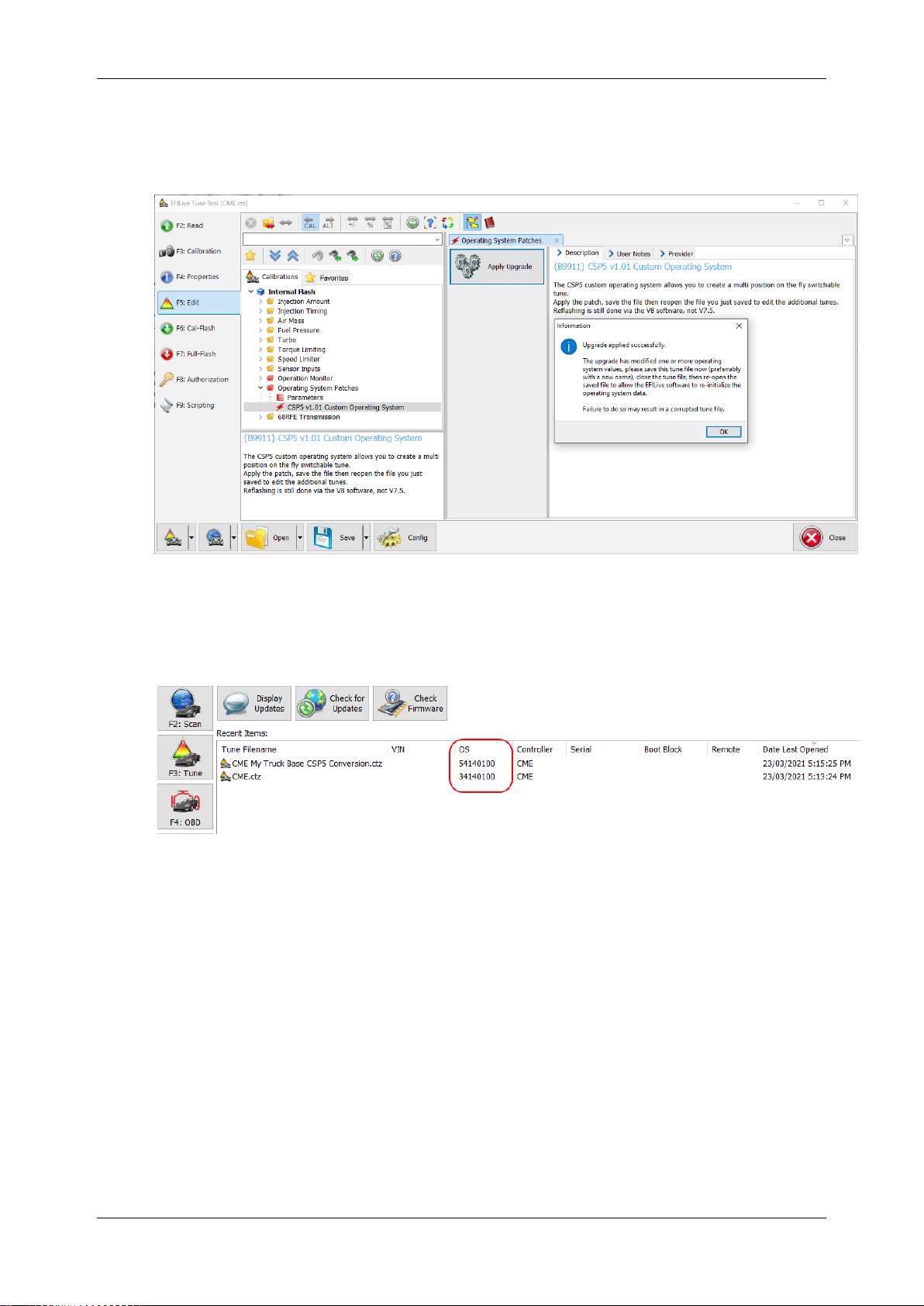

1. Open V8 Scan and Tune software and your stock tune file.
2. Navigate to [F5: Edit].

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 8 - www.efilive.com
3. Expand the Internal Flash -> Operating System Patches Folder and select CSP5
v1.00 Custom Operating System.
4. Select the [Apply Upgrade] button.
5. Select [Yes] to the “This operation cannot be undone, continue?” dialog box.
6. A message indicating “Upgrade applied successfully.” will now display.
7. Save the file with a new name using, File > Save As. Maybe something like...
'My Truck Base CSP5 Conversion.ctz’.
8. Close the tune file.
9. On the EFILive V8 Scan and Tune Recent Items list you will see your stock tune
and your upgraded CSP5tune. Confirm that the operating system number on the
base file is different to the upgraded CSP5converted file.
10.Reopen the tune file that was converted.

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 9 - www.efilive.com

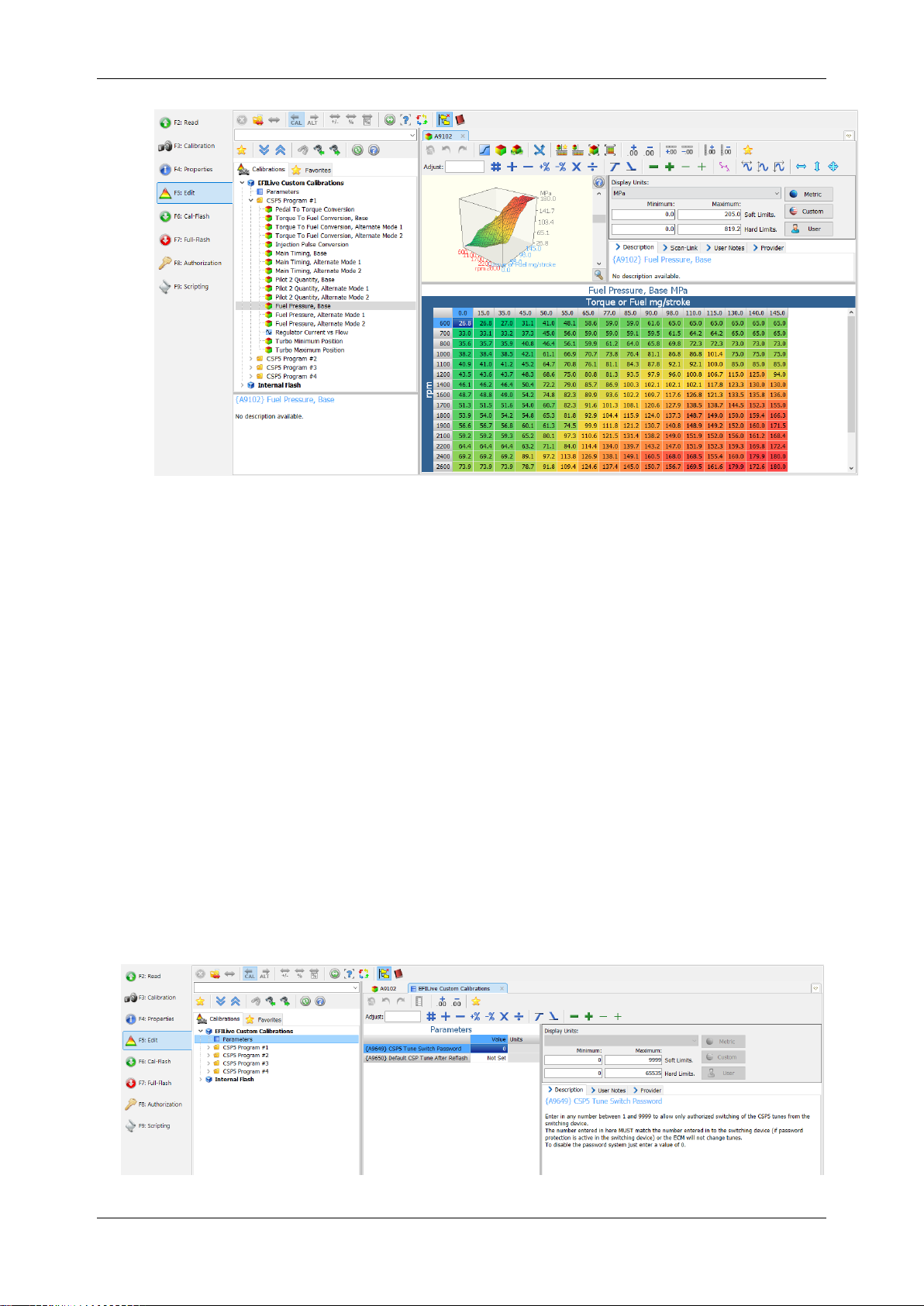

11.Navigate to [F5: Edit] and expand the EFILive Custom Calibrations folder.
12.EFILive automatically populates the new CSP5tables with factory values during
the upgrade. On modified engines these may not be suitable settings, so you
may need to copy your own tables in to the new CSP5section(s).
Program #1 to Program #3 have factory values inserted into the maps. Program
#4 contains the values from the standard OS maps prior to the CSP5conversion.
13.Edit the values on your individual tunes, and [Save] the changes to your tune file.
14.Flash the CSP5tune into your ECM. Refer to pass-thru flashing, FlashScan
V3/AutoCal V3 flashing or FlashScan V2 flashing for further instructions.
Tune Switch Password
Users may restrict tune selection by adding a password to move between tune
selections to prevent unauthorized switching between tunes 1 to 5.
Before switching between tune selections, users would need to enter in the
password (1 to 9999). If the password is correct, the tune will switch, if it is
incorrect the tune will not switch.
It should be noted that not all switching devices may support this function,
however EFILive's own FlashScan and AutoCal hardware does.
To enable the tune switch password, users need to input their chosen password in
the calibration. As the calibration description states, if the password = 0 then there
is no password prompt given to the user when switching tunes.

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 10 - www.efilive.com
CSP5CAN Tunes
The CSP5tunes labelled "Program #1 to Program #4" are all switched via a device
on the CAN bus.
NOTE: Whenever the ECM is reflashed tune switching will default to using CSP5
Program #4 unless the Default CSP Tune After Reflash parameter is set.
Supported Switching Methods
EFILive’s CSP5custom operating system can be switched using EFILive
FlashScan/AutoCal V3, FlashScan/AutoCal V2, and the SoCal Diesel CSP5 switch
and the Starlite Diesel StarLog.
EFILive recommends that customers confirm that their chosen integration product
is approved for use.
To setup an approved integration product, users should:
1. Convert their base file to a CSP5 operating system, as described in this
document.
2. Edit tune parameters as necessary and save the file.
3. Flash their modified file into their ECM using the V8 Scan and Tune
application as described in this document. (Specific selection of 3rd party
product is NOT required in tune file).
4. Setup the 3rd party device as per the manufacturer’s instructions.

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 11 - www.efilive.com
V8 Scan and Tune Scan
Pass-Thru Data Logging
To log data using FlashScan or AutoCal and V8 Scan and Tune software;
1. Open the EFILive V8 Scan and Tune.
2. Connect your FlashScan/AutoCal device to your PC and vehicle.
3. Turn the vehicle ignition to the On position
4. Select an existing Dashboard configuration either by using the [Open Dash]
button or using the Dashboard drop down, or configure after making controller
and PID selections.
5. Navigate to the [F2: Scan] -> [F2: PIDs] menu option.
6. In the Engine field use the drop down list to select the CME controller type or
use Auto Detect.
7. Drag the EDA 1 PID folder from the Available PIDs window into the Selected
PIDs window.
8. Navigate to the [F3: Data], [F4: Charts], [F5: Gauges] or [F6: Maps] tab and
configure your dashboard to arrange data displays where a dashboard has not
already been selected.
9. Users should [Save Dash] to save their custom configurations to reduce future
configuration requirements.
10.Start the vehicle.
11.Select either Record or Monitor from the [F3: Data], [F4: Charts], [F5: Gauges]
or [F6: Maps] screens.
12.Stop the vehicle and turn the ignition off prior to selecting Stop to stop the data
logging session.
13.Save the log.

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 12 - www.efilive.com
14.To replay the data log, navigate to the [F3: Data], [F4: Charts], [F5: Gauges] or
[F6: Maps] tab and select the appropriate Playback buttons.
Important note for tuners:
If your CSP5tune does not seem to be switching as expected please check the
data in the "AIRDENSC_F" PID. For CSP5to work correctly the "AIRDENSC_F"
PID must be in 'Mode5, Normal Mode." If any other modes are active (e.g.
Protection Mode) then the ECM will not be using normal Altitude based tables, and
therefore will not using the CSP5tables.
Protection Mode is a direct result of tuning strategy or DPF regen states.

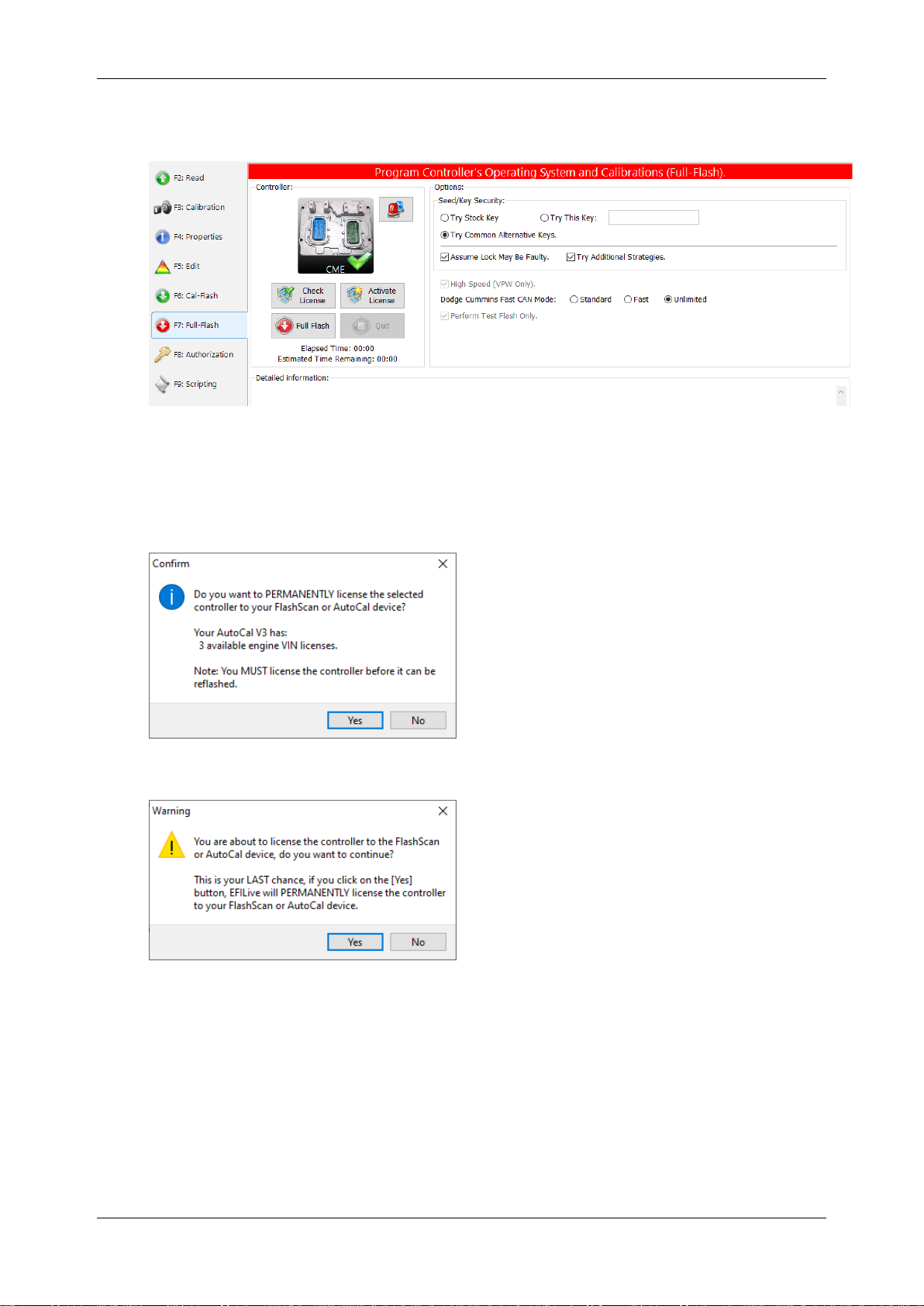

Pass-Thru Licence and Flash a Controller
Follow these steps to license and flash the selected controller.
1. Open the EFILive Scan and Tune application.
2. Connect your FlashScan/AutoCal to your PC and your vehicle.
3. Turn the vehicle ignition to the On position, (not the Accessory position.
Vehicle must not be cranked/running when flashing).
4. Select the [F3: Tune] option in the left-hand pane.
5. Click on the Open button and select the calibration file for the controller you
wish to flash or license.

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 13 - www.efilive.com
6. If tune file security has been applied to the tune file, review and accept the
Security Warning.
7. Click on the [F7: Full Flash] options in the left-hand pane.
8. Click on the Check License button. This will indicate if the controller is already
licensed or needs to be licensed.
9. Where the controller is NOT licensed, select Activate License to license the
controller.
10.Select Yes to license the controller or No to close this window without licensing
the controller.
11.Select Yes to license the controller or No to close this window without licensing
the controller.
12.Select the Full Flash button to commence the flash.
13.While the ECM is flashing an Elapsed time indicator, an Estimated Time
Remaining indicator, and a Progress bar will display tracking the Flash
progress.
14.When the flash process is complete a countdown timer will be shown. When
prompted perform the following actions:
a. Turn the vehicle ignition Off.
b. Click on the Start button to begin the countdown timer.
c. DO NOT turn the vehicle ignition on until the countdown timer expires.
This time is critical to allow the ECM to perform internal functions after a
read operation.

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 14 - www.efilive.com
Configure FlashScan/AutoCal
for BBX
There are a range of configuration files that must be installed on FlashScan and
AutoCal devices before the device can be used in standalone mode (BBX).
Follow these instructions to configure your FlashScan or AutoCal for BBX.
1. Connect your FlashScan or AutoCal to your PC.
2. Open the EFILive V8 Scan and Tune application.
3. Select the [F5: BBX] option in the left-hand pane.
EDA Data Logging
The EDA PID group aims to simplify the task of information sharing between users
as every individual data parameter has been selected with tuning feedback in
mind. If you choose to log additional data streams alongside the EDA stream it
may slow the data logging rate down by as much as 70%.
For FlashScan V2 and AutoCal V2, BBL is only supported where CSP5and EDA
are installed.
For FlashScan V3 and AutoCal V3, BBL is supported regardless of whether CSP5
is installed.
To configure EDA data logging;
1. Select the [F2: Scan] option in the left-hand pane.
2. Remove any unnecessary controller configurations to ensure capacity
restrictions are not exceeded.
3. Add your chosen controller(s) to your list;
a. Press the green '+' icon.
b. Right click on the Engine Controller box.
c. Navigate to Select CME.
d. Select OK.
4. Click on the CME controller in the “BBL Enabled Controllers”window.
5. Highlight the EDA 1 folder in the “Available PIDs” window and drag into the
“Selected PIDs” window. *NOTE: For FlashScan/AutoCal V2 BBL is only
supported for Cummins Controllers that have CSP5 and EDA installed. Users

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 15 - www.efilive.com
MUST select the entire EDA PID Group and flash a CSP5 operating system into
the ECM for effective data logging.
Configure Tuning
To configure flashing of CME controllers on your FlashScan/AutoCal device;
1. Select the [F3: Tune] option in the left-hand pane.
2. Remove any unnecessary controller configurations to ensure capacity
restrictions are not exceeded.
3. Add your chosen controller(s) to your list;
a. Press the green '+' icon.
b. Right click on the Engine Controller box.
c. Navigate to Select CME.
d. Select OK.
Tune File Switching
To configure the switching of CSP5 tune positions on your FlashScan/AutoCal
device;
1. Select the [F4: Switch] option in the left-hand pane.
2. Enter switchable tune names as appropriate.
Configure DTCs
To configure the display of trouble codes and descriptions onto FlashScan;
1. Select the [F5: DTC's] option in the left-hand pane.
2. Select appropriate DTC options.
Quick Setup
To configure BBX settings, device settings, and configure tune files for BBX;

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 16 - www.efilive.com
1. Select the [F6: Quick Setup] option in the left-hand pane.
2. Select appropriate BBX configuration options.
3. Edit device settings as necessary. To prevent manually selecting the CME PID
group each time FlashScan/AutoCal is powered, the most recent PID group
selection can be automatically selected by:
a. Selecting the correct hardware on the [F6: Quick Setup] -> [Edit AutoCal
V3 Settings] button.
b. In the Device Settings window, navigate to [F6: Logging] and tick the “At
start-up, automatically re-select the most recently used PID list.”
4. Add tune files to the Quick Setup using the green '+' icon.
5. Write this configuration to FlashScan or AutoCal using the [Program Quick
Setup] function. The [Program Quick Setup] programs all selected Scan, Tune,
Switch, and DTC options, as well as selected device settings, BBX Quick
Setup selections and tune files. Once the device is programmed, FlashScan or
AutoCal is configured for BBX functions.
Each option can be programmed individually using the [Program] button on
each tab, or collectively using the [Program Quick Setup] option.

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 17 - www.efilive.com
FlashScan Menu Navigation
FlashScan/AutoCal V3
FlashScan/AutoCal V3 supports two menu structures; the EFILive standard menu
and the user defined menu. Where a used defined menu is not installed, the
EFILive standard menu will be displayed.
Data Logging
1. Configure FlashScan/AutoCal V3 for BBX features if not already setup.
2. Connect your FlashScan/AutoCal V3 device to your vehicle.
3. Turn the vehicle ignition to the On position
4. Navigate to the Scan Tool -> F1 Select PIDs menu option.
5. Select correct controller type from BBX configured controllers.
6. Navigate to the F1 Scan Tool -> F2 Data Logging menu option.
7. Select F1: Record Data to commence the logging session.
8. The LCD will display recording status, elapsed time, frame count and the
selected PIDs.
9. A range of options are available while the Log is recording:
1. Select ✔to pause/resume the log.
2. Select the up and down arrows to navigate through selected PIDs.
3. Select X, to save the log.
10.Start the vehicle and drive to record actual performance.
11.Stop the vehicle and turn the ignition off prior to selecting X on
FlashScan/AutoCal V3 to save the log file.
License and Flash a Controller
1. Configure FlashScan/AutoCal V3 for BBX features if not already setup.
2. Copy selected tune file(s) from your PC to FlashScan/AutoCal V3 if not
already copied via Quick Setup during step 1.
3. Connect your FlashScan/AutoCal V3 device to your vehicle.
4. Turn the vehicle ignition to the On position (not the Accessory position.
Vehicle must not be cranked/running when flashing).
5. Navigate to the Tune Tool menu and select F1: Tuning -> F3 Program Full
menu option.
6. Navigate to the folder your tune file is located in and select ✔to commence
the flash.
7. If the controller has not been licensed by the device previously, you will be
presented with an Unlicensed Controller message. Select ✔to proceed with
licensing the controller, or X to exit.
8. Select ✔to confirm licensing the controller and commence the flash, or Xto exit.
9. When the flash process is complete, select Xto close the flash completed
message.
10.The Reset Controller notification will be shown, and the controller reset process
will begin.
1. Turn the vehicle ignition Off.

Cummins 6.7L CM2350B CSP5UserGuide
[e-mail] - 18 - www.efilive.com
2. Click on the Start button to begin the countdown timer.
3. DO NOT turn the vehicle ignition on until the countdown timer
expires. This time is critical to allow the ECM to perform internal functions
after a read operation.
Switch Tunes using FlashScan/AutoCal V3
1. Connect your FlashScan/AutoCal V3 device to your vehicle.
2. Turn the vehicle ignition to the On position
3. Navigate to the Tune Tool menu and select F3 Switch Tunes -> F1 Switch
CSP5 menu option.
4. Use the arrows to navigate between tunes.
5. Press ✔to make a tune selection.
6. If you attempt to select a tune higher than #4 you will see an error that indicates
the tune # is not supported. The ECM will ignore this request and keep the last
valid tune selected.
7. You do not need to reselect the tune once the engine is shut down; the ECM
'remembers' which tune you previously selected.
FlashScan V2
Data Logging
1. Configure FlashScan V2 for BBX features if not already setup.
2. Connect your FlashScan V2 device to your vehicle.
3. Turn the vehicle ignition to the On position
4. Navigate to the F1 Scan Tool - F1 Select PIDs menu option.
5. Select correct controller type from BBX configured controllers.
6. Navigate to the F1 Scan Tool - F2 Data Logging menu option.
7. Select F1: Record Data to commence the logging session.
8. Start the vehicle and drive to record actual performance.
9. Stop the vehicle and turn the ignition off prior to selecting Cancel on
FlashScan V2 to save the log file.
