Lawn Edger
- Changeable blade
OPERATOR’S MANUAL

2
Introduction
Dear Customer
Thank you for buying an Egholm product
The Egholm 2001 is a Danish designed and manufactured product which offers a very flexible way of
maintaining outdoor areas.
Optimal performance of your Egholm Lawn Edger:
To ensure the optimal performance of your Egholm Lawn Edger, please read this operator’s manual
carefully before starting to use the machine. Failure to do so can result in personal injury and
damage to the machine.
Safety:
The Lawn Edger is equipped with various devices to ensure optimal operational safety both for the
user and the surroundings. We therefore ask you to pay particular attention to Section 1.1 Safety. The
machine must only be serviced by professionals.
The Lawn Edger is designed only for use by professionals. On delivery, the user will receive
thorough training to become a competent operator. Do not lend the machine to anyone who has not
been thoroughly trained and has not read this manual carefully.
The operator’s manual should be considered as a permanent part of the machine and so must remain
with it if the machine is sold.
Warnings:
Some items in this operator’s manual are marked with this warning symbol.
The warning indicates areas where extra care has to be taken to avoid personal
injury or damage to the machine and its accessories. The warning also shows
what you should pay special attention to.
Reservations:
As it is the Egholm policy to make continuous improvements, we reserve the right to alter the specifi-
cations and equipment at any time without notice. Egholm Maskiner A/S accepts no liability for errors
or shortcomings in the operator’s manual.
Contact us:
Should you have questions of any kind regarding your new Egholm product, do not hesitate to
contact Egholm Maskiner A/S.
Best regards
Egholm Maskiner A/S - Transportvej 27 - DK - 7620 Lemvig
Tel: [phone] - Fax: [phone]
e-mail: [email protected] - www.egholm.dk

3
Contents
1. General information
To give the complete finish when cutting lawns
fix the Lawn Edger onto the Egholm 2100.
The Lawn Edger cuts the edges of the grass
efficiently and at an even pace, and the cut
edge is cultivated in one and the same
procedure.
The Lawn Edger is fully hydraulic, and the
working depth is adjusted to the situation with
the adjustable gauge wheel.
The blade on the Lawn Edger is changeable,
which means that you can choose whether to
cut inwards or outwards. The blade is changed
according to the placing of the machine in
relation to the edge of the lawn.
Useful tips
Best results are achieved when the ground is a
little damp.
Never drive too fast for the Lawn Edger to cut
the edge cleanly.
Wipe the snap couplings before fitting, as this
protects the hydraulic system.
Daily cleaning and maintenance will extend the
lifetime of both the machine and the attachment.
1. General information Page
1.1 Safety................................................................................................................4
1.2 EC Declaration of Conformity for Machinery.........................................................5
1.3 Technical data....................................................................................................6
2. Instructions for use
2.1 Assembly / Disassembly.....................................................................................7
2.2 Important before start-up....................................................................................8
2.3 Start-up.............................................................................................................8
2.4 Adjustment ........................................................................................................9
2.5 Changing the blade..........................................................................................10
3. Service and maintenance
3.1 Cleaning..........................................................................................................11
3.2 Maintenance....................................................................................................11
4. Conditions
4.1 Warranty..........................................................................................................13
4.2 Complaints ......................................................................................................14
4.3 Disposal ..........................................................................................................14

4
1
1
2
2
3
3
4
4

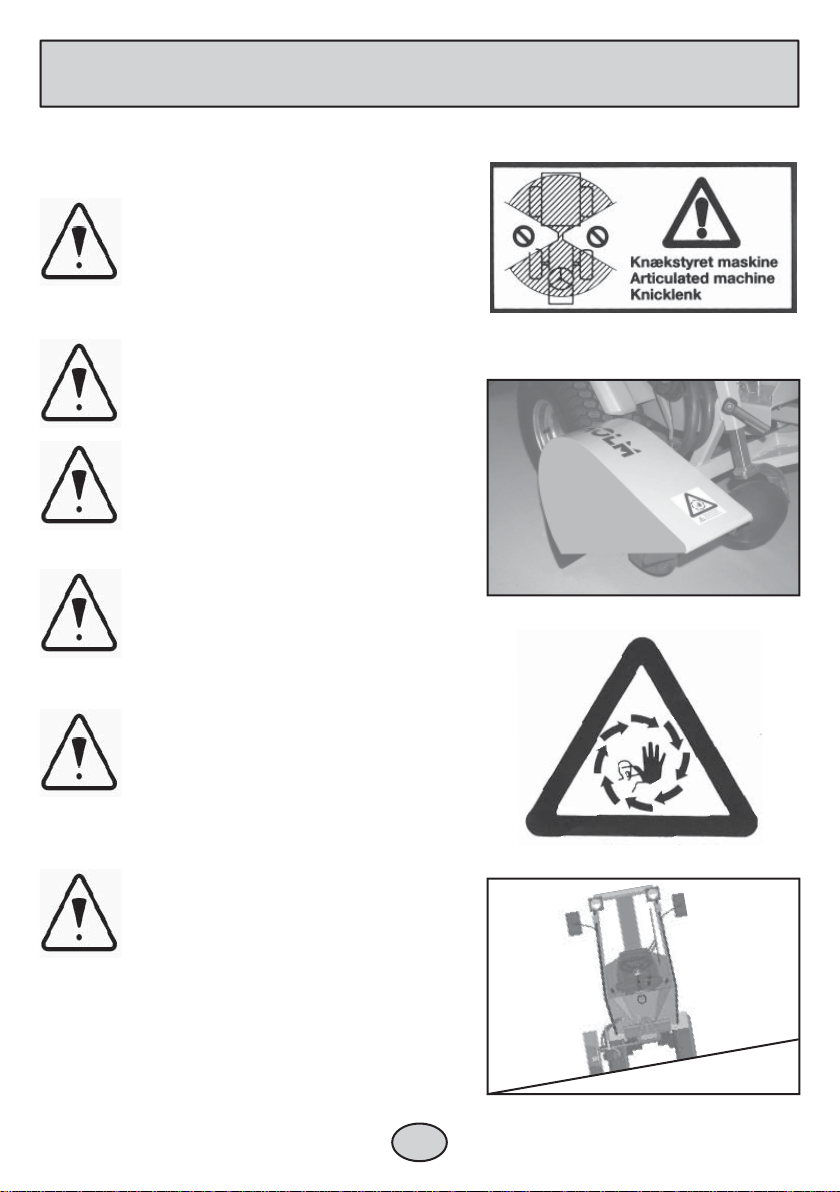

1.1 Safety
Make sure no one stands too
close to the machine:
Make sure there is no one close to the
machine when it is in use, as there is
danger of crushing.
N.B:
As it is articulated, the rear end of the
machine swings out when turning. Make
sure no one is near the machine as there is
a danger of crushing. (Picture 1)
Avoid finger injuries!
Keep your hands and fingers away from
areas where there is danger of crushing.
Warning! Rotating parts!
Make sure no one puts their fingers or toes
under the edger while it is moving to avoid
personal injuries. (Picture 2 & 3)
Avoid roll-overs:
Do not drive the machine in a place where
it can slide, tip or roll.
Do not drive on slopes with an incline of
more than 10°. (Picture 4)
Reduction of noise and
energy consumption:
It is recommended not to drive with a
higher engine speed than necessary, to
reduce the noise and the energy
consumption.
1. General information
Prevent people from standing
in the working area.
Warning! Rotating parts!
Warning label
Do not drive on slopes with
an incline of more than 10°

55
1.2 EC Declaration of Conformity for Machinery
Manufacturer:Egholm Maskiner A/S
Address: Transportvej 27, DK-7620 Lemvig
Phone: [phone]
Hereby declares that
- Machine: Lawn Edger Type: VKS 1
Serial no.: _____________________________ Year: _______________
- has been manufactured in conformity with the provisions of the Machinery
Directive, Directive 98/37/EU
The Egholm 2100 fitted with the cab FH 2100 (ROPS approved)
- has been tested at the Danish Institute of Agricultural Sciences at Bygholm in
conformity with directive 86/298/EEC concerning rear mounted roll-over
protection structures of narrow-track wheeled agricultural and forestry
tractors.
Place: Lemvig
Date: ___________________
Signature: ___________________
Managing Director Kaj Egholm
1. General information

666
1
1
2
2
3
3
1
1
2
2
3
3
B
B
H
H
L
L
1. General information
Side view
Front view
Location of model plate
1.3 Technical data
Dimensions:
All measurements
in mm Assembled: Storage dimension:
Length (L): 2,580 mm 600 mm
Width (W): 1,140 mm 820 mm
Height without cab (H): 515 mm 360 mm
Height with cab: 1,935 mm
Technical data:
Type description: VKS 1
Weight of the Lawn Edger: 40 kg
Ground clearance below blade, raised: 100 mm
Max. cutting depth: 95 mm
N.B!
Specifications may be changed without prior notice.
Bemærk:

7
1
1
2
2
3
3
4
4
D3
D3
D2 D1
D2 D1
2. Instructions for use
A-frame of the machine vertical
Locking handle on the A-frame - open
D-connectors
Rubber strap

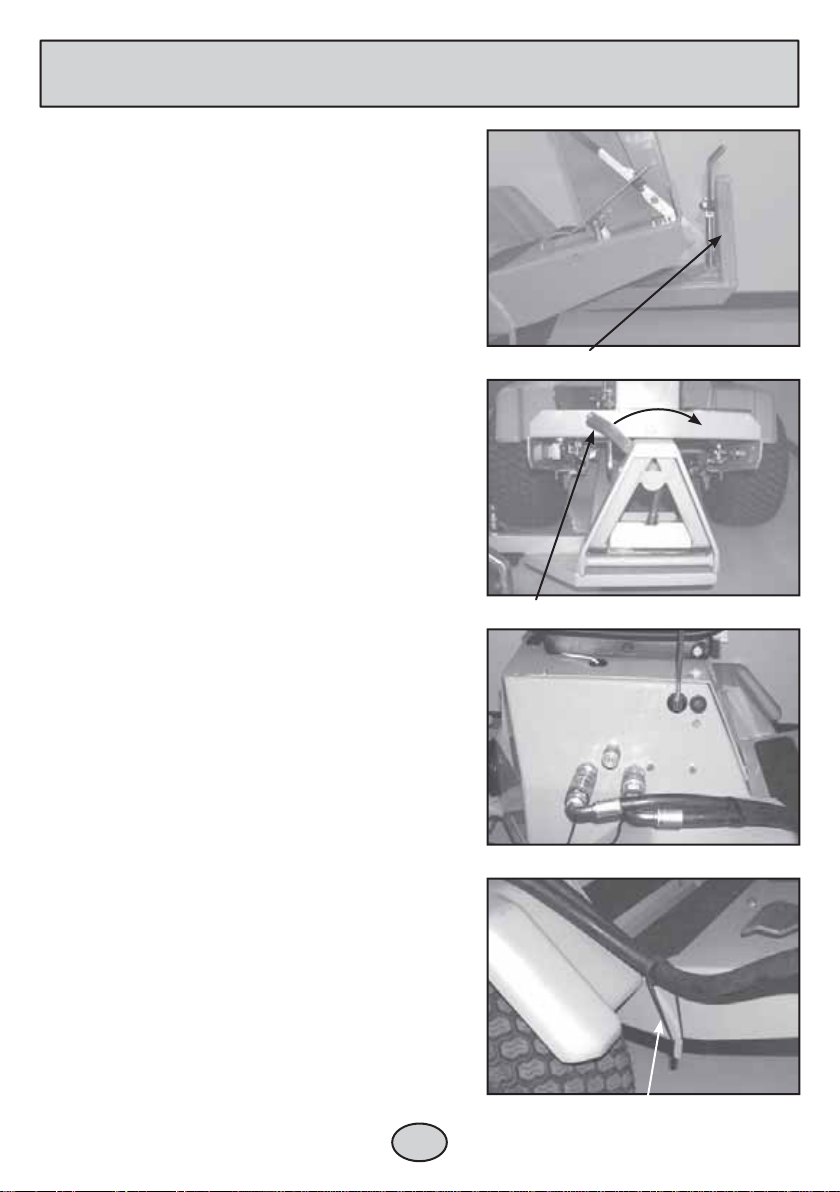

2.1 Assembly / disassembly
1. Keep the hydraulic hoses clear and free from dirt
when the Lawn Edger is being fitted.
2. The locking handle on the A-frame of the basic ma-
chine must be in the open position, and the A-frame
must be raised so that it is vertical when viewed from
the side. (Picture 1)
3. Drive the machine right up to the Lawn Edger. (The
Lawn Edger must be positioned to the right of the
machine, see the front cover)
4. Hook the Lawn Edger manually onto the
A-frame of the machine.
5. Lock the Lawn Edger in place with the locking
handle on the A-frame. (Picture 2)
6. Stop the machine. (See the operator’s manual for the
basic machine, section 2.2)
7. Fit the hydraulic hoses to the D-connectors on the
right-hand side of the machine. (Picture 3)
8. Attach the hydraulic hoses with the rubber ring under
the running board to ensure it runs correctly over the
screen. (Picture 4)
Disassembly:
Follow the procedure for assembly in reverse order.
Put the protective caps on the snap couplings
to protect them from dirt.
L
o
c
k
e
d
L
o
c
k
e
d
Right side
Right side

8
1
1
2
2
3
3
D
D
A B C
A B C
2.2 Before start-up
During transport lock the Lawn Edger in the raised
position with the transport lock. (Picture 1)
Warning!
Do not drive over well covers or similar
obstacles, to avoid damaging the edger.
2.3 Start-up
1. Start the machine. (See the operator’s manual for the
basic machine, section 2.2)
2. Start the Lawn Edger by pushing lever D on the right-
hand side of the machine up to position 1. (Picture 2)
3. Lower the Lawn Edger by pushing lever A on the
left-hand side of the machine down to position 2.
(Picture 3)
4. It is recommended to hold the lever down for about
2 seconds, as after this the edger is in a floating
position and follows the contours of the ground.
Warning!
Make sure there is no one close to the
machine when it is running.
N.B!
When turning, the rear of the machine
swings out, so there is a risk of crushing or
collision.
It is recommended not to drive with a
higher engine speed than necessary, to
reduce the noise and the energy
consumption.
2. Instructions for use
Transport lock
Start the Lawn Edger - lever D in pos. 1
Lower the Lawn Edger - lever A in pos. 2
Right side
Right side
Left-hand side
Left-hand side
L
o
c
k
e
d
L
o
c
k
e
d

9
1
1
2
2
3
3
4
4
D
D
A B C
A B C
2. Instructions for use
Stop Lawn Edger - lever D in pos. 0
Raise the Lawn Edger - lever A in pos. 1
Lock the Lawn Edger in raised position
Loosen the handle - adjust the
height of the gauge wheel
2.4 Adjustment
Adjust the working depth to suit the conditions.
Adjusting the working depth:
1. Stop the Lawn Edger by pushing lever D on the
right-hand side of the machine down to position 0.
(Picture 1)
2. Raise the Lawn Edger by pushing lever A on the left-
hand side of the machine up to position 1. (Picture 2)
3. Lock the Lawn Edger in raised position with the
transport lock. (Picture 3)
4. Stop the machine.
5. Loosen the handle. (Picture 4)
6. Adjust the height of the gauge wheel to the working
depth required.
7. Tighten the handle again.
Right side
Right side
Left-hand side
Left-hand side
L
o
c
k
e
d
L
o
c
k
e
d
L
o
o
s
e
n
L
o
o
s
e
n

10
1
1
2
2
3
3
4
4
2. Instructions for use
Remove the protective guard – bolts
Shaft, rotating edger disc and bolts
Remount and fasten the reversed shaft
Replace the rotating edger disc
2.5 Changing the blade
The blade on the Lawn Edger is changeable, which
means that you can choose whether to cut inwards or
outwards. The blade is changed according to the
placing of the machine in relation to the edge of the
lawn.
1. Remove the protective guard. (Picture 1)
2. Unscrew the bolts which hold the rotating edger disc
and the bolt which holds the shaft. (Picture 2)
3. Remove the rotating edger disc and the shaft.
(Picture 2)
4. Remount and fasten the reversed shaft.
Do not forget to lubricate the shaft, as this allows it to
be removed again later. (Picture 3)
5. Mount and fasten the other rotating edger disc – not
the one just removed. (Picture 4)
6. Remount the protective guard.
Blade for cutting outwards.
Cutting edge
Blade for cutting inwards.
Cutting edge

11
1
1
2
2
3
3
3. Service and maintenance
Remove the protective guard – bolts
Nuts which hold the blades
Bolts which hold the rotating edger disc
3.1 Cleaning
Daily cleaning and maintenance will extend the lifetime of
both the machine and the attachment.
Clean the Lawn Edger with water after use.
3.2 Maintenance
Changing the cultivator blades:
1. Stop the machine.
2. Remove the Lawn Edger. (See Section 2.1)
3. Remove the protective guard. (Picture 1)
4. Unscrew the nuts and bolts that hold the
blades in place and remove the blades. (Picture 2)
5. Fit new blades by reversing the procedure.
Replacing the rotating edger disc:
1. Stop the machine.
2. Remove the Lawn Edger. (See Section 2.1)
3. Remove the protective guard. (Picture 1)
4. Unscrew the bolts which hold the rotating edger disc
and remove the disc. (Picture 3)
5. Fit a new disc by reversing the procedure.

12
1
1
3. Service and maintenance
The screws which hold the wearing block
Replacing the wearing block:
1. Stop the machine.
2. Remove the Lawn Edger. (See Section 2.1)
3. Unscrew the screws and nuts which hold the
wearing block and remove the block. (Picture 1)
4. Fit a new wearing block by reversing the procedure,
note that the cut-out in the wearing block must face
the disc and the shaft.
New blades, discs and wearing blocks can be ordered
from an authorised Egholm distributor.
Winter storage:
When it is time to store the Lawn Edger for the winter,
we recommend the following:
1. Remove any loose paint and repaint any
damaged areas.
2. Spray the Lawn Edger with preservative oil.

13131313
4. Conditions4. Conditions
4.1 Warranty
The warranty period for the materials and manu-
facture of the Lawn Edger is 12 months from the
date of purchase.
In case of errors or defects on the machine within
the warranty period, Egholm Maskiner A/S will
carry out the necessary repairs without charge
for materials and working hours in accordance
with the terms and conditions listed below. The
customer is to cover the costs for transportation.
The scope of warranty:
1. The Egholm warranty is only valid on
presentation of the original receipt supplied
with model description, serial number and
date of purchase.
2. Regular checks, adjustments, services and
technical alterations are not covered by the
guarantee.
3. All inquiries concerning the warranty are to be
addressed to the place where the machine
was purchased.
4. This warranty does not cover faults and
defects which cannot be traced back to
defects in material or production errors.
5. Egholm Maskiner A/S reserves the right to
make improvements and design-related
alterations to the machine without being
obliged to modify previously delivered models
in relation hereto.
6. This warranty is valid for persons who have
legally acquired the machine within the
warranty period.
The guarantee does not cover:
* Wear and tear, accidents, damage to the
equipment caused by operating errors,
improper utilization of the machine, changes
to the construction of the machine or use of
non-Egholm spare parts or implements.
* Machines with illegible serial numbers.
* Damage caused by force majeure such as
lightning, flood, fire, war, civil disturbance etc.
or other causes over which Egholm Maskiner
A/S has no control.

1414
4. Conditions
4.2 Conditions of complaint
All inquiries regarding the machine should be made to the distributor from whom the machine was
purchased. This applies to inquiries concerning normal use, service, maintenance and spare parts
as well as to any complaints.
If there are questions that the distributor cannot answer, please do not hesitate to contact Egholm
Maskiner A/S directly. Also feel free to contact us with suggestions or requests for special imple-
ments and/or features for the machine. We wish you many years of safe and satisfied use of your
machine.
Best regards
Egholm Maskiner A/S - Transportvej 27 - DK -7620 Lemvig, tel: [phone], fax: [phone]
4.3 Disposal
When – many years from now – your Egholm Lawn Edger comes to the end of its working life, it
should be disposed of in a responsible manner and conform with the relevant disposal regulations.
1. Used hydraulic oil is to be disposed of at an approved waste disposal facility or site.
2. Remove all plastic and rubber parts and discard in a dustbin.
3. After the parts mentioned have been removed, the machine is ready to be handed over to one of
your local approved scrap merchants.

15
Notes

Egholm Maskiner A/S * Transportvej 27 * DK-7620 Lemvig
Tel.: [phone] * Fax: [phone]
www.egholm.dk * [email protected]
