The Egholm salt and sand spreader is a sturdy machine
that keeps slippery paths out of your way!
The salt and sand spreader is a made of robust
components. The spreader plate is extremely hard wearing
and can handle salt, sand and gravel of 8 mm.
The salt and sand spreader is designed so that every part
that is in contact with the material being spread is made
of stainless steel, glass bre or durable plastic.
The salt and sand spreader ensures precise and uniform
spreading – and even thawing of the ground, for example
cycle paths, pavements or parking areas. It is manually
set, depending on weather conditions and driving speed,
spreading only the sand and salt that is needed.
The spread width can be adjusted from 1–5 m.
An optional cover to stop material from getting wet is
available.
The salt and sand spreader is supplied with a specially-
developed frame that makes it very easy for one person to
t or remove the attachment.
The salt and sand spreader can easily be combined with
the dozer blade, snow blower and snow sweeper. The City
Ranger 2250 clears snow while simultaneously leaving a
safe and passable path behind.
Useful tips
Make sure the snap couplings are clean before attaching,
as this protects the hydraulic system.
Daily cleaning and maintenance will extend the lifetime of
both the machine and the attachment.
Contents

4
3
4Operator’s manual City Ranger 2250 Salt and sand spreader
1.1 Safety

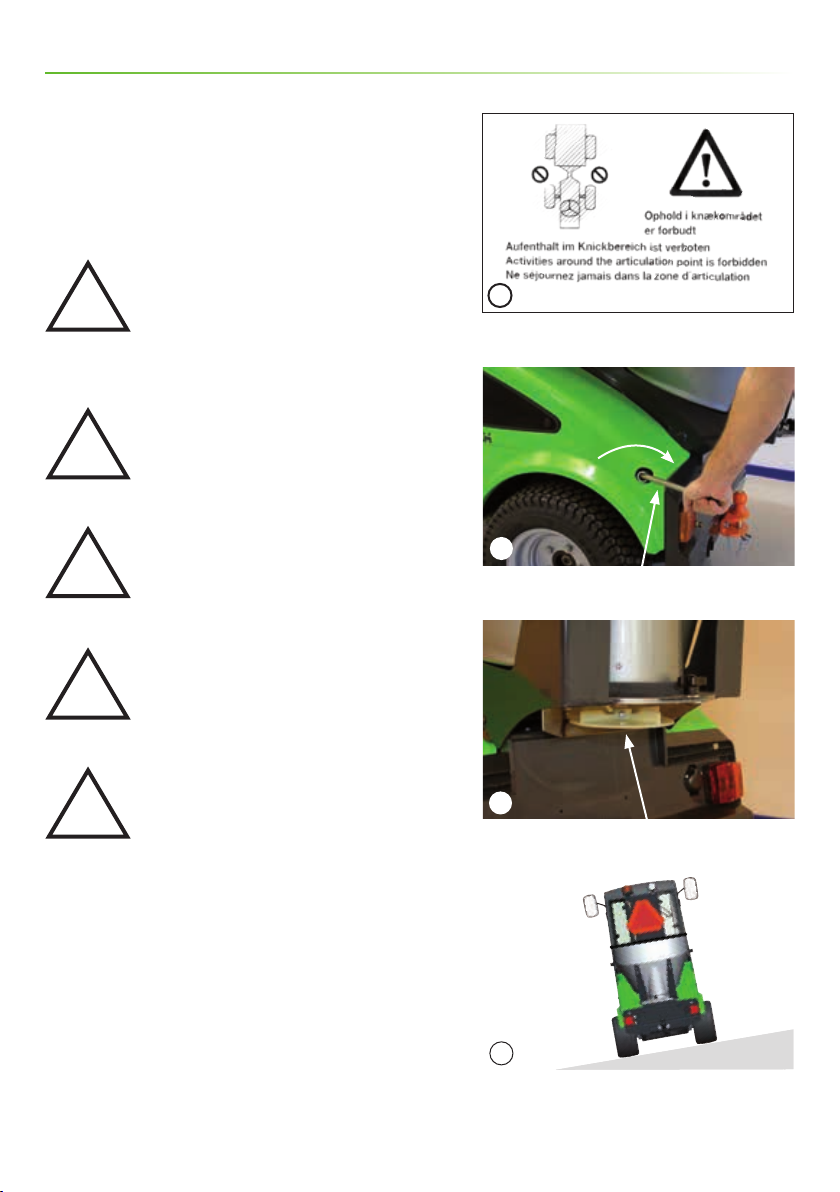

Make sure no one is standing close to the machine:
Make sure that no one is near the machine while it is in use
as there is a danger of crushing.
N.B:
As it is articulated, the rear end of the
machine swings out when turning. Make
sure that no one is standing near the
machine while it is in use. (Picture 1)
Make sure the salt and sand spreader
is secure:
Check the salt and sand spreader is rmly
secured to the machine. (Picture 2)
Avoid accidents at the rear of the salt
and sand spreader:
Keep ngers and feet well away from the
rotating spreader plate. (Picture 3)
Keep clear of the salt and sand
spreader:
Make sure there is no one close to the salt
and sand spreader when it is in use.
Avoid roll-overs:
Do not drive the machine in a place
where it can slide, tip or roll. Do not drive
on slopes with an incline of more than
10°. (Picture 4)
General information
!
!
!
!
!
Do not drive on slopes with an incline of more than 10°
1
2
4Max. 10°
Prevent people from standing in the working area
Locking handle
Spreader plate
L
o
c
k
e
d

5
1
2
5
Operator’s manual City Ranger 2250 Salt and sand spreader
Risk of injury from lifting bar:
Careful attention must be given when
lowering the salt and sand spreader. Keep
a secure hold of the lifting bar until the
salt and sand spreader is resting on the
machine. (Picture 1)
Safety grill:
The safety grill must be tted before
the salt and sand spreader can be used.
(Picture 2)
Loading salt and grit:
Do not ll the container all the way to the
rim.
!
Salt and sand spreader being lowered
onto the machine.
Safety grill
!
General information

66 Operator’s manual City Ranger 2250 Salt and sand spreader
General information
1.2 EC Declaration of Conformity for Machinery
Manufacturer: Egholm A/S
Address: Transportvej 27 · DK-7620 Lemvig
Telephone: [phone]
hereby declares that
The machine: Salt and sand spreader 2250
Type: 22SG
· has been manufactured in conformity with the provisions of the Machinery
Directive, 2006/42/EU
Place: Lemvig
Date:
Signature:
Knud Olsen, Senior Engineer

77
Operator’s manual City Ranger 2250 Salt and sand spreader
1.3 Technical data
Dimensions
Length (L)
Width (W)
Height with cab (H)
Weight
Frame weight
Tank volume
Spread width
Loading height
Assembled:
2,690 mm
1,070 mm
1,960 mm
70 kg
31 kg
240 L
1 - 5 m
1,290 mm
Storage dimensions:
1,250 mm
880 mm
Technical data:
Type 22 SG
N.B:
Specications may be changed without prior notice.
Spreading material must have a radius of 8 mm. Material that
is larger can become stuck and may damage the salt and sand
spreader.
More wear and tear must be expected when spreading gravel
rather than salt and sand.
Extra equipment:
09723170 Cover
General information

8
1
2
3
4
8Operator’s manual City Ranger 2250 Salt and sand spreader
2.1 Assembling the frame
Assemble the frame using the two supplied bolts. It is now
ready for use. (Picture 1)
2.2 Assembly/Disassembly
Fitting the salt and sand spreader:
1. Back the machine up to the salt and sand spreader
mounted on the frame.
2. Stop the machine.
3. Check that the locking handle is in the unlocked
position. The hooks must be positioned as shown in the
picture. (Picture 2)
4. Check that the hydraulic couplings are clean and
dirt-free. If not, clean with a dry cloth. (Picture 3)
5. Push the salt and sand spreader in over the carrier
console. (Picture 4)
The salt and sand spreader must be lined up with the
centre of the machine.
The salt and sand spreader must be empty before being
tted or removed.
2 bolts on the tank frame
Locking lever – unlocked

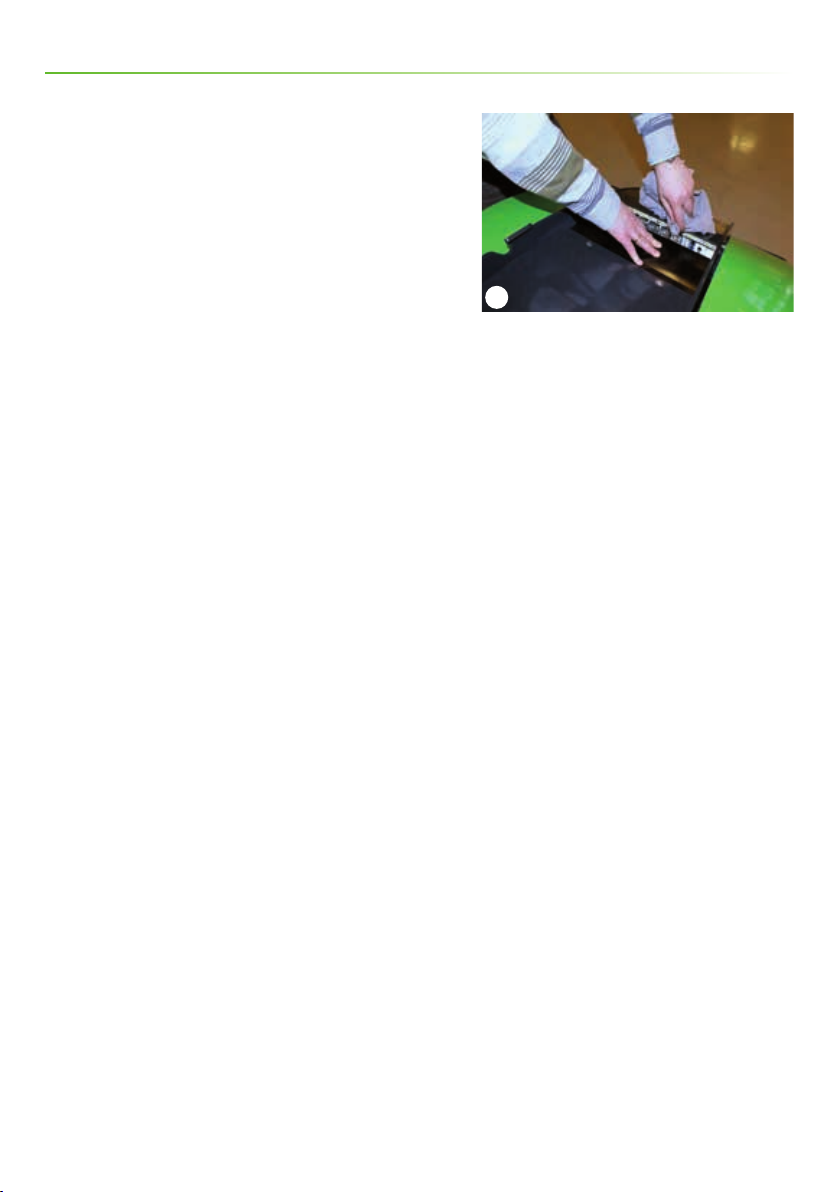

Cleaning the couplings
Operator’s manual
Mounting the salt and sand spreader

9
1
2
3
9
Operator’s manual City Ranger 2250 Salt and sand spreader
6. Press the lifting bar down, push the locking ratchet to
free the lifting bar from the catch and lower the salt and
sand spreader down onto the machine. (Picture 1)
7. Check the salt and sand spreader is rmly secured to the
machine. (Picture 2)
8. Release the frame from the salt and sand spreader.
9. Push the locking handle grip in and turn anti-clockwise
and then pull the locking handle out and swing it up.
(Picture 2)
10. Attach the salt and sand spreader securely to the
machine by turning the locking handle clockwise 1/3 of
the way around. (Picture 3)
11. Push the locking handle in and turn it clockwise.
Warning!
Avoid crushing ngers and keep a secure
hold on the locking handle when the salt
and sand spreader is being lowered.
Removing the salt and sand spreader:
Follow the procedure for tting in reverse order.
Locking handle grip Lifting bar
Pull out locking handle
Turn locking handle
Operator’s manual
L
o
c
k
e
d
!

10
1
2
3
10 Operator’s manual City Ranger 2250 Salt and sand spreader
Spreader plate
2.3 Start-up
1. Start the machine.

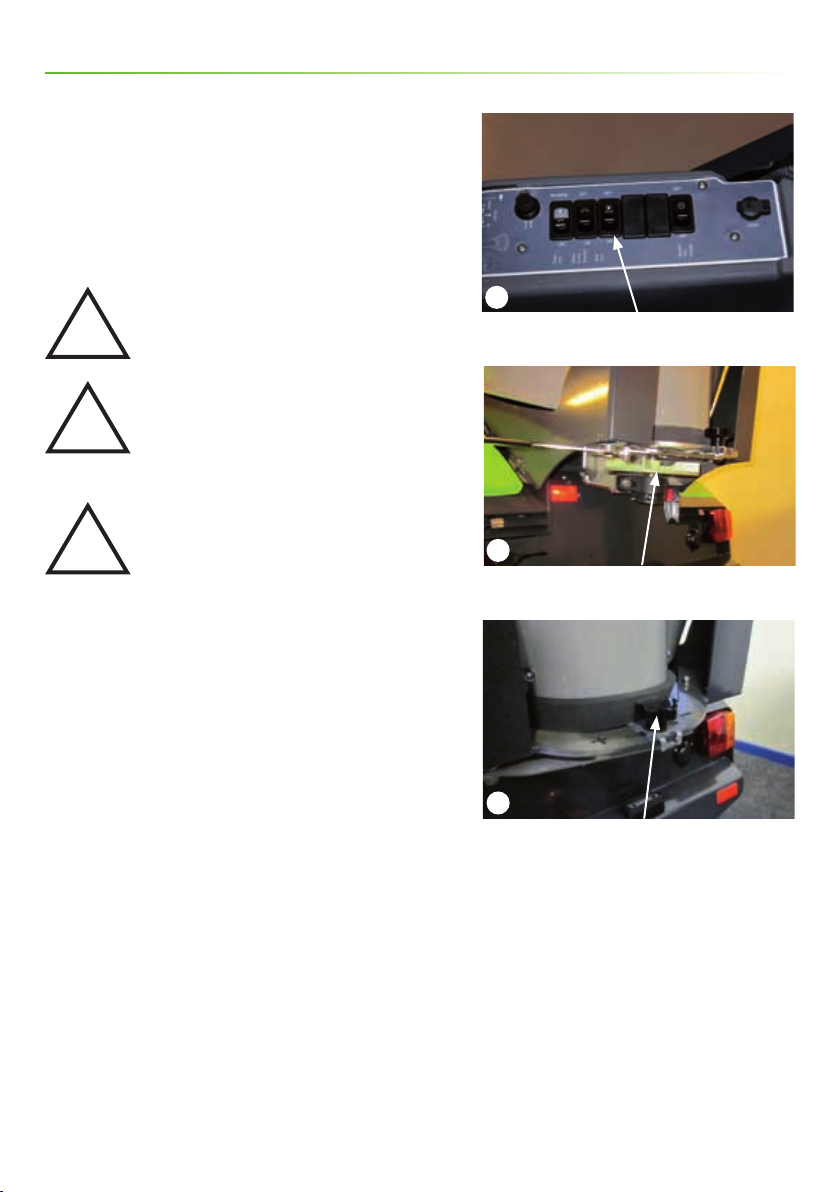

2. Start the salt and sand spreader by activating PTO-rear.
(Picture 1)
Warning!
Make sure no one is standing close to the
machine when it is in use.
N.B!
When turning, the rear of the machine
swings out, so there is a risk of crushing
or collision.
Avoid accidents at the rear of the salt
and sand spreader:
Keep ngers and feet well away from the
rotating spreader plate. (Picture 2)
2.4 Adjusting the spread quantity and
width
Spread amount:
The spread quantity can be adjusted at the rear of the salt
and sand spreader.
Turn handle. (Picture 3)
a. Turn the feed plate clockwise to reduce the supply.
b. Turn the feed plate anti-clockwise to increase the
supply.
Turn handle
Operator’s manual
PTO-rear
!
!
!

11
1
11
Operator’s manual City Ranger 2250 Salt and sand spreader
Adjusting the spread width
Spread width:
The spread width is the width at which the salt and
sand spreader covers the ground.The material is spread
in a semi-circular direction to ensure equal amounts of
material on either side of the machine

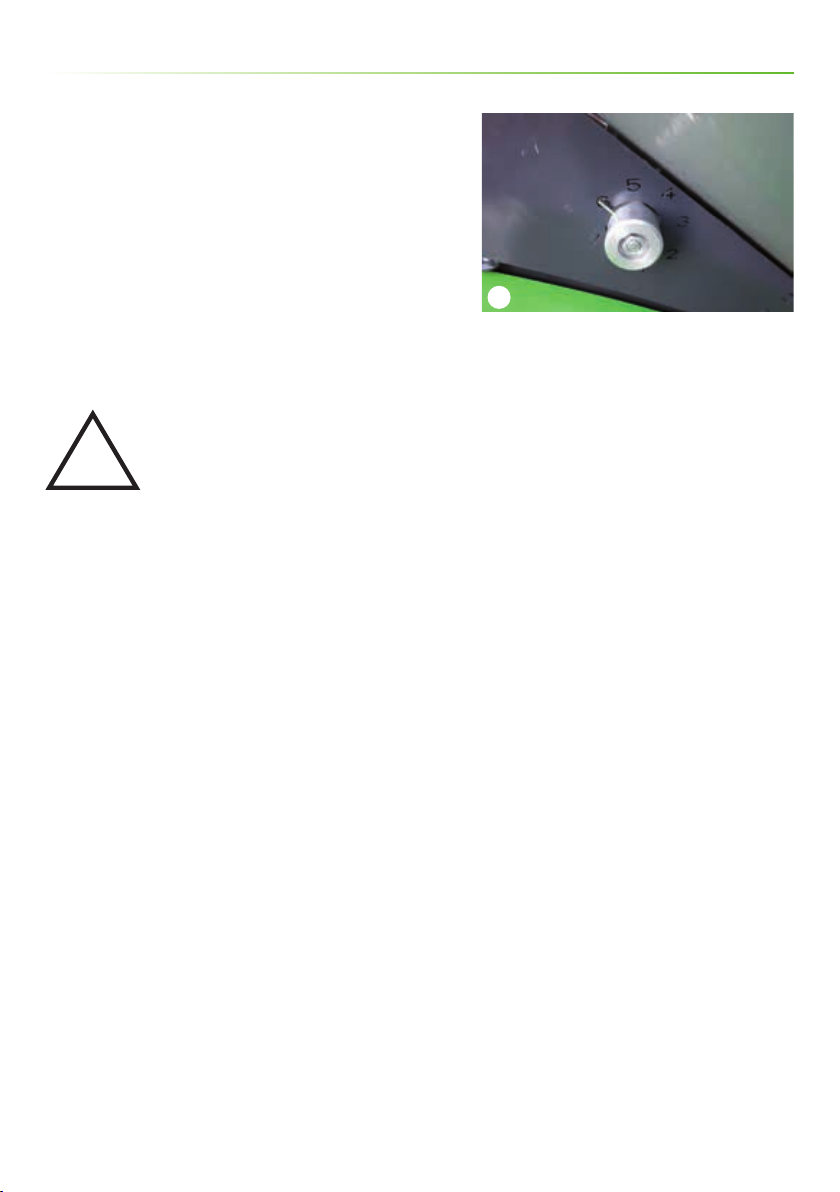

To set clearing width and speed, turn the handle on the
left-hand side of the salt and sand spreader. (Picture 1)
The handle is variably adjustable from 1 to 7, where 1 is
the narrowest clearing width. (For clearing widths, see
spreader table)
Important!
Spreading material must have a radius
of 8 mm. Material that is larger can
become stuck and may damage
the salt and sand spreader.
When spreading gravel, it may be an
advantage to detach the two upper stir
arms and all the chains to avoid excess
wear and tear on the tank. (Should
be made at an authorised Egholm
distributor).
More wear and tear must be expected
when spreading gravel rather than salt
and sand.
Tank frame
The tank frame must always be positioned on solid and
level ground before the salt and sand spreader is tted/
disconnected. Moving the salt and sand spreader while
tted to the frame must only take place on solid and level
ground.
2.5 Application
The salt and sand spreader may only be used with the City
Ranger 2250.
The salt and sand spreader must not be used to manure or
fertilise elds, or to spread lime.
It must not be used to store corrosive materials.
Operator’s manual
!

12
1
12 Operator’s manual City Ranger 2250 Salt and sand spreader
Clean the couplings with a cloth
Service and maintenance
3.1 Cleaning
Cleaning the salt and sand spreader:
Daily cleaning and maintenance will extend the lifetime of
both the machine and the attachment.
It is recommended that the salt and sand spreader and
machine are cleaned with water immediately after use
to remove salt residues and waste in the container. Avoid
high-pressure cleaning of the snap couplings.
Wipe snap couplings clean with a cloth. (Picture 1)
Remember to clean the machine thoroughly.
Storage outside the season:
When the salt and sand spreader is to be stored outside
the season, the following steps are recommended:
1. Remove any loose paint and repaint any damaged areas.
2. Spray the salt and sand spreader with protective
lubricant.
If the salt and sand spreader is to be stored for long
periods or when the season is over, it is important to clean
it to prevent rust from forming.

1313
Operator’s manual City Ranger 2250 Salt and sand spreader
4.1 Warranty
The warranty period for the materials and manufacture of this salt and sand spreader is 12
months from the date of purchase.
In the case of errors or defects on the machine within the warranty period, Egholm will carry out
the necessary repairs without charge for materials and working hours in accordance with the
terms and conditions listed below.
The scope of warranty:
1. The Egholm warranty is only valid on presentation of the original receipt, supplied with model
description, serial number and date of purchase.
2. Regular checks, adjustments, services and technical alterations are not covered by the
warranty.
3. All inquiries concerning the warranty are to be addressed to the distributor, from whom the
machine was purchased.
4. This warranty does not cover faults and defects which cannot be traced back to defects in
material or production errors.
5. This warranty is valid for persons who have legally acquired the machine within the warranty
period.
6. In the event of failure to perform and substantiate service in accordance with the applicable
instructions, Egholm reserves the right to reject any claim made within the warranty period.
7. Egholm reserves the right to make improvements and design-related alterations to the
machine without being obliged to modify previously delivered models in relation hereto.
The warranty does not cover:
· Wear and tear, accidents, damage to the equipment caused by operating errors, negligence,
changes to the construction of the machine or use of non-Egholm spare parts or attachments.
· Machines with illegible serial numbers.
· Damage caused by force majeure such as lightning, ood, re, war, civil disturbance, etc. or
other causes over which Egholm has no control.
Conditions

1414 Operator’s manual City Ranger 2250 Salt and sand spreader
4.2 Complaints
All inquiries regarding the machine should be made at the distributor from whom the machine
was purchased. This applies to inquiries concerning normal use, service, maintenance and spare
parts, as well as to any complaints.
We wish you many years of safe and satised use of your machine.
Best regards
Egholm A/S
4.3 Disposal
When, in many years from now, your salt and sand spreader has reached the end of its working
life, it should be disposed of in a responsible manner that conforms with relevant disposal
regulations.
1. Used hydraulic oil is be disposed of at an approved waste disposal facility or site.
2. Remove all plastic and rubber parts and dispose of.
3. After the parts mentioned have been removed, the machine is ready to be handed over to one
of your local approved scrap merchants.
Conditions

1515
Operator’s manual City Ranger 2250 Salt and sand spreader

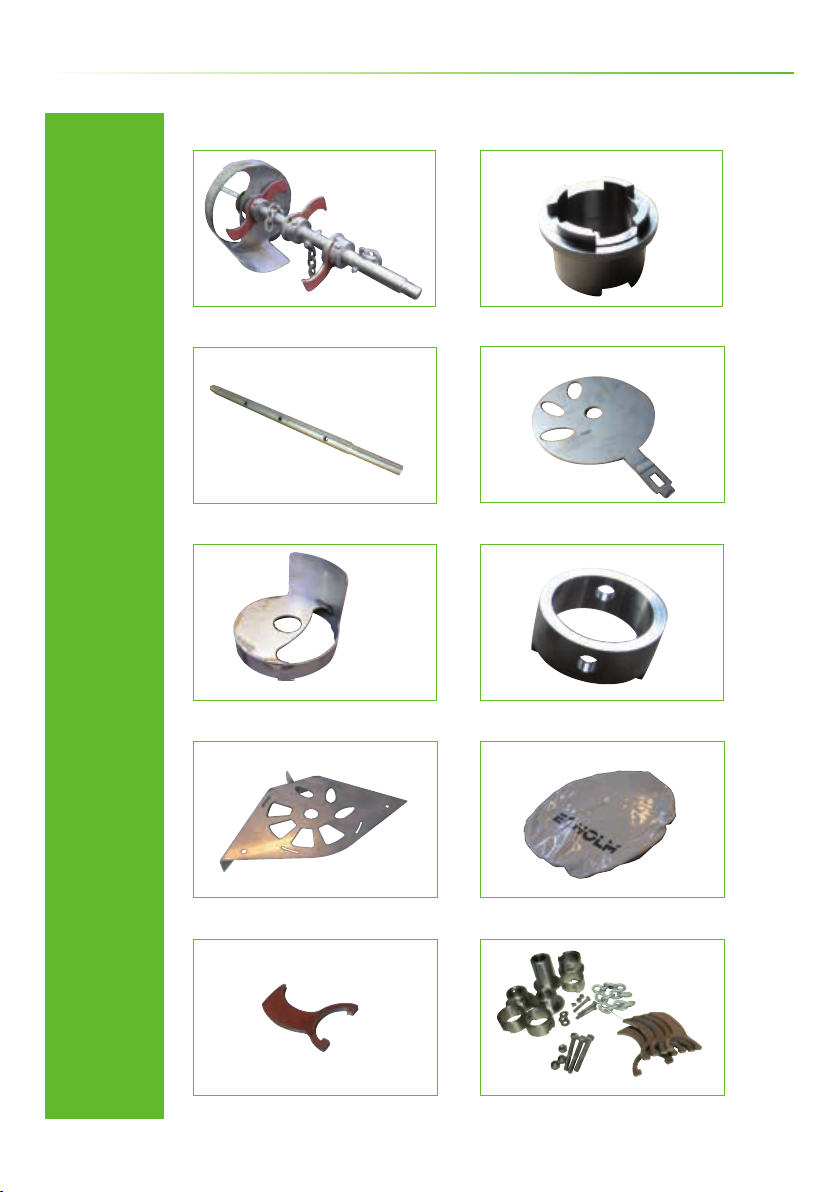

Wearing parts
80600010 Complete Stirrer Set
09923620 Shaft
41203520 Spreader housing
41203510 Base plate
5.1 Wearing parts - City Ranger 2250 salt and sand spreader
41110100 Spreader adjusting plate
09923630 Lower bushing part
41108300 Stirrer arm
09923610 Upper bushing part
09723170 Cover
90501971 Stir Kit with Hub

1616 Operator’s manual City Ranger 2250 Salt and sand spreader

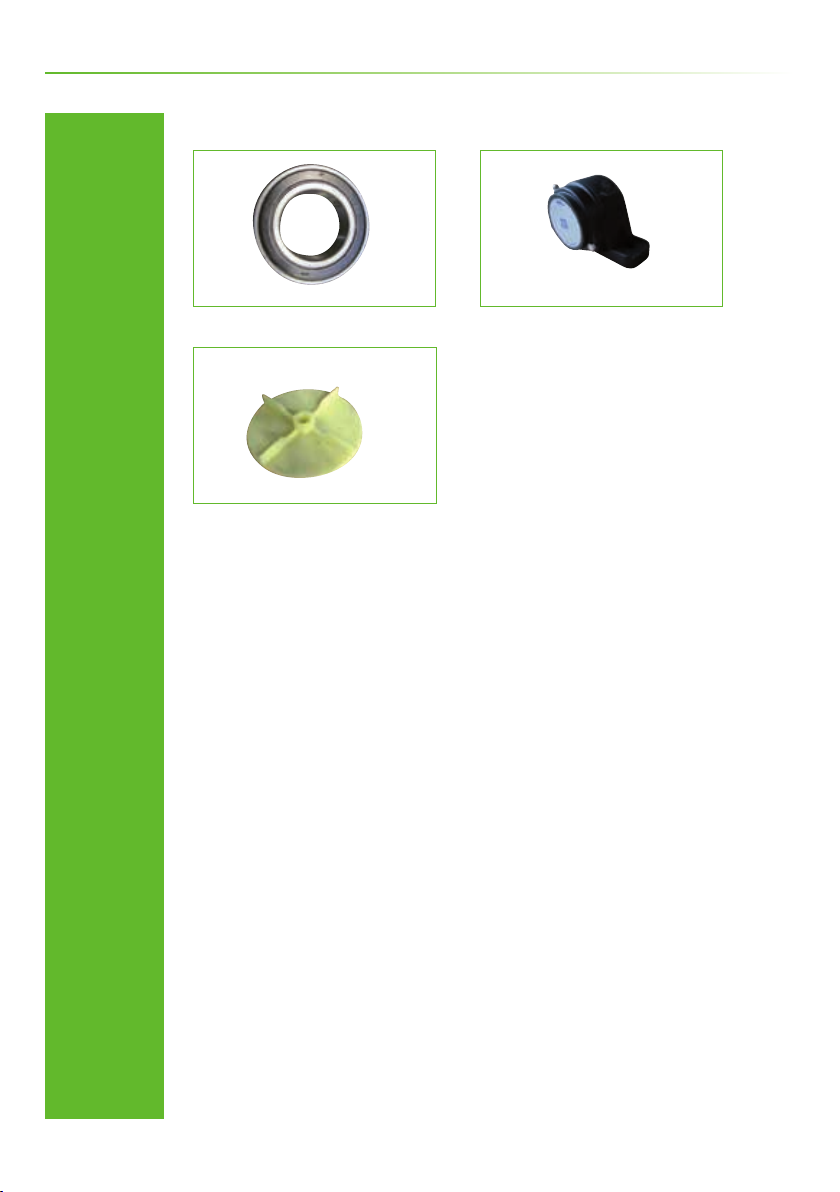

01700030 Top bearing
09722680 Spreader plate
01700260 Bottom bearing
Wearing parts
5.1 Wearing parts - City Ranger 2250 salt and sand spreader

1717
Operator’s manual City Ranger 2250 Salt and sand spreader
Notes

1818 Operator’s manual City Ranger 2250 Salt and sand spreader
Notes

1919
Operator’s manual City Ranger 2250 Salt and sand spreader
Notes

Egholm A/S
Transportvej 27
7620 Lemvig
T. [phone]
F. [phone]
www.egholm.eu
[e-mail]
70101301-01 EN
