EGi play&sound 41515 User manual

41515
41513
41020
41518
41517
41018
41019
41514
en instruction manual

LN
230 V~
1308.1
230 V~
9 90
2 4
PIN 1
IN
1
OUT
5
IN
6
IN
7
IN
8
IN
5
OUT
6
OUT
7
OUT
8
OUT
+ 
R L
N L R L
+R  R +L L
L+ L R+ R
RIN LIN GND PIN
40425
L- LeftR- Right
115/230 V~; +-15%; 50/60 Hz
115/230 V~
L- Left
R- Right
41515
en instruction manual

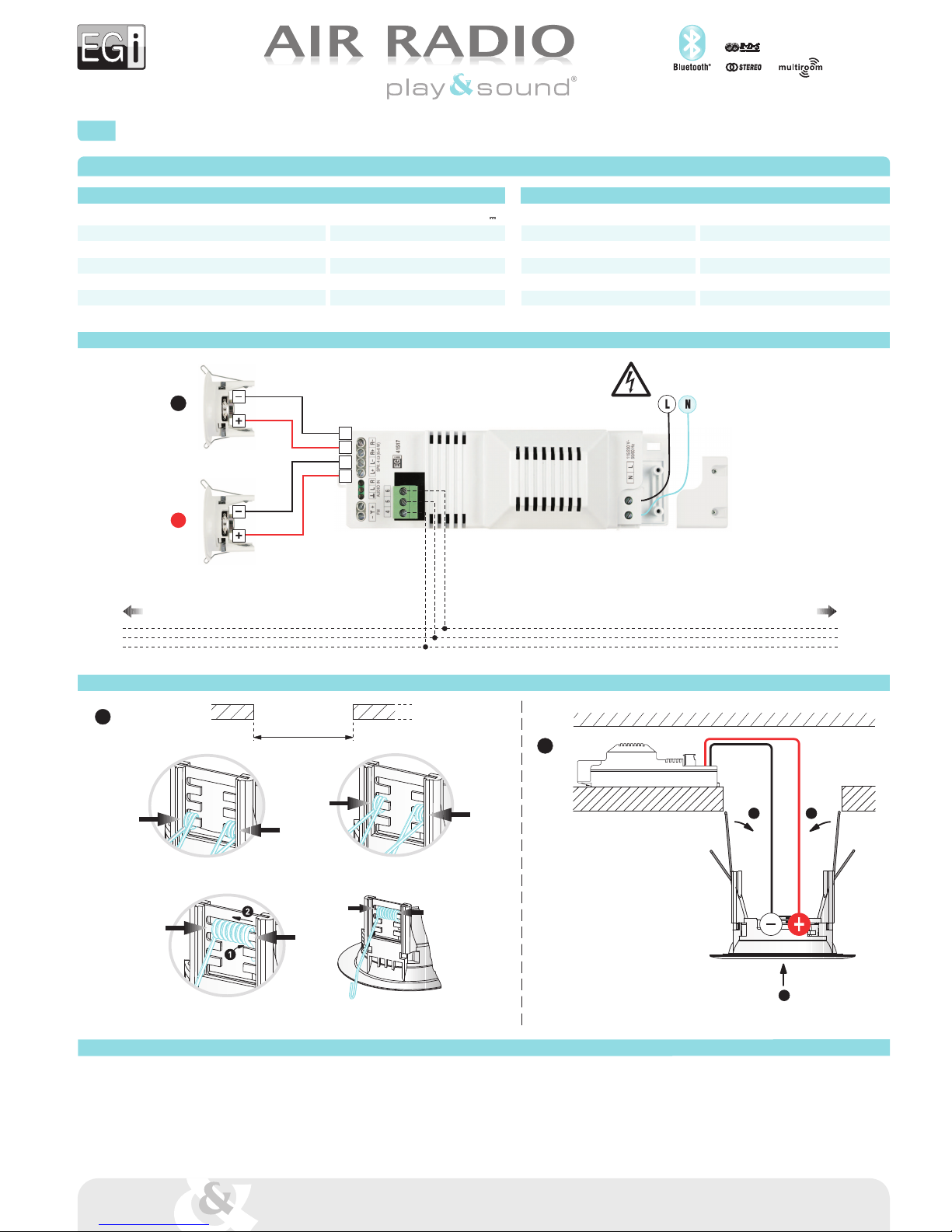

Wiring diagram
PLAY & SOUND series products
References
41513 Wall radio 2+2 W stereo with FM RDS and mains voltage from 115 to 230 V~; 50/60 Hz.
41514 Remote control for the new PLAY & SOUND ref. 41517, 41018 and 41019 products.
41515 Bluetooth®sound unit with AUX/TV and PIN inputs. 2+2 W, 115-230 V~.
41517 Master sound amplifier 6+6 W with bluetooth®, FM/RDS, multiroom, and AUX IN signals on ballast format.
41518 Auxiliary module for 41513 Wall Radio with line-in Input, USB memory player, headphones output and bluetooth®.
Note
If its necessary to amplify the output power of the 41515 sound unit, we recommend using the following power amplifiers:
03001 (3+3 W at 4 W)
E17G/D (20 W mono at 4 Wor 10+10 W stereo at 2 W)
40425 (30 W mono at 8 Wor 15+15 W stereo at 4 W)
40430 (100 W mono at 2 Wor 50+50 W stereo at 4 Wor 25+25 W stereo at 4 Wat the same time that 50 W at 2 Wfor
mono subwoofers).
NOTE:
This example shows the stage 40425 connection but also can be connected with
models 03001, E17G/D and 40430. If you choose the power stage E17G/D, it
is necessary to use the "45" as negative or ground connection.
Impedance
16 W
Impedance
16 W
Audio coaxial cable.
Analog TV audio output from jack to
headphones or SCART connector.
Impedance
4 W
PIN input from audio calls channel "1"
or MILLENNIUM audio output "OUT +".
The configuration with power stages
can be made with speakers in parallel
or without speakers at the output of
the sound unit 40515.
Impedance
4 W
Technical specifications
41515 Bluetooth®control unit with AUX/TV and PIN
Display Multicolor led
Main power input 115/230 V~; 50/60 Hz
Consumption (max) 7 W
Consumption stand-by 0.2 W
Max. power 2+2 WRMS audio
Housing ø60 mm box
Dimensions (mm) 45 x 45 x 52
Sensitivity inputs AUX and TV 500 mVRMS
Sensitivity input PIN 3 V~ RMS + 7 V
Input impedance 10 KW
Loudspeaker impedance (min) 16+16 W

LN
+ 
R L
N L R L
+R  R +L L
L+ L R+ R
40425
GNDANT
41513
41020
115/230 V~
+-15%; 50/60 Hz
115/230 V~
+-15%; 50/60 Hz
L- LeftR- Right
Technical specifications
41513 Wall Radio FM/RDS module (with optional bluetooth®, input & USB)
41020 Wall Radio FM/RDS Kit (with bluetooth®, line input IN,USB & headphones)
en instruction manual
Display LCD graphic
Supply voltage 115 / 230 V~; 50/60 Hz
Power consumption (max) 143 mA (115 V~) / 60 mA (230 V~)
Stand-by power (max) 0.2 W (0.6 W with 41518 module)
FM band 87.5 - 108.0 MHz
Speakers impedance 16 W(2+2 W audio power)
Housing ø60 mm box
Dimensions (mm) 45 x 45 x 52
Wiring diagram
NOTE:
In this example, 40425 power amplifier is used. Nevertheless, 03001, E17G/D
and 40430 models can be connected.
In case E17G/D power amplifier is chosen, "45" should be used as GND.
Impedance
16 W
Impedance
16 W
Impedance
4 W
In this configuration, speakers or power
amplifiers can be used.
Impedance
4 W
L- Left
R- Right
Coaxial external antenna.
OPTIONAL
Enter SETTINGS menu to select it.
PLAY & SOUND series products
References
41513 Wall radio 2+2 W stereo with FM RDS and mains voltage from 115 to 230 V~; 50/60 Hz.
41514 Remote control for the new PLAY & SOUND ref. 41517, 41018 and 41019 products.
41515 Bluetooth®sound unit with AUX/TV and PIN inputs. 2+2 W, 115-230 V~.
41517 Master sound amplifier 6+6 W with bluetooth®, FM/RDS, multiroom, and AUX IN signals on ballast format.
41518 Auxiliary module for 41513 Wall Radio with line-in Input, USB memory player, headphones output and bluetooth®.
Note
If its necessary to amplify the output power of the 41513 sound unit, we recommend using the following power amplifiers:
03001 (3+3 W at 4 W)
E17G/D (20 W mono at 4 Wor 10+10 W stereo at 2 W)
40425 (30 W mono at 8 Wor 15+15 W stereo at 4 W)
40430 (100 W mono at 2 Wor 50+50 W stereo at 4 Wor 25+25 W stereo at 4 Wat the same time that 50 W at 2 Wfor
mono subwoofers).

41518
LN
L+ L R+ R
GNDANT
115/230 V~
+-15%; 50/60 Hz
41518
41513
L- Left
R- Right
en instruction manual
Wiring diagram
PLAY & SOUND series products
References
41513 Wall radio 2+2 W stereo with FM RDS and mains voltage from 115 to 230 V~; 50/60 Hz.
41514 Remote control for the new PLAY & SOUND ref. 41517, 41018 and 41019 products.
41515 Bluetooth®sound unit with AUX/TV and PIN inputs. 2+2 W, 115-230 V~.
41517 Master sound amplifier 6+6 W with bluetooth®, FM/RDS, multiroom, and AUX IN signals on ballast format.
41518 Auxiliary module for 41513 Wall Radio with line-in Input, USB memory player, headphones output and bluetooth®.
Note
If its necessary to amplify the output power of the 41513 sound unit, we recommend using the following power amplifiers:
03001 (3+3 W at 4 W)
E17G/D (20 W mono at 4 Wor 10+10 W stereo at 2 W)
40425 (30 W mono at 8 Wor 15+15 W stereo at 4 W)
40430 (100 W mono at 2 Wor 50+50 W stereo at 4 Wor 25+25 W stereo at 4 Wat the same time that 50 W at 2 Wfor
mono subwoofers).
Technical specifications
41518 Auxiliary module for Wall Radio 41513 with line IN, USB, headphone and bluetooth®.
Main power input From 41513 module
Consumption (max.) 175 mA
File formats MP3 - WAV
USB maximum output current 100 mA
Headphones output nominal level 300 mV
Housing ø60 mm. box
Dimensions (mm) 45 x 45 x 52
Audio input impedance 10 KW
Audio input nominal level 100 mV
Bluetooth®profile V. 2.0; Clase II; A2DP & AVRCP (1.3)
Headphones output impedance 16 - 32 W min.
External coaxial antenna.
OPTIONAL
Enter SETTINGS menu to select it.
Impedance
16 W
Impedance
16 W

41517
L+
L
R+
R
L
R
230 V~ / 115 V~
±15%; 50-60 Hz
N
L
4
5
6
230 V~ / 115 V~
±15%; 50-60 Hz
N
L
L+
L
R+
R
L
R
2 0 1
+L+R +L +R
2V
GAIN
2 0 1
BUS MULTIROOM
en instruction manual
Wiring diagram
PLAY & SOUND series products
References
41513 Wall radio 2+2 W stereo with FM RDS and mains voltage from 115 to 230 V~; 50/60 Hz.
41514 Remote control for the new PLAY & SOUND ref. 41517, 41018 and 41019 products.
41515 Bluetooth®sound unit with AUX/TV and PIN inputs. 2+2 W, 115-230 V~.
41517 Master sound amplifier 6+6 W with bluetooth®, FM/RDS, multiroom, and AUX IN signals on ballast format.
41518 Auxiliary module for 41513 Wall Radio with line-in Input, USB memory player, headphones output and bluetooth®.
Note
If its necessary to amplify the output power of the 41517 sound unit, we recommend using the following power amplifiers:
E17G/D (20 W mono at 4 Wor 10+10 W stereo at 2 W)
40425 (30 W mono at 8 Wor 15+15 W stereo at 4 W)
40430 (100 W mono at 2 Wor 50+50 W stereo at 4 Wor 25+25 W stereo at 4 Wat the same time that 50 W at 2 Wfor
mono subwoofers).
Technical specifications
41517 Amplified master module with bluetooth
®
connectivity, FM/RDS, audio input and multiroom
Power supply 115/230 V~; 50/60 Hz
Consumption max 200 mA (115 V~) / 100 mA (230 V~)
Consumption stand-by 0.3 W
FM band 87.5 - 108 MHz
Mechanical format Electrical ballast
Size cutting ø65 mm.
Weight (Kg.) 0.162
Dimensions (mm) 170 x 48 x 50
Bluetooth®profile V. 2.0; Clase II; A2DP & AVRCP (1.3)
Max. power output 6+6 WRMS; (12+12 WPEAK) max; 4 W min.
INPUT 3 V~ RMS +7 V
Impedance INPUT 10 KW
BLUETOOTH®, FM/RDS, MULTIROOM AND AUDIO INPUT MODE FUNCTION, IN FALSE CEILING FOR HALL OR ROOM
Multiroom example with remote control 41514 + auxiliary input
TO OTHER ROOMS
(max. 15 modules ref. 41517)
MORE ROOMS
OPTION 1
External FM coaxial antenna.
OPTION 2
External FM wire antenna
(75 cm. max.)
Distance from bluetooth®device
from 1to 30 m depending on the environment.
15 V from external
power suply.
OPTION A
USB-MP3 Player
OPTION B
Line IN input by RCA
41514
Remote control
RF distance for remotes control
from 1to 30 m depending on the environment. Min. 4 Wper channel. 6+6 W
Installation example INPUT.
User bluetooth®device
(smartphones, tablets and PC laptops).
Basic example only with Bluetooth®
SINGLE HALL OR ROOM ONLY WITH BLUETOOTH®MODE, SOUND IN FALSE CEILING
Min. 4 Wper channel. 6+6 W
Distance from bluetooth®device
from 1to 30 m depending on the environment.
User bluetooth®device
(smartphones, tablets and PC laptops).
NOTE:
To prevent radiofrequency interference is strongly recommended keeping a distance of at least 1 m. between modules with the same reference number. Please avoid grouping modules.

Note
Remember that in addition to operating only in Bluetooth mode, to get maximum performance with FM, multiroom,
clock, alarm and INPUT; we recommend to acquire the remote control 41514.
The sound unit must be connected to a mains voltage between 115 and 230 V~ 50/60Hz, prior to being used.
Because these devices communicate by radio frequency, depending on the environment interference and objects,
communication can be altered.
There is not any LED indicator, so it is necessary to connect at least one speaker (better two) in order to check the unit
is working properly.
External audio amplifiers (i.e. E17G/D, 40425 & 40430) can be attached to the audio output. To do so, connect 41517
terminals L+, R+ & 4(GND) to the audio amplifier input terminals +L, +R & GND respectively.
Access to LINK internal key on the back side of 41517.
Preset volume adjustment
Preset volume is factory-set at maximum level. However, it can be changed and limited by means of LINK key, which
is located on the back side of 41517 module. Every short press on LINK key reduces preset volume in -6 dB steps
up to -68 dB, and then it goes to maximum level again.
Once adjusted, preset volume is stored and is value is kept even in case of power failure. It can be adjusted again or
be reset to factory-set value (maximum) by pressing LINK key for 6 seconds or more.
WARNING: Keep in mind that a RESET can modify other parameters.
NOTE: In Bluetooth®mode, the user can control volume level from the device. We suggest leaving the volume of
41517 module at maximum level. This way maximum performance can be obtained and the control is more comfortable.
Volume / Link / Reset key
LINK key has three functions:
1. Every short press on LINK key reduces preset volume in -6 dB steps up to -68 dB, and then it goes to maximum
level again.
2. Additionally, a short press on LINK key makes the module visible for Zigbee devices, so that it can be linked with
a 41514 remote control.
3. A long press (more than 6s) produces a RESET of the module: preset volume is set to maximum, Friendly Name
and PIN code return to the value printed on the labels.
LINK
First connection
41517 master module works in Bluetooth®mode only when powered for the first time or after a blackout. Initial state
is stand-by: the module is visible to any Bluetooth® device and can be paired with it.
Module Friendly Name is "EGi 41517 xxxx". This name will appear on the Bluetooth®device screen when searching.
EGi is the brand, 41517 is the product reference and "xxxx" stands for the last four digits of the serial number.
Every module has a unique Friendly Name, so the user can know which module is connecting to. Friendly Name is
printed on two labels: one is attached to the enclosure, and the other one is left loose into the packaging.
Pin code linking
A 4-digit random password / PIN code is printed on the labels. It must be keyed in during linking process.
Once linked and connected, the module will start to sound.
WARNING: Please dont lose the labels so that the Friendly Name and the PIN code are always available.
Turning ON
The module remains in stand-by state until it is connected to a Bluetooth®device.
When connected, it goes to ON state: audio output is activated, volume is adjusted to its preset value and equalizer
is set to achieve optimum performance.
Since then, volume control and music selection will be controlled from the linked Bluetooth®device.
NOTE: Disconnection causes are: manual command from the device or lost of coverage.
When disconnected, module goes to stand-by state: audio output is disabled and the module is visible/connectable
again. In other words, it can be linked to a new Bluetooth®device or connected to a known device (one that has been
linked previously).
Operation in Bluetooth®mode only
without remote control
41517
Troubleshooting
Problem
Module doesnt work at all.
The module can be linked to a Bluetooth®device,
but there is no sound.
If the module is linked to a 41514 remote control,
pressing the LINK key switches off the sound.
Module is powered, but it is not visible for
Bluetooth®devices and do not responds to a
41514 remote control.
Possible solution
Check that the sound unit is powered. A voltage
between 115 and 230 V~ 50/60Hz must be applied
to Land Nterminals
Check that the speakers are properly connected to
L+ / L y R+ / R outputs. Verify the absence of
short-circuits and check that the speakers line
impedance is above 4 ohms. Make sure that a
Bluetooth®device is connected, and set volume
level to maximum.
When LINK key is pressed in full-functionality
mode, 41517 module goes to stand-by state to
allow a new link to a different remote control. That
is the reason for the music to switch off. After that,
pressing any key on the 41514 regains control over
the module.
It is probable that the module is being controlled
by another 41514 remote control (previously linked).
Check all remote controls in the installation.
Operation in full-functionality mode:
Bluetooth, FM/RDS,
aux. input & multiroom using EGi remote control
First connection
41517 master module works in Bluetooth®-only mode when powered.
It is necessary to link it to one or more 41514 remote controls to get full functionality: FM/RDS, multiroom, aux. INPUT,
clock, alarm, sleep and equalizer.
Linking to a 41514 remote control
Master module can be controlled by one or more 41514 remote controls, so that several people can control it.
A 41514 remote control can handle up to five 41517 modules. A 41517 module can be handled by up to fifteen
41514 remote controls.
Communication between 41517 modules and 41514 remote controls is performed by Zigbee. It is a radiofrequency
communications protocol.
To link the devices, please press LINK key on the back side of 41517 module (so it becomes visible for Zigbee devices).
Next, press the two upper-right keys on the 41514 remote control at the same time (LINK TO A NEW RECEIVER).
It will appear "LINKING" on the screen. When linking process ends, it will appear "LINKED TO A NEW RECEIVER".
There is another way to link together 41514 and 41517; it uses the PIN code printed on the labels of 41517.
Press PIN on 41514. Then key in PIN code and press OK. It will appear "LINKING" on the screen. When linking
process ends, it will appear "LINKED TO A NEW RECEIVER".
Once linked to a remote control (or more), Bluetooth® can only be activated from a 41514 remote control.
In case of power failure, the module will go to Bluetooth®-only mode, but it will change automatically to a full-functionality
mode when any command from a linked 41514 remote control is received.
For detailed information about full-functionality mode (FM, multiroom, input, clock, alarm, sleep
and Bluetooth®), please read the 41514 remote control user manual.
LINK
41517
Access to LINK internal key on the back side of 41517.

41514
... ... ... ...
en instruction manual
Multiroom link-up limits
PLAY & SOUND series products
References
41513 Wall radio 2+2 W stereo with FM RDS and mains voltage from 115 to 230 V~; 50/60 Hz.
41514 Remote control for the new PLAY & SOUND ref. 41517, 41018 and 41019 products.
41515 Bluetooth®sound unit with AUX/TV and PIN inputs. 2+2 W, 115-230 V~.
41517 Master sound amplifier 6+6 W with bluetooth®, FM/RDS, multiroom, and AUX IN signals on ballast format.
41518 Auxiliary module for 41513 Wall Radio with line-in Input, USB memory player, headphones output and bluetooth®.
Note
If its necessary to amplify the output power of the 41517 sound unit, we recommend using the following power amplifiers:
03001 (3+3 W at 4 W)
E17G/D (20 W mono at 4 Wor 10+10 W stereo at 2 W)
40425 (30 W mono at 8 Wor 15+15 W stereo at 4 W)
40430 (100 W mono at 2 Wor 50+50 W stereo at 4 Wor 25+25 W stereo at 4 Wat the same time that 50 W at 2 Wfor
mono subwoofers).
Technical specifications
41514 Multiroom remote control
Power supply 3 1.5 V AAA bateries
RF band 2.4 GHz; Zigbee RF
Display LCD graphic
Weight (Kg.) 0.122
Dimensions (mm) 52 x 125 x 19
MAXIMUM MULTIROOM LINK-UP OF 41517 MASTER MODULES, THROUGH ONE 41514 REMOTE CONTROL
41514
Remote control
41517
Master module with Zigbee RF link-up.
41517
Master module with Zigbee RF link-up.
MAXIMUM MULTIROOM LINK-UP OF 41514 REMOTE CONTROLS, THROUGH ONE 41517 MASTER MODULE
41514
15 remote controls maximum.

41018
R+
L
L+
R
115 / 230 V~
50 / 60 Hz
R
L
BUS MULTIROOM
12
3
ø95 mm. > 10 mm.
A
en instruction manual
Wiring diagram
PLAY & SOUND series products
References
41513 Wall radio 2+2 W stereo with FM RDS and mains voltage from 115 to 230 V~; 50/60 Hz.
41514 Remote control for the new PLAY & SOUND ref. 41517, 41018 and 41019 products.
41515 Bluetooth®sound unit with AUX/TV and PIN inputs. 2+2 W, 115-230 V~.
41517 Master sound amplifier 6+6 W with bluetooth®, FM/RDS, multiroom, and AUX IN signals on ballast format.
41518 Auxiliary module for 41513 Wall Radio with line-in Input, USB memory player, headphones output and bluetooth®.
Note
If its necessary to amplify the output power of the 41517 sound unit, we recommend using the following power amplifiers:
03001 (3+3 W at 4 W)
E17G/D (20 W mono at 4 Wor 10+10 W stereo at 2 W)
40425 (30 W mono at 8 Wor 15+15 W stereo at 4 W)
40430 (100 W mono at 2 Wor 50+50 W stereo at 4 Wor 25+25 W stereo at 4 Wat the same time that 50 W at 2 Wfor
mono subwoofers).
41517 - Technical specifications
41018 XS Kit audio bluetooth
®
for rooms of 30 sq m
OPTIONAL:
Multiroom service only with more 41517 and minimum one remote control 41514.
MORE ROOMS
TO OTHER ROOMS
(max. 15 modules ref. 41517)
Final assembly
3" Loudspeaker - Technical specifications
Power supply 115/230 V~; 50/60 Hz
Consumption max 200 mA (115 V~) / 100 mA (230 V~)
Consumption stand-by 0.3 W
FM Band 87.5 - 108 MHz
Bluetooth®profile V. 2.0; Clase II; A2DP & AVRCP (1.3)
Max. power output 6+6 WRMS; (12+12 WPEAK max.); 4 Wmin.
INPUT 3 V~ RMS + 7 V
Impedance INPUT 10 KW
Mechanical format Electrical ballast
Size cutting (mm) ø65
Weight (Kg.) 0.162
Dimensions (mm) 170 x 48 x 50
Max. power (RMS) 7 W
Impedance 4 W
Quality HQ
Sensitivity (@1W, 1m) 86 dBSPL
Frequency response (@-6 dB) 90 ÷ 15000 Hz
Cover angle (@-4 KHz) 100º @ -6 dB
Parallel speaker cable 1x3 m + 1x0.75 m
Size cutting (mm) ø95
Dimensions (mm) ø112 x 45

41019
R+
L
L+
R
115 / 230 V~
50 / 60 Hz
R
L
BUS MULTIROOM
1
2
PUSH
1 1
2
ø73 mm.
en instruction manual
Wiring diagram
PLAY & SOUND series products
References
41513 Wall radio 2+2 W stereo with FM RDS and mains voltage from 115 to 230 V~; 50/60 Hz.
41514 Remote control for the new PLAY & SOUND ref. 41517, 41018 and 41019 products.
41515 Bluetooth®sound unit with AUX/TV and PIN inputs. 2+2 W, 115-230 V~.
41517 Master sound amplifier 6+6 W with bluetooth®, FM/RDS, multiroom, and AUX IN signals on ballast format.
41518 Auxiliary module for 41513 Wall Radio with line-in Input, USB memory player, headphones output and bluetooth®.
Note
If its necessary to amplify the output power of the 41517 sound unit, we recommend using the following power amplifiers:
03001 (3+3 W at 4 W)
E17G/D (20 W mono at 4 Wor 10+10 W stereo at 2 W)
40425 (30 W mono at 8 Wor 15+15 W stereo at 4 W)
40430 (100 W mono at 2 Wor 50+50 W stereo at 4 Wor 25+25 W stereo at 4 Wat the same time that 50 W at 2 Wfor
mono subwoofers).
41517 - Technical specifications
41019 XXS Kit audio bluetooth
®
for rooms of 20 sq m
OPTIONAL:
Multiroom service only with more 41517 and minimum one remote control 41514.
MORE ROOMS
TO OTHER ROOMS
(max. 15 modules ref. 41517)
Final assembly
2" Loudspeaker - Technical specifications
Power supply 115/230 V~; 50/60 Hz
Consumption max 200 mA (115 V~) / 100 mA (230 V~)
Consumption stand-by 0.3 W
FM Band 87.5 - 108 MHz
Bluetooth®profile V. 2.0; Clase II; A2DP & AVRCP (1.3)
Max. power output 6+6 WRMS; (12+12 WPEAK max.); 4 Wmin.
INPUT 3 V~ RMS + 7 V
Impedance INPUT 10 KW
Mechanical format Electrical ballast
Size cutting (mm) ø65
Weight (Kg.) 0.162
Dimensions (mm) 170 x 48 x 50
Max. power (RMS) 2 W
Impedance 16 W
Quality HQ
Sensitivity (@1W, 1m) 83 dBSPL
Frequency response (@-6 dB) 150 ÷ 16000 Hz
Cover angle (@-4 KHz) 150º @ -6 dB
Parallel speaker cable 1x3 m + 1x0.75 m
Size cutting (mm) ø73
Dimensions (mm) ø90 x 55
1 to 5 mm thickness in metal or wood. 5 to 15 mm thickness in plaster or wood.
15 to 50 mm thickness ceiling.

008532 10/2015
Electroacústica
General
Ibérica, S. A.
Avda. Almozara, 79
50003 Zaragoza - ESPAÑA
Tel. [phone]
Fax [phone]
http://www.egiaudio.com
e-mail: [e-mail]
Av. Almozara, 79
50003 Saragossa - SPAIN
Tel. [phone]
Fax [phone]
http://www.egiaudio.com
e-mail: [e-mail]
exportnational
