EGO EG0800 User manual

WARNING: To reduce the risk of injury, the user must read and understand the
Operator’s Manual before using this product. Save these instructions for future reference.
EARTH/ICE AUGER
OPERATOR’S MANUAL
EARTH/ICE AUGER
MODEL NUMBER EG0800/EG0800-FC/IG0800/IG0800-FC
Español p. 75
Français p. 35

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC2
READ ALL INSTRUCTIONS!
READ & UNDERSTAND
OPERATOR’S MANUAL
TABLE OF CONTENTS
Safety Symbols ..........................................3
Symbols ...............................................4
General Safety Instructions ..............................5-8
Safety Instructions for Earth/Ice Auger .....................9-10
Introduction ...........................................11
Specications ..........................................12
Accessories ...........................................13
Description .........................................14-16
Assembly ..........................................17-21
Operation ..........................................22-28
Maintenance ........................................29-30
Troubleshooting ........................................31
EGO Limited Warranty .................................32-33

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC 3
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to possible dangers. The
safety symbols and the explanations with them deserve your careful attention and
understanding. The symbol warnings do not, by themselves, eliminate any danger. The
instructions and warnings they give are no substitutes for proper accident prevention
measures.
WARNING: Be sure to read and understand all safety instructions in this
Operator’s Manual, including all safety alert symbols such as “DANGER”, “WARNING”,
and “CAUTION” before using this tool. Failure to follow all instructions listed below may
result in electric shock, fire, and/or serious personal injury.
The definitions below describe the level of severity for each signal word. Please read
the manual and pay attention to these symbols.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
DANGER: DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING: WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION:
CAUTION, used with the safety alert symbol, indicates a
hazardous situation which, if not avoided, will result in minor
or moderate injury.
DAMAGE PREVENTION AND INFORMATION MESSAGES
These inform the user of important information and/or instructions that could lead
to equipment or other property damage if they are not followed. Each message is
preceded by the word “NOTICE”, as in the example below:
NOTICE: Equipment and/or property damage may result if these instructions are not
followed.

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC4
SYMBOLS
This page depicts and describes symbols that may appear on this product. Read,
understand, and follow all instructions on the product before attempting to assemble
and operate.
Safety Alert Indicates a potential personal injury hazard.
Read & Understand
Operator’s Manual
To reduce the risk of injury, user must read
and understand the operator’s manual
before using this product.
Eye Protection
Always wear safety goggles or safety
glasses with side shields when operating
this product that comply with ANSI Z87.1
Ear Protection Always wear ear protection when operating
this product.
IP... Ingress Protection
(IP) Rating
Classifies the degree of protection provided
by an enclosure, for electrical equipment.
Direct Current Type or a characteristic of current
n0No-Load Speed Rotational speed, at no load
RPM Revolutions per
minute Rotational speed
in. Inch Length or size
mm Millimeter Length or size
lbs Pounds Weight
kg Kilogram Weight
°F Degrees Fahrenheit Temperature
°C Degrees Celsius Temperature

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC 5
GENERAL SAFETY INSTRUCTIONS
WARNING! Read all safety warnings, instructions, illustrations and
specications provided with this machine. Failure to follow all instructions listed
below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
WORK AREA SAFETY
◾Keep work area clean and well lit. Cluttered or dark areas invite accidents.
◾Do not operate machines in explosive atmospheres, such as in the presence
of ammable liquids, gases or dust. Machines create sparks which may ignite
the dust or fumes.
◾Keep children and bystanders away while operating a machine. Distractions
can cause you to lose control.
ELECTRICAL SAFETY
◾Machine plugs must match the outlet. Never modify the plug in any way. Do
not use any adapter plugs with earthed (grounded) machines. Unmodified
plugs and matching outlets will reduce risk of electric shock.
◾Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
◾Do not operate the machine in rain or wet conditions. Water entering the
machine may increase the risk of electric shock or malfunction that could result
in personal injury.
◾Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the machine. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric shock.
◾When operating a machine outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric
shock.
◾If operating a machine in a damp location is unavoidable, use a ground fault
circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of
electric shock.

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC6
PERSONAL SAFETY
◾Stay alert, watch what you are doing and use common sense when
operating a machine. Do not use a machine while you are tired or under
the inuence of drugs, alcohol or medication. A moment of inattention while
operating machines may result in serious personal injury.
◾Use personal protective equipment. Always wear eye protection. Protective
equipment such as a dust mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce personal injuries.
◾Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to power source and/or battery pack, picking up or
carrying the machine. Carrying machines with your finger on the switch or
energizing machines that have the switch on invites accidents.
◾Remove any adjusting key or wrench before turning the machine on. A
wrench or a key left attached to a rotating part of the machine may result in
personal injury.
◾Do not overreach. Keep proper footing and balance at all times. This enables
better control of the machine in unexpected situations.
◾Dress properly. Do not wear loose clothing or jewelry. Keep your hair and
clothing away from moving parts. Loose clothes, jewelry or long hair can be
caught in moving parts.
◾If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust
collection can reduce dust-related hazards.
◾Do not let familiarity gained from frequent use of machines allow you to
become complacent and ignore machine safety principles. A careless action
can cause severe injury within a fraction of a second.
MACHINE USE AND CARE
◾Do not force the machine. Use the correct machine for your application.
The correct machine will do the job better and safer at the rate for which it was
designed.
◾Do not use the machine if the switch does not turn it on and off. Any machine
that cannot be controlled with the switch is dangerous and must be repaired.
◾Disconnect the plug from the power source and/or remove the battery pack,
if detachable, from the machine before making any adjustments, changing

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC 7
accessories, or storing machines. Such preventive safety measures reduce the
risk of starting the machine accidentally.
◾Store idle machines out of the reach of children and do not allow persons
unfamiliar with the machine or these instructions to operate the machine.
Machines are dangerous in the hands of untrained users.
◾Maintain machines and accessories. Check for misalignment or binding of
moving parts, breakage of parts and any other condition that may affect the
machine’s operation. If damaged, have the machine repaired before use.
Many accidents are caused by poorly maintained machines.
◾Keep cutting machines sharp and clean. Properly maintained cutting machines
with sharp cutting edges are less likely to bind and are easier to control.
◾Use the machine, accessories and machine bits etc. in accordance with
these instructions, taking into account the working conditions and the work
to be performed. Use of the machine for operations different from those intended
could result in a hazardous situation.
◾Keep handles and grasping surfaces dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow for safe handling and control
of the machine in unexpected situations.

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC8
BATTERY MACHINE USE AND CARE
◾Recharge only with the charger specied by the manufacturer. A charger that
is suitable for one type of battery pack may create a risk of fire when used with
another battery pack.
◾Use machines only with specically designated battery packs. Use of any
other battery packs may create a risk of injury and fire.
◾When battery pack is not in use, keep it away from other metal objects, like
paper clips, coins, keys, nails, screws or other small metal objects, that
can make a connection from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
◾Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, ush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritation or burns.
◾Do not use a battery pack or machine that is damaged or modied.
Damaged or modified batteries may exhibit unpredictable behavior resulting in
fire, explosion or risk of injury.
◾Do not expose a battery pack or machine to re or excessive temperature.
Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.
◾Follow all charging instructions and do not charge the battery pack or
machine outside the temperature range specied in the instructions.
Charging improperly or at temperatures outside the specified range may damage
the battery and increase the risk of fire.
SERVICE
◾Have your machine serviced by a qualied repair person using only
identical replacement parts. This will ensure that the safety of the machine is
maintained.
◾Never service damaged battery packs. Service of battery packs should only be
performed by the manufacturer or authorized service providers.

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC 9
SAFETY INSTRUCTIONS FOR EARTH/ICE AUGER
◾Replace augers if cracked, bent, or damaged in any way. Operating the
machine with a damaged auger can result in serious injury.
◾Never use the auger with the handles above waist level. This restricts control
of the auger and may increase the risk of injury.
◾Hold the machine with both hands at the intended handles. Loss of control
can cause personal injury.
◾Hold the machine by insulated gripping surfaces, when performing an
operation where the digging accessory may contact hidden wiring. Digging
accessory contacting a “live” wire may make exposed metal parts of the machine
“live” and could give the operator an electric shock.
◾To reduce the risk of electrocution, never use the auger near any buried
electrical power cables. Contact with or use near buried electrical power cables
may cause serious injury or electric shock resulting in death.
◾Always start the machine at low speed and with the auger bit tip in contact
with the ground. At higher speeds, the bit is likely to bend if allowed to rotate
freely without contacting the ground, resulting in personal injury.
◾Apply pressure only in direct line with the bit and do not apply excessive
pressure. Bits can bend causing breakage or loss of control, resulting in personal
injury.
◾Always be sure you have a rm footing. Be sure no one is below when using
the machine in high locations.
◾Hold the machine rmly.
◾Keep hands away from rotating parts.
◾Do not leave the machine running. Operate the machine only when hand-
held.
◾Do not touch the auger bit immediately after operation. It may be extremely
hot and could burn your skin.
◾If something is wrong with the machine, such as abnormal sounds, stop
operating immediately and contact your local service center for repair.
◾To reduce the risk of explosion, never use the auger near any buried gas
lines, including water lines and pipes. Contact with or use near buried water or
gas lines may result in bursting of water lines and explosion from gas lines which
may cause serious injury or death.

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC10
◾Never operate at higher speed than the maximum speed rating of the auger
bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without
contacting the workpiece, resulting in personal injury.
◾Battery-operated machines do not have to be plugged into an electrical
outlet; therefore, they are always in operating condition. Be aware of
possible hazards even when the machine is not operating. Take care when
performing maintenance or service.
◾Do not wash with a hose; avoid getting water in motor and electrical
connections.
◾The ice blades are very sharp. Use extreme caution when drilling a hole or
replacing the blades. Put the blade guard on after each use.
◾Frequently check and ensure that the locking screw is secured in place.
◾Use only with the battery packs and chargers listed below:
BATTERY PACK CHARGER
BA1400, BA1400-FC, BA2800, BA2800-FC,
BA4200, BA4200-FC, BA1400T, BA1400T-FC,
BA2242T, BA2242T-FC, BA2800T, BA2800T-FC,
BA3360T, BA3360T-FC, BA4200T, BA4200T-FC,
BA4480T, BA4480T-FC, BA5600T, BA5600T-FC,
BA6720T, BA6720T-FC
CH2100, CH2100-FC,
CH3200, CH3200-FC,
CH5500, CH5500-FC,
CH2800D, CH2800D-FC
CH7000, CH7000-FC
SAVE THESE INSTRUCTIONS! Refer to them frequently and use them to instruct others
who may use this product. If you loan this product to someone else, also loan these
instructions to them to prevent misuse of the product and possible injury.

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC 11
INTRODUCTION
Congratulations on your selection of the 56V Lithium-ion Earth/Ice Auger. It has been
designed, engineered, and manufactured to give you the best possible dependability
and performance.
Should you experience any problem you cannot easily remedy, please contact EGO
customer service center 1-855-EGO-5656.
This manual contains important information on the safe assembly, operation and
maintenance of your string trimmer. Read it carefully before using the string trimmer.
Keep this manual handy so you can refer to it at any time.
SERIAL NUMBER _____________________ DATE OF PURCHASE _________________
YOU SHOULD RECORD BOTH SERIAL NUMBER AND DATE OF PURCHASE AND KEEP IN A SAFE
PLACE FOR FUTURE REFERENCE

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC12
SPECIFICATIONS
Model Number EG0800/EG0800-FC IG0800/IG0800-FC
Voltage 56 V 56 V
Torque 65 ft-lb (88 Nm) 65 ft-lb (88 Nm)
Auger Bit/Hole Diameter 8 in. (200 mm) 8 in. (200 mm)
Maximum Drilling Depth 32 in. (800 mm) 39 in. (990 mm)
No-load
Speed (n0)
Forward Low: 0-150 /min (RPM)
High: 0-210 /min (RPM)
Low: 0-150 /min (RPM)
High: 0-210 /min (RPM)
Reverse 100 /min (RPM) 100 /min (RPM)
Weight (Without battery pack) 34.2 lbs (15.5 kg) 29.8 lbs (13.5 kg)
Ingress Protection Rating IPX4* (Protection from splashing water)
Recommended Operating
Temperature
-4°F – 104°F (-20°C – 40°C)
Recommended Storage
Temperature
-40°F – 158°F (-40°C – 70°C)
* NOTE: IPX4 rating is based on the machine and battery being used together as a
system.

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC 13
ACCESSORIES
WARNING: Use only accessories listed below. Use of accessories that do not
meet the original equipment specifications may lead to improper performance and
compromised safety.
PART NAME MODEL NUMBER
Earth Auger Bit
4” (100 mm) AET0400
6” (150 mm) AET0600
8” (200 mm) AET0800
10” (250 mm) AET1000
Auger Extension 20” (508 mm) ABE2000
Ice Auger Bit 8” (200 mm) AIT0800
10” (250 mm) AIT1000
Ice Auger Bit blade* 8” (200 mm) AB0800I
10” (250 mm) AB1000I
*NOTE: The ice auger bit blade is only fit the ice auger bit of the same size.

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC14
DESCRIPTION
KNOW THE POWER HEAD (Fig. 1)
1
1
8
7
6
9
10
11
4
3
5
2
1. Left Handle 7. LED Indicator
2. Right Handle 8. Power Head
3. Rotation Direction/Speed Selector 9. Battery Pack Port
4. Lock-off Button 10. Socket Wrench (10 mm)
5. Variable-Speed Trigger Switch 11. Allen Key (5 mm)
6. Battery-Release Button

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC 15

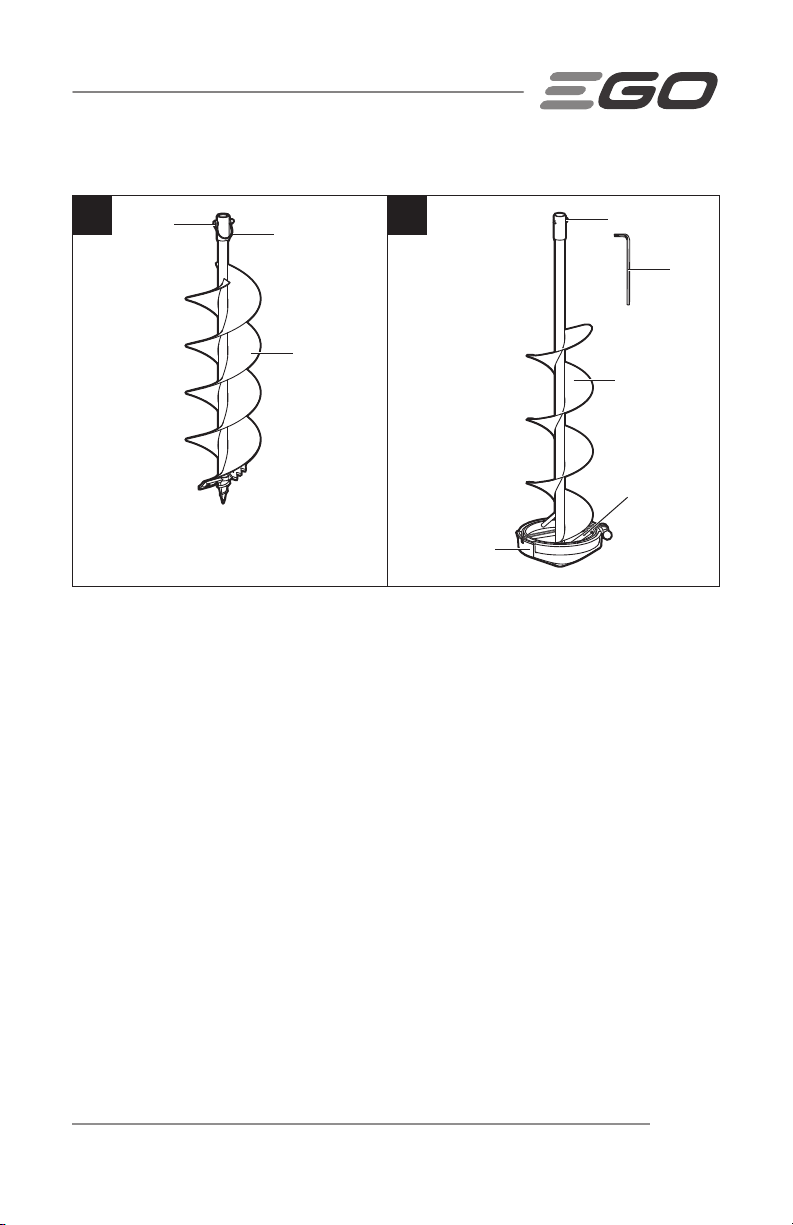

KNOW THE EARTH AND ICE AUGER BITS (Fig. 1a / Fig. 1b)
1a 1b
18
15
16
19
14
12
13
17
12. Earth Auger Bit 16. Locking Screw
13. Locking Pin 17. Blade Guard
14. Pin Clip 18. Ice Blade
15. Ice Auger Bit 19. Allen Key (6 mm)

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC16
WARNING: The safe use of this product requires an understanding of the
information on the product and in this instruction manual, as well as knowledge of
the project you are attempting. Before use of this product, familiarize yourself with all
operating features and safety rules.
Variable-Speed Trigger Switch
Turns the auger on and off.
Lock-off Button
Helps to prevent accidental and unauthorized activation of the trigger switch. It must be
depressed before the trigger switch can be activated.
Right and Left Handles
Hold both handles firmly to operate the auger safely.
Rotation Direction/Speed Selector
Move the selector to set the direction of auger rotation or the speed level of the forward
rotation.
LED Indicator
Indicates the status of the auger.
Battery-Release Button
Press to release the battery pack from the machine.
Earth Auger Bit
Designed for drilling soil.
Ice Auger Bit
Designed for drilling ice.
Blade Guard
Protects the ice blade from damage and prevents personal injuries. Always wear
protective gloves when removing or installing the blade guard.

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC 17
ASSEMBLY
WARNING: If any parts are damaged or missing, do not operate this product until
the parts are replaced. Use of this product with damaged or missing parts could result in
serious personal injury.
WARNING: Do not attempt to modify this product or create accessories not
recommended for use with this product. Any such alteration or modification is misuse and
could result in a hazardous condition leading to possible serious personal injury.
WARNING: To prevent accidental starting that could cause serious personal injury,
always remove the battery pack from the machine when assembling parts.
UNPACKING
◾Carefully remove the product and any accessories from the box. Make sure that
all items listed in the “PACKING LIST” are included.
◾Inspect the machine carefully to make sure no breakage or damage occurred
during shipping.
◾Do not discard the packing material until you have carefully inspected and
satisfactorily operated the machine.
◾If any parts are damaged or missing, please return the product to the place of
purchase.

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC18
PACKING LIST
Earth Auger
PART NAME QUANTITY
Power Head 1
Right Handle 1
Left Handle 1
Bolt & Washer 8
Nut 8
Locking Pin with Pin Clip 1
Socket Wrench (10 mm) 1
Allen Key (5 mm) 1
Earth Auger Bit 1
Operator’s Manual 1
Ice Auger
PART NAME QUANTITY
Power Head 1
Right Handle 1
Left Handle 1
Bolt & Washer 8
Nut 8
Locking Screw 1
Socket Wrench (10 mm) 1
Allen Key (5 mm) 1
Ice Auger Bit 1
Blade Guard 1
Allen Key (6 mm) 1
Operator’s Manual 1

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC 19

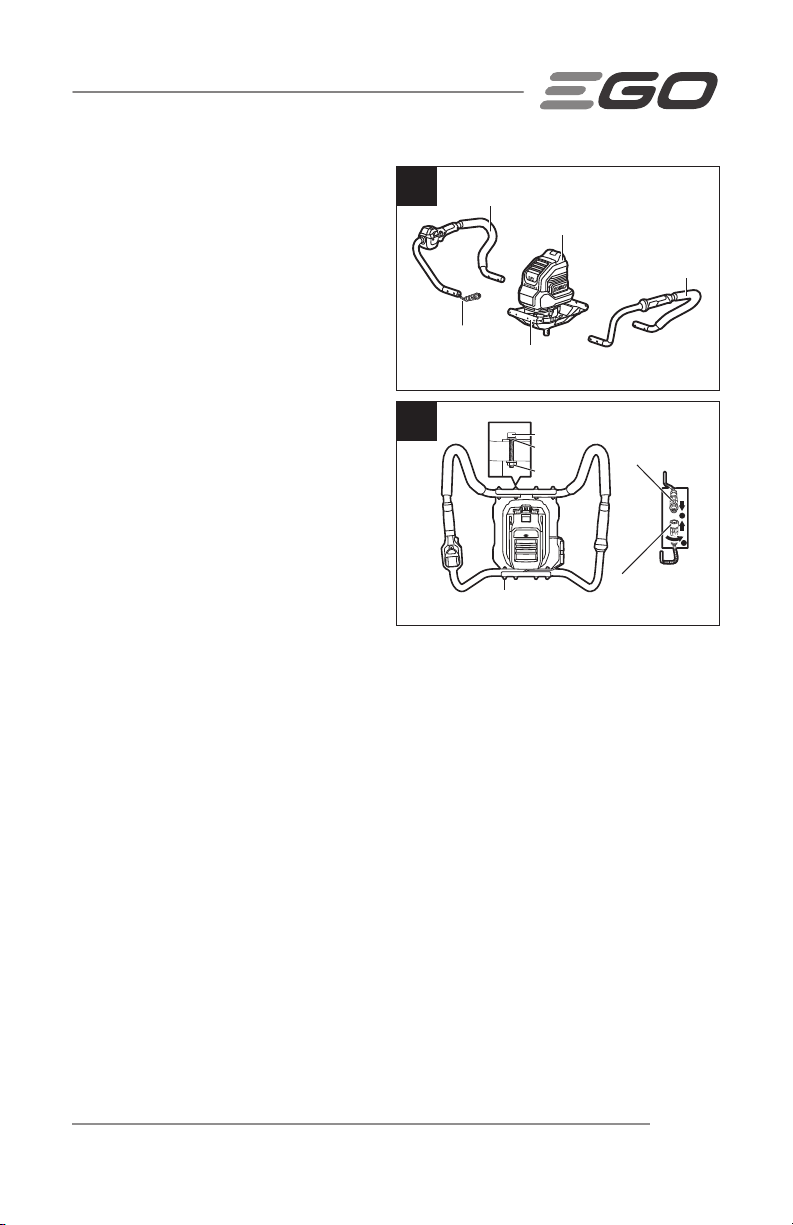

INSTALLING THE HANDLES
(Fig. 2)
Required tools (provided): socket
wrench (10 mm), Allen key (5 mm)
1. With the battery pack port facing
backward, insert the tubes of the
right and left handles into the
curved slots on the power head
base (Fig. 2a).
2. Align the two holes in each handle
tube with the two holes in each base
slot.
NOTE: Incorrect right/left installation
of the handles will prevent these
holes from aligning.
3. Use the bolts, washers, and nuts
to secure the handles to the power
head. Use the wrench and 5 mm
Allen key to tighten them securely (Fig. 2b).
4. Align the arrow on the right handle cable with the arrow on the power head cable.
Then insert the cable plug of the right handle into the cable socket of the power
head. Tighten them securely (Fig. 2b).
NOTICE: To prevent cable damage do not bend or twist it during assembly.
2
1
2b
Cable Plug
Cable Socket
Bolt
Nut
Washer
8 Sets of Screws,
Washers & Nuts
2a
Left Handle
Base Slot
Battery Pack Port
Right Handle
Cable

EARTH/ICE AUGER — EG0800/EG0800-FC/IG0800/IG0800-FC20
INSTALLING THE AUGER BIT
WARNING: The auger bit is very
sharp. To prevent personal injury, exercise
extreme caution when cleaning, installing,
or removing the auger bit. Always wear
protective gloves when performing
maintenance on the auger bit.
To Install the Earth Auger Bit
(Fig. 3a & 3b)
1. Remove the locking pin with pin clip
from the earth auger bit.
2. Mount the upper end of the auger
bit onto the drive shaft of the power
head.
3. Align the connection holes on the
auger bit and drive shaft.
4. Insert the locking pin through the
aligned connection holes.
5. Close the pin clip to prevent the
locking pin from falling out.
3a
Drive Shaft
Upper End of
the Auger Bit
1
2
3b
Drive Shaft
Locking Pin
Pin Clip
