Communications Card
Intellislot™ Interface for
Relay Contacts
English
1
Upon accepting shipment, please inspect product for any damaged or
missing parts. If damaged, call Sola/Hevi-Duty at (800-377-4384) and
select the Warranty Support option from the menu. If components are
missing, contact your sales representative for replacement. Items
included with shipment are:
Intellislot™ Interface for Relay Contacts card protected by an
anti-static bag.
User’s Manual: Intellislot™Interface for Relay Contacts
INTRODUCTION
The Intellislot™Interface for Relay Contacts card provides contact
closures for remote monitoring of alarm conditions in your Sola/Hevi-
Duty UPS. Delivering On Battery, On Bypass, Low Battery, Summary
Alarm, UPS Fault and On UPS signals, the easy-to-install card integrates
with AS/400 computers (additional cable required) and other relay
contact monitoring systems.
This advanced power-management device is specially designed to
function only in the Intellislotport of the following supported UPS units:
• Sola 3000 UPS
• Sola 4000 UPS
• S4K Industrial UPS
• S5K Modular UPS
In addition, the RS-232 port on the UPS remains active with the card
installed, allowing more sophisticated monitoring with MultiLink software.
The inverter shut-off command can be controlled from the computer
directly connected to the UPS (via the factory-installed DB-9 connector)
and will conserve battery power after the workstation shutdown is
completed.
The Intellislot™Interface for Relay Contacts card is rated for 24 VAC/DC
at 1A.
English
2
INSTALLATION
Parts required:
Intellislot™Interface for Relay Contacts card and required cable
assembly.
Tools required:
Either #2 (medium) Phillips or small flat head screw driver.
1. It is suggested, but not necessary, to
turn the UPS off prior to installation.
Locate the Intellislot™Port on the rear
panel of your UPS. (Location and
orientation can vary according to
specific UPS model).
2. Remove the two retaining screws of
the Intellislot™Port cover plate on the
UPS back panel. Save the screws for
re-assembly (Step 4).
3. The card and slot are keyed to insert in
one position only. Initially, the card
should slide in freely as you carefully
align screw holes. As you feel it click
into place, press firmly to ensure solid
seating in the slot.
4. Using the screwdriver, secure the card to the UPS chassis with the
two retaining screws. Make sure the screws are snug, not tight, to
avoid damage to the device.

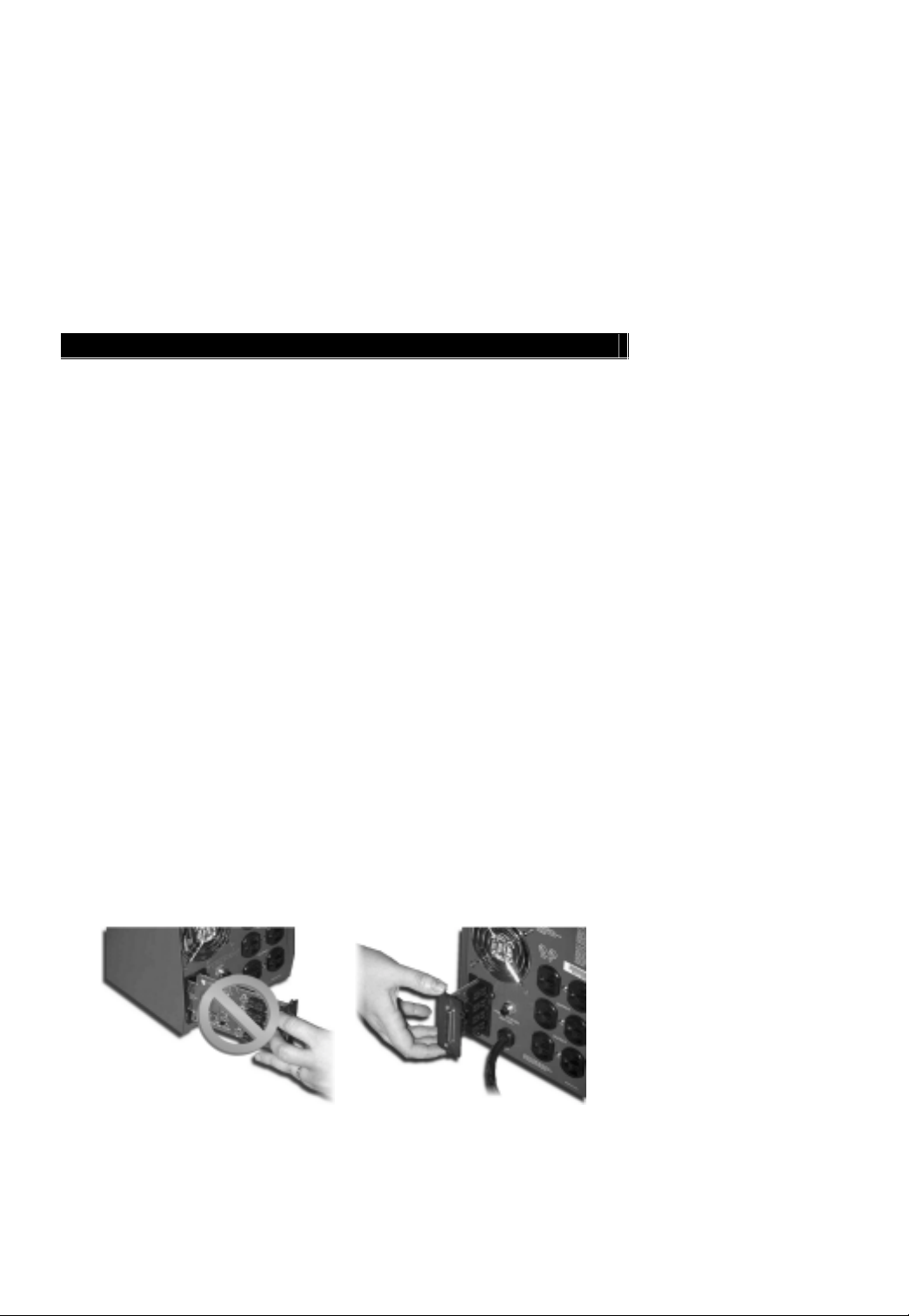

Card and Slot Orientation
Location of Intellislot Port
English
3
PIN CONFIGURATION
Pin Function Operation
1 UPS Fault Closed if no UPS failure*
2 Not Used
3 Not Used
4 UPS Fault Closed if UPS fails*
5 SummaryAlarm** Closed if SUMMARY ALARM** occurs*
6 Summary Alarm** Closed if no alarm conditions are present*
7 Signal Ground
(for UPS Any Mode Shutdown)
8 Not Used
9 Common –Low Battery
10 Low Battery Closed if battery is OK
11 Low Battery Closed if LOW BATTERY point occurs.
12 Not Used
13 Not Used
14 UPS Any Mode Shutdown
(short to pin 7) Turn UPS output OFF when connected to pin 7*.
15 On UPS Closed if ON UPS (inverter) power*
16 On Battery Closed if ON BATTERY power (Utility failure)
17 Common –UPS Fault,
Summary Alarm, On UPS,
On Battery, On Bypass
18 On Battery Closed if not ON Battery power (Utility OK)
19 Not Used
20 Not Used
21 Not Used
22 Not Used
23 Not Used
24 On Bypass Closed if ON BYPASS*
25 Not Used
Relay Contact Card Pin Configuration
*Feature not available on PSI products
**A Summary Alarm occurs when any of the following four conditions exist:
1. Utility power is out of the acceptable range (voltage and/or frequency).
2. UPS is in BYPASS MODE (load not on Inverter power).
3. UPS Battery is LOW (<2 minutes of battery power remaining).
4. UPS fault has occurred.
English
4
JUMPER SET-UP
# Connection Description
JP01 Pin 9 to Pin 17 Allows all relay COMMONS to be tied together
JP02 Pin 7 to Pin 17 Allows all relay COMMONS and the ANY MODE
SHUTDOWN GROUND to be tied together.
NOTE: This jumper should be removed if there is any
external voltage source that may intentionally or
inadvertently be connected to the DB25S.
English
5
CONTACTING TECHNICIAL SUPPORT
The Sola/Hevi-Duty has a team of specially trained technicians waiting to
quickly assist you with any installation or troubleshooting problems.
Refer to the back of this manual for the Tech Support phone number.
In order to successfully diagnose your individual problem, our
technicians may require the following installation site and system
information. Please have it available when you call.
INSTALLATION SITE
Company Name:
Street Address:
City:
State/ Principality: Zip/Postal Code:
Country:
INSTALLATION SITE CONTACT
Name of Contact:
Phone Number:
Fax Number:
E-Mail Address:
Fax Number:
English
6
LIMITED WARRANTY
Sola/Hevi-Duty extends the following LIMITED WARRANTY to the purchaser and
to its customer (collectively referred to as the "Purchaser"): the enclosed
Uninterruptible Power System (UPS) and components are free from defects in
materials and workmanship under normal use, service, and maintenance FOR A
PERIOD OF ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE from
Sola /Hevi-Duty or the Sola Hevi-Duty dealer or retailer. THE FOREGOING
WARRANTY IS THE ONLY WARRANTY GIVEN AND NO OTHER WARRANTY
IS PROVIDED, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Certain
aspects of disclaimers are not applicable to consumer products acquired by
individuals and used for personal, family, or household purposes (as
distinguished from industrial or other purposes). Local laws may not allow
limitations on how long an implied warranty lasts, so the above limitation may not
apply to you. This warranty gives you specific legal rights, and you may have
other rights which vary according to local law.
Certain repairs or services are the responsibility of the Purchaser and the
Purchaser is expected to pay for them. This warranty does not extend either to
products with removed or altered serial numbers or to any losses or damages
due to act of God or source external to the product, misuse, accident, abuse,
neglect, negligence, unauthorized modification, alteration, or repair, use beyond
rated capacity, or improper installation, maintenance, application or use,
including, without limitation, use in a manner contrary to the acco
mpanying
instructions or applicable codes. WARNING: Warranty is void if the battery is
allowed to discharge below the minimum battery cutoff point. To prevent such
discharge DO NOT leave the unit power switch "ON" for more than two (2) days
without AC power being supplied to the UPS. The battery must be recharged
every four (4) to six (6) months when not in use.
If the UPS fails to conform with the above warranty within the one year warranty
period, Sola / Hevi-Duty will repair or replace the UPS, at Sola /Hevi-Duty’s
option. Repairs or replacements are warranted for the remainder of the original
warranty period. Purchaser, to make a warranty claim, should call 1-800-377-
4384 to obtain a Returned Goods Authorization number and shipping
instructions. Return transportation costs to Sola / Hevi-Duty are the responsibility
of the Purchaser. “LIFE SUPPORT” POLICY
This product is not recommended, and the Company will not knowingly sell this
product, for use with life support and other designated "critical" devices. ANY
SUCH USE BY A USER AUTOMATICALLY VOIDS AND DISCLAIMS ANY AND
ALL WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY, IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, AND EXPRESS WARRANTIES THAT THIS
PRODUCT WILL CONFORM TO ANY AFFIRMATION OR PROMISE, FOR THIS
PRODUCT AND THE USER AGREES THAT IN NO EVENT SHALL THE
COMPANY BE LIABLE FOR CONSEQUENTIAL OR INDIRECT DAMAGES.
