Puls Dimension CP Series User manual

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
1/28
POWER SUPPLY
▪2MOPP Safety Approved for Medical applications According to
UL / IEC 60601-1
▪EMC Tested for Medical Use According to 60601-1-2
▪Quick-connect Spring-clamp Terminals
▪AC 100-240V Wide-range Input
▪Width only 39mm
▪Efficiency up to 95.2%, Excellent Partial Load Efficiency
▪20% Output Power Reserves (PowerBoost)
▪Safe HiccupPLUS Overload Mode
▪Easy Fuse Breaking due to High Overload Peak Current
▪Active Power Factor Correction (PFC)
▪Minimal Inrush Current Surge
▪Full Power Between -25°C and +60°C
▪DC-OK Relay Contact
▪3 Years Limited Warranty

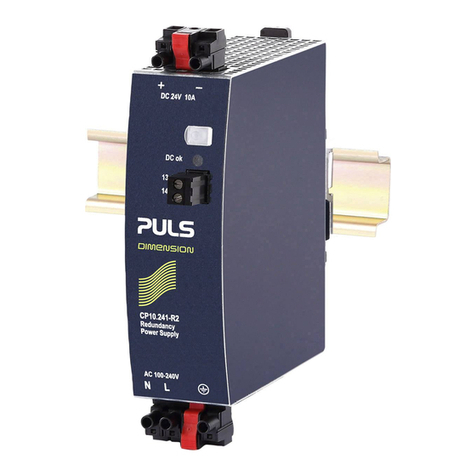

PRODUCT DESCRIPTION
The CP10.241-M1 is a DIN rail mountable single-phase-input
power supply for industrial use and for use in medical
equipment. It provides a stabilized and galvanically separated
SELV/PELV output voltage.
The specialty of this power supply is the 2MOPP (two means of
patient protection) safety approval for medical use and the
fulfillment of the required EMC tests for professional healthcare
facility and home healthcare environments.
The CP-Series is part of the DIMENSION power supply family.
The most outstanding features of CP10.241-M1 are the high
efficiency, advanced inrush current limitation, active PFC and
the wide operational temperature range. The devices also offer
PowerBoost: Power reserves of 20%, which may even be used
continuously at temperatures up to +45°C.
High immunity to transients and power surges as well as low
electromagnetic emission, a DC-OK relay contact and a large
international approval package for a variety of applications
makes this unit suitable for nearly every situation.
SHORT-FORM DATA
Output voltage
DC 24V
Adjustment range
24 –28V
Factory setting 24.1V
Output Current
10 –8.6A
Up to +60°C ambient
7.5 –6.5A
At +70°C ambient
Derate linearly between +60°C and +70°C
PowerBoost
12A
Up to +45°C ambient
Linear decrease to nominal power between
+45°C and +60°C
Input voltage AC
AC 100 - 240V
-15%/ +10%
Mains frequency
50 - 60Hz
±6%
AC Input current
2.15 / 1.13A
At 120 / 230Vac
Power factor
0.99 / 0.97
At 120 / 230Vac
Input inrush current
6 / 9A pk
At 40°C 120 / 230Vac
Input voltage DC
DC 110-150V
±20%
Input current DC
2.35A
At 110Vdc
Efficiency
93.6 / 95.2%
At 120 / 230Vac
Power losses
16.4 / 12.1W
At 120 / 230Vac
Hold-up time
37ms
Temperature range
-25°C to +70°C
Continuous
Size (wxhxd)
39x124x117mm
Without DIN rail
Weight
620g
ORDER NUMBERS
Power Supply CP10.241-M1 Medical approved device
Accessory ZM10.WALL Wall mount bracket
ZM12.SIDE Side mount bracket
MAIN APPROVALS
For details and the complete approval list, see chapter 20
UL 60601-1

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
2/28
INDEX
Page Page
1. Intended Use................................................................3
2. Installation Instructions................................................3
3. AC-Input .......................................................................5
4. DC-Input .......................................................................6
5. Input Inrush Current.....................................................7
6. Output..........................................................................8
7. Hold-up Time................................................................9
8. DC-OK Relay Contact..................................................10
9. Efficiency and Power Losses.......................................11
10. Lifetime Expectancy and MTBF ..................................12
11. Functional Diagram ....................................................12
12. Terminals and Wiring .................................................13
13. Front Side and User Elements ....................................14
14. EMC –According to Medical Standards .....................15
15. EMC –According to Generic Standards......................16
16. Environment...............................................................17
17. Safety Features...........................................................18
18. Protection Features....................................................19
19. Dielectric Strength......................................................19
20. Approved, Fulfilled or Tested Standards ....................20
21. Regulatory Product Compliance ................................ 20
22. Physical Dimensions and Weight ............................... 21
23. Accessories................................................................. 22
23.1. ZM10.WALL - Wall/Panel Mount Bracket......... 22
23.2. ZM12.SIDE - Side Mounting Bracket................. 23
24. Application Notes....................................................... 24
24.1. Peak Current Capability.................................... 24
24.2. Back-feeding Loads .......................................... 25
24.3. External Input Protection ................................. 25
24.4. Output Circuit Breakers.................................... 25
24.5. Series Operation............................................... 26
24.6. Parallel Use to Increase Output Power ............ 26
24.7. Parallel Use for Redundancy ............................ 26
24.8. Inductive and Capacitive Loads........................ 26
24.9. Charging of Batteries........................................ 26
24.10. Operation on Two Phases ................................ 27
24.11. Use in a Tightly Sealed Enclosure..................... 27
24.12. Mounting Orientations..................................... 28
The information given in this document is correct to the best of our knowledge and experience at the time of publication. If not
expressly agreed otherwise, this information does not represent a warranty in the legal sense of the word. As the state of our
knowledge and experience is constantly changing, the information in this data sheet is subject to revision. We therefore kindly ask you
to always use the latest issue of this document (available under www.pulspower.com). No part of this document may be reproduced or
utilized in any form without our prior permission in writing.
TERMINOLOGY AND ABREVIATIONS
PE and symbol PE is the abbreviation for Protective Earth and has the same meaning as the symbol .
Earth, Ground This document uses the term “earth” which is the same as the U.S. term “ground”.
t.b.d. To be defined, value or description will follow later.
AC Alternating Current
DC Direct Current
AC 230V A figure displayed with the AC or DC before the value represents a nominal voltage with standard tolerances
(usually ±15%) included.
E.g.: DC 12V describes a 12V battery disregarding whether it is full (13.7V) or flat (10V)
230Vac A figure with the unit (Vac) at the end is a momentary figure without any additional tolerances included.
50Hz vs. 60Hz As long as not otherwise stated, AC 100V and AC 230V parameters are valid at 50Hz mains frequency. AC
120V parameters are valid for 60Hz mains frequency.
may A key word indicate flexibility of choice with no implied preference.
shall A key word indicate a mandatory requirement.
should A key word indicate flexibility of choice with a strongly preferred implementation.

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
3/28
1. INTENDED USE
This device is designed for installation in an enclosure and is intended for use in medical equipment.
Do not use this device in HF surgical equipment or similar apertures.
Do not use this device in equipment, where malfunction may cause severe personal injury or threaten human life.
2. INSTALLATION INSTRUCTIONS
WARNING
Risk of electrical shock, fire, personal injury or death.
- Turn power off before working on the device. Protect against inadvertent re-powering.
- Do not open, modify or repair the unit.
- Use caution to prevent any foreign objects from entering the housing.
- Do not use in wet locations or in areas where moisture or condensation can be expected.
- Do not touch during power-on, and immediately after power-off. Hot surfaces may cause burns.
This device may only be installed and put into operation by qualified personnel.
This device does not contain serviceable parts. The tripping of an internal fuse is caused by an internal defect. If damage or malfunction
should occur during installation or operation, immediately turn power off and send the device to the factory for inspection.
Install device in an enclosure providing protection against electrical, mechanical and fire hazards.
Install the device onto a DIN rail according to EN 60715 with the input terminals on the bottom of the device. Other mounting
orientations require a reduction in output current.
Use shielded or unshielded cables, twisted or untwisted cables of any length. Make sure that the wiring is correct by following all local
and national codes. Use appropriate copper cables that are designed for a minimum operating temperature of 90°C for ambient
temperatures between +45°C and +60°C and 105°C for ambient temperatures up to +70°C. Ensure that all strands of a stranded wire
enter the terminal connection.
The device is designed for pollution degree 2 areas in controlled environments. No condensation or frost is allowed.
The enclosure of the device provides a degree of protection of IP20. The enclosure does not provide protection against spilled liquids.
The isolation of the device is designed to withstand impulse voltages of overvoltage category III according to IEC 60664-1.
The device is designed as “Class of Protection I” equipment according to IEC 61140. Do not use without a proper PE (Protective Earth)
connection.
The device is suitable to be supplied from TN, TT or IT mains networks. The continuous voltage between the input terminal and the PE
potential must not exceed 300Vac.
The input can also be powered from batteries or similar DC sources. The continuous voltage between the supply voltage and the
PE/ground potential must not exceed 375Vdc.
A disconnecting means shall be provided for the input of the device.
The device is designed for convection cooling and does not require an external fan. Do not obstruct airflow and do not cover ventilation
grid!
The device is designed for altitudes up to 3000m.
Keep the following minimum installation clearances: 40mm on top, 20mm on the bottom, 5mm left and right side. Increase the 5mm to
15mm in case the adjacent device is a heat source. When the device is permanently loaded with less than 50%, the 5mm can be reduced
to zero.
The device is designed, tested and approved for branch circuits up to 32A (IEC) and 30A (UL) without additional protection device. If an
external fuse is utilized, do not use circuit breakers smaller than 6A B- or C-Characteristic to avoid a nuisance tripping of the circuit
breaker.

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
4/28
The maximum surrounding air temperature is +70°C. The operational temperature is the same as the ambient or surrounding air
temperature and is defined 2cm below the device.
The device is designed to operate in areas between 5% and 95% relative humidity.
Portable RF communication equipment should be used no closer than 30cm to the power supply or the power supply connection cables.
WARNING
Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation. If
such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally.

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
5/28
3. AC-INPUT
AC input
Nom.
AC 100-240V
Suitable for TN-, TT- and IT mains networks
AC input range
85-264Vac
264-300Vac
For max. 500ms
Allowed voltage L or N to earth
Max.
300Vac
Continuous, IEC 62477-1
Input frequency
Nom.
50–60Hz
±6%
Turn-on voltage
Typ.
80Vac
Steady-state value, see Fig. 3-1
Shut-down voltage
Typ.
70Vac
Steady-state value, see Fig. 3-1
Typ.
55Vac
Dynamic value (max. 250ms)
External input protection
See recommendations in chapter 24.3.
AC 100V
AC 120V
AC 230V
Input current
Typ.
2.60A
2.15A
1.13A
At 24V, 10A, see Fig. 3-3
Power factor*)
Typ.
0.99
0.99
0.97
At 24V, 10A, see Fig. 3-4
Crest factor**)
Typ.
1.5
1.5
1.65
At 24V, 10A
Start-up delay
Typ.
300ms
290ms
240ms
See Fig. 3-2
Rise time
Typ.
30ms
30ms
30ms
At 24V, 10A const. current load, 0mF
load capacitance, see Fig. 3-2
Typ.
75ms
75ms
75ms
At 24V, 10A const. current load, 10mF
load capacitance, see Fig. 3-2
Turn-on overshoot
Max.
200mV
200mV
200mV
See Fig. 3-2
External input protection
*) The power factor is the ratio of the true (or real) power to the apparent power in an AC circuit.
**) The crest factor is the mathematical ratio of the peak value to RMS value of the input current waveform.
Fig. 3-1 Input voltage range
Fig. 3-2 Turn-on behaviour, definitions
Turn-on
85V
Rated
input range
max.
500ms
VIN
P
OUT
300Vac264V
Shut-down
Start-up
delay Rise Time
Overshoot
-5%
Output
Voltage
Input
Voltage

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
6/28
Fig. 3-3 Input current vs. output current at 24V output
voltage
Fig. 3-4 Power factor vs. output current at 24V output
voltage
12A
1 2 3 4 5 6 7 8 9
0
0.5
1.0
1.5
2.0
2.5
3A
Input Current, typ.
10 11
a)100Vac
b)120Vac
c)230Vac
b
a
c
Output Current
Power Factor, typ.
1 2 3 4 5 6 7 8 9 12A
0.75
0.8
0.85
0.9
0.95
1.0
10 11
Output Current
(a)100Vac,
(b)120Vac,
(c)230Vac
(a)
(b)
(c)
4. DC-INPUT
DC input
Nom.
DC 110-150V ±20%
DC input range
88-180Vdc
DC input current
Typ.
2.35A
At 110Vdc, at 24V, 10A
Allowed Voltage L/N to Earth
Max.
375Vdc
Continuous, IEC 62477-1
Turn-on voltage
Typ.
80Vdc
Steady state value
Shut-down voltage
Typ.
70Vdc
Steady state value
Typ.
55Vdc
Dynamic value (max. 250ms)
Fig. 4-1 Wiring for DC Input
Instructions for DC use:
+
-
Load
L
PE
+
-
Power Supply
AC
DC
Battery
N
a) Use a battery or a similar DC source. A supply from the
intermediate DC-bus of a frequency converter is not
recommended and can cause a malfunction or damage the unit.
b) Connect +pole to L and –pole to N.
c) Connect the PE terminal to an earth wire or to the machine
ground.

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
7/28
5. INPUT INRUSH CURRENT
An active inrush limitation circuit (NTCs, which are bypassed by a relay contact) limits the input inrush current after turn-on of the input
voltage.
The charging current into EMI suppression capacitors is disregarded in the first microseconds after switch-on.
AC 100V
AC 120V
AC 230V
Inrush current
Max.
11Apeak
7Apeak
11Apeak
At 40°C, cold start
Typ.
9Apeak
6Apeak
6Apeak
At 25°C, cold start
Typ.
9Apeak
6Apeak
9Apeak
At 40°C, cold start
Inrush energy
Max.
0.1A²s
0.1A²s
0.4A²s
At 40°C, cold start
Fig. 5-1 Typical turn-on behaviour at nominal load,
120Vac input and 25°C ambient
Fig. 5-2 Typical turn-on behavior at nominal load, 230Vac
input and 25°C ambient
50ms/DIV
Input current
2A/DIV
Input voltage
250V/DIV
Output voltage20V/DIV
6A
50ms/DIV
Input current
2A/DIV
Input voltage
500V/DIV
Output voltage20V/DIV
6A

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
8/28
6. OUTPUT
Output voltage
Nom.
24V
Adjustment range
24-28V
Guaranteed
Max.
30.0V****)
At clockwise end position of potentiometer
Factory settings
Typ.
24.1V
±0.2%, at full load and cold unit
Line regulation
Max.
10mV
85-300Vac
Load regulation
Max.
50mV
Static value, 0A →10A; see Fig. 6-1
Ripple and noise voltage
Max.
50mVpp
20Hz to 20MHz, 50Ohm
Output current
Nom.
10A
At 24V and up to +60°C ambient temperature, see Fig. 6-1
Nom.
7.5A
At 24V and +70°C ambient temperature, see Fig. 16-1
Nom.
8.6A
At 28V and up to +60°C ambient temperature, see Fig. 6-1
Nom.
6.45A
At 28V and +70°C ambient temperature, see Fig. 16-1
Derate linearly between +60°C and +70°C, see chapter 16
PowerBoost*)
Nom.
12A
At 24V and up to +45°C ambient temperature, see Fig. 16-1
Nom.
10.3A
At 28V and up to +45°C ambient temperature, see Fig. 16-1
PowerBoost decreases linearly to nominal power between +45°C and +60°C, see chapter 16.
Fuse breaking current
Typ.
30A
Up to at least 12ms*****), output voltage stays above 20V, see
Fig. 6-2 and Fig. 24-3, This peak current is available once
every five seconds (hardware controlled).
Output power
Nom.
240W
Continuously available
Nom.
288W*)
PowerBoost *)
Overload behaviour
cont. current
Output voltage > 13Vdc, see Fig. 6-1
HiccupPLUS mode**)
Output voltage < 13Vdc, see Fig. 6-1
Short-circuit current
Min.
12.5A***)
Load impedance 45mOhm, see Fig. 6-3
Max.
15.5A***)
Load impedance 45mOhm, see Fig. 6-3
Max.
5A
Average (R.M.S.) current, load impedance 50mOhm, see Fig.
6-3
Min.
28A
Up to 12ms, load impedance 45mOhm, see Fig. 6-2
Typ.
30.5A
Up to 12ms, load impedance 45mOhm, see Fig. 6-2
Output capacitance
Typ.
4 400µF
Included inside the power supply
*) PowerBoost
This power/ current is continuously allowed up to an ambient temperature of +45°C.
Above +45°C, do not use this power/ current longer than a duty cycle of 10% and/ or not longer than 1 minute every 10 minutes.
**) HiccupPLUS Mode
At heavy overloads (when output voltage falls below 13V), the power supply delivers continuous output current for 2s. After this, the output is switched
off for approx. 18s before a new start attempt is automatically performed. This cycle is repeated as long as the overload exists. If the overload has been
cleared, the device will operate normally. See Fig. 6-3
***) Discharge current of output capacitors is not included.
****) This is the maximum output voltage which can occur at the clockwise end position of the potentiometer due to tolerances. It is not a guaranteed value
which can be achieved. The typical value is about 28.5V.
*****) Reduced pulse length for AC 100V mains.

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
9/28
Fig. 6-1 Output voltage vs. output current, typ.
Fig. 6-2 Dynamic output current capability, typ.
Output Voltage
00 12.5
4
8
12
28V
16
20
24
20A7.52.5 5 10 15 17.5
Adjustment
Range
Output Current
Continuous
current
Factory
setting
Hiccup
PLUS
mode
Output Voltage (dynamicbehavior,<12ms)
00
4
8
12
28V
16
20
24
50A2010 30 40515 25 35 45
Adjustment
Range
Output Current
Fig. 6-3 Short-circuit on output, HiccupPLUS mode, typ.
Output
Current
0
14A
18s 18s
18s 2s 2s
2s
t
Short -circuit Normal
operation
Normal
operation
7. HOLD-UP TIME
AC 100V
AC 120V
AC 230V
Hold-up Time
Typ.
73ms
73ms
73ms
At 24V, 5A, see Fig. 7-1
Min.
55ms
55ms
55ms
At 24V, 5A, see Fig. 7-1
Typ.
37ms
37ms
37ms
At 24V, 10A, see Fig. 7-1
Min.
28ms
28ms
28ms
At 24V, 10A, see Fig. 7-1
Fig. 7-1 Hold-up time vs. input voltage
Fig. 7-2 Shut-down behaviour, definitions
0
10
20
30
40
80ms
90 120 155 190 230Vac
Input Voltage
50
60
Hold-upTime
70
a
b
c
d
a)24V5Atyp.
b)24V5Amin. c)24V10Atyp.
d)24V10Amin.
-5%
Hold-up Time
ZeroTransition
Output
Voltage
Input
Voltage

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
10/28
8. DC-OK RELAY CONTACT
This feature monitors the output voltage on the output terminals of a running power supply.
Contact closes
As soon as the output voltage reaches typ. 90% of the adjusted output voltage level.
Contact opens
As soon as the output voltage dips more than 10% below the adjusted output voltage.
Short dips will be extended to a signal length of 100ms. Dips shorter than 1ms will be ignored.
Contact ratings
Max.
60Vdc 0.3A, 30Vdc 1A, 30Vac 0.5A
resistive load
Min.
1mA at 5Vdc
min. permissible load
Isolation voltage
See dielectric strength table in chapter 18.
Fig. 8-1 DC-OK relay contact behavior
100ms
0.9* V
ADJ
<
1ms
10%
open
V
OUT
=V
ADJ
openclosed closed
>
1ms

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
11/28
9. EFFICIENCY AND POWER LOSSES
AC 100V
AC 120V
AC 230V
Efficiency
Typ.
92.9%
93.6%
95.2%
At 24V, 10A
Typ.
92.5%
93.4%
95.1%
At 24V, 12A (PowerBoost)
Average efficiency*)
Typ.
92.5%
93.0%
94.3%
25% at 2.5A, 25% at 5A,
25% at 7.5A. 25% at 10A
Power losses
Typ.
2.5W
2.1W
1.8W
At 24V, 0A
Typ.
9.8W
8.9W
7.1W
At 24V, 5A
Typ.
18.3W
16.4W
12.1W
At 24V, 10A
Typ.
23.4W
21.7W
14.8W
At 24V, 12A (PowerBoost)
*) The average efficiency is an assumption for a typical application where the power supply is loaded with 25% of the nominal load for 25% of the time, 50% of
the nominal load for another 25% of the time, 75% of the nominal load for another 25% of the time and with 100% of the nominal load for the rest of the
time.
Fig. 9-1 Efficiency vs. output current at 24V, typ.
Fig. 9-2 Losses vs. output current at 24V, typ.
Efficiency
2 3 4 5 6 7 9 10 12A
90
91
92
93
94
95
96%
Output Current
811
(a)
(b)
(c)
(a)100Vac
(b)120Vac
(c) 230Vac
Power Losses
0 1 3 4 6 7 12A
5
0
10
15
20
30W
910
25
2 5 8
Output Current
11
(a)
(b)
(c)
(a)100Vac
(b)120Vac
(c) 230Vac
Fig. 9-3 Efficiency vs. input voltage at 24V, 10A, typ.
Fig. 9-4 Losses vs. input voltage at 24V, 10A, typ.
Efficiency
120 180 230 264Vac
90
91
92
93
Input Voltage
94
95
96%
100
Power Losses
120 180 230 264Vac
10
12
14
16
Input Voltage
18
20
22W
100

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
12/28
10.LIFETIME EXPECTANCY AND MTBF
AC 100V
AC 120V
AC 230V
Lifetime expectancy*)
128 000h
141 000h*)
176 000h*)
At 24V, 5A and 40°C
61 000h
75 000h
120 000h
At 24V, 10A and 40°C
47 000h
59 000h
101 000h
At 24V, 12A and 40°C
363 000h*)
399 000h*)
499 000h*)
At 24V, 5A and 25°C
173 000h*)
211 000h*)
338 000h*)
At 24V, 10A and 25°C
132 000h*)
166 000h*)
286 000h*)
At 24V, 12A and 25°C
MTBF**) SN 29500, IEC 61709
550 000h
560 000h
661 000h
At 24V, 10A and 40°C
1 003 000h
1 017 000h
1 176 000h
At 24V, 10A and 25°C
MTBF**) MIL HDBK 217F
188 000h
188 000h
213 000h
At 24V, 10A and 40°C;
Ground Benign GB40
252 000h
252 000h
290 000h
At 24V, 10A and 25°C;
Ground Benign GB25
40 000h
40 000h
47 000h
At 24V, 10A and 40°C;
Ground Fixed GF40
51 000h
51 000h
61 000h
At 24V, 10A and 25°C;
Ground Fixed GF25
*) The Lifetime expectancy shown in the table indicates the minimum operating hours (service life) and is determined by the lifetime expectancy of the built-in
electrolytic capacitors. Lifetime expectancy is specified in operational hours and is calculated according to the capacitor’s manufacturer specification. The
manufacturer of the electrolytic capacitors only guarantees a maximum life of up to 15 years (131 400h). Any number exceeding this value is a calculated
theoretical lifetime which can be used to compare devices.
**) MTBF stands for Mean Time Between Failure, which is calculated according to statistical device failures, and indicates reliability of a device. It is the statistical
representation of the likelihood of a unit to fail and does not necessarily represent the life of a product.
The MTBF figure is a statistical representation of the likelihood of a device to fail. A MTBF figure of e.g. 1 000 000h means that statistically one unit will fail
every 100 hours if 10 000 units are installed in the field. However, it cannot be determined if the failed unit has been running for 50 000h or only for 100h.
11.FUNCTIONAL DIAGRAM
Fig. 11-1 Functional diagram
+
+
-
-
Output
Over-
Voltage
Protection
PFC
Converter
Output
Voltage
Regulator
Power
Converter Output
Filter
Output
Voltage
Monitor
Output
Power
Manager
Temper-
ature
Shut-
down
Input Fuse
Input Filter
Input Rectifier
InrushCurrent Limiter
V
OUT
L
N
DC-ok
Contact
DC-ok
LED
DC-ok
Relay
-

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
13/28
12.TERMINALS AND WIRING
The terminals are IP20 finger safe constructed and suitable for field- and factory wiring.
Input and Output
DC-OK-Signal
Type
Quick-connect spring-clamp terminals
Push-in terminals
Solid wire
Max. 6mm2
Max. 1.5mm2
Stranded wire
Max. 4mm2
Max. 1.5mm2
American Wire Gauge
Max. AWG 20-10
Max. AWG 28-16
Wire diameter (including ferrules)
Max. 2.8mm
Max. 1.6mm
Wire stripping length
10mm
7mm
Screwdriver
Not applicable
Not required
Recommended tightening torque
Not applicable
Not applicable
Instructions:
a) Use appropriate copper cables that are designed for minimum operating temperatures of:
90°C for ambient between 45°C and 60°C minimum
105°C for ambient up to 70°C minimum.
b) Follow national installation codes and installation regulations!
c) Ensure that all strands of a stranded wire enter the terminal connection!
d) Do not use the unit without PE connection.
e) Unused terminal compartments should be securely tightened.
f) Ferrules are allowed.
Daisy chaining:
Daisy chaining (jumping from one power supply output to the next) is allowed as long as the average output current through one
terminal pin does not exceed 25A. If the current is higher, use a separate distribution terminal block as shown in Fig. 12-2.
Fig. 12-1 Daisy chaining of outputs
Fig. 12-2 Using distribution terminals
Load
+
-
Power
Supply
++
- -
Output
Power
Supply
++
- -
Output
max25A!
continuous
Distribution
Terminals
Load
+
-
Power
Supply
++
- -
Output
Power
Supply
++
- -
Output

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
14/28
13.FRONT SIDE AND USER ELEMENTS
Fig. 13-1
A Input Terminals
Quick-connect spring-clamp terminals
N, L Line input
PE (Protective Earth) input
B Output Terminals
(two identical + poles and three identical - poles)
Quick-connect spring-clamp terminals
+ Positive output
–Negative (return) output
C Output voltage potentiometer
Open the flap to adjust the output voltage. Factory set: 24.1V
D DC-OK LED (green)
On, when the output voltage is >90% of the adjusted output voltage
E DC-OK Relay Contact
(Push-in terminals)
Monitors the output voltage of the running power supply.
See chapter 8 for details.

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
15/28
14.EMC –ACCORDING TO MEDICAL STANDARDS
EMC Immunity
According to medical standard: EN 60601-1-2
Electrostatic discharge
EN 61000-4-2
Contact discharge
Air discharge
Air discharge DC OK signal
8kV
15kV
8kV
Criterion A
Criterion A
Criterion A
Electromagnetic RF field
EN 61000-4-3
80MHz-2.7GHz
10V/m
Criterion A
EN 61000-4-3, EN
60601-1-2 table 9
385MHz-5.78GHz
9-28V/m
Criterion A
Fast transients (Burst)
EN 61000-4-4
Input lines
Output lines
DC-OK signal (coupling clamp)
2kV
1kV
1kV
Criterion A
Criterion A
Criterion A
Surge voltage on input
EN 61000-4-5
L →N
L →PE, N →PE
1kV
2kV
Criterion A
Criterion A
Conducted disturbance
EN 61000-4-6
0.15-80MHz
6V
Criterion A
Rated power frequency
magnetic fields
EN 61000-4-8
Frequency 50Hz
Frequency 60Hz
30A/m
30A/m
Criterion A
Criterion A
Mains voltage dips
EN 61000-4-11
0% of 100Vac
0% of 100Vac
70% of 100Vac
0% of 240Vac
0% of 240Vac
70% of 240Vac
0Vac, 10ms
0Vac, 20ms
70Vac, 500ms
0Vac, 10ms
0Vac, 20ms
168Vac, 500ms
Criterion A
Criterion A
Criterion A
Criterion A
Criterion A
Criterion A
Voltage interruptions
EN 61000-4-11
0% of 100Vac
0% of 240Vac
0Vac, 5000ms
0Vac, 5000ms
Criterion B
Criterion B
Criterions:
A: Power supply shows normal operation behavior within the defined limits.
B: Output voltage out of range or switches off. DC-OK signal might trigger. Restores automatically after the test.
EMC Emission
According to generic standard: EN 60601-1-2
Conducted emission
input lines
EN 55011, CISPR 11
Class B for AC Input voltages and Class A for DC input voltages
Radiated emission
EN 55011, CISPR 11
Class B
Harmonic input current
EN 61000-3-2
Class A fulfilled between 0A and 12A load
Class C fulfilled between 6A and 12A load
Voltage fluctuations, flicker
EN 61000-3-3
Fulfilled*)
Switching Frequencies
The power supply has three converters with two different switching frequencies included.
Switching frequency 1
110kHz
PFC converter
Switching frequency 2
84kHz to 140kHz
Main converter, output power dependent
Switching frequency 3
60kHz
Auxiliary converter

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
16/28
15.EMC –ACCORDING TO GENERIC STANDARDS
In regard to EMC, the power supply is designed for applications in medical applications, industrial environment as well as in residential,
commercial and light industry environment.
EMC Immunity
According to generic standards: EN 61000-6-1 and EN 61000-6-2
Electrostatic discharge
EN 61000-4-2
Contact discharge
Air discharge
8kV
15kV
Criterion A
Criterion A
Electromagnetic RF field
EN 61000-4-3
80MHz-2.7GHz
20V/m
Criterion A
Fast transients (Burst)
EN 61000-4-4
Input lines
Output lines
DC-OK signal (coupling clamp)
4kV
2kV
2kV
Criterion A
Criterion A
Criterion A
Surge voltage on input
EN 61000-4-5
L →N
L →PE, N →PE
2kV
4kV
Criterion A
Criterion A
Surge voltage on output
EN 61000-4-5
+ →-
+ / - →PE
1kV
2kV
Criterion A
Criterion A
Surge voltage on Signals
EN 61000-4-5
DC-OK signal →PE
1kV
Criterion A
Conducted disturbance
EN 61000-4-6
0.15-80MHz
20V
Criterion A
Mains voltage dips
EN 61000-4-11
0% of 100Vac
40% of 100Vac
70% of 100Vac
0% of 200Vac
40% of 200Vac
70% of 200Vac
0Vac, 20ms
40Vac, 200ms
70Vac, 500ms
0Vac, 20ms
80Vac, 200ms
140Vac, 500ms
Criterion A
Criterion C
Criterion A
Criterion A
Criterion A
Criterion A
Voltage interruptions
EN 61000-4-11
0% of 200Vac
0Vac, 5000ms
Criterion C
Voltage sags
SEMI F47
dips on the input voltage according to SEMI F47 standard
80% of 120Vac (96Vac)
70% of 120Vac (84Vac)
50% of 120Vac (60Vac)
1000ms
500ms
200ms
Criterion A
Criterion A
Criterion A
Powerful transients
VDE 0160
Over entire load range
750V, 0.3ms
Criterion A
Criterions:
A: Power supply shows normal operation behavior within the defined limits.
C: Temporary loss of function is possible. Power supply may shut-down and restarts by itself. No damage or hazards for the power supply will occur.
EMC Emission
According to generic standards: EN 61000-6-3 and EN 61000-6-4
Conducted emission
input lines
EN 55011, EN 55015, EN 55032, FCC Part 15,
CISPR 11, CISPR 32
Class B for AC Input voltages and Class A for DC
input voltages
Conducted emission
output lines**)
IEC/CISPR 16-1-2, IEC/CISPR 16-2-1
12dB higher than average limits for DC power
port according to EN 61000-6-3**)
Radiated emission
EN 55011, EN 55032
Class B
Harmonic input current
EN 61000-3-2
Class A fulfilled between 0A and 12A load
Class C fulfilled between 6A and 12A load
Voltage fluctuations, flicker
EN 61000-3-3
Fulfilled*)
This device complies with FCC Part 15 rules.
Operation is subjected to following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
*) Tested with constant current loads, non pulsing
**) For information only, not mandatory for EN 61000-6-3 or EN 61000-6-4
Restrictions apply only for applications in residential, commercial and light-industrial environments, where local DC power networks according to EN 61000-6-
3 are involved. No restrictions for all kinds of industrial applications.

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
17/28
16.ENVIRONMENT
Operational temperature*)
-25°C to +70°C
Reduce output power according Fig. 16-1
Non-operational temperature
-40°C to +85°C
For storage and transportation
Output derating
6W/K
Between +60°C and +70°C
Humidity**)
5 to 95% r.h.
For operation, storage and transportation according
to IEC 60068-2-30
Atmospheric pressure
106-70kPa
For operation, storage and transportation
Vibration sinusoidal
2-17.8Hz: ±1.6mm; 17.8-500Hz: 2g***)
2 hours / axis***)
IEC 60068-2-6
Shock
30g 6ms, 20g 11ms***)
3 bumps / direction, 18 bumps in total
IEC 60068-2-27
Altitude
0 to 3000m
For medical applications
0 to 2000m
For all other applications
2000 to 6000m
Reduce output power or ambient temperature, see
Fig. 16-2.
Altitude derating
15W/1000m or 5K/1000m
For altitudes >2000m, see Fig. 16-2
Over-voltage category
III
Altitudes up to 2000m according to IEC/EN 62477-1,
II
For altitudes from 2000m to 6000m
Degree of pollution
2
According to IEC/EN 62477-1, not conductive
*) Operational temperature is the same as the ambient or surrounding temperature and is defined as the air temperature 2cm below the unit.
**) Do not energize while condensation is present
***) Tested in combination with DIN rails according to EN 60715 with a height of 15mm and a thickness of 1.3mm and standard orientation.
Fig. 16-1 Output current vs. ambient temp.
(Inom 10A; Iout with PowerBoost = 12A)
Fig. 16-2 Output current vs. altitude
AllowedOutput Current at 24V
0-25 0 20 40 70°C
2A
4A
6A
8A
10A
12A
60
A
Ambient Temperature
A...85to264Vac,continuous
B...short term
B
002000m 4000m 6000m
2A
4A
6A
8A
10A
12A
AllowedOutput Current at 24V
Altitude
B
C
A... Tamb < 60°C
B... Tamb < 50°C
C... Tamb < 40°C
D... Short term
A
D

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
18/28
17.SAFETY FEATURES
Input / output separation1)
SELV
IEC/EN 60950-1
PELV
IEC/EN 60204-1, IEC/EN 62477-1, IEC 60364-4-41
double or reinforced insulation
Transformers
Safety Isolating Transformers
acc. IEC/EN 61558-2-16
Safety Isolating Transformers corresponding to Part 2-6 of the
IEC/EN 61558
Class of protection
I
PE (Protective Earth) connection required
Isolation resistance
Min. 500MOhm
Input to output, measured with 500Vdc
PE resistance
Max. 0.1Ohm
PE terminal to enclosure
Earth leakage current, industrial
Typ. 0.06mA / 0.17mA
100Vac, 50Hz, TN-,TT-mains / IT-mains
Typ. 0.09mA / 0.24mA
120Vac, 60Hz, TN-,TT-mains / IT-mains
Typ. 0.15mA / 0.42mA
230Vac, 50Hz, TN-,TT-mains / IT-mains
Max. 0.08mA / 0.20mA
110Vac, 50Hz, TN-,TT-mains / IT-mains
Max. 0.11mA / 0.30mA
132Vac, 60Hz, TN-,TT-mains / IT-mains
Max. 0.20mA / 0.55mA
264Vac, 50Hz, TN-,TT-mains / IT-mains
Earth leakage current2) 3), medical
Typ. 0.21mA
264Vac, 60Hz, normal condition
Max. 0.24mA
264Vac, 60Hz, normal condition
Typ. 0.41mA
264Vac, 60Hz, single fault condition
Max. 0.47mA
264Vac, 60Hz, single fault condition
Touch current2) 3), medical,
Mains to enclosure
Typ. 0.001mA
264Vac, 60Hz, normal condition
Max. 0.001mA
264Vac, 60Hz, normal condition
Typ. 0.21mA
264Vac, 60Hz, single fault condition
Max. 0.24mA
264Vac, 60Hz, single fault condition
Touch current2) 3), medical,
Mains to output GND (-) pole
Typ. 0.009mA
264Vac, 60Hz, normal condition
Max. 0.015mA
264Vac, 60Hz, normal condition
Typ. 0.13mA
264Vac, 60Hz, single fault condition
Max. 0.15mA
264Vac, 60Hz, single fault condition
Touch current2) 3), medical,
Mains to output plus (+) pole
Typ. 0.008mA
264Vac, 60Hz, normal condition
Max. 0.013mA
264Vac, 60Hz, normal condition
Typ. 0.14mA
264Vac, 60Hz, single fault condition
Max. 0.16mA
264Vac, 60Hz, single fault condition
1) Double or reinforced insulation
2) After humidity preconditioning treatment
3) No classification according class B, BF and CF since the power supply is not suitable for application parts with direct patient contact.

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
19/28
18.PROTECTION FEATURES
Output protection
Electronically protected against overload, no-load and short-circuits*)
Output over-voltage protection
Typ. 30.5Vdc
Max. 32Vdc
In case of an internal power supply defect, a redundant circuit
limits the maximum output voltage. The output shuts down and
automatically attempts to restart.
Degree of protection
IP 20
EN/IEC 60529
For use in a controlled environment according to CSA 22.2 No
107.1-01.
Penetration protection
> 4mm
e.g. screws, small parts
Over-temperature protection
yes
Output shut-down with automatic restart
Input transient protection
MOV (Metal Oxide Varistor)
Internal input fuse
Included (1 fuse in L-line)
not user replaceable
*) In case of a protection event, audible noise may occur.
19.DIELECTRIC STRENGTH
The output voltage is floating and has no ohmic connection to the ground. Type and factory tests are conducted by the manufacturer.
Field tests may be conducted in the field using the appropriate test equipment which applies the voltage with a slow ramp (2s up and 2s
down). Connect all input-terminals together as well as all output poles before conducting the test. When testing, set the cut-off current
settings to the value in the table below.
Fig. 19-1 Dielectric strength
A
B
C
D
AD
C
B
B
*)
L
Input DC-ok
13
14
Earth,PE Output
+
-
N
Type test
60s
3000Vac
4500Vac
1500Vac
500Vac
Factory test
5s
3000Vac
4000Vac
1000Vac
500Vac
Field test
5s
2700Vac
3500Vac
800Vac
500Vac
Cut-off current setting
> 10mA
> 5mA
> 5mA
> 1mA
B*) When testing input to DC-OK ensure that the max. voltage between DC-OK and the output is not exceeded (column D). We recommend connecting DC-OK
pins and the output pins together when performing the test.
Insulation Safety Ratings
Input to Ground
MOPP, MOOP
Input to Output
2MOPP, 2MOOP
Output to Ground
MOPP, MOOP

CP10.241-M1
CP-Series
24V, 10A, SINGLE PHASE INPUT
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
20/28
20.APPROVED,FULFILLED OR TESTED STANDARDS
IEC 60601
2MOPP
CB-Scheme Certificate
IEC 60601-1 - Medical electrical equipment - General requirements for
basic safety and essential performance
2MOPP
EN 60601-1-2
EMC
Medical
Agency Certificate (SIQ)
EN 60601-1-2 - Medical electrical equipment - Requirements for
electromagnetic disturbances (EMC)
UL 60601
2MOPP
UL Certificate
Recognized component for category QQHM - UL 60601-1 Medical Electrical
Equipment - General Requirements for Safety
Applicable for US and Canada
E207953
2MOPP
VDMA 24364
Paint Wetting Impairment Substances Test (or LABS-Test)
Tested for Zone 2 and test class C1 according to VDMA 24364-C1-L/W for
solvents and water-based paints
21.REGULATORY PRODUCT COMPLIANCE
EU Declaration of Conformity
The CE mark indicates conformance with the
- EMC directive
- Low-voltage directive
- RoHS directive
REACH Regulation (EU)
Manufacturer's Declaration
EU regulation regarding the Registration, Evaluation, Authorisation and
Restriction of Chemicals (REACH) fulfilled.
EU Regulation (EC) 1907/2006.
WEEE Regulation
Manufacturer's Declaration
EU Regulation on Waste Electrical and Electronic Equipment
Registered as business to business (B2B) products.
EU Regulation 2012/19/EU
