ehang 4K Sports Camera User manual

SPORTS CAMERA(4K)
OPERATING MANUAL
GHOSTDRONE 2.0 created by EHang, Inc.

English
Before using sports camera, please read the operating
manual carefully and familiarize yourself with the
operations, warnings and applications. EHang shall
not bear any liability or responsibility of the damage of
the camera, the copter or any other related accesso-
ries or the accidents arised from improper use.
Disclaimer

1
EHang 2nd-generation sports camera (4K) is portable and simple to
operate. Its TV mode enables video output at any time. In addition to its
magnificent photo taking, burst mode and other various modes, it also
features 1080P HD video shooting. With the sports camera, you can
capture every treasurable moment in details.

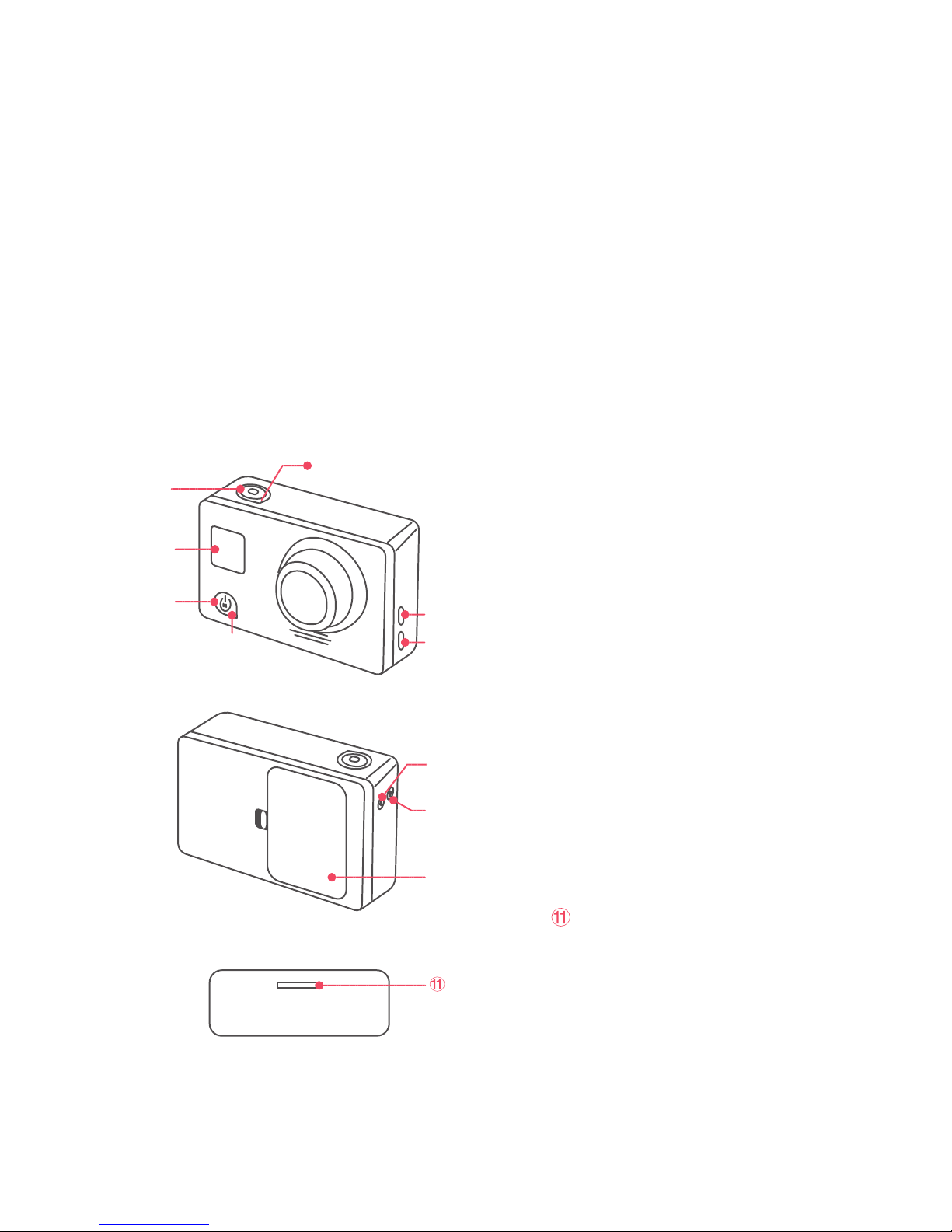

■Diagram
■Introduction
①
②
③
⑩
⑨
⑧
⑦
⑥
⑤
④
OK Button
Status Indicator Light
LED Screen
Power/Mode Button
Status/Charging Indicator
Light
HDMI Port
USB/ AV Output
Down
Up
Battery Cover
Micro SD Card Slot
①
②
③
⑦
⑥
⑤
④
⑩
⑨
⑧

2
1080

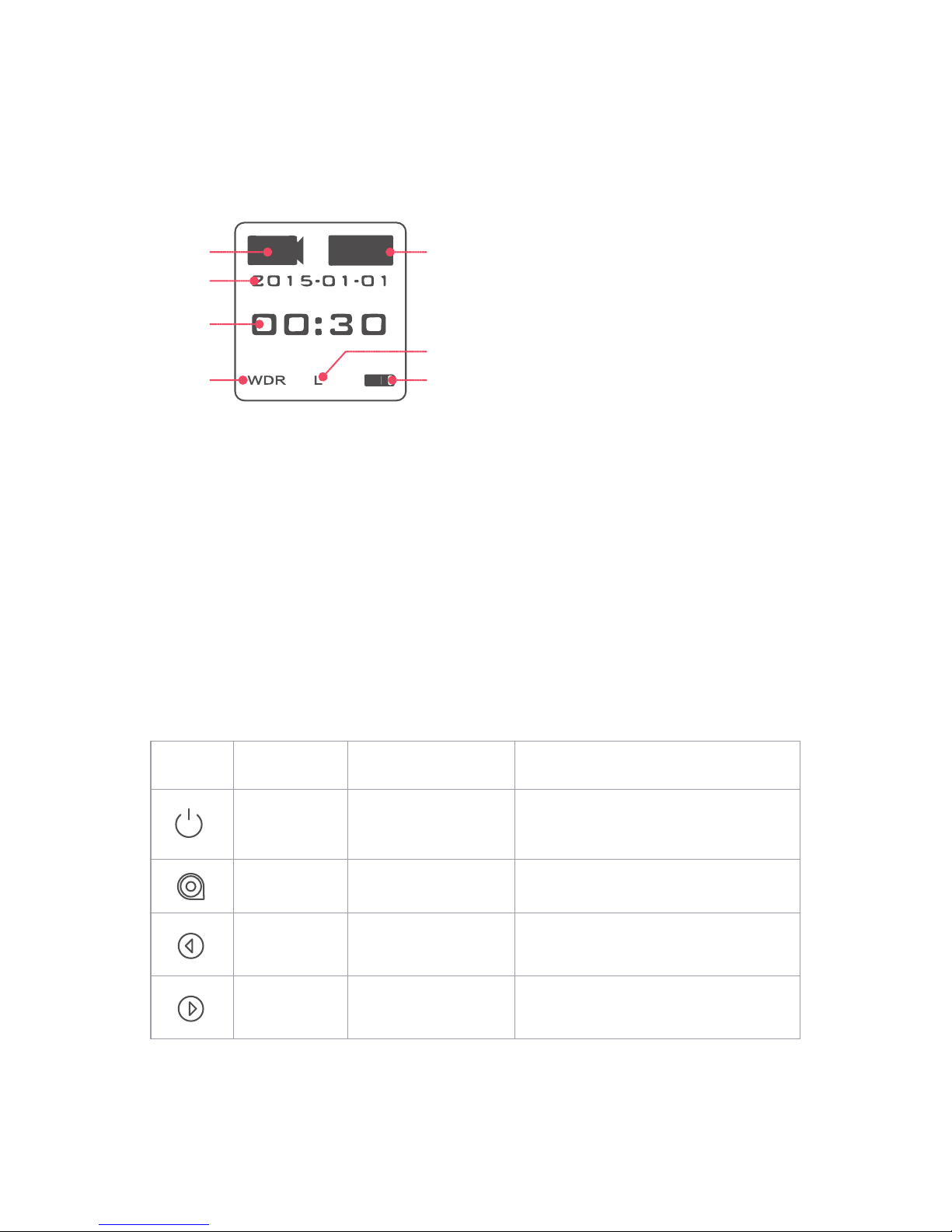

■LED Screen Instructions
⑦
⑥
① ③
④
②
⑤
①
②
③
⑦
⑥
⑤
④
Mode: Video/ Photo
Date
Resolution
Counter
WDR Status
FOV Level
Battery Status
■Button Explanations
Enter menu setting/move upward
Press to confirm.
Enter menu setting/move downwards
M
Name
Power/Mode
Button
Functions
Turn on/off camera;
Select Modes.
Descriptions
Press once, camera turns on. Press
and hold for 3 seconds, camera
turns off.
Press to switch between photo or
video mode.
OK
Up
Down
Start/Stop
Recording
Move Upwards
Move Downwards
Note: Before using the camera, please empty the Micro SD card and format it
in unit of 32K. Please use a C10 Micro SD card (if the card speed is not fast
enough, the screen will show “card speed low.”)

3
59×41×21 mm
Specifications
Dimension
1600 mAh
Weight
Battery Capacity
Note:
Battery is removable.
USB Port: Compatible with 3-axis gimbal for EHang and gimbal for GoPro.
Charging Time
70 g
Video/Photo Format
2 – 3 hours
About 1.5 hours
Battery Life
H.264
*.MP4 / *.JPG
F/2.8
Optical
Parameters
5 V
120° diagonally
Operating Voltage
400 mA
Electric
Parameters
Angle
Operating Current
Working
Modes Video, Photo, Time-lapse VideoTime-lapse Photo, 11 Burst Photo
Compressed Format
Aperture
■Specifications
Photo Resolution 16M/8M/5M
AV Output Format PAL/NTSC
HDMI Output YES
Storage Micro SD memory card with
Class 10 or UHS -1 rating,
up to 64 GB

4
Video Resolution:
Select from 4K 24fps/ 2.5K 30fps/ 1080P 60fps/
720P 12C0fps.
Cycle Recording:
If cycle recording mode is selected, the video will be
cut into 5-minute segments. The earliest files will be
covered when the Micro SD card is full.
Note: We suggest using this mode under vehicle
monitoring.
WDR (Wide Dynamic Range):
WDR function is suggested to be used in cloudy/dark
environment. It might cause overexposure in sunny
days.
Note: We suggest using this mode in sunny days.
Burst Mode:
Capture 11 photos in 1 second.
■Menu Description
SIZE
CYCLE-5MIN
BURST -1S
WDR

5
Note: If post- production is needed, standard is
suggested.
Color:
Photo/Video effect can be adjusted: standard/vivid.
COLOR
Time-lapse Video：
To start/stop time-lapse video at 0.5 or 3 second
intervals.
Burst Mode:
16M/8M/5M.
Note: 16M is suggested.
Note: We suggest using under vehicle monitoring or
aerial filming.
USB Power Up Auto-record:
If this function on, it will automatically start recording
when connected to external power source via USB.
TIMELAPSE
AUTO
SIZE
Note: Please keep the camera steady when taking
photos.
ISO:
ISO of photos can be adjusted: AUTO/100/400/1600.
ISO

6
Time Stamping:
On/Off. This option allows you to stamp the time on
the photos or videos.
STAMPING
TV-MODE
TV Output Mode:
PAL/NTSC
USB Auto Power-off:
the power will be automatically turned off in 30
seconds after the USB power supply is cut.
AUTO POWER OFF
Note: This function is suggested to be used in aerial
filming.
Continuous Photo:
This option allows you to capture photos continu-
ously every 3/10/30 second.
Sharpness:
3 options of photo sharpness can be adjusted:
High/medium/low.
INTERVAL
SHARPNESS

7
VERSION
System Version:
Enter to see the camera’s system version.
ANGLE
FORMAT
DEFAULT
Angle Adjustment:
Large/Medium/Small.
TF Card Format:
After powering on, when the TF card format is not
correct, “Please format card.” reminder will pop up.
Please format the card then.
Note: formatting is suggested on new camera.
Factory Default Settings:
You can use this function to resume all factory default
settings.
Note：If the camera does not work normally, please
resume all factory default settings then restart it again.

■Warranty
Strict quality control will be conducted before delivery. 12 months’
warranty is guaranteed for problems not caused by users’ improper use.
Removal of the products’manufacturing label will be regarded as waiver
of warranty. We will not offer complimentary maintenance if the label is
removed or damaged. But limited warranty is still provided.
■Charging
Connect the camera to a computer or a phone charger using the
included USB cable. Charge the camera after turning it off, or charge it
with 1A charger, which can increase the charging rate. After fully charge,
all charging status lights will turn off.
■Transferring Files
Connect the camera to a computer with the included USB cable, and
then turn on the camera;
Locate “Removable Disk”. Enter “Removable Disk”and you will find all
photos and video files in DV folder.
EHang, Inc. reserves all right to interpret this warranty.
■Contact Us
Business Hour: Monday – Friday 10:00 A.M – 6:00 P.M (PST)
Customer Service Phone: [phone]
Customer Service Email: [email protected]

简体中文
使用相机前，请仔细阅读说明书，了解具体使用
步骤及注意事项。了解产品的使用方法及应用范
围。因使用不当而造成的相机、飞行器及周边连
接件的损坏，或非相机本身质量问题产生的损坏
所导致的财产和人身的损害，本公司均不承担任
何责任。
免责声明

9
本相机拥有超迷你外观，轻巧便携、操作简单，自带TV模式随时输出图
像。不仅拥有单拍、连拍多种拍照模式，更有4K高清摄像，全方位满足您
的拍摄需求。
■结构图
■介绍
①
②
③
⑦
⑥
⑤
④
⑩
⑨
⑧
①
②
③
⑩
⑨
⑧
⑦
⑥
⑤
④
OK键
工作状态指示灯
LED状态显示屏
电源键/模式键
状态指示灯/充电指示灯
HDMI输出
USB口，AV输出口
DOWN向下键
UP向上键
电池盖
TF卡槽

10
1080
■LED显示状态说明
⑦
⑥
① ③
④
②
⑤
①
②
③
⑦
⑥
⑤
④
当前模式：录像/拍照
系统时间
分辨率设置
时间/照片剩余张数
WDR开关显示
视角设置显示
电量显示
■按键说明
进入菜单设置 / 增加菜单选项
进入菜单设置 / 减少菜单选项
M
名称
电源键/
模式键
功能
开机/关机
切换模式
描述
短按开机，长按 3 秒关机；拍
照 / 录像模式切换
短按确认
OK键
UP键
DOWN键
开始/停止录像
增加
减少
注：使用相机前，请将Micro SD卡清空并格式化成FAT32格式，单元大小32K，必
须选用C10高速Micro SD卡或同等级别的Micro SD卡（当卡速度不够时，会提示
Card speed low ）

11
拍照分辨率 16M/8M/5M
AV输出制式 PAL/NTSC
HDMI 输出 YES
TF卡要求 Class 10及以上级别的TF卡
支持Micro SD卡 64GB (Max)
59×41×21 mm
规格
尺寸
1600 mAh
重量
电池容量
电池：可拆卸。
USB口：兼容亿航三轴云台、GoPro 云台
充电时间
70 g
录像/拍照文件格式
2-3小时
约1.5小时工作时间
H.264
*.MP4 / *.JPG
F/2.8
光学
5 V
120度 对角角度
400 mA
电器参数 工作电压
工作电流
工作模式 普通录像、普通拍照、延时录像、延时拍照、11连拍
压缩格式
光圈
■参数
注：

12
录像分辨率：
4K 24fps/ 2.5K 30fps/1080P 60fps/ 720P 120fps
等可调。
循环录像：
关闭/开启，开启后，会以每段时长5分钟的视频
来录像，如果卡满会自动覆盖最早的文件。
建议：如果在车载监控使用，打开此功能。
宽动态：
开启宽动态功能后，视频的宽容度会提高。建议
阴天使用，晴天有可能会造成曝光过度。
建议：如果在晴天时，请关闭此功能。
11连拍模式
1秒连拍11张照片。开启后，拍照模式下，变成连
拍模式。
■菜单说明
SIZE
CYCLE-5MIN
BURST -1S
WDR

13
建议：需要后期，请使用标准色彩。
彩色调整：
标准/鲜艳。可以调节拍照/录像的效果。
COLOR
延时录像：
关闭/0.5秒/3秒可调。用于设定延时录像的时间间
隔。
拍照分辨率：
16M/8M/5M可选。
建议：选用16M
建议：如果在车载/航拍使用，打开此功能。
USB电源开机自动录像。开启后，通过USB供电开
机后会自动开启录像。
TIMELAPSE
AUTO
SIZE
建议：拍照的时候需要保持相机稳定。
ISO调整：
AUTO/100/400/1600，调整拍照的ISO值。
ISO

14
时间标签：
开启/关闭。开启后，可以将时间水印叠加在照片或
者录像中。
STAMPING
TV-MODE
TV输出制式：
PAL/NTSC
USB断电自动关机功能，如果USB供电断开30秒
后，机器会自动关机。
AUTO POWER OFF 建议：在航拍中打开此功能。
建议：录像建议锐度使用“中”。拍照模式下，拍近景
或者晚上时，建议使用“中”。拍远景时，建议使用“高”。
拍照模式下，会变成连拍模式。
间隔拍照模式：
关闭 /3 秒 /10 秒 /30 秒可调。调节后，会按照设
定的时间间隔拍照。拍照模式下，会变成连拍模式。
锐度调节：
高/中/低可调。设置后画面锐度会改变。锐度越
低，夜视效果越好。
INTERVAL
SHARPNESS

15
VERSION
系统版本号：
可以查看系统版本号。
DEFAULT
ANGLE
FORMAT
视角调节：
大/中/小（L/M/S）视角范围可调。
格式化：
可以格式化TF卡，开机后，如果卡的格式不对，机器会
提示“Please format card”，此时，请在本机上执行格
式化功能。
建议：新机器先在机器上格式化一次。
恢复出厂设置：
可以将机器各项参数恢复出厂设置。
建议：如果机器有任何问题，先恢复出厂设置，然后重
新开机一次。

16
■售后说明
产品出货前会经过严格的检验，请用户在阅读并熟悉操作后再使用。非
人为问题12个月内保修。如有撕毁产品出厂标识，亿航默认为放弃保
修，但可以提供有偿维修。
■充电
使用USB线与手机充电器连接，或者电脑连接。关机充电，或者使用1A
充电器能加快充电时间。充满电后，充电指示灯会灭。
■传输文件
1. 使用USB线与电脑连接，开机；
2. 找到“可移动磁盘”，视频文件在DV目录下。
最终解释权归广州亿航智能技术有限公司所有
■联系我们
官网：www.ehang.com
官方微信：EhangUAV
官方微博：亿航智能无人机
服务邮箱：[e-mail]
售后热线：400-8000-881
服务时间：周一至周五 9:30-18:30
