Interactive Function Manual
CMOS Sensor
Contents of the Accessory Bag....................................................................i
Accessories Introduction............................................................................ii
Operation Guide for Windows OS ........................................................... 1
Operation Guide for Mac OS.................................................................. 12
Troubleshooting........................................................................................ 18

i

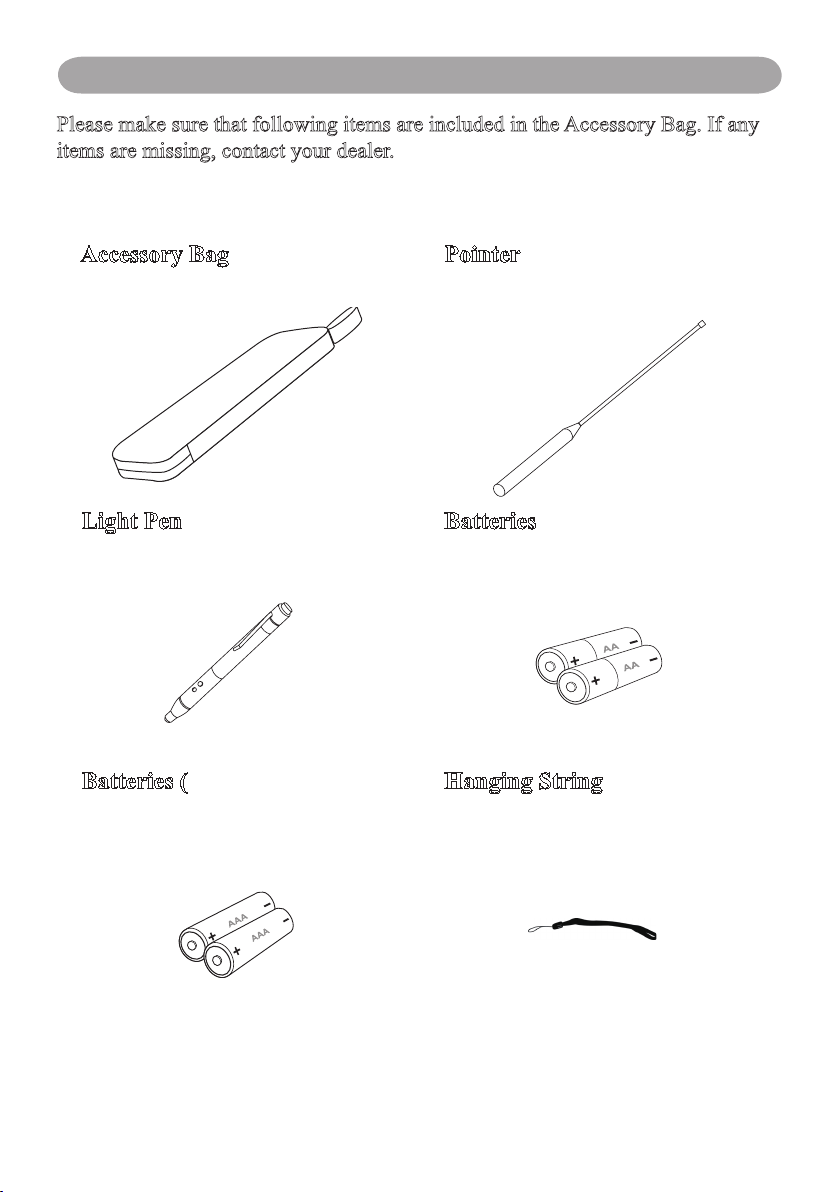

Contents of the Accessory Bag
Please make sure that following items are included in the Accessory Bag. If any
items are missing, contact your dealer.
1. Accessory Bag 2. Pointer
3. Light Pen 4. Batteries (AA)
5. Batteries (AAA) 6. Hanging String

ii
Contents of the Accessory Bag
Accessories Introduction

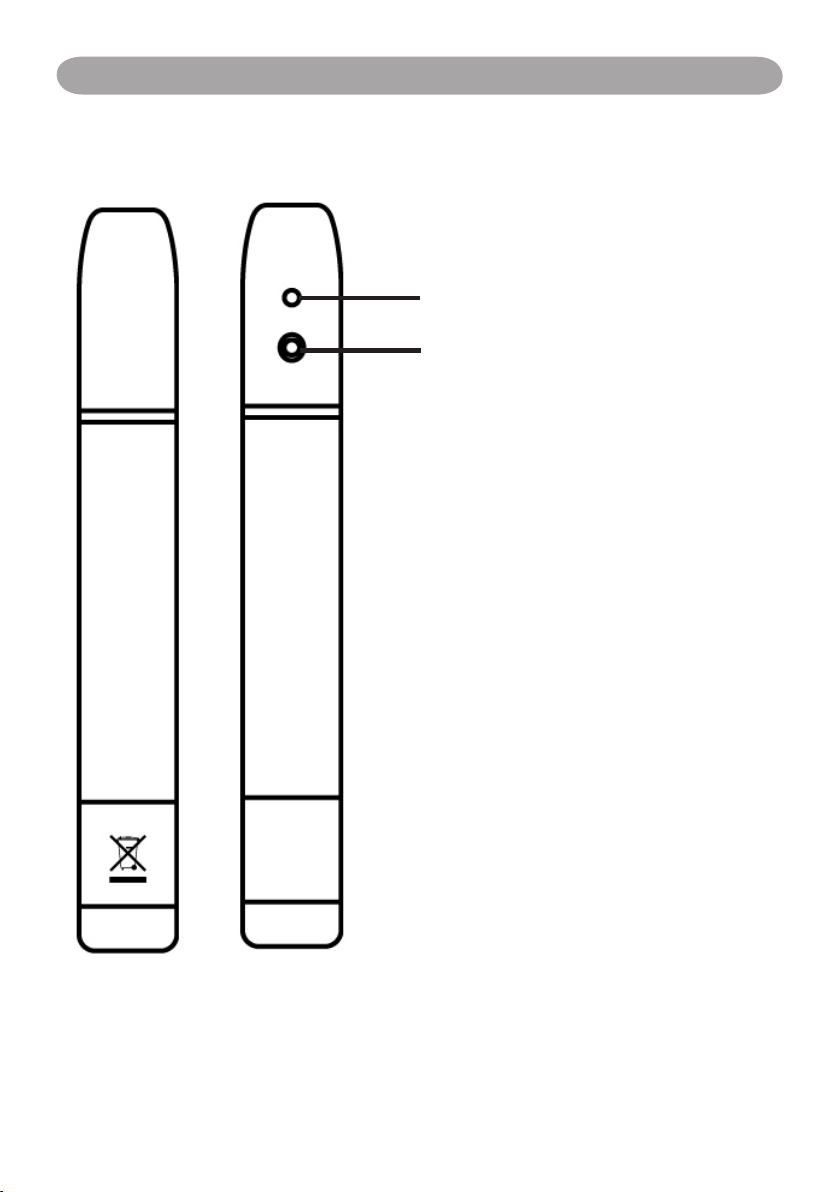

Function Key on the "Pointer Body"
LED Lamp
Button: Mouse Left Key
Before using the Pointer.
Screw the Rod part into the pointer body
rmly please.
How to use this
While pressing the button Infra Red
signal is emitted from the tip of the rod
and the CMOS sensor in the projector
detects the position of it. While the IR is
emitted, the LED Lamp also lights red.
1) Position the tip of pointer on the
screen.
2) Push the button to click the target as a
mouse or push and hold the button to
draw a line as a pen.
Back side Front side

iii
Contents of the Accessory Bag
Accessories Introduction
Function Key on the "Light Pen"
Touch sensor pen tip
LED Lamp
Button: Mouse Left Key
How to use this
While the button is pressed or the tip is
pressed to a hard screen Infra Red signal
is emitted from the tip of the pen and the
CMOS sensor in the projector detects the
position of it. While the IR is emitted, the
LED Lamp also lights red.
1) Position the tip of pen on the screen.
2) Push the button to click the target as a
mouse or push and hold the pen to the
hard screen to draw a line as a pen.
CAUTION
Bottom cap with switch function.
Because the tip has a sensor switch inside,
when it is tilted or pushed, it consumes
battery. In order to prevent this happens
while transportation the bottom cap is given
with switch function. By rotating the cap by
90 degree counterclockwise, the above can
be prevented.
Back side Front side

1
Operation Guide for Windows OS
1. System Requirements
To ensure the interactive function work properly, please check your
computer to see if it meets the following conditions.
System Requirements
OS Required Microsoft Windows 2000(SP4)/XP(SP2)/Vista
Processor Type Intel Pentium IV or above
RAM 256 MB above
Min. Free disk space 30 MB
CD-ROM Driver & USB 2.0 port available
2. LightPen Software Installation
Step 1: Insert the "Owner's Manual" CD-ROM into the CD drive.
Step 2: Copy the "LightPen Software for Windows" folder in the CD-
ROM and paste it on your PC's hard disk drive.
Step 3: Take out the CD-ROM from the CD drive.
Step 4: Find "LightPen.exe" le in the "LightPen Software for Windows"
folder on your PC's hard disk drive.
Step 5: Create the short-cut icon for the "LightPen.exe", and put it on the
desktop for your ease.
Note: The software can not be executed from CD-ROM, because the
calibration data cannot be stored in the CD-ROM.
Interactive function is provided by "LightPen" software.

2
Operation Guide for Windows OS
Note for Windows Vista
(a) Click mouse right key on "LightPen.exe" or the short-cut icon for
"LightPen.exe" and then click mouse left key to select "Properties".
LightPen Software for Windows
LightPen.exe
LightPen System
64
80
Send To
Play
Properties

3
Operation Guide for Windows OS
v

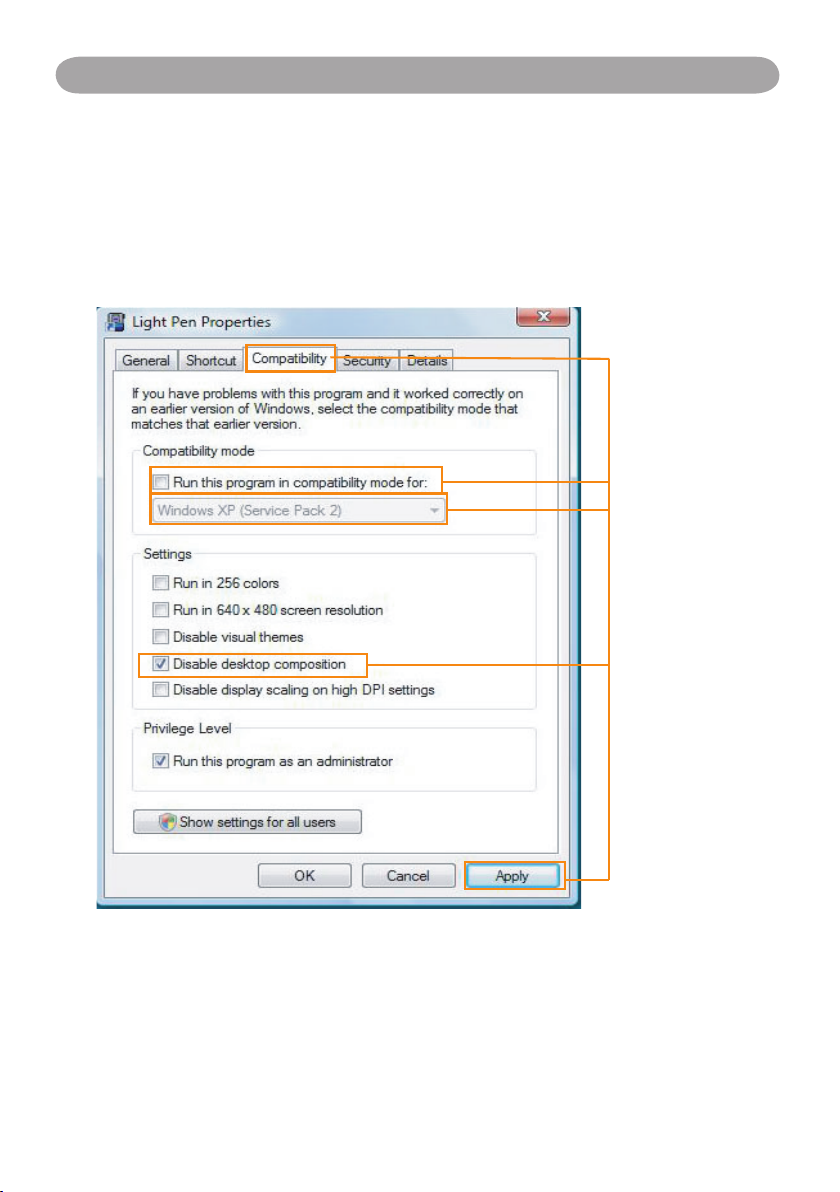

(b) Select "Compatibility" sheet and add check marks to the following.
"Run this program in compatibility mode for:
Windows XP (Service Pack 2)",
"Disable desktop composition".
Then select "Apply".

4
Operation Guide for Windows OS
3. Initial Setup for Interactive Function
3.1 Connect supplied USB cable between XIP2600 and the PC.

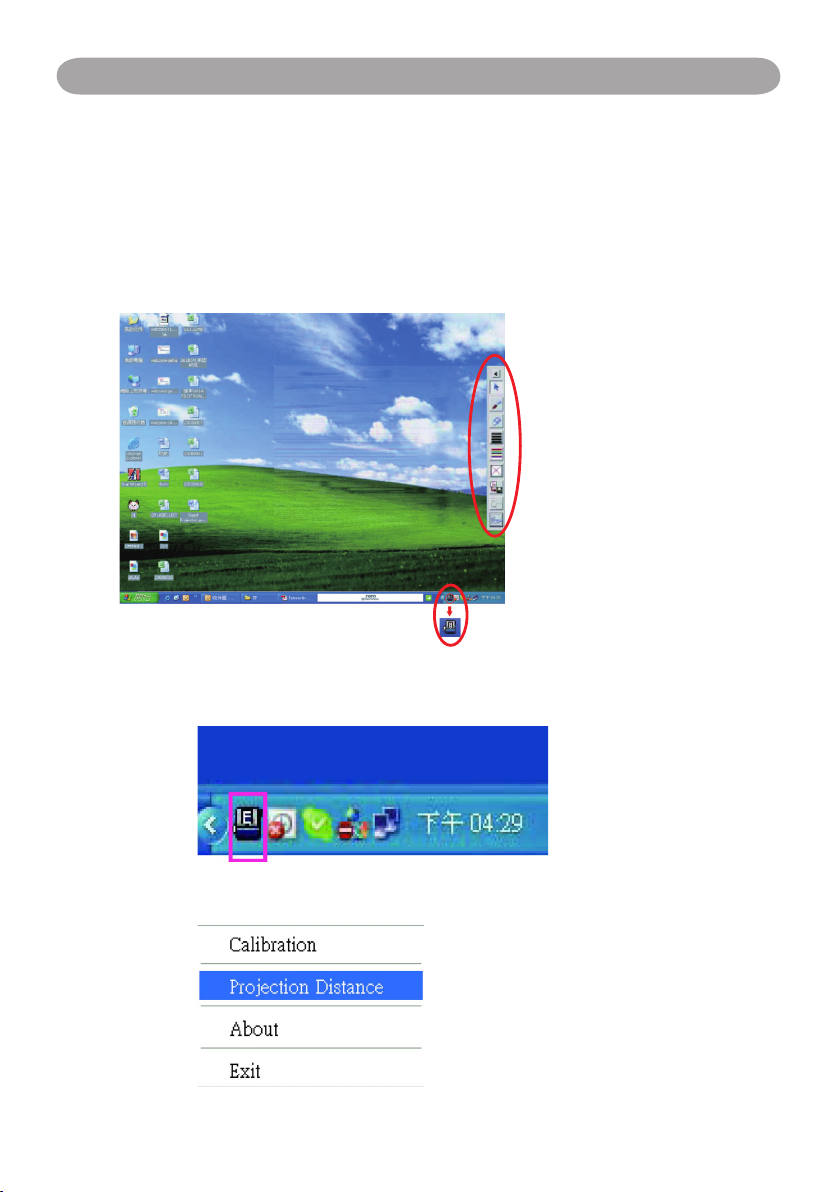

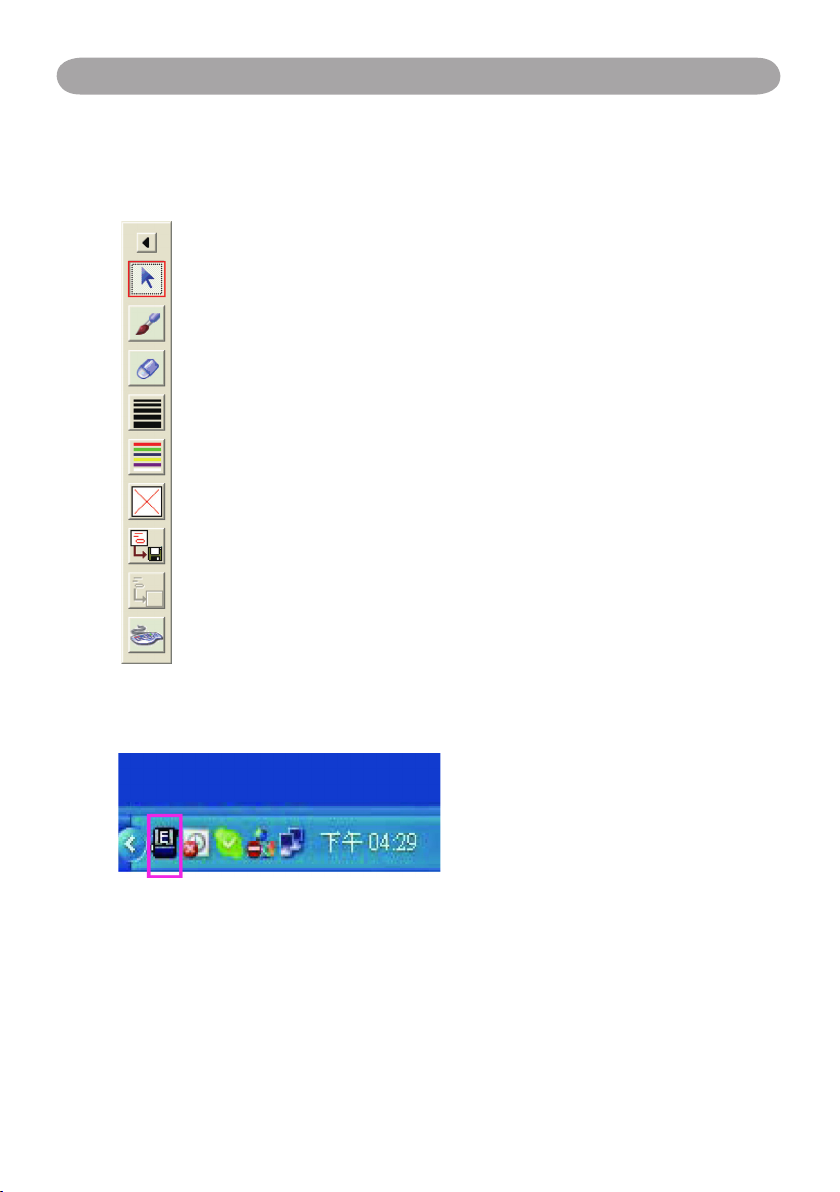

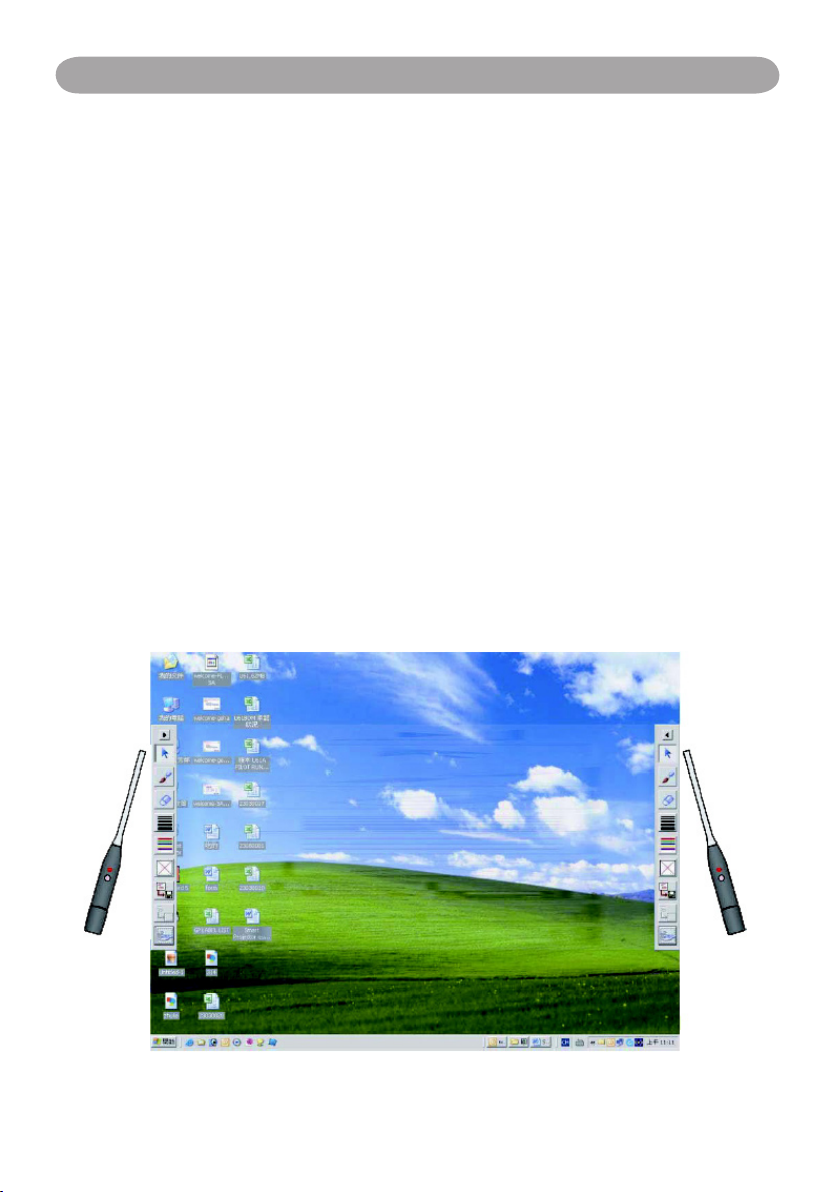

3.2 Execute "LightPen" software by double-checking the "LightPen.
exe" or the short-cut icon for the "LightPen.exe". Then the icon for

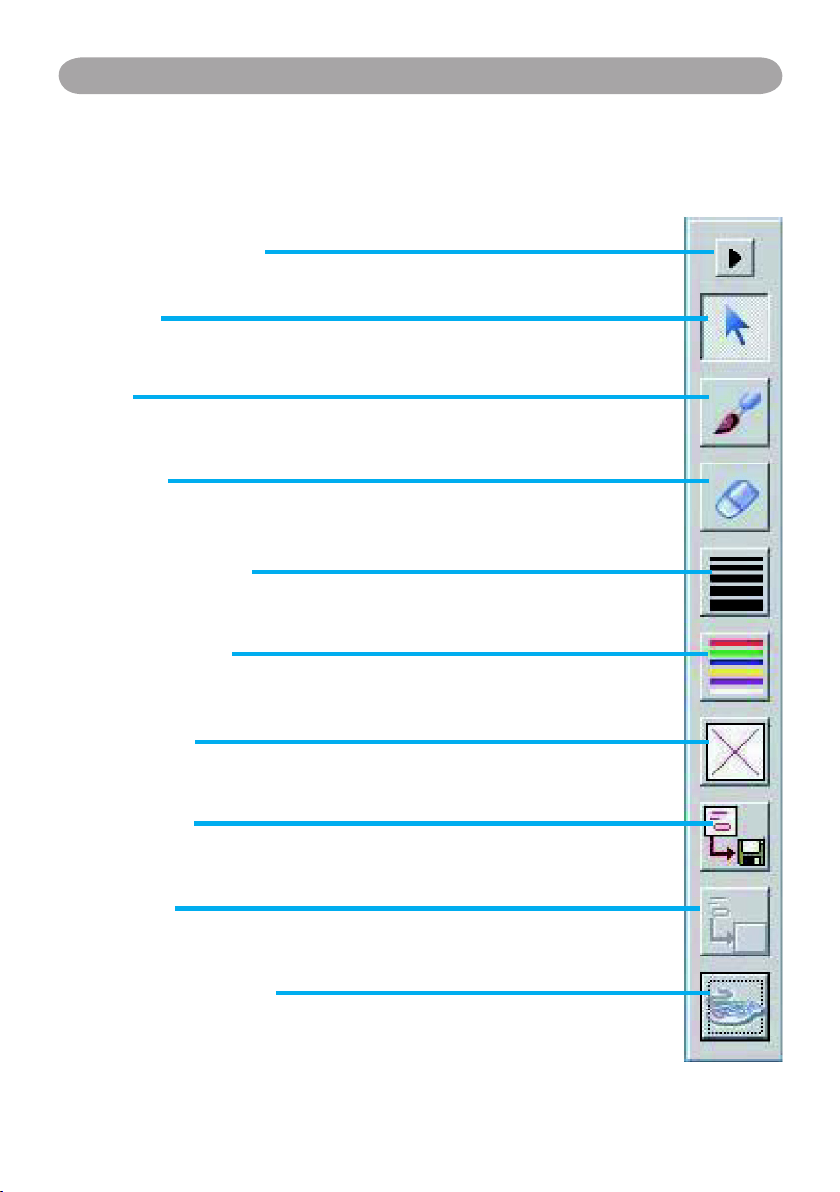

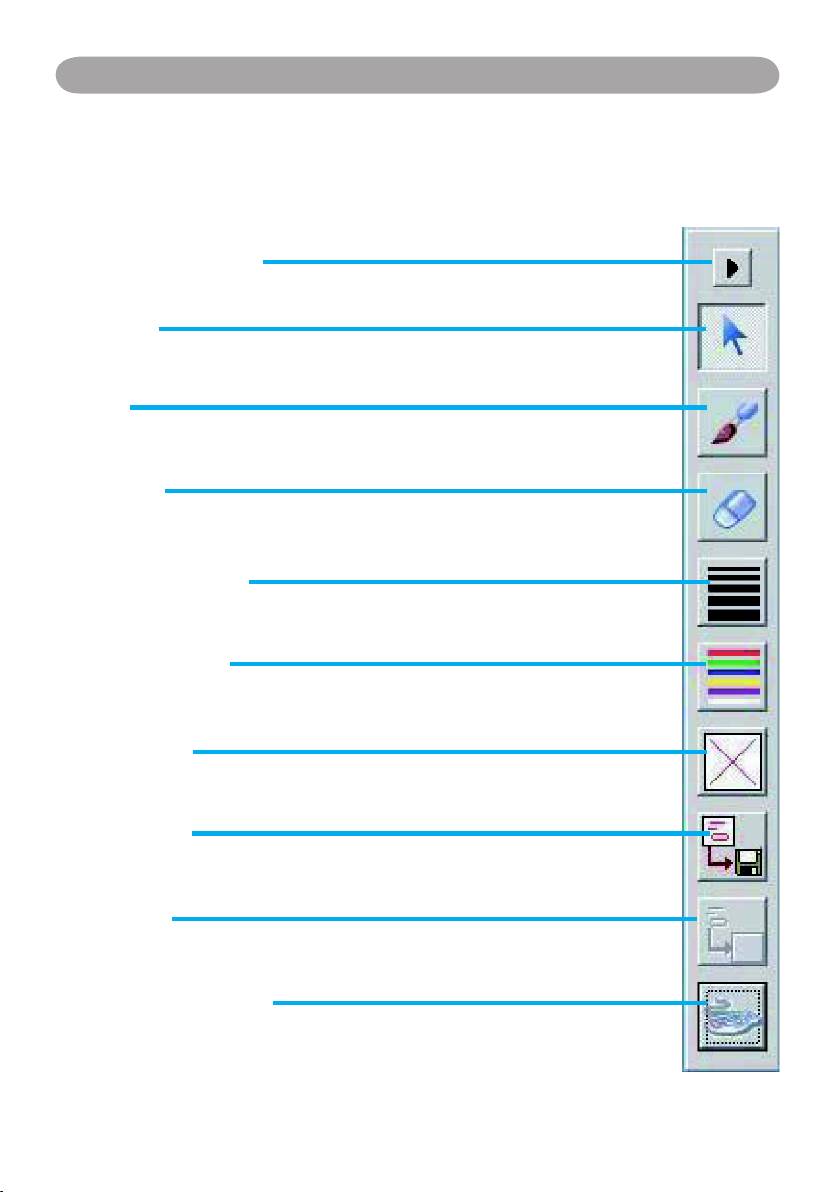

"LightPen" appears in the task bar and the tool bar appears on the
right side of the screen.
3.3 Select Distance
Step 1: Click mouse right key on "LightPen" in the task bar.
Step 2: Select "Projection Distance".

5
Operation Guide for Windows OS

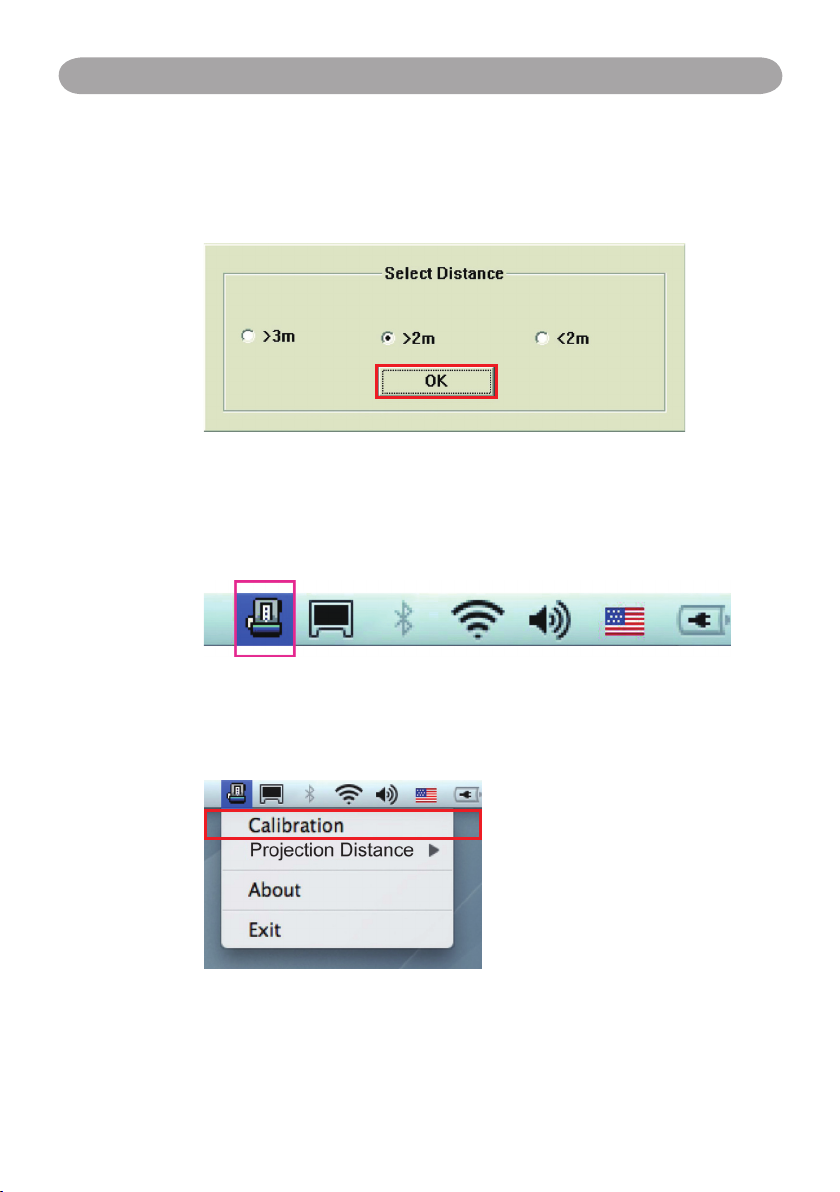

Step 3: Choose the projection distance from pop-up menu
(>3m,>2m,<2m), and then select "OK".
3.4. Calibration
Step 1: Click mouse right key on "LightPen" in the task bar.
Step 2:Select "Calibration".
Step 3: According to the projector setting condition, select
projection method of "Desktop"or "Ceiling".

6
Operation Guide for Windows OS

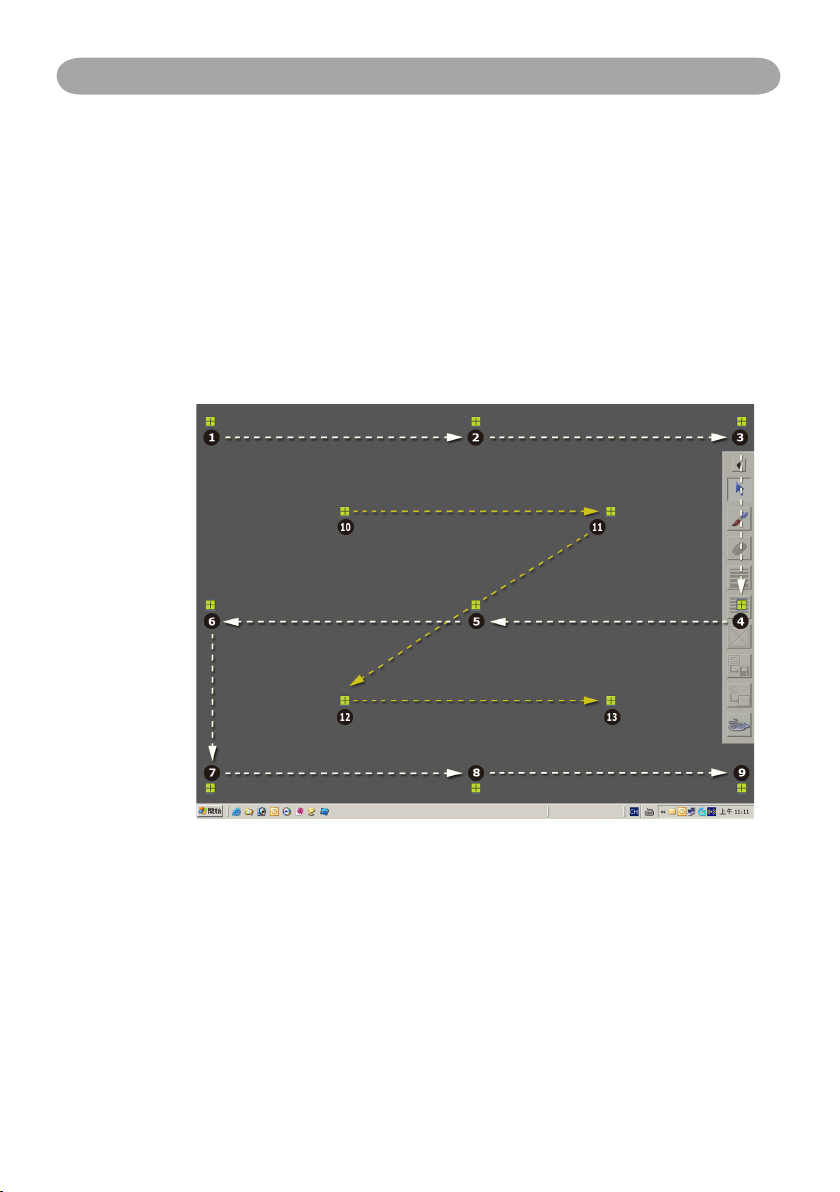

3.4 Calibration
Step 4: Push the button on the "Pointer" or "Light Pen" (pending on
the screen size) while placing the tip on the center of green
target. The color of target changes black from green. Then
next green target appears on the upper middle area of the
screen. Repeat the same until all of 13 targets change black.
In order to carry out the calibration smoothly be sure to
expose the tip of the "Pointer" or "Light Pen" to the sensor
near the projection lens. If the tip is lit up by the light from
the projector, the sensor can detect the tip's position well.
Note:
If the screen and XIP2600 stay where they are and if the same PC is
used with the same resolution, Distance setting or Calibration is no
longer required from next time.
