EisSound kb sound User manual

Electrónica Integral de Sonido
EIS
USER’S MANUAL
BENUTZERHANDBUCH
MANUEL DE L’USUAIRE
GEBRUIKERSHANDLEIDING
MAMANUALE DELL'UTENTE
BRUKERHÅNDBOK
2
12
32
22
42
52
®
FOR KITCHENS & BATHROOMS
kb
sound
ENG
D
F
I
N
NL
®

2
FOR KITCHENS & BATHROOMS
kbsound
®
Important Safety Instructions
Before installing the unit, please read and follow the instructions provided in the Installation Manual included
in this kit.
Before operating the unit, please read and follow the instuctions provided in this User´s Manual thoroughly
and save it for future experience.
WARNING - To reduce the risk of fire or electric shock:
install in accordance with the manufacturer’s instructions
do not expose this apparatus to rain or moisture
do not use this product near water
do not attempt to dissamble this unit
do not block any ventilation openings
do not install near any heat sources such as radiators, stoves or other equipments that produce
heat.
You are cautioned that any changes or modifications not expressly mentioned in this manual could void your
authority to operate this equipment.
This product has been designed and tested to provide reasonable protection against harmful interference in
residential installation. However there is no guarantee that interference will not affect in a particular
installation. In these cases, reorient the receiving antenna, try to increase the separation between the
equipment and the source of interference and/or connect the equipment into an outlet on a circuit different
from that to which the source of interference is connected.
The entire risk of the installation, use, results and performance are borne by you.
When used as a mechanism to disconnect from the current network, a socket plug, or a device connector;
the disconnecting mechanism must be easily accessible at all times. Protect the power cord from being
walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the
apparatus.
Only use attachments/accessories specified by the manufacturer.
as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
Attention should be drawn to the environmental aspects of battery disposal.
Use a certified technician for installation, repair and/or maintenance of this equipment and comply with all
the regulations in force in each country. Servicing is required when the apparatus has been damaged in any
way, such
3
11
4
5
6
7
10
11
1. Introduction
2. General Operating Notes
3. Operating Audio Functions
5. Selecting Turn-On Mode
4. Operating the FM Tuner
6. “Ideal” mode
Quick Reference Guide
7. Technical Specifications
4.1 Station Search
4.2 Directly Keying Station Frequency
4.3 Tuning to FM Memory Pre-Sets
4.4 Storing and Clearing Station Frequencies Manually
4.5 Storing and Clearing Station Frequencies Automatically
4.6 Adjusting StationSearch Sensitivity
Table of Contents
CAUTION
DO NOT OPEN
RISK OF ELECTRIC SHOCK
!
ENG

SCAN
SCAN
VOL VOL
EIS
TREBLE BASS
MEM
LOUD
M/ST
DEL mem
DEL all
PRG mem
PRG all
PRG
1
45
78
0
9
6
23
FM
C
SCAN
SCAN
VOL VOL
Mute
Numeric Keypad
FM memory pre-sets
“IDEAL” mode
Bass Control
Treble Control
Clear
Directly keying FM station fre
Loudness
Volume Control
Automatic FM station search
Forced mono
(95.8MHz)
58
FM
9
On/Off
Delete FM tuning pre-set
Delete all FM tuning pre-sets
Store all FM stations detected
Store FM station pre-set
DEL all
PRG all
9
6
5”
Automatic FM station search sensitivity 5”
321
Store “IDEAL” setting
PRG
2”
Store turn-on mode (on/off) 5”
DEL mem
PRG mem
FM
C
2”
2”
5”
3
FOR KITCHENS & BATHROOMS
kbsound
®
Quick Reference Guide
ENG

EIS 4









Ergonomic remote control unit
Receiver blends into the ceiling
Loudspeakers the size of a halogen light (2”)
1,5W+1,5W power
Does not require external power supply
Ability to directly key in desired station frequency
Ability to automatically store into memory stations received with
the best quality
20 memory pre-sets
”Intelligent” loudness: automatic adjustment to the signal volume
Introducing ®, a sound device especially designed for easy and quick installation, without building work, cabling or pre-installations
involved.
Simple and easy to use, all system functions can be operated remotely by using a fully equipped remote control, eliminating the need to physically
approach the control unit.
Blending perfectly into the décor of the kitchen or bathroom, the device has the following basic characteristics:
kbsound
The components supplied in this kit are for installation and use in the manner and for the purpose described in the installation
manual and the user manual. The installation must also comply with each country's current regulations.
This manual assumes that the unit has been correctly installed and is fully operational.
If the device has not been installed yet, follow the instructions provided in the Installation Sheet included in this kit.
kbsound®
1. Introduction
FOR KITCHENS & BATHROOMS
kbsound®
ENG

EIS
5
1.- None of the functions (except ON/OFF) work unless the remote
control is in “on” mode.
2.- Functions pertaining to operating the audio signal only work
when “mute” is cancelled.
3.- The LED on the data receiver can change color depending on the
control unit's mode:
OFF the control unit is off
GREEN the unit is on
RED the unit is receiving data from the remote control
4.- When activating or canceling a function (loudness, stereo/mono
or mute):
4 RED flashes: function is cancelled
£
£
£
1
1
RED flashing: function is activated
5.- Once the ® is connected to the mains, it will remain
powered even it is in OFF state. That means that the OFF state (as
indicated in this manual) really means a “standby” state
kbsound
2. General Operating Notes
The control unit generates sound signals to communicate the
status of operations carried out. These signals are reflected in
this manual as follows:
A short BEEP sound signal indicates that the data
was received.
A long BEEP sound signal indicates that an
operation was correctly completed.
A series of BEEP sound signals indicates that a
clearing operation was executed or that there is an
error.
A BO BEEP sound signal indicates that the memory
pre-set station tuned at the moment is station
number one, or that the tuner's frequency is set at
87.5 MHz (the lowest on the dial).
Certain operations require a remote control key to be held down
for a certain amount of time. This is indicated in the manual by
a hand symbol next to the key.
BEEP
BO BEEP
BEEP
BEEP BEEP BEEP
Symbols Used in this Manual
FOR KITCHENS & BATHROOMS
kbsound®
ENG

EIS 6
FOR KITCHENS & BATHROOMS
kbsound
3. Operating Audio Functions
®
Increase/decrease in the signal volume: The LED will flash
between RED and GREEN to indicate the desired change in volume.
When the maximum/minimum level is reached, the LED will stay lit
and be GREEN.
Increase/decrease in bass/treble levels: The LED will flash between
RED and GREEN to indicate the desired change in the bass/treble
levels. When the maximum/minimum level is reached, the LED will
stay lit and be GREEN.
Mute: If the unit becomes silent (mute activated), the LED will flash
once in RED. If the mute function is cancelled, the LED will flash four
times.
Loudness: It reinforces the bass level in terms of the signal volume, assuming a greater
backing at a lower volume and a lesser backing at a higher volume. The LED will flash once in
RED if the loudness has been activated (backing) or four times if it is cancelled.
Mono/stereo reception: When activated, this feature allows the FM stations to be received in stereo (the LED will flash
once in RED). When cleared, this feature only allows for mono reception (the LED will flash four times in RED).
Note: If the control unit's configuration is mono (see Installation Sheet supplied with this kit), the signal will always be
received in mono even if the signal received by the antenna is in stereo.
If the control unit is off, a brief press on the will
gradually turn on the unit (between 1 and 2 seconds).
While the unit is gradually turning on/off, the LED will be RED.
Once the control unit is ready to receive additional commands from
the remote control, the LED will be GREEN.
When the control unit is off, the LED will be OFF.
ON/OFF key
Key Sequence
VOL VOL
TREBLE
BASS
LOUD
M/ST
The ® will turn on with
the audio and station frequency
settings saved as “ideal” mode
settings (see chapters 5 and 6)
when the unit is connected to a
power supply.
When switched off and on while
connected to the power supply, the
audio and station frequency
settings will be as when the unit
was switched off with the remote
control ON/OFF key
kbsound
ENG

EIS
7
FOR KITCHENS & BATHROOMS
kbsound

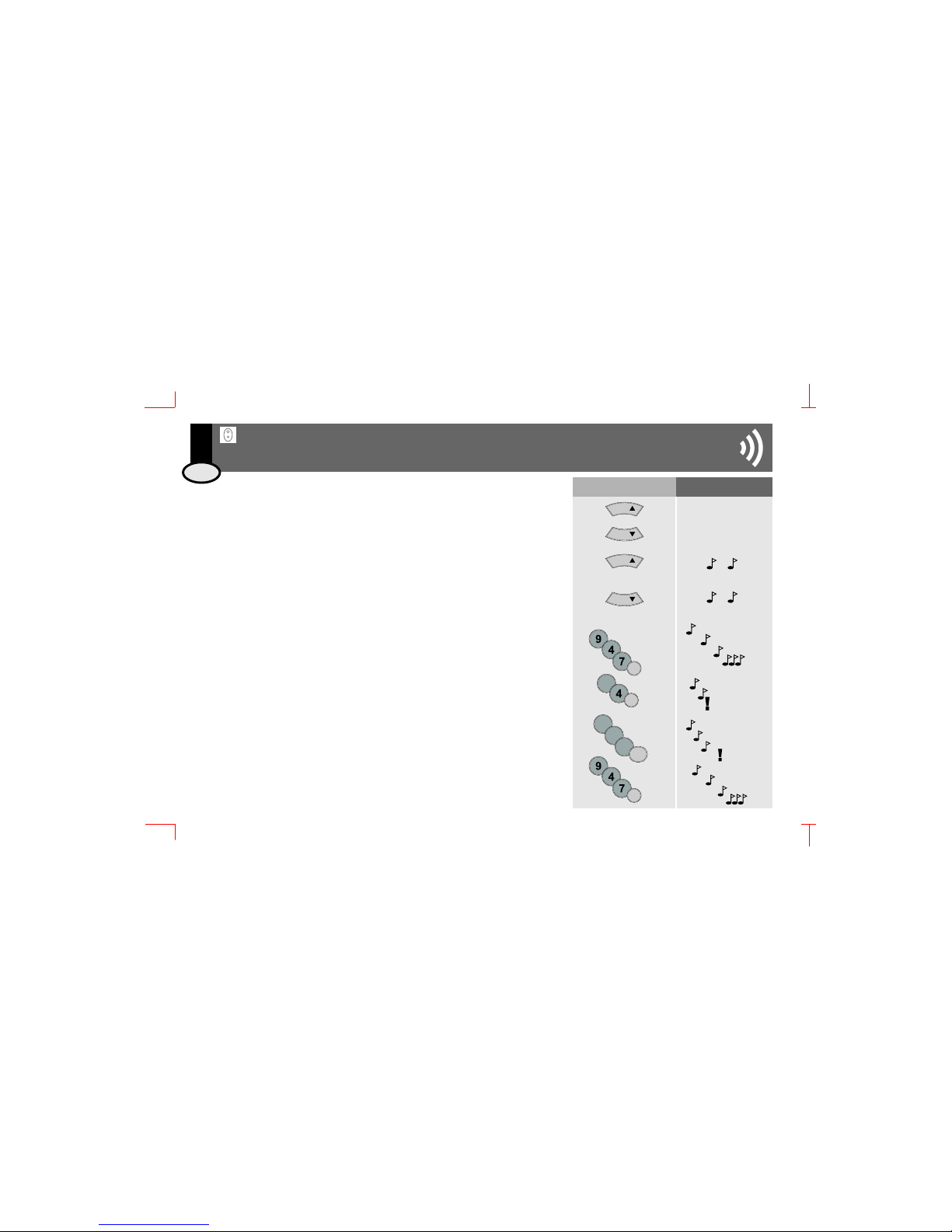

Key Sequence Sound Signal
To directly key in an FM station frequency, sequentially press the numeric keys of the
station frequency then press the FM key. For example, to select 94.7, press 9 4 7 FM.
Each correctly entered digit will be followed by a BEEP sound signal and a RED LED flash.
Note: A station frequency can be keyed in as either 94.7 (9 4 7 FM) or as 94.70 (9 4
7 0 FM).
If the frequency keyed in is not correct or if more digits than necessary are keyed in, the
error will be noted with a BEEP-BEEP-BEEP-BEEP type signal.
To clear a digit keyed in and start keying in a different frequency, press the C key and
then begin keying in the desired frequency.
BEEP
BEEP
BEEP
BEEP
BEEP
BEEP
5
1
4
7
BEEP BEEP BEEP BEEP
4.2 Directly Keying Station Frequency
While the search is taking place, the LED will be RED.
Once the station has been found, the LED turns GREEN.
When the search is going “up” the tuner, a BO BEEP signal sounds when the end of the
frequency range is reached. The next press of the key will start the search from the
beginning of the frequency range (87.5 MHz).
4.1 Station Search
BO BEEP
When the search is going “down” the tuner, a BO BEEP signal sounds when the beginning
of the frequency range is reached. The next press of the key will start the search from the
end of the frequency range (108.0 MHz).
BO BEEP
4. Operating the FM Tuner
BIP
BIP
BIP
BIP
BIP
BIP
BIP
BIP BIP BIP BIP
®
SCAN
SCAN
SCAN
SCAN
C
FM
FM
FM
ENG

EIS 8
FOR KITCHENS & BATHROOMS
kbsound
4.4 Storing and Clearing Station Frequencies Manually
Key Sequence Sound Signal
To , tune to the station (see Chapters 4.1. Station Search and
4.2. Directly Keying Station Frequency). Hold down the FM key for 2”. The station tuned
at that time will be stored in the memory.
store a station in memory
If all the memory slots have been assigned, the current station will not be able to be
stored and the sound signal and LED will be the same as when there is an error.
To , select the station and hold down the C key for 2”. The
station tuned at that time will be cleared from memory if it was previously stored.
delete a station from memory
If the station you wish to clear from memory was not previously stored in the memory, the
sound signal and LED will be the same as when there is an error.
BEEP
BIP
The MEM+/MEM- keys allow you to scroll through the stations stored in memory (see
Chapters 2.6 and 2.7, Storing and Clearing Stations in Memory).
When stations are stored in memory they are sorted in ascending order; that is, beginning
with 87.5 and ending with 108.0.
When memory n# 1 is called up, the typical BO-BEEP audio signal sounds.
BO BEEP
4.3 Tuning to FM Memory Pre-Sets
If there are no stations stored in memory, the sound signal and LED will be the same as
when there is an error.
BEEP BEEP BEEP BEEP
BEEP BEEP BEEP BEEP
BEEP BEEP BEEP BEEP
4. Operating the FM Tuner
®
MEM
MEM
MEM
PRG mem
FM 2’’
PRG mem
FM
2’’
DEL mem
C2’’
DEL mem
C
2’’
ENG

EIS
9
FOR KITCHENS & BATHROOMS
kbsound

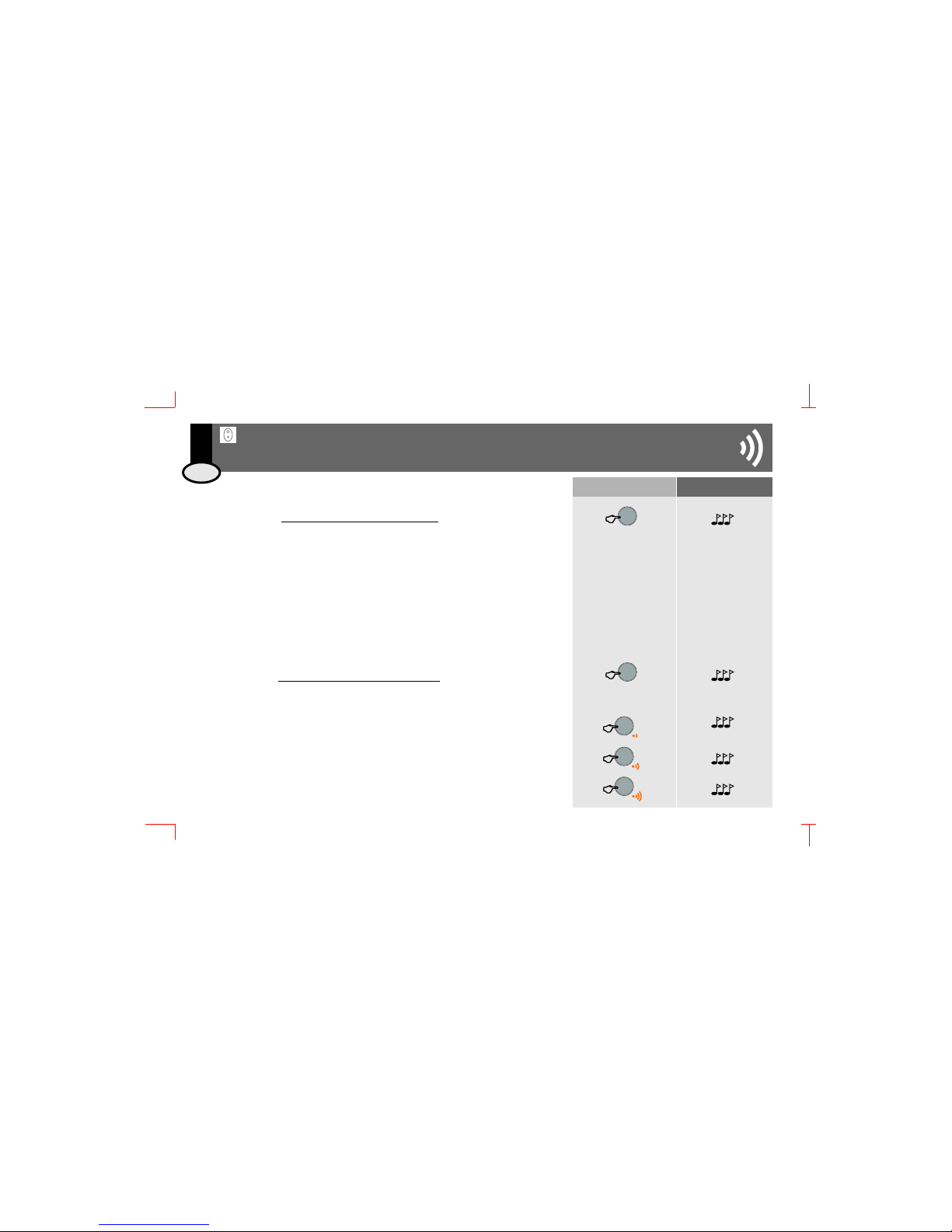

Key Sequence Sound Signal
To activate the process for all the memory slots,
hold down 6 key for 5”.
clearing station frequencies automatically
To activate the process, hold down key 9 for 5”.
While the key is held down, the LED will be RED. Once the operation to scan stations has
begun, the LED will alternately flash between GREEN and RED.
The control unit will store into memory the stations that are received with the highest
quality, ordered from lowest frequency (87.5 MHz) to highest frequency (108.0 MHz).
The system will use all the memory slots available, reaching the maximum of 20.
The process can take a few moments. Once the scan has been completed or once the
maximum number of memory slots has been used, the process ends and a long BEEP
signal sounds.
storing station frequencies automatically BEEP
BEEP
5’’
PRG all
9
5’’
PRG all
6
4.5 Storing and Clearing Station Frequencies Automatically
To adjust the automatic station search sensitivity (see 4.1. Station Search), hold down the
1 and 3 keys (1=minimum, 3= maximum) for 5”. While the key is held down, the LED
will be RED. A BEEP sound signal will indicate that the new level of sensitivity has been
correctly stored.
4.6 Adjusting Station Search Sensitivity
BEEP
BEEP
BEEP
15’’
25’’
35’’
4. Operating the FM Tuner
®
ENG

EIS 10
FOR KITCHENS & BATHROOMS
kbsound
5. Selecting Turn-On Mode
®
If the Turn-On mode is set to “on”, the RED light will flash once. In this state, when power is
fed to the unit, it will turn on in “ideal” mode (see Chapter 6. “Ideal Mode”).
If the Turn-On mode is set to “off”, the RED light will flash four times. In this state, when
power is fed to the unit, it will turn on in “off” mode.
BIP
5’’
This function is designed for use in the event that the ® power
supply is fed by a specifically designated switch. In this case, the automatic
activation mode must be programmed in order to automatically turn on the
® unit when the switch is activated.
These steps must be followed:
kb
kb
sound
sound
1. Supply power to the unit by flicking the switch.
2. The unit will flicker a couple of times and turn off.
3. Turn on the unit using the remote control (ON/OFF
key).
4. With the unit turned on, keep the ON/OFF key pressed
down for 5”.
®
®
®
®
kb
kb
kb
kb
sound
sound
sound
sound
ENG
Key Sequence Sound Signal

EIS
11
FOR KITCHENS & BATHROOMS
kbsound
Key Sequence Sound Signal
6. “Ideal” mode
The “ideal” mode of operation can be instantly accessed by pressing the IDEAL key on the
remote control. In this mode, a specific station is played at particular levels of volume,
bass, treble and loudness.
To program your “ideal” mode of operation, select the desired levels of volume, bass,
treble and loudness, as well as the station frequency. Then hold down the IDEAL key for
2”. When the IDEAL mode has been successfully stored, the typical signal will sound. BEEP
BEEP
®
PRG
2’’
42694,42695MINNORMALMAXCOMMENTS
Measurements181x50x52mmexterior(widthxheightxdepth)
Voltage230Vacmod.42694,50Hz,terminalsF,N
120Vacmod.42695,60Hz,terminalsF,N
Consumptiondemand10WterminalsF,N
Outputsignal(16ohms)1,5WterminalsD,I
Passband2015.000Hz
Distortion0,10,4%
Frequencyrange87,5108MHz
Antennaimpedance75ohmsterminalsA,M
Antennasensitivity3,55uV
Tunerdistortion2%
Numberofstationpre-sets20
CONNECTING TERMINALS
Left loudspeaker output (red terminal/+)
Right loudspeaker output (red terminal/+)
Common loudspeaker ouput (black terminals/-)
Receiver can remote control connector
Power supply
Power supply
FM tuner antenna signal
FM tuner antenna mass
I
D
C
N
F
IR
A
M

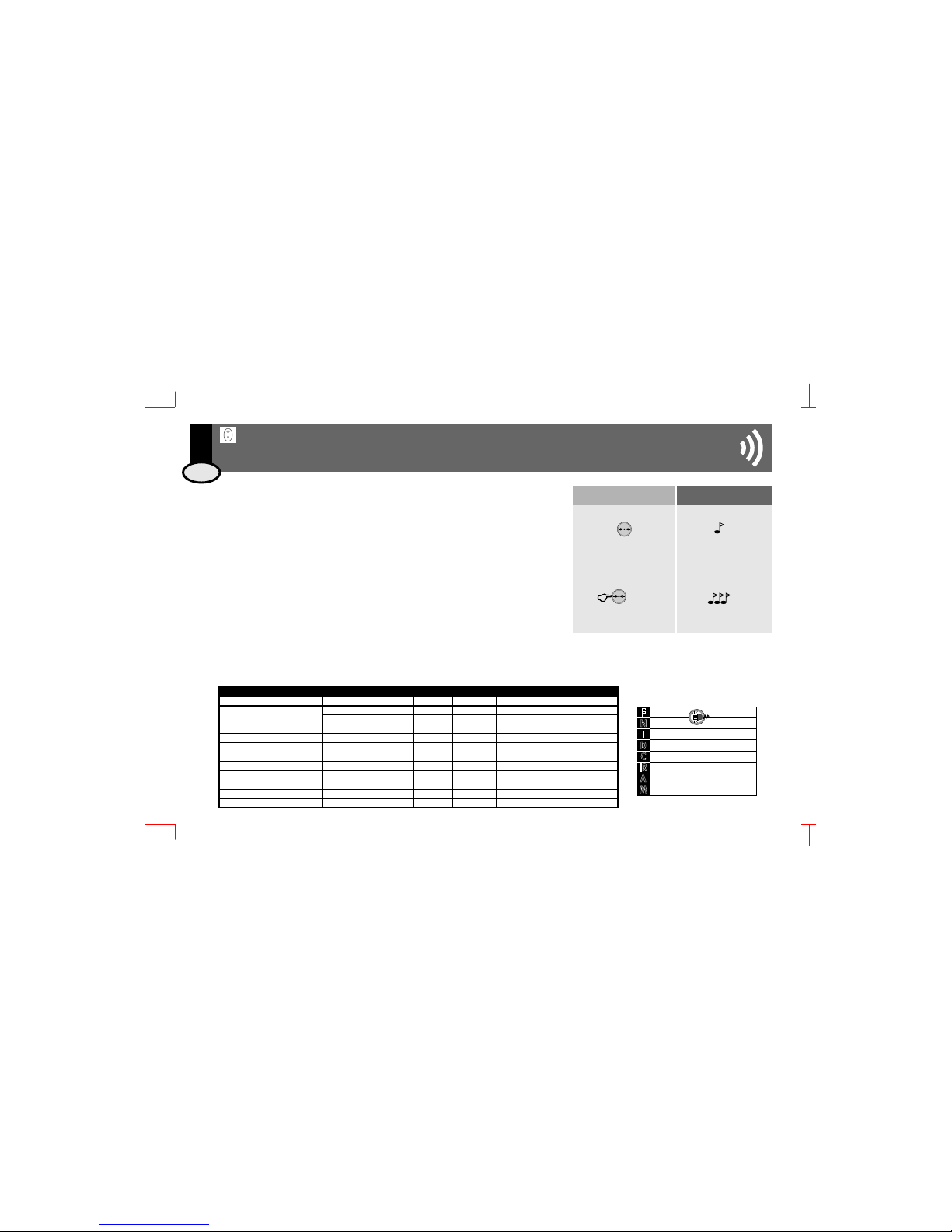

7. Technical Specifications
ENG
