EIUK P10 User manual

OPERATING INSTRUCTIONS

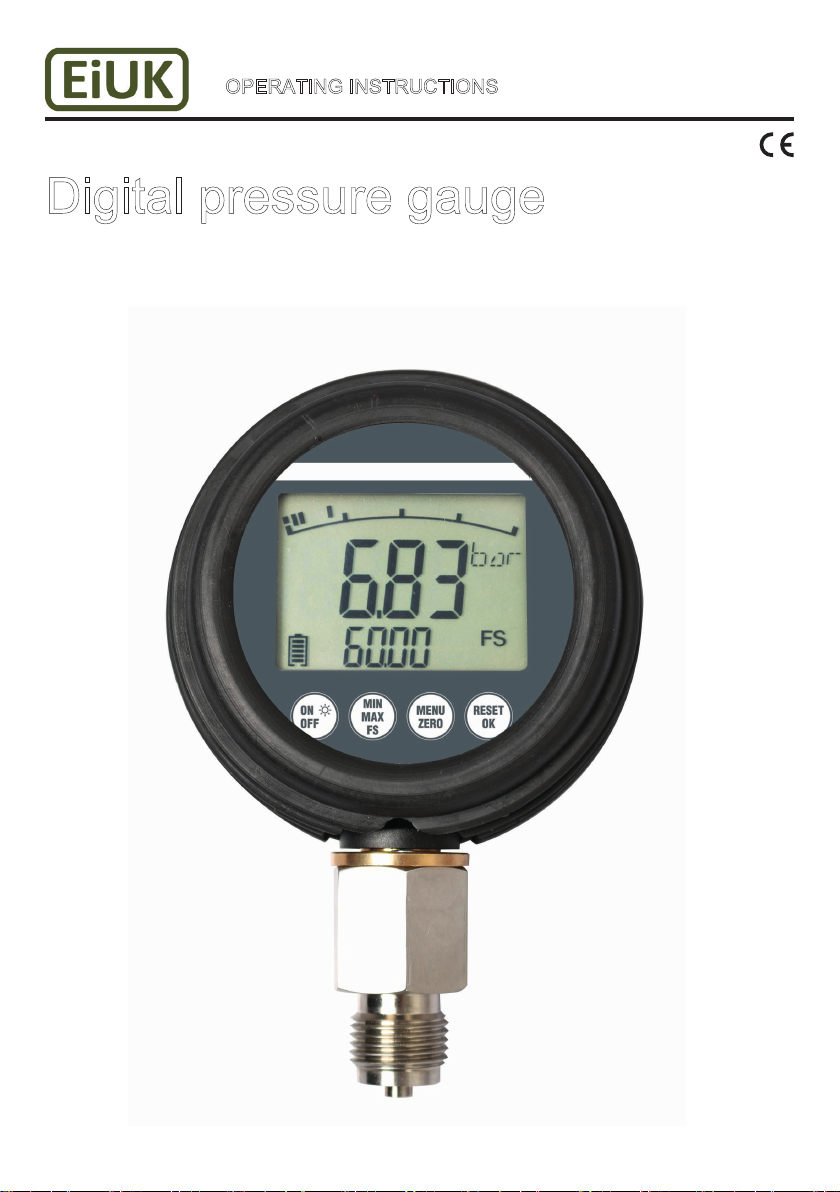

Digital pressure gauge

- 2 -
Battery compartment on the
back of the device,
see 5. Changing the battery.

- 3 -
①Bargraph
The bar graph graphically depicts the maximum measuring span.
The stored MAX value is displayed as a static, individual bar (= drag pointer
function).
The display is updated at an interval of 10 milliseconds. (100 measure-
ments / second)
②Measurement value
and pressure unit
Displays the current pressure.
This display is updated at an interval of 300 milliseconds.
(3 displays / second) Displays the unit set.
③Display MIN/MAX/FS Displays the display value selected: MIN, MAX or full scale (FS).
④RESET / OK button Deleting the MIN and MAX measured data storage.
Con󰘰rmation of the MENU functions
⑤MENU/ZERO button Brie󰘱y key press: menu
Long key press (3 seconds): zero adjustment
⑥MIN/MAX/FS button
Selection of the display value: MIN, MAX or full scale (FS)
Minimum value / Maximum value:
Pressure peak / Display of the maximum measuring span (e.g. 60.00 bar)
⑦ON/OFF button Brie󰘱y key press: Switching the device on/o󰘯
Long key press (3 seconds): Background lighting on (for 20 seconds)
⑧Battery symbol Displays the battery status (fully charged = 5 segments)

- 4 -
Contents
1. Safety provisions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2. Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3. Initial operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. Battery disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5. Battery display and battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6. Functions and buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7. Menu functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
8. Setting the measurement unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
9. Setting the 󰘰lter function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
10. Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
11. Displaying the MIN/MAX pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
12. Maintenance and storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
13. Technical data, speci󰘰cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

- 5 -
1. Safety provisions
- Safe working with the device is only possible if you read the operating instruc-
tions and safety information thoroughly and strictly observe the directions that
they contain. Keep the operating instructions for later reference or pass them on
to possible new owners.
- Before each use of the measurement device, please check the housing for visible
damage. Should damage be visible, the device must not be used.
- Do not subject the device to any extreme temperatures, direct sunlight, extreme
humidity or wet.
- No technical modi󰘰cations to the unit may be made.
- The device may only be cleaned with a moist cloth. Do not use any abrasive
cleaners or cleaning agents containing solvents.
- Furthermore, this measuring device may not be used if the ambient conditions
(temperature, humidity ...) are outside the limits stated in the speci󰘰cations.
- The measuring device may not be used in an explosive atmosphere.
- Failure to comply with these safety notes may result in damage to the unit and
injuries to the operator.
- Exceeding the overload pressure can result in malfunctions and even in the
destruction of the digital pressure gauge. Burst pressures refer to data without
additional adapters installed.
- To avoid injuries to skin and eyes wear protective glasses and protective gloves.

- 6 -
2. Intended use
Digital pressure gauge with MIN/MAX display and accuracy class 0.5 FSO. The MIN/MAX memory is
permanently updated and overwritten. The sampling rate is 10 milliseconds (100 measurement values/
second) for measuring dynamic pressure peaks.
3. Initial operation
IMPORTANT!
You must insert the batteries before use, see point 5.
–Switch on the device after inserting the batteries.
–The measuring device carries out a self-test.
–After completion of the self-test, the digital pressure gauge is ready for operation.
4. Battery disposal
We have the duty to draw your attention to the following:
This product uses batteries. As a consumer, you are legally required to return used batteries to the ac-
cording collection points in order to avoid batteries entering the household waste cycle!
Batteries contain chemicals which can damage humans and the environment if released.
You can, for example, return used batteries to municipal collection points or to the trade, free of charge.
The symbol illustrated on the battery has the following meaning:
Battery must not be put in the household waste.

- 7 -
5. Battery display and battery replacement
–The battery capacity is shown permanently with the battery symbol.
–When the battery is empty, the device goes o󰘯 and "BATT Low" is shown on the display. The batteries
must be replaced.
1. Switch the device o󰘯 and push the rubber cap towards the rear over the housing.
2. Open the rear side of the device: Loosen and remove the 3 screws (hexagon socket 2.5mm), lift the
cover o󰘯.
3. Replace the batteries. Pay attention to the polarity! Batteries 2 x 1.5 V (LR6 - AA).
4. Restore the original state.

- 8 -

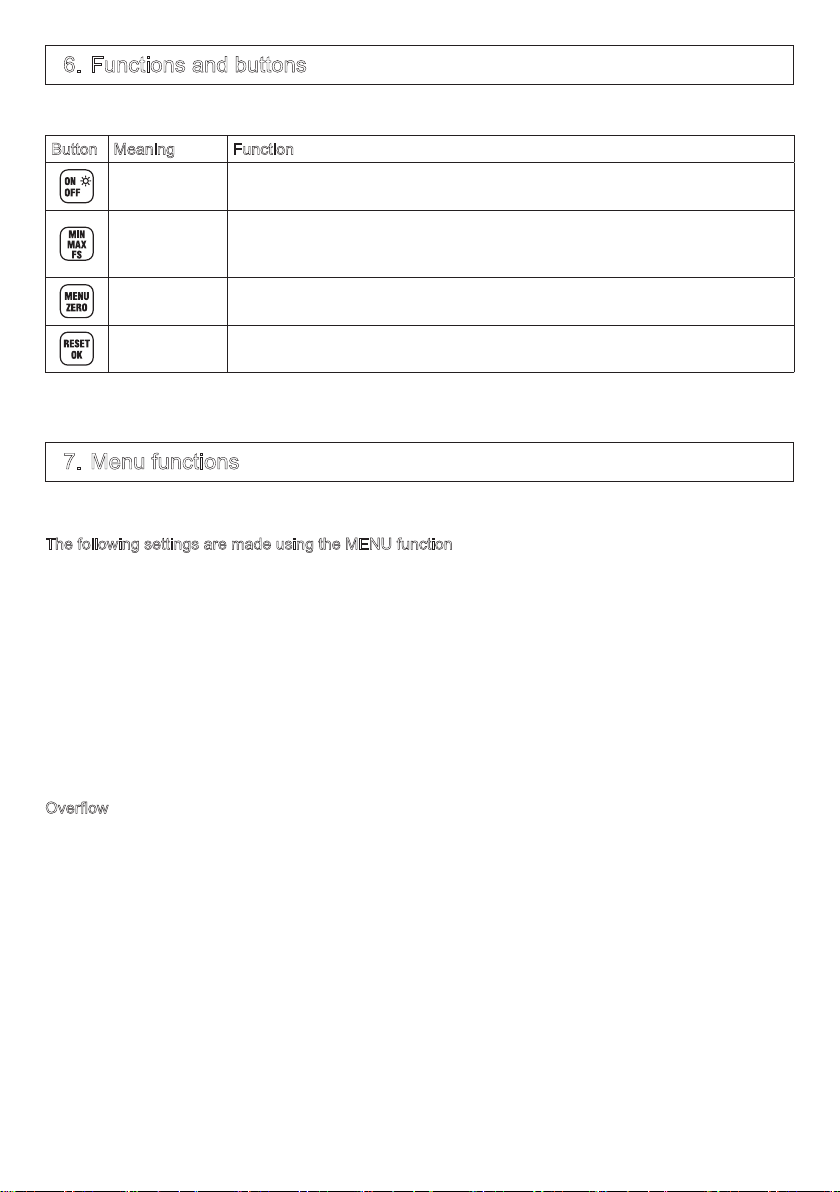

6. Functions and buttons
Button Meaning Function
On/O󰘯
Lighting
Brie󰘱y key press: Switching the device on/o󰘯
Long key press (3 seconds): Background lighting on (for 20 seconds)
Minimum
Maximum
Full scale
Selection of the display value:
MIN, MAX or FS (minimum value, maximum value, full scale).
Display of the maximum measuring span (e.g. 60.00 bar).
Menu
Zero point
The function menu is activated with a brie󰘱y press.
A zero point adjustment is carried out with a long press.
Delete
Con󰘰rm
Deleting the MIN and MAX measured data storage.
Con󰘰rmation of the MENU functions.
7. Menu functions
The following settings are made using the MENU function
–Setting the measurement unit (bar, mbar, PSI, kPa, MPa)
–Setting the 󰘰lter function
–Recalibration (see pt 10).
–Press the "MENU" button to adjust the parameters and the "OK" button to save the respective param-
eter. Will then jump to the next parameter.
–Keep the "OK" button pressed (for 3 seconds) to exit from the function menu.
If the user is in the function menu and does not activate any action for 20 seconds, he also exits from the
function menu and all parameters set are saved.
Over󰘱ow
If the device displays "OFL" (over󰘱ow), this means that the existing pressure is too high.
The device switches o󰘯 automatically after 5 minutes if there is a maximum pressure change of 2% of the
respective end value.

- 9 -

- 10 -

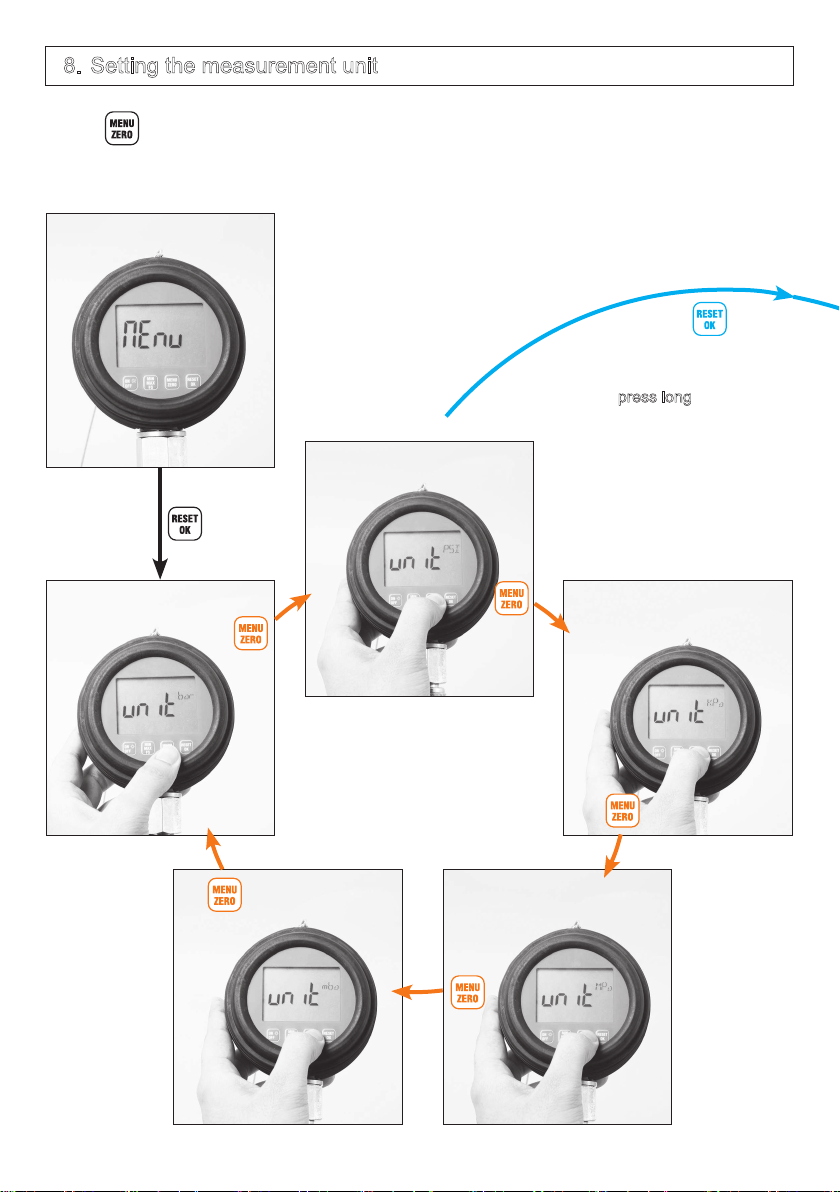

8. Setting the measurement unit
Use the button to switch between the following measurement units:
bar, PSI, kPa, MPa, mbar
Setting
the measurement unit
Alternatively:
press long (3 seconds)
= exit the menu
For menu point
"Filter"

- 11 -
9. Setting the 󰘰lter function
Use the button to switch between the following 󰘰lter functions:
0 = no attenuation, 1 = weak attenuation, 2 = medium attenuation, 3 = strong attenuation
The 󰘰lter function serves to attenuate the measurement value display.
from menu item "Unit"
Alternatively:
press long (3 seconds)
= exit the menu
Setting
the 󰘰lter function

- 12 -

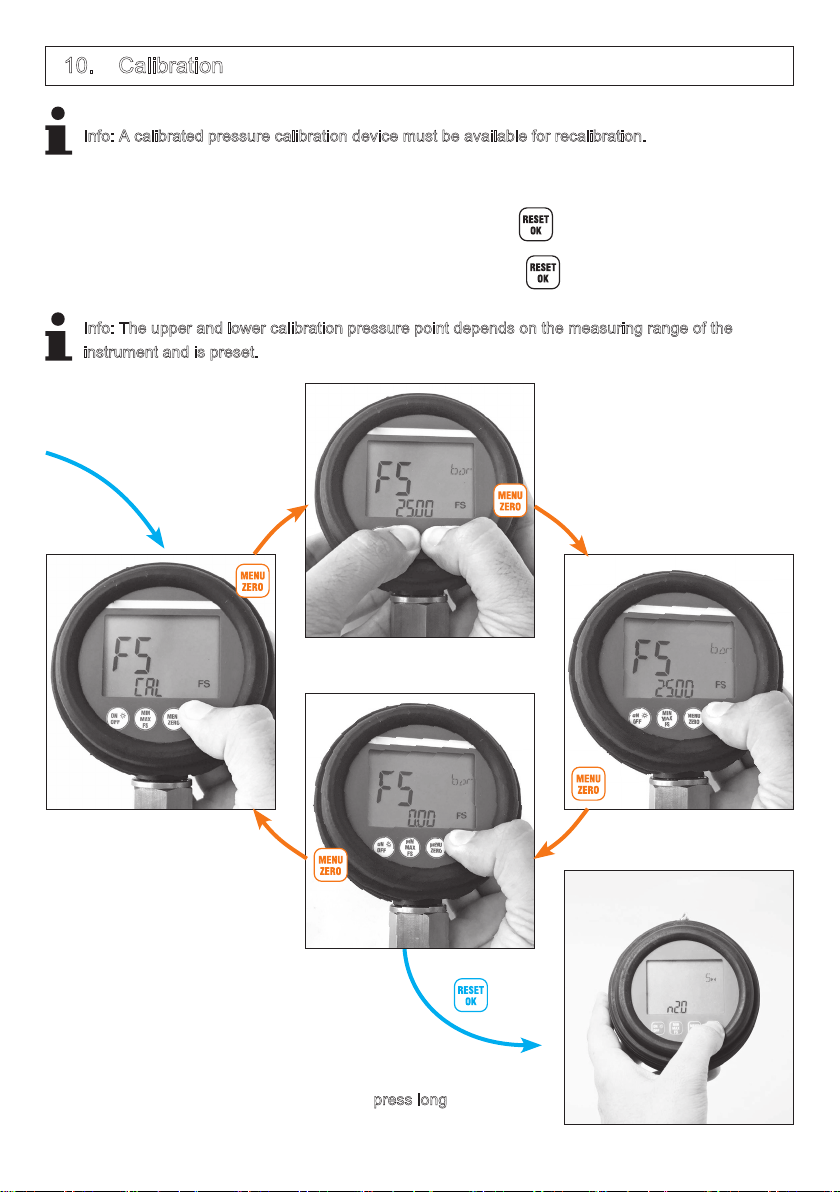

10. Calibration
Info: A calibrated pressure calibration device must be available for recalibration.
1. In the FS CAL menu item, keep keys 2 + 3 pressed simultaneously for 3 seconds
to perform a recalibration.
2. Move to the upper calibration pressure point and con󰘰rm with ,
3. approach the lower calibration pressure point and con󰘰rm with .
Info: The upper and lower calibration pressure point depends on the measuring range of the
instrument and is preset.
Calibration
Displaying of the
software version
Alternatively:
press long (3 seconds)
= exit the menu
from menu item "Filter"

- 13 -
MIN/MAX pressure
and full scale displays

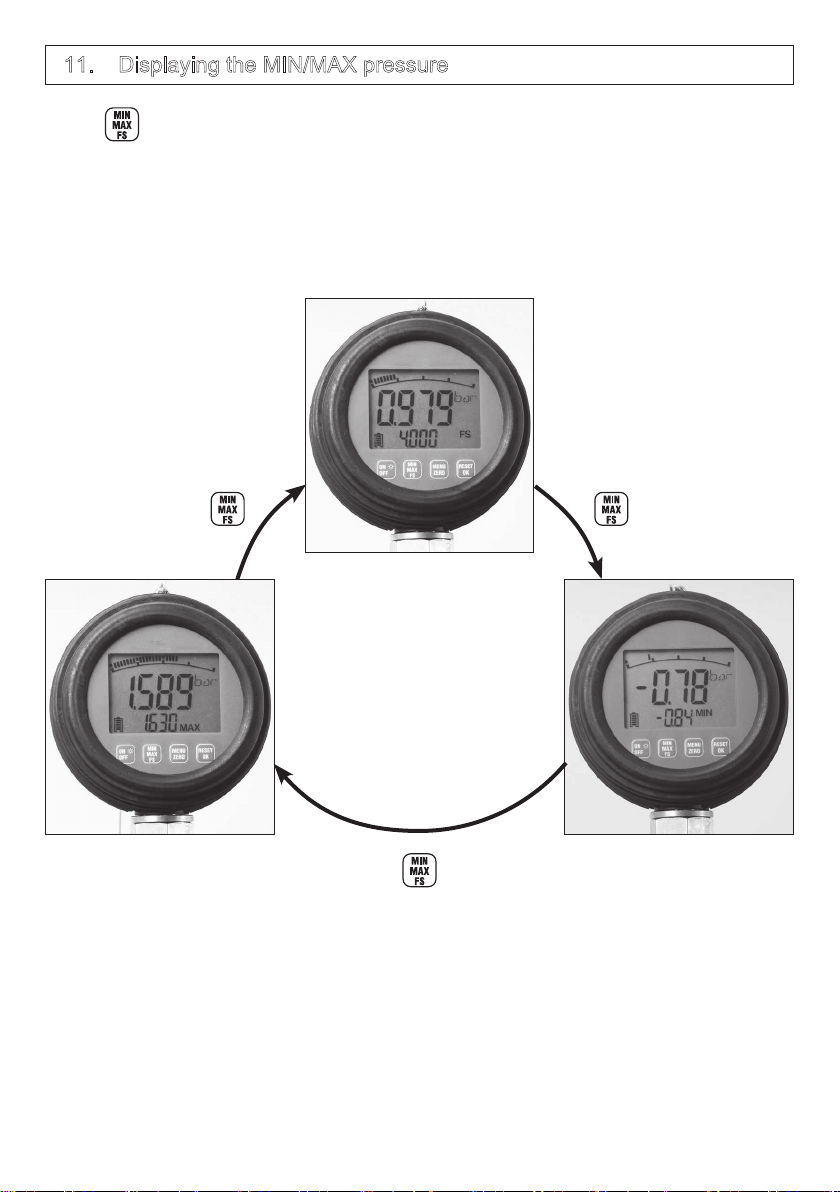

11. Displaying the MIN/MAX pressure
Use the button to access the following values:
MIN (lowest measured pressure)
MAX (highest measured pressure)
FS (full scale = maximum measuring span)

- 14 -
13. Maintenance and storage
Only clean the device with a dry, soft cloth. Be careful when cleaning in order to avoid scratching. In
case of heavy soiling, the cleaning cloth can be moistened slightly with water. No moisture is allowed to
ingress into the inside of the product. Do not use any cleaning agents or chemicals as this may damage
the material.
Store your product in a dry, dust-protected environment. Avoid places with higher temperatures and mois-
ture or places which can become wet, also for maintenance.
Repairs must be carried out exclusively by the manufacturer.
Keep the original packaging to avoid damage during transportation.
14. Technical data, speci󰘰cations
Feature Unit Range
Ambient temperature °C -10…+50
Storage temperature °C -20…+60
Maximun relative humidity % RH 85
Batterie - 2 x 1.5 VDC LR6-AA
Batterielebensdauer max. h 1.500
Weight approx. g 450
Dimensions l x w x h approx. mm 140 x 90 x 45
