Ekars EDA-2081 User manual
EDA-2081
Public Address
Audio Distributor
OPERATING MANUAL
Contents
1. Unpacking And Installation ------------------------------------------------------ 2
2. Features & Specifications --------------------------------------------------------- 3
3. Front Panel Controls --------------------------------------------------------------- 4
4. Rear Panel Controls --------------------------------------------------------------- 5
5. Connections ---------------------------------------------------------------------------- 6
1
SamHyoung Electronics Co., Ltd.
936-4, Kumuncheoun-Ri, Hyangnam-Myun,
Hwaseong-City, Kyunggi-Do, Korea (445-922)
Tel : 82)31+432+5112 / 82)31+432+4422
Fax : 82)31+352+7637 / 82)31+352+7649
Home Page : http://www.ekars.co.kr
http://www.samhyoung.co.kr
Unpacking And Installation
2
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
:
TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICICE PERSONNEL.
TO PREVENT FIRE OR SHOCK HAZARD,
WARNING
:
DO NOT EXPOSE THE UNIT TO RAIN OR
MOISTURE.
This symbol is intended to alert the user to the
presence of important operation and maintenance
(servicing) instructions in the literature
accompanying the appliance.
This symbol is intended to alert the user to the
presence of uninsulted "dangerous voltage"
with in the product's enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
To prevent electric shock do not use this
(polarized) plug with an extension cord,
receptacle or other outlet unless the blades can
be fully inserted to prevent blade exposure.
:
CAUTION
Although it is neither complicated to install nor difficult to operate your Audio Distributor,
a few minutes of your time is required to read manual for a properly wired installation
and becoming familiar with its many features and how to use them.
Please take a great care in unpacking your Audio Distributor and do not discard
the carton and other packing materials.
They may be needed with when moving your set and are required if it ever becomes
necessary to return your set for service.
Never place the unit radiators, in front of heating vents, in excessively humid or dusty
location to avoid early damage and for your years of quality use.
Connect your complementary components as illustrated in the following page.
The instruction for use shall state that the apparatus shall not be exposed to dripping or
splashing and that no objects filled with liquids, such as vases, shall be placed on the
apparatus.
Features
PROGRAMMABLE DISTRIBUTION
The signal distributes from 1 input program to 8-output program.
BALANCED CIRCUIT
All inputs and outputs are designed with balanced circuits.
INDEPENDENDT LEVEL ADJUSTMENT
Each output level is able to adjust independently.
MONO / STEREO INPUT SIGNAL CAPABLE
INPUT SIGNAL OVER RANGE INDICATOR AND OUTPUT LEVEL INDICATOR
3
Specifications
Maximum Output Level ------------------------------------------------------------------- +16dBm
Frequency Response ---------------------------------------------------- 20Hz ~ 20kHz (±1dB)
S/N ratio ---------------------------------------------------------------------------- better than 90dB
T.H.D (at 1 kHz Rated output) -------------------------------------------------- less than 0.1%
Input -------------------------------------------------------------------------------- 2 channels (A, B)
Output ------------------------------------------ 8 channels (mono) , Dual 4 channel (stereo)
Power Requirements ----------------------------------------------------------------------- DC 24V
Power Consumption ------------------------------------------------------------------- 6Watts Max
Net Weight (kg/lb) ---------------------------------------------------------------------------- 2.8/6.2
Dimensions ----------------------------------------------------- 483(W) x 44.5(H) x 250(D) mm
Specifications and design are subjected to change without notice
for improvements.

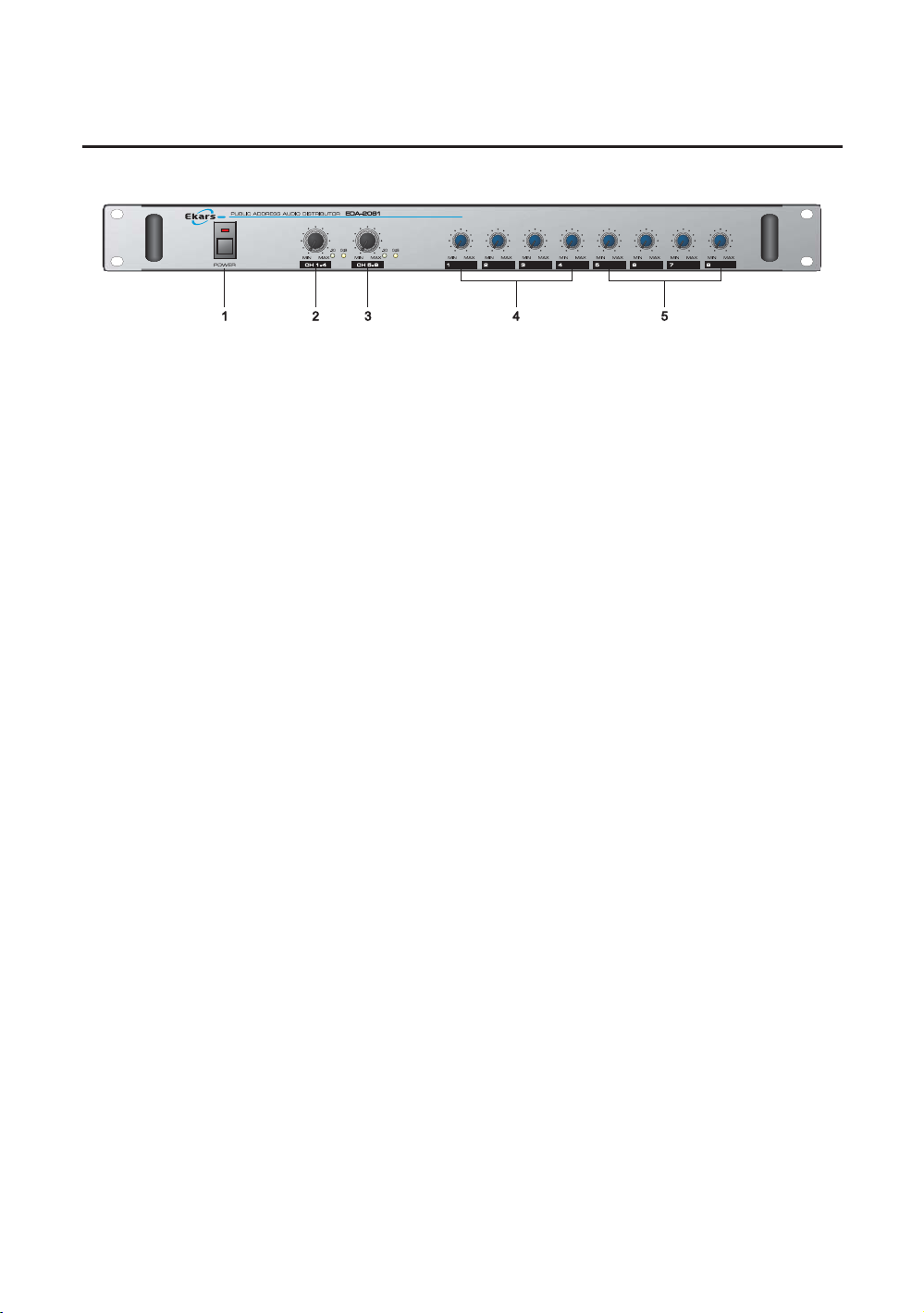

Front Panel Controls
4
1. POWER SWITCH
This is used to turn ON/OFF DC Power.
2. INPUT LEVEL ADJUST (CH 1 ~ CH4)
This is for adjusting level of Input volume.
3. INPUT LEVEL ADJUST (CH 5 ~ CH 8)
This is for adjusting level of Input volume.
4. OUTPUT LEVEL ADJUST (CH 1 ~ CH 4)
This is for adjusting level of output volume.
5. OUTPUT LEVEL ADJUST (CH 5 ~ CH 8)
This is for adjusting level of output volume.
(Mono: CH A, Stereo: CH A/B)

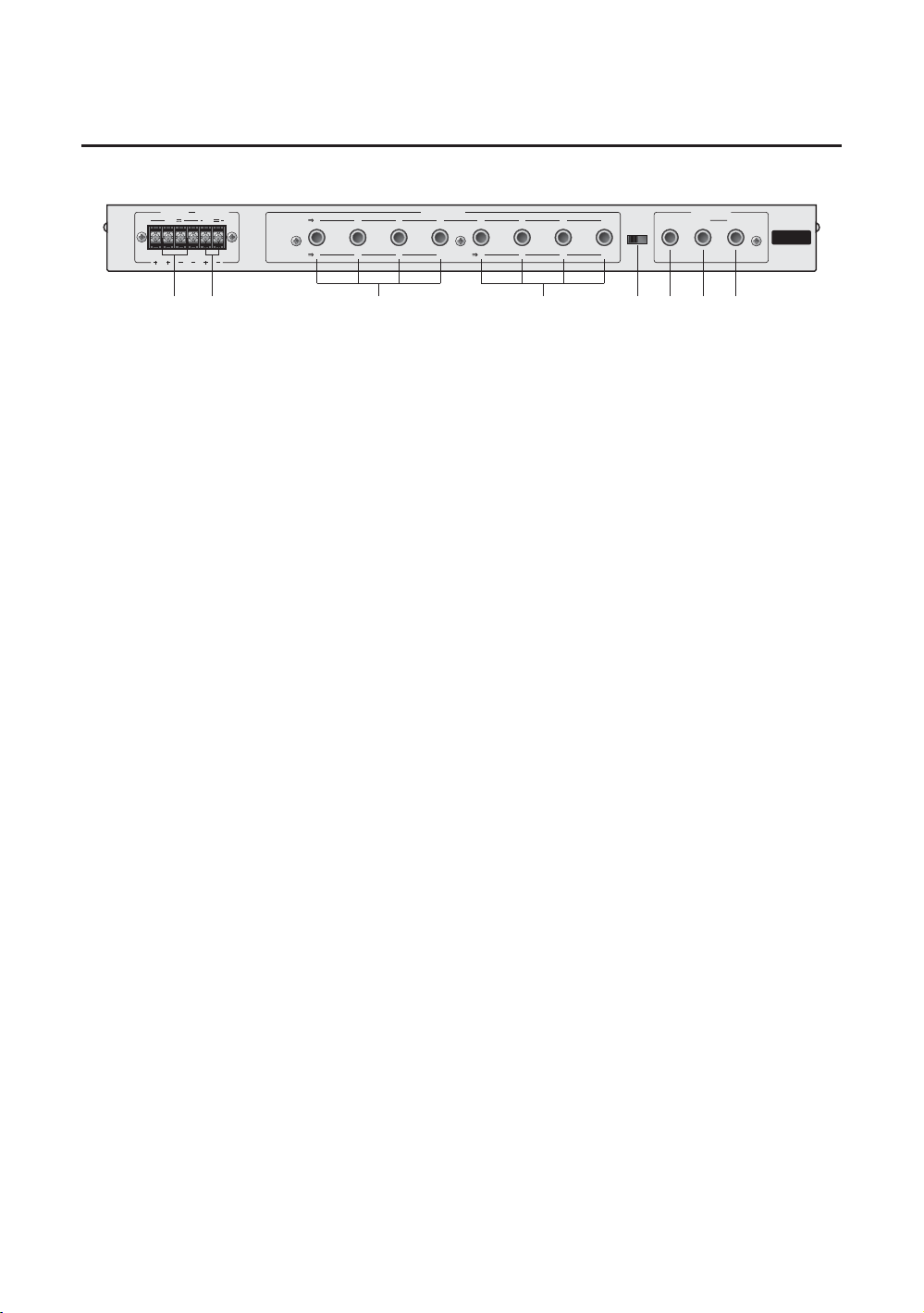

Rear Panel Controls
5
1. DC INPUT TERMINAL( For DC 24V)
This is for connecting to the switched output terminal of Power Distributor (EPD-2083)
2. REMOTE CONTROL INPUT TERMINAL
This is the remote control terminal for Emergency & Remote Broadcast.
Even though Power is OFF, you can broadcast since power is supplied by remote
control automatically.
3. CH B SIGNAL OUTPUT JACK
This is for connecting to the signal output of Power Amplifiers (EPA-2123/2243/2403)
4. CH A SIGNAL OUTPUT JACK
This is for connecting to the signal output of Power Amplifiers (EPA-2123/2243/2403)
5. CH A , CH A/B CONVERT SWITCH
This is a switch for converting Mono or Stereo signal input.
(Mono: CH A, Stereo: CH A/B)
6. CH B SIGNAL INPUT JACK
This is connected to the output signal terminal of Pre-amplifier(EPR-2722) or Mixer
for using Stereo.
7. SIGNAL INPUT LINK JACK
This is for parallel link between CH A signal input Jack and the signal output jack of
Pre-amplifier or Power Amplifier internally and then connected to external output.
8. CH A SIGNAL INPUT JACK
This is connected to the output signal of Pre-amplifier(EPR-2722) or Mixer for stereo.
24V
PWR RMT INDC INPUT
CH A+B
CH ACH B
SIGNAL OUTPUT
87654321
87654321
A,B
CH
A+B
CH - ALINK
SIGNAL INPUT
CH - B24V
AUDIO
DISTRIBUTOR
AUDIO
DISTRIBUTOR
123 4
5678

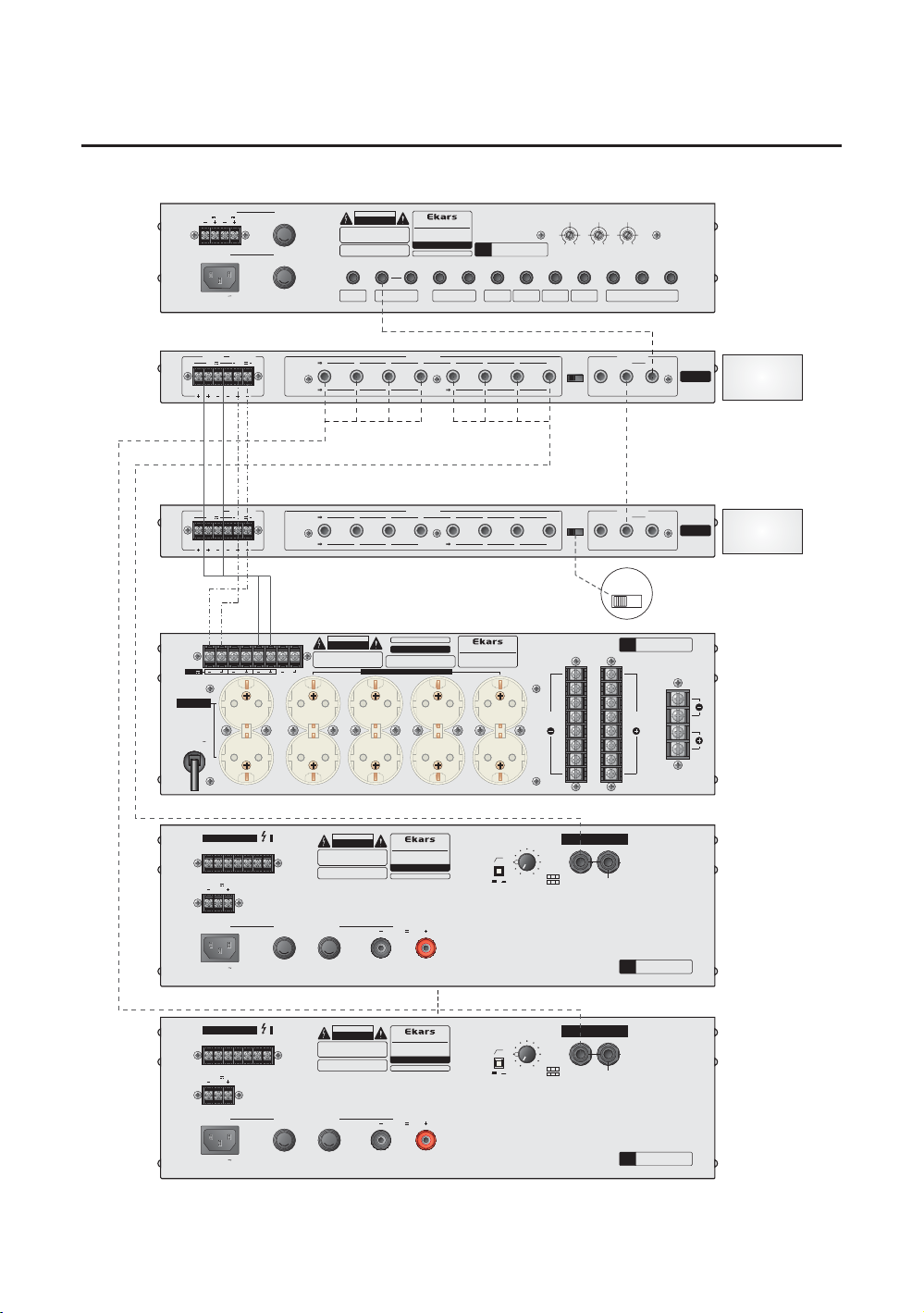

Connections
6
24V
PWR RMT INDC INPUT
CH A+B
CH ACH B
SIGNAL OUTPUT
87654321
87654321
A,B
CH
A+B
CH - ALINK
SIGNAL INPUT
CH - B24V
AUDIO
DISTRIBUTOR
AUDIO
DISTRIBUTOR
FUSE
FUSE
REMOTE IN DC IN DC FUSE
F300mAL 250V MUTE
LEVEL
CHIME
LEVEL
MIC 5
LEVEL
MIN MAX MIN MAXMIN MAX
AC FUSE
F100mAL 250V
AC INPUT
REMOTE PRE1 PRE2 CHIME AUX REC TAPE CDP TUNER MIC-5 MIC-4 MIC-3
INPUT
1V Bal
OUTPUT
1000mV Bal
INPUT
100mV Unbal
OUTPUT
1V Unbal
INPUT
100mV Unbal
INPUT
300mV Unbal
INPUT
100mV Unbal
INPUT
1mV Bal
24V 24V
50/60Hz. 3W
220V-240V
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK DON'T EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
WARNI NG
:
TO REDUCE THE RISK OF FIRE
TO REDUCE THE RISK OF FIRE
REPLACE ONLY WITH SAME TYPE FUSE.
CAUTION
:
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
MADE IN KOREA
MADE IN KOREA
PRE AMPLIFIER
PRE AMPLIFIER
POWER CONSUMPTION 3W
POWER CONSUMPTION 3W
PUBLIC ADDRESS
PUBLIC ADDRESS
www.ekars.co.kr
MODEL NO : EPR-2722
MODEL NO : EPR-2722
SN
FUSEFUSE
OUTPUT RMS 120W
OUTPUT RMS 120W
GND COM 4Ω
(22V)
8Ω
(31V)
16Ω
(44V)
70V
(41 )Ω
100V
(83 )Ω
POWER REMOTE IN
AC INPUT AC FUSE DC FUSE
F2AL 250V F10AL 250V
ONOFF
400Hz -3dB
HPF
INPUT LEVEL
MIN MAX
BALANCED INPUT
0dBm (775mV) / 20KΩ
BALANCED INPUT
0dBm (775mV) / 20KΩ
DC INPUT
24V
24V
LINK
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK DON'T EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
WARNI NG
:
TO REDUCE THE RISK OF FIRE
TO REDUCE THE RISK OF FIRE
REPLACE ONLY WITH SAME TYPE FUSE.
CAUTION
:
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
MADE IN KOREA
MADE IN KOREA
www.ekars.co.kr
POWER AMPLIFIER
POWER AMPLIFIER
OUTPUT POWER 120W RMS
OUTPUT POWER 120W RMS
PUBLIC ADDRESS
PUBLIC ADDRESS
MODEL NO : EPA-2123
MODEL NO : EPA-2123
SN
50/60Hz. 300W
220V-240V
POWER
REMOTE IN
CHARGER
IN
SWITCHED
OUT
UNSWITCHED
OUT
BATTERY
24V DC INPUT
SWITCHED
24V DC OUT
(ONLY AMP)
SWITCHED
24V DC OUT
(ONLY AMP)
SWITCHED OUT(3000W MAX)
SWITCHED OUT(3000W MAX)
UNSWITCHED
OUT(750W MAX)
UNSWITCHED
OUT(750W MAX)
24V
24V
TO REDUCE THE RISK OF FIRE
TO REDUCE THE RISK OF FIRE
REPLACE ONLY WITH SAME TYPE FUSE.
CAUTION
:
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK DON'T EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
WARNING
:
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
MADE IN KOREA
MADE IN KOREA
www.ekars.co.kr
PUBLIC ADDRESS
PUBLIC ADDRESS
POWER DISTRIBUTOR
POWER DISTRIBUTOR
MODEL NO : EPD-2083
MODEL NO : EPD-2083
POWER CONSUMPTION 135VA
POWER CONSUMPTION 135VA
SN
50/60Hz. 135VA
AC INPUT
220V-240V
FUSEFUSE
OUTPUT RMS 120W
OUTPUT RMS 120W
GND COM 4Ω
(22V)
8Ω
(31V)
16Ω
(44V)
70V
(41 )Ω
100V
(83 )Ω
POWER REMOTE IN
AC INPUT AC FUSE DC FUSE
F2AL 250V F10AL 250V
ONOFF
400Hz -3dB
HPF
INPUT LEVEL
MIN MAX
BALANCED INPUT
0dBm (775mV) / 20KΩ
BALANCED INPUT
0dBm (775mV) / 20KΩ
DC INPUT
24V
24V
LINK
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK DON'T EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
WARNI NG
:
TO REDUCE THE RISK OF FIRE
TO REDUCE THE RISK OF FIRE
REPLACE ONLY WITH SAME TYPE FUSE.
CAUTION
:
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
MADE IN KOREA
MADE IN KOREA
www.ekars.co.kr
POWER AMPLIFIER
POWER AMPLIFIER
OUTPUT POWER 120W RMS
OUTPUT POWER 120W RMS
PUBLIC ADDRESS
PUBLIC ADDRESS
MODEL NO : EPA-2123
MODEL NO : EPA-2123
SN
50/60Hz. 300W
220V-240V
24V
PWR RMT INDC INPUT
CH A+B
CH ACH B
SIGNAL OUTPUT
87654321
87654321
A,B
CH
A+B
CH - ALINK
SIGNAL INPUT
CH - B24V
AUDIO
DISTRIBUTOR
AUDIO
DISTRIBUTOR
PRE AMP
EPR-2722
AUDIO
DISTRIBUTOR
EDA-2081
POWER AMP X 6
A : MONO
A/B : STEREO
CH
A A/B
POWER
DISTRIBUTER
EPD-2083
POWER AMPLIFIER
EPA-2123
EPA-2243
EPA-2403
POWER AMPLIFIER
EPA-2123
EPA-2243
EPA-2403
AUDIO
DISTRIBUTOR
EDA-2081
3rd floor, 271-183, Kochk-2Dong,
Guro-Gu, Seoul, Korea (152-082)
Tel : 82)2+2612+4422
Fax : 82)2+2612+7676
Seoul office.
936-4, Kumuncheoun-Ri, Hyangnam-Myun,
Hwaseong-City, Kyunggi-Do, Korea (445-922)
Tel : 82)31+432+5112 / 82)31+432+4422
Fax : 82)31+352+7637 / 82)31+352+7649
Home Page : http://www.ekars.co.kr / http://www.samhyoung.co.kr
Headquarter & Overseas Dep.
