EKOVENT Fire System Pro Training manual

Commissioning instructions 2022-12
EKOVENT Fire System Pro

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 2 (25)
www.ekovent.se
2
Fire System Pro
Content
1.0 Overview.....................................................................................................................3
1.1 Introduction ........................................................................................................... 3
1.2 System features .................................................................................................... 3
1.3 System setup ........................................................................................................ 4
1.4 PRO-M push buttons............................................................................................ 5
1.5 PRO-M access codes........................................................................................... 5
1.6 PRO-S light indications......................................................................................... 6
1.7 ProLinkTM application .......................................................................................... 6
1.8 Menu structure...................................................................................................... 7
2.0 Quick start guide................................................................................................ 8
2.1 Choose language .................................................................................................. 8
2.2 Log in .................................................................................................................... 8
2.3 Change password................................................................................................. 8
2.4 Activate local re dampers ................................................................................... 9
2.5 Add PRO-S damper units to PRO-M.................................................................... 9
2.6 Add PRO-S damper units via ProLinkTM app..................................................... 10
2.7 Set section funcionality in PRO-M...................................................................... 12
2.8 Section setup in PRO-M ..................................................................................... 13
2.9 Change damper setup via PRO-M .................................................................... 13
2.10 Activate SEF mode ............................................................................................ 14
2.11 Activate the Fire System Pro ............................................................................. 15
3.0 Complete list of menu functions .................................................................... 16
3.1 Status Overview .................................................................................................. 16
3.2 System Setup...................................................................................................... 19
3.3 Settings ............................................................................................................... 22
3.4 Manual/Auto........................................................................................................ 23
3.5 Access rights ...................................................................................................... 24
Caution!
Read and understand the instruction before using the Ekovent Fire System Pro and ensure that the installation complies with
local safety regulations. Installation and maintenance of the system should only be carried out by qualied personnel.
The manufacturer is not responsible for any eventual damage or injury caused by inadequate skills during installation, or
through removal or deactivation of any security devices.

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 3 (25)
www.ekovent.se
3
1.0 Overview
1.1 Introduction
Ekovent Fire System Pro is a complete re protection
steering system that allows to feed, monitor and test up
to 60 re and/or smoke control dampers. Smoke detec-
tors, temperature sensors, thermostat and fault panel can
also be connected and monitored in the system.
The system is designed to only feed 24V actuators.
The commissioning instructions for the Fire System Pro
should be used as a guide to the main features of the
system and a basis for interface menu and congurations.
For more detailed information and help with costumized
system setups, please contact Ekovent’s technical sup-
port.
1.2 System features
The system consists of three main products
•PRO-M master unit
•PRO-S damper unit
• ProLinkTM application
PRO-M
The PRO-M master unit accepts up to three re dampers,
two smoke detectors and one temperature sensor, which
can be locally connected without any further component
required.
The PRO-M can also manage a smoke evacuation system
with smoke control dampers connected via damper units
(PRO-S) and control a variable speed on the smoke
evacuation fan with a duct pressure differential transmitter
(PRO-PDT).
The main function of the PRO-M is to continuously check
all damper position switches and all other components,
and to close re dampers and open or close the smoke
control dampers depending on the scenario.
Fire alarm signals for external systems can be read and
possibly acknowledged by the PRO-M. An external alarm
signal is sent to be read by external systems (e.g. to stop
an AHU).
A supervisory BMS system can be connected to the
PRO-M through Modbus and BACnet protocol.
PRO-S
The PRO-S is used as a damper unit in the Fire System
Pro. It works together with the PRO-M master unit, where
most of the setup for PRO-S is made.
The damper unit has two analogue inputs, two digital
inputs, one analogue output and two digital outputs. The
in- and outputs are used for e.g damper control, smoke
detector, temperature sensors and VAV.
PRO-S communicates via Modbus. One terminal is used
as +19 V DC supply voltage for a smoke detector.
ProLinkTM application
The damper unit PRO-S is Bluetooth compatible.
The ProLinkTM application is available on Android and iOS
and can be used to nd and change name of the PRO-S
damper units, change ModBus address and update the
PRO-S software.

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 4 (25)
www.ekovent.se
4
1.3 System setup
Fire System Pro is a exible steering system that gives full automatic re and smoke protection, and can be
customized and designed to handle various buildings and different scenarious.
Modbus
Bacnet
PRO-M
Master unit
PRO-PDT
Pressure transmitter
PRO-P
Power supply
Automatic
re alarm
Air
handling unit
PRO-FP
Fault panel Smoke
evacuation fan
Fire damper PRO-SCD/
PRO-SDD
Smoke detector
PRO-DTS
Temperature
sensor
PRO-DTS
Temperature
sensor
PRO-S
Damper unit
PRO-S
Damper unit
PRO-R
Signal repeater
Fire
damper
Fire
damper
Smoke
damper
Smoke
damper
Smoke
detector
Smoke
detector
Temperatur
givare
Temperatur
givare
Maximum amount of
re dampers (3) and
smoke detectors (2)
connected to PRO-M

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 5 (25)
www.ekovent.se
5
1.4 PRO-M push buttons
The Pro-M master unit has a pre-programmed controller with a backlit internal display. The different menus and settings are
easily accessible and controlled by push buttons on the front of the unit.
Figure 2: PRO-M controller
1.5 PRO-M access codes
In order to access and enable particular operations and settings in the PRO-M master unit, a valid access code is required
to be entered.
“Up/Down” buttons: Used to navigate through menus and change values
”Back” button: Used to go back to the previous page
“Forward” button: Used to enter menu pages
“OK” button: Used to edit and conrm changed values
“Alarm”: LED light blinks in case of alarm
“Write”: LED light blinks when values can be changed on current page
Red button: Used to go directly to alarm acknowledgment page
C button: Used to exit value editing
Admin - access code: 1111
• Status overview
• System Setup
• Settings
• Manual/Auto
Service - access code 2222
• Service
• System Setup
• Manual/Auto
Operator - access code 3333
• Status overview
• Settings
Attention!
Change password after the rst admin login

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 6 (25)
www.ekovent.se
6
1.6 PRO-S light indications
The PRO-S damper unit has two different LED lights to
indicate status for communication and identication, see
table 1.1. below
LED light for
communication
Push-button
LED light for
identication
Figure 3: Inside PRO-S
Tabell 1.1: PRO-S ljusindikeringar
LED light Colour Pattern Description
Identication Blue Steady Bluetooth
connection
active
Yellow Steady Service alarm
Blinking Unit identied
Red Steady Everything ok
Blinking Everything ok
Green Steady Everything ok
Magenta Steady Unit ofine
White Steady Unit has
address 1 and
is ready to be
addressed in
the system
Blinking The button has
been pressed
on the unit and
it’s waiting to
be addressed
Communication Yellow Fast
blinking
Communica-
tion in process
1.7 ProLinkTM application
The ProLinkTM application is available on Android and iOS
and can be used to nd a PRO-S unit, to change ModBus
address and name of a unit, and update the PRO-S
software. In order to access and enable particular
operations and settings in the ProLinkTM application, a
valid password is required to be entered.
Administrator - password: Admin
• Update rmware
• Reset to default values
• Save and import local conguration
• Change password on all users
• Read values decided by application
Service - password: Service
• Reset to default values accepted by application
• Save and import local conguration
• Change password on this user level
• Read values decided by application
Operator - password: Operator
• Reset to default values accepted by application
• Save and import local conguration
• Change password on this user level
• Read values decided by application
Guest - password: N/A
• Read values decided by application
Attention!
Change password after the rst admin login

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 7 (25)
www.ekovent.se
7

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 8 (25)
www.ekovent.se
8
2.0 Quick start guide
This section provides you with guidlines to common settings and congurations to get the Fire System Pro running.
Note! Each guide starts from the main menu. To go back, press “back” button until you reach the main menu.
2.2 Log in
1. Press “down” to find
”Acccess rights”
2. Press “foward” to enter
access rights
3. Press ”forward” again to
select log on
4. Press “OK” to start ente
ring password
5. Use ”up” and ”down”
arrows to set number
6. When first number is
set, press ”forward” to set
next number (and so on).
7. Press ”OK” when
password is set.
You are now loged in.
Note! Cur. level on display changes according to user
login and access right.
2.3 Change password
1. Press “down”
to find ”Access rights”
2. Press “foward” to enter
access rights
3. Press ”down” to find
”Change password”
4. Press ”OK” to start
editing
5. Use ”up” and ”down” ar-
rows to set level for password
changes
6. “OK” to start
entering New password
7. Enter password ( step 5-6
in 2.2 log in section)
8. Press “OK” when new
password is set
Password is now changed.

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 9 (25)
www.ekovent.se
9
2.3 Activate local re dampers
1. Press ”down” to find
”System Setup”
2. Press ”forward” to access
”System Setup”
3. Press ”down” to find
“De-/Activate Damper”
4. Press ”forward” to access
”De-/Activate Damper”
5. Press ”forward” to ac-
cess ”Damper numbers”
6. ”OK” to edit activated
status (Yes/No)
7. Press ”down” to change
activated status to YES
8. “OK” to confirm
Damper 1 is now activated.
Note! Local dampers (connected to PRO-M) can only have
adress one (1), two (2) or three (3).
To activate damper number two (2) and three (3), follow
step 5-8 above. Press “up” button to change damper
numbers.
1. Press ”down” to find
”System Setup”
2. Press ”forward”
to access ”Addressing
Slaves”
3. Press ”forward” again to
access ”Add slaves”
4. Press forward again to
access ”Start slave number”
5. Press ”OK” to edit ”Start
slave number”
6. Use ”up” and ”down”
arrows to change
”Start slave number”
7. ”OK” to confirm slave
number and edit
”Start adding”
8. Press ”down” to change
start adding value to YES
9. ”OK” to confirm ”start
adding”
2.5 Add PRO-S damper units to PRO-M
Note! Lowest number for damper unit
(“start slave number”) is four (4).
Continue with next step on following page

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 10 (25)
www.ekovent.se
10
2.5 Add PRO-S damper units (cont.)
10. Start running by pressing the ”push-button” on all
suitable damper units (PRO-S). LED lights up in color
”Magenta” meaning that the unit is still offline.
All PRO-S damper units should now be added
Note! The ”Start slave number” on the screen should have
increased accordingly with the number of PRO-S that
have been added. In the example above, we have added
26 damper units (up to address 29) meaning that the next
available adress is number 30.
2.6 Add PRO-S damper units via ProLinkTM
app
1. Open ProLinkTM application
2. Click ”devices” and identify one of the PRO-S damper units
3. Log in with the given credentials
Continue with next step on following page
LED light for
communication
Push-button
LED light for
identication
11. After running damper
units, press ”OK” to edit
”Start adding”
12. Press ”up” to change
value to Yes
13. Press ”OK” to confirm.
14. When all damper units
are connected, press ”up”
to change start adding
value to NO
15. Press ”OK” to confirm
status
Note! PRO-S LED light should light up in color
green to identify that that the damper unit is connected.

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 11 (25)
www.ekovent.se
11
4. Access ”communication” and set modbus address
according to requirements.
Note! Lowest modbus address for PRO-S is four (4)
Note! If you want to add damper units in different sec-
tions in the system, it is important that they are in line
in the modbus address, i.e. address 1-10 = section 1,
address 11-20 = section 2 and so on.
5. Optional: It is also possible to change the name of the
unit, for example to specify where it is located.
6. Conrm changes
Attention! Repeat the steps for other PRO-S damper
unit. When all units are identied and addressed, go to
the next step.
7. In the PRO-M master
unit, press ”down” to find
”System Setup”
8. Press ”forward” to ac-
cess ”System Setup”
9. Press ”forward” to ac-
cess ”Addressing slaves”
10. Press ”down” to ”Find
Addressed slaves”
11. Press ”forward” to
access ”Find Addressed
slaves”
Continue with next step on following page

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 12 (25)
www.ekovent.se
12
12. Press ”OK” to edit
”Start” status (Yes/No)
13. Press ”up” to change
status to YES
14. “OK” to confirm status
15. Wait until running status
is 100%
16. Press OK to
confirm and stop running.
PRO-S damper units should now be identied and
addressed in the system
2.7 Set section funcionality in PRO-M
1. Press ”down” to find
”System Setup”
2. Press ”forward” to access
”System setup”
3. Press ”down” to find
”Miscellaneous”
4. Press forward to enter
”Miscellaneous”
5. Press ”down” to find
”Section containment”
6. Press ”forward” to enter
”Section containment”
7. ”OK” to start edit value
for ”Section containment”
8. Press ”up” to change
value to YES
9. Press ”OK” to confirm
value for ”Section contain-
ment”
10. Press ”forward” to set
”Number of sections for full
alarm”
11. Press ”OK” to edit
”Number of sections for full
alarm”
12. Use ”up” and down”
arrows to change
”Number of sections for full
alarm”
13. Press ”OK” to confirm
Sections are now added and function set for the
system
Note! ”Number of section for full alarm” indicates the
number of sections in alarm mode, in order to close the
whole system. For example, if you choose two (2) as
number of section for full alarm, and you have four (4)
sections in the system, all four sections wil close if two
sections are in alarm mode.

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 13 (25)
www.ekovent.se
13
2.8 Section setup in PRO-M
1. Press ”down” to find
”System Setup”
2. Press ”forward” to ac-
cess ”System setup”
3. Press ”down” to find
”Miscellaneous”
4. Press ”forward” to
access ”Miscellaneous”
5. Press ”down” to find
”Section tools”
6. Press ”forward” to
access ”Section tools”
7. Press ”forward” again to
access ”Set same section”
8. Press ”OK” to start
editing modbus adress for
”Start”
9. Use ”up” and ”down”
arrows to change ”Start”
number of modbus
adress
10. Press ”OK” to confirm
”Start” number
11. Use ”up” and ”down”
arrows to change ”Stop”
number of modbus address
12. Press ”OK” to confirm
”Stop” number
13. Use ”up” and ”down”
arrows to change number
of ”Sections”
14. Press ”OK” to
confirm ”Section”
15. Press ”down” to
changes status of ”Set
now” to Yes
16. Press ”OK” to confirm
”Set now” status
Note! Repeat the steps above to set more sections for
other PRO-S damper units (modbus addresses) in the
system.
Setup for section 1 are now done
1. Press ”down” to find
”System Setup”
2. Press ”forward” to access
”System Setup”
3. Press ”down” to find “De-/
Activate Damper”
4. Press ”forward” to access
”De-/Activate Damper”
2.9 Ändra spjällinställning via PRO-M
Continue with next step on following page

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 14 (25)
www.ekovent.se
14
Section setup in PRO-M (cont.)
5. Press ”OK” to start edit
”Select slave number”
6. Use ”up” and ”down”
arrows to change
”slave number” to edit
7. Press ”OK” to confirm
”slave number”
8. Press ”forward” to edit
”De-/Activate Damper”
9. Press ”OK” to start edit
status for ”Damper”
10. Use ”up” and down”
arrows to change
”Damper” to desired setup
Tips! Use the ProLinkTM application to see modbus
address applied for a specic PRO-S unit. To know
which PRO-S to choose, checkup the serial number
for the unit in the ProLinkTM app and control it with
the identication number inside the PRO-S unit.
Figure 5: ID number for
PRO-S in ProLinkTM app
Figure 6: ID-number for
PRO-S inside the unit
11. Press ”OK” to confirm
setup for damper and set
section for damper
12. Use ”up” and down”
arrows to change
”section” number if needed
13. Press ”OK” to confirm
or change section for the
damper
Damper setup and section is now changed for
selected damper unit
2.10 Activate SEF mode
1. Press ”down” to find
”System Setup”
2. Press ”forward” to enter
”System Setup”
3. Press ”down” to find
”SEF”
4. Press forward to enter
”SEF” mode
5. Press ”OK” to edit ”SEF”
mode
6. Use ”up” and down”
arrows to change
to desired SEF mode.
Continue with next step on following page

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 15 (25)
www.ekovent.se
15
SEF mode (cont.)
7. Press ”OK” to confirm
SEF mode.
8. Press ”up” to activate
AFA in system (fire panel).
9. Press ”OK” to confirm
AFA system activation
10. Press ”down” to set
points and setups for SEF
11. Press ”back” to go
back to ”System Setup”
12. Press ”down” to find
Pressure sensor”
13. Press ”forward” to
enter ”Pressure sensor”
14. Press ”OK” to edit
”Pressure sensor enabled”
15. Press ”up” to change
status for ”Pressure sensor
enabled” to YES
16. Press ”OK” to confirm
AFA system activation
1. Press ”down” to find
”System Setup”
2. Press ”forward” to enter
”System Setup”
3. Press ”down” to find
”System activate”
4. Press ”forward” to enter
”System activate”
5. Press ”OK” to edit ”Acti-
vate System”
6. Press ”up” to change
status to RUN
5. Press ”OK” to
confirm status for
”Activate System”
SEF mode is now setup
2.11 Activate the Fire System Pro
The Fire System Pro is now activated and running

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 16 (25)
www.ekovent.se
16

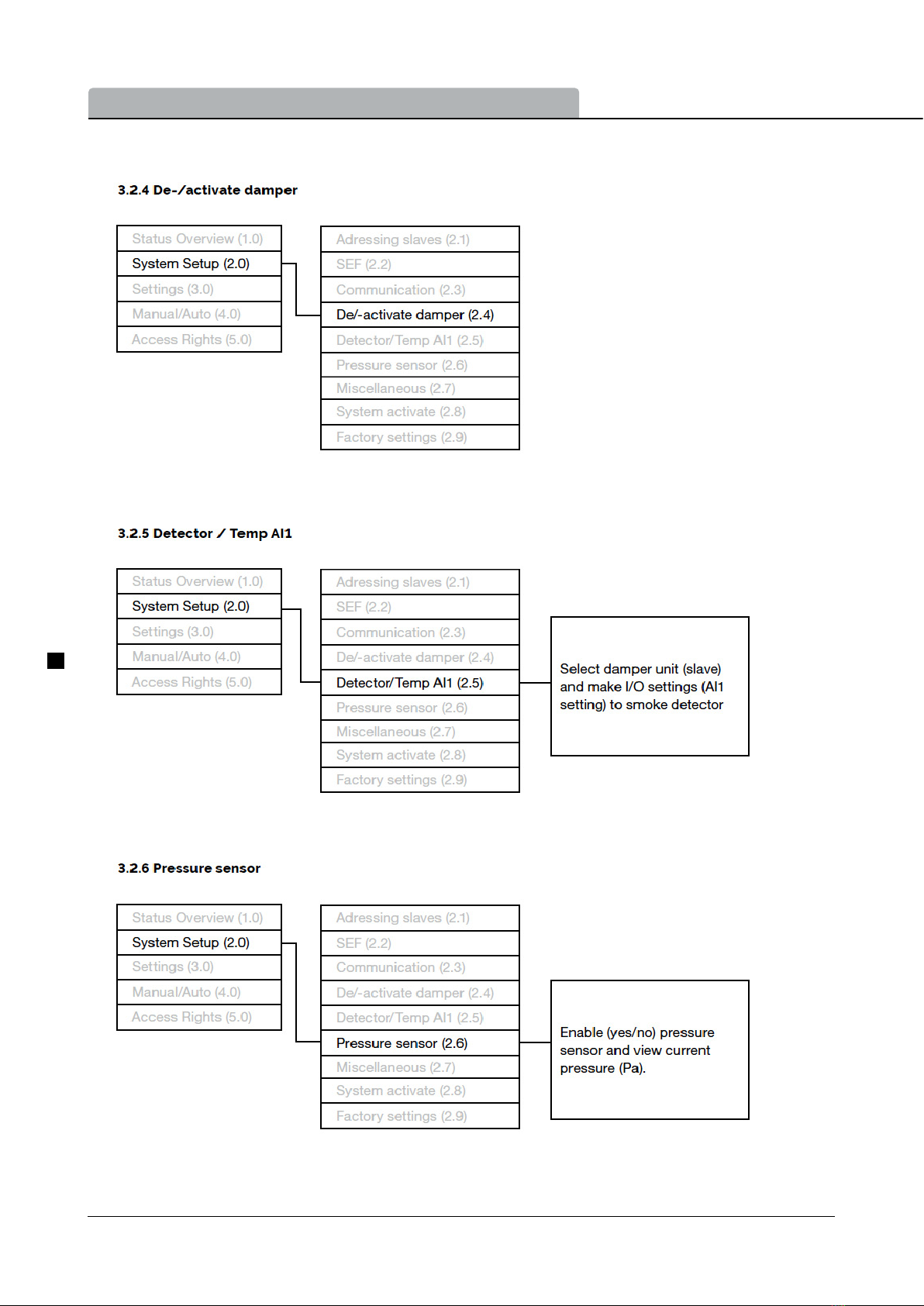

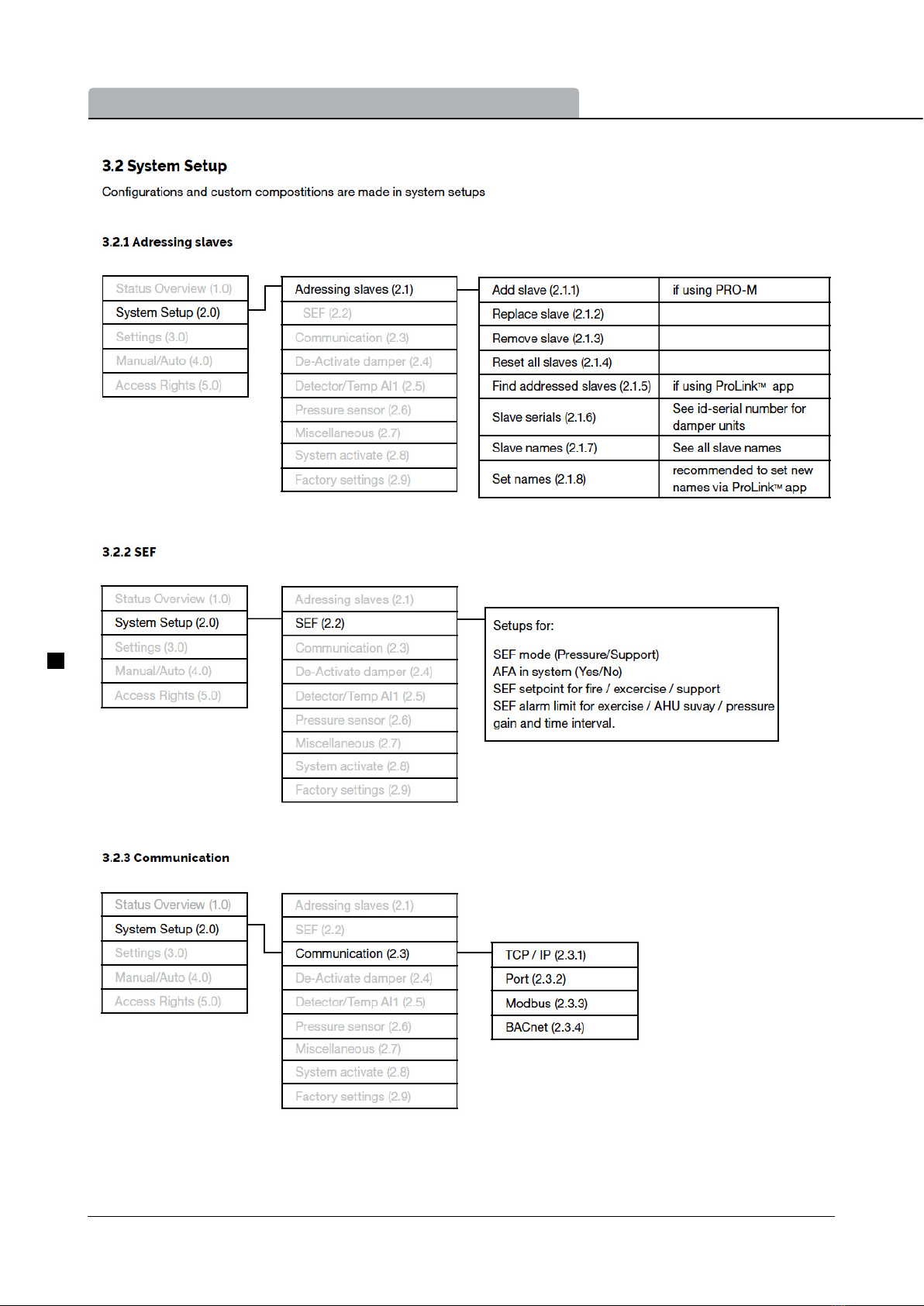

3.0 Complete list of menu functions
Following is a complete list of menu options, including a function description

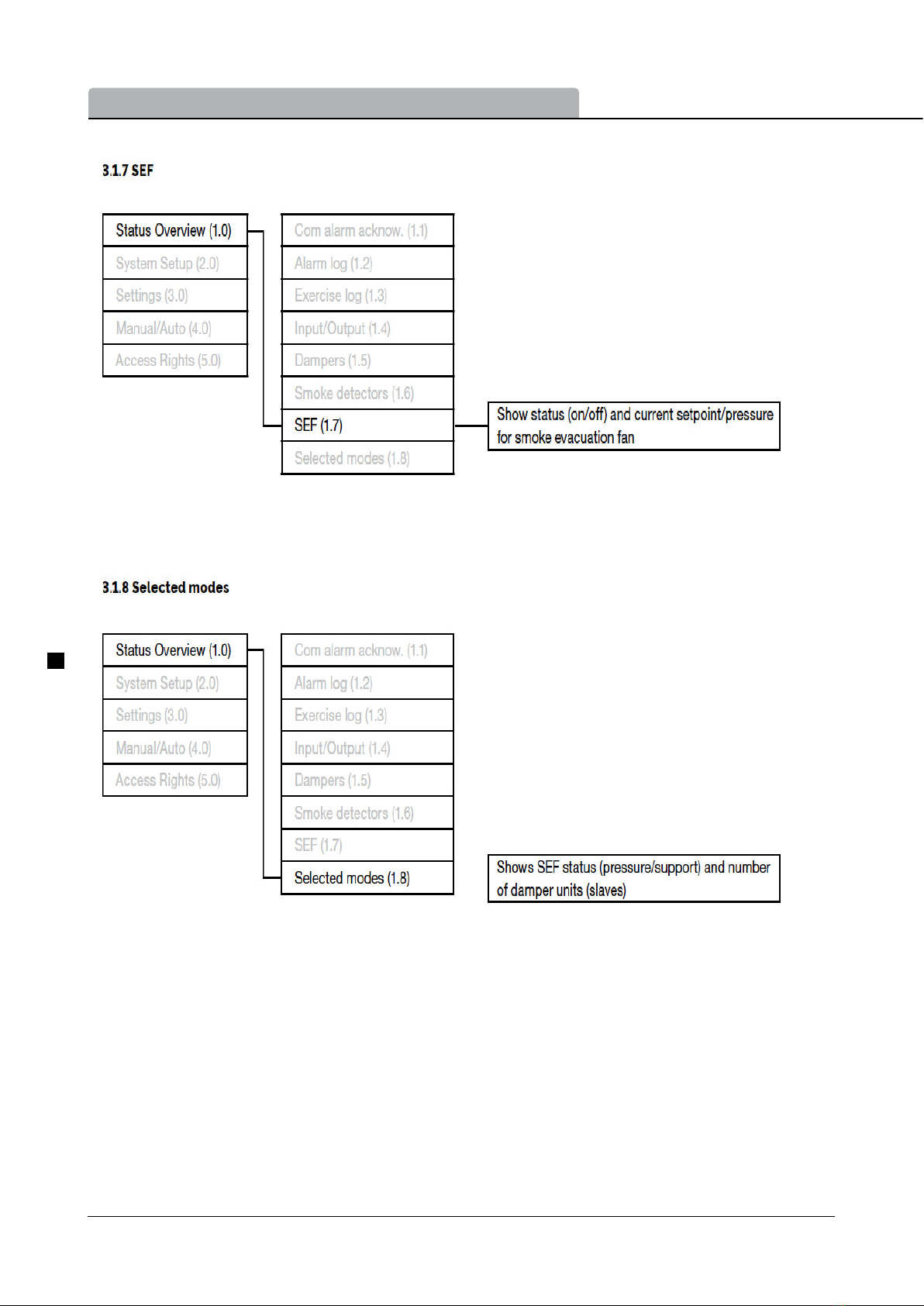

3.1 Status Overview
The status overview menu (1.0) shows status for different components of the system

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 17 (25)
www.ekovent.se
17

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 18 (25)
www.ekovent.se
18

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 19 (25)
www.ekovent.se
19

Commissioning instructions EKO-Fire System Pro
EKOVENT AB Rätt till ändringar förbehålles 2022-12 20 (25)
www.ekovent.se
20
