Mandik MSD User manual

2
These technical specifications state a row of manufactured sizes and models of multi smoke dampers (further only
dampers) MSD. It is valid for production, designing, ordering, delivery, maintenance and operation.
1. Description.........................................................................................................................
3
2. Design................................................................................................................................
4
3. Communication and control devices....................................................................................
11
4. Dimensions, weights...........................................................................................................
12
5. Placement and Assembly....................................................................................................
28
6. Suspension systems...........................................................................................................
46
7. Pressure loss......................................................................................................................
47
8. Coefficient of local pressure loss.........................................................................................
48
9. Noise data..............….………………………………….........................................................
49
10. Material.............................................................................................................................
51
11. Inspection, testing.............................................................................................................
52
12. Logistic terms....................................................................................................................
52
13. Assembly..........................................................................................................................
52
14. Entry into service and revisions.........................................................................................
53
15. Spare parts.......................................................................................................................
53
16. Data label.......................….…..........................................................................................
53
17. Ordering key.....................................................................................................................
54

3

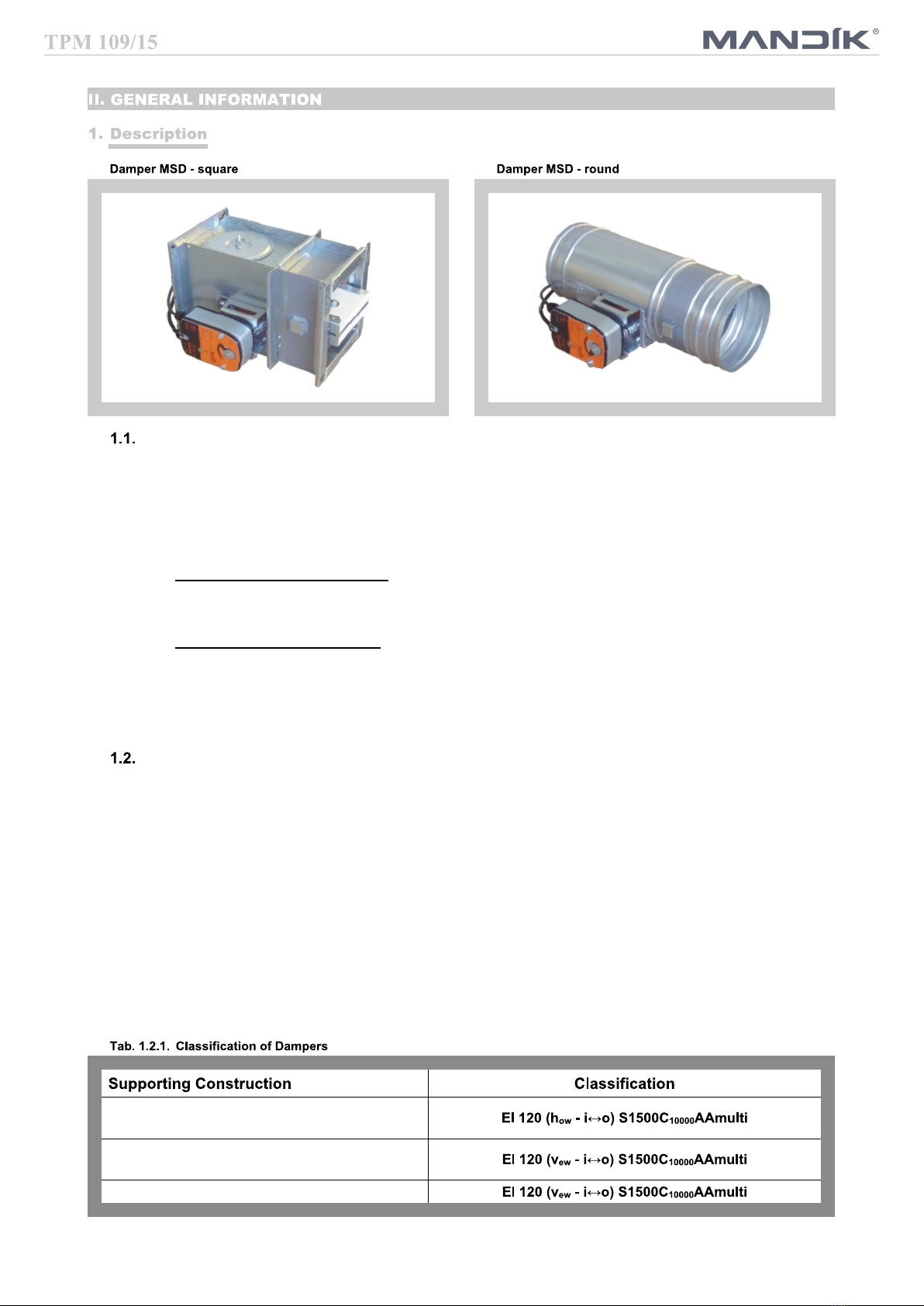

Multi smoke dampers are shutters in the smoke exhaust duct systems. The dampers are
designed to remove heat and combustible products (e.g. smoke) from effected fire compartments.
In the event of fire the Smoke and Fire ventilation system opens the damper in the affected
section and removes combustion products and heat from this section.
The damper blade is controlled by electrical actuating mechanism.
Dampers are fire resistant and are intended for systems with automatic activation.
Dampers can be installed in construction of the fire compartment.
Basic types of dampers square:
• MSD Cycling test with load (possible design .44, .54 a .66)
• MSD-W Cycling test without load (possible design .44, .54, .66, .4M0, .4M1, .5M0 a .5M1)
Basic types of dampers round:
• MSD Cycling test with load (possible design .44, .54 a .66)
• MSD-W Cycling test without load (possible design .4M0, .4M1, .5M0 a .5M1)
Dampers MSD can be open against flow and pressure.
Dampers MSD-W has to be open with the help of flow or without flow present.
Damper characteristics
• CE certified acc. to EN 12101-8
• Tested in accordance with EN 1366-10
• Classified acc. to EN 13501-4+A1
• Fire resistance according Tab. 1.2.1
• External casing leakage class min. C acc. to EN 1751
• Internal leakage: round dampers - class min. 2, diameters from 560 mm to 630 mm min.
class 3 acc. to EN 1751
square dampers - class min. 2, for max. dimension 1500 x 800 mm min.
class 3 acc. to EN 1751
• Cycling test in class C 10000 acc. to EN 12101-8 (design MSD-W is tested without load)
• ES Certificate of conformity No. 1391-CPR-2016/0123 for MSD
• ES Certificate of conformity No. 1391-CPR-2015/0058 for MSD-W
• Declaration of Perfomance No. PM/MSD/01/20/1, PM/MSD-W/01/20/1
• Hygienic assessment of fire dampers - Report No. 1.6/pos/19/19c
Porous concrete ceiling construction,
thickness 150 mm
Porous concrete wall construction,
thickness 100 mm
Gypsum wall, thickness 125 mm

4
Actuating mechanism
Working conditions
Exact damper function is provided under the following conditions:
a) maximum air velocity 15 m.s
b) underpressure max. -1500 Pa or overpressure max. 500 Pa.
Dampers can be installed in arbitrary position (horizontal or vertical blade axis).
Dampers are designed for macroclimatic areas with mild climate according to EN 60 721-3-3.
Temperature in the place of installation is permitted to range from - 30°C to + 50°C.

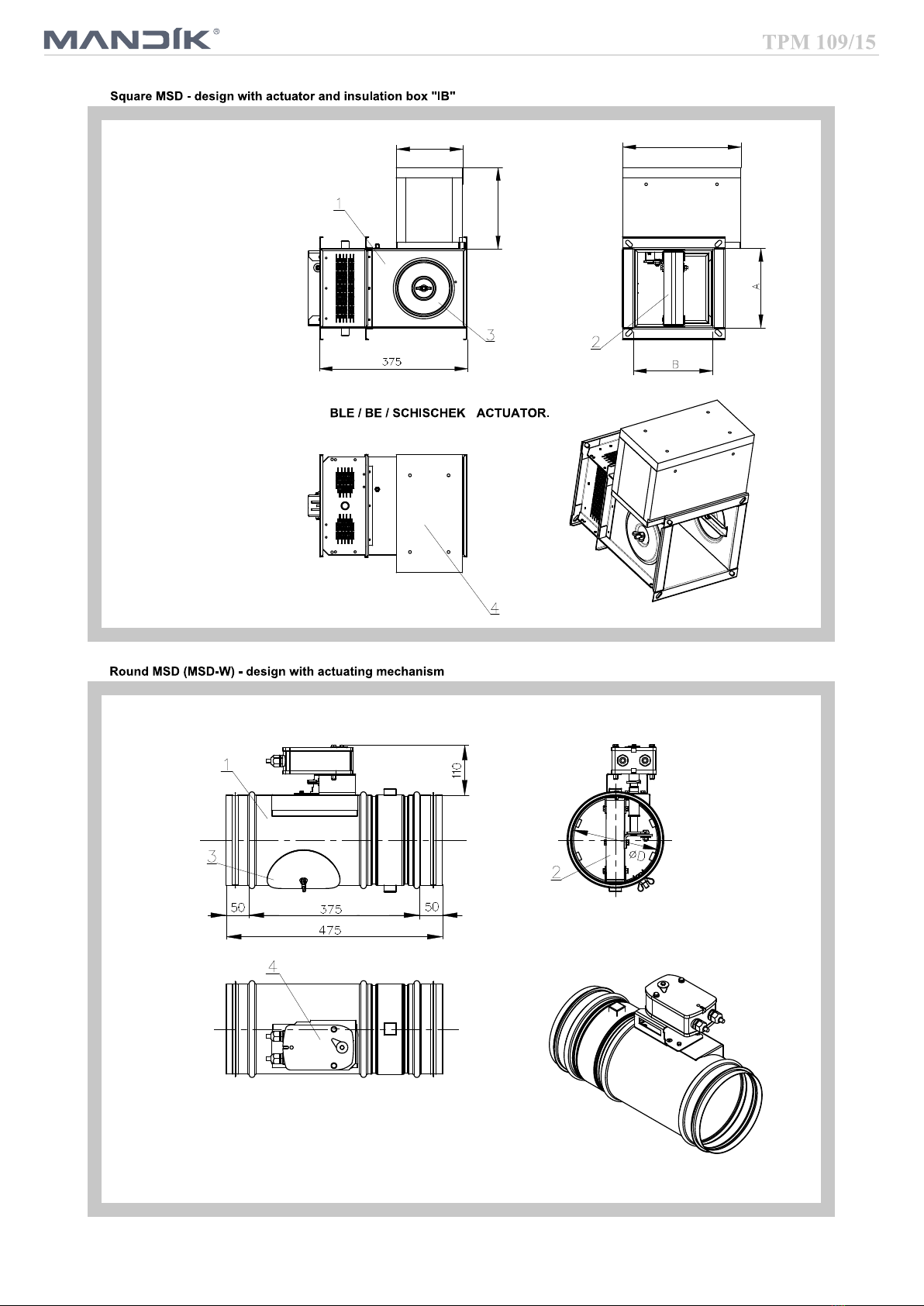

Design with actuating mechanism
MSD (MSD-W) is equipped by actuating mechanism Belimo BLE24(BE24-12) for 24V supply or
BLE230(BE230-12) for 230V supply. MSD with big dimensions is equipped by actuating
mechanism Schischek InMax 50.75-S (dual supply 24V or 230V).
After being connected to power supply the actuating mechanism displaces the damper blade into
operation position "OPEN" or „CLOSED“ (according to method of connection, see connection
diagram). Running time is max. 60s. If is power supply cut off, actuating mechanism is stopped
in actual position. The crank handle supplied with the actuator allows it to be operated manually.
Signaling of the damper blade positions "OPEN" and "CLOSED" is provided by means of two
integrated, invariably set terminal switches.
Nominal voltage AC 24V 50/60Hz
DC 24 V
AC 230 V 50/60Hz
Power consumption - motoring
- holding
7,5 W
< 0,5 W
5W
< 1 W
Dimensioning 9 VA (Imax 2,7 A @ 5 ms) 12 VA (Imax 6 A @ 5 ms)
Protection class III II
Degree of protection IP 54
Running time for 95° < 30 s
Ambient temperature range
Non-operating temperature
- 30 °C … + 50 °C
- 40 °C … + 80 °C
Connecting - motor
- auxiliary switch
cable 1 m, 3 x 0,75 mm
cable 1 m, 6 x 0,75 mm
(BLE 24-ST) with plug-in connectors
Actuating mechanism

5
~
+-
S2S1 S3 S5S4 S6
BLE24-ST: Design with connector plugs for communication
Connection through
an insulation transformer.
to network and communication device BKNE230-24
Parrallel connection of other driver is possible.
Pay attention to the power input data.
2
13
<3° <87°
2
1
N
S3S2
S1 S6S5S4
<3° <87°
Parrallel connection of other driver is possible.
Pay attention to the power input data.
3
L1
Nominal voltage AC 24V 50/60Hz
DC 24 V
AC 230 V 50/60Hz
Power consumption - motoring
- holding
12 W
0,5 W
8W
0,5 W
Dimensioning
18 VA (Imax 8.2 A @ 5 ms)
15 VA (Imax 7.9 A @ 5 ms)
Protection class III II
Degree of protection IP 54
Running time for 95° < 60 s
Ambient temperature range
Non-operating temperature
- 30 °C … + 50 °C
- 40 °C … + 80 °C
Connecting - motor
- auxiliary switch
cable 1 m, 3 x 0,75 mm
cable 1 m, 6 x 0,75 mm

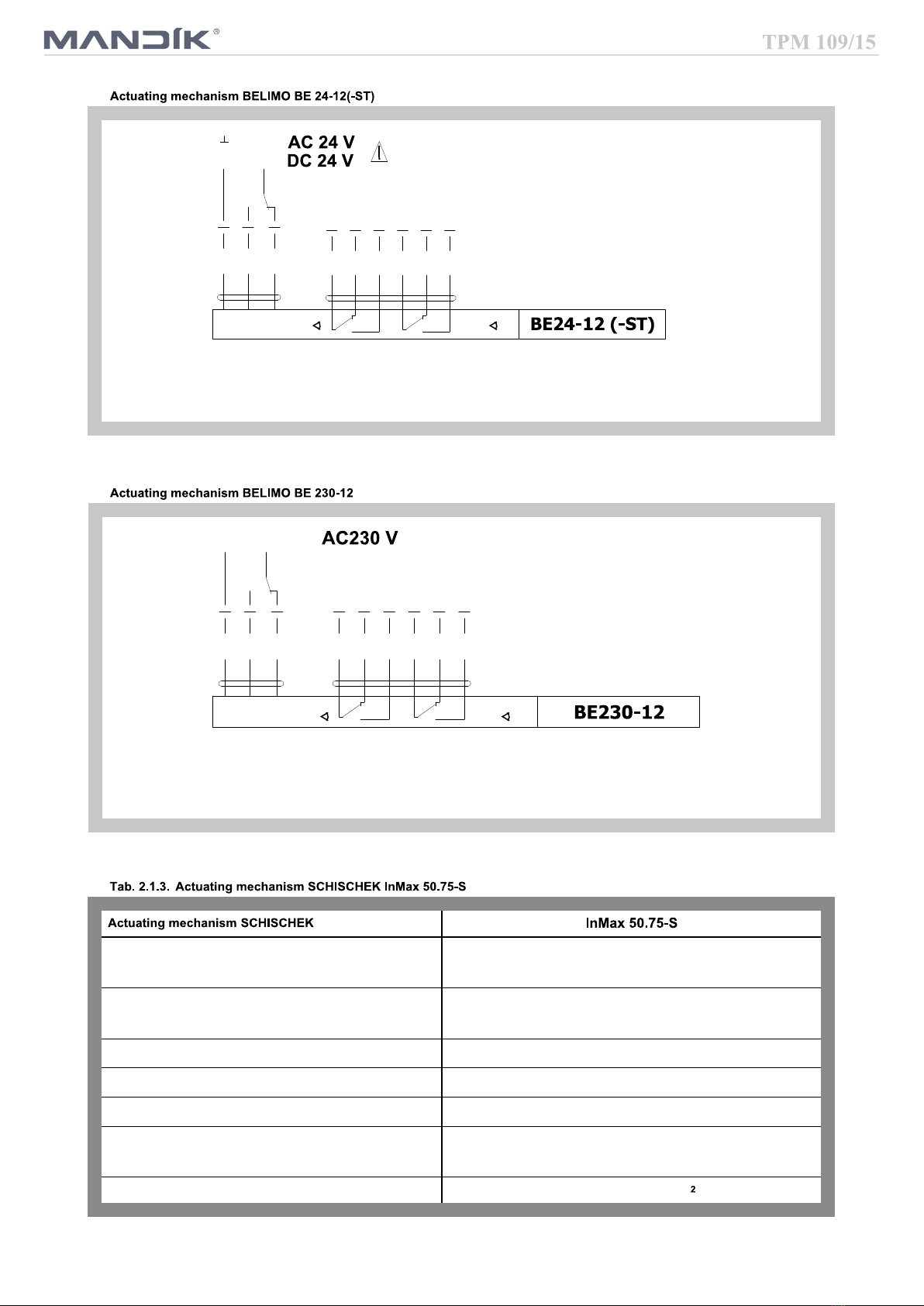

(BE 24-ST) with plug-in connectors

6
~
+-
S2S1 S3 S5S4 S6
BE24-12-ST: Design with connector plugs for communication
Connection through
an insulation transformer.
to network and communication device BKNE230-24
Parrallel connection of other driver is possible.
Pay attention to the power input data.
2
13
<3° <87°
2
1
N
S3S2
S1 S6S5S4
<3° <87°
Parrallel connection of other driver is possible.
Pay attention to the power input data.
3
L1
Nominal voltage 24-240 VAC/DC 50/60Hz
Power consumption - motoring
- heating
10 W
16 W (start at -20°C)
Protection class I
Degree of protection IP 66
Running time for 95° < 60 s
Ambient temperature range
Non-operating temperature
- 40 °C … + 50 °C
- 40 °C … + 70 °C
Connecting cable 1 m, 0,5 mm

7
12 3 4
24...230 VAC/DC
~
+-
12 3 4 5 6
heater
PA
~>85°
<5°
PE
Integrated aux. switches
max 24V/3A, 240V/0,25A switching
at 5° and 85°.

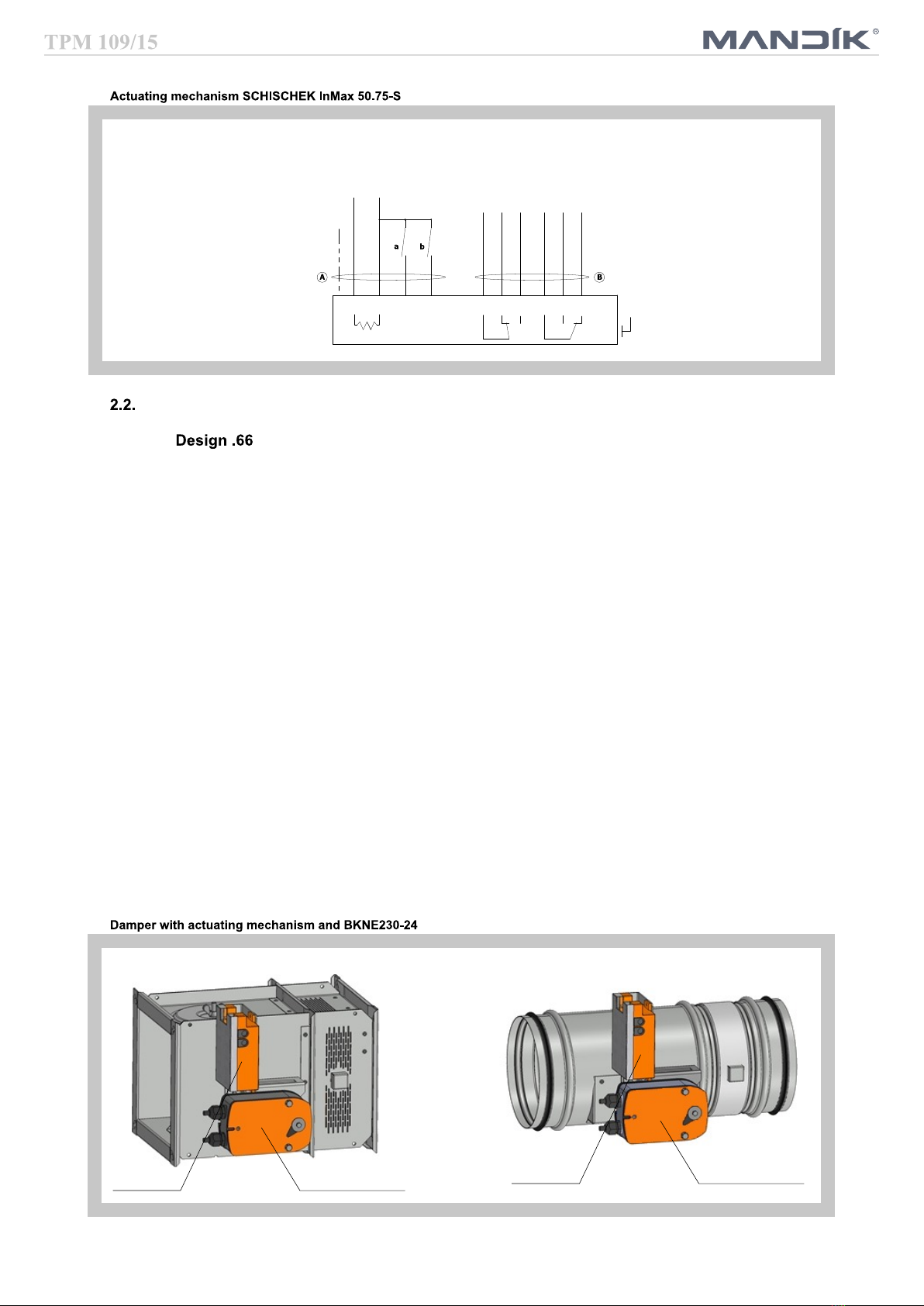

Design with the communication and supply device
Design with the communication and supply device BKNE230-24 and the actuating mechanism
BLE24(BE24-12)-ST.
BKNE230-24 functions as a decentralized network device for supplying the actuating mechanism
BLE24(BE24-12)-ST on one hand and on the other hand it transmits signals from communication

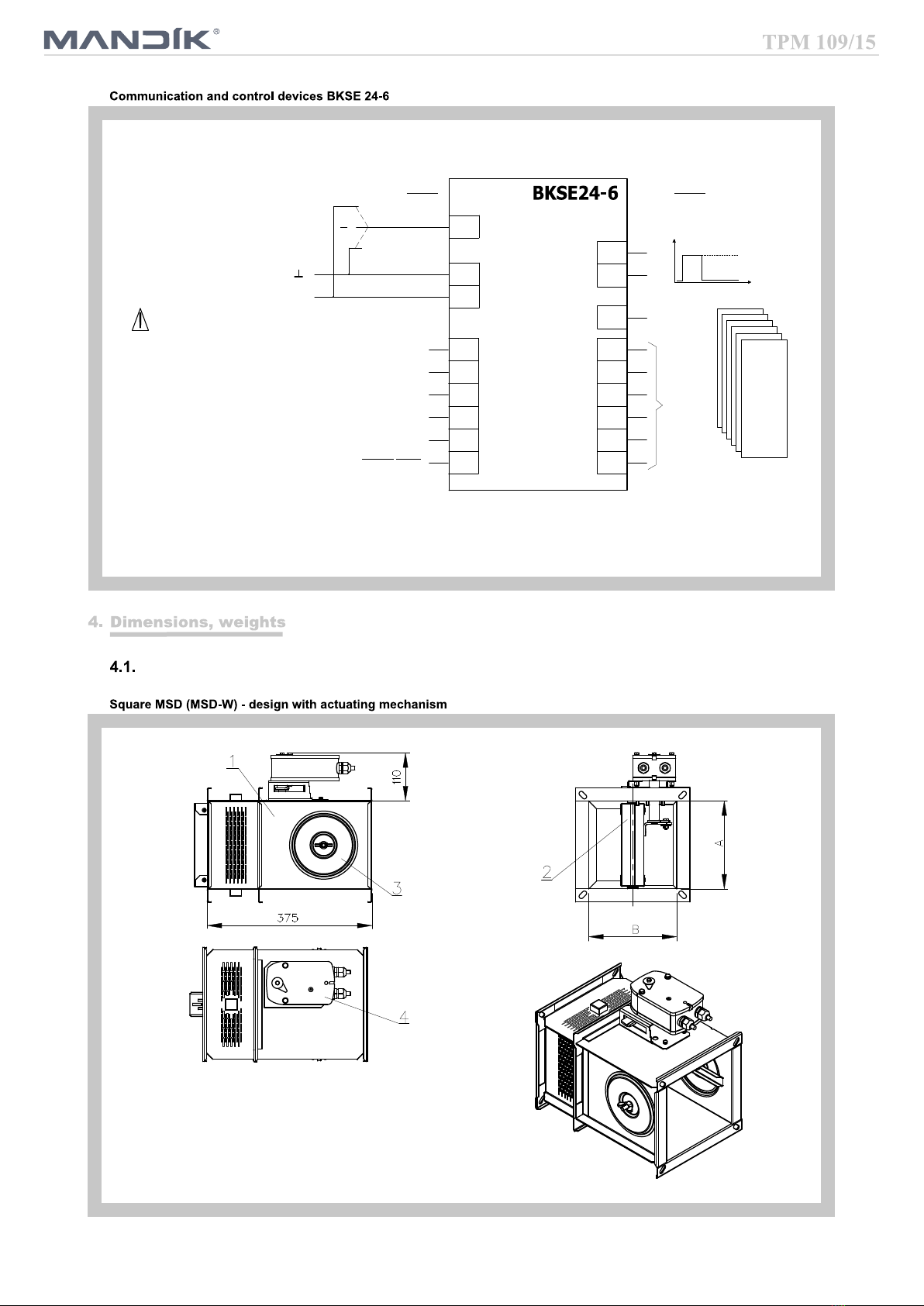

and control device BKSE24-6.
It simplifies electrical wiring and interconnection of dampers. It facilitates on site check and
enables central control and checks of fire damper by means of a simple 2-conductor wiring.
BKNE230-24 signals the damper position „OPEN“/„CLOSED“ (from switches on the actuator)
and any fault alarms to the BKSE24-6 unit. It also receives positioning commands from the
control unit and triggers the actuator to the required position. The last control command is
retained troughout temporary power failures.
The BKNE230-24 unit monitors the positions of the switches on the actuator, its running time and
the exchange of data with the control and monitoring unit BKSE24-6. It also monitors the actuator
current and the power supply. In order to make installation as simple as possible the smoke
extraction damper actuators ...-ST are fitted with plug connectors that can be inserted directly into
the BKNE230-24 unit.
The 2-wire conductor must be connected to screw terminals 6 and 7. It is recommended that a
fire alarm signal cable suitable for the application be used for the 2-wire conductor. It is essential
to ensure the correct polarity. More information in catalogue Belimo.
Design .66 is not available by using actuating mechanism InMax 50.75-S
Actuating mechanism
BKNE230-24 Actuating mechanism
BKNE230-24

8
1
2
3
4
5
6
7b
a2-wire conductor
to BKSE24-6
AC 230 V Nothing must be assigned
to terminals 1 to 5
yellow flashing light damper moving to OPEN
yellow steady light damper open
green flashing light damper moving to CLOSED
green steady light damper closed
yellow flashing at double fault
green frequency
yellow dark power failure
or
+green
Nominal voltage AC 230V 50/60Hz
Power consumption 10 W (including actuating mechanism)
Dimensioning 19 VA (including actuating mechanism)
Degree of protection II
Ambient temperature range
Non-operating temperature
- 30 °C … + 50 °C
- 40 °C … + 80 °C
Connecting - net
- actuator
- terminal board
cable 1 m without plug
6-pole connector, 3-pole connector
screw terminals for cable 2x1,5 mm

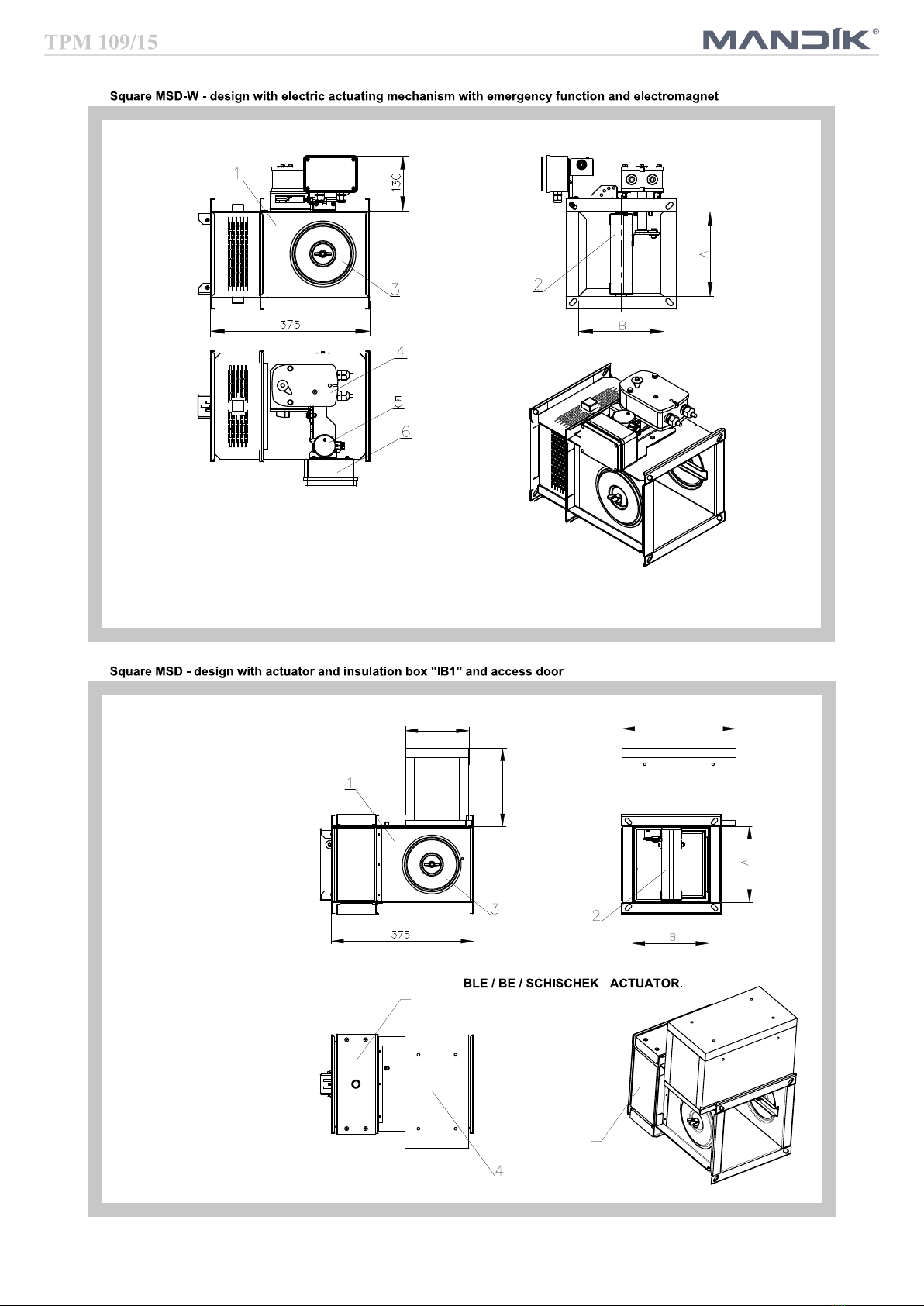

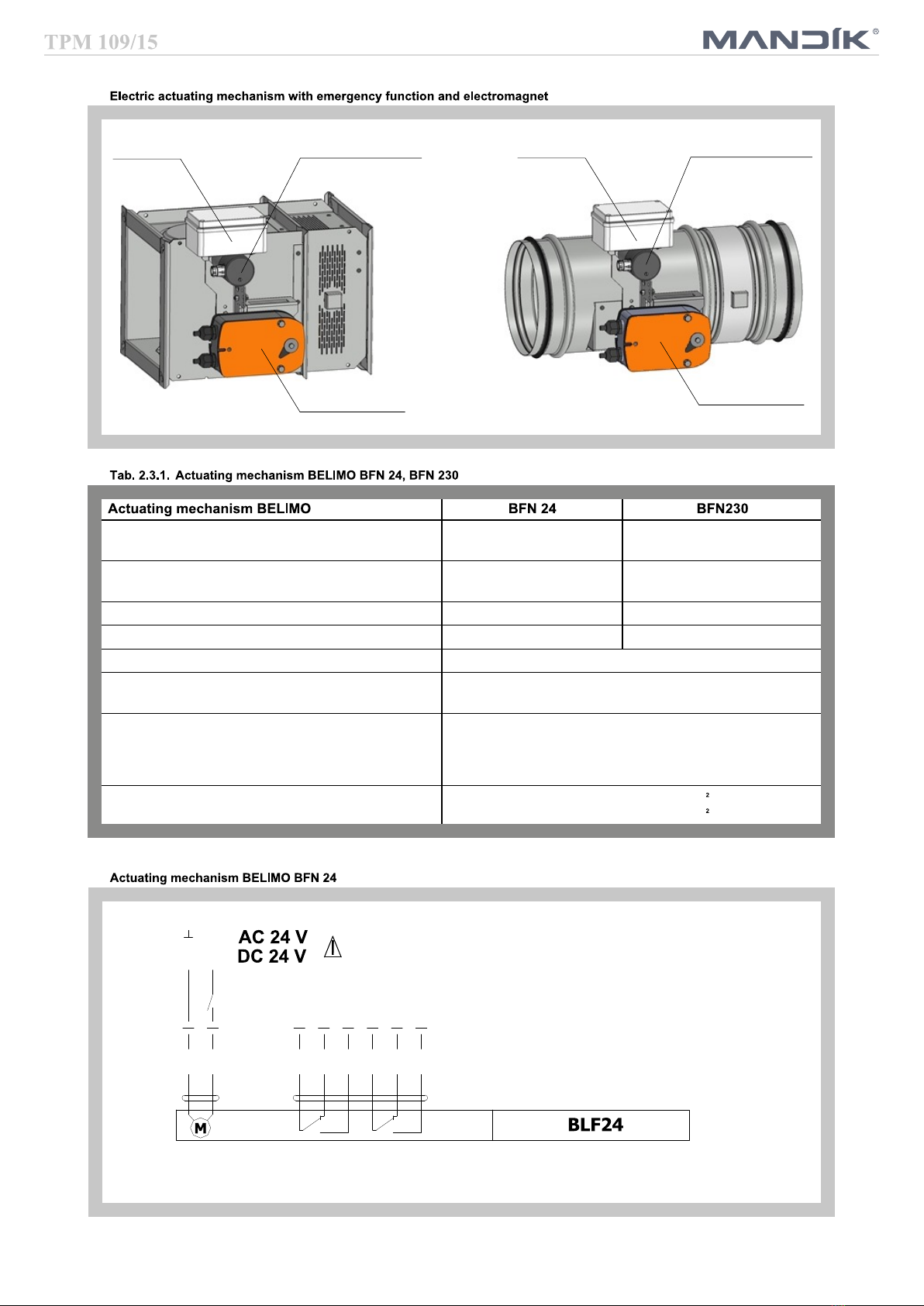

Design with electric actuating mechanism with emergency function and electromagnet
MSD-W is always equipped by electric actuating mechanism BFN 230-T, BFN 24-T, DAF2.20S
or DAF1.20S (further only "actuating mechanism") and is complemented with initiation by means
of an electromagnet (solenoid). After being connected to power supply AC/DC 24V or 230V, the
actuating mechanism displaces the damper blade into operation position "CLOSED" and at the
same time it pre-stretches its back spring. When the actuating mechanism is under voltage, the
damper blade is in the position "CLOSED" and the back spring is pre-stretched. Time needed for
full closing of the flap blade from the position "OPEN" to the position "CLOSED" is maximum
60 sec. This possition is secured by initional lever. If the actuating power supply is cut off damper
is still in the position "CLOSED". After activation of electromagnet is released initiation lever and
the back spring displaces the damper blade into the breakdown position "OPEN". The time of
displacing the blade from the position "OPEN" to the position "CLOSED" takes maximum 16 sec.
In case that the power supply is restored again (the blade can be in any position), the actuating
mechanism starts to re-displace the damper blade into the position "CLOSED".

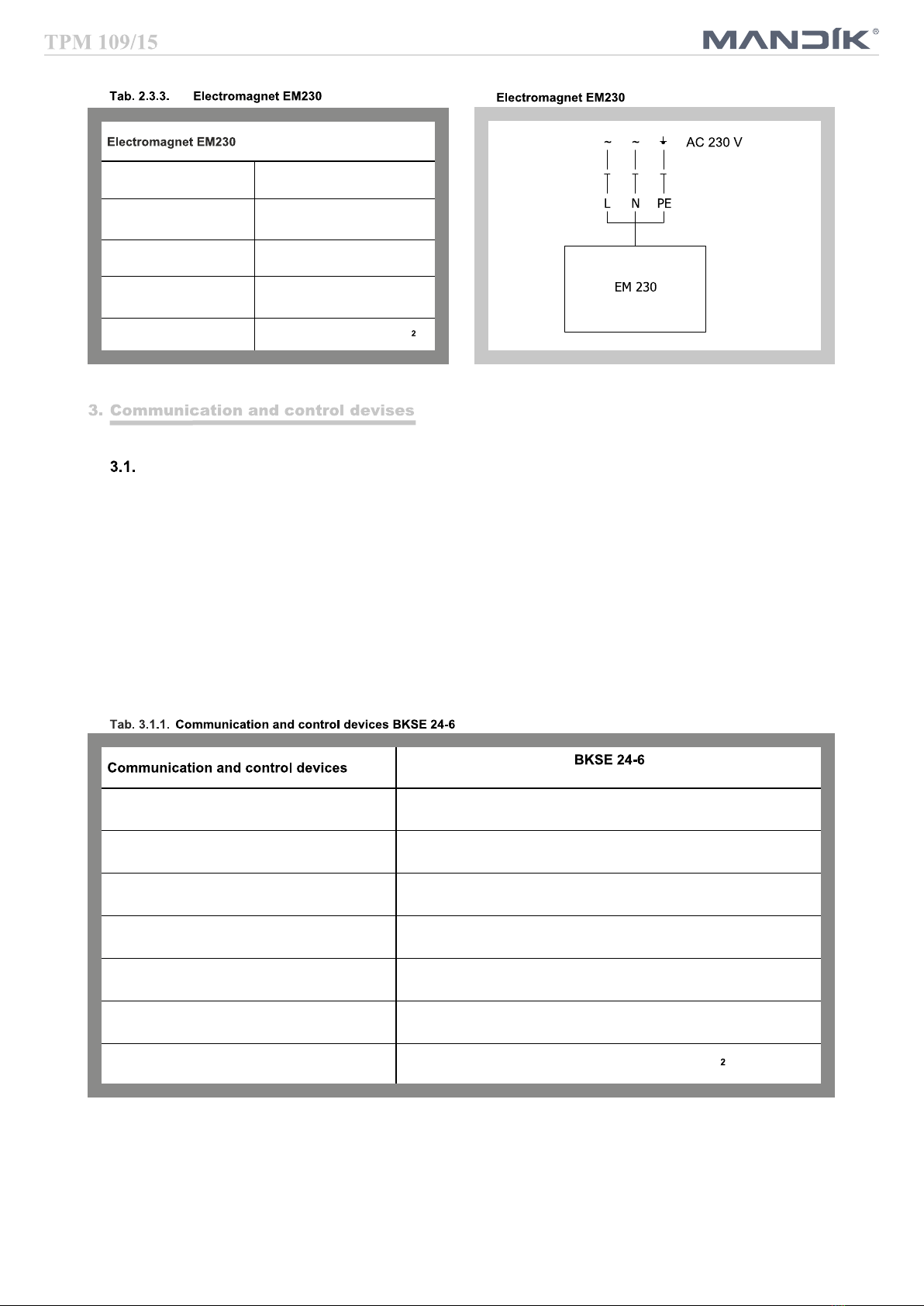

By voltage AC 230 V is damper equipped by electromagnet EM230. By voltage AC/DC 24 V is
damper equipped by electromagnet EM230 with pre-pulse switch SIEM24. SEIM24 activates the
electromagnet after capacitor charge witch is placed inside of SIEM24. It takes about 10 sec.
Charging time depends on the current supply. For reliable operation is necessary connect to
electromagnet or pre-pulse switch appropriate supply for 2 sec (230 V) or 20 to 30 sec (24 V).

9
Actuating mechanism
Pulse switch
Actuating mechanism
Electromagnet (solenoid) Pulse switch Electromagnet (solenoid)
Nominal voltage AC 24V 50/60Hz
DC 24 V
AC 230 V 50/60Hz
Power consumption - motoring
- holding
5 W
2,5 W
5W
3W
Dimensioning 7 VA (Imax 5,8 A @ 5 ms) 7 VA (Imax 150 mA @ 10 ms)
Protection class III II
Degree of protection IP 54
Running time - motor
- spring return
< 120 s
~ 16 s
Ambient temperature
- normal duty
- safety duty
- non-operating temperature
- 30 °C … + 50 °C
The safe position will be attained up to max. 75°C
- 40 °C … + 50 °C
Connecting - motor
- auxiliary switch
cable 1 m, 2 x 0,75 mm
cable 1 m, 6 x 0,75 mm
~
12
+-
S2
S1 S3 S5S4 S6
an insulation transformer.
Parrallel connection of other driver is possible.
Connection through
Pay attention to the power input data.
<5° <80°

10
Nominal voltage AC 24V 50/60Hz
DC 24 V
AC 230 V 50/60Hz
Power consumption - motoring
- holding
26 VA (AC); 15,6 W (DC)
9,3 VA (AC); 2,6 W (DC)
0,15 A
0,09 A
Dimensioning 14 VA 14 VA
Protection class II II
Degree of protection IP 54
Running time - motor
- spring return
24…57 s
11…15 s
Ambient temperature
- normal duty
- non-operating temperature
- 40 °C … + 55 °C
- 65 °C … + 85 °C
Connecting - motor
- auxiliary switch
cable 1,2 m halogen-free; 2-wires
cable 1,2 m halogen-free; 6-wires
NL1
BLK
1
RED
2
BLK
1
RED
2
~
+-
S1
BLK/
21 22
RED
BLK/
BLU
BLK/
GRY
23
WHT/
24 25
RED
WHT/
BLU
WHT/
GRY
26
S2
21
21
22
23
24
24
25
26
COM NC NO COM NC NO
2
1
NL1
S3S2
S1 S6S5S4
For separation from the mains, a device that
insulates polar conductors must be at disposal
(Minimum distance between contacts - 3 mm).
<5° <80°
Parrallel connection of other driver is possible.
Pay attention to the power input data.
