ELAC UB5 User manual

([A(
Uni-Fi
by
Andrew
Jones.
U85
BOOKSHELF SPEAKERS
UF5FLOORSTANDINGSPEAKERS
OPERATING INSTRUCTIONS
UC5
CENTER CHANNEL SPEAKER
llA[
The
Life
of
sound.

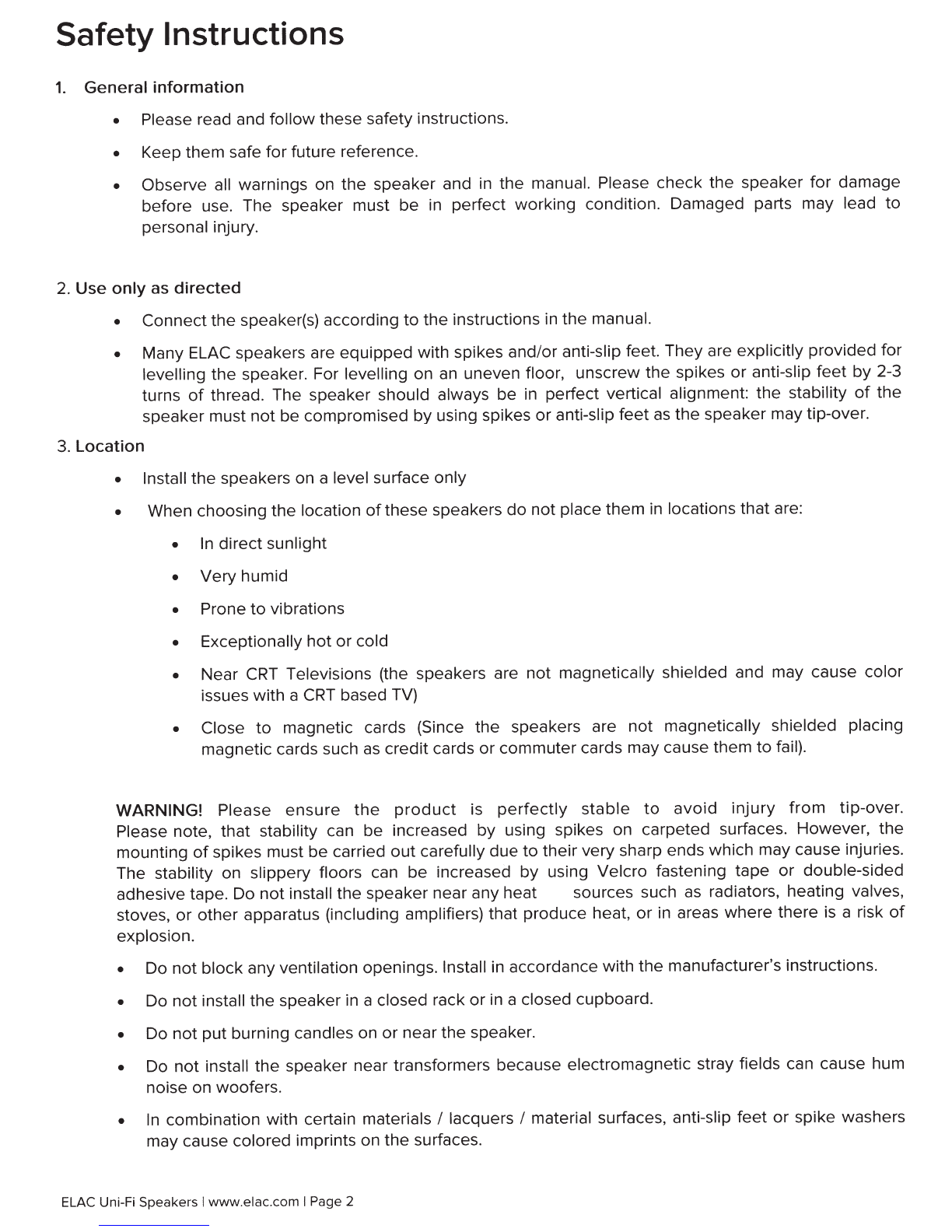

Safety
Instructions
1.
General
information
• Please read and follow these safety instructions.
• Keep them safe for future reference.
• Observe all warnings on the speaker and
in
the manual. Please check the speaker for damage
before use. The speaker must be
in
perfect working condition. Damaged parts may lead to
personal injury.
2.
Use
only
as
directed
• Connect the speaker(s) according to the instructions
in
the manual.
• Many ELAC speakers are equipped with spikes and/or anti-slip feet. They are explicitly provided for
levelling the speaker. For levelling on
an
uneven floor, unscrew the spikes or anti-slip feet by 2-3
turns
of
thread. The speaker should always be
in
perfect vertical alignment: the stability
of
the
speaker must not be compromised by using spikes
or
anti-slip feet
as
the speaker may tip-over.
3.
Location
• Install the speakers on a level surface only
• When choosing the location
of
these speakers do not place them
in
locations that are:
•
In
direct sunlight
• Very humid
• Prone
to
vibrations
• Exceptionally
hot
or
cold
• Near
CRT
Televisions (the speakers are not magnetically shielded and may cause color
issues with a
CRT
based
TV)
• Close
to
magnetic cards (Since the speakers are not magnetically shielded placing
magnetic cards such
as
credit cards
or
commuter cards may cause them to fail).
WARNING! Please ensure
the
product
is
perfectly
stable
to
avoid
injury
from tip-over.
Please note, that stability can be increased by using spikes on carpeted surfaces. However, the
mounting
of
spikes must be carried
out
carefully due to their very sharp ends which may cause injuries.
The stability on slippery floors can be increased by using Velcro fastening tape or double-sided
adhesive tape. Do not install the speaker near any heat sources such
as
radiators, heating valves,
stoves,
or
other apparatus (including amplifiers) that produce heat, or
in
areas where there
is
a risk
of
explosion.
• Do
not
block any ventilation openings. Install
in
accordance with the manufacturer's instructions.
• Do
not
install the speaker
in
a closed rack
or
in
a closed cupboard.
• Do not put burning candles on
or
near the speaker.
• Do
not
install the speaker near transformers because electromagnetic stray fields can cause hum
noise on woofers.
•
In
combination with certain materials
I
lacquers
I
material surfaces, anti-slip feet
or
spike washers
may cause colored imprints on the surfaces.
ELAC Uni-Fi Speakers Iwww.elac.com I Page 2

4.
Overload
Extreme overload
of
the device due to very high volume may cause damage
to
individual components.
Because
of
the possible danger, you should never leave loudspeakers under extreme overload
conditions unattended.
5.
Service
DANGER! Do
not
open
the
cabinet
because
the
components
and
conductors
may carry current!
Servicing to be carried out by qualified service personnel only.
Servicing
is
required when the loudspeaker has been damaged in any way, such
as
damage to the
power
supply cord
or
the plug,
or
when liquid has been spilled or objects have fallen onto the
loudspeaker, the speaker-has been exposed
to
rain or moisture, does not operate normally, or has
been dropped. To reduce the risk
of
electric shock,
do
not
open the loudspeaker. Servicing should be
carried out by qualified service personnel only.
6.
Cleaning
NOTE: Clean
only
with
soft,
smooth
cloth
or
with
dust
brush. Do
not
use
scouring
agents,
alcohol, benzene, furniture polish or other agents for cleaning! Modern furniture is often coated with
multiple varnishes and plastics which can be treated with chemical agents. Some
of
these agents
contain substances which degrade or soften the rubber feet. Therefore we advise that you place
an
anti-slip mat underneath the loudspeaker(s).
7.
Volume
CAUTION!
Continuous
high
volume
may cause
severe
damage
to
your
hearing. Please listen
responsibly.
8.
Disposal
The packaging
is
made from recyclable materials. Dispose
of
this
in
an
environmentally friendly
manner. At end
of
life
do
not
dispose
of
the speaker(s) with standard household waste. The speaker
must be recycled
in
accordance with local legislation. Ask your local government for further
information on recycling
as
the
device contains valuable raw materials. Disable the speaker(s) before
disposal.
ELAC Uni-Fi Speakers Iwww.elac.com I Page 3

Philosophy
Thank you for purchasing this ELAC product.
Since the time we started (1926), ELAC has always striven to achieve the very best.
Your
new ELAC speakers are built to the highest standards using high-quality components that are carefully constructed
to deliverthe best-in-class sound quality. They are developed by a passionate group
of individuals whose soul purpose
is to bring a new dimension of sound quality into your home. Enjoy!
Before Use
Avoid damage to the speakers and other components:
• Carefully unbox the speakers carefully
to avoid physically damaging your speakers.
• Use appropriate gauge wires (minimum
of 16 gauge wire for runs up to 25 feet).
• Make sure wire polarity
is connected correctly. Most speaker cables are coded for ease of use. Make sure
positive (red) connection on the amplifier terminal
is connected to the positive (red) on your speakers.
Follow the same instructions for the negative side. Strip
off approximately1/2,ofthe insulation from the
ends
of the speaker cable, twistthe bare strands and insert into the binding post.
• Ensure your equipment
is turned off before connecting speakers.
• Check
to ensure positive and negative wires are not touching each other once they're connected to the
speaker terminals.
-+
Amplifier
ELAC Uni-Fi Speakers I www.elac.com I Page 4

Installing
and
Removing
the
Magnetically
Attached
Grills
The mesh grills
of
your
Uni-Fi speakers are designed
to
be removable
if
desired. To remove it, hold the
top
or
bottom
edges
of
the grill and pull gently. To replace the grill, place the grill
in
the
normal position on the
cabinet and the magnets will hold
the
grill
in
place.
IMPORTANT!
ELAC UFS Floorstanding Speakers Safety Clip
The ELAC UFS Floorstanding speakers include a safety clip pre-installed on the back
of
the
cabinet for
securing
to
a wall
to
prevent tip-over. Use support hooks (not included) screwed into a wall and pass
appropriate size cord (not included) around the
hook
and through the safety clip. Test
to
ensure mounted
hooks
and cord will prevent
tipping
of
the
speaker.
Support Hooks
&Cords (not included)
UFS
Floorstanding Speaker
Safety Clip (pre-installed) Wall
CAUTION:
The safety clip
is
not a mounting fixture and the speaker should
not
be hung on the wall using
the
clip. ELAC
does
not
claim responsibility for damage resulting from
improper
assembly, installation, insufficient strength
of
the
installation materials, misuse,
or
natural disasters.
ELAC Uni-Fi Speakers Iwww.elac.com I Page 5

Outrigger Feet & Spike Installation (UF5 Only)
Using the included outrigger feet provide a wider support base for the speaker cabinet. The included spikes improve stability
on uneven surfaces and thickly carpeted floors. Please use caution when dealing with the spikes
as they are sharp.
IMPORTANT: When using
these spikes on hard surfaces such as wood or tile floors be sure to use the provided floor
discs to protectyour floor from damage.
1
2
3
4
5
IMPORTANT: In order to prevent scratching or damage to the cabinet, turn the speaker
upside down onto a soft surface while you attach the outrigger feet and spikes. We highly
recommend a second person help with this process.
Attach the outrigger plates
with the provided machine
screws.
································~······~···············~
Screw in the spikes as shown in the
to the right. The speaker can
now be turn back over. Please be
careful when handling the speaker
with the spikes installed.
If you have
hard wood or tile floors please use
the provided floor discs.
Using the supplied allen wrench ad-
justthe height
of the spikes until the
speaker sits level and all four spikes
are touching the floor.
Once the speaker is level, use the
supplied covers to lock the spikes
into place.
. . . . .
.
= •
.
-..I ••• -:.
.
.
.
.
. .
. .
.
.
.
.
. .
.
.
.
.
......
.
....... ·:
.
.
.
.
.
.
. .
.
.
ELAC Uni-Fi Speakers Iwww.elac.com IPage 6

Speaker
Placement
Achieve maximum performance and optimal sound quality from your
ELAC
Uni-Fi speakers with proper
speaker placement and set-up. While not all rooms are the same, use the following guidelines to configure
the speakers for your particular room. There are no "exact" rules or boundaries in setting up your speakers
but the following suggestions will help optimize your desired results. Remember the best sound set-up
is
what
sounds best for you so don't be afraid to experiment and make adjustments to the placement and directivity
of
the speakers.
fr
.~:::...
~
..
-
..
-
··-.
·-·
·-·.-
..
-.
·-··-.
·-
..
-.
·-·.
-
..
~
t
1'-2'FEET
I
I .
:
~
II
i
I
lLJ lLJ
..
•:
1'
-2'
FEET
I
•
•
I
FIG.1
•
•
I
Place the speakers approximately one
to
two feet away (fig.
1)
from boundaries such
as
wall(s) and especially
corners. Close proximity to a side or rear wall will enhance bass performance (output), but being too close
(particularly to a corner) may result
in
bass that
is
unnatural.
If
a corner location
is
unavoidable, try to position
the loudspeaker
so
that the distance
to
the rear wall
is
not equal to the distance to the side wall.
ELAC Uni-Fi Speakers Iwww.elac.com I Page 7

Stereo
Setup
• For the best results and the most realistic stereo image and lifelike sound, place the speakers so that
an
equilateral triangle (fig.
2)
is
created between the speakers and your favorite listening position. This set
up creates the optimum imaging performance.
•
If
you find that your UB5 or UF5 left and right speakers are too far apart, angle (toe
in)
them towards the
listening position
to
gain a more focused central image .
LEFT
SPEAKER
RIGHT
SPEAKER
W
................
:
..
:.~j:~:.:~.:j~~:~::
................
JW
~
,\
....
~/'
l
~
LISTENING
POSITION
FIG.
2
2-CHANNEL
STEREO
SETUP
ELAC Uni-Fi Speakers Iwww.elac.com I Page 8

Surround Sound Setup
Whether you use the UB5 bookshelf or the UF5 floqrstanding speakers for a 5.1-channel surround set-up,
avoid placing the surround speakers forward
of
your listening position. The surround speakers should be
spread apart wider than the front speakers.
In
addition, elevate the speakers
to
the same height or slightly
higher
as
the front speakers for the most enveloping sound field. Like the front speakers, you may need to
experiment with the positioning by pointing the rear surround speakers towards the listening area.
,
............................
,
' '
' '
I
c<;~
'
)
.
:
_____
~
_____
:
• / \
,..:-=...
~'
....
•
,'
',
I : . :
j
lZV-~-'.::•
1111111111.111111111111111111111111111111111.1111111111.1111111111111111111111
IIIIIIIIIII.IIIIIIIIII.IIIIIF
I
~
:
~
~
\
~
···
...
,\
....
....
··
.........
..
....
...............
....
....
··
.........
..
....
...............
....
....
••··
........
...
······
.....
....
....
.............
.
.......
~·
I
IIIII
11111111111
lllllllllll.llllllll(lllllllll
.Ill
1111111
111111111111
IIIIII::}LIIIIIIIIItlllllllllll
1111111
IIIII
11111111.11)111111.1111111111.111111111111111111
....................
.....................
UP TO
~~~~!,~~~~~~~~~
·····.....
···-.
20
DE
GREES
...................
...
LISTENlNG POSITION
--------
.............
..
~,~~~~~~~~~~~~,~
··········
...
,,
1!]·
~
.....
- - - - - - - - - - - - - - - - +
..
;·,
__
...
!,•'
LEFT
REAR
SURROUND
5.1-CHANNEL SURROUND
SET-UP
ELAC Uni-Fi Speakers I www.elac.com I Page 9
RIGHT
REAR
SURROUND

Center
Speaker
Setup
The
ELAC
UC5 center channel
is
designed
to
produce dialog sounds and should be positioned above
or
below (fig.
3)
your television. Align it with the center
of
the television. As much
as
possible, try to keep the
UC5 close to the same level (height)
as
your front speakers for a more even sound stage. Keeping the same
height for the center channel can be very challenging so it might be necessary
to
tilt the center speaker up (if
too low) or down (if
too
high), to aim it towards the listening area.
FIG.3
PLACE ABOVE
OR BELOW
IG
---
r-
...
--
-
I
----
I
I
L
..
I
I
I
--
L --- - -
-------
--
1~1
TELEVISION
1~1
---------------
-~
(
(
I
----
~
---
':::::....
Optimal results for the center are obtained by setting the receiver/processor center channel size
to
small.
If
you have a choice, set the crossover frequency between
50
to
100Hz.
ELAC Uni-Fi Speakers Iwww.elac.com I Page
10

SPECIFICATIONS
UB5
UF5
UC5
Enclosure Type 3-Way Bass Reflex 3-Way Bass Reflex 3 -Way Bass Reflex
Frequency Response 46Hz-2SOOOHz 42Hz-2SOOOHz
48Hz-
2SOOOhz
Nominal Impedance
40hms
40hms
40hms
Sensitivity 8Sdb
@
2.83vl1m 8Sdb
@
2.83vl1m 8Sdb
@
2.83vl1m
Crossover Frequency 270 I 2700Hz 270 I 2700Hz 270 I 2700Hz
Max Power Input 140 Watts 140 Watts 140 Watts
Tweeter
1"
Cloth Dome
1"
Cloth Dome
1"
Cloth Dome
Midrange 4" Aluminum 4" Aluminum 4" Aluminum
Woofer
S.2S
Inch Aluminum 3 x
S.2S
Aluminum 2 x
S.2S
Inch Aluminum
Cabinet CARB2 Rated MDF CARB2 Rated MDF CARB2 Rated MDF
Cabinet Finish Black Brushed Vinyl Black Brushed Vinyl Black Brushed Vinyl
Port Dual Flared 3 x Dual Flared 2 x Dual Flared
Binding Posts S-Way Metal S-Way Metal S-Way Metal
Dimensions (WxHxD) 7.87"
X
12.7S"
X
10.7S"
7.87"
X
38"
X
10.7S"
18.7S"
X
7.87"
X
10.7S"
ELAC Uni-Fi Speakers I www.elac.com I Page
11

ELAC
Americas
LLC.
North
America
Limited
Liability
Warranty
Passive
Speakers
(No Built-in Amplifier)
ELAC
Americas
LLC.
warrants
to
the original purchaser thatthis product be free from defects
and or workmanship for a period
of
3 (Three) years from the original date
of
purchase. During
this time period, repair or replacement
of
parts will be free
of
charge
to
the original owner (See
below limitations). Shipping to and return from the repair center will be the responsibility
of
the
original purchaser.
Limitations
• Warranty begins
on
the date
of
original purchase from
an
authorized
ELAC
Americas
LLC
dealer.
• Product
is
warranted only
if
used in home applications within the max power rating
specified
in
this manual. Commercial use
of
this product is not warranted.
• Product that has been modified or altered
in
anyway will not be warranted.
• Product that has been abused or subjected
to
faulty equipment will not be warranted.
• Products with defaced or removed serial numbers will not be warranted.
If
service
is
required
In
the event that service
is
required, please contact
ELAC
America at 714-252-8843 or at
[email protected]
to
arrange for service or replacement. You will be responsible
to
provide proof
of
purchase (Copy or original sales receipt). Shipping to and from our repair center will be the
responsibility
of
the original purchaser.
Warranty
Outside
of
North
America
This warranty applies to products purchased
in
the United States and Canada. For warranty
claims outside
of
North America please contact the local dealer/distributor
in
the country
of
purchase.
ELAC Uni-Fi Speakers Iwww.elac.com I Page
12

II
AI
The
life
of
sound.
ELAC AMERICAS LLC.
11145
KNOTT AVE. SUITES E & F
CYPRESS,CA.90630
