Dts Proflo led 200 ct User manual

Le informazioni contenute in questo documento sono state attentamente redatte e

controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze.

Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato,

riprodotto per intero o in parte senza previo consenso scritto della D.T.S .

D.T.S. si riserva il diritto di apportare senza preavviso cambiamenti e modifiche

estetiche , funzionali o di design a ciascun proprio prodotto. D.T.S non assume alcuna

responsabilità sull’uso o sull’applicazione dei prodotti o dei circuiti descritti.

The information contained in this publication has been carefully prepared and

checked. However, no responsibility will be taken for any errors. All rights are

reserved and this document cannot be copied, photocopied or reproduced, in part or

completely, without prior written consent from D.T.S.

D.T.S. reserves the right to make any aesthetic, functional or design modifications to

any of its products without prior notice. D.T.S. assumes no responsibility for the use or

application of the products or circuits described herein.

Les informations contenues dans le présent manuel ont été rédigées et contrôlées

avec le plus grand soin. Nous déclinons toutefois toute responsabilité en cas

photocopié ou reproduit, dans sa totalité ou partiellement, sans le consentement

préalable de D.T.S.

D.T.S. se réserve le droit d'apporter toutes modifications et améliorations esthétiques,

fonctionnelles ou de design, sans préavis, à chacun de ses produits. D.T.S. décline

toute responsabilité sur l'utilisation ou sur l'application des produits ou des circuits

décrits.

Las informaciones contenidas en este documento han sido cuidadosamente

redactadas y controladas. Con todo, no se asume ninguna responsabilidad por

eventuales inexactitudes. Todos los derechos han sido reservados y este documento

no puede ser copiado, fotocopiado o reproducido, total o parcialmente, sin previa

autorización escrita de D.T.S.

D.T.S. se reserva el derecho a aportar sin previo aviso cambios y modificaciones de

carácter estético, funcional o de diseño a cada producto suyo. D.T.S. no se asume

responsabilidad de ningún tipo sobre la utilización o sobre la aplicación de los

productos o de los circuitos descritos.

INDEX:

1- SYMBOLS.................................................................................................................4

2- GENERAL WARNING ..............................................................................................4

3- GENERAL WARRANTY CONDITIONS....................................................................4

4- TECHNICAL FEATURES .........................................................................................5

5- ACCESSORIES ........................................................................................................6

6- IMPORTANT SAFETY INFORMATION....................................................................7

6.1 Fire prevention......................................................................................................7

6.2 Prevention of electric shock..................................................................................7

6.3 Safety...................................................................................................................7

6.4 Waste Electrical and Electronic Equipment directive............................................7

7- INSTALLATION........................................................................................................8

8- INPUT / OUTPUT CONNECTIONS...........................................................................9

9- DMX SIGNAL CONNECTION.................................................................................10

9.1 DMX Addresses..................................................................................................11

9.2 Selecting the DMX address................................................................................11

10- RDM FUNCTIONS ................................................................................................12

11- FIRMWARE UPDATING.......................................................................................13

12- DISPLAY FUNCTIONS.........................................................................................13

13- MANUAL MODE ...................................................................................................15

14- ERROR MESSAGES ............................................................................................16

15- DMX PROTOCOL.................................................................................................17

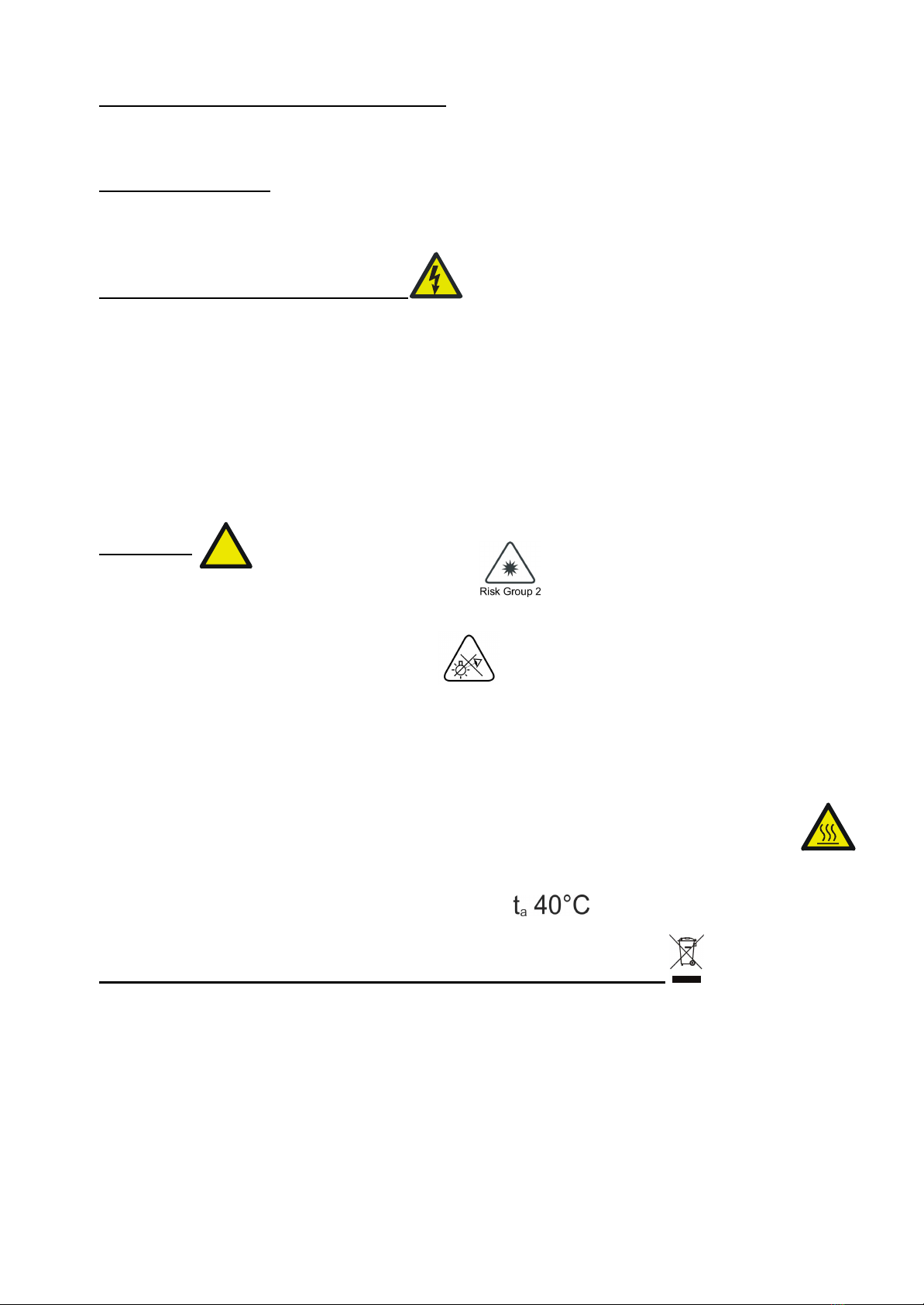

1- SYMBOLS

Graphic symbols used on this manual:

THIS SYMBOL INDICATES A HOT SURFACE

THIS SYMBOL INDICATES ELECTRIC SHOCK

RISK

THIS SYMBOL INDICATES GENERAL RISK

THIS SYMBOL INDICATES THE MAXIMUM

OPERATING AMBIENT TEMPERATURE

THIS SYMBOL MEANS “DO NOT STARE

AT THE OPERATING LIGHT SOURCE”

THIS SYMBOL INDICATES

PHOTOBIOLOGICAL SAFETY

THIS SYMBOL INDICATES THE EUROPEAN

COMMUNITY DIRECTIVE 2012/19/EC ON

WASTE ELECTRICAL AND ELECTRONIC

EQUIPMENT (WEEE)

2- GENERAL WARNING

Read the instruction contained in this user manual carefully, as they give important

information regarding safety during installation, use and maintenance.

The unit is not for residential use and must be installed by a qualified electrician or

experienced person.

Always disconnect the device from the mains before maintenance.

The device must always be equipped with an efficient ground connection.

3- GENERAL WARRANTY CONDITIONS

The unit is guaranteed for 36 months from the date of purchase against manufacturing

material defects.

4- TECHNICAL FEATURES

DTS product codes:

03.TP039.46 PROFILO LED 200 CT 5P BLACK

03.TP045.46 PROFILO LED 200 CT 3P BLACK

Output

Single high-power white LED with linearly tunable color temperature (2700K –6500K)

CRI > 90

LED lifespan: 50.000 hours (70% lumen output)

Optical group

15.5°- 38° linear zoom

High definition zoom lens with double optical condenser lens

Control

DMX 512 / RDM or Manual control

7 DMX channels (Default) or 2 DMX channels

4-digit 7-segment LED display + 4 soft keys

Internal operating system updatable via DTS Dongle Firmware Uploader

Power supply

Full-range 100-240Vac 50-60 Hz

Consumption: 200W Max

Connections

Power supply: PowerCON TRUE1 In&Out panel connectors

DMX: XLR 5 pins or XLR 3 pins In&Out panel connectors

Internal safety devices

Overvoltage and overtemperature circuits protection

Operating temperature

-10° / 40°C

Physical

IP20

Internal system with four removable shutters

Yoke featuring an exclusive sliding system with clutch for a wider tilt

Weight: 16 Kg

Certifications

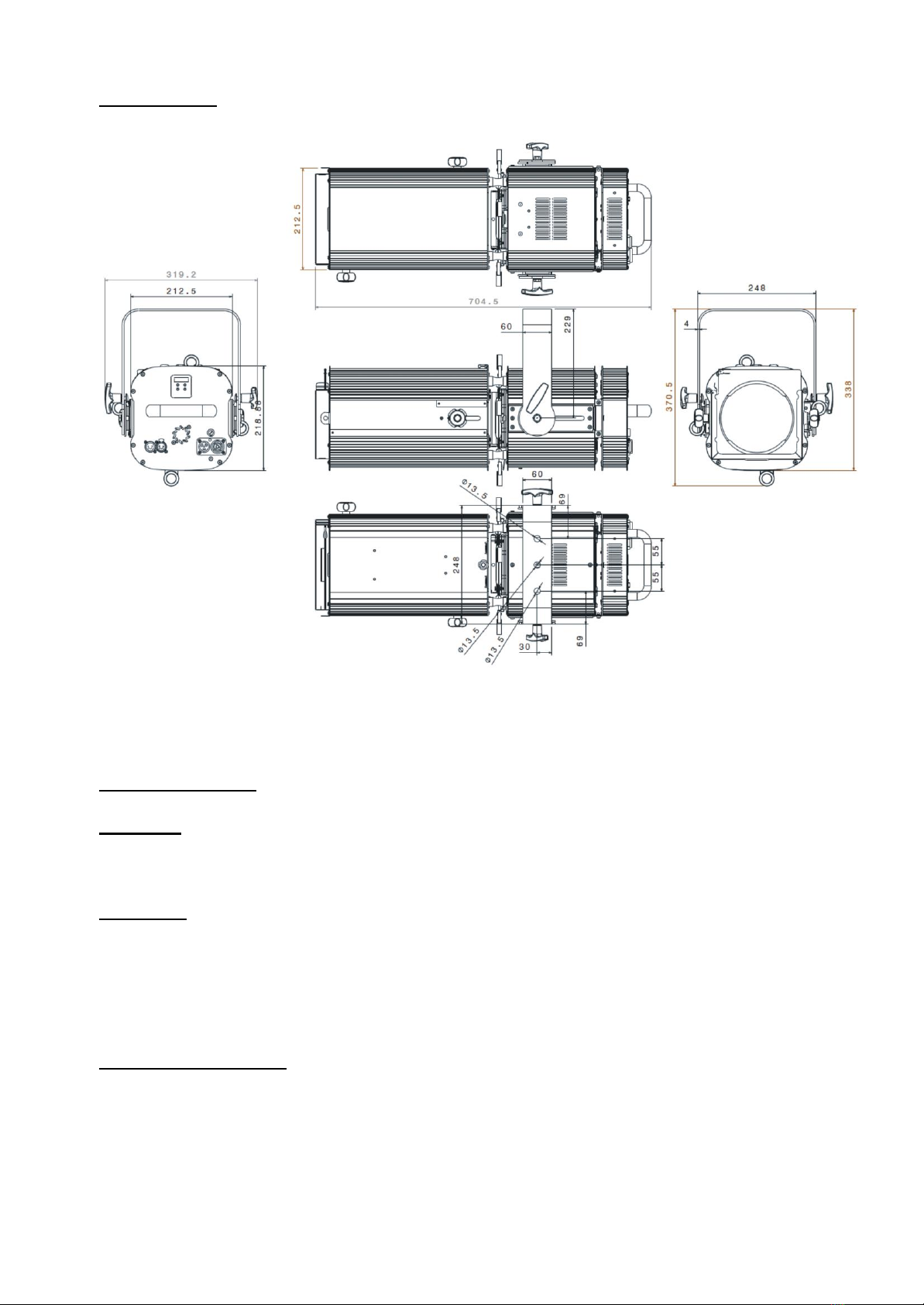

DIMENSIONS

5- ACCESSORIES

On board

1 x Soft edge filter assembly (code 02TP0047)

1 x Filterframe black finishing (code 02M00420.49)

In the box

1 x PowerCON TRUE1 female cable connector (code 0520P066)

1 x XLR 5 pins female cable connector (code 0508B147)

1 x XLR 5 pins male cable connector (code 0508B148)

4 x Shutter blade assembly (code 02TP0045)

1 x User’s Manual

Optional (on request)

- Iris/diaphragm (code 03.TA225)

- Gobo holder (DTS Code 03.TA226)

- “C” Clamp G60 (Max. Load 50 Kg) (DTS Code 0521A004)

- Safety cable 3 mm x 60 cm, max capacity load 60 Kg (code 0521A010)

- DTS Dongle Firmware Uploader (code 03.LA.206)

6- IMPORTANT SAFETY INFORMATION

6.1 Fire prevention:

Replace any blown or damaged fuses only with those of identical value: T 3.15A 250V.

6.2 Prevention from electric shock:

High voltage is present inside the unit. Unplug the unit prior to performing any

operation which involves touching the inside of the unit.

This equipment must be grounded, do not connect to non-grounded supplies.

The use of a thermal magnetic circuit breaker is recommended for each PROFILO

LED 200 CT unit. Use only AC supplies 100-240V 50-60 Hz.

PROFILO LED 200 CT should never be located in position exposed to rain or in areas

of extreme humidity.

A good air ventilation is essential for proper equipment work.

6.3 Safety:

Risk Group 2 product according to EN 62471.

CAUTION. Do not look directly into the light output. May be harmful to the eyes and

skin.

Do not stare at the operating light source.

The luminaire should be positioned so that prolonged staring into the luminaire at a

distance of 6,71 m is not expected.

The light source contained in this luminaire shall only be replaced by the manufacturer

or his service agent or a similar qualified person.

The unit is not for household use and must be installed by a qualified electrician or

experienced person.

The external surface of the unit may exeed 70°C; never handle the unit until at least 5

minutes have elapsed since the unit was turned off.

Never install the unit in an enclosed area lacking sufficient air flow.

The ambient temperature should not exeed 40°C.

6.4 Waste Electrical and Electronic equipment (WEEE) directive:

The unit, accessories and packaging should be sorted for environmetal-friendly

recycling.

For EC countries: according to the European Directive 2012/19/EC for Waste

Electrical and Electronic Equipment and its implementation into national right,

luminaires that are no longer usable must be collected separately and disposed of in

an environmentally correct manner.

7- INSTALLATION

The unit is suitable for dry locations only.

PROFILO LED 200 CT can be installed on a truss or on the ceiling.

It is recommend the use of appropriate clamps to fix the unit to the mounting surface.

ATTENTION:

A safety cable (code 0521A010) must be securely fixed to the unit’s mounting bracket

and to the support structure of the projector as shown in the picture below.

Fixing clamps and safety cable are available on request.

8- INPUT / OUTPUT CONNECTIONS

9- DMX SIGNAL CONNECTION:

The unit operates using a digital DMX 512 signal.

Connection between the controller and the unit or between units must be carried out

using a two pair screened ø 0.5 mm.

Ensure that the conductors do not touch each other.

Do not connect the cable ground to the DMX connector chassis.

The plug housing must be isolated. Connect the mixer signal to the DMX IN projector

plug and connect it to the next projector by connecting the DMX OUT plug on the first

unit to the DMX IN plug of the second one.

In this way, all the projectors are cascade connected.

If the display showing the DMX address flashes, then one of the following errors has

occurred:

- DMX signal not present

- DMX reception problem

For Installations where long distance DMX cable connections are needed, we

suggest to use a DMX terminator.

The DMX terminator is a male XLR 3-5 pins connector with a 120 ohm resistor

Between pin 2 and 3.

The DMX terminator must be plugged into the last unit (DMX out panel connector) of

the DMX line.

PLACE A 120 OHM RESISTOR BETWEEN PIN 2

AND 3 OF A MALE XRL CONNECTOR AND PLUG IT

INTO THE DMX OUT PANEL CONNECTOR OF THE

LAST UNIT CONNECTED TO THE DMX LINE

OUT

120 ohm

PIN 3

PIN 2

9.1 DMX addresses

PROFILO LED 200 CT can be controlled with 7 DMX channels (Default) or 2 DMX

channels.

In order to use the unit in 7 DMX channels mode (Default), set the following addresses

on the mixer:

Projector 1 A001

Projector 2 A008 If you want to select the next projector, just add “7”

Projector 3 A015

….. A….

projector 6 A036

9.2 Selecting the DMX address

1) Press the UP-DOWN key until you reach the required DMX address. The numbers

on the display will start to flash (but the new DMX address hasn't yet been set).

2) Press ENTER to confirm your selection. The numbers on the display will stop

flashing and the projector is now controlled by the new DMX address.

TIPS: if you keep pushed the UP or DOWN keys, the channels are calculated more

quickly and you get a faster selection.

10- RDM FUNCTIONS

By using a RDM controller it is possible to set DMX address, DMX mode and other

parameters.

PROFILO LED 200 CT accepts the following RDM commands:

DEVICE_INFO

To read the following parameters:

•RDM protocol version

•Fixture model ID

•Fixture type

•Software version ID

•DMX channels

•DMX mode

•DMX address

•Total sub-fixtures

•Total sensors

IDENTIFY_DEVICE

LED ON at max power to identify the fixture

DMX_START_ADDRESS

To read / set the DMX address

SOFTWARE_VERSION_LABEL

Software version ID

SUPPORTED_PARAMETERS

List of all supported parameters

PARAMETER_DESCRIPTION

Description / details of Manufacturer Specific

parameter as “NO DMX ACTION”

DMX_PERSONALITY

To set the DMX mode

DMX_PERSONALITY_DESCRIPTION

Description / details of the DMX mode

DEVICE_MODEL_DESCRIPTION

Description / details of the Fixture model

MANUFACTURER_LABEL

Producer ID

SENSOR_DEFINITION, SENSOR VALUE

Description / values of sensors

SENSORS

1: LED TEMPERATURE

LED temperature

2: MICRO TEMPERATURE

Micro controller temperature

3: DRIVER 1 TEMPERATURE

Output 1 of LED Driver board temperature

4: DRIVER 2 TEMPERATURE

Output 4 of LED Driver board temperature

RDM MANUFACTURER-SPECIFIC PIDs

NO DMX ACTION

To set the desired fixture’s behavior in case DMX

signal is missing or not available.

1 = Black-out

2 = All channels ON @ 60%

3 = All channels ON @ 100%

4 = WHITE CCT (Correlated color temperature):

NO DMX SELECTABLE WHITE CCT

1 = 2700K (Default)

2 = 3000K

3 = 3200K

4 = 3500K

5 = 4000K

6 = 4500K

7 = 5000K

8 = 5600K

9 = 6500K

NO DMX SELECTABLE WHITE INTENS.

0 ÷ 255 (Default = 0)

5 = Keep last valid DMX signal (Default)

11- FIRMWARE UPDATING

To update the firmware release of the PROFILO LED 200 CT you need:

- DTS Dongle Firmware Uploader (code 03.LA.206).

- “DTS Firmware Upgrade Utility v.2.02” program installed on PC.

- Latest firmware release available for PROFILO LED 200 CT unit.

Updating the firmware release.

Please follow the procedure below to perform the update:

1. Connect the DTS Dongle Firmware Uploader to a spare USB port on the PC.

2. Connect the unit DMX input to the DTS Dongle Firmware Uploader DMX output with

a standard DMX cable and turn ON the unit.

3. Send the new firmware release into the unit by using “DTS Firmware Upgrade

Utility v.2.02” program. At the end of the procedure, the unit will reset.

For more information please refer to an authorised DTS service centre.

12- DISPLAY FUNCTIONS

The PROFILO LED 200 CT display panel shows all the available control menus.

Using these options, it is possible to change the fixture’s setting.

Changing the DTS settings can vary the functions of the unit so that it does not

respond to the DMX 512 used to control it. Carefully follow the instructions below

before carrying out any variations or selections.

•To access the control menus in the display panel.

•To return to the previous level in the menu structure without

making a change.

•To exit the menus.

ENTER

•To select any required menu.

•To confirm any changes.

UP / DOWN

•To navigate the menus structure.

•To change any value.

Firmware release

1.02

RDM Device Model ID

0x0D47

DMX Personality IDs

0x01 “7 channels”

0x02 “2 channels”

MAIN MENU

LEVEL 1

LEVEL 2

LEVEL 3

FUNCTION









Display normal orientation for

floor mounting position (Default)





Display inverted orientation for

suspended mounting position







Display always ON (Default)





Display goes OFF after 10 seconds







Allows to select 7 DMX channels

mode (Default)





Allows to select 2 DMX channels

mode









Allows to select the value of the

delay (in milliseconds) for Dimmer

channel reaction to DMX or

Program variation.

Off = Instant response to DMX

variation.

4 = 100 ms Smooth response to

DMX variation (Default)

20 = 500 ms Smooth response to

DMX variation.







Allows to select Quadratic

current for linear light output

(Default)





Allows to select Linear current

output







Allows to adjust the PWM

frequency value (Hz) in order to

reduce flickering in the process of

your camera recordings.

Default = 610 Hz







Allows to increase the LED’s

current from 70% to 100%

Default = ON

















Automatic mode without DMX

controller.

9 White color temperature selection

from 2700K (Default) to 6500K as

on DMX channel 6 (CCT).

In Auto mode the unit do generate

DMX for slave units.





Dimmer level selectable by user as

on DMX channel 4 (DIMMER)

Default = 255





Shutter level selectable by user as

on DMX channel 3 (SHUTTER)

Default = 15





Esc from automatic mode menu









Slave mode.

The unit is forced to DMX address 1

and 7 DMX channels mode

receiving signal from the unit set in

Auto mode.





Esc from slave mode







Allows to select the internal fans

speed.

Standard mode: High fans speed.

Silent mode: Low fans speed for a

very low noise operation.

Default = SIL





MAIN MENU

LEVEL 1

LEVEL 2

LEVEL 3

FUNCTION







No DMX action.

Keep last valid DMX signal

(Default)





All channels ON @ 60%





All channels ON @ 100%











9 White color temperature selection

from 2700K (Default) to 6500K as

on DMX channel 6 (CCT).





Dimmer level selectable for White

Default = 255





Black-out







To restore default settings









LED temperature monitoring







Micro controller temperature

monitoring







Output 1 of LED Driver board

temperature monitoring







Output 4 of LED Driver board

temperature monitoring







Shows the total unit life time and

the Warm White / Cold White LEDs

life time











Software version

13- MANUAL MODE

Manual mode can be activated by pressing at the same time ‘UP’and ‘DOWN’keys

on unit display for 3 seconds (A001).

In Manual mode it is possible to select:









9 White color temperature selection from 2700K to 6500K as on DMX channel 6

(CCT)

Default = 2700K





Dimmer level selectable by user as on DMX channel 4 (DIMMER)

Default = 255





Shutter level selectable by user as on DMX channel 3 (SHUTTER)

Default = 15





Esc from Manual mode

When Manual mode is active, unit switch OFF/ON cycle will maintain Manual Mode

selection.

In Manual mode the DMX signal is ignored.

14- ERROR MESSAGES

ERROR SHOWED ON DISPLAY

APPEARS WHEN



LED thermal sensor damaged (open or in

short circuit).
