Elan EL-IPD-AMP-2CH User manual

EL-IPD-AMP-2CH
2 Channel Audio Amplifier
Quick Start Guide
EL-IPD-AMP-2CH 2 Channel Audio Amplifier
STATUS POWER

FCC and IC Information
This Class B digital apparatus complies with Part 15 of the FCC rules and with Canadian ICES-003.
Operation is subject to the follwing conditions:
1. This device may not cause interference and
2. This device must accept any interference, including interference that may cause undesired operation of the device.
Cet appareil numerique de c/asse B est conforme aux normes canadiennes ICES-003. Son fonctionnement est soumis aux deux
conditions suivantes : (1) cet appareil ne doit pas causer d’interference et (2) cet appareil doit accepter toute interference, notamment /
es interferences qui peuvent affecter son fonctionnement.
Energy Efficiency - Commission Regulation (EC) no 1275/2008
POWER CONSUMPTION:
Off Mode: 0W
Standby Mode: ≤ 0.5W - The device will automatically enter standby mode after approximately 30 minutes of no signal or no user input.
TABLE OF CONTENTS
FCC and IC Information ..................................................................................3
Energy Efficiency - Commission Regulation (EC) no 1275/2008 ....................................................3
Important Safety Instructions .............................................................................4
FCC Required Text: ....................................................................................4
Overview .............................................................................................5
What's Included........................................................................................5
Functions and Indicators .................................................................................5
Applications...........................................................................................7
Installation ............................................................................................9
Network Setup FAQs for Dante ............................................................................10
Limited Warranty .......................................................................................11
ATTENTION: To our valued Customers ......................................................................11
3
QUICK START GUIDE EL-IPD-AMP-2CH

Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding-type plug has two blades and a third
grounding prong. The wide blade or the third
prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on
or pinched, particularly at plugs, convenience
receptacles and the point where they exit from
the apparatus.
11. Only use attachments/
accessories specified by the
manufacturer.
12. Use only with the cart, stand,
tripod, bracket or table specified
by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving
the cart/apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15. Do not expose this apparatus to dripping or
splashing and ensure that no objects filled
with liquids, such as vases, are placed on the
apparatus.
16. To completely disconnect this apparatus from
the AC Mains, disconnect the power supply cord
plug from the AC receptacle.
17. The power supply cord (sometimes referred to
as the “Mains Plug”) is used as the disconnect
device and shall remain accessible and operable
at all times.
18. Do not expose batteries to excessive heat such
as sunshine, fire or the like.
19. Open flame sources, such as lighted candles,
should NOT be placed on the apparatus.
20. Protective earthing terminal. The apparatus
should be connected to a mains socket outlet
with a protective earthing connection.
WARNING: To reduce the risk of fire or electric shock,
do not expose this apparatus to rain or moisture.
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
FCC Required Text:
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate, radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
4
QUICK START GUIDE EL-IPD-AMP-2CH

Overview
The EL-IPD-AMP-2CH 2 Channel Audio Amplifier is designed to be used in a stand-alone configuration or with other
amplifiers and pre-amps within the ELAN®IP audio distribution family of products using Dante®Audio Networking.
ELAN IP enabled audio distribution simplifies whole house audio distribution and enhances the intelligent home by
delivering high quality audio over an existing network. Easily scaling from a single chassis solution to a decentralized
multi-chassis / multi-source implementation, ELAN IP audio distribution meets the needs for projects of any size.
What's Included
• EL-IPD-AMP-2CH 2 Channel Audio Amplifier
• Power Cord
• Mounting Brackets

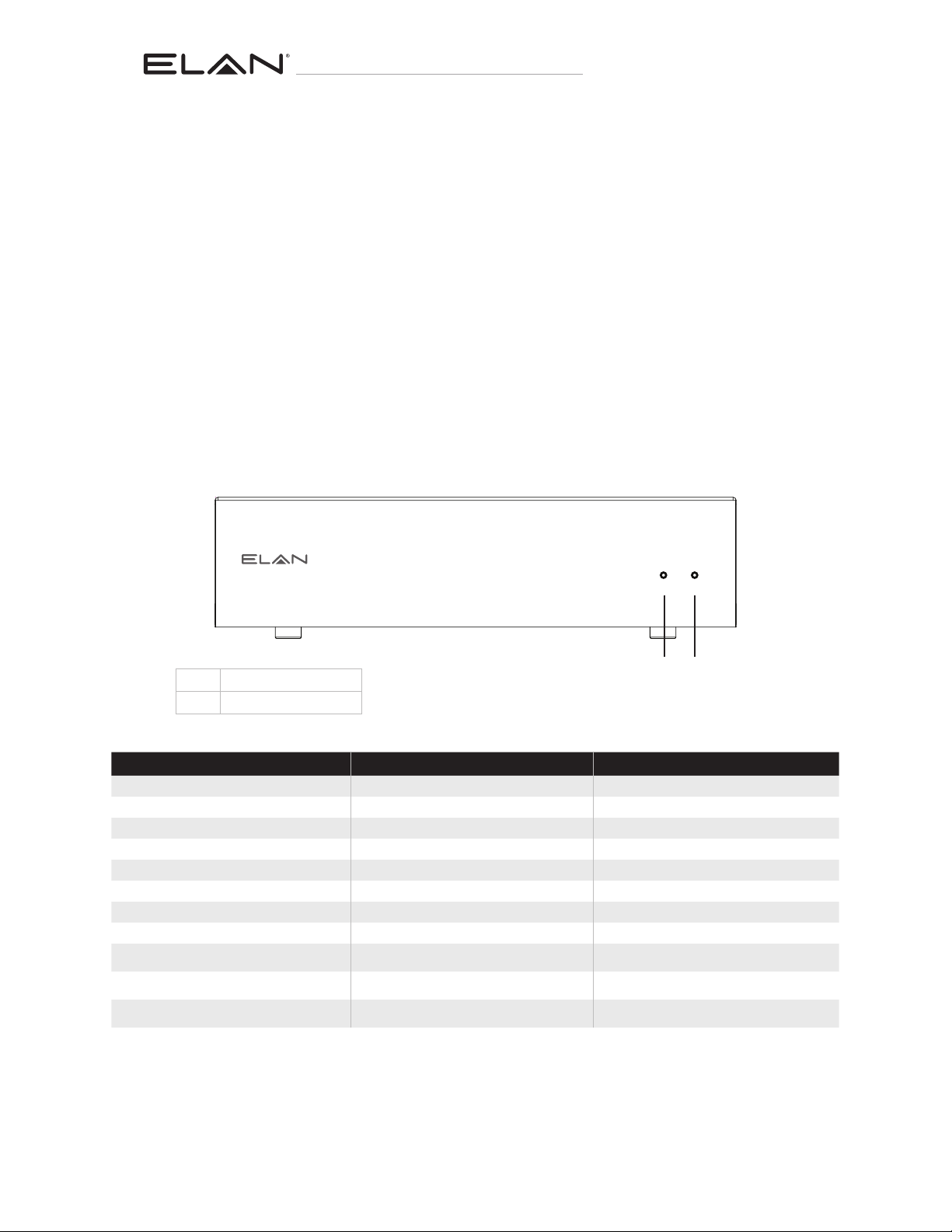

Functions and Indicators
FRONT VIEW
Condition Amplifier Status Power/Network Status
Power On, Booting Off Flashing Blue
Power On, Connected to Network Off Solid Blue
Self-Check Failure Off Flashing Red
Boot Failure Solid Red Solid Red
No Network Found Off Solid Amber
Power Off Off Off
Chassis in Low Power Mode Solid Blue Solid Blue
Chassis in Sleep Mode Off Solid Red
Amplifier or Preamplifier Channel Clipping Solid Amber Solid Blue
Amplifier Channel in Protection Mode Solid Red Solid Blue
Chassis Identify Mode Flashing Amber Flashing Blue
5
QUICK START GUIDE EL-IPD-AMP-2CH
EL-IPD-AMP-2CH 2 Channel Audio Amplifier
STATUS POWER
 
1Amplifier Status
2Power

6
QUICK START GUIDE EL-IPD-AMP-2CH

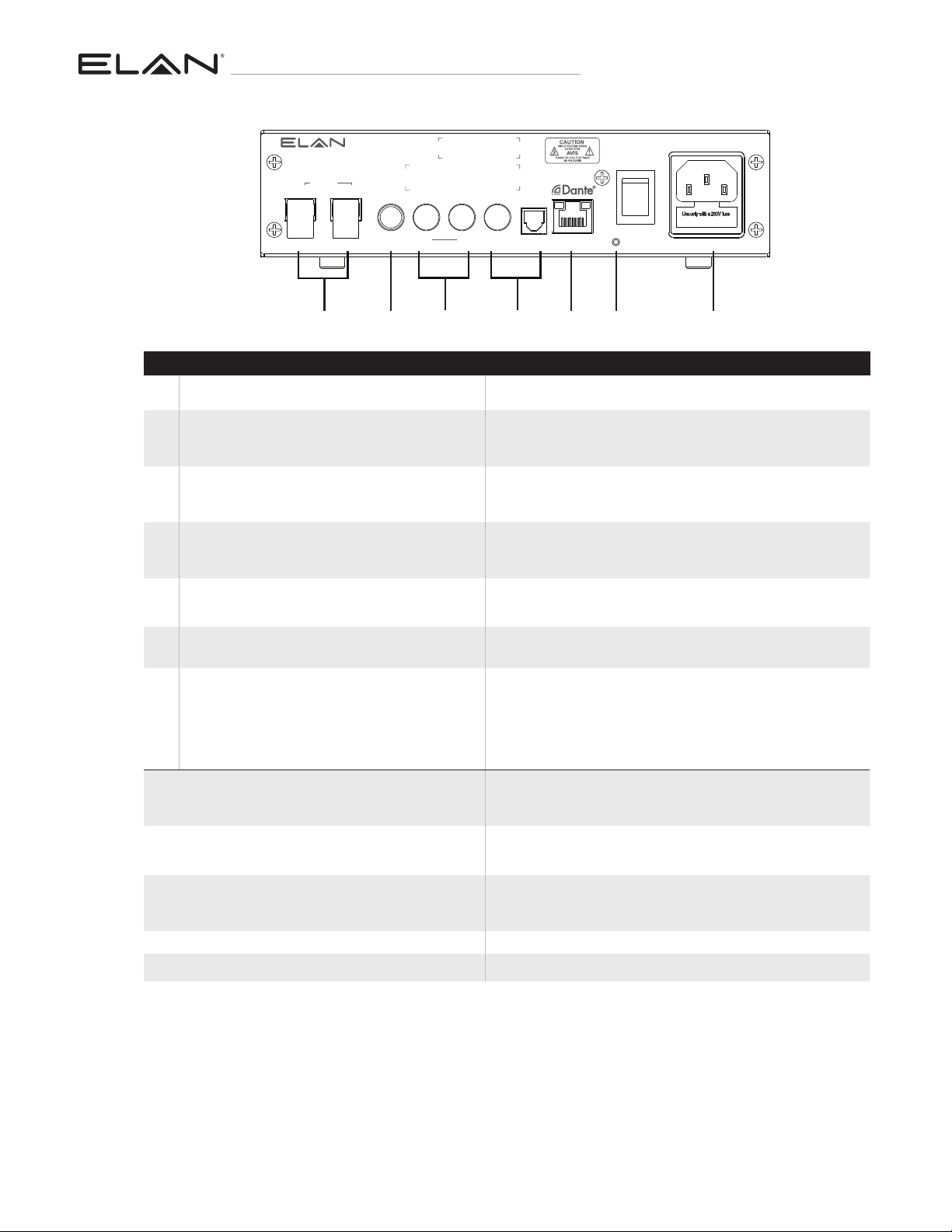

REAR VIEW
Item Description
1Power AC 100-120 / 220-240 V~ 50/60Hz, 200W
2Network Reset Using a paper clip, with power on press and hold for 10 seconds to reset
to DHCP
3Network
• 1 RJ45 Jack 100/1000 Ethernet DHCP Enabled by Default
4
Digital Audio Inputs
• 1 Optical TOSLINK Input
• 1 Coaxial RCA Input
Stereo, PCM, 96kHz, 24-bit
5
Line Level Audio Inputs
• Stereo Analog RCA
Max input level 2.0 VRMS
Input Sensitivity: 0dbV (1.0 VRMS)
Input Impedance: 47k Ω-49k Ω
6Subwoofer Output
• RCA
Variable, follows main volume setting of the amplier.
Impedance: 470 Ω
7
Amplifier Output
• 2 Stereo Amplifier Outputs
• Bridgeable
Output Power: 80W at 8Ω
100W at 4Ω
200 W in Bridge mode
THD: < 0.05% @ 1kHz
Frequency Response: 20Hz to 20kHz, +.5dB/-.5dB
Crosstalk: >60dB @ 1kHz/1W
Signal to Noise: >90dB
Lip Sync Delay
• Individual Lip Sync Delay for Each Speaker Zone
Delay Time: 0 - 400ms
Adjustable: 10ms increments
Tone Control
• Individual Tone Control for Each Zone
Five-band equalizer
Loudness on/off
Temperature
Operating Temperature: +5° C – +45° C (+41°F - +113°F)
Operating Humidity: 0 – 90% non-condensing
Storage Temperature: 0° C – +60° C (32°F - +140°F)
Dimensions 7.00D X 7.91W X 1.97H in. / 178D X 201W X 50H mm
Weight 4.10 lbs / 1.86 Kg
   
 
MAC ID
Serial No.
ANALOG IN
LR
EL-IPD-AMP-2CH
-L +
BRIDGE
Stereo Mode 4-8Ω
Bridge Mode (Mono) 8Ω
Speaker Outputs Class 2 Wiring
-R +
SPEAKERS SUB OUT COAX
IN
OPTICAL
IN ETHERNET
CAUTION:REPLACE
WITH SAME TYPE
T3.15AL 250V FUSE
RESET
100–240 V~, 50/60 Hz
200 WATTS

Applications
The following applications are examples of how the EL-IPD-AMP-2CH 2 Channel Audio Amplifier Matrix can be used. For
more detailed system design guidelines, see the Design Guide for the ELAN IP Amplifier from www.elancontrolsystems.com.
Combining the EL-IPD-AMP-2CH 2 Channel Audio Amplifier with the EL-IPD-MTX-8CH Multi Zone Audio Matrix with the
optional EL-IPD-NAC-EXT Network Audio Card adds an additional audio zone. Multiple EL-IPD-AMP-2CH 2 Channel
Audio Amplifiers can be added to a system as more remote audio zones are needed.
NOTE: The amplifier is limited to one input device at a time. The input (Analog, Coax, or Optical) is selected
using ELAN Configurator during installation.
Single Chassis
7
QUICK START GUIDE EL-IPD-AMP-2CH
MAC ID
Serial No.
ANALOG IN
L R
EL-IPD-AMP-2CH
- L +
BRIDGE
Stereo Mode 4-8Ω
Bridge Mode (Mono) 8Ω
Speaker Outputs Class 2 Wiring
- R +
SPEAKERS SUB OUT COAX
IN
OPTICAL
IN ETHERNET
CAUTION: REPLACE
WITH SAME TYPE
T3.15AL 250V FUSE
RESET
100–240 V~, 50/60 Hz
200 WATTS
TV
SPEAKERS SUBWOOFER
NETWORK

Zone Extender
8
QUICK START GUIDE EL-IPD-AMP-2CH
Streaming Media
Blu Ray Player
Set Top Box
Audio/Video Receiver
Subwoofer
ZONE 1
ZONE 2ZONE 7
ZONE 3
ZONE 4
ZONE 5
ZONE 6
Power
MUSIC STREAMER
Music
Streamer
NETWORK
MAC ID
Serial No.
ANALOG IN
L R
EL-IPD-AMP-2CH
- L +
BRIDGE
Stereo Mode 4-8Ω
Bridge Mode (Mono) 8Ω
Speaker Outputs Class 2 Wiring
- R +
SPEAKERS SUB OUT COAX
IN
OPTICAL
IN ETHERNET
CAUTION: REPLACE
WITH SAME TYPE
T3.15AL 250V FUSE
RESET
100–240 V~, 50/60 Hz
200 WATTS
MUSIC STREAMER
ZONE 8
SUBWOOFER
Power
MUSIC STREAMER

9
QUICK START GUIDE EL-IPD-AMP-2CH
Installation
Mount the EL-IPD-AMP-2CH 2 Channel Audio Amplifier in a cabinet by setting it on a sturdy shelf. As with any electronic
device the EL-IPD-AMP-2CH generates heat at all times, but considerably more when in use. Ensure clear positive airflow
within the cabinet by using fans. Locating the EL-IPD-AMP-2CH in a completely enclosed cabinet is not recommended
due to heat build up. Use the included mounting brackets to secure to a wall or other surface if needed.
POWER
The amplifier includes an internal switch mode power supply for use in AC 100-120 / 220-240 V environments.
NETWORK
Connect the amplifier to the LAN for control and audio routing (if used in a Dante configuration). Please review the ELAN IP
Amp Design Guide for proper network setup depending on how the amplifier is being used.
AUDIO INPUTS
Two 2 channel PCM digital inputs (1 optical and 1 coax stereo) 2, and one line level analog stereo pair audio inputs are
available. When used with other Dante-enabled ELAN amplifiers, the input device is available as an independent source
available to any zone in the system.
NOTE: The amplifier is limited to one input device at a time. The input (Analog, Coax, or Optical) is selected using ELAN
Configurator during installation.
Subwoofer Out
Connect a powered subwoofer.
SPEAKER OUTPUTS
CAUTION! ALL SPEAKER WIRE CONNECTIONS MUST BE MADE WITH THE CHASSIS POWER OFF
When connecting more than one speaker to a set of terminals, be sure to calculate the impedance values and not exceed
the rating for the amplifier.
Connect 4ohm or 8ohm speakers - The amplifier outputs' default is 4ohms. If connecting 8ohm speakers, the setting must
be changed during system configuration. For more detail, see the Design Guide for the ELAN IP Amplifier.
CONFIGURATION
For detailed configuration information, download the Design Guide for the ELAN IP Amplifier from www.elanhomesystems.com.
MAC ID
Serial No.
ANALOG IN
L R
EL-IPD-AMP-2CH
- L +
BRIDGE
Stereo Mode 4-8Ω
Bridge Mode (Mono) 8Ω
Speaker Outputs Class 2 Wiring
- R +
SPEAKERS SUB OUT COAX
IN
OPTICAL
IN ETHERNET
CAUTION: REPLACE
WITH SAME TYPE
T3.15AL 250V FUSE
RESET
100–240 V~, 50/60 Hz
200 WATTS

10
QUICK START GUIDE EL-IPD-AMP-2CH
Network Setup FAQs for Dante
What type of Ethernet cable is recommended for Dante?
Cat5e or Cat6 cable is recommended. For purely 100Mbps networks, CAT5 may be used.
Does Dante work with Fiber Optic network cable?
Yes. Because Dante works with standards based networking technology, using fiber is simple. Use a switch that
supports fiber connections to send Dante data over a fiber optic cable.
Can Dante operate over a Wi-Fi network?
No. While possible in principle, the practical limitations of current wireless technology (802.11a/b/g/n) render reliable
performance unachievable.
Does Dante require any special network infrastructure?
No, special network infrastructure is not required. Since Dante is based upon universally accepted networking
standards, Dante-enabled devices can be connected using off-the-shelf Ethernet switches and cabling.
Does Dante require a dedicated network infrastructure?
No, a dedicated network infrastructure is not required. Dante-enabled devices can happily coexist with other
equipment making use of the network.
Does Dante require special switches?
No. But we strongly recommend that Gigabit switches be used due to the clear advantages in performance and
scalability. If using a 100Mbps, see the design guide and and integration note for ELAN products.

11
QUICK START GUIDE EL-IPD-AMP-2CH
Limited Warranty
Nortek Security & Control ( ‘NSC’ ) warrants the E L-IPD-AMP-2CH to be free from defects in materials and workmanship for
the period of two years (2 years) from the date of purchase. If within the applicable warranty period above purchaser discovers
that such item was not as warranted above and promptly notifies ‘NSC’ in writing, ‘NSC’ shall repair or replace the item at the
company’s option. This warranty shall not apply (a) to equipment not manufactured by ‘NSC’, (b) to equipment which shall have
been installed by other than an ‘NSC’ authorized installer, (c) to installed equipment which is not installed to ‘NSC’s’ specifications,
(d) to equipment which shall have been repaired or altered by others than ‘NSC’, (e) to equipment which shall have been subjected
to negligence, accident, or damage by circumstances beyond ‘NSC’s’ control, including, but not limited to, lightning, flood, electrical
surge, tornado, earthquake, or other catastrophic events beyond
‘NSC’s’ control, or to improper operation, maintenance or storage, or to other than normal use of service. With respect to
equipment sold by, but not manufactured by ‘NSC’, the warranty obligations of ‘NSC’ shall in all respects conform to the warranty
actually extended to ‘NSC’ by its supplier. The foregoing warranties do not cover reimbursement for labor, transportation, removal,
installation or other expenses which may be incurred in connection with repair or replacement. Except as may be expressly provided
and authorized in writing by ‘NSC’, ‘NSC’ shall not be subject to any other obligations or liabilities whatsoever with respect to
equipment manufactured by ‘NSC’ or services rendered by ‘NSC’.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESSED AND IMPLIED WARRANTIES
EXCEPT WARRANTIES OF TITLE, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.
ATTENTION: To our valued Customers
To ensure that customers obtain quality pre-sale and after-sale support and service, Nortek Security & Control products are sold
exclusively through authorized dealers. Nortek Security & Control products are not sold online.
The warranties on Nortek Security & Control products are NOT VALID if the products have been purchased from an unauthorized
dealer or an online E-tailer. To determine if your Nortek Security & Control reseller is authorized, please call Nortek Security & Control
at 800-622-3526.

10032515 Rev-B
main:
1 [phone] - US
1 [phone] - International
1 [phone] - Fax
tech support:
[email protected]
web:
elancontrolsystems.com
©2022 Nortek Security & Control LLC. ELAN®is a registered trademark of Nortek Security & Control, LLC. Other brand names and products names
mentioned herein may be the trademarks, tradenames, services marks or registered trademarks of their respective owners. All rights reserved.
