Elan A1240 User manual

ELAN HOME SYSTEMS
© ELAN Home Systems 2005 • All rights reserved. Page 1
A1240 INSTALLATION MANUAL
RISK OF ELECTRIC SHOCK
DO NOT OPEN!
WARNING
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to
alert the user to the presence of uninsulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instruction in the literature accompanying
the appliance.
CAUTION
SOME DETACHABLE POWER CORD SOCKETS HAVE THIS FUSE SYMBOL
WHICH INDICATES THERE IS A REPLACEABLE FUSE WITHIN THE SOCKET.
FOR SAFETY PURPOSES REPLACE ONLY WITH SPECIFIED FUSE.
IMPORTANT SAFETY INFORMATION
Read Information—All the safety and operating information should be read before the appliance is operated.
Follow Information—All operating and use information should be followed.
Retain Information—The safety and operating information should be retained for future reference.
Heed Warnings—All warnings on the appliance and in the operating instructions should be heeded.
Wall Mounting—Mounting of this appliance should be done only by an authorized installer.
Ventilation—The appliances should be situated so that their location or position does not interfere with their proper ventilation.
These appliances should never be placed near or over a radiator or heat register. These appliances should not be placed in a built-in
installation such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
Non-Use Periods—Appliances that are left unattended and unused for long periods of time should be de-energized.
Power Sources—The appliances should be connected to a power supply only of the type described in the operating instruc-
tions or as marked on each appliance. If you are not sure of the type of power supply to your home, consult your authorized ELAN dealer
or local power company.
Grounding or Polarization—Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one blade wider than the other blade. A grounding type plug has two blades and a third grounding prong. The
polarized wide blade and the third prong are provided for your safety. If the provided plug does not fit your outlet, consult an electrician
for replacement of the obsolete outlet.

ELAN HOME SYSTEMS
Page 2 © ELAN Home Systems 2005 • All rights reserved.
A1240 INSTALLATION MANUAL
Water and Moisture—To reduce the risk of electric shock or fire, these appliances should not be used near water––for
example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
Power Cord Protection—Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
Telephones—Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of
electrical shock from lightning. Do not use a telephone to report a gas leak if the leak is in the vicinity of the ELAN electronic equipment
because of risk of fire or explosion.
Cleaning—Unplug the apparatus from the power outlet before cleaning. Use only a dry cloth to clean the apparatus.
Power Lines—An outdoor antenna should be located away from power lines. When installing an outside antenna system, extreme
care should be taken to avoid touching power lines or circuits, as contact with them may be fatal.
Outdoor Antenna Grounding—If an outside antenna or cable system
is connected to these audio products, be sure the antenna or cable system is grounded
so as to provide some protection against voltage surges and built-up static charg-
es. Section 810 of the U.S. National Electrical Code, and Section 54 of the
Canadian Electrical Code, provide information with respect to proper grounding of
the mast and supporting structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location of antenna-discharge unit,
connection to grounding electrodes, and requirements for the grounding electrode.
See the grounding diagram (right).
Overloading—Do not overload wall outlets and extension cords, as this could
result in fire or electric shock.
Object and Liquid Entry—Never insert objects of any kind through the
openings of these appliances, as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock. Care should be taken so that
objects do not fall and liquids are not spilled into the appliance through openings in the enclosure.
Servicing—Do not attempt to service these appliances yourself, as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
Damage Requiring Service—These appliances should be serviced by qualified service personnel when:
• A power supply connection or a plug has been damaged or
• If liquid has been spilled into the appliance or objects have fallen into the appliance or
• The appliance has been exposed to water or moisture or
• The appliance does not appear to operate normally or exhibits a marked change in performance or
• The appliance has been dropped or the enclosure damaged.
Replacement Parts—When replacement parts are required, be sure the service technician has used replacement parts speci-
fied by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric
shock, or other hazards. The Master Control Unit battery should be replaced only after turning the power off and only by an authorized
installer.
Safety Check—Upon completion of any service or repairs to this audio product, ask the service technician to perform safety
checks to determine that the audio product is in proper operating condition.
Lightning Storms—Unplug this apparatus during lightning storms or when unused for long periods of time.
Attachments and Accessories—Use only attachments/accessories specified by the manufacturer.
Cart, Stand, Tripod, Bracket or Table—Use only with a cart, stand, tripod, bracket or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip over.
Disconnect Device—Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device
shall remain operable.
ELECTRIC
SERVICE
EQUIPMENT
GROUND
CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(CEC SECTION 10-700)
ANTENNA
LEAD-IN WIRE
GROUND CLAMPS
GROUNDING CONDUCTORS
(CEC SECTION 54-200)
ANTENNA LEAD-IN WIRE
(CEC SECTION 54-200)
NEC - NATIONAL ELECTRICAL CODE
(NEC SECTION 810-20)
(NEC SECTION 810-21)
(NEC ARTICLE 250, PART H)
CEC - CANADIAN ELECTRICAL CODE
Grounding
Diagram
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN

ELAN HOME SYSTEMS
© ELAN Home Systems 2005 • All rights reserved. Page 3
A1240 INSTALLATION MANUAL
Contents
Safety Information ............................................................................................................. 1
1. Introduction ................................................................................................................. 4-6
Features .......................................................................................................................... 4

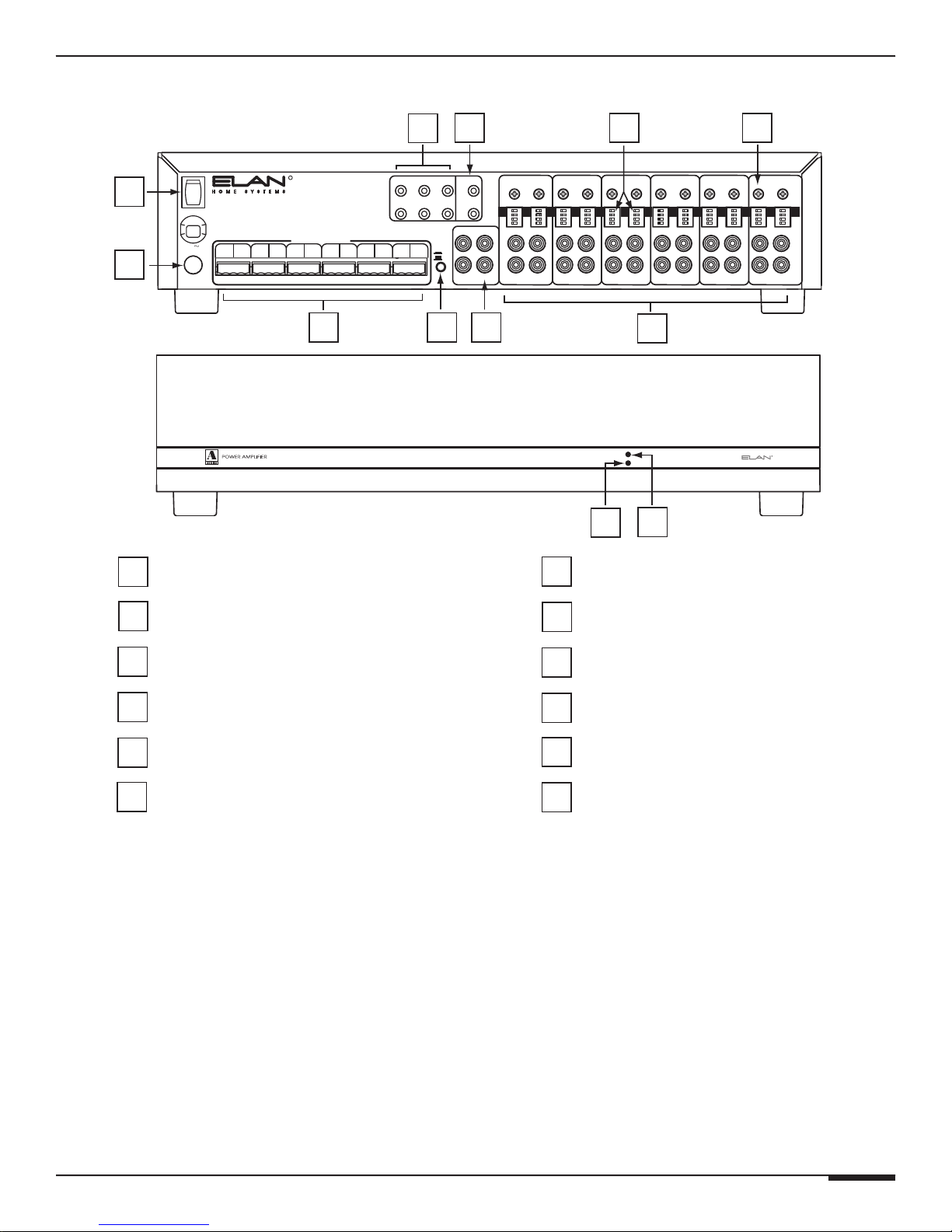

A1240 Front/Rear ........................................................................................................... 5
Specifications ................................................................................................................. 5
2. Connections and Applications ........................................................................... 6-9
Independent Stereo Zones ............................................................................................ 6
Two Room Stereo Zones ................................................................................................... 7
Stereo Zone w/ Mono Sub-Zone ................................................................................... 8

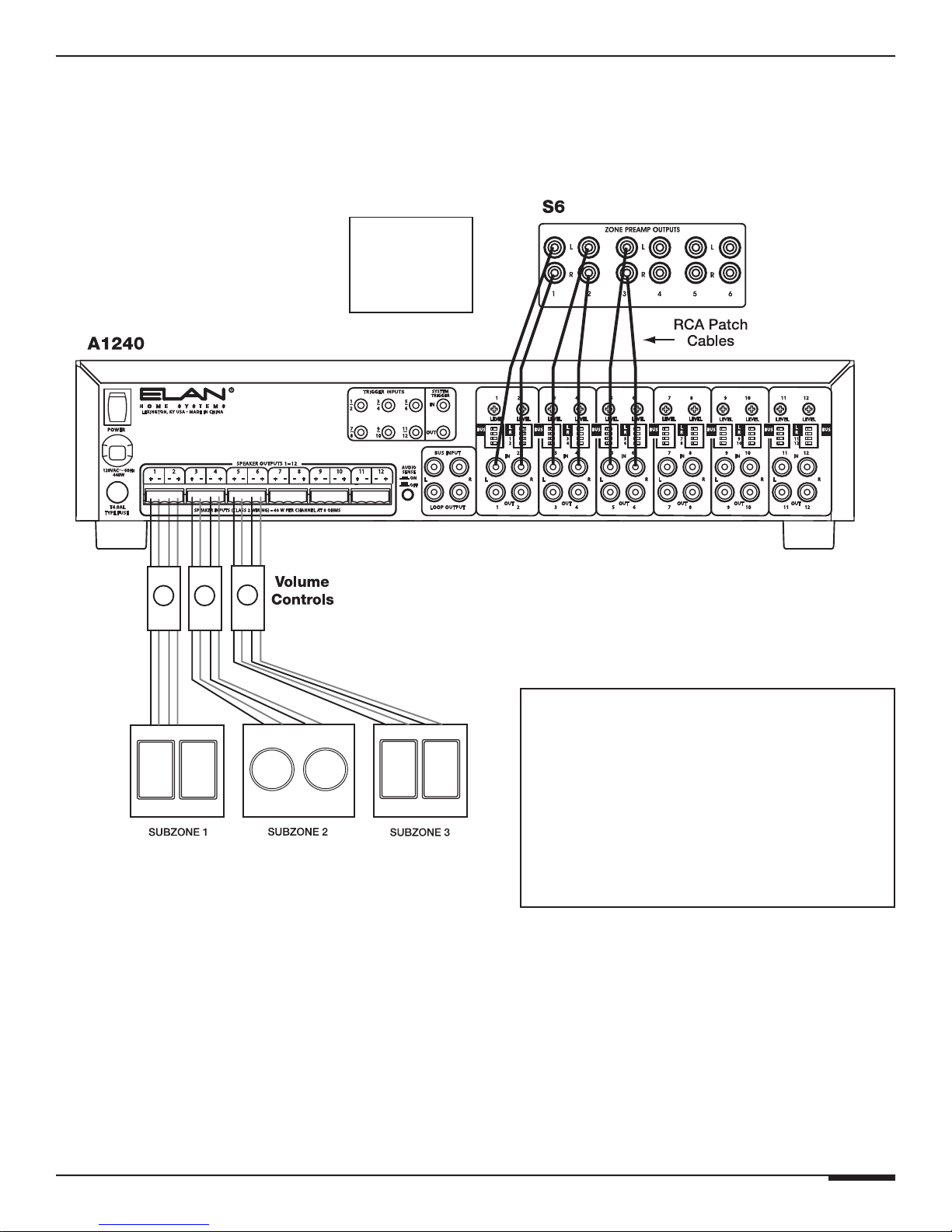

System6 Sub-Zones ....................................................................................................... 9
3. Bussing ...................................................................................................................... 10-16

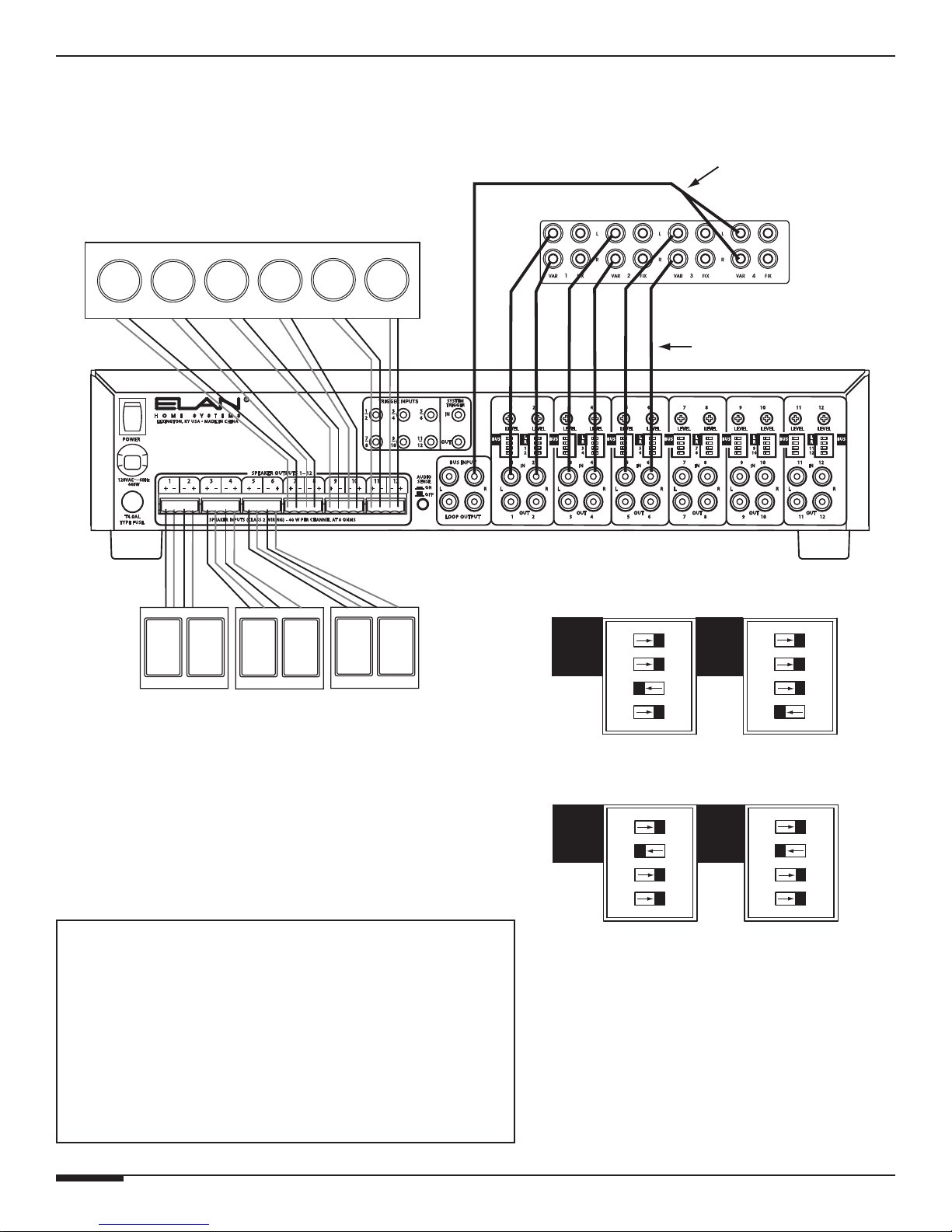

Stand-Alone System Stereo Bussing ............................................................................. 11

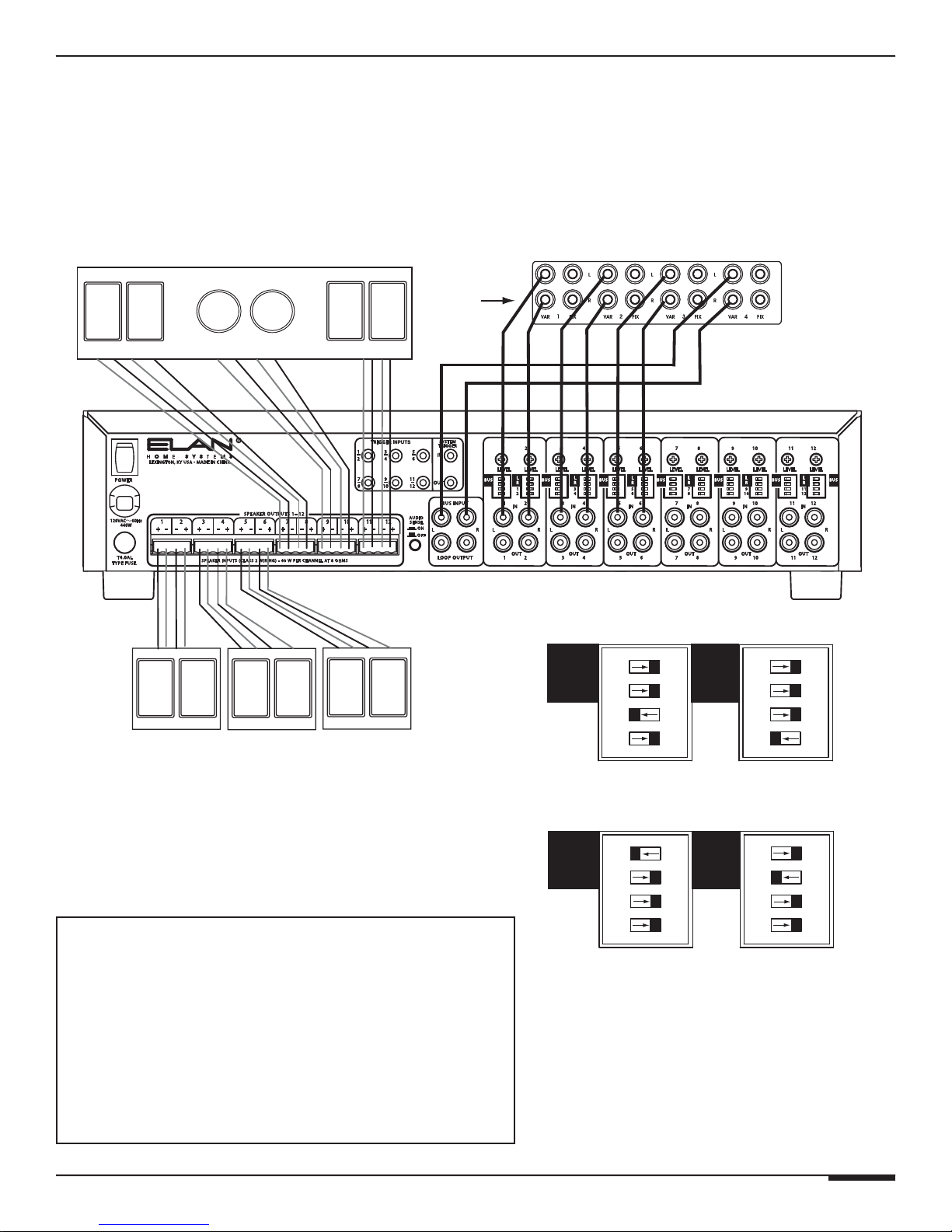

Stand-Alone System Mono Bussing .............................................................................. 12

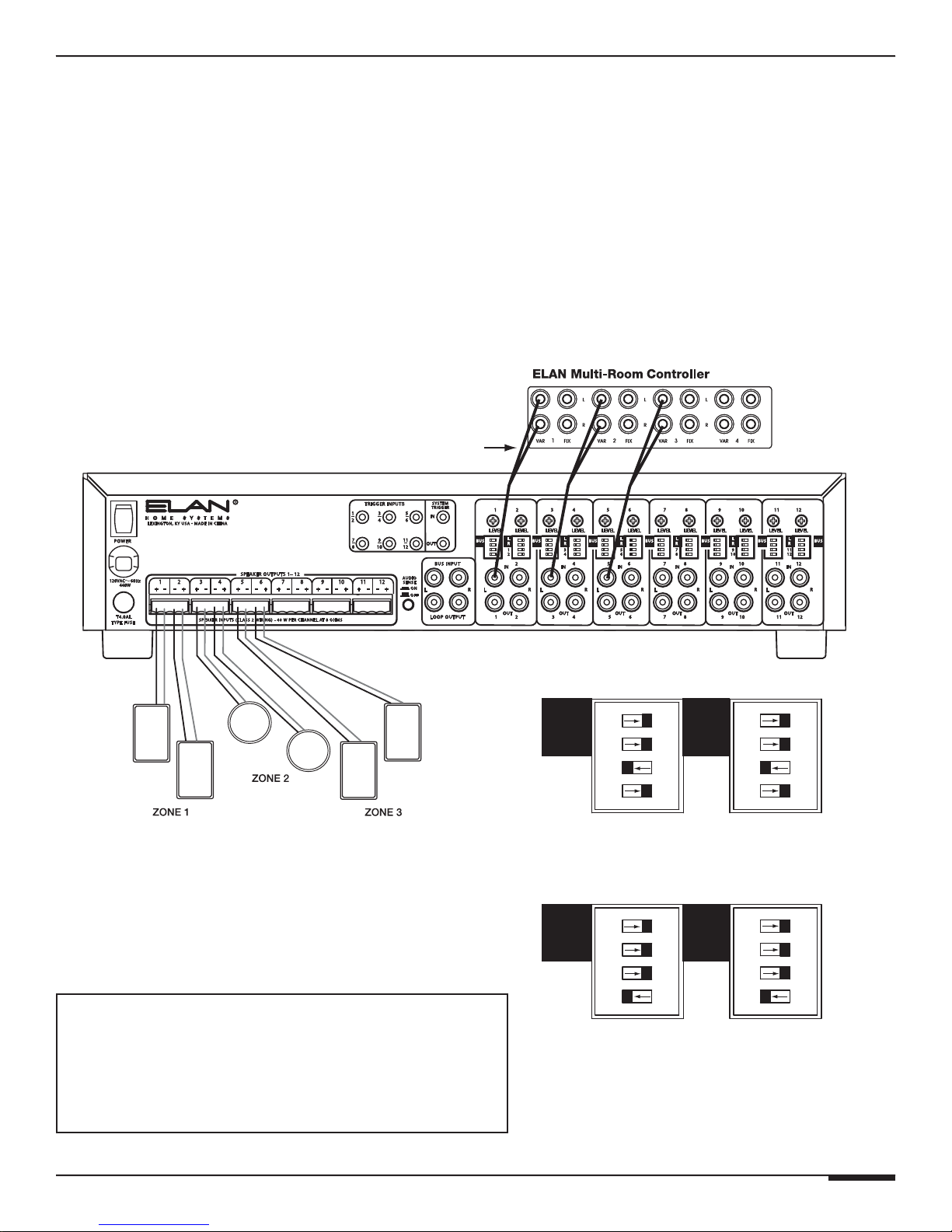

ELAN Multi-Room System w/ Bussed Stereo Wide Coverage Zone .............................. 13
ELAN Multi-Room System w/ Bussed Mono Wide Coverage Zone ............................... 14
Direct Input Bussing ........................................................................................................ 15

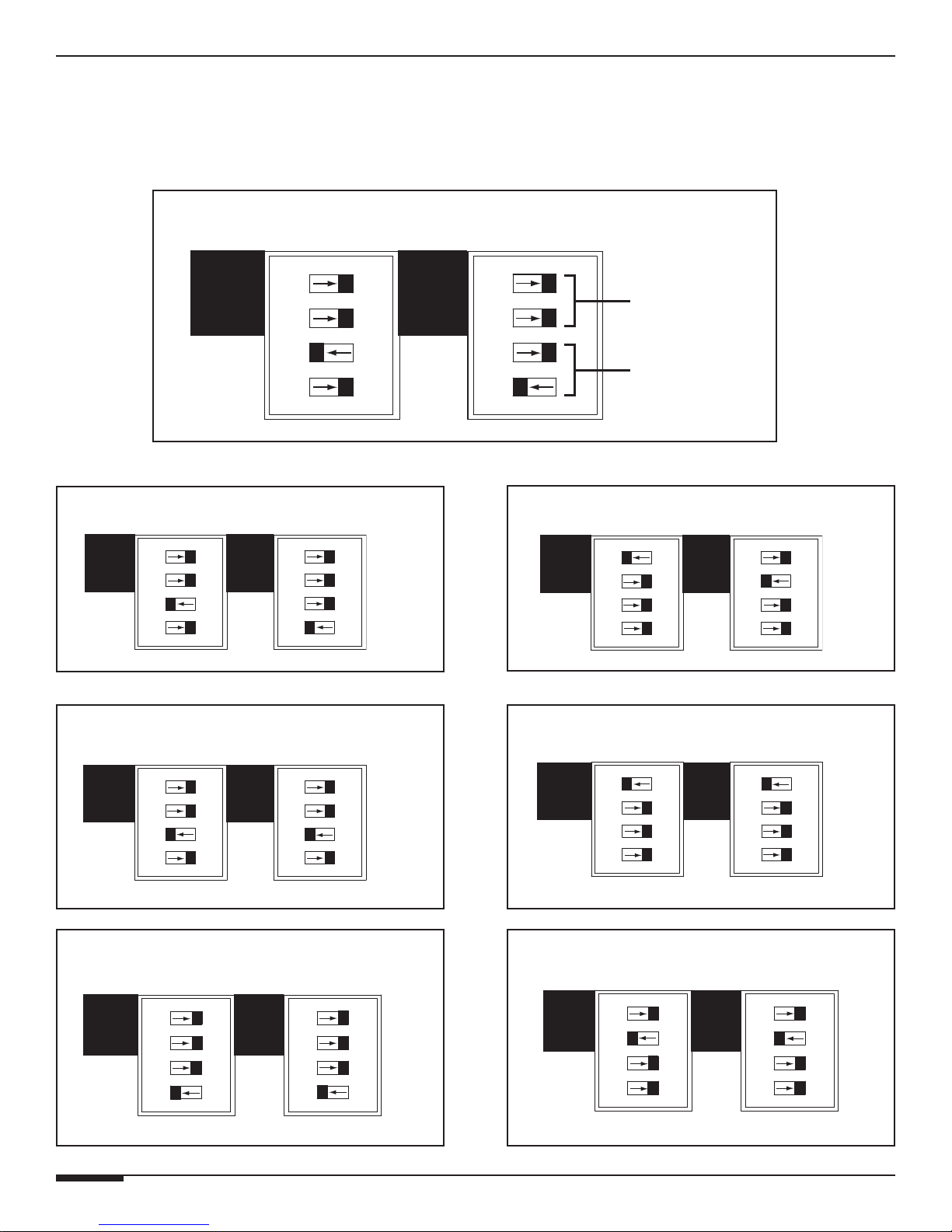

DIP Switch Settings ........................................................................................................ 16
4. Triggers ........................................................................................................................... 17
5. Setup .......................................................................................................................... 18-19
Setting Channel Levels .................................................................................................... 18
Audio Sense ................................................................................................................... 18
Turn-On Modes .............................................................................................................. 19
6. Troubleshooting ..................................................................................................... 20-21
Warranty .................................................................................................................Back Page
2428 Palumbo Dr.
Lexington, KY USA 40509
Voice 859-269-7760
Tech Support 800-622-3526
www.elanhomesystems.com

ELAN HOME SYSTEMS
Page 4 © ELAN Home Systems 2005 • All rights reserved.
A1240 INSTALLATION MANUAL
1. Introduction
The ELAN A1240 Power Amplifier is designed to pro-
vide a reliable, affordable solution for multi-room audio
systems requiring up to twelve channels of amplifica-
tion. Using proven analog technology, the A1240 adds
advanced features like Audio Sensing, Stereo/Mono
Bus, and Trigger Inputs/Outputs to make it the premier
amplifier in its price range.
Features
• 12 x 40 Watts per Channel @ 8 Ohms
• Stereo/Mono Bus
Any input can be combined or bussed using simple
DIP switches to send audio to any output without the
use of additional patch cables - making setup neat
and easy. BUS LOOP OUTPUTs allow the bussed
signal to be sent to other amplfiers, A/V receivers,
etc.
• Individual Pair Remote Trigger Inputs
Six +12VDC TRIGGER INPUTS allow each pair of
channels to be activated independently.
• System Trigger In/Out
SYSTEM TRIGGER IN allows all channels of the
amplifier to turn on when a signal is received.
SYSTEM TRIGGER OUT sends a +12VDC pulse
whenever any of the channels of the amplifier are on.
• Audio Loop Outputs
Sends audio signals out from specific A1240 channels
to line level inputs of other devices such as additional
amplifiers or audio processors.
• Individual Channel Level Adjustments
Fine-tune each channel’s level using precision
potentiometers.
• Audio Sense
Allows amplifier channels to mute/un-mute based
upon whether an audio signal is detected.
• Removable Locking Speaker Terminals
Six removable locking connectors allow easy speaker
wire terminations.
Safety Concerns
Use only grounded outlets when powering this product.
Making any modification to the power cord could cause
unsafe operation and will void the manufacturer's war-
ranty.
AC Power Considerations
The A1240 requires 4 Amps of AC current. The
A1240240 (240V version) requires 2 Amps of AC current.
When designing any whole house system using multi-
channel amplifiers, make sure to provide adequate pro-
visions for all electronic equipment to be installed. This
may require additional outlets and/or circuit breakers to
be installed. Consult a licensed electrician in this case.
ALL CONNECTIONS SHOULD BE MADE
WITH THE AMPLIFIER TURNED OFF
AND UNPLUGGED FROM POWER.
DAMAGE CAN OCCUR TO EQUIPMENT
IF IMPROPER CONNECTIONS ARE MADE!
THIS AMPLIFIER IS NOT BRIDGEABLE!
DO NOT TRY TO BRIDGE
OR COMBINE OUTPUTS!
DAMAGE TO THE AMP WILL OCCUR.

ELAN HOME SYSTEMS
© ELAN Home Systems 2005 • All rights reserved. Page 5
A1240 INSTALLATION MANUAL
Specifications
Audio Section
Power Rating
Output Power . . . . . . . . . . . . . . . . . . 12 x 40W RMS @ 8 Ohms
Frequency Response . . . 20Hz to 20kHz, +/-1dB into 8 Ohms
Full Power Bandwidth . . . . . 5Hz to 55kHz, -3dB into 8 ohms
Signal-To-Noise . . . . . . . . . . . . . . . . . . . > 95dB (A-weighted)
Channel Separation . . . .>-70dB (Channel to Channel @1kHz)
Total Harmonic Distortion . . . . . . . . . . . . . . . < .01% @ 1kHz
< 0.06% @ 10kHz
Intermodulation Distortion . . . . . . . . . . . . . . . . . . . . . < 0.1%
Voltage Gain (AV) . . . . . . . . Continuously Variable from 0 - 20
Slew Rate . . . . . . . . . . . . . . . . . . . . . . . . . > 9 V/microsecond
Input Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . 47k Ohms
Input Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . 707 mV RMS
Connectors
Input/Loop Outputs . . . . . . . . . . . . . . . . . . Gold RCA Phono
Speaker Output . . . . . . . . . . . Removable Locking Terminals
Power
AC Power Requirements . . . . . . A1240-120 VAC, 440 Watts
A1240240-240 VAC, 440 Watts
Power Supply . . . . Ultra-High Efficiency Toroidal Transformer
Triggers
Remote Trigger Inputs . . . . . . . . . . . . . . . . . . . . 5 to 24 VDC
Trigger Loop Output . . . . . . . . . . . . . . . . . . . +12 VDC @0.1A
Dimensions/Weight
Dimensions (H x W x D) . . . . . . . . . . . . 4 1/8 x 17 x 12 1/2 (in)
105 x 432 x 318 (mm)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 lbs/9.07 kg
A1240 Front/Rear
LEXINGTON, KY USA • MADE IN CHINA
LE XI N GT ON , KY US A • MA DE IN C HI NA
POWER
PO WER
120VAC 60Hz
120VAC 60 Hz
440W
440W
SPEAKER OUTPUTS 1
SP EAK E R OU T PU T S 1–
12
12
TRIGGER INPUTS
TR IGG E R IN P UT S
1
_
2
3
_
4
5
_
6
7
_
8
9
_
10
10
11
11
_
12
12
IN
IN
OUT
OUT
BUS INPUT
BU S INP U T
LOOP OUTPUT
LO OP OU TPU T
L R
IN
IN
OUT
OUT
L R
AUDIO
AUDIO
SENSE
SE NS E
ON
ON
OFF
OF F
SPEAKER INPUTS (CLASS 2 WIRING) - 40 W PER CHANNEL AT 8 OHMS
SP EA K ER I NP UTS ( CL ASS 2 W IR ING ) - 40 W P ER C H AN NE L AT 8 OHM S
1
+
+ -
2
-
+
+
3
+
+ -
4
-
+
+
5
+
+ -
6
-
+
+
7
+
+ -
8
-
+
+
9
+
+ -
10
10
-
+
+
11
11
+
+ -
12
12
-
+
+
1 2
1 2
1 2
1 2
IN
IN
OUT
OUT
L R
3 4
3 4
1 2
1 2
3 4
3 4
LEVEL LEVEL LEVEL LEVEL
3 4
3 4
IN
IN
OUT
OUT
L R
5 6
5 6
5 6
5 6
IN
IN
OUT
OUT
L R
7 8
7 8
5 6
5 6
7 8
7 8
LEVEL LEVEL LEVEL LEVEL
7 8
7 8
IN
IN
OUT
OUT
L R
9 10
9 10
9 10
9 10
IN
IN
OUT
OUT
L R
11 12
11 12
9 10
9 10
11 12
11 12
LEVEL LEVEL LEVEL LEVEL
11 12
11 12
L
R
1
2
BUS
BU S L
R
3
4
BUS
BU S L
R
5
6
BUS
BU S L
R
7
8
BUS
BU S L
R
9
10
10
BUS
BU S L
R
11
11
12
12
BUS
BU S
BUS
BU S
T4.0AL
T4.0AL
TYPE FUSE
TYPE FUSE
R
SYSTEM
SY ST E M
TRIGGER
TR IG G ER
BACK
FRONT
1
2
3456
7
89
10
11 12
FUSE:
1
POWER SWITCH
2
TRIGGER INPUTS (6)
3
SYSTEM TRIGGER IN/OUT
4
BUS MODE DIP SWITCHES (12)
5
LEVEL ADJUSTMENT POTS (12)
6
LINE INPUTS/LOOP OUTPUTS
7
BUS INPUTS/LOOP OUPUTS
8
AUDIO SENSE BUTTON
9
SPEAKER OUTPUTS
10
POWER LED-
STATUS LED-
11
12
A1240240-Replace with T2.5AL Type Fuse
A1240-Replace with T4.0AL Type Fuse
Glows Green When Any
Channel is ON
Glows Red When Power
Switch ON & Unit Plugged In

ELAN HOME SYSTEMS
Page 6 © ELAN Home Systems 2005 • All rights reserved.
A1240 INSTALLATION MANUAL
ZONE OUTPUTS
Multi-Room Applications
The A1240 is specifically designed for multi-room appli-
cations. Virtually every feature was selected to enhance
the multi-room experience and simplify the multi-room
installation. With Buffered Loop Outputs, Bus Modes,
and advanced Trigger options, the A1240 can be cus-
tomized for even the most complex systems.
Independent Stereo Zones
The A1240 is designed to easily power six independent
stereo zones without any special setup procedures.
This is the standard configuration for most multi-zone
audio distribution systems. In the drawing below, each
pair of speakers will have independent line-level volume
control.
2. Connections and Applications
Three Independent Stereo Zones
• Zone 1 Output to Line Inputs 1 & 2
• Zone 2 Output to Line Inputs 3 & 4
• Zone 3 Output to Line Inputs 5 & 6
• Bus Mode DIP Switches in Default
DIRECT Position
Each Zone’s Speakers Volume Ramps Up &
Down Independently
WIRING CONSIDERATIONS
• Speaker Wires 28-16 AWG Speaker Wire
• Audio Cables RCA Patch Cables
• Triggers 2 Conductor Wire w/ Mono Mini-Plug

ELAN HOME SYSTEMS
© ELAN Home Systems 2005 • All rights reserved. Page 7
A1240 INSTALLATION MANUAL
ZONE OUTPUTS
Two Room Stereo Zone
By using the A1240’s Buffered Loop Outputs, an additional pair of speakers can be
added to a zone. In this example, both pairs of speakers will ramp volume up and
down simultaneously.
Two Room Stereo Zone
• Zone 1 Output to Line Inputs 1 & 2
• Line Outputs 1 & 2 to Line Inputs 3 & 4
• Bus Mode DIP Switches in Default DIRECT
Position
All Speakers Volume Ramps Up & Down Together

ELAN HOME SYSTEMS
Page 8 © ELAN Home Systems 2005 • All rights reserved.
A1240 INSTALLATION MANUAL
RCA ‘Y’
Cable
ZONE OUTPUTS
Stereo Zone w/ Mono Sub-Zone
Use the Loop Out Jacks and an RCA ‘Y’ cable to create mono sub-zones within a
stereo zone. This application is perfect for large rooms with smaller rooms attached
such as a Master Bedroom/Master Bath or Kitchen/Laundry Room.
Stereo Zone w/ Mono Sub-Zone
• Zone 1 Output to Line Inputs 1 & 2
• Line Outputs 1 & 2 to RCA ‘Y’ Cable
• RCA ‘Y’ Cable to Line Input 3
• Bus Mode DIP Switches in Default
DIRECT Position
All Speakers Volume Ramps Up & Down Together

ELAN HOME SYSTEMS
© ELAN Home Systems 2005 • All rights reserved. Page 9
A1240 INSTALLATION MANUAL
Set S6
ZONE PREAMP
OUTPUT MODE
DIP Switches
To Fixed
System6 Sub-Zones
ELAN's System6 Integrated Multi-Room Controller has built-in amplification for six
stereo zones as well as six sets of preamp outputs for the addition of sub-zones.
The A1240 is ideally suited to amplify these subzones using rotary or electronic vol-
ume controls if separate volume up/down functionality is desired in the sub-zones.
S6 Sub-Zones
• Preamp Output 1 & 2 to Line Inputs 1 & 2
• Preamp Output 3 & 4 to Line Inputs 3 & 4
• Preamp Output 5 & 6 to Line Inputs 5 & 6
• Volume Controls on Each Speaker Output
• Bus Mode DIP Switches in Default
DIRECT Position
Each Zone and Sub-Zone Has Independent
Volume Control

ELAN HOME SYSTEMS
Page 10 © ELAN Home Systems 2005 • All rights reserved.
A1240 INSTALLATION MANUAL
The term BUS is defined as the ability to route a signal
from one place to another. Traditional busing is done
using audio patch cables to route these signals. The use
of Bus Switches, such as the ones on the A1240, elimi-
nates the need for additional patch cables and adds to
the flexibility of signal routing.
Bus Input & Bus Loop Ouput
A stereo or monaural audio signal connected to the
A1240’s main BUS INPUT can be routed to any of the
A1240’s twelve channels. This feature is excellent for
standalone distributed audio systems where one source
(i.e. an A/V Receiver) is providing audio to the entire
home, and also for ELAN multi-room applications where
a zone’s audio signal needs to be routed to multiple
amplifier channels. Examples of both these applications
are shown on the following pages.
3. Bussing
The BUS LOOP OUTPUT is an easy way to add on ad-
ditional rooms of music by connecting them to a second
(or 3rd, or 4th) A1240.
Bus DIP Switch Settings
There are independent BUS DIP switches for each chan-
nel on the A1240. The DIP switches labeled BUS L (Left)
and BUS R (Right) determine whether the signal con-
nected to the Left and Right channels of the BUS INPUT
will be routed to that channel. Any channel that has its
BUS switches in the ON (DIP switch set to the left) posi-
tion will receive the audio signal from the BUS INPUT.
L
R
1
2
BUS
BUS
Factory Default DIP Switch Settings
BUS INPUT
Dipswitches
DIRECT INPUT
Dipswitches

ELAN HOME SYSTEMS
© ELAN Home Systems 2005 • All rights reserved. Page 11
A1240 INSTALLATION MANUAL
Stand-Alone System Examples
Stereo Bussing
The example below shows the preamp output of an A/V Receiver being distributed through-
out the home in stereo using the BUS INPUT of the A1240. A second A1240 can be added for
six additional pairs of speakers via the Bus Loop Outputs. Up to four A1240s can be linked
via LOOP OUTPUTs.
A/V Receiver
L R
Pre-Outs
X 6 Pairs
X 6 Pairs
A1240 #1
A1240 #2
L
R
1
2
BUS
BUS
BUS DIP Switch Settings (both amplifiers)
CH.s 1,3,5,7,9,11 CH.s 2,4,6,8,10,12
2 3 4 5 6
2 3 4 5 6
Stand-Alone System w/ A/V Receiver
• Bussed to Six Stereo Rooms
• Optional Second A1240 Shown
• A/V receiver to BUS INPUTS of A1240 #1
• LOOP OUTPUTS of A1240 #1 to BUS INPUTS of A1240 #2
All Speakers Volume Ramps Up & Down Together

ELAN HOME SYSTEMS
Page 12 © ELAN Home Systems 2005 • All rights reserved.
A1240 INSTALLATION MANUAL
Mono Bussing
This example is a variation of the previous one. The first A1240’s Bus Loop Outputs
are 'Y’d' to create a summed L/R signal, allowing the addition of twelve monaurally-
wired speakers.
A/V Receiver
L R
Pre-Outs
X 6 Pair
A1240 #1
A1240 #2
L
R
1
2
BUS
BUS
BUS DIP Switch Settings for A1240 #2
CH 1, 3, 5, 7, 9, 11 CH 2, 4, 6, 8, 10, 12
RCA
‘Y’ Cable
2 3 4 5 6
2 3 4 5 6 7 8 9 10 11 12
X 12
L
R
1
2
BUS
BUS
BUS DIP Switch Settings for A1240 #1
CH 1, 3, 5, 7, 9, 11 CH 2, 4, 6, 8, 10, 12
Stand-Alone System w/ A/V Receiver (Mono)
• A1240 #1 Bussed Stereo
• A1240 #2 Bussed Mono
• A/V receiver to BUS INPUTS of A1240 #1
• LOOP OUTPUTS of A1240 #1to BUS INPUT R of A1240 #2
using RCA 'Y' Cable
All Speakers Volume Ramps Up & Down Together

ELAN HOME SYSTEMS
© ELAN Home Systems 2005 • All rights reserved. Page 13
A1240 INSTALLATION MANUAL
ELAN Multi-Room System Examples
‘Bussing’ the audio from a Zone Output of an ELAN multi-room controller is an easy way to
create a large ‘wide coverage zone’ without using any additional patch cables. The follow-
ing diagrams show examples of how both stereo and mono ‘wide coverage zones’ may be
configured.
ELAN Multi-Room System w/ Bussed Stereo Wide Coverage Zone
ELAN Multi-Room Controller
A1240
L
R
1
2
BUS
BUS
BUS DIP Switch Settings (CH 7-12)
CH 7, 9, 11 CH 8, 10, 12
Zone 1 Zone 2 Zone 3
Zone 4
Wide Coverage Stereo Zone
RCA Patch
Cables
L
R
1
2
BUS
BUS
BUS DIP Switch Settings (CH 1-6-Factory Default)
CH 1, 3, 5 CH 2, 4, 6
ZONE OUTPUTS
ELAN Multi-Room System w/ Bussed Stereo
Wide Coverage Zone
• ELAN Multi-Room Controller Zone Outputs 1-3 to A1240
Inputs 1-6
• ELAN Multi-Room Controller Zone Output 4 to A1240
BUS INPUTs
Each Zone's Speakers Have Independent Volume
Wide Coverage Zone's Speakers Volume Ramps Up
& Down Together

ELAN HOME SYSTEMS
Page 14 © ELAN Home Systems 2005 • All rights reserved.
A1240 INSTALLATION MANUAL
ELAN Multi-Room System w/ Bussed Mono
Wide Coverage Zone
• ELAN Multi-Room Controller Zone Outputs 1-3 to A1240
Inputs 1-6
• ELAN Multi-Room Controller Zone Output 4 to A1240
BUS INPUT R Using RCA 'Y' Cable
Each Zone's Speakers Have Independent Volume
Wide Coverage Zone's Speakers Volume Ramps Up
& Down Together
ELAN Multi-Room Controller
A1240
Zone 1 Zone 2 Zone 3
Zone 4
Wide Coverage Mono Zone
RCA Patch
Cables
RCA ‘Y’
Cables
ZONE OUTPUTS
L
R
1
2
BUS
BUS
BUS DIP Switch Settings (CH 7-12)
CH 7, 9, 11 CH 8, 10, 12
L
R
1
2
BUS
BUS
BUS DIP Switch Settings (CH 1-6-Factory Default)
CH 1, 3, 5 CH 2, 4, 6
ELAN Multi-Room System w/ Bussed Mono Wide Coverage Zone

ELAN HOME SYSTEMS
© ELAN Home Systems 2005 • All rights reserved. Page 15
A1240 INSTALLATION MANUAL
Direct Input Bussing
There are independent Direct Input Bus DIP switches for each channel on the A1240. These
DIP switches are located directly below the BUS L/R DIP switches and are labeled 1-12.
Their purpose is to allow the creation of summed mono signals without having to use addi-
tional patch cables. For example, if A1240 Input #1 is being fed a monaural signal, and Input
#2 needs to receive that same signal, slide the DIP switch labeled “1” to the left, (ON) position
for both channels 1 and 2. Direct Input Bussing is for channel pairs only (1/2, 3/4, 5/6, 7/8,
9/10, 11/12). In other words, Channel 3 can only be sent to Channel 4, and Channel 4 can only
be sent to Channel 3.
ZONE OUTPUTS
RCA ‘Y’
Cables
L
R
1
2
BUS
BUS
BUS DIP Switch Settings-Right Input
CH 1, 3, 5 CH 2, 4, 6
L
R
1
2
BUS
BUS
BUS DIP Switch Settings-Left Input (as shown)
CH 1, 3, 5 CH 2, 4, 6
OR
ELAN Multi-Room System w/ Direct Input
Bussed Mono Zones
• ELAN Multi-Room Controller Zone Outputs 1-3 to A1240
Inputs 1, 3, & 5 OR Inputs 2, 4, & 6 Using RCA 'Y' Cables
Each Zone's Speakers Have Independent Volume
ELAN Multi-Room System w/ Direct Input Bussed Zones
The example below shows the use of the Left (odd numbered) inputs. The Right (even-
numbered) inputs can also be used. Make sure to set the DIP switches correctly, as shown
below, depending on whether Right or Left inputs are being utilized.

ELAN HOME SYSTEMS
Page 16 © ELAN Home Systems 2005 • All rights reserved.
A1240 INSTALLATION MANUAL
DIP Switch Settings
The four DIP switches correspond (from top to bottom) to Bus Left, Bus Right, Direct
Input Left, and Direct Input Right. Flip the switch to the left to enable the setting, to
the right to disable it. Only one setting should be enabled (set to the left position) at
a time. Carefully review the diagrams below before setting DIP switches.
L
R
1
2
BUS
BUS
Direct Input-Stereo (Factory Default)
L
R
1
2
BUS
BUS
Direct Input-Mono
(Sending CH. 1, 3, 5, 7, 9, or 11 to CH. 2, 4, 6, 8, 10, or 12)
L
R
1
2
BUS
BUS
Bus Mode-Stereo
L
R
1
2
BUS
BUS
Bus Mode-Mono
(Sending Left Bus Input to Left & Right Channels)
L
R
1
2
BUS
BUS
Direct Input-Mono
(Sending CH. 2, 4, 6, 8, 10, or 12 to CH. 1, 3, 5, 7, 9, or 11)
L
R
1
2
BUS
BUS
Bus Mode-Mono
(Sending Right Bus Input to Left & Right Channels)
L
R
1
2
BUS
BUS
Factory Default DIP Switch Settings
BUS INPUT
Dipswitches
DIRECT INPUT
Dipswitches

ELAN HOME SYSTEMS
© ELAN Home Systems 2005 • All rights reserved. Page 17
A1240 INSTALLATION MANUAL
TRIGGER INPUTS
ACCEPT
5-24 VOLTS DC
TRIGGER INPUTS
TRIGGER INPUTS
A1240
ELAN Multi-Room
Controller
REMOTE
OUT
A/V RECEIVER
4. Triggers
Each channel pair of the A1240 has its own Remote
Turn On/Muting circuit (TRIGGER INPUTS 1/2-11/12).
Individual channel pairs can be muted or un-muted inde-
pendently of any others. A SYSTEM TRIGGER IN port
allows all channels to turn on or mute simultaneously.
All TRIGGER INPUTS can receive 5-24 Volts AC or DC.
The 12 Volt DC SYSTEM TRIGGER OUT can be used
to turn on other equipment, additional A1240s or other
amplifiers, or to perform automated functions desired by
the user. Use 3.5mm mono interconnect cables to make
Trigger connections.
SYSTEM TRIGGER IN
To mute/un-mute all channels simultaneously, connect a
system-wide 5-24 Volt DC triggering source to the SYS-
TEM TRIGGER IN port using a 3.5mm mono intercon-
nect cable. Examples of triggering sources include an
ELAN Multi-Zone Controller’s SYSTEM TRIGGER OUT or
REMOTE OUT, an A/V receiver’s switched outlet con-
nected to a power supply, or a +12VDC TRIGGER OUT
from another ELAN amplifier.
SYSTEM TRIGGER OUT
Whenever the A1240 is powered On an any channel is
On, the SYSTEM TRIGGER OUT becomes active. This
output sends a +12VDC 100mA signal to other devices
with a Trigger Input. Examples of proper usage of
the SYSTEM TRIGGER OUT include muting/un-mut-
ing other amplifiers, triggering the switched outlets of
a Z•Power Controller, or triggering automated events
using ELAN®Sense Sensors and VIA! SR-1 or VIA!2-SS1
devices.
TRIGGER INPUTS 1/2-11/12
To Mute/Un-Mute specific pairs of channels, a zone-
specific triggering source must be used. Any 5-24 Volt
DC source may be used to trigger these specific inputs.
This application gives additional control in advanced
systems. Examples include: ZONE TRIGGER OUT-
PUTs from an ELAN Multi-Room Controller, multiple A/V
receivers triggering separate A1240 inputs, or outboard
sensors located in certain areas to trigger specific in-
puts of the A1240.

ELAN HOME SYSTEMS
Page 18 © ELAN Home Systems 2005 • All rights reserved.
A1240 INSTALLATION MANUAL
5. Setup
Setting Channel Levels
The A1240 features independent Level Adjustment Pots
for each of its twelve channels. Use a small Phillips
screwdriver to independently adjust each channel of the
amplifier for the specific speakers and environmental
conditions of the area it is powering. Turning the pot
clockwise increases the level, while turning it counter-
clockwise decreses the level. Factory default is 50%.
Set the levels by first lowering them all the way down,
then raise the volume of any keypads or volume controls
to maximum. Slowly increase the level of the channel
being adjusted by turning the potentiometer clockwise
until the channel begins to distort, then reduce the level
slightly (turn counter-clockwise) until distortion is no lon-
ger present. Follow this procedure for each channel.
1 2
1 2
LEVEL LEVEL
LEVEL LEVEL
Audio Sense
When Audio Sense is enabled (AUDIO SENSE button de-
pressed), the presence of audio on a particular line-level
audio input will automatically un-mute the corresponding
speaker-level audio output. Once the audio output is ac-
tive, the SYSTEM TRIGGER OUT will also become
active. If Audio Sense is enabled, it will mute a chan-
nel once an audio signal is absent for a period of two
minutes.
AUDIO
AUDIO
SENSE
SENSE
ON
ON
OFF
OFF
Factory Default = OFF
Factory Default = 50%
