1. Introduction
The transponder reader TWN4 is a device for reading and writing RFID
transponders. There are different versions of TWN4 devices available,
which cover a large range of transponder types both in the frequency range
of 125 kHz and 13.56 MHz.
2. Getting Started
2.1 Cable Connection
In order to start operating a TWN4 transponder reader, it simply has to be
connected to a host.
2.2 Enumeration
Once the device has been powered up, it is waiting for completion of the
enumeration by the USB host. As long as the device is not enumerated, it is
entering a minimum power consumption mode, where both LEDs are
turned off.
2.3 Initialization
After powering up and enumeration, the device is turning on the built-in
transponder reader logic. The green LED is turned on permanently. Some
transponder readers need some kind of initialization, which is performed in

Elatec GmbH
Page 4 of 21
this step. After successful initialization, the device sounds a short sequence,
which consists of a lower tone followed by a higher tone.
2.4 Normal Operation
As soon as the device has completed the initialization, it is entering normal
operation. During normal operation the device is searching for a
transponder continuously.
Notice:
For secure use a minimum distance of 2 cm to the reader is recommended.
Detection of a Transponder
If a transponder is detected by the reader, following actions are performed
Send the ID to the host. By default, the USB device sends by
emulating keystrokes of a keyboard.
Sound a beep
Turn off the green LED
Blink the red LED for two seconds
Turn on the green LED
Within the two seconds timeout, where the red LED is blinking, the
transponder, which just has been recognized will not be accepted again.
This prevents the reader from sending identical IDs more than one time to
the host.
If during the two seconds timeout of the red LED a different transponder is
detected, the complete sequence restarts immediately.

Elatec GmbH
Page 5 of 21
Suspend Mode
The transponder reader supports the USB suspend mode. If the USB host
is signaling suspend via the USB bus, the transponder reader is turning off
most of its power consuming peripherals. During this operation mode, no
detection of transponders is possible and all LEDs are turned off.
Once the host is resuming to normal operation mode, this is also signaled
via the USB bus. Therefore, the transponder reader will resume to normal
operation, too.

Elatec GmbH
Page 6 of 21
3. Firmware and App programming
AppBlaster provides many features to configure the multi-frequency reader
TWN4 for your own special application. This is done in an easy and fast
way: Easy and fast = Blast
The developer pack contains sample source codes (App), Windows driver
for serial communication (CDC Driver), firmware for serial communication
and for keyboard communication.

Elatec GmbH
Page 7 of 21
3.1 How to Blast
Unpack the developer pack into an empty directory on your hard
disk
Connect a TWN4 to the PC

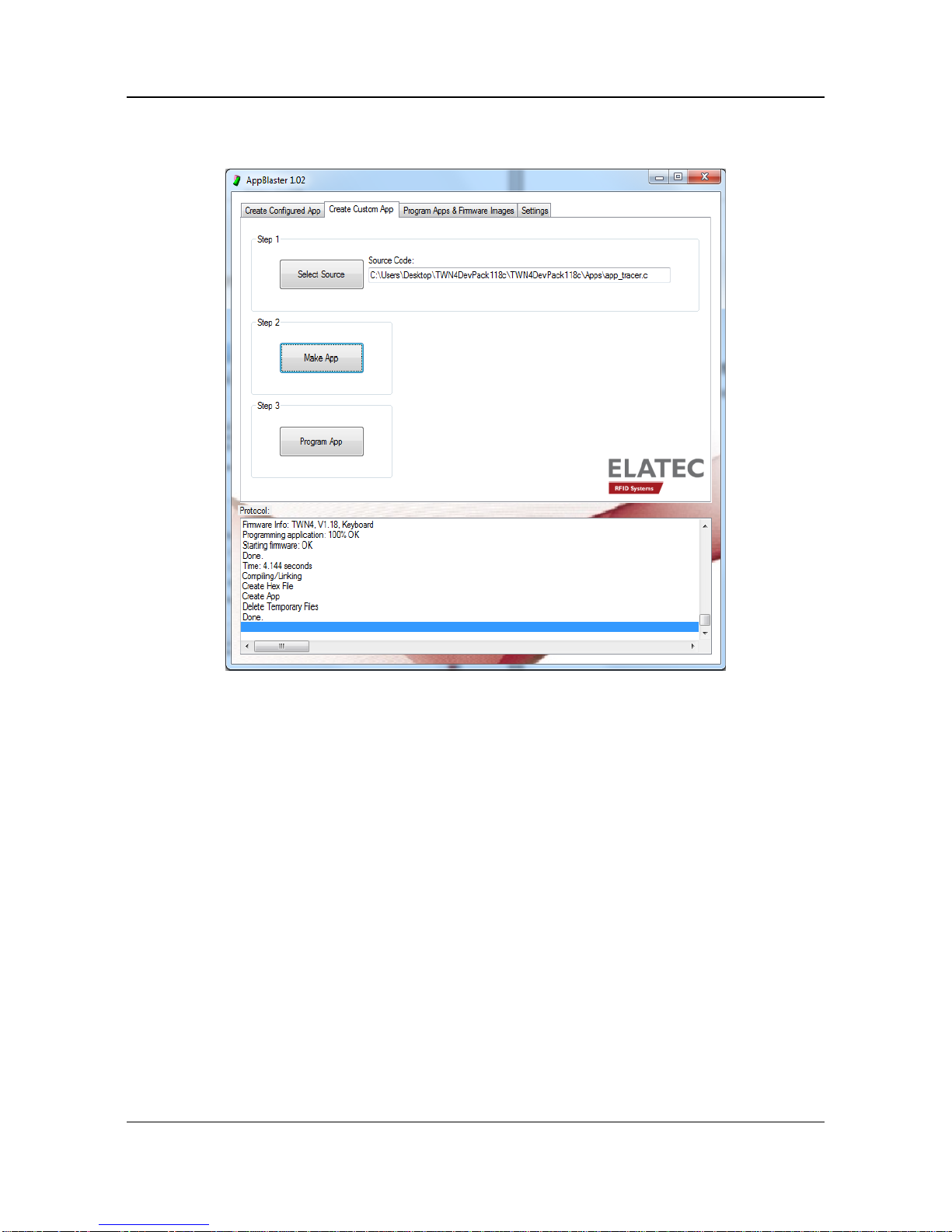

Start program AppBlaster.exe
At the beginning you might have to do a firmware update. You
achieve this in the tab sheet “Program Apps & Firmware Images”.
Choose the ‘Kx’ version for keyboard emulation and ‘Cx’ version for
virtual COM port (CDC).
Connecting first time to TWN4 requires installation of drivers. This is
done automatically as long as you use keyboard emulation. CDC
requires installation of drivers, which are part of the developer pack.

Elatec GmbH
Page 8 of 21
Now you are ready to configure your first application:
1) Select transponder type:

Elatec GmbH
Page 9 of 21
2) Change output format (binary, decimal, hexadecimal):

Elatec GmbH
Page 10 of 21

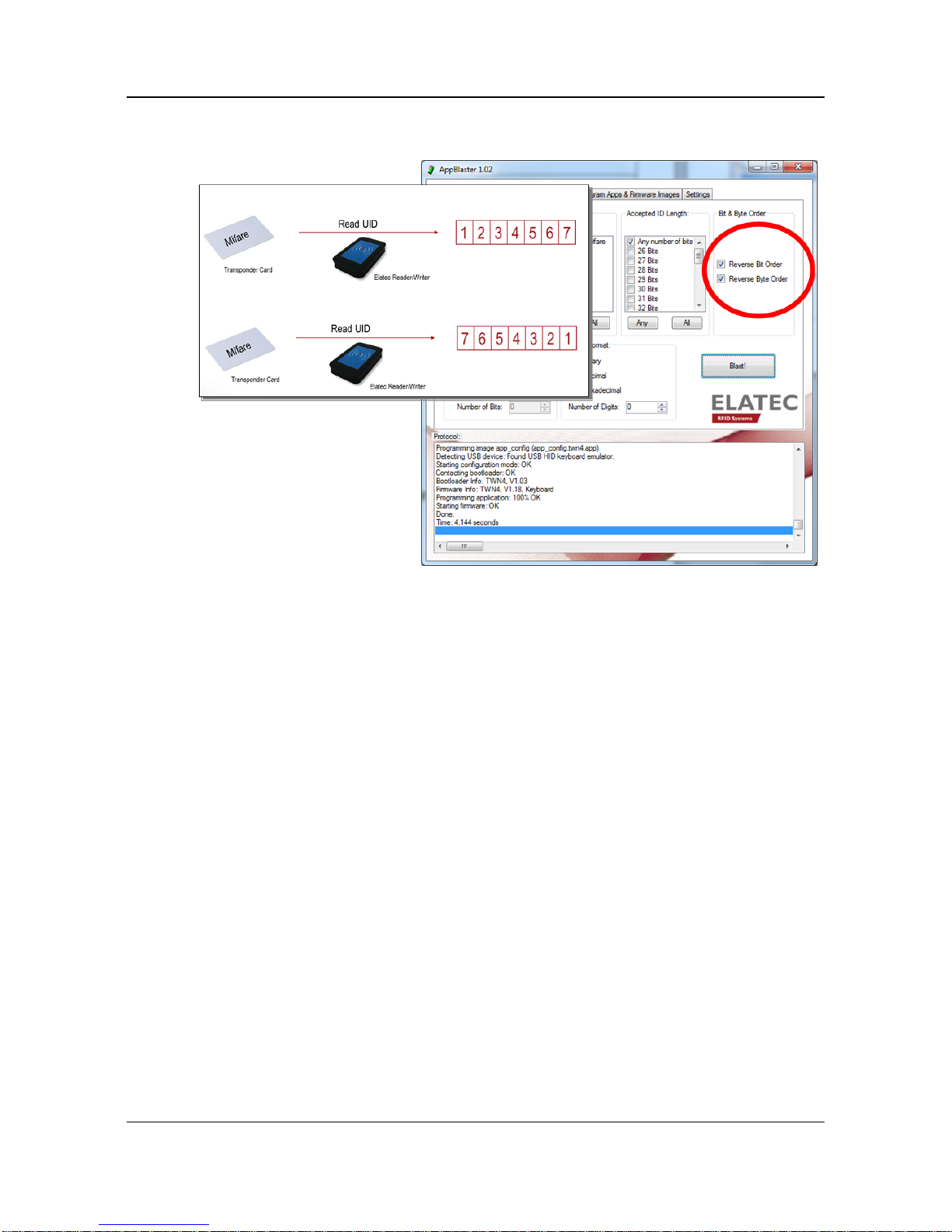

3) Endian conversion
