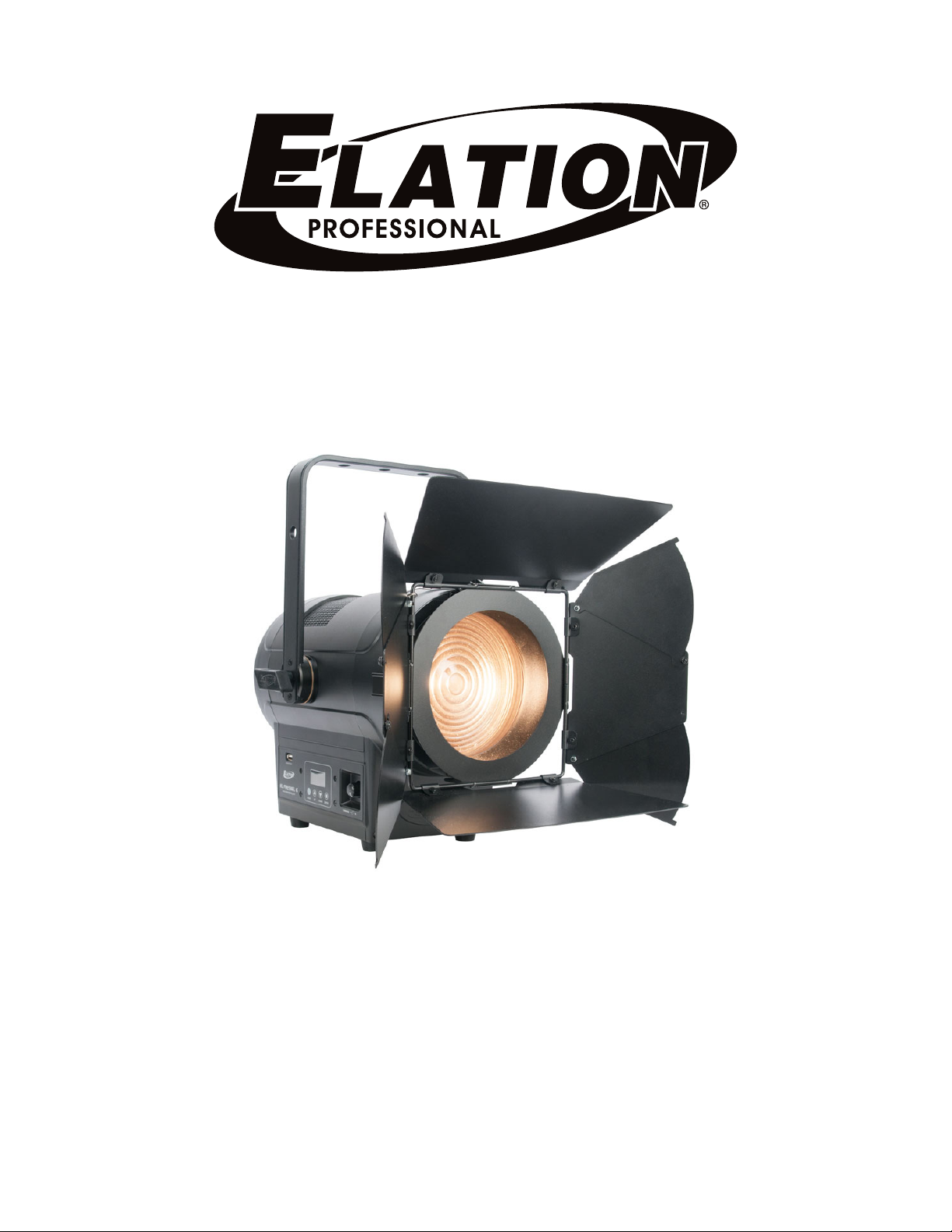

Elation KL FRESNEL 6 FC User manual

User Manual
KL FRESNEL 6 FC

2
©2022 ELATION PROFESSIONAL all rights reserved. Information, speci󰤱cations, diagrams,
images, and instructions herein are subject to change without notice. ELATION PROFES-
SIONAL logo and identifying product names and numbers herein are trademarks of ELATION
PROFESSIONAL. Copyright protection claimed includes all forms and matters of copyrightable
materials and information now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or registered trademarks of their
respective companies and are hereby acknowledged. All non-ELATION brands and product
names are trademarks or registered trademarks of their respective companies.
ELATION PROFESSIONAL and all a󰤳liated companies hereby disclaim any and all liabilities
for property, equipment, building, and electrical damages, injuries to any persons, and direct
or indirect economic loss associated with the use or reliance of any information contained
within this document, and/or as a result of the improper, unsafe, insu󰤳cient and negligent
assembly, installation, rigging, and operation of this product.
Due to additional product features and/or enhancements, an
updated version of this document may be available online.
Please scan the QR Code with your mobile device or visit
www.elationlighting.eu for the latest revision/update of this
manual, before installation and/or programming.
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | [e-mail]
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
[phone] | [phone] fax | www.elationlighting.eu | [e-mail]
Elation Professional Mexico
AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
Date Document
Version
Software
Version DMX Channel Mode Notes
04/04/22 1.0 1.0.1A 1 / 6 / 11 / 18 / 9 /
14 ch. Initial Release
DOCUMENT VERSION

3
CONTENTS
General Information 4
Limited Warranty 5
Safety Guidelines 6
Maintenance Guidelines 8
Overview 9
Installation Instructions 10
Accessory Installation 14
Remote Device Management (RDM) 16
System Menu 17
Encoder Knobs 21
DMX Traits 22
Color Temperature Table 27
Virtual Colors 28
Specifications 29
Dimensional Drawings 30

4
INTRODUCTION
Please read and understand the instructions in this manual carefully and thoroughly before
attempting to operate this device. These instructions contain important safety and use infor-
mation. This device is intended for use by professionals only, and is not suitable for private
use.
UNPACKING
Every device has been thoroughly tested and has been shipped in perfect operating condition.
Carefully check the shipping carton for damage that may have occurred during shipping. If the
carton is damaged, carefully inspect the device for damage, and be sure all accessories neces-
sary to install and operate the device have arrived intact. In the event that damage has been
found or parts are missing, please contact our customer support team for further instructions.
Please do not return this device to your dealer without 󰤱rst contacting customer support.
Please do not discard the shipping carton in the trash. Please recycle whenever possible.
BOX CONTENTS
Power Cable (x1)
Gel Filter (x1)
Barndoor (x1)
IP RATING
An IP rated lighting fixture has been designed with an enclosure that effectively protects the
ingress (entry) of external foreign objects such as dust and/or water. The Ingress Protection
(IP) rating system is commonly expressed as “IP” followed by two numbers (i.e. IP20), where
the numbers define the degree of protection. The first digit (Foreign Bodies Protection) indi-
cates the extent of protection against particles entering the fixture and the second digit
(Water Protection) indicates the extent of protection against water entering the fixture.
An IP20 rated lighting fixture, such as this one, has been designed and tested to pro-
tect against the ingress of solids as small as the size of an adult finger (approximately
12.5mm), but is NOT protected against liquid intrusion of any kind.
CUSTOMER SUPPORT - Contact ELATION Service for any product related service and support
needs. Also visit forums.elationlighting.com with questions, comments, or suggestions.
ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
323-582-3322 | Fax [phone] | [e-mail]
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
[phone] | Fax [phone] | [e-mail]
REPLACEMENT PARTS please visit parts.elationlighting.com
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY
REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY.
DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE
DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE
MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/
OR REPAIRS.
GENERAL INFORMATION

5
A. Elation Professional hereby warrants, to the original purchaser, Elation Professional products to be
free of manufacturing defects in material and workmanship for a period of two years (730 days), and
Elation Professional product rechargeable batteries to be free of manufacturing defects in material
and workmanship for a period of six months (180 days), from the original date of purchase. This war-
ranty excludes discharge lamps and all product accessories. This warranty shall be valid only if the
product is purchased within the United States of America, including possessions and territories. It is
the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the
time service is sought.
B. For warranty service, send the product only to the Elation Professional factory. All shipping charges
must be pre-paid. If the requested repairs or service (including parts replacement) are within the
terms of this warranty, Elation Professional will pay return shipping charges only to a designated point
within the United States. If any product is sent, it must be shipped in its original package and packag-
ing material. No accessories should be shipped with the product. If any accessories are shipped with
the product, Elation Professional shall have no liability what so ever for loss and/or or damage to any
such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the prod-
uct is modified in any manner which Elation Professional concludes, after inspection, affects the
reliability of the product; if the product has been repaired or serviced by anyone other than the
Elation Professional factory unless prior written authorization was issued to purchaser by Elation
Professional; if the product is damaged because not properly maintained as set forth in the product
instructions, guidelines and/or user manual.
D. This is not a service contract, and this warranty does not include any maintenance, cleaning or periodic
check-up. During the periods as specified above, Elation Professional will replace defective parts at
its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in
material or workmanship. The sole responsibility of Elation Professional under this warranty shall be
limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of
Elation Professional. All products covered by this warranty were manufactured after January 1, 1990,
and bare identifying marks to that effect.
E. Elation Professional reserves the right to make changes in design and/or performance improvements
upon its products without any obligation to include these changes in any products theretofore manu-
factured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied
with the products described above. Except to the extent prohibited by applicable law, all implied war-
ranties made by Elation Professional in connection with this product, including warranties of mer-
chantability or fitness, are limited in duration to the warranty periods set forth above. And no war-
ranties, whether expressed or implied, including warranties of merchantability or fitness, shall apply
to this product after said periods have expired. The consumer’s and/or dealer’s sole remedy shall be
such repair or replacement as is expressly provided above; and under no circumstances shall Elation
Professional be liable for any loss and/or damage, direct and/or consequential, arising out of the use
of, and/or the inability to use, this product.
G. This warranty is the only written warranty applicable to Elation Professional products and supersedes
all prior warranties and written descriptions of warranty terms and conditions heretofore published.
WARRANTY RETURNS
All returned service items whether under warranty or not, must be freight pre-paid and accompanied by a
return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return
package. A brief description of the problem, as well as the R.A. number, must also be written down on a
piece of paper and included in the shipping container. If the unit is under warranty, you must provide a
copy of your proof of purchase invoice. Items returned without an R.A. number clearly marked on the out-
side of the package will be refused and returned at customer’s expense. You may obtain an R.A. number by
contacting customer support.
LIMITED WARRANTY

6
SAFETY GUIDELINES
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation,
it is important to follow all instructions and guidelines in this manual. Elation Professional
is not responsible for injury and/or damages resulting from the misuse of this fixture due to
the disregard of the information printed in this manual. Only qualified and/or certified per-
sonnel should perform installation of this fixture and only the original rigging parts included
with this fixture should be used for installation. Any modifications to the fixture and/or the
included mounting hardware will void the original manufacturer’s warranty and increase the
risk of damage and/or personal injury.
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT
ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR
MANUFACTURER’S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS
TO THIS DEVICE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND
GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER’S WARRANTY AND
ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.
DO NOT PLUG THIS UNIT INTO A DIMMER PACK!
NEVER OPERATE THIS UNIT WITH THE CASING REMOVED!
DISCONNECT POWER BEFORE PERFORMING MAINTENANCE!
NEVER TOUCH DURING OPERATION, AS FIXTURE SURFACES MAY BE HOT!
KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
FOR USE IN INDOOR OR DRY LOCATIONS ONLY!
DO NOT EXPOSE TO RAIN AND/OR MOISTURE!
MINIMUM DISTANCE TO OBJECTS/SURFACES IS 1.0 FOOT (0.3 METER)
MINIMUM DISTANCE TO FLAMMABLE MATERIALS IS 1.6 FEET (0.5 METER)
MAXIMUM AMBIENT OPERATING TEMPERATURE IS 113° F (45° C)
THIS FIXTURE IS IP20 RATED, AND HAS BEEN DESIGNED AND TESTED TO PRO-
TECT AGAINST THE INGRESS OF SOLIDS AS SMALL AS THE SIZE OF AN ADULT
FINGER (APPROXIMATELY 12.5MM), BUT IS NOT PROTECTED AGAINST LIQUID
INTRUSION OF ANY KIND.

7
DO NOT TOUCH the 󰤱xture housing during operation.
DO NOT shake 󰤱xture, and avoid brute force when installing and/or operating 󰤱xture.
DO NOT operate 󰤱xture if the power cord is frayed, crimped, damaged and/or if any of the power
cord connectors are damaged or do not 󰤱t into the 󰤱xture securely with ease.
NEVER force a power cord connector into the 󰤱xture. If the power cord or any of its connectors
are damaged, replace it immediately with a new one of the same power rating.
DO NOT block any air ventilation slots. All fan and air inlets must remain clean and never blocked.
Allow approx. 6” (15cm) between 󰤱xture and other devices or a wall for proper cooling.
TURN OFF the power and allow approximately 15 minutes for the 󰤱xture to cool down before
servicing.
ALWAYS disconnect 󰤱xture from power before performing any service and/or cleaning procedure.
ONLY handle power cord by the plug end. Never pull plug out by tugging the wire portion of the
cord.
During the initial operation of this 󰤱xture, a light smoke or smell may emit from the interior of
the 󰤱xture. This is a normal process and is caused by excess paint in the interior of the casing
burning o󰤰 from the heat associated with the LED and will decrease gradually over time.
Consistent operational breaks will ensure 󰤱xture will function properly for many years.
ONLY use the original packaging and materials to transport the 󰤱xture for service.
SAFETY GUIDELINES

8
MAINTENANCE GUIDELINES
DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!
CLEANING
Frequent cleaning is recommended to ensure proper function, optimized light output, and an
extended life. The frequency of cleaning depends on the environment in which the fixture
operates: damp, smoky, or particularly dirty environments can cause greater accumulation of
dirt on the fixture’s optics. Clean periodically with a soft cloth to avoid dirt/debris accumu-
lation.
NEVER use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to ensure proper function and extended life. There are
no user serviceable parts inside this fixture. Please refer all service issues to an authorized
Elation service technician. Should you need any spare parts, please order genuine parts from
an authorized Elation dealer.
Please refer to the following points during routine inspections:
• A detailed electrical check by an approved electrical engineer every three months, to
make sure the circuit contacts are in good condition and prevent overheating.
• Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall
out during normal operation, resulting in damage or injury as larger parts could fall.
• Check for any deformations on the housing, color lenses, rigging hardware, and rigging
points (ceiling, suspension, trussing). Deformations in the housing could allow for dust to
enter into the fixture. Damaged rigging points or unsecured rigging could cause the fix-
ture to fall and seriously injure a person(s).
• Electric power supply cables must not show any damage, material fatigue, or sediments.
NEVER remove the ground prong from the power cable.

9

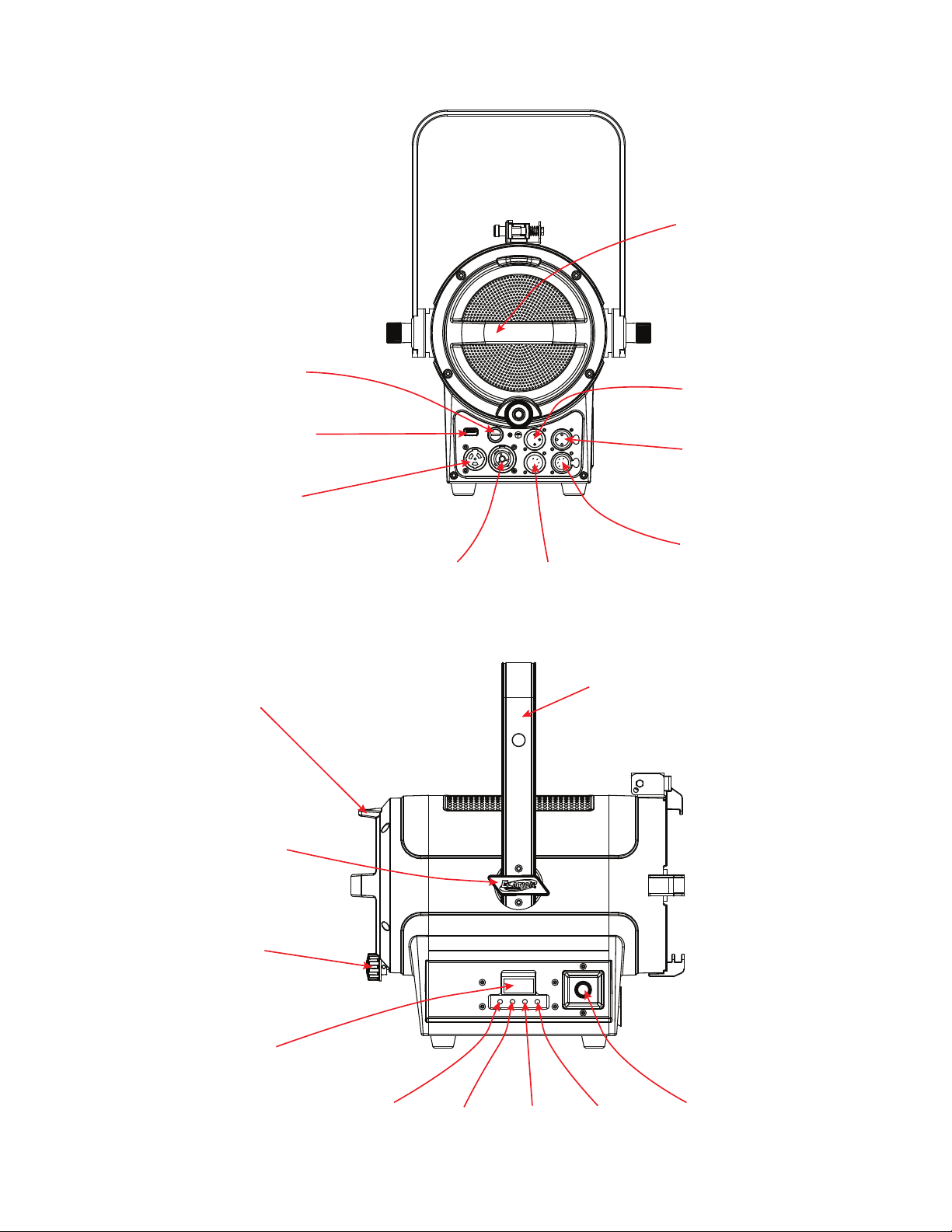

OVERVIEW
Service
Port
Fuse
Power
In
Power
Out
5-pin
DMX In
5-pin
DMX Out
3-pin
DMX Out
3-pin
DMX In
Mode
Button
Display
Screen
Control
Knob
Bracket
Adjustment
Knob
Mounting
Bracket
Down
Button
Up
Button
Enter
Button
Carrying
Handle
Zoom
Knob
Safety
Cable
Loop

10
INSTALLATION INSTRUCTIONS
FLAMMABLE MATERIAL WARNING
Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or
pyrotechnics.
ELECTRICAL CONNECTIONS
A qualified electrician should be used for all electrical connections and/or
installations.
Fixture MUST be installed following all local, national, and country commercial electrical and
construction codes and regulations.
Before rigging/mounting a single fixture or multiple fixtures to any metal truss/structure or
placing the fixture(s) on any surface, a professional equipment installer MUST be consulted
to determine if the metal truss/structure or surface is properly certified to safely hold the
combined weight of the fixture(s), clamps, cables, and accessories.
Maximum fixture ambient operating temperature is 113°F (45°C). Do not operate this fixture
when ambient temperature exceeds this rating.
Overhead rigging requires extensive experience, including calculating working load limits,
knowledge of installation material being used, and periodic safety inspection of all installa-
tion material and the fixture. If you lack these qualifications, do not attempt the installation
yourself. Improper installation can result in bodily injury.
Fixture(s) should be installed in areas outside walking paths, seating areas, or areas where
unauthorized personnel might reach the fixture by hand.
NEVER stand directly below the fixture(s) when rigging, removing, or servicing.
Overhead fixture installation must always be secured with a secondary safety attachment,
such as an appropriately rated safety cable.
Allow approximately 15 minutes for the fixture to cool down before serving.
INDOOR USE ONLY! THIS DEVICE IS NOT INTENDED FOR OUTDOOR USAGE, OR
EXPOSURE TO RAIN OR MOISTURE! USE OF THIS DEVICE OUTDOORS VOIDS
YOUR MANUFACTURER’S WARRANTY!
MINIMUM DISTANCE TO OBJECTS/SURFACES IS 1 FOOT (0.3 METERS)
MINIMUM DISTANCE TO FLAMMABLE MATERIALS IS 1.6 FEET (0.5 METERS)
MAXIMUM AMBIENT OPERATING TEMPERATURE IS 113° F (45° C)
DO NOT PERFORM THE INSTALLATION YOURSELF IF YOU ARE NOT QUALIFIED
TO DO SO!

11
INSTALLATION
RIGGING
Overhead rigging requires extensive experience, including calculating working load limits,
knowledge of installation material being used, and periodic safety inspection of all instal-
lation material and the fixture, among other things. If you lack these qualifications, do not
attempt the installation yourself. Improper installation can result in bodily injury.
CLAMP INSTALLATION
The included yoke bracket features a built-in attachment point for a mounting clamp. The
fixture itself also features a safety cable loop, located near the top of the rear panel, as
shown in the illustration below. Please note that the designated safety cable loop is the
only safe location to attach a safety cable! Never attach a safety cable to the mounting
clamp bracket!
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A
SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL NOT FALL IF
THE CLAMP FAILS.
MOUNTING CLAMP
ATTACHMENT POINT
SAFETY
CABLE
LOOP

12
INSTALLATION

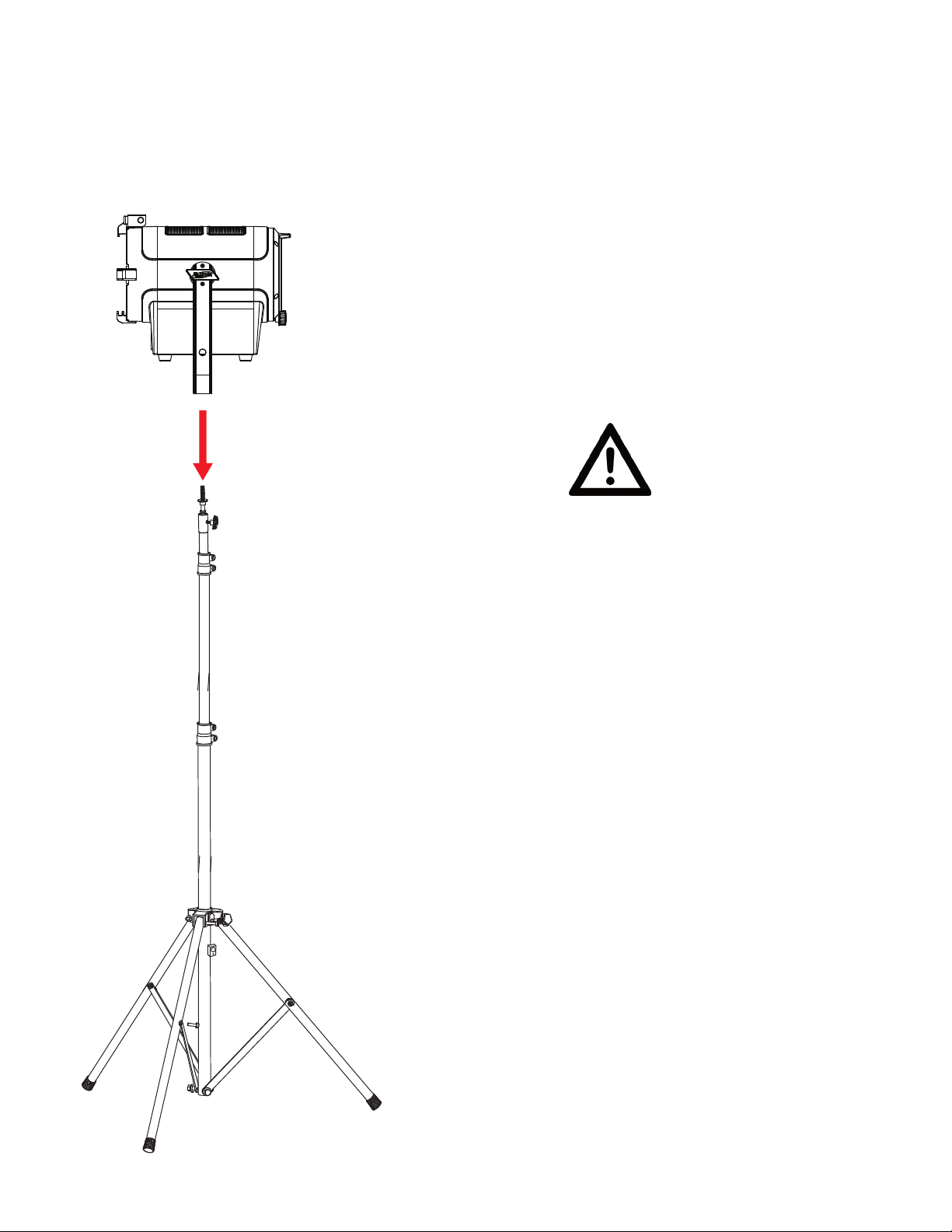

STAND MOUNTING
This unit can also be installed atop a tripod stand. Simply insert the threaded bolt on the top
of the tripod stand through the hole in the top of the mounting yoke. Tighten the nut onto
the threaded bolt to secure the mounted device in place.
CAUTION!
MAKE SURE THAT THE TRIPOD LEGS AND ALL
TELESCOPING ELEMENTS OF THE TRIPOD STAND
ARE LOCKED IN PLACE BEFORE INSTALLING THE
DEVICE ATOP THE STAND!
POSITION THE TRIPOD STAND AND MOUNTED
DEVICE ONLY ON FLAT, STABLE SURFACES! DE-
PLOY TRIPOD LEGS FULLY IN ORDER TO MAXI-
MIZE STABILITY!

13
INSTALLATION

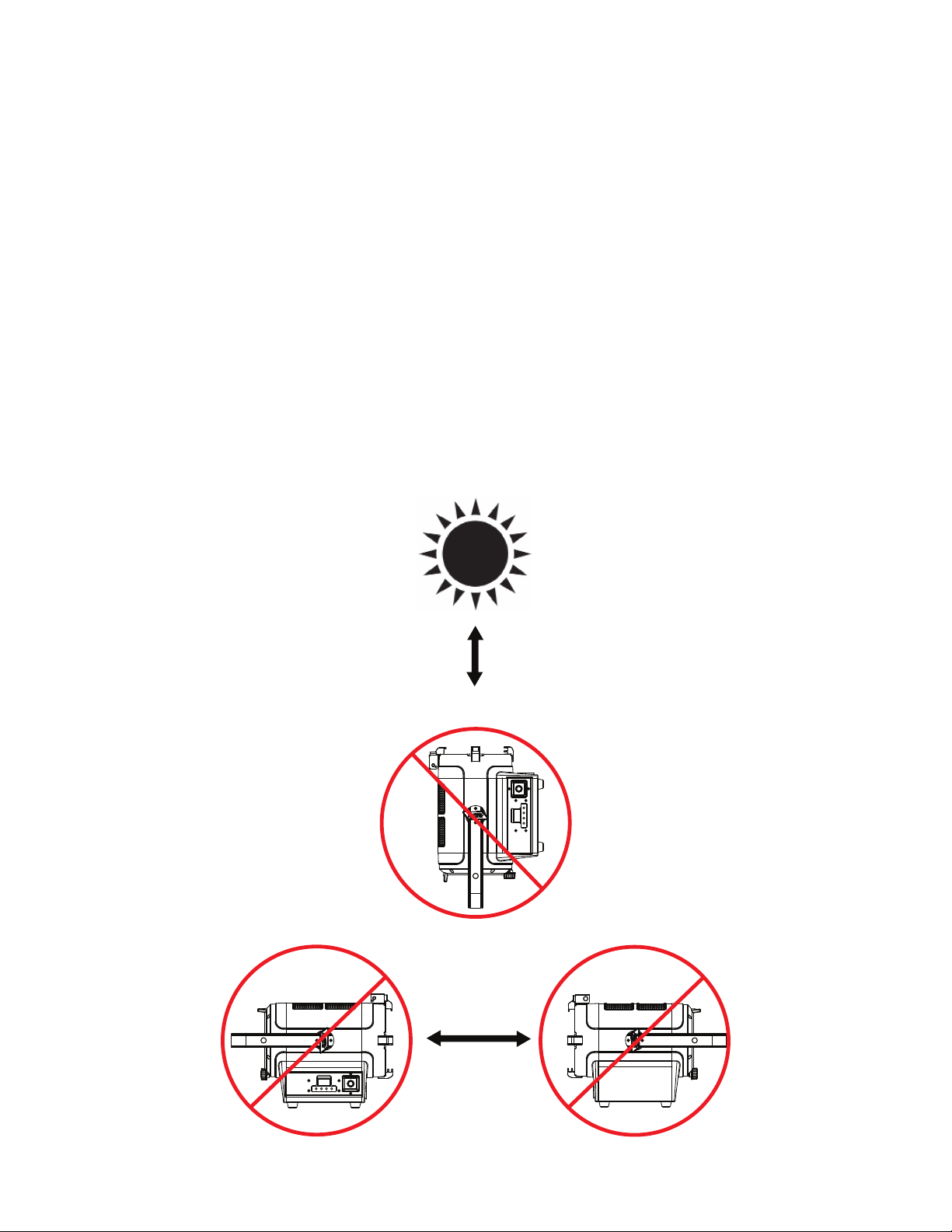

POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS
External sources of light beams from direct sunlight, moving head lighting fixtures, and
lasers which are focused directly towards the exterior housing and/or penetrate the front
lens opening of Elation lighting fixtures can cause severe internal damage, including burning
of optics, dichroic color filters, glass and metal gobos, prisms, animation wheels, frost fil-
ters, irises, shutters, motors, belts, wiring, discharge lamps, and LEDs.
This issue is not unique to Elation lighting fixtures, but rather it is a common issue with
lighting fixtures from all manufacturers. Although there is no true way to completely prevent
this issue from occurring, the guidelines below can reduce the risk of any potential damage if
followed. Contact Elation Service for more details.
DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS FROM
DIRECT SUNLIGHT, OTHER LIGHTING OR MOVING HEAD FIXTURES, AND LASERS DURING
UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES OUTDOORS. DO NOT
FOCUS A LIGHT BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.

14
ACCESSORY INSTALLATION

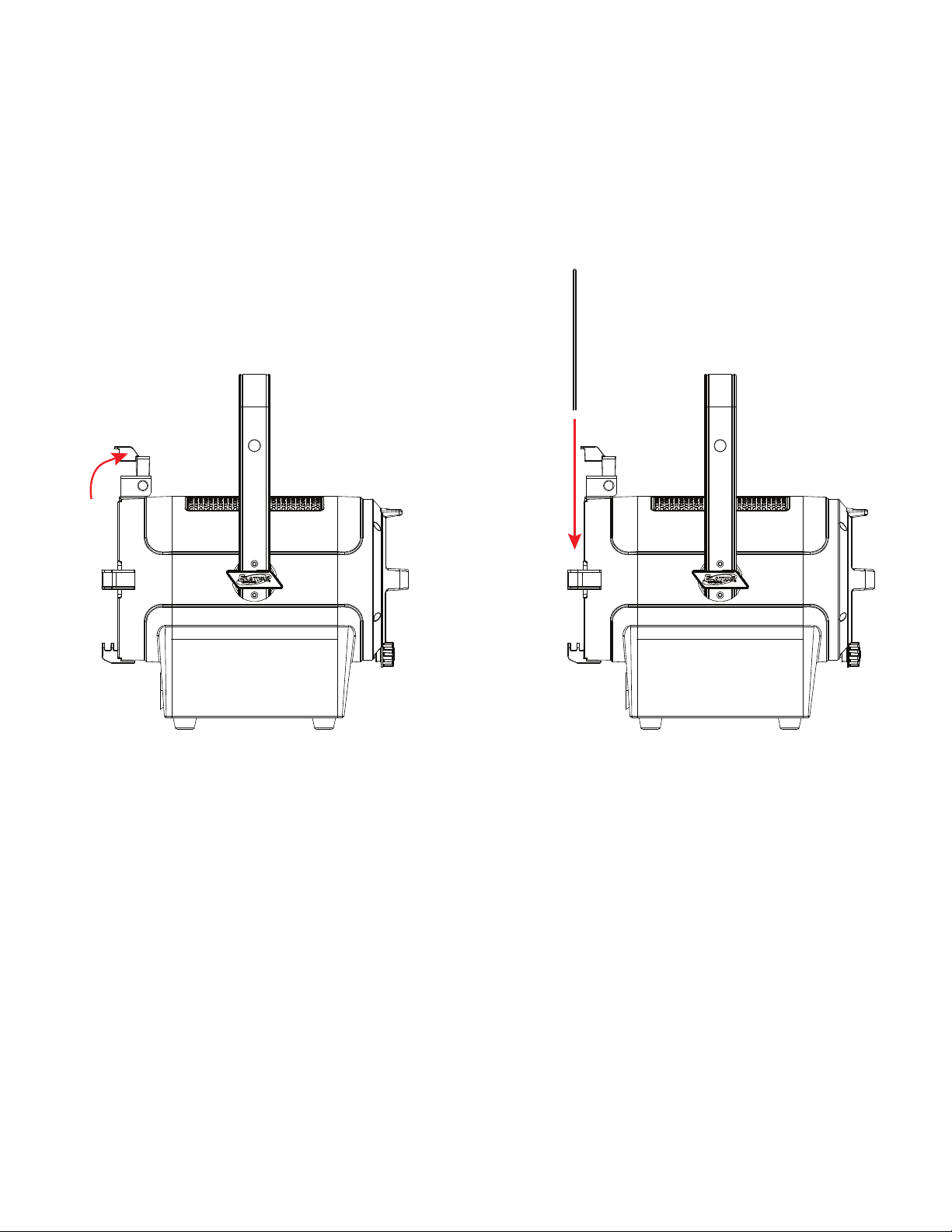

GEL FILTER
This unit includes a gel filter accessory that can be installed or removed. To install, find the
lens frame latch positioned at the top of the lens, press the locking mechanism to unlock the
latch, and swing the latch upwards (below left). Then simply slide the gel frame into the lens
frame (below right), making sure to use the frame slot that is closest to the lens. Flip the
lens frame latch back down to secure the gel frame in place.

15
ACCESSORY INSTALLATION
BARNDOORS
This unit includes a barndoor accessory that can be installed or removed. To install, 󰤱rst 󰤱nd
the lens frame latch located at the top of the lens frame. Press the locking mechanism to
unlock the latch, then swing the latch upwards (below left). Slide the barndoor into an open
lens frame slot (below middle). Flip the lens frame latch back down to secure the barndoor in
place, then open the barndoor by pulling outward on the panels (below right).

16
REMOTE DEVICE MANAGEMENT (RDM)
NOTE: In order for RDM to work properly, RDM enabled equipment must be used through-
out the entire system, including DMX data splitters and wireless systems.
Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data stan-
dard for lighting, allowing the DMX systems of the fixtures to be modified and monitored
remotely. This protocol is ideal for instances in which a unit is installed in a location that is
not easily accessible.
With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled
controller to send out a signal to devices on the wire, as well as allowing the fixture to
respond (known as a GET command). The controller can then use its SET command to modify
settings that would typically have to be changed or viewed directly via the unit’s display
screen, including the DMX Address, DMX Channel Mode, and Temperature Sensors.
Please be aware that not all RDM devices support all RDM features, and therefore it
is important to check beforehand to ensure that the equipment that you are considering
includes all of the features that you require.
The following parameters are accessible in RDM on this device:
Proxied Device Coint Device Power Cycles
Sensor De󰤱nition Pan Invert
Sensor Value Tilt Invert
Device Model Description Pan Tilt Swap
Manufacturer Label Display Invert
Device Label Display Level
DMX Personality Realtime Clock
DMX Personality Description Power State
Device Hours Preset Playback
Comms Status Default Slot Value
Status ID Description Language
Clear Status ID Language Capabilities
Lamp Hours Boot Software Version Label
Lamp Strikes Boot Software Version ID
Lamp State Product Detail ID List
Lamp Mode Status Messages

17
SYSTEM MENU

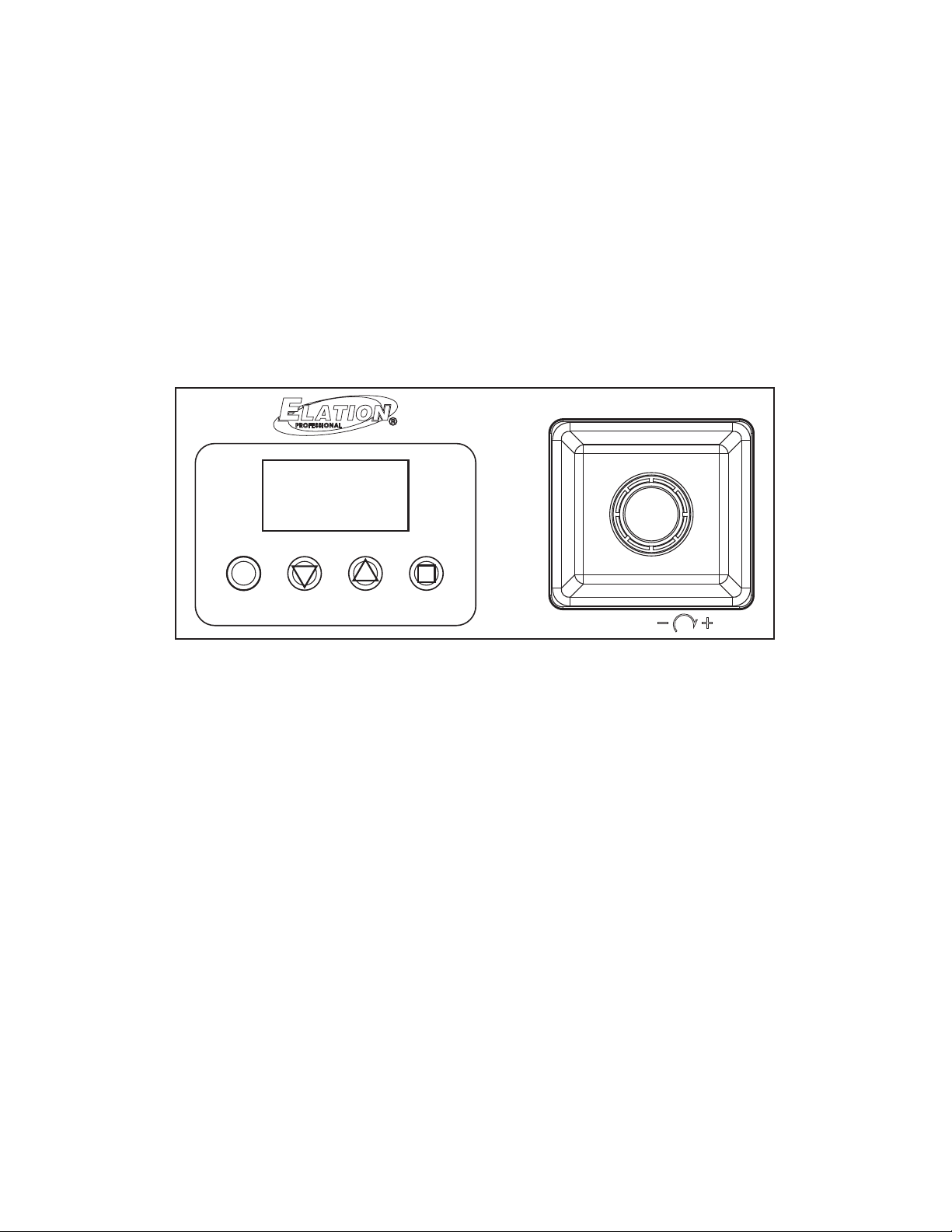

The 󰤱xture includes an easy to navigate system menu. The control panel display located on
the side of the 󰤱xture (illustrated below) provides access to the main system menu where all
necessary system adjustments are made to the 󰤱xture.
• During normal operation, pressing the MODE button once will access the 󰤱xture’s main
menu.
• Once in the main menu you can navigate through the di󰤰erent functions and access the
sub-menus with the DOWN and UP buttons.
• Once you reach a 󰤱eld that requires adjusting, press the ENTER button to activate that
󰤱eld and use the DOWN and UP buttons to adjust the 󰤱eld.
• Pressing the ENTER button once more will con󰤱rm the setting.
• Exit the main menu at any time without making any adjustments by pressing the MODE
button.
SCREEN LOCK
The screen will lock after a certain period of inactivity. The length of this time period is
con󰤱gurable in the System Menu, under Personality > Display > Display Screen Lock. To unlock
the screen, press and hold the MODE button for 3 seconds.
WHITE BALANCE
The white balance menu can be accessed by pressing and holding the MODE, DOWN, and UP
buttons simultaneously for 3 seconds. Please note that in this mode, the Color menu will be
disabled, and the ColorTemp menu adjusts the color temperature white balance.
CONTROL KNOB
This device features an encoder knob located to the right of the display screen, which is
labeled “CTRL.” This encoder knob can be used to manually adjust dimming, CCT green shift,
color saturation, or manual control. Twisting the knob will scroll through modes and sub-
modes, or adjust the value of the select sub-mode, while pressing the button con󰤱rms the
selection. Please see the Encoder Knobs section of this manual for detailed information.
MODE DOWN UP ENTER
CTRL

18
SYSTEM MENU
ENCODER
MODE
Disabled
Dimmer
Int CCT Grn
Int Color Sat
Manual Control
DMX
SETTINGS
DMX Address 001 - 512
DMX Mode
1ch Dimmer
6ch Dimmer Color
11ch Standard
18ch Extended
9ch CMY
14ch CMY Extended
No DMX
Status
Hold Last De󰤱nes reac-
tion to loss or
interruption
of DMX signal
Fade to Black
Standalone
STANDALONE
Dimmer 0% - 100%
CCT 2400K - 8500K Default =
6000K
Green Shift -100% - 100% Default = 0%
Virtual Color Color01 - Color53
Built in color
program, see
Virtual Col-
ors section of
this manual
PERSONAL-
ITY
Primary On / O󰤰
Secondary On / O󰤰
Dim Mode
Standard
Stage
TV
Architectural
Theatre
Stage 2
Dim Speed 0.0s - 10s Default =
0.1s
Dim Curves
Linear
Square
Square Inverse
S-Curve
CONTINUED ON NEXT PAGE

19
SYSTEM MENU
PERSONAL-
ITY
(continued)
LED Refresh
Rate
900-1500Hz, 2500Hz, 4000Hz, 5000Hz,
6000Hz, 10KHz, 15KHz, 20KHz, 25KHz
Default =
1200Hz
LED Power
Limit
50%
60%
70%
80%
90%
100%
Fan Mode
Auto
Silent
High
Display
Screen Delay 10s - 5min
Screen re-
turns to home
page after
a period of
inactivity;
default =
1min
Screen Lock O󰤰, 10s - 5min
Rotate
Display
Yes
No
Auto
Screen au-
tomatically
rotates to
keep display
oriented up-
right
Service Passcode =
050
Calibration
Red 50-255
Green 50-255
Blue 50-255
...
Update Soft-
ware Yes / No
Factory Re-
store Yes / No
Edit RDM UID xxxxxx
CONTINUED ON NEXT PAGE

20
SYSTEM MENU
INFORMA-
TION
Life Time xxxxxx h
Total run
hours. Not
resettable
Last Run Time xxxxxx h
Run hours
since last
reset
Time Reset Passcode = 038 Reset run
hours
Temperature
Current Current temp
reading
Max Resettable
Max temp
since last
reset
Reset Passcode = 038 Reset max
temp
DMX Values
R: xxx
G: xxx
B: xxx
...
Product IDs RDM UID xxxxxx
Error Logs
Fixture Errors (display one by one)
Reset Error
Log No / Yes Passcode = 050
Software
Version Vx.x.x
