Elation PROTHEUS HYBRID User manual

ELATION |PROTEUS HYBRID |user manual

2
©2018 ELATION PROFESSIONAL all rights reserved. Information, specifications, diagrams,
images, and instructions herein are subject to change without notice. ELATION
PROFESSIONAL logo and identifying product names and numbers herein are trademarks of
ELATION PROFESSIONAL. Copyright protection claimed includes all forms and matters of
copyrightable materials and information now allowed by statutory or judicial law or
hereinafter granted. Product names used in this document may be trademarks or registered
trademarks of their respective companies and are hereby acknowledged. All non-ELATION
brands and product names are trademarks or registered trademarks of their respective
companies.
ELATION PROFESSIONAL and all affiliated companies hereby disclaim any and all liabilities
for property, equipment, building, and electrical damages, injuries to any persons, and direct
or indirect economic loss associated with the use or reliance of any information contained
within this document, and/or as a result of the improper, unsafe, insufficient and negligent
assembly, installation, rigging, and operation of this product.
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 |323-832-9142 fax | www.elationlighting.com |[e-mail]
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
[phone] |[phone] fax |www.elationlighting.eu | [e-mail]
Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated
version of this document may be available online.
Please check www.elationlighting.com for the latest revision/update of this
manual, before beginning installation and/or programming.
Date
Document
Version
Software
Version ≥
DMX
Channel
Modes
Notes
07/07/17
1
1.3.1A
24 / 26 / 37
Initial release.
08/17/17
1.2
N/C
N/C
Updated error codes, rigging illustration.
12/03/17
1.4
N/C
N/C
Updated installation, E-Fly, and gobo sections.
01/03/18
1.6
1.6.0
N/C
Updated system menus, added Movement and Focus
Zoom Speed controls.
07/2718
1.8
1.62
N/C
Added dimming curves to DMX channels 24/26/37.
08/15/18
1.9
N/C
N/C
Added POTENTIAL INTERNAL FIXTURE DAMAGE FROM
EXTERNAL SOURCES OF LIGHT BEAMS section.

3
CONTENTS
General Information
4
Limited Warranty (USA Only)
6
Safety Instructions and Guidelines
7
Discharge Lamp Warning
9
Overview
10
Lamp Installation
11
Gobo Installation
13
Fixture Installation
16
Fixture Menu
21
E-FLY Wireless DMX Set Up
27
DMX Channel Functions And Values
29
Error Codes
37
Cleaning and Maintenance
42
Techni cal S peci fi cati on s
43
Optional Accessories
46

4
GENERAL INFORMATION
INTRODUCTION
This fixture has been designed to perform reliably for years when the guidelines in this
booklet are followed. Please read and understand the instructions in this manual carefully
and thoroughly before attempting to operate this unit. These instructions contain important
information regarding safety during use and maintenance.
IP65 RATED
An IP rated lighting fixture is one, which is commonly installed in outdoor environments and
has been designed with an enclosure that effectively protects the ingress (entry) of external
foreign objects such as dust and water. The International Protection (IP) rating system is
commonly expressed as "IP" (Ingress Protection) followed by two numbers (i.e. IP65) where
the numbers define the degree of protection. The first digit (Foreign Bodies Protection)
indicates the extent of protection against particles entering the fixture and the second digit
(Water Protection) indicates the extent of protection against water entering the fixture.
An IP65 rated lighting fixture is one, which has been designed and tested to protect against
the ingress of dust (6) and high-pressure water jets from any direction (5).
ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED
WITH A DIELECTRIC GREASE (AVAILABLE AT MOST ELECTRICAL
SUPPLIERS) TO PREVENT WATER CORROSION AND/OR ELECTRICAL
SHORT CIRCUIT.
UNPACKING
Every fixture has been thoroughly tested and has been shipped in perfect operating
condition. Carefully check the shipping carton for damage that may have occurred during
shipping. If the carton appears to be damaged, carefully inspect your unit for damage and
be sure all accessories necessary to operate the unit have arrived intact. In the event
damage has been found or parts are missing, please contact our customer support team for
further instructions. Please do not return this unit to your dealer without first contacting
customer support at the number listed below. Please do not discard the shipping carton in
the trash. Please recycle whenever possible.
BOX CONTENTS
(1) powerCON TRUE1 Cable
(1) IP Rated 5pin DMX Cable
(1) IP Rated etherCON Cable
(1) Safety Cable
(2) Omega Brackets

5
CUSTOMER SUPPORT
Elation Professional provides a customer support line, to provide set up help and to answer
any question should you encounter problems during your set up or initial operation. You may
also visit us on the web at www.elationlighting.com for any comments or suggestions. For
service related issue please contact Elation Professional.
ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST
Voice: 323-582-3322 Fax: [phone]
E-mail: [e-mail]
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: [phone] Fax: [phone]
E-mail: [e-mail]
WARRANTY RETURNS
All returned service items whether under warranty or not, must be freight pre-paid and
accompany a return authorization (R.A.) number. The R.A. number must be clearly written
on the outside of the return package. A brief description of the problem as well as the R.A.
number must also be written down on a piece of paper and included in the shipping
container. If the unit is under warranty, you must provide a copy of your proof of purchase
invoice. Items returned without a R.A. number clearly marked on the outside of the package
will be refused and returned at customer’s expense. You may obtain a R.A. number by
contacting customer support.
IMPORTANT NOTICE!
THIS FIXTURE CAN ONLY BE SERVICED BY AN AUTHORIZED ELATION TRAINED
PROTEUS HYBRID SERVICE TECHNICIAN. THERE ARE NO END USER SERVICEABLE
PARTS, DO NOT ATTEMPT ANY REPAIRS WITHOUT BEING AUTHORIZED; DOING SO
WILL VOID THE MANUFACTURER WARRANTY. DAMAGES OR ANY REPAIRS
RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR DISREGARD OF THE
SAFETY INSTRUCTIONS AND OPERATION GUIDELINES IN THIS USER MANUAL
VOIDS THE MANUFACTURER WARRANTY AND ARE NOT SUBJECT TO ANY
WARRANTY CLAIMS AND/OR REPAIRS.

6
LIMITED WARRANTY (USA ONLY)
A. Elation Professional hereby warrants, to the original purchaser, Elation Professional products to be free of
manufacturing defects in material and workmanship for a period of two years (730 days), and Elation
Professional product rechargeable batteries to be free of manufacturing defects in material and workmanship
for a period of six months (180 days), from the original date of purchase. This warranty excludes discharge
lamps and all product accessories. This warranty shall be valid only if the product is purchased within the
United States of America, including possessions and territories. It is the owner’s responsibility to establish the
date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must
be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this
warranty, Elation Professional will pay return shipping charges only to a designated point within the United
States. If any product is sent, it must be shipped in its original package and packaging material. No accessories
should be shipped with the product. If any accessories are shipped with the product, Elation Professional shall
have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is
modified in any manner which Elation Professional concludes, after inspection, affects the reliability of the
product; if the product has been repaired or serviced by anyone other than the Elation Professional factory
unless prior written authorization was issued to purchaser by Elation Professional; if the product is damaged
because not properly maintained as set forth in the product instructions, guidelines and/or user manual.
D. This is not a service contract, and this warranty does not include any maintenance, cleaning or periodic
check-up. During the periods as specified above, Elation Professional will replace defective parts at its expense,
and will absorb all expenses for warranty service and repair labor by reason of defects in material or
workmanship. The sole responsibility of Elation Professional under this warranty shall be limited to the repair
of the product, or replacement thereof, including parts, at the sole discretion of Elation Professional. All
products covered by this warranty were manufactured after January 1, 1990, and bare identifying marks to
that effect.
E. Elation Professional reserves the right to make changes in design and/or performance improvements upon
its products without any obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with
the products described above. Except to the extent prohibited by applicable law, all implied warranties made
by Elation Professional in connection with this product, including warranties of merchantability or fitness, are
limited in duration to the warranty periods set forth above. And no warranties, whether expressed or implied,
including warranties of merchantability or fitness, shall apply to this product after said periods have expired.
The consumer’s and/or dealer’s sole remedy shall be such repair or replacement as is expressly provided
above; and under no circumstances shall Elation Professional be liable for any loss and/or damage, direct
and/or consequential, arising out of the use of, and/or the inability to use, this product.
G. This warranty is the only written warranty applicable to Elation Professional products and supersedes all
prior warranties and written descriptions of warranty terms and conditions heretofore published.

7
SAFETY INSTRUCTIONS AND GUIDELINES
To guarantee a smooth operation, it is important to follow all instructions and guidelines in
this manual. Elation Professional is not responsible for injury and/or damages resulting
from the misuse of this fixture due to the disregard of the information printed in this
manual. Only qualified and/or certified personnel should perform installation of this fixture
and only the original rigging parts included with this fixture should be used for installation.
Any modifications to the fixture and/or the included mounting hardware will void the
original manufactures warranty and increase the risk of damage and/or personal injury.
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.
DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID
YOUR MANUFACTURES WARRANTY. DAMAGES RESULTING FROM
MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF
SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID
THE MANUFACTURES WARRANTY AND ARE NOT SUBJECT TO ANY
WARRANTY CLAIMS AND/OR REPAIRS.
DO NOT PLUG FIXTURE INTO A DIMMER PACK!
NEVER OPEN THIS FIXTURE WHILE IN USE!
UNPLUG POWER BEFORE SERVICING FIXTURE!
NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!
KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!
ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY
SEALED WITH A DIELECTRIC GREASE (AVAILABLE AT MOST
ELECTRICAL SUPPLIERS) TO PREVENT WATER CORROSION AND/OR
ELECTRICAL SHORT CIRCUIT.
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

8
SAFETY INSTRUCTIONS AND GUIDELINES
DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow
approximately 15 minutes for the fixture to cool down before serving.
DO NOT shake fixture, avoid brute force when installing and/or operating fixture.
DO NOT operate fixture if the power cord has become frayed, crimped, damaged and/or if any
of the power cord connectors are damaged and do not insert into the fixture securely with ease.
NEVER force a power cord connector into the fixture. If the power cord or any of its
connectors are damaged, replace it immediately with a new one of similar power rating.
DO NOT block any air ventilation slots, these must remain clean and never blocked.
Allow approx. 6” (15cm) between fixture and other devices or a wall for proper cooling.
When installing fixture in a suspended environment, always use mounting hardware that is no
less than M10 x 25 mm, and always attach an appropriately rated safety cable.
ALWAYS disconnect fixture from main power source before performing any type of service
and/or cleaning procedure. Only handle the power cord by the plug end, never pull out the
plug by tugging the wire portion of the cord.
During the initial operation of this fixture, a light smoke or smell may emit from the interior
of the fixture. This is a normal process and is caused by excess paint in the interior of the casing
burning off from the heat associated with the lamp and will decrease gradually over time.
Consistent operational breaks will ensure fixture will function properly for many years.
ONLY use the original packaging and materials to transport the fixture in for service.

9
DISCHARGE LAMP WARNING
This fixture is fitted with a DISCHARGE LAMP, which is highly
susceptible to damage if improperly handled. NEVER touch the
lamp with your bare hands, as the oil from your hands will shorten
the life of the lamp. Also, NEVER move the fixture until the lamp
has had ample time to cool. Lamps are NOT covered under
warranty conditions. Avoid switching the fixture ON and OFF
repeatedly in short intervals, as this will reduce lamp life and
intensity. To achieve the intensity associated with discharge
lamps, these lamps use gas sealed in a high-pressure
environment to emit a brilliant output.
Due to the high pressure involved with the construction of the lamp, the lamp MAY
EXPLODE DURING PROLONGED EXTENSIVE USE. This risk is increased with age;
added care is encouraged when dealing with older lamps. Thus, the lamp must always
be replaced at the end of their recommended duty cycle. Extreme caution should be
used when operating this or any fixture fitted with a gas discharge lamp.
UV RADIATION NOTICE
This fixture emits intense UV radiation, which is harmful to the
eyes and skin. The intense luminance of the lamp can cause
severe damage to the retina. NEVER operate this fixture with
ANY of the protective covers removed. These covers have been
specially designed to shield against UV radiation.
LAMP REPLACEMENT
Please note that due to the nature of the Philips™ Platinum
21R Lamp and the optical path of the fixture, the lamp MUST
BE replaced at 1,500 hours.
Use only Genuine Original Philips™ Platinum 21R Lamps.
Other brand lamps may cause damage and void warranty!

10

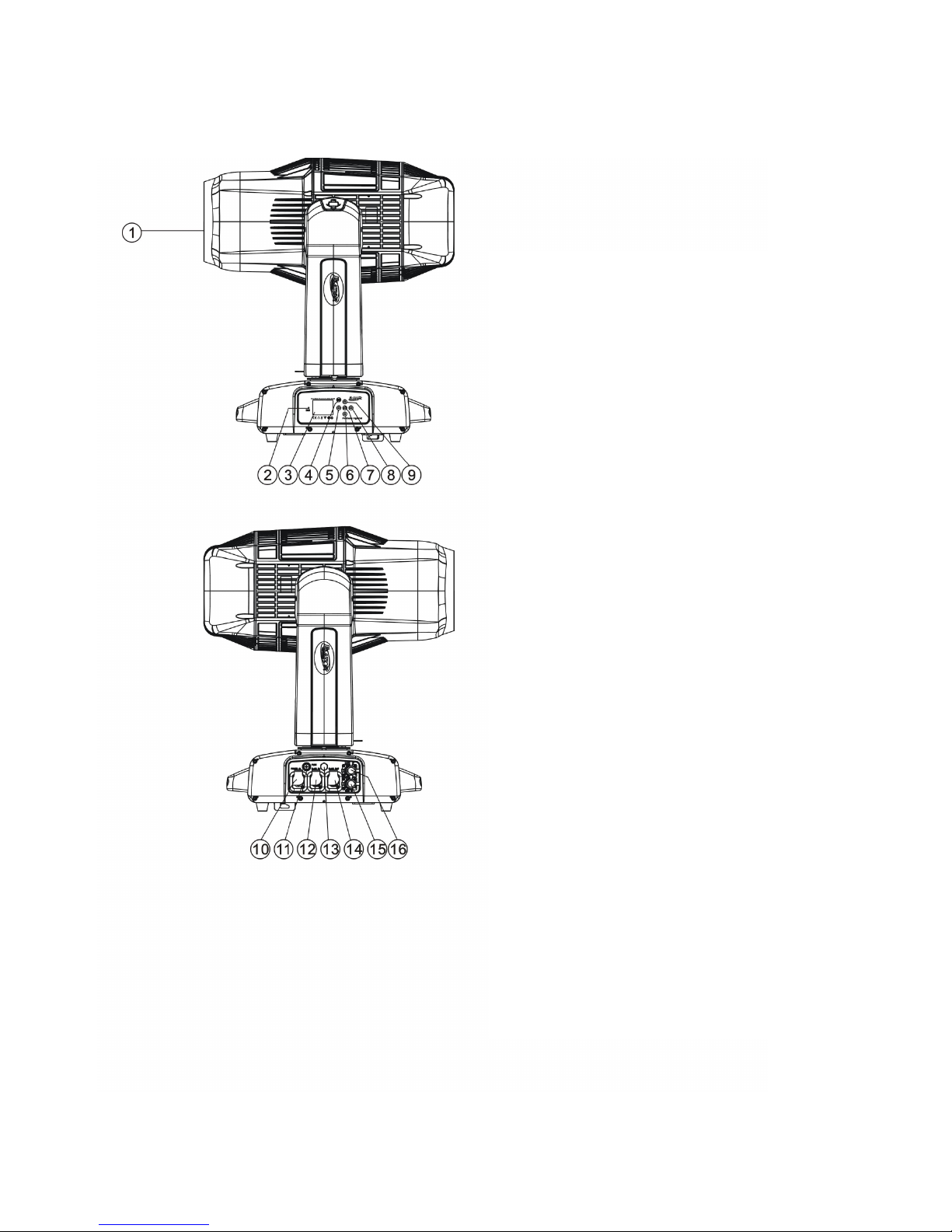

OVERVIEW
1. Lens
2. E-FLY Wireless DMX Indicator LED
3. LCD Menu Control Display
4. MODE/ESC Button
5. LEFT Button
6. DOWN Button
7. ENTER Button
8. RIGHT Button
9. UP Button
10. powerCON TRUE1 IN
11. Fuse
12. RJ45 Ethernet IN
13. Gore Valve
14. RJ45 Ethernet OUT
15. 5pin DMX IN
16. 5pin DMX OUT

11
LAMP INSTALLATION
LAMP REPLACEMENT
Please note that due to the nature of the Philips™ Platinum
21R Lamp and the optical path of the fixture, the lamp MUST
BE replaced at 1,500 hours.
Use only Genuine Original Philips™ Platinum 21R Lamps.
Other brand lamps may cause damage and void warranty!
INSTALLING OR REPLACING THE LAMP
To ensure a proper/safe lamp change, carefully read all the following instructions.
LAMP PROTECTION CIRCUITRY
Because of the nature of the extreme heat associated with the Philips™Platinum 21 R lamp
and the unique IP65 rated sealed optical system, it is IMPERATIVE that the lamp be
replaced at 1,500 Hours or sooner. This is done to protect the internal sealed optical system
as well as prevent accidental lamp explosion, which could lead to hot glass particles falling
from the fixture.
FAILURE TO CHANGE THE LAMP WITHIN 300 HOUR of the 1,500 HOUR RATED LIFE,
WILL CAUSE THE FIXTURE TO AUTOMATICALLY SHUT DOWN!
At 1,500 Hours the LCD control display will begin to flash, “Replace The Lamp” and the
lamp will flicker for the first five minutes of operation. At this point the lamp has reached the
maximum rated life and should be replaced immediately. After the lamp has flickered for
about five minutes it should strike normally allowing the fixture to be used temporarily until
a replacement lamp can be installed. The fixture will continue to operate for an additional
300 hours, however the “Replace the Lamp” warning will continue to flash in the display.
Keep in mind that the flicker protection circuitry will only work for about 300 Hours (lamp
clock life of 1,500-1,800 Hours).
After 1,800 Hours the fixture will no longer respond to DMX commands and immediately
enter a hibernation mode that will electronically discontinue all fixture functionality with the
exception of a few menu commands. The fixture will continue to enter hibernation mode
until the lamp is replaced and the lamp clock has been reset. To replace the lamp follow the
safety guidelines and procedures listed on the next page.

12
LAMP INSTALLATION [continued]
LAMP REPLACEMENT INSTRUCTIONS
PLEASE CONTACT ELATION SERVICE
ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST
Voice: 323-582-3322 Fax: [phone]
E-mail: [e-mail]
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: [phone] Fax: [phone]
E-mail: [e-mail]

13
GOBO INSTALLATION
ROTATING GOBO REPLACEMENT/INSTALLATION INSTRUCTIONS
PLEASE CONTACT ELATION SERVICE
ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST
Voice: 323-582-3322 Fax: [phone]
E-mail: [e-mail]
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: [phone] Fax: [phone]
E-mail: [e-mail]

14

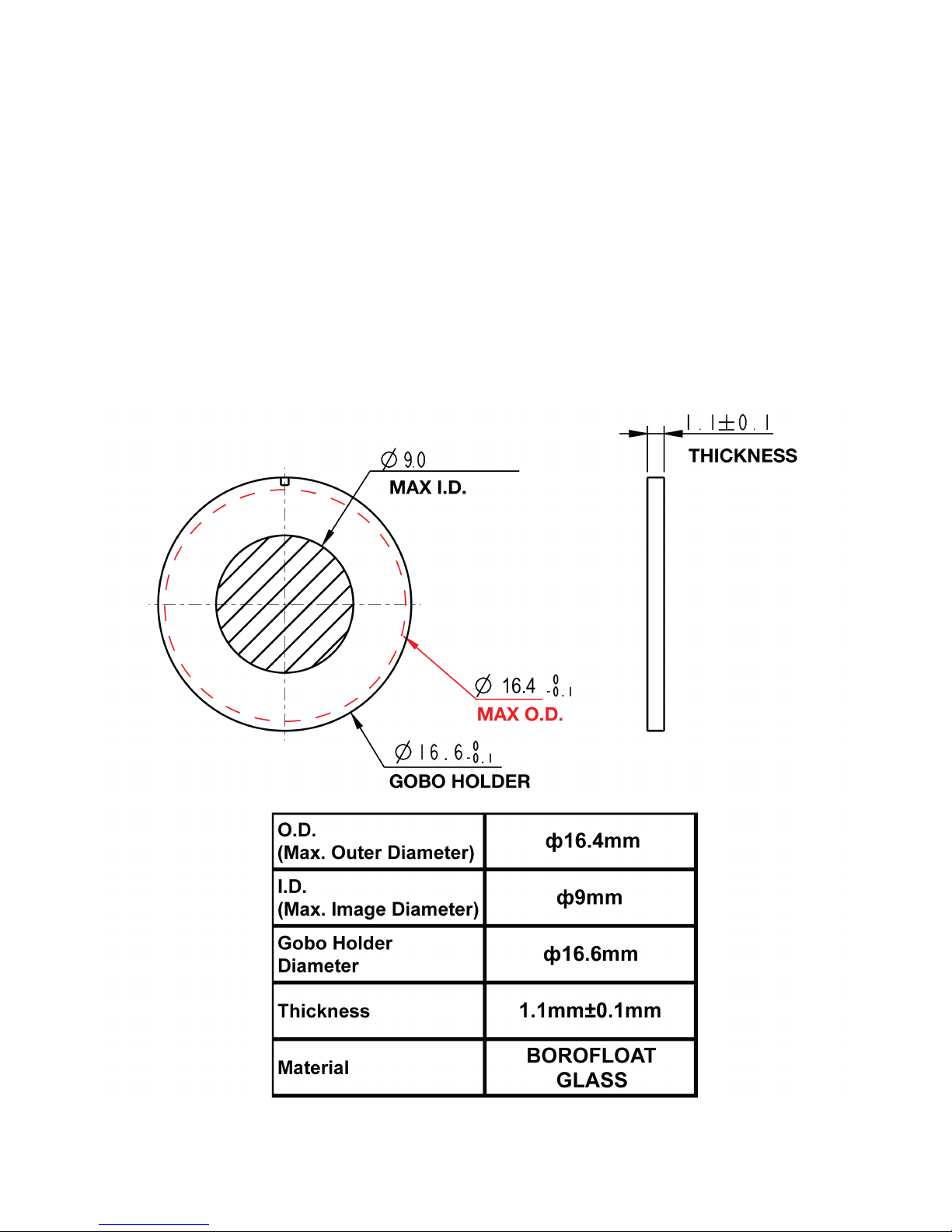

ROTATING GOBO SPECIFICATIONS
* * * IMPORTANT NOTICE REGARDING CUSTOM GOBOS * * *
Due to the extreme high temperature optical system, which can reach up to 842°F (450°C),
special BOROFLOAT glass material and design requirements are required. Due to varying
gobo manufacturing processes and tolerances, it is highly recommended to provide a
gobo sample from the fixture to the custom gobo vendor for accurate sizing.
Extended testing of custom gobo designs is highly recommended prior to using.
PLEASE CONTACT ELAT ION CUSTOMER SUPPORT FOR FURTHER INFORMATION.

15
CUSTOM GOBO DESIGN GUIDELINES
* * * IMPORTANT NOTICE REGARDING CUSTOM GOBO DESIGNS* * *

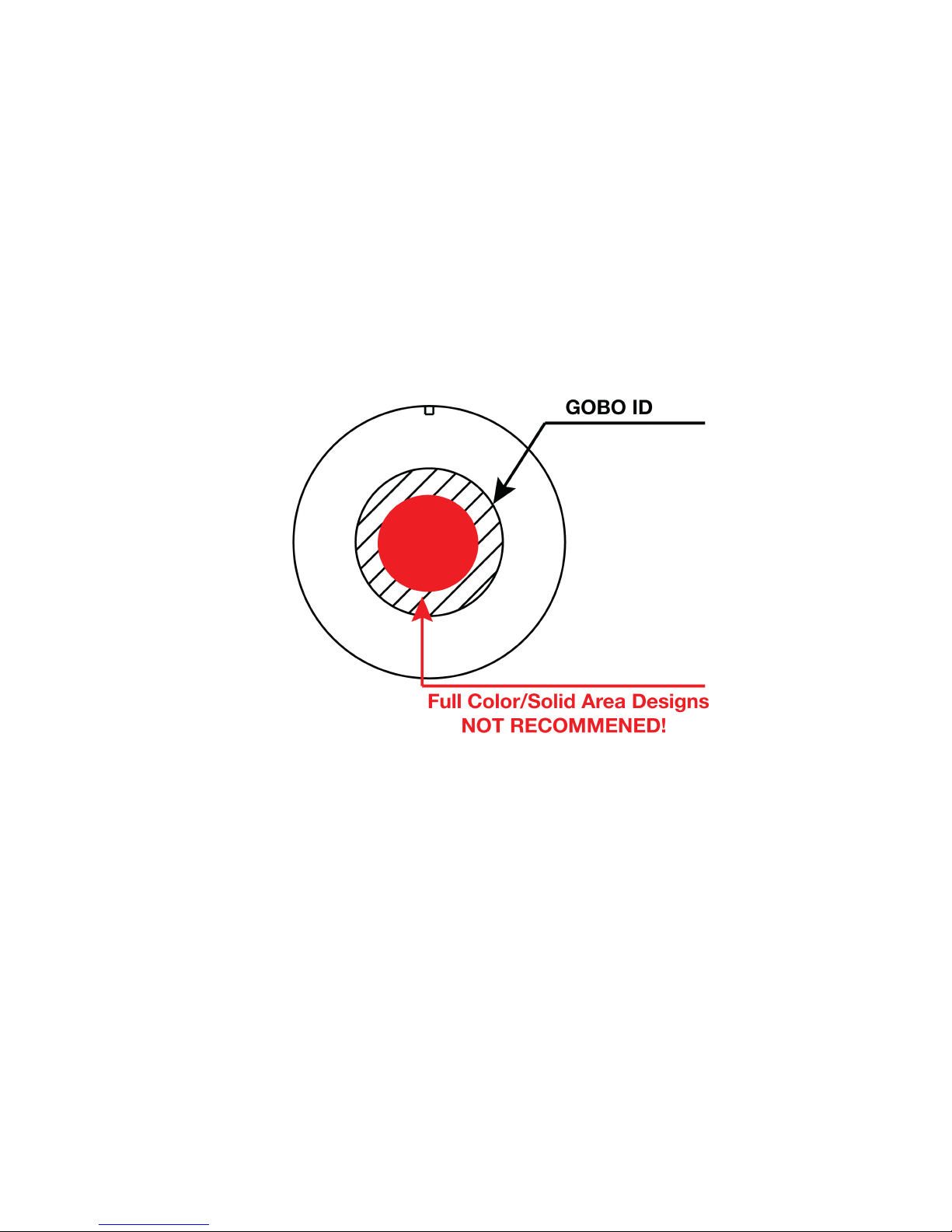

Full Color / Solid Area custom gobo designs are NOT RECOMMENDED due to the
extreme high temperature optical system which can reach up to 842°F (450°C).
Custom gobo designs as illustrated below can burn during extended use periods.
PLEASE CONTACT ELATION CUSTOMER SUPPORT FOR FURTHER INFORMATION.

16
FIXTURE INSTALLATION
FLAMMABLE MATERIAL WARNING
Keep fixture at least 5.0 feet (1.5m) away from any
flammable materials, decorations, pyrotechnics, etc.
ELECTRICAL CONNECTIONS
A qualified electrician should be used for all
electrical connections and/or installations.
MINIMUM DISTANCE TO OBJECTS/SURFACES
MUST BE 40 FEET (12 METERS)
MAXIMUM TEMPERATURE OF EXTERNAL SURFACE
212° F (100°C)
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
Fixture MUST be installed following all local, national, and country commercial electrical and
construction codes and regulations. Before rigging/mounting the fixture to any metal
truss/structure or placing the fixture on any surface, a professional equipment installer
MUST be consulted to determine if the metal truss/structure or surface is properly certified
to safely hold the combined weight of the fixture, clamps, cables, and accessories.
Overhead fixture installation must always be secured with a secondary safety attachment;
such as an appropriately rated safety cable that meets all local, national, and country codes
and regulations.
Fixture ambient operating temperature range is -4° to 113°F. (-20° to 45°C)
Do not use this fixture outside this temperature range.
Fixture should be installed in areas outside walking paths, seating areas, or away from areas
were unauthorized personnel might reach the fixture by hand.
NEVER stand directly below the fixture when rigging, removing or servicing.
Allow approximately 15 minutes for the fixture to cool down before serving.

17
CLAMP INSTALLATION

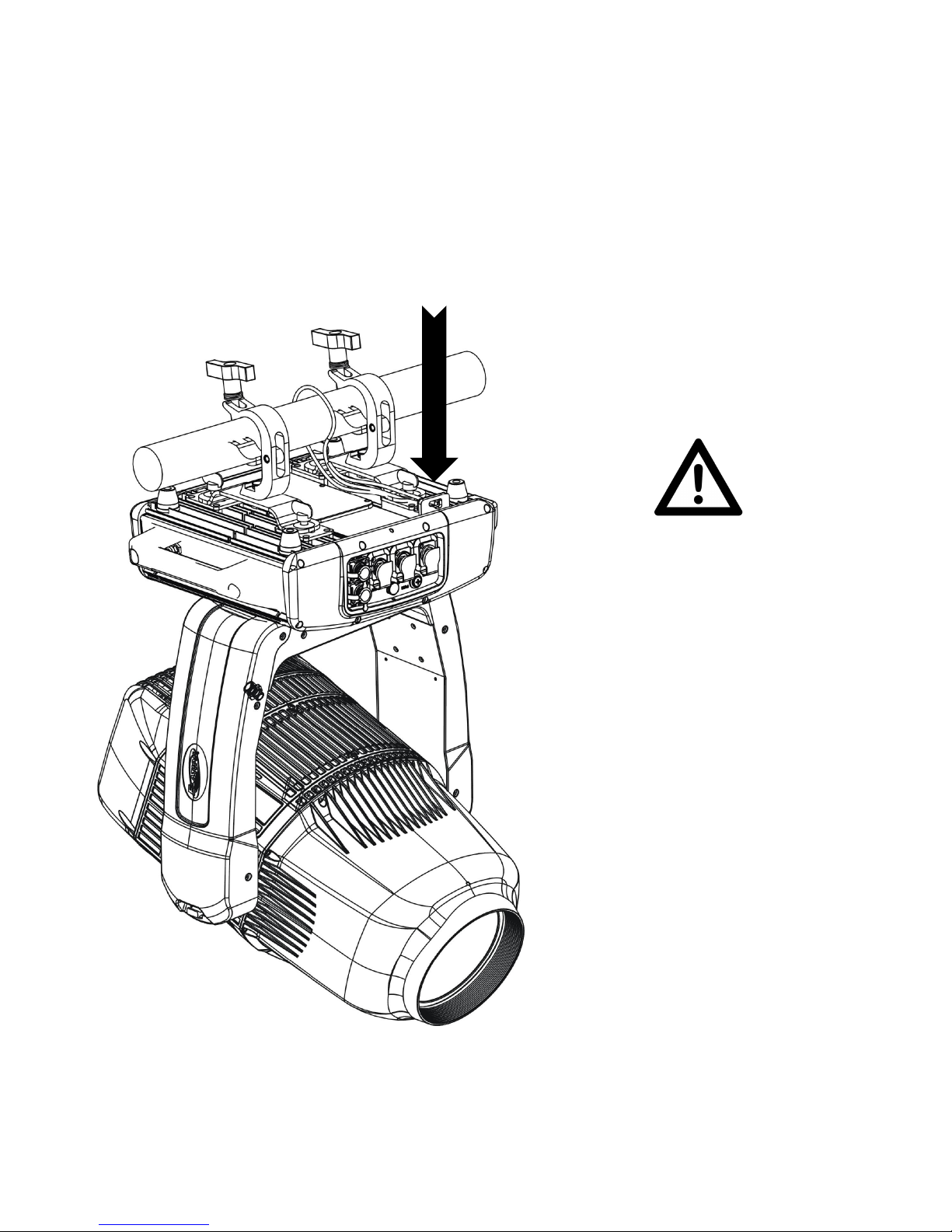

The fixture can be attached to a metal truss/structure using. When mounting this fixture to
truss be sure to secure (2) appropriately rated clamps (not included) to the (2) Omega
Brackets (included) Be sure to attach the Safety Cable (included) to the fixture using the
safety cable rigging point integrated into the bottom of the fixture. (See image below)
SAFETY CABLE RIGGING POINT
SAFETY CABLE
ALWAYS ATTACH A SAFETY CABLE
WHENEVER INSTALLING THIS DEVICE IN A
SUSPENDED ENVIRONMENT TO ENSURE
THE FIXTURE WILL NOT DROP IF THE
CLAMP FAILS.

18
OVERHEAD RIGGING
Overhead rigging requires extensive experience, including amongst others calculating
working load limits, installation material being used, and periodic safety inspection of all
installation material and the fixture. If you lack these qualifications, do not attempt the
installation yourself. Improper installation can result in bodily injury.
Fixture is fully operational in the specific mounting positions illustrated below. *
*SAFETY CABLE
ALWAYS ATTACH A SAFETY CABLE WHENEVER
INSTALLING THIS FIXTURE IN A SUSPENDED
ENVIRONMENT TO ENSURE THE FIXTURE WILL
NOT DROP IF THE CLAMP FAILS.
*SIDE MOUNTING
TO MAINTAIN IP65 RATING INTEGRITY, FIXTURE
MUST BE INSTALLED WITH CABLES FACING
DOWN TOWARDS THE GROUND AT ALL TIMES.
WATER MUST EASILY RUN OFF AND NOT
COLLECT AROUND CABLE CONNECTIONS.

19
CONNECTIONS
ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED
WITH A DIELECTRIC GREASE (AVAILABLE AT MOST ELECTRICAL
SUPPLIERS) TO PREVENT WATER CORROSION AND/OR ELECTRICAL
SHORT CIRCUIT.
TO MAINTAIN IP65 RATING INTEGRITY AND PREVENT WATER FROM
ENTERING THE FIXTURE, ALL UNUSED CONNECTION RUBBER CAPS
MUST BE SEALED.

20
POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS
External sources of light beams from direct sunlight, lighting moving head fixtures, and
lasers, which are focused directly towards the exterior housing and/or penetrate the front
lens opening of ELATION lighting fixtures, can cause severe internal damage including
burning to optics, dichroic color filters, glass and metal gobos, prisms, animation wheels,
frost filters, iris, shutters, motors, belts, wiring, discharge lamps, and LEDs.
This issue is not specific only to ELATION lighting fixtures, it is a common issue with lighting
fixtures from all manufacturers. Although there is no true way to fully prevent this issue from
happening, the guidelines below can prevent any potential damage from occurring if
followed. Contact ELATION Service for more details.

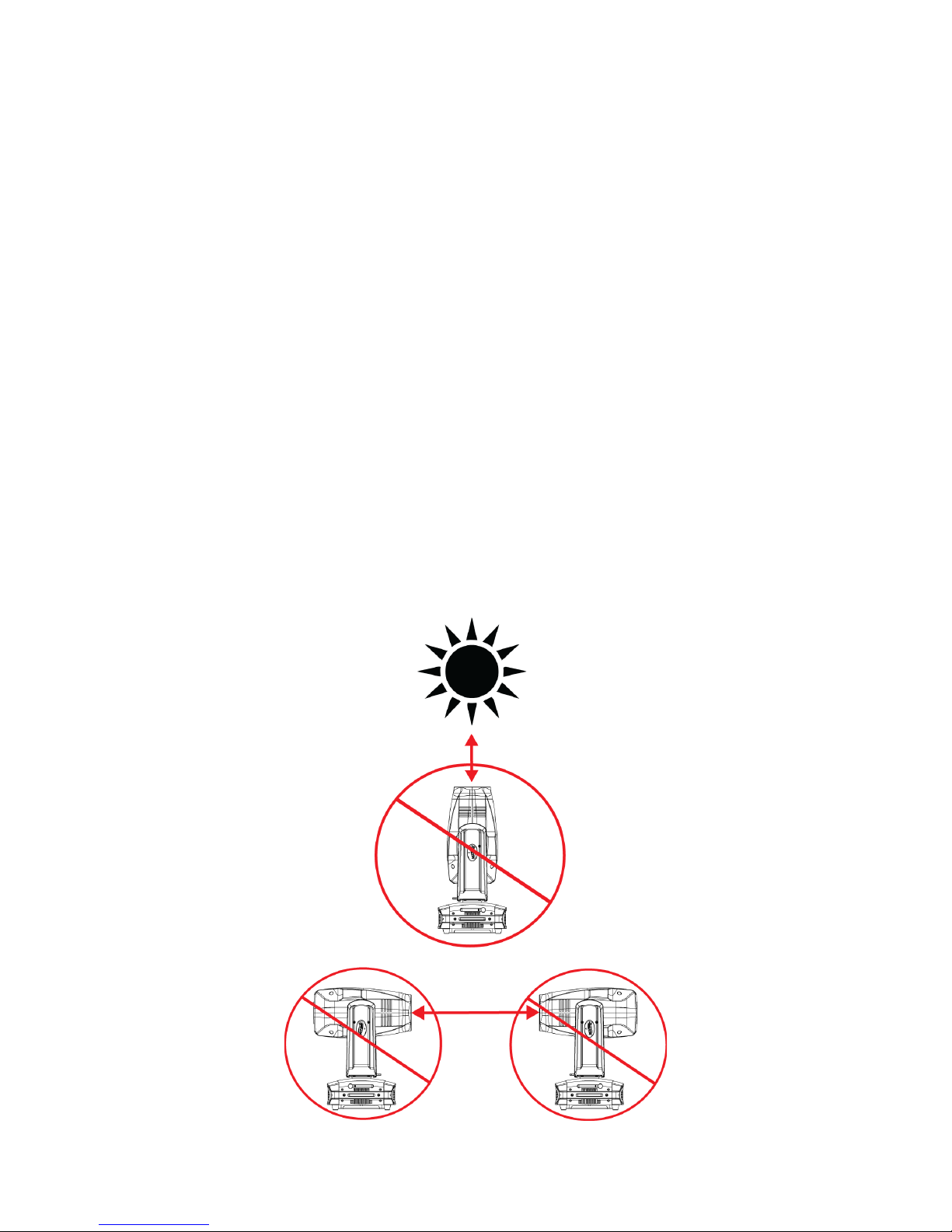

DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO
LIGHT BEAMS FROM DIRECT SUNLIGHT, OTHER LIGHTING MOVING
HEAD FIXTURES, AND LASERS WHILE UNPACKING, INSTALLATION, USE,
AND EXTENDED IDLE TIMES OUTDOORS.
DO NOT FOCUS A LIGHT BEAM FROM ONE LIGHTING FIXTURE
DIRECTLY TOWARDS ANOTHER.
