Elation Artiste REMBRANDT User manual

©2020 ELATION PROFESSIONAL all rights reserved. Information, specifications, diagrams, images,
and instructions herein are subject to change without notice. ELATION PROFESSIONAL logo and
identifying product names and numbers herein are trademarks of ELATION PROFESSIONAL.
Copyright protection claimed includes all forms and matters of copyrightable materials and
information now allowed by statutory or judicial law or hereinafter granted. Product names used in
this document may be trademarks or registered trademarks of their respective companies and are
hereby acknowledged. All non-ELATION brands and product names are trademarks or registered
trademarks of their respective companies. Misalignment
ELATION PROFESSIONAL and all affiliated companies hereby disclaim any and all liabilities for
property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect
economic loss associated with the use or reliance of any information contained within this document,
and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation, rigging,
and operation of this product.
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 |323-832-9142 fax | www.elationlighting.com |[email protected]
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
[phone] |[phone] fax |www.elationlighting.eu |[email protected]
Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
DOCUMENT VERSION
Due to additional product features and/or enhancements, an
updated version of this document may be available online. Please
scan the QR Code with your mobile device or visit
www.elationlighting.com for the latest revision/update of this
manual, before installation and/or programming.
Date
Document
Version
Software
Version ≥
DMX
Channel Modes
Notes
03/03/20
1.0
1.1.1
35 / 59
Initial release.

3
CONTENTS
General Information
4
Warranty Returns (USA Only)
5
Safety Guidelines
6
Maintenance Guidelines
8
Fixture Overview
9

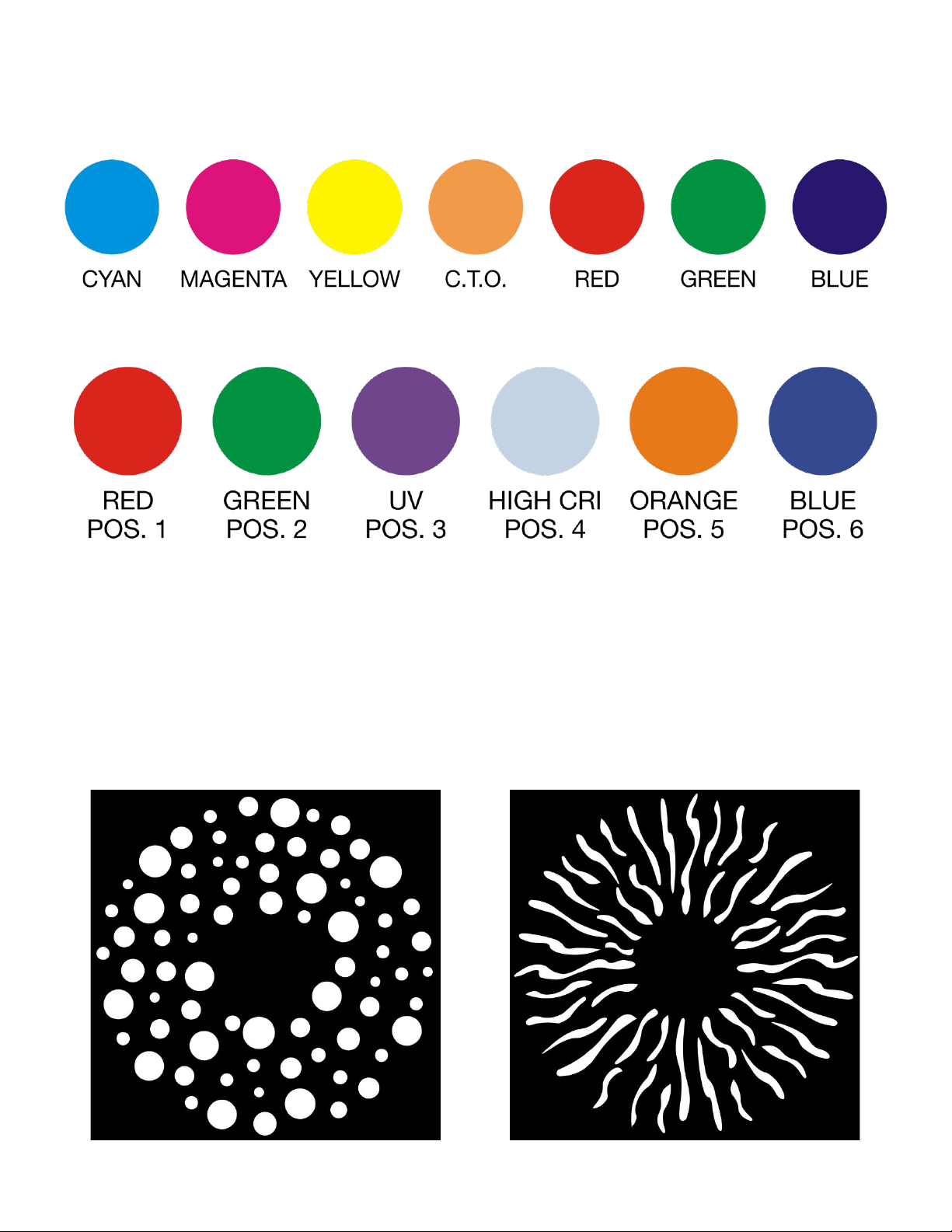

Colors & Animation Wheel
11
SpectraColor Guide
12
Fan Modes and Low Noise Operation
13

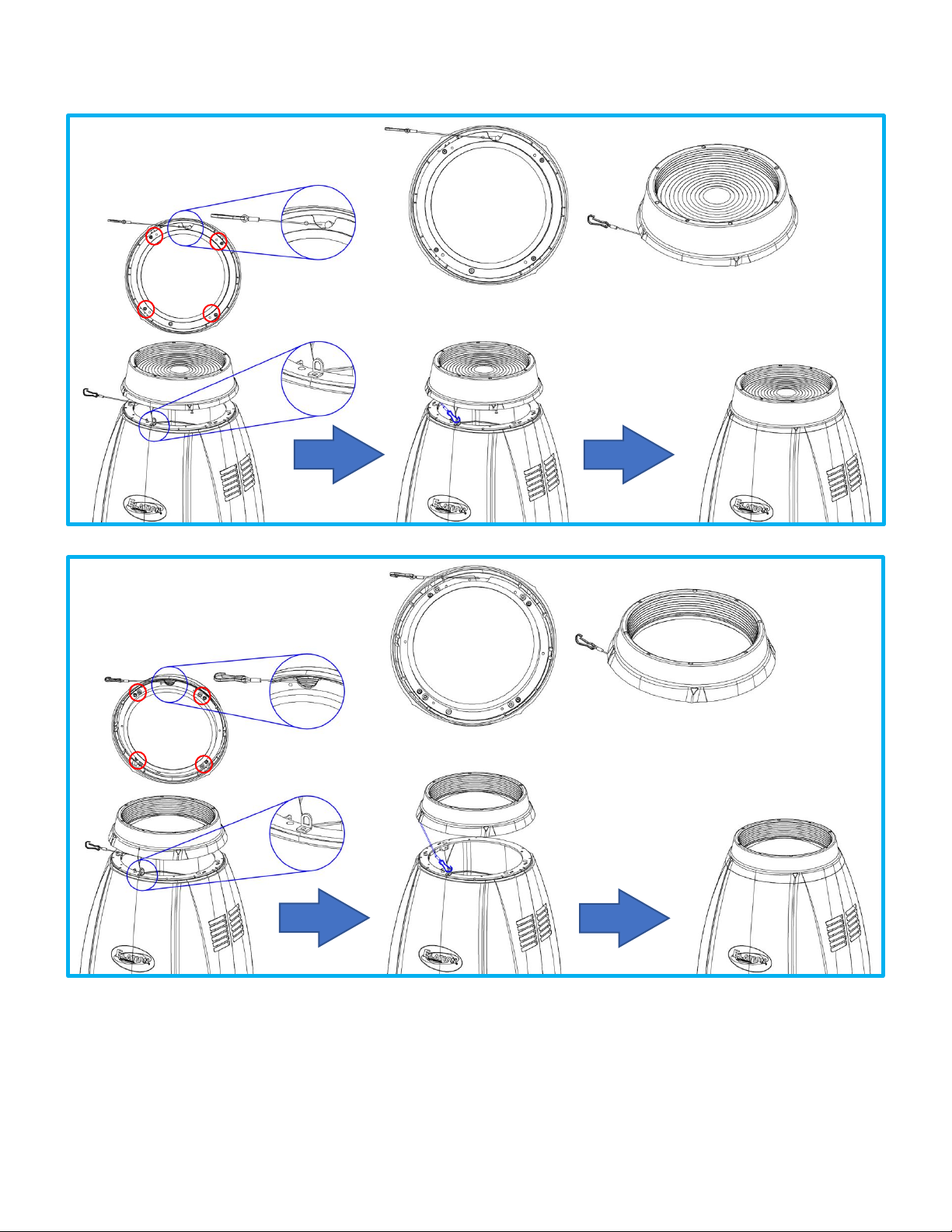

Lens Installation / Replacement
14
Installation Guidelines
15

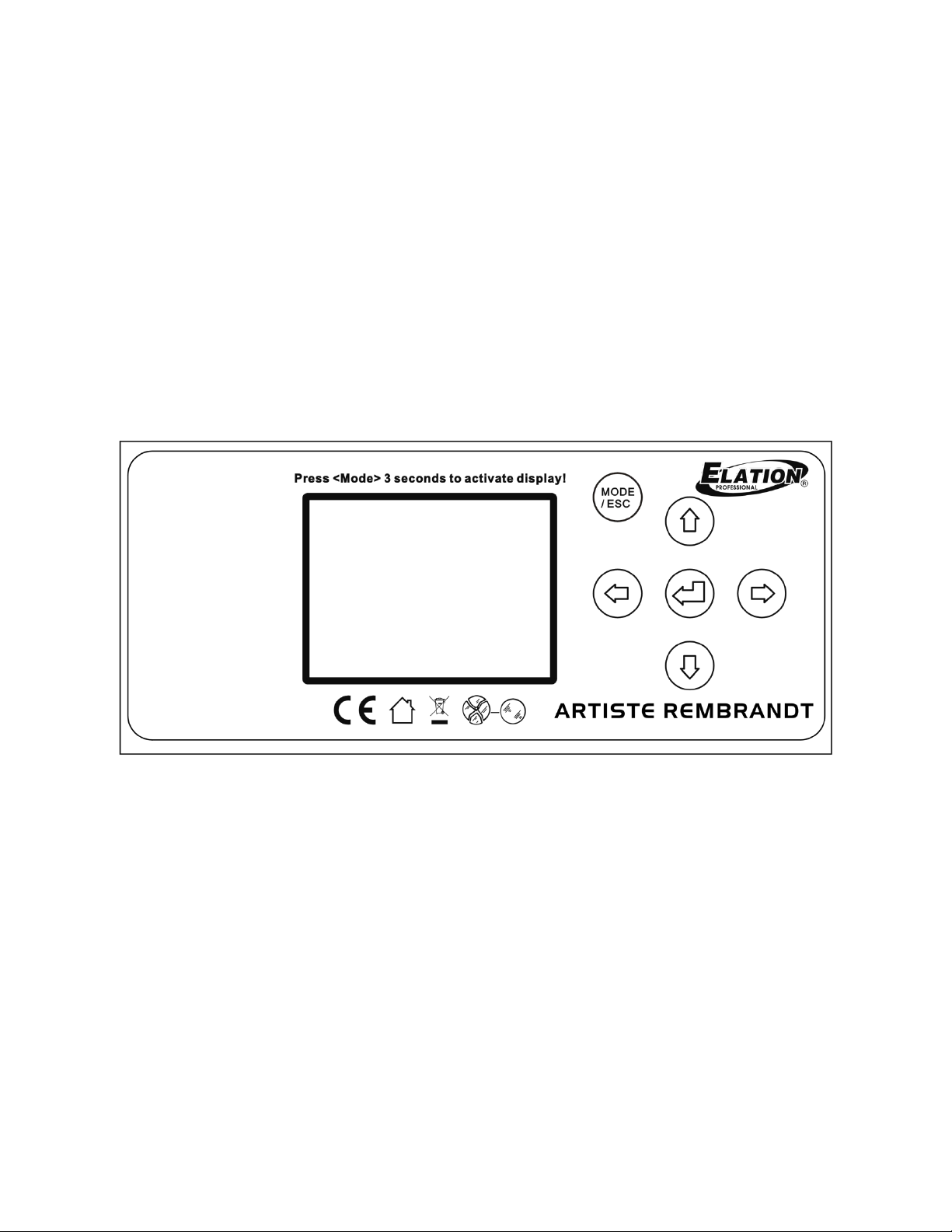

System Menu
18
DMX Channel Functions and Values
26
Error Codes
35
Specifications
36
Dimensional Drawings
37
Optional Accessories
39

4
GENERAL INFORMATION
INTRODUCTION
Please read and understand the instructions in this manual carefully and thoroughly before attempting
to operate this device. These instructions contain important safety and use information.
UNPACKING
Every device has been thoroughly tested and has been shipped in perfect operating condition.
Carefully check the shipping carton for damage that may have occurred during shipping. If the carton
is damaged, carefully inspect the device for damage, and be sure all accessories necessary to install
and operate the device have arrived intact. In the event damage has been found or parts are missing,
please contact our customer support team for further instructions. Please do not return this device to
your dealer without first contacting customer support. Please do not discard the shipping carton in
the trash. Please recycle whenever possible.
BOX CONTENTS
Fresnel Lens (installed)
Omega Brackets (x2)
Locking Power Cable
CUSTOMER SUPPORT
Contact ELATION Service for any product related service and support needs.
Also visit forums.elationlighting.com with questions, comments or suggestions.
ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
323-582-3322 | Fax [phone] | [email protected]
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
[phone] | Fax [phone] | [email protected]
REPLACEMENT PARTS please visit parts.elationlighting.com
IMPORTANT NOTICE!
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.
DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFACTURES
WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE
DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE
MANUFACTURES WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR
REPAIRS.

5
LIMITED WARRANTY (USA ONLY)
A. Elation Professional hereby warrants, to the original purchaser, Elation Professional products to be free of manufacturing
defects in material and workmanship for a period of two years (730 days), and Elation Professional product rechargeable
batteries to be free of manufacturing defects in material and workmanship for a period of six months (180 days), from the
original date of purchase. This warranty excludes discharge lamps and all product accessories. This warranty shall be valid
only if the product is purchased within the United States of America, including possessions and territories. It is the owner’s
responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For
warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the
requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay
return shipping charges only to a designated point within the United States. If any product is sent, it must be shipped in its
original package and packaging material. No accessories should be shipped with the product. If any accessories are shipped
with the product, Elation Professional shall have no liability what-so-ever for loss and/or or damage to any such accessories,
nor for the safe return thereof. C. This warranty is void if the product serial number and/or labels are altered or removed; if
the product is modified in any manner which Elation Professional concludes, after inspection, affects the reliability of the
product; if the product has been repaired or serviced by anyone other than the Elation Professional factory unless prior written
authorization was issued to purchaser by Elation Professional; if the product is damaged because not properly maintained
as set forth in the product instructions, guidelines and/or user manual. D. This is not a service contract, and this warranty
does not include any maintenance, cleaning or periodic check-up. During the periods as specified above, Elation Professional
will replace defective parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of
defects in material or workmanship. The sole responsibility of Elation Professional under this warranty shall be limited to the
repair of the product, or replacement thereof, including parts, at the sole discretion of Elation Professional. All products
covered by this warranty were manufactured after January 1, 1990, and bare identifying marks to that effect. E. Elation
Professional reserves the right to make changes in design and/or performance improvements upon its products without any
obligation to include these changes in any products theretofore manufactured. F. No warranty, whether expressed or implied,
is given or made with respect to any accessory supplied with the products described above. Except to the extent prohibited
by applicable law, all implied warranties made by Elation Professional in connection with this product, including warranties
of merchantability or fitness, are limited in duration to the warranty periods set forth above. And no warranties, whether
expressed or implied, including warranties of merchantability or fitness, shall apply to this product after said periods have
expired. The consumer’s and/or dealer’s sole remedy shall be such repair or replacement as is expressly provided above;
and under no circumstances shall Elation Professional be liable for any loss and/or damage, direct and/or consequential,
arising out of the use of, and/or the inability to use, this product. G. This warranty is the only written warranty applicable to
Elation Professional products and supersedes all prior warranties and written descriptions of warranty terms and conditions
heretofore published.
WARRANTY RETURNS
All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization
(R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief description of the
problem as well as the R.A. number must also be written down on a piece of paper and included in the shipping container.
If the unit is under warranty, you must provide a copy of your proof of purchase invoice. Items returned without a R.A.
number clearly marked on the outside of the package will be refused and returned at customer’s expense. You may obtain
a R.A. number by contacting customer support.

6
SAFETY GUIDELINE
This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is
important to follow all instructions and guidelines in this manual. Elation Professional is not responsible
for injury and/or damages resulting from the misuse of this fixture due to the disregard of the
information printed in this manual. Only qualified and/or certified personnel should perform installation
of this fixture and only the original rigging parts (omega brackets) included with this fixture should be
used for installation. Any modifications to the fixture and/or the included mounting hardware will void
the original manufactures warranty and increase the risk of damage and/or personal injury.
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.
DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR
MANUFACTURES WARRANTY. DAMAGES RESULTING FROM
MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF SAFETY
INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE
MANUFACTURES WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY
CLAIMS AND/OR REPAIRS.
DO NOT PLUG FIXTURE INTO A DIMMER PACK!
NEVER OPEN THIS FIXTURE WHILE IN USE!
UNPLUG POWER BEFORE SERVICING FIXTURE!
NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!
KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
INDOOR / DRY LOCATIONS USE ONLY!
DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE!
MINIMUM DISTANCE TO OBJECTS/SURFACES
MUST BE 6.6 FEET (2 METERS)
MAXIMUM TEMP OF EXTERNAL SURFACE 185° F (85°C)
MINIMUM DISTANCE OF INFLAMMABLE MATERIALS
FROM THE SURFACE 1.6 FEET (0.5 METER)

7
SAFETY GUIDELINES
RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV
RADIATION! FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF
ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER. WEAR
PROPER EYE AND SKIN PROTECTION. AVOID PROLONGED PERIODS
OF EXPOSURE TO UV COLOR FILTER. AVOID WEARING WHITE COLOR
CLOTHING AND/OR USING UV PAINTS ON SKIN. AVOID DIRECT EYE
AND/OR SKIN EXPOSURE AT DISTANCES LESS THAN 11 feet (3.3m).
DO NOT OPERATE FIXTURE WITH DAMAGED/MISSING EXTERNAL
COVERS. DO NOT LOOK DIRECTLY INTO THE UV LIGHT AND/OR VIEW
UV LIGHT DIRECTLY WITH OPTICAL INSTRUMENTS THAT MAY
CONCENTRATE THE LIGHT/RADIATION OUTPUT. INDIVIDUALS
SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE DIS-ORDERS, OR
INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY RECEIVE DISCOMFORT IF EXPOSED TO
THE ULTRAVIOLET UV LIGHT EMITTED FROM THE UV LED.
DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes
for the fixture to cool down before serving.
DO NOT shake fixture, avoid brute force when installing and/or operating fixture.
DO NOT operate fixture if the power cord is frayed, crimped, damaged and/or if any of the power cord
connectors are damaged and do not insert into the fixture securely with ease. NEVER force a power cord
connector into the fixture. If the power cord or any of its connectors are damaged, replace it immediately with
a new one of similar power rating.
DO NOT block any air ventilation slots.
All fan and air inlets must remain clean and never blocked.
Allow approx. 6” (15cm) between fixture and other devices or a wall for proper cooling.
When installing fixture in a suspended environment, always use mounting hardware that is no less than M10 x 25 mm,
and always install fixture with an appropriately rated safety cable.
Always disconnect fixture from main power source before performing any type of service and/or cleaning
procedure. Only handle the power cord by the plug end, never pull out the plug by tugging the wire portion of
the cord.
During the initial operation of this fixture, a light smoke or smell may emit from the interior of the fixture. This is a
normal process and is caused by excess paint in the interior of the casing burning off from the heat associated
with the lamp and will decrease gradually over time.
Consistent operational breaks will ensure fixture will function properly for many years.
94 lbs. (42.6kg)

8
MAINTENANCE GUIDELINES
DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!
CLEANING
Frequent cleaning is recommended to insure proper function, optimized light output, and an extended
life. The frequency of cleaning depends on the environment in which the fixture operates: damp, smoky
or particularly dirty environments can cause greater accumulation of dirt on the fixture’s optics. Clean
the external lens surface at least every 20 days with a soft cloth to avoid dirt/debris accumulation.
NEVER use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to insure proper function and extended life. There are no user
serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service
technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.
Please refer to the following points during routine inspections:
- A detailed electric check by an approved electrical engineer every three months, to make sure the
circuit contacts are in good condition and prevent overheating.
- Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall out during
normal operation resulting in damage or injury as larger parts could fall. Check for any deformations on
the housing, color lenses, rigging hardware and rigging points (ceiling, suspension, trussing).
Deformations in the housing could allow for dust to enter into the fixture. Damaged rigging points
or unsecured rigging could cause the fixture to fall and seriously injure a person(s).
- Electric power supply cables must not show any damage, material fatigue or sediments. NEVER
remove the ground prong from the power cable.

9

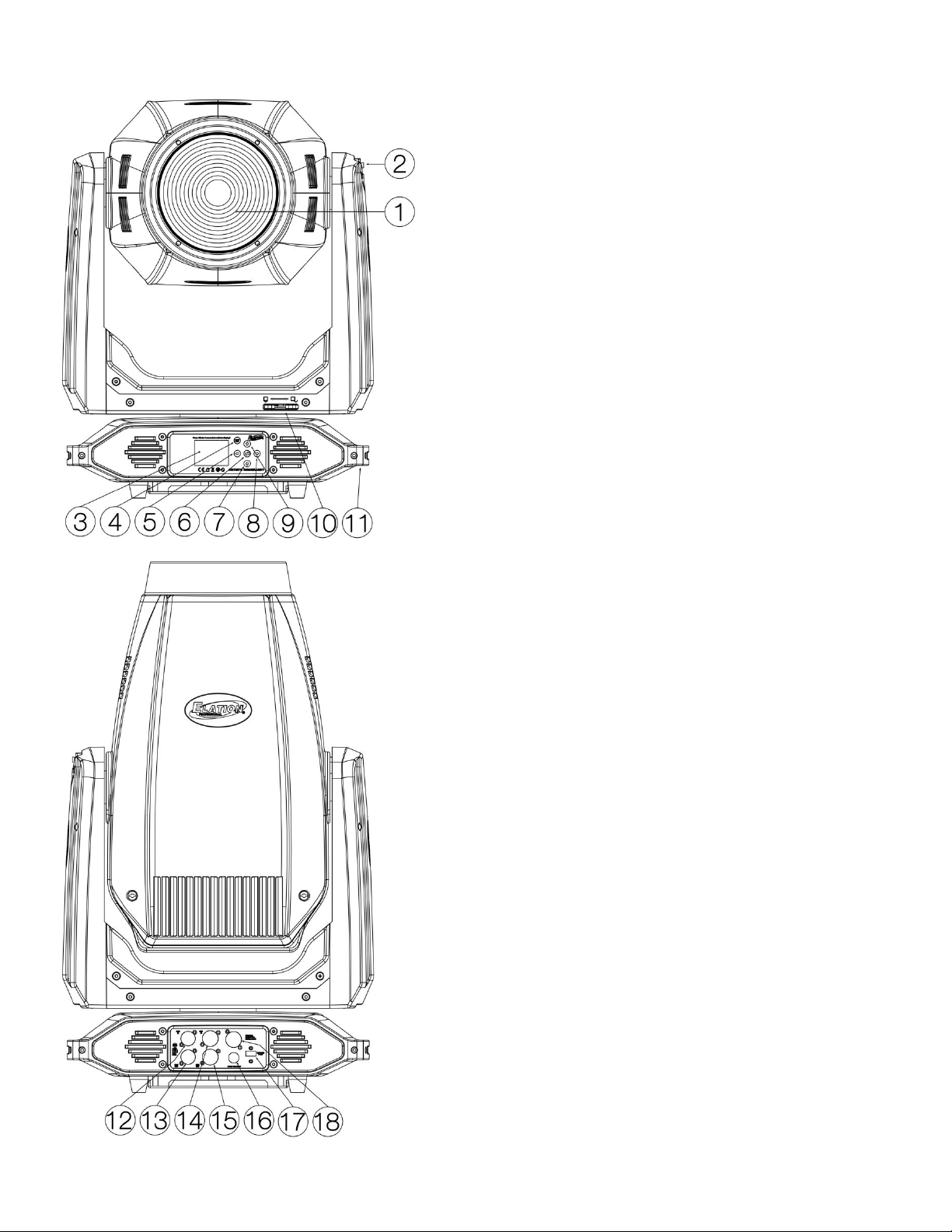

FIXTURE OVERVIEW
1. Lens (Fresnel Lens included,
optional PC Lens available)
2. Tilt Lock
3. System Menu Display
4. MODE/ESC Button
5. LEFT Button
6. ENTER Button
7. DOWN Button
8. RIGHT Button
9. UP Button
10. PAN Lock
11. Carrying Handle(s)
12. RJ45 Input/Output
13. 5pin DMX Output
14. 5pin DMX Input
15. Service Port
16. Fuse
17. Service Port
18. IP65 Locking Power Input

10
FIXTURE OVERVIEW
Features
- High Efficiency 950W 6,500K White LED Engine
- Hotspot Engine for Optimized Wash Field / High Center Intensity
- Up to 51,000 Total Lumen Fixture Output
- SpectraColor CMYRGB Array and Variable Linear CTO
- 6-Position Color Wheel, High CRI, UV Filter
- Wash Beam Animation Array with 2 Independent Wheels
- Dual Variable Frost
- Full Blackout Framing System with 360° Continuous Index and Rotation of Shapes
- 9:1 Zoom Range from 11° to 65° Large 180mm Fresnel lens
- 9:1 Zoom Range from 10° to 75° Large 180mm PC lens (optional)
- Optional Pebble Convex (Stipple PC) Lens
- DMX Controllable Variable Fan Modes / Low Noise Operation
Zoom / Focus Optimization
The Artiste Rembrandt utilizes a zoom and focus lens to control the beam. For highest efficiency, the
fixture contains an algorithm that automatically adjusts the focus lens to its ideal position in
relationship to the zoom lens.
Note! The correct lens type (Fresnel or PC) must be selected in the menu, or via the DMX control
channel to ensure that the focus lens is positioned for the highest output.
To use the Zoom optimization, set the focus channel between DMX 0 to 10. This will ensure the fixture
performs at its best with the highest output and optimal field. Taking over focus control, for example
to adjust the sharpness of the animation wheels or internal framing module, simply set the focus
channel within its normal range from DMX 11 to 255. All optimizations are disabled. Do not forget to
set the focus back to the Optimization range when the effect is removed from the beam; otherwise,
the Rembrandt could lose more than 30% of its output. It is advised to create a console preset of the
focus @ DMX 0, a setting that is easily accessible. Not setting the focus to the optimization (e.g. having
a console default of 127 / 50%) will greatly reduce the light output of the fixture and result in poor
performance. Please ensure console profiles are correctly defined with focus default @ 0.
Zoom Overdrive
The Artiste Rembrandt allows the zoom lens to go past its optimal narrow position, thus “overdriving”
it. Although this creates a slightly smaller beam, its efficiency is reduced. As the fixture may lose a bit
of output when moved into the zoom overdrive range, it is mapped to the DMX range of 0 to 20;
however, despite this reduced output, the resulting column of light, especially using the PC lens, is a
useful effect. The overdrive range is provided as a simple way for the operator to know the ideal zoom
range for maximum efficiency.

11
COLORS & ANIMATION WHEEL
COLOR FLAGS
COLOR WHEEL
BI-DIRECTIONAL ANIMATION WHEEL
The Artiste Rembrandt incorporates an innovative wash texture concept that gives the designer new
tools to wash stages while providing soft textures and depth. Two animation wheels, one Dot and one
Radial, allow for independent directional motion, including overlapping and counter-rotating motion
effects that are unique to the fixture. Using the focus control, the beams can be fuzzy and soft to
create subtle depth in the wash field, or well-defined for powerful animation projection, or mid-air
beam effects. Interesting effects can be created by overlapping both wheels and using different
rotation speeds, or counter-rotating the wheel.

12
SPECTRACOLOR GUIDE
The Rembrandt’s innovative SpectraColor system combines the established and well known CMY / CTO
controls with three Pure RGB flags that are seamlessly adjustable. These flags greatly enhance the possible
color range of the Rembrandt for some truly outstanding colors that can be difficult to achieve with only CMY
controls.
It is highly recommend that the technician become familiar with this unique color system to fully unlock
the creative potential of the SpectraColor array.
Cyan, Magenta and Yellow saturation chosen for a wide color range and are aligned with other colors in the
Artiste range. CMY is a subtractive color mix that removes certain colors from the light to create the desired
color. Flags can be combined in any saturation to create a wide range of mixed colors.
RGB are “pure” color points chosen for best saturation. These are also subtractive, e.g. adding the Red flag
will remove all other wavelengths. While it is possible to overlap the RGB colors, it will eventually black-out the
fixture as all colors essentially reduce until there is no output. On consoles they should be shown as Pure Red,
Pure Green, and Pure Blue. This is done so console color pickers do no interact with the RGB flags. All color
flags must default to 0% in the console profiles.
Mixing CMY colors is identical to many other fixtures in the market. CMY colors can combine with the CTO to
create a warmer array of colors. Overall, the behavior of the CMY system should feel familiar, and with the high
intensity of the Rembrandt, all colors are brilliant and powerful.
The CTO filter is designed to adjust the Rembrandt from its native color temperature of 6500K to 2700K. Full
CTO in combination with Cyan Magenta or Yellow allow for a warmer color palette. For example, Yellow shifts
from a slightly greenish tone to a warm amber yellow. Utilizing the adjustable CTO with the CMY system greatly
enhances the color range of the Rembrandt.
Using Pure Colors
Pure Red, Green, or Blue are ideal colors to create subtle hues to saturated colors. Mixing a slight blue shifts
the Rembrandt from White over CTB, over light to medium purples, until it reaches a rich Medium Blue. Using
Green allows for teals and green tints similar to fluorescent fixtures until it transitions into a bright medium
green. These color tones make the Rembrandt an ideal tool for theater and opera designers as the SpectraColor
system allows the replication of many color spectrums associated with unique light sources like metal halide,
sodium vapor, or fluorescent tubes, all out of one fixture.
Creating Color Mixes Using SpectraColor
CMY and RGB flags can be combined to widen the color gamut of the CMY mix. Start with a slight to saturated
CMY color, then add a little Red, Green, or Blue to change the hue. Never use RGB together, only one of those
colors at a time will be useful. Otherwise the fixture will only get darker as overlapping RGB acts like a dim to
black.
Perceived Color Brightness
Please be aware that due to the very high intensity of the Rembrandt, the CMY colors may not look fully
saturated, especially when placed next to a lower intensity fixture. This is misleading as your eye cannot handle
the high intensity well, and colors that are in fact identical may appear different to your eye. To confirm, simply
dim-down the Rembrandt to match the output level of a comparison fixture. You should find color appearing
more saturated, even though nothing has changed on the color itself. Reducing the output helps your eye to
see the color better.

13
FAN MODES and LOW NOISE OPERATION
The Artiste Rembrandt is a high-performance fixture suited for many applications. For noise critical
environments like Theater, Opera or Orchestra Halls, it offers various operation modes to remove any
distraction for the audience and performers. Modes can be changed remotely via the DMX control
channel, allowing the fixture to offer high output or whisper silent operation at a moment’s notice. All
modes smoothly transition over a brief period, preventing unwanted attraction to the fixture.
Mode
dbA at 1m LED off
dbA at 1m Dimmer 100%
Ambient Noise Level 31 dbA
Fan Control - Auto (Default)
39
47
Fan Control - Low
37
42
Fan Control - High
40
55
Low Noise - Mute
31
31
Low Noise - Studio
34
37
Fan Modes
Auto – The default AUTO mode ensures optimal performance of the fixture. Fans only run at the
speeds needed to keep the LED engine within a safe temperature range. They will turn off if possible,
for example when the fixture is dimmed to a low intensity. Fans sense the ambient and fixture
temperature, and will at all times try to keep noise levels at a minimum. The fixture output will only
reduce when the LED engine cannot be cooled down to its safe operating range due to high ambient
temperature. Auto is the recommend mode for daily operation of the Artiste Rembrandt.
Low – In this mode the fixture reduces fan speeds throughout for a lower noise profile of the fixture.
This mode should be sufficient for most uses where lower noise is required. The fixture output is
reduced to about 80%.
High – This mode is only required in very high ambient temperatures when automatic fan speed
adjustments are not desired. High Fan Speed will cool the fixture most efficiently. This mode will
increase wear on the fans and should only be utilized in exceptional circumstances. Fans will always
run, even if the fixture is dimmed. Fixture output is kept at 100% unless the LED engine temperature
is too high, at which point the fixture will reduce power carefully to ensure safe operation.
Low Noise Modes
For very critical situations, the Rembrandt offers two additional low noise modes for silent operation.
The fixture output will be reduced, but as the Rembrandt has such an extremely high luminous flux, it
still offers outstanding performance. In low noise modes, all parameters of the Rembrandt operate
quieter and with reduced speeds.
Studio – This mode reduces the fixture output to approximately 50%. Almost all fans inside the
Rembrandt are turned off, and only run when absolutely necessary to keep the fixture at 50% LED
power.
Mute – Running the fixture in MUTE mode reduces the fixture to about 25% output, and all fans are
off. The fixture is totally silent.

14
LENS INSTALLATION / REPLACEMENT
FRESNEL LENS INSTALLATION
PC LENS INSTALLATION
Procedure:
- Turn power OFF and let fixture cool for approximately 10 minutes.
- Completely loosen (4x) integrated M3 Hex Head Screws of Lens Assembly (Fresnel or PC) to be replaced,
unhook its integrated safety cable, and carefully remove it from fixture.
- Align the notch in replacement Lens Assembly (PC or Fresnel) with integrated Eye Hook on fixture, fasten
safety cable carabiner to eyelet on fixture, taking care to feed cable and carabiner into notch, align Lens
Screws with holes, and tighten (4x) M3 Hex Screws with hexagonal screwdriver.
Note! The correct lens type (Fresnel or PC) must be selected in the menu, or via the DMX control
channel to ensure that the focus lens is positioned for the highest output.
(4x) integrated M3 Hex Head
Lens Assembly screws
Tighten (4x) screws
with M3 hexagon
Allen Screwdriver
Align notch with
the integrated
safety Eye Hook
Fasten Lens Assembly Safety Cable
and align Lens Screws with holes
(4x) integrated M3 Hex Head
Lens Assembly Screws
Tighten (4x) screws
with M3 Hexagon
Allen Screwdriver
Align notch with
the integrated
safety Eye Hook
Fasten Lens Assembly Safety Cable
and align Lens Screws with holes

15
INSTALLATION GUIDELINES
FLAMMABLE MATERIAL WARNING
Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics.
ELECTRICAL CONNECTIONS
A qualified electrician should be used for all electrical connections and/or installations.
USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER
CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS
FIXTURE. CHECK SILK SCREEN FOR AMX AMPS.
MINIMUM DISTANCE TO OBJECTS/SURFACES
MUST BE 6.6 FEET (2 METERS)
MINIMUM DISTANCE OF INFLAMMABLE MATERIALS
FROM THE SURFACE 1.6 FEET (0.5 METER)
MAXIMUM TEMPERATURE OF EXTERNAL SURFACE 185° F (85°C)
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED!
Fixture MUST be installed following all local, national, and country commercial electrical and construction
codes and regulations.
Before rigging/mounting a single fixture or multiple fixtures to any metal truss/structure or placing the fixture(s)
on any surface, a professional equipment installer MUST be consulted to determine if the metal truss/structure
or surface is properly certified to safely hold the combined weight of the fixture(s), clamps, cables, and
accessories.
Fixture ambient operating temperature range is 14° to 113°F. (-10° to 45°C).
Do not use the fixture under or above this temperature.
Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were
unauthorized personnel might reach the fixture by hand.
NEVER stand directly below the fixture(s) when rigging, removing or servicing.
Overhead fixture installation must always be secured with a secondary safety attachment, such as an
appropriately rated safety cable.
Allow approximately 15 minutes for the fixture to cool down before servicing.
RIGGING
Overhead rigging requires extensive experience, including amongst others calculating working load
limits, installation material being used, and periodic safety inspection of all installation material and the
fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can
result in bodily injury.
ALWAYS ATTACH AN APPROPRIATELY RATED SAFETY CABLE (NOT INCLUDED) THAT MEETS ALL
LOCAL, NATIONAL, AND COUNTRY CODES AND REGULATIONS WHENEVER INSTALLING FIXTURE IN
A SUSPENDED ENVIRONMENT!

16
INSTALLATION GUIDELINES
OMEGA BRACKETS INSTALLATION
Insert the Omega Brackets into the matching holes on the bottom of the fixture. Secure the Omega
Brackets to the fixture by turning each quick-lock fastener ¼turn clockwise; making sure the fastener
is completely locked. Omega Brackets can be installed into the fixture base as illustrated below.
CLAMP INSTALLATION
When mounting fixture to truss, be sure to secure an appropriately rated professional grade rigging
clamp to the included Omega Brackets using an M10 screw fitted through the center hole of the
Omega Brackets. The fixture provides a built-in rigging points for a SAFETY CABLE (not included).
Be sure to only use one of the designated rigging points for the safety cable and never secure a safety
cable to a carrying handle.

17
INSTALLATION GUIDELINES
ART-NET | sACN CONNECTION
When connecting fixture to a network switch to control multiple devices, a Gigabit Ethernet Switch
that supports IGMP (Internet Group Management Protocol) is required. Using a Gigabit Ethernet
Switch that does not support IGMP can cause erratic behavior of all connected devices to the switch.
Click link below for more information about IGMP.
https://en.wikipedia.org/wiki/Internet_Group_Management_Protocol
POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS
External sources of light beams from direct
sunlight, lighting moving head fixtures, and
lasers, which are focused directly towards the
exterior housing and/or penetrate the front lens
opening of ELATION lighting fixtures, can cause
severe internal damage including burning to
optics, dichroic color filters, glass and metal
gobos, prisms, animation wheels, frost filters,
iris, shutters, motors, belts, wiring, discharge
lamps, and LEDs.
This issue is not specific to ELATION lighting
fixtures, it is a common issue with lighting
fixtures from all manufacturers. Although there
is no true way to fully prevent this issue from
happening, the following guidelines can prevent
any potential damage from occurring if followed.
Contact ELATION Service for more details.
DO NOT EXPOSE THE FIXTURE AND/OR
FRONT LENS OPENING TO LIGHT BEAMS
FROM DIRECT SUNLIGHT, OTHER LIGHTING
MOVING HEAD FIXTURES, AND LASERS
WHILE UNPACKING, INSTALLATION, USE,
AND EXTENDED IDLE TIMES OUTDOORS.
DO NOT FOCUS A LIGHT BEAM FROM ONE
LIGHTING FIXTURE DIRECTLY TOWARDS
ANOTHER.

18
SYSTEM MENU
The fixture includes an easy to navigate system menu. The control panel (see image below) located
on the front of the fixture, provides access to the main system menu and is where all necessary system
adjustments are made to the fixture. During normal operation, pressing MODE/ESC button once will
access the fixture’s main menu. Once in the main menu you can navigate through the different
functions and access the sub-menus with the UP, DOWN, RIGHT, and LEFT buttons. Once you reach
a field that requires adjusting, press the ENTER button to activate that field and use the UP and
DOWN buttons to adjust the field. Pressing the ENTER button once more will confirm your setting.
You may exit the main menu at any time without making any adjustments by pressing the MODE/ESC
button.
To access the LCD Menu Control Display via the internal battery, press and hold the MODE/ESC
button for 3 seconds. The LCD Menu Control Display will shut OFF automatically about 1 minute from
the last button press.

19
ELATION ARTISTE REMBRANDT™ S Y S T E M M E N U
Supports Software Versions: ≥1.1.1
Features subject to change without notice.
*Rotation direction (Clockwise/Counterclockwise) and control of effects depends on head orientation and Pan/Tilt settings.
MAIN MENU
SUB MENU
OPTIONS / VALUES (Default Settings in BOLD)
DESCRIPTION
FUNCTION
Set Dmx Address
A001~AXXX
DMX Address Setting
Dmx Value
ALL, *Function/Effect = XXX (Control, Pan, Pan Fine, …)
DMX Value Display
Slave Mode
Slave1, Slave2, Slave3
Slave Setting
Auto Program
Master / Alone
Auto Program
INFORMATION
Time Information
Current Time
XXXX (Hours)
Fixture Run Time From Power ON
Total Run Time
XXXX (Hours)
Fixture Total Run Time
Last Run Time
XXXX (Hours)
Fixture Last Run Time
LastRun Password
Password=038
(PSWD Required)
Clear Last Run
ON / OFF
Clear Fixture Last Run Time
Temperature Info
LED Temperature
XXX C° / F °
Temperature of LED
Base Temperature
XXX C° / F °
Temperature in Fixture Base
Head Temperature
XXX C° / F °
Temperature in Fixture Head
Ethernet IP
000.000.000.000
000.000.000.000
Displays Fixture Ethernet Address
Fan Info
HeadFan: xxxx RPM
Displays Fan Info
Software Version
1U01: - 2U01:
≥V1.1.1
Software Version
Error Info
Error Record 1 ~ Error Record 10
Fixture Last 10 Error Codes
PERSONALITY
Status Settings
Address via DMX
ON/OFF
Address Via DMX
No DMX Status
Close / Hold / Auto
Fixture State When NO DMX Signal
Pan Reverse
ON/OFF
Pan Reverse Movement
Tilt Reverse
ON/OFF
Tilt Reverse Movement
Pan Degree
630/540
Pan Degree Select
Feedback
ON/OFF
Movement Feedback
Movement Speed
Normal / Slow
Movement Speed
P/T Brake Mode
Smooth/Fast
Pan/Tilt Brake Mode
Lens Changing
Fresnel Lens, PC
Lens
Select Lens
Hibernation
OFF, 01M~99M, 15M
Stand By Mode
Service Setting
Password
Password=050
Service Password
RDM UID
XXXXXX
(XXXXXXXXXXXX)
Set RDM UID (PSWD Required)
Clear Err. Info
ON/OFF
Clear Error Info (PSWD Required); Password
“=11”, enable FollowSpot function; use
password “=60” to open wireless related menu
USB Update
YES/NO
Service Port - Software Updates
Fans Control
Auto, High, Low, Studio, Mute
Select Fan Speeds
Display Setting
Shutoff Time
02~60m 05m
Display Shut Off Time
Display Reverse
ON/OFF
Display Reverse 180º
Key Lock
ON/OFF
Key Lock
Temperature C/F
Celsius/Fahren
Temperature Switch Between C˚/ F˚
Initial Status
*Function/Effect = XXX… (Control, Pan, Pan Fine, …)
Initial Effect Position
Select Signal
DMX Only
DMX In/Out
Art-Net
Select Art-Net
sACN
Activate sACN
Ethernet IP
XXX.XXX.XXX.XXX
Ethernet IP (PSWD Required)
Ether Mask IP
XXX.XXX.XXX.XXX
Ethernet Mask IP (PSWD Required)
Set Universe
000 - 32767
Set ArtNet Universe
Dimmer Mode
Standard, Stage, TV, Architectural, Theatre, Stage2,
Delay 0s, 0.1s, 0.2s… 10s
Set Dimmer Mode
Refresh
1200, 900-1500, 2500, 4000, 5000, 6000, 10000,
15000, 20000, 25000 (Hz)
Set LED Refresh Rate
DimmerCurve
Linear, Square, InverseSquare, S-Curve
Set Dimmer Curve Mode
Reset Default
ON/OFF
Passcode=011
Restore Factory Settings (PSWD Required)
*Function/Effect: Control, Pan, Pan Fine, Tilt, Tilt Fine, Move Speed, Strobe, Dimmer, Dimmer Fine, Dimmer Mode, CMY Speed, CMY Macro, Cyan,
Cyan Fine, Magenta, Magenta Fine, Yellow, Yellow Fine, CTO, CTO Fine, Red, Red Fine, Green, Green Fine, Blue, Blue Fine, Color1 Wheel, Color1 Fine,
Focus, Focus Fine, Zoom, Zoom Fine, Iris, Iris Fine, Frost, Animation1, AnimationRot1, Animation2, AnimationRot2, Blade1A, Blade1A Fine, Blade1B,
Blade1B Fine, Blade2A, Blade2A Fine, Blade2B, Blade2B Fine, Blade3A, Blade3A Fine, Blade3B, Blade3B Fine, Blade4A, Blade4A Fine, Blade4b,
Blade4B Fine, Blade_Rot, Blade_Rot_F, BladeSpeed, BladeMacro

20
ELATION ARTISTE REMBRANDT™ S Y S T E M M E N U
Supports Software Versions: ≥1.3.0
Features subject to change without notice.
*Rotation direction (Clockwise/Counterclockwise) and control of effects depends on head orientation and Pan/Tilt settings.
MAIN MENU
SUB MENU
OPTIONS / VALUES (Default Settings in BOLD)
DESCRIPTION
Reset Function
Reset All
Reset All Motors
Reset Pan&Tilt
Reset Pan/Tilt
Reset Colors
Reset Colors
ResetZoomModules
Zoom
Reset Others
Reset Other Motors
Effect Adjust
Test Channel
*Function/Effect (Control, Pan,…)
Test function
Manual Control
*Function/Effect (Control, Pan,…)
Fine Adjustments
Calibration
Calibration Password
Password 050 (PSWD Required)
User Mode Set
User Mode
Standard Mode
DMX Channel Modes
Extended Mode
Edit Program
Select Program
Auto Pro Part1 = Program 1~10 (Program 1 - 10)
Select Programs To Be Run
Auto Pro Part2 = Program 1~10 (Program 1 – 10)
Auto Pro Part3 = Program 1~10 (Program 1 - 10)
Edit Program
Program 1
Pro. Test
Testing Program
:
Step 01=SCxxx
Program In Loop
Program 10
Step 64=SCxxx
Save and Exit
Edit Scenes
Edit Scene 001
~
Edit Scene 250
Pan,Tilt,……
Save and Automatically Return
--Fade Time—
--Scene Time--
Manual Scenes Edit
Input By Outside
Stores Scenes via Ext DMX Console
Rec. Controller
XX~XX
Automatic Scenes Recorder
*Function/Effect: Control, Pan, Pan Fine, Tilt, Tilt Fine, Move Speed, Strobe, Dimmer, Dimmer Fine, Dimmer Mode, CMY Speed, CMY Macro, Cyan,
Cyan Fine, Magenta, Magenta Fine, Yellow, Yellow Fine, CTO, CTO Fine, Red, Red Fine, Green, Green Fine, Blue, Blue Fine, Color1 Wheel, Color1
Fine, Focus, Focus Fine, Zoom, Zoom Fine, Iris, Iris Fine, Frost, Animation1, AnimationRot1, Animation2, AnimationRot2, Blade1A, Blade1A Fine,
Blade1B, Blade1B Fine, Blade2A, Blade2A Fine, Blade2B, Blade2B Fine, Blade3A, Blade3A Fine, Blade3B, Blade3B Fine, Blade4A, Blade4A Fine,
Blade4b, Blade4B Fine, Blade_Rot, Blade_Rot_F, BladeSpeed, BladeMacro
