Owner’s Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.

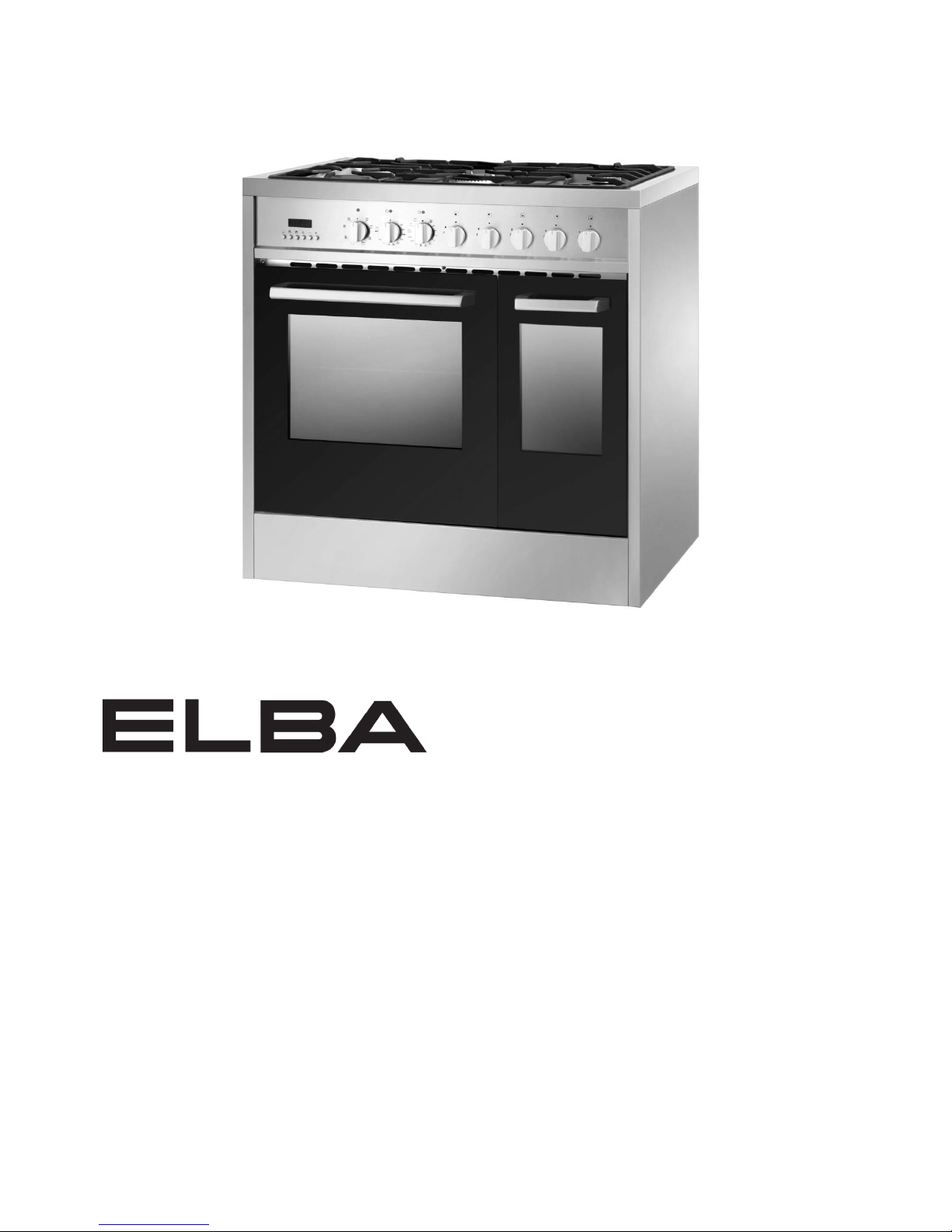

PROF. RANGE COOKER
(DOUBLE OVEN)
MODEL: EPRC-D9890TW(SS)

Please read this instruction carefully. It is advisable to keep this instruction manual
in a safe place for future reference.
SAFETY PRECAUTIONS
1. Keep electrical appliances out of reach from children. Do not let them to operate the
appliances without supervision.
2. This product is for household and indoor use only.
3. This product is not intended for use by person (including children) with reduced physical,
sensory or mental capabilities unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
4. If the power cord or plug is damaged, it must be replaced by the service centre or a qualified
service technician to avoid hazard.
5. Before installation, check if the mains supply voltage is matched with the voltage stated on
the rating plate of the appliance.
6. There must be adequate air ventilation in the kitchen when the product is used.
7. There is a risk of fire if cleaning is not carried out in accordance with this instruction.
8. Do not touch the heating elements inside the oven after cooking.
9. Before maintenance or cleaning, disconnect the appliance from the electrical mains and wait
for it to cool down.
10. Always use oven gloves to remove and replace food in the oven.
11. Do not remove the plug by pulling the cable.
12. Do not store or place flammable liquids or items in the vicinity of this appliance.
13. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the appliance since
they can scratch the surface, which may result in shattering of the glass and danger.

INSTRUCTIONS FOR INSTALLATION
DIMENSIONS AND INSTALLATION PROCEDURES
WARNING:
a) Prior to the installation, ensure that the local distribution conditions (nature of
the gas and gas pressure) and the adjustment of the appliance are compatible;
b) Make sure the appliance is not connected to the combustion products
evacuation device. It shall be installed and connected in accordance with the
local installation regulations. Particular attention shall be given to the relevant
requirements of ventilation.

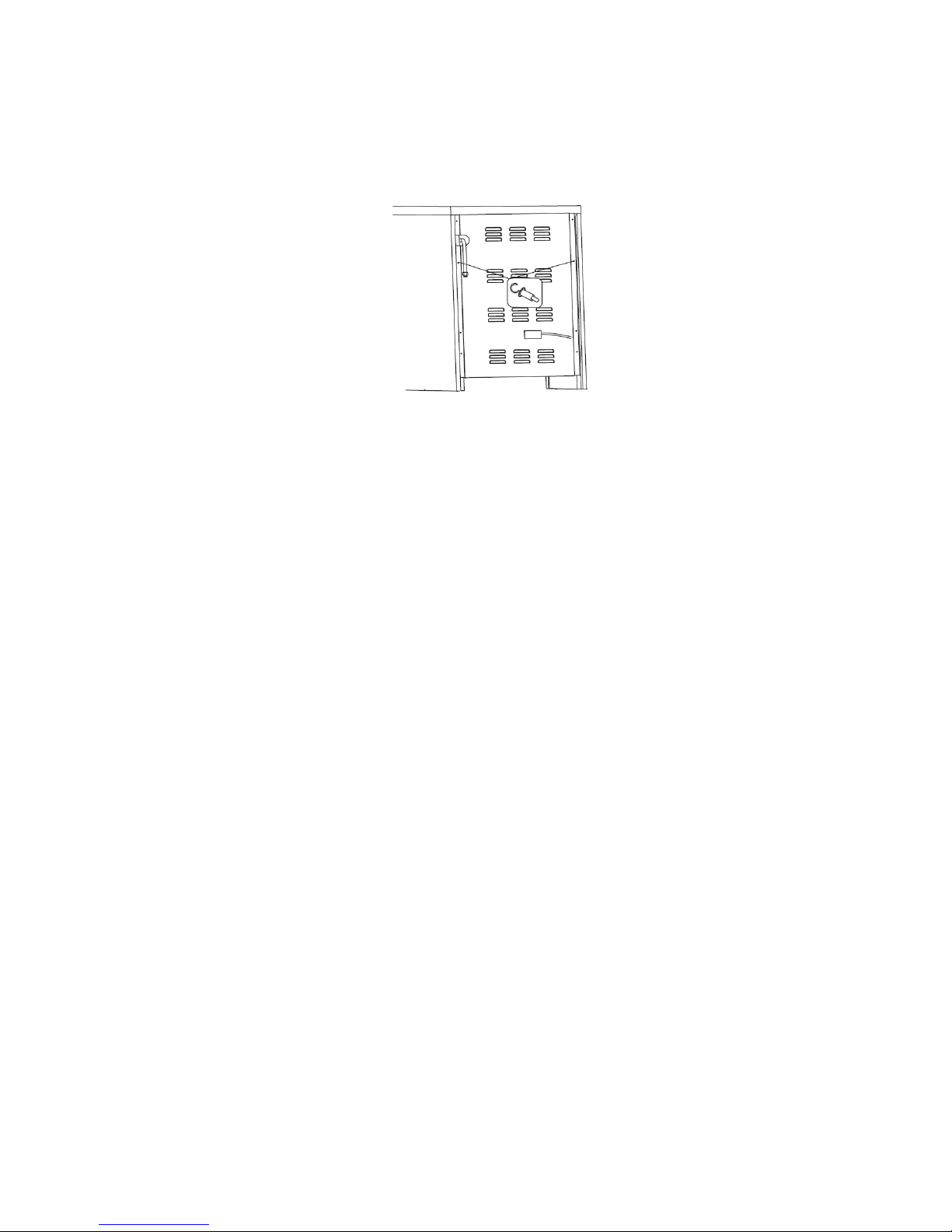

The appliance is supplied with an anti-tilting chain to prevent the appliance
from tilting forward and accidental damage to the gas pipe. Take the expansion
with hook and make an adequate hole in the wall behind, at the same height as the
chain fixing area. Insert the plug into the hole and then screw in the hook until it is
firmly fixed to the wall. Fix the chain to the hook. Adjust to level of the cooker by
inserting the feet provided.
ELECTRICAL CONNECTION
The appliance is fitted with an approved 15 Amp flexible cord which must be
connected to a correctly earthed socket outlet (not included). The manufacturer is
not liable for any direct or indirect damage caused by faulty installation or
connection. It is therefore necessary that all installation and connection operations
are carried out by qualified personnel complying with the local and general
regulations in force.
CONNECTION OF THE FEEDING CABLE TO THE MAINS
Connect the feeding cable to a plug suitable for the load indicated on the rating
plate of the product. In case of a direct connection to the mains (cable without plug),
it is necessary to insert a suitable omnipolar switch before the appliance, with
minimum opening between contacts of 3 mm (the grounding wire should not be
interrupted by the switch).
Before connecting to the mains, make sure that:
1) The electrical counter, the safety valve, the feeding line and the socket are adequate
to withstand the maximum load required.
2) The supply system is regularly grounded, according to the regulations in force.
3) The socket or the omnipolar switch can easily be reached after the installation of the
oven. After carrying out the connection to the mains, check that the supplying cable
does not come into contact with parts subject to heating.
4) Never use reductions, shunts, adaptors which can cause overheating or burning.
5) The manufacturer is not liable for any direct or indirect damage caused by faulty
installation or connection. It is therefore necessary that all installation and connection
operations are carried out by qualified personnel complying with the local and
general regulations in force.

ELECTRICAL FEATURES
Right Oven
Upper Grill Element 1200W
Top Heating Element 800W
Bottom Heating Element 750W
Left Oven
Oven light 2 x 25W
Upper Grill Element 2250W
Top Heating Element 1800W
Bottom Heating Element 1250W
Circular Heating Element 1800W
Ventilator Motor 13W
Cooling fan 18W
VENTILATION
In general, the appliance should have adequate ventilation for complete
combustion of gas, proper flueing and to maintain temperature of surroundings
within safe limits.
COMBUSTIBLE SURFACE
Any adjoining wall surface situated within 200mm from the edge of any hob burner
must be a suitable non-combustible material with a height of 150mm for the entire
width of the burner.
Any combustible construction above the cooking zone must be at least 600mm
above the top of the burner and no construction shall be within 450mm above the
top of the burner.
GAS CONNECTION
The appliance must be connected to the gas supply or the cylinder according to the
specifications of the standards and after checking that it is adjusted for the type of
gas available. Once the appliance has been installed, make sure that the gas pipe
is neither squashed nor damaged by moving parts. Before leaving, check all
connections for gas leaks with soap and water.
DO NOT use a naked flame for detecting leaks. Ignite all burners both individually
and separately to ensure correct operation of gas valves, burners and ignition.

ADAPTATION TO DIFFERENT TYPE OF GAS
To adapt the appliance to a gas different from which it was set up (see gas type
label at the marking plate) proceed as follows:
1) Remove the grids.
2) Remove the burner caps and burner heads. Unscrew and remove the
nozzles. Replace the nozzles with the correct size according to the type of
gas to be used (sold separately). See burner and nozzle characteristics table.
3) When converting from LPG to Natural Gas (NG) ensure that the LPG
regulator is removed and replaced with the Test Point Assembly.
4) A gas regulator suitable for a supply pressure of 2.75kPa is required to be
installed at the gas cylinder and the test point pressure should be adjusted to
2.75kPa.
ABNORMAL OPERATION
ANY OF THE FOLLOWING ARE CONSIDERED TO BE ABNORMAL OPERATION
AND MAY REQUIRE IMMEDIATE SERVICING:
- Yellow tipping of the hob burner flame.
- Soothing up of cooking utensils.
- Burners not igniting properly.
- Burners failing to remain alight.
- Burners extinguished by oven door.
- Gas valves, which are difficult to turn.
If the above symptom is found, please contact the authorized service centre for
servicing.

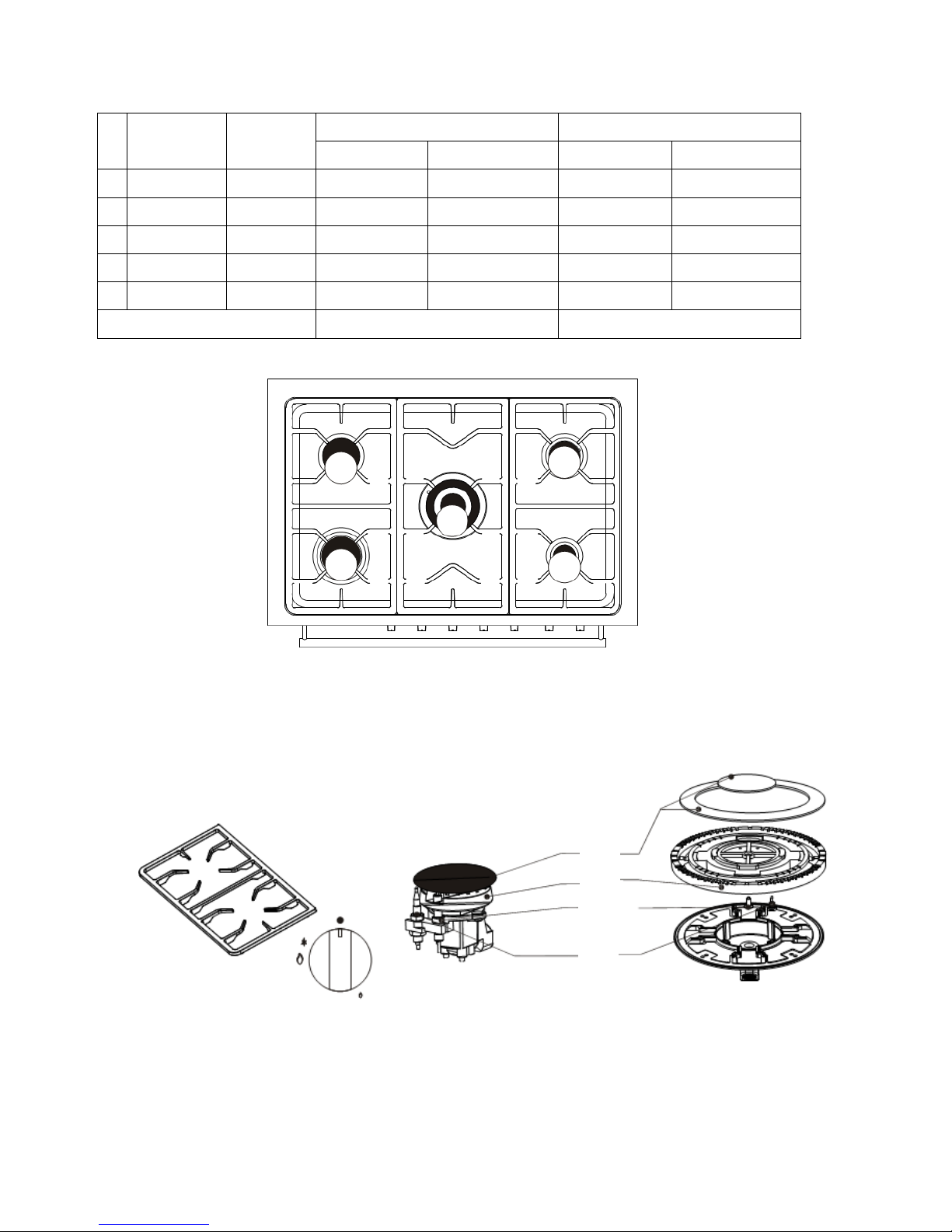

BURNER AND NOZZLE CHARACTERISTIC TABLE
Burner
Bypass
(mm)
LPG
Natural Gas
Output MJ/h
Nozzle Size (mm)
Output MJ/h
Nozzle Size (mm)
1
Rapid
0.44
10.80
0.88
11.00
1.50
2
Semi Rapid
0.34
6.30
0.68
6.60
1.16
3
Fish / BBQ
0.55
10.80
0.88
11.00
1.50
4
Auxiliary
0.29
3.80
0.53
3.80
0.88
5
Wok
0.64
12.80
1.00
15.00
1.75
Test Point Pressure
2.75kPa
1.0kPa
INSTRUCTION FOR USE (HOB)
DESCRIPTION OF THE MAIN PARTS OF THE APPLIANCE
1 –Cast Iron Trivet
2 –Burner Cap
3 –Burner Base
4 –Spark Plug
5 –Safety Valve (Flame Failure Device)
6 –Knob
1
2
3
4
5
6

DESCRIPTION OF SYMBOLS
Front Left Burner
Rear Left Burner
Center Burner
Rear Right Burner
Front Right Burner
Electric Oven Thermostat
Left Oven Operation
Right Oven Operation
IGNITION AND OPERATION OF THE BURNERS
In order to ignite a burner, it is necessary to depress the knob while rotating it anti-
clockwise until the index is aligned with the position corresponding to the flame
required. (i.e. the large flame symbol).
Once the flame is lit, hold the knob depressed for about 3-4 seconds until the
burner lit automatically. If the burner fails to ignite, wait one minute for the gas to
dissipate before attempting to reignite. At this moment it is possible to adjust the
flame intensity by rotating the knob anticlockwise from maximum position to the
minimum one (i.e. the small flame symbol).
In order to turn the burner off, rotate the knob clockwise bringing the index back to
the position corresponding to the closure symbol.
RECOMMENDATIONS
In case of electric power failure, it is necessary to carry out the above-described
operations by putting a gas lighter or a flame near the burner (in such an event,
pay the utmost attention not to burn yourself).
The safety valve (for models where such item is provided) intervenes in case of
accidental flame failure, blocking the gas delivery (e.g.: air draughts, spillage of
liquids, etc.). In any case, the ignition device must not be actuated
for longer than 15 seconds. If the ignition manoeuvre fails, or should the
burner be accidentally turned off, immediately close the actuation knob and repeat
the ignition after five minutes at least.

Once the ignition has taken place, adjust the flame according to your needs.

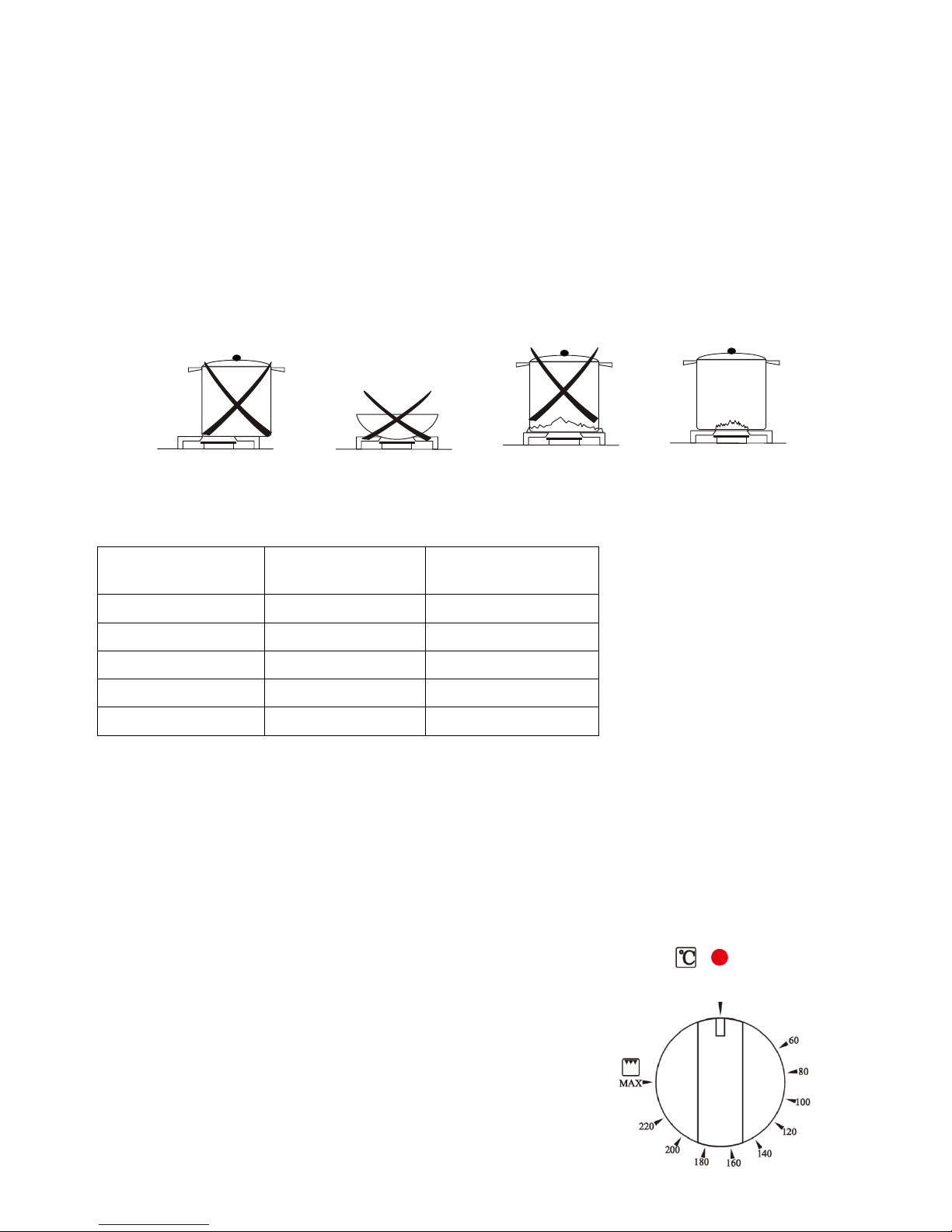

For lower gas consumption and a better yield, use saucepans with diameter
suitable for the burners. Avoid having the flame coming up from the side of the
saucepan (see the container table). Use only flat- bottomed pans.
As soon as a liquid starts to boil, turn the flame down to a level sufficient to
maintain boiling. During cooking, when using fats and oils, be very careful because
if they overheat they could catch fire.
CONTAINER TABLE
Burner
Saucepan Diameter
(Min)
Saucepan Diameter
(Max)
Auxiliary
90
160
Semi-Rapid
130
180
Fish Pan
310 x 410
460 x 230
Rapid
150
260
Wok
210
270
INSTRUCTION FOR USE (OVEN)
ELECTRIC OVEN THERMOSTAT KNOB
Selection of cooking temperature is carried out by turning the knob clockwise to the
required temperature, between 60℃and MAX. The warning light will come on
when the oven is heating up. When it goes out it means that it reaches the required
temperature. Regular flashing means that oven
temperature is being constantly maintained at the
programmed level.

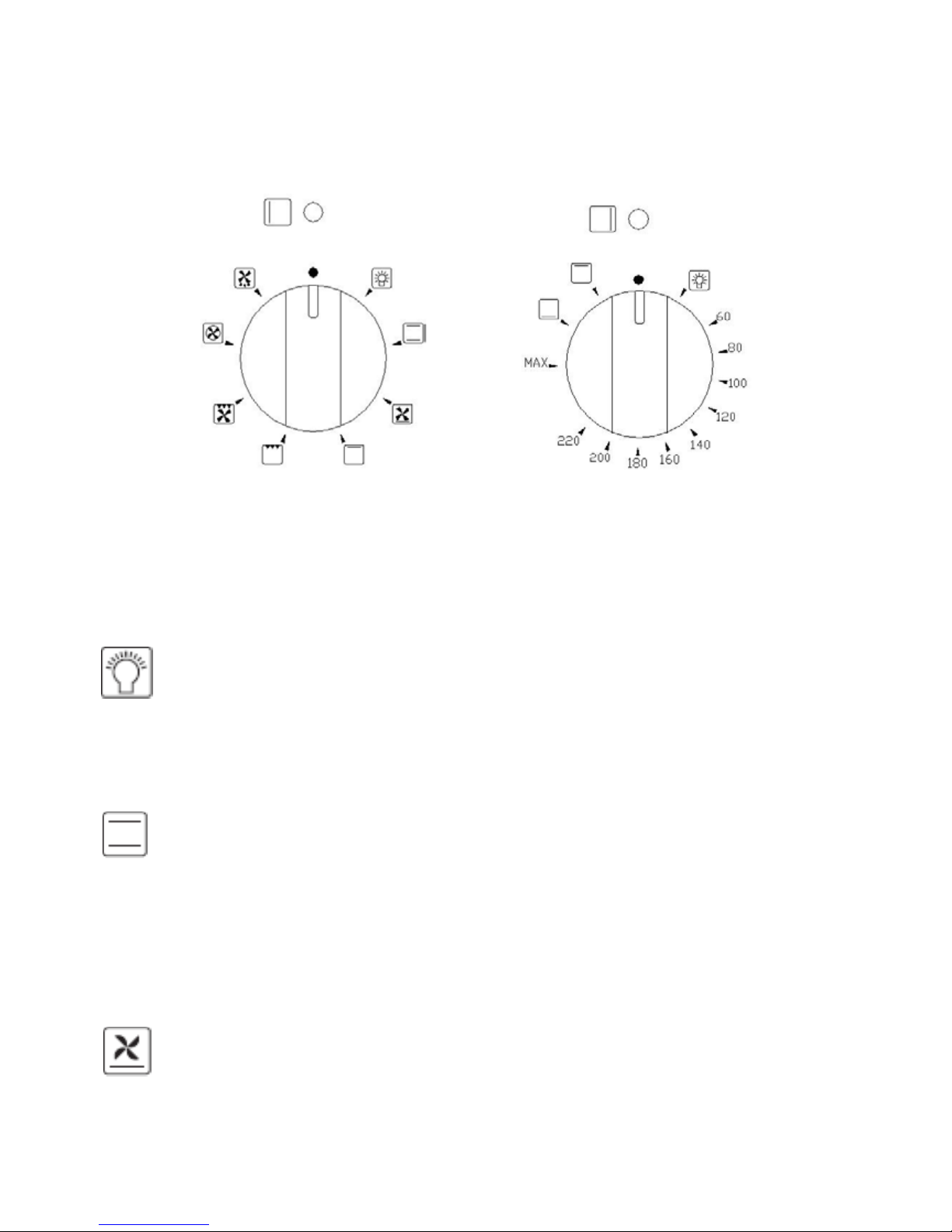

ELECTRIC OVEN FUNCTION KNOB
Each of the functions listed below can be used only together with the correct
temperature.
The function selector knob and thermostat knob are used to select various oven
functions and to choose the cooking temperatures best corresponding to the food
to be cooked. During the oven operation the lamp will always remain on. The oven
door must be closed for all types of cooking.
LAMP
The lamp of the oven is on, with no heating elements operated (electrical
resistances). This function is to display the food inside the oven until the
function is switched off.
CONVENTIONAL HEATING
The heat is provided from the top and bottom elements. The oven must be
preheated before the food is placed inside. Static cooking provides optimum results
with cakes, pizzas, bread and for gentle slow cooking of casseroles.
Characteristics of static cooking: heat provided from above and below, cooking is
possible only on middle shelf and should be centrally located in the oven.
DELICATE COOKING
Ideal for pastries and cakes with wet covering and little sugar and damp
desserts in moulds. Excellent results can also be achieved in completing
cooking at the bottom and with dishes requiring heat in the lower area in particular.
The baking tray is best inserted at bottom level.

TOP ELEMENT COOKING
Ideal for browning food at the end of cooking.
TOP GRILLING
Use for toasting and melting cheese or browning. The cooking time should
be no longer than 5 minutes.
FAN ASSISTED GRILLING
Use of the grill element and fan for grilling meats, vegetables and poultry.
Preheat the oven, place the food on the grilling rack with baking tray and place in
the middle of the oven. Other food may be cooked underneath whilst grilling.
FAN FORCED COOKING
The circular heating element and fan come into operation and the heat is
spread evenly to all shelf positions. Various types of food can be cooked on
different shelves, naturally with the appropriate cooking time. The oven must be
preheated before the foods are placed inside. Fan mode provides optimum results
with cakes, large quantities of foods and cooking various dishes simultaneously.
DEFROSTING
The fan makes the air circulate at room temperature around the food. This
is recommended for the defrosting of all types of food, but in particular for delicate
types of food which do not require heat such as ice cream cakes, cream or custard
desserts, fruit cakes and etc. By using the fan, the defrosting time is approximately
halved. In the case of meat, fish and bread, it is possible to accelerate the process
using the "Fan forced" and set the temperature to 80℃TO 100℃.

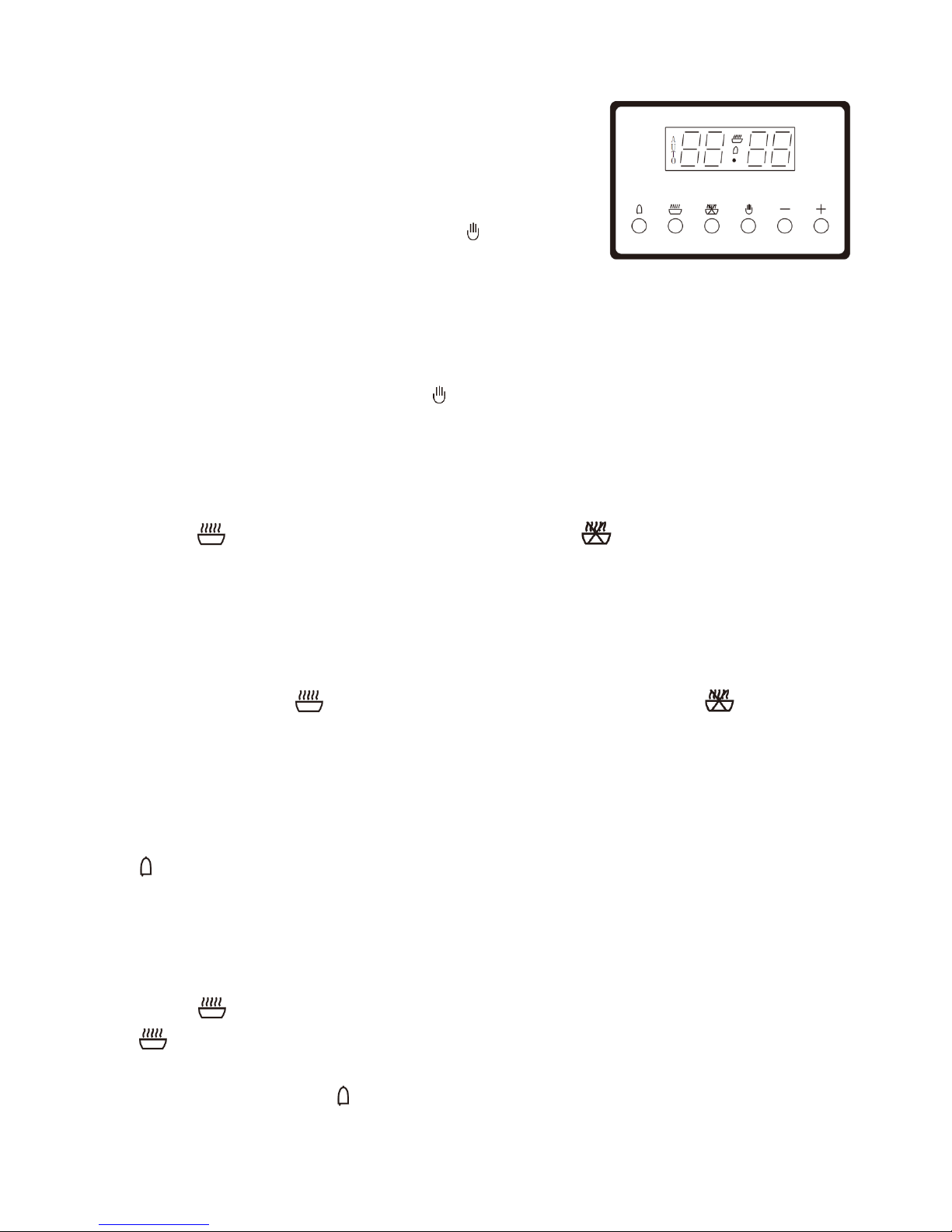

ELECTRONIC PROGRAMMER
The LED Display will show the current time (0:00-
24:00). When the power is on, the screen will show 3
digit and AUTO.
To set the clock for the first time, press button then
press + or –button to set the minute and hour.
MANUAL OPERATION SETTING
If the AUTO is flashing, press the button to remove the AUTO function. The
oven will go into manual operation setting.
AUTOMATIC OPERATION SETTING
Press the button to set cooking time. Press the button to set cooking end
time. Set the temperature and cooking function by turning the thermostat knob and
function knob. After the setting completed, the function “AUTO” will be flashing and
the cooking process of the oven is set.
For example: If cooking time takes 45 minutes and expecting to end at 14:00.
Set the cooking time at 45 minutes. Set the cooking end time at 14:00.
The screen shows the actual time (hour:minute) and the function “AUTO” will be
flashing. It means the set cooking process is memorized and ready to operate.
When the clock turns to be 13:15, the oven will start automatically. When the clock
turns to be 14:00, the cooking process is done. The alarm will beep. After pressing
the button, the beep will stop.
SEMI-AUTOMATIC SETTING
Set the cooking time (10 hours maximum)
Press the button to set the cooking time. The oven will start immediately with
the light and “AUTO” flashing. After the cooking process is completed, the
oven will turn off automatically. The function “AUTO” will be flashing and the alarm
beeps. After pressing the button, the beep will stop.

Set the cooking end time (23 hours 59 Minutes maximum)
Press the button to set the cooking end time. The oven will start immediately
with and “AUTO” flashing. When the cooking end time reaches, the oven will
turn off automatically. The function “AUTO” will be flashing and the alarm beeps.
After pressing the button, the beep will stop.
COOLING VENTILATION
In order to cool down the oven, the appliance has a cooling fan equipped which will
come on automatically when the oven is hot. When the fan is operating, a normal
flow of air can be heard exiting between the door and the control panel. After the
cooking process, the fan will continue running until the oven is cool down.
TABLE OF COOKING TIME
The table shows some examples for the adjustment of the thermostat and cooking
time. The cooking time can vary according to the type and volume of the food. The
time indicated in the table refers to the cooking of one portion only. For more than
one portion, the cooking time should be increased by 5 -10 minutes.
The table below shows indicative shelf positions for use with your oven. Please
note that the temperature and cooking time are for reference purposes only.
According to different cooking method, it may be necessary to make further
modifications. Please add 15 minutes to the time indicated if preheating is required.
Function
Knob
Setting
Food to be cooked
Weight
(kg)
Level
from
Bottom
Preheating
Time
(Minutes)
Temperature
(ºC)
Cooking
Time
(Minutes)
Conventional
Top and
Bottom
Element
Duck
Roast veal or beef
Biscuits
Tarts
1
1
1
-
1
3
3
3
3
3
15
15
15
15
15
200
200
200
180
180
65-75
70-75
70-80
15-20
30-35
Delicate
Cooking
Pizza
Roast Veal
Beef
Chicken
0.5
1
1
1
3
2
2
2/3
15
10
10
10
220
220
220
180
15-20
25-30
25-30
60-70

Function
Knob
Setting
Food to be cooked
Weight
(kg)
Level
from
Bottom
Preheating
Time
(Minutes)
Temperature
(ºC)
Cooking
Time
(Minutes)
Top Element
Cooking
Browning food to perfect
cooking
-
3/4
15
220
-
Top Grilling
Soles and cuttlefish
Squid and prawn
Kebabs
Cod filet
Grilled vegetables
Veal steak
Cutlets
Hamburgers
Mackerels
Toasted sandwiches
1
1
1
1
1
1
1
1
1
1
4
4
4
3/4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
Max
Max
Max
Max
Max
Max
Max
Max
Max
Max
8-10
6-8
-
10
10-15
15-20
15-20
7-10
15-20
2-3
Fan
Assisted
Grilling
Grill Chicken
Cuttlefish
Veal
Chicken
Lamb
1.5
1.5
1.5
2.0
1.5
3
3
-
-
-
5
5
5
5
5
Max
Max
200
200
200
80-90
70-80
70-80
70-75
70-80
Fan Forced
Cooking
Tarts
Fruit cake
Sponge cake
Stuffed pancakes
Small cakes
Cheese puffs
Cream puffs
Biscuits
0.5
1
0.5
1.2
0.6
0.4
0.7
0.7
3
2/3
3
2/3/4
2/3/4
1/3/5
1/3/5
1/3/5
15
15
15
15
15
15
15
15
180
180
160
200
190
210
180
180
20-30
40-45
25-30
30-35
20-25
15-20
20-25
20-25
Defrost
All frozen food
1
3
-
-
15

MAINTENANCE AND CLEANING
Do not use jet steam cleaner for cleaning.
Before any operation disconnect the appliance from the power supply. Wash the
enamel parts with lukewarm water and mild detergent. Do not use abrasive
detergent to clean the appliance.
Wash the burner spreader frequently with boiling water and detergent to make sure
remove any deposits after cooking which could block the flame outlet. Clean the
stainless steel parts well with soapy water and dry them with a soft cloth.
To clean the hob use slightly damp sponges and wiping cloths. Do not use too
much water as it will damage the internal electrical components. The grids of the
hob can be washed in the dishwasher.
For persistent stains use non-abrasive detergents or a little vinegar. Clean the
glass parts with soapy water, avoiding the use of rough cloths. Do not use stainless
steel pads or acids for cleaning.
To prevent difficulty of flame ignition, carefully clean the ignition regularly. Carefully
clean and make sure the ignition is not dislocated during cleaning.
Contact the authorized service centre if any other problems which may arise during
use.
To keep the brightness of the enamelled parts it is necessary to clean the oven
after every cooking. Once the oven is cold, you will be able to easily remove the fat
deposits by means of sponge or a cloth damp with warm soapy water or a common
detergent. Never use abrasive cloths or sponges that could irreparably damage the
enamel.
ALWAYS CLEAN THE APPLIANCE AFTER ANY FOOD SPILLAGE AFTER
COOKING. TO MAINTAIN SAFE OPERATION, IT IS RECOMMENDED THAT THE
PRODUCT TO BE INSPECTED BY AN AUTHORISED SERVICE TECHNICIAN
AFTER A LONG USAGE.

CLEANING THE OVEN DOOR
In any case that you need to remove the oven door for better and thorough
cleaning, you are required to dissemble the oven door from the appliance.
Open the door completely. Lift up and turn the small levers located on the two
hinges of the oven door. Grip the door on the two external sides and close it
approximately half way. Unlock the door by pushing on the clamps. Pull the doors
towards you by lifting it out from the hinge.
To replace the door after cleaning, simply reverse the sequence.
REPLACING THE OVEN BULB
Always disconnect the electrical source of the appliance before carry out any
repairs. Unscrew the glass protection cap and the bulb from the oven. Only use the
high temperature resistant bulb for replacement. Assemble the glass protection cap
and reconnect the appliance after replacing the bulb.
Contact authorized service centre to the purchase of the correct oven bulb.

MAIN SPECIFICATIONS
Rated Voltage: 220-240V / 50Hz
Oven Capacity: 70 Litres (Left) + 36 Litres (Right)
Oven Output Power: 3.45kW (Left) + 1.8kW (Right)
Burner Ratings:
1 x Triple Ring Burner (3.8kW x 1)
1 x Rapid Burner (3.0kW x 1)
2 x Semi Rapid Burner (1.75kW x 2)
1 x Auxiliary Burner (1.0kW x 1)
Product Dimension: 898mm (W) x 900mm (H) x 600mm (D)
Gross Weight: 95.0KGS
Net Weight: 84.5KGS
NOTICE
This product must not be disposed together with domestic waste. It has to be disposed at
an authorized place for recycling of electrical and electronic appliances. By collecting and
recycling waste, you help to save natural resources and make sure the product is disposed
in an environmental friendly and healthy way.
