Dear Customer,
We thank you very much for choosing our
products.
The instructions and advice included in
this booklet are given to safeguard your
safety and to use this appliance correctly.
Be so kind as to keep this booklet.
It will be useful to clear any doubt
concerning its operation.
This appliance must be only assigned to
the use for which it has been realized,
that is for cooking food.
Any other use has to be considered
incorrect and therefore dangerous.
The manufacturer declines any liability
for damages caused by wrong, incorrect
or irrational use of the appliance.
FIRST USE THE OVEN
It is advised to follow these instruc-
tions:
– Clean the interior of the oven with
cloth soaked in water and detergent
(neutral), then dry carefully.
– Insert shelves and tray.
– Switch on the empty oven on max
to eliminate grease tracks from the
heating elements.
IMPORTANT INSTRUCTIONS AND
ADVICE FOR THE USE OF
ELECTRICAL APPLIANCES
The use of any electrical appliance
requires the compliance with some basic
rules, namely:
– do not touch the appliance with wet or
damp hands (or feet)
– do not use the appliance bare feet
– do not allow the appliace to be oper-
ated by children or disabled without
overseeing.
The manufacturer cannot be deemed
responsible for damages caused by
wrong or incorrect use.
USEFUL HINTS
After removing the appliance from its
packing, make sure of its integrity.
In case of doubt, please apply to your
supplier or to a qualified engineer.
The packing materials (plastic bags,
polyfoam, nails, metal strips etc.) must
be moved away from the reach of the
children as potential sources of danger.
– Do not attempt to alter the technical
features of the appliance as this may
result very dangerous.
– Do not carry out any operation of
cleaning or maintenance without prior
disconnection of the appliance from
the electric supply.
– Whenever you decide to get rid of this
appliance (in case of replacement with
a new one), before scrapping it is rec-
ommended to render it inoperative and
harmless in respect of health and
antipollution regulations.

3
1 - COOKING HOBS
Fig. 1.1
Fig. 1.2
Fig. 1.3
12
34
1
2
4
3
12
4
3
5
GAS COOKING HOBS
(Fig. 1.1- 1.2 - 1.3)
GENEREAL FEATURES:
1. Auxiliary burner (A) - 900 W
2. Semi-rapid burner (SR) - 1550 W
3. Rapid burner (R) - 2550 W
4. Double-ring burner (DR) - 3500 W
5. Electrical plate Ø 180 - 1500 W

4
51234
Fig. 2.1
Fig. 2.3
51 42 3 9
CONTROLS DESCRIPTION
1. Rear left burner control knob
2. Front left burner control knob
3. Front right burner control knob
4. Rear right burner control knob
5. Gas oven control knob
6. Electrical oven control knob
7. Electrical plate control knob (*)
2 - CONTROL PANEL
Fig. 2.4
6 10-11 17482 3 9
8. 60' Timer control knob (*)
9. Gas burner electronic igniter
control button (*)
10. Oven light control button (*)
11. Rotisserie control button (*)
(*): According to the models
6
10-11
1234
Fig. 2.2
9
Fig. 2.5
6 10-11 1482 3 9

5
Each burner is controlled by a gas tap
assuring the opening and the closing of
the gas supply.
Make the indicator of the knob the sym-
bols printed on the control panel:
- symbol ●: off
- symbol : full on (nominal rate)
- symbol : reduced rate
To open the tap, which allows the flow
of gas to the burner, push the knob and
turn it towards the left.
To turn it off, turn the knob towards the
right up the safety click.
The full-on rate serves to bring foods to
a boil, while the reduced rate consents
the slow heating of foods or the main-
tenance of the boiling.
All of the positions of the different oper-
ations must be chosen between the
maximum and the minimun and never
between the maximum and the turn off
point.
Fig. 3.3
Fig. 3.1
SAFETY VALVES
Some models are equipped with flame-
failure device taps/thermostat.
This device allows to stop the gas input
to the tap/thermostat whenever the flame
goes out.
The tap/thermostat opening has to be
done as follows:
1) Turn the knob to full-on setting.
2) Light the gas and keep the knob
pressed in order to allow the flame to
heat the feeler wich activates the
magnet controlling the gas input.
3) After few seconds (20 max) leave the
knob.
Be careful that the feeler be always
clean as the dirt may act as thermic
insulator.
LIGHTING OF TOP BURNERS
The cooker has an automatic ignition
device.
It is enough to push the knob and turn
the tap on the “full-on” position (fig. 3.3)
until the burner lights, then adjust the
flame.
In case of electric ignition,
push the knob and turn the
tap on the “full-on” posi-
tion.
Then push the switch-but-
ton (fig. 3.2) until the burn-
er lights.
Fig. 3.2
3 - USE OF THE HOB BURNERS
In the event of the burner flames being
accidentally extinguished, turn off the
burner control and do not attempt to
re-ignite the burner for at least 1 min.

6Fig. 3.4
CHOICE OF THE BURNER
On the control panel, near every knob,
there is a diagram that indicates which
burner is controlled by that knob.
The suitable burner must be chosen
according to the diameter and the
capacity used.
As an indication, the burners and the
pots must be used in the following way:
It is important that the diameter of the
pot be suitable to the potentiality of the
burner so as not to compromise the high
output of the burners and therefore
energy waste.
A small pot on a large burner does not
give you a boiling point in a shorten
amount of time since the capacity of
heat absorption of a liquid mass
depends on the volume and the surface
of the pot.
BURNERS POT DIAMETER
Auxiliary 12 - 16 cm
Semi-rapid 16 - 20 cm
Rapid 20 - 24 cm
Double-ring wok
Fig.
3.5b
Fig.
3.5a
WRONG
CORRECT
CORRECT USE OF
DOUBLE-RING BURNER
The flat-bottomed pans are to be placed
directly onto the pan-support.
To use the WOK you need to place the
proper stand in order to avoid any faulty
operation of the double-ring burner
(Fig. 3.5)
MODELS WITH BATTERY IGNITION
- If the electronic ignition does not work
make sure that the battery, installed
on the back of the cooker, is not flat
and has been installed correctly (see
the chapter “Battery installation”, page
19).

7
0
6
5
4
3
2
1
Fig. 3.6
HOTPLATES
NORMAL HOTPLATES

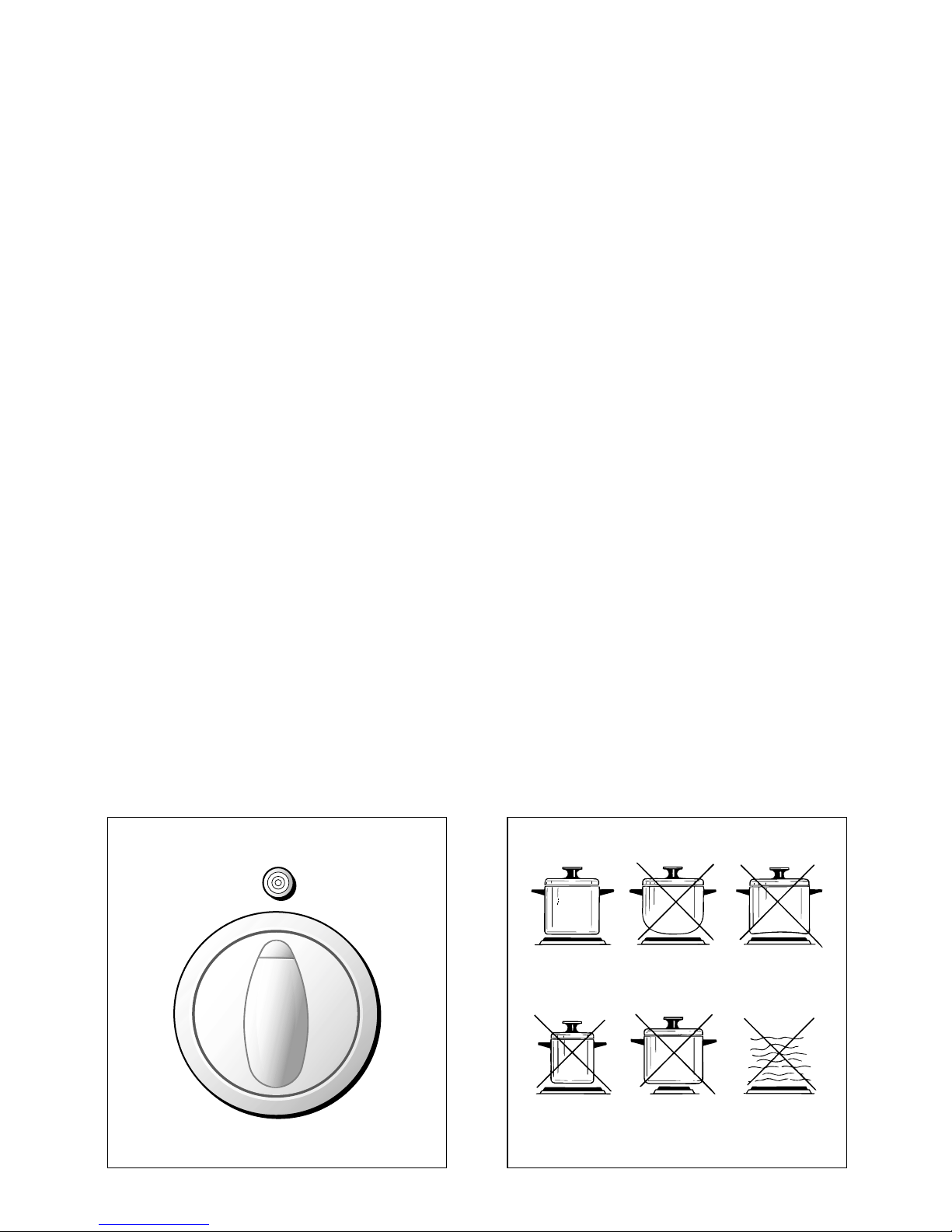

To switch on the normal hotplate, turn
the knob (Fig. 3.6) onto the desired posi-
tion; the numbers 1 to 6 indicate the
working positions with the increase of
temperature according to the number.
Once boiling point has been reached,
reduce the input according to the heat-
ing intensity desired, keeping in mind
that the plate will continue to heat for 5
minutes after having been turned off.
RAPID HOTPLATES (red dot)
The control knob of the rapid hotplates
is similar to that of a normal plate with
6 working positions (Fig. 3.6).
The features of this plate, which is
equipped with a heat limiter, allow:
– reaching the temperature rapidly
– maximum exploitation of the input with
flat bottom pots
– the limitation of input in the case of
unsuitable pots.
CORRECT USE OF THE
ELECTRICAL PLATES
In using the hotplates you must:
– avoid idle operation (without pots)
– do your best not to pour liquids on the
plates when they are hot
– only use flat bottom pots
– always use pots that completely cover
the surface of the plate.
A lamp signals that the hotplates are
operating.
Fig. 3.7

8
TYPE OF COOKING
Switched OFF
For melting operations
(butter, chocolate).
To maintain food hot and to
heat small quantities of liq-
uid (sauces, eggs).
To heat bigger quantities; to
whip creams and sauces.
(vegetables, fruits, soups).
Slow boiling, i.e.: boiled
meats, spaghetti, soups,
continuations of steam cook-
ing of roasts, stews, pota-
toes.
For every kind of frying, cut-
lets, uncovered cooking, i.e.:
risotto.
Browning of meats, roasted
potatoes, fried fish,
omelettes, and for boiling
large quantities of water.
Fast frying, grilled steaks,
etc.
0
Position
of switch
1
2
3
2
3
4
4
4
5
6
Heating
Cooking
Roasting-frying
NORMAL AND RAPID PLATES
1
2
3
4
5
6
Fig. 3.8

9
Fig. 4.1
GENERAL FEATURES
The oven is furnished completely clean;
it is advisable, however, upon first use,
to turn the oven on to the maximum tem-
perature (position 10) for about 15 min-
utes to eliminate possible traces of
grease from the oven burner.
The same operation should be followed
for grill burner.
The gas oven, according to the model,
is provided with one or two burners:
a) Oven burner, mounted on the lower
part of the oven (wattage: 3200 W)
b) Grill burner, mounted on the upper
part of the oven (wattage: 2000 W).
OVEN GAS BURNER
The gas delivery to the oven burner is
controlled a thermostatic tap.
The glass of the oven door reach-
es high temperatures during oper-
ation.
Keep children away.
For child safety, a door guard can
be fitted to prevent contact with
the hot glass.
The door guard is supplied as an
accessory on request. Contact our
Service Centre and indicate the
relevant appliance model.
4 - GAS OVEN
Fig. 4.2
A
LIGHTING OF THE OVEN BURNER
1) Approach a flame to opening “A” fig.
4.2
2) Press thoroughly the knob and turn it
anti-clockwise position (fig. 4.1); the
indicator should match with the num-
ber 10.
3) Wait about ten seconds after the burn-
er lighting before releasing the knob
(time of priming of the valve).
Close the oven door slowly.
4) Adjust the burner according to the
power required.
Should the flame of the burner estinguish
for any reason, the safety valve will cut
off automatically the gas flow to the ther-
mostat.
To re-start operation, take the knob to
“off” position and repeat operations 1-2-
3 as above explained.

0
9
10
6
7
8
3
4
5
1
2
Fig. 4.3

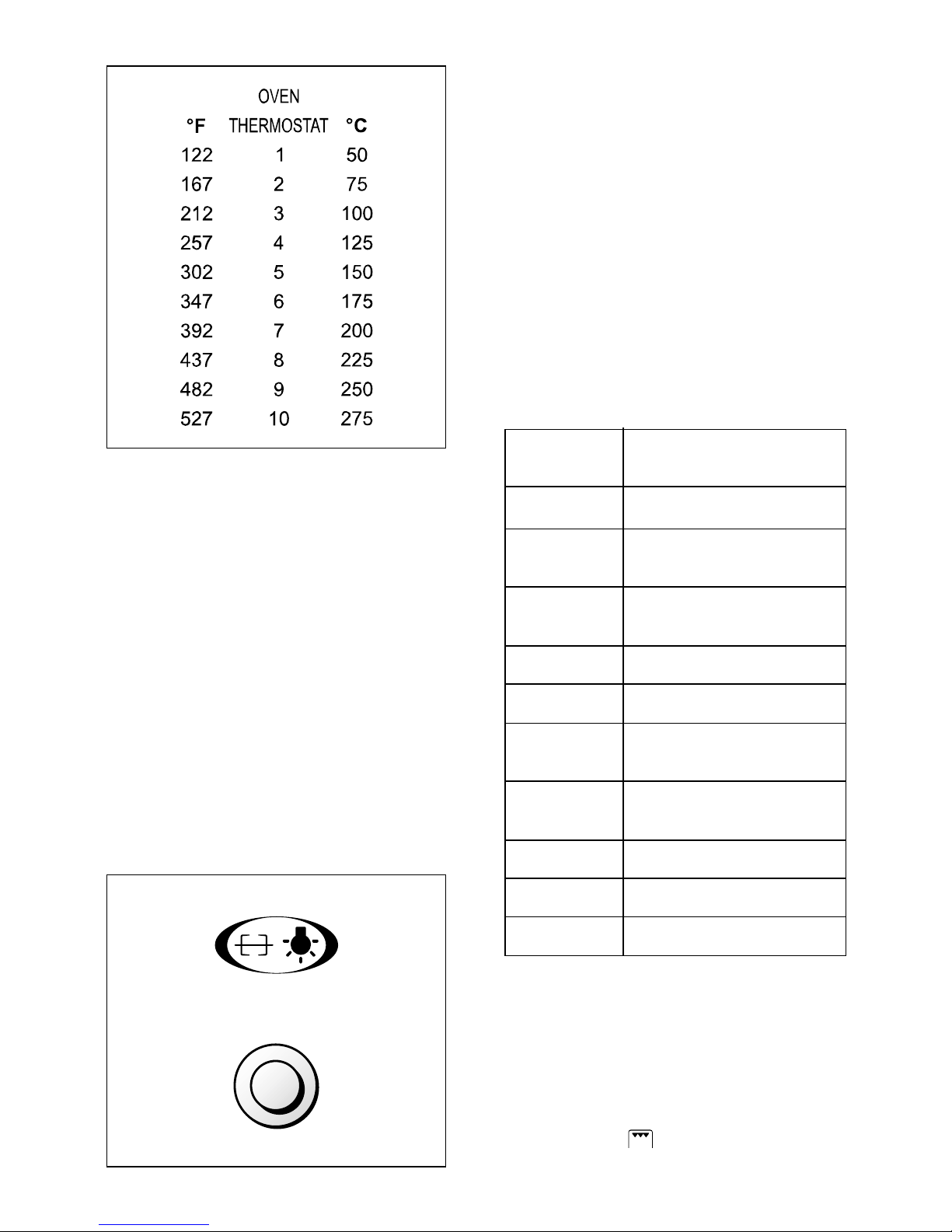

For orientative purposes only, some
oven cooking indications are shown on
the following table:
THERMOSTAT DISHES
POSITION
1 Heating of foods
1Meringue - Fruit pies
Cooked fruit
1 - 2 Cakes - Amaretti,
Vegetables
2 - 3 Lasagna - Cakes
3 - 4 Roast veal - Pie crusts
5 - 6 Wild game - Birds
Small fish - Roast pork
6 - 7 Large fish
Roast beef
7 - 8 Pizza - Red meats
8 - 9 Toasted sandwiches
10 Oven cleaning
OVEN BURNER THERMOSTAT
The numbers 1 to 10 (fig. 4.3) indicate
the increasing oven temperature value
(see table 4.4).
To regulate the temperature, set the
knob indicator onto the chosen number.
OVEN COOKING
To cook, before introducing the food,
pre-heat the oven to the desired tem-
perature for the period of time indicated
on the table to left (table 4.4).
These preheating times indicate the
time that a cold and empty oven takes
to reach that temperature.
When the oven has reached the tem-
perature, introduce the food, control the
check the cooking time and turn off the
oven 5 minutes before the theoretical
time to recuperate the stored heat.
Table 4.4
10

11
GRILL BURNER
This burner makes the stainless steel
wire net red hot, which, generating infra
red rays, permits grilling.
To turn on the grill burner:
1) Press thoroughly and turn clockwise
the oven gas thermostat knob to set
symbol .
2) Put a flame to the right and left side
of the burner for 2-3 seconds after
the thermostat has been opened (fig.
4.6).
3) Wait about ten seconds after the
burner lighting before releasing the
knob (time of priming of the valve).
Should the flame of the burner estin-
guish for any reason, the safety valve
will cut off automatically the gas flow to
the tap. To re-start operation, take the
knob to “off” position and repeat opera-
tions 1-2-3 as above explained.

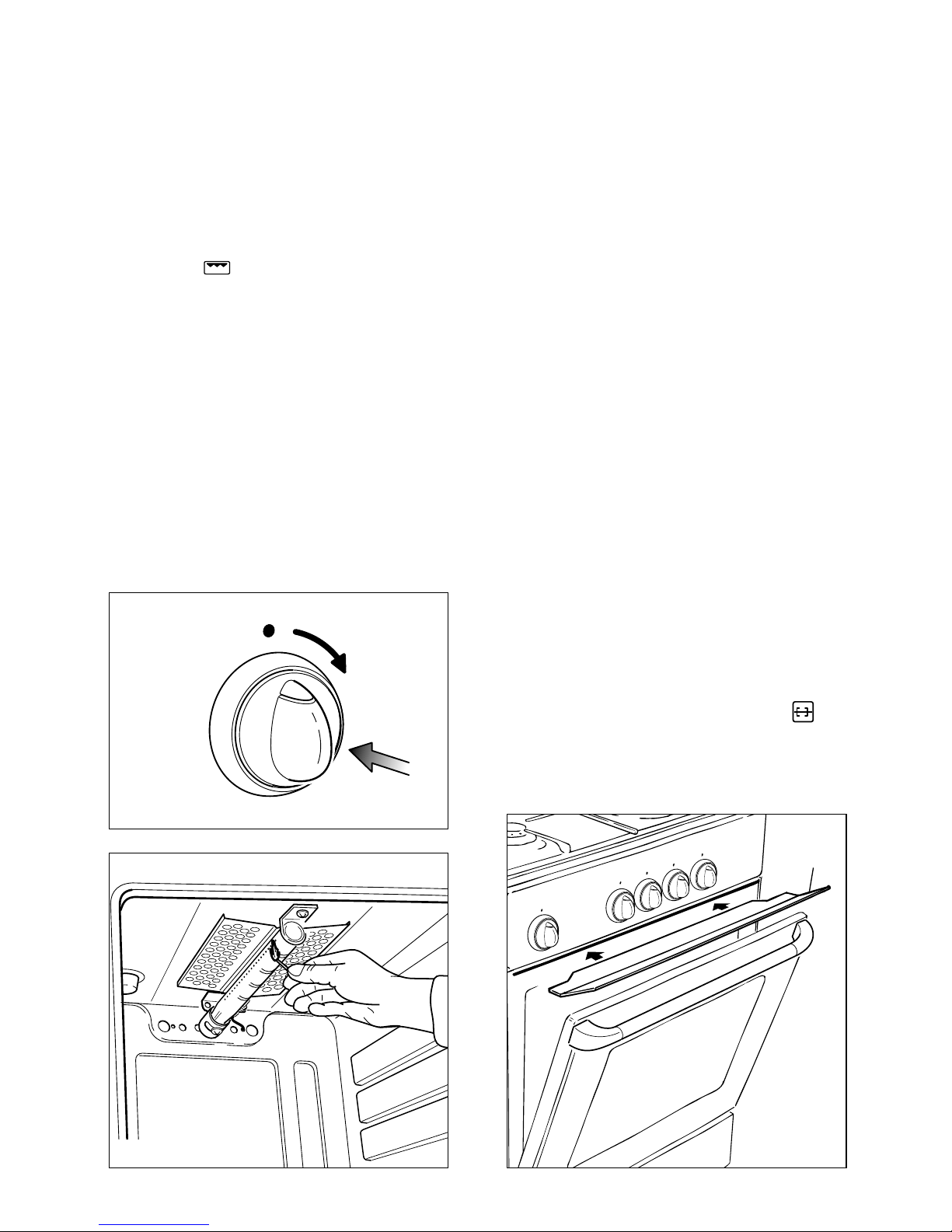

Fig. 4.5
Fig. 4.6
ROTISSERIE
Except for some models, the ovens are
equipped with a rotisserie for cooking on
the spit using the grill (fig. 4.9).
This device is made up of:
– an electrical motor mounted on the rear
part of the oven
– a stainless steel rod, equipped with a
detachable athermic grip and 2 record-
able forks
– a rod support to be inserted into the
central rack holders of the oven.
The rotisserie motor is operated by the
switch indicated by the symbol on
the control panel (fig. 4.9).
Fig. 4.7
A
USE OF THE GRILL
Very important: the grill must always
be used with the oven door slightly
open (Fig. 4.7).
Mount shield “A” which serves to protect
the control panel from the heat.
Turn on the grill, as explained in the pre-
ceding paragraphs and let the oven pre-
heat for about 5 minutes with the door
slightly open.
Introduce the food to be cooked, posi-
tioning the rack as close to the grill as
possible.

12
USE OF THE ROTISSERIE
Very important: the rotisserie must
always be used with the oven door
slightly open and with shield "A”
mounted (Fig. 4.7).
– Insert the dripping pan into the lowest
rack holders of the oven and insert the
rod support into the intermediate rack
holders.
– Put the meat to be cooked onto the
rod, being careful to secure it in the
center with the special forks.
– Insert the rod into the motor opening
and rest it onto the support of the spit
collar; then remove the grip by turning
it to the left.
The rotation direction of the rotisserie
can be either clockwise or counter-clock-
wise.
Fig. 4.8 Fig. 4.9
OVEN LIGHT
Except for some models, the oven is
equipped with a light that illuminates the
oven to enable visually controlling the
food that is cooking.
This light is controlled by a switch on the
control panel (fig. 4.9).

13
GENERAL FEATURES
The oven is furnished completely clean;
it is advisable, however, upon first use,
to turn the oven on to the maximum tem-
perature (pos. 10 = 240°C) for about 15
minutes to eliminate possible traces of
grease on the heating elements.
The convection oven is eqipped with 3
electrical heating elements:
– 2 elements (upper and lower) for nor-
mal oven cooking
– 1 grill element, on the top of the oven,
for grilling which must be done with
the oven door slightly open and with
the protection shield for the control
panel mounted.
The input of the element is:
– upper element, 960 W
– lower element, 1340 W
– grill element, 1900 W
ELECTRICAL THERMOSTAT
Turn on the oven or grill elements by
turning the switch that is also provided
with a thermostat to control the oven
temperature.
To regulate the temperature or function,
turn the control knob until the required
number or symbol is level with the ver-
tical line on the control panel.
The switch/thermostat symbols indicate:
– Position “0”= off
– Position from “1to 10” = simultaneous
operation of the 2 elements. The num-
bers correspond to the temperature
shown in the table 5.2.
The elements will turn on and off auto-
matically depending on the tempera-
ture required commanded by the ther-
mostat.
– Position = lower element only
in operation with-
out temperature
control.
– Position = upper element
only in operation
without tempera-
ture control.
– Position = grill element in
operation without
temperature con-
trol (see specific
paragraph).
The automatic turning on and off of the
elements is signalled by a light above
the knob.
0
1
2
3
4
5
6
7
8
9
10

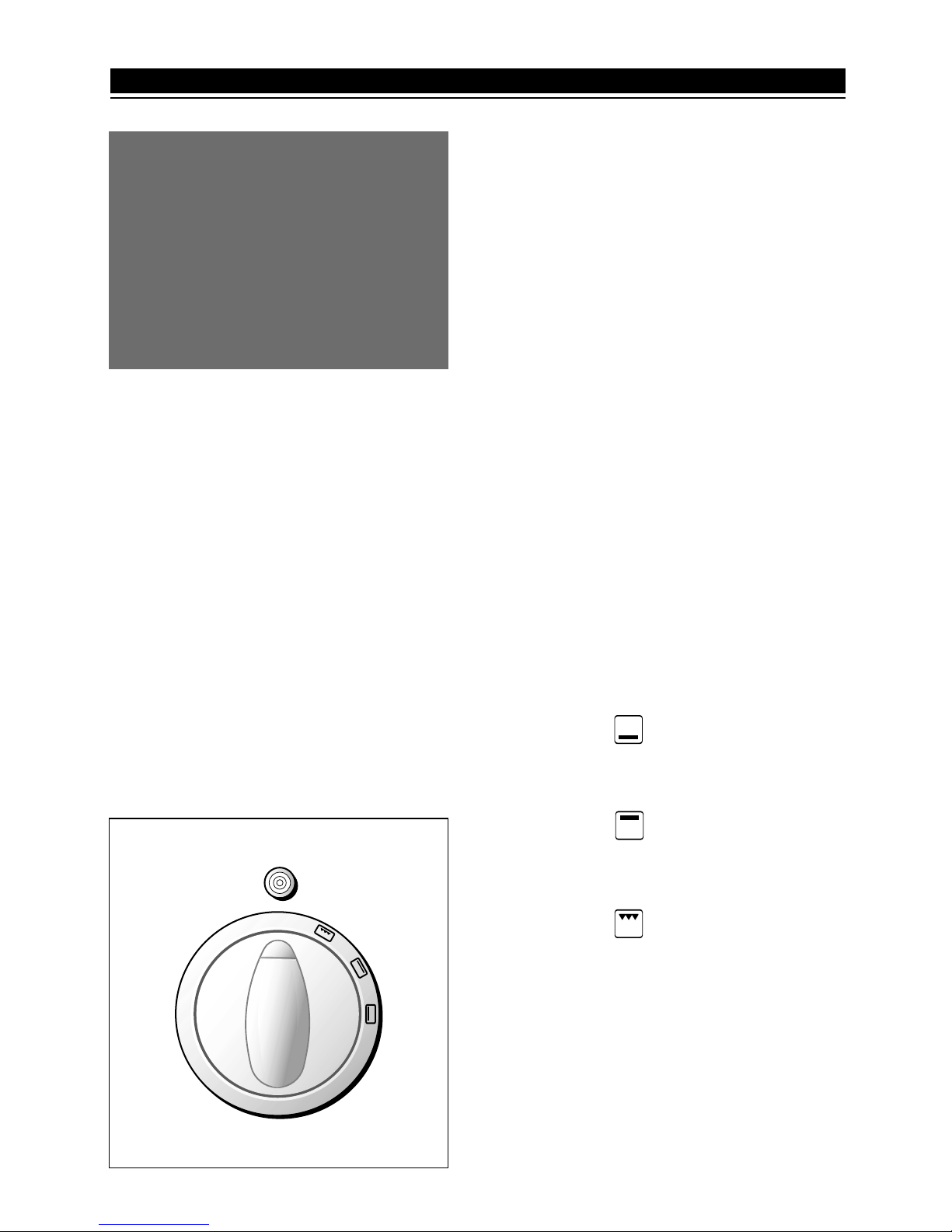

Fig. 5.1
The glass of the oven door reaches
high temperatures during operation.
Keep children away.
For child safety, a door guard can be
fitted to prevent contact with the hot
glass.
The door guard is supplied as an
accessory on request. Contact one of
our dealers or Service Centre and
indicate the relevant appliance model.
5 - ELECTRICAL CONVECTION OVEN

14 Fig. 5.3
OVEN LIGHT
The oven is equipped with a light that
illuminates the oven to enable visually
controlling the food that is cooking.
This light is controlled by a switch on the
control panel (fig. 5.3).
OVEN COOKING
To cook, before introducing the food, pre-
heat the oven to the desired temperature
for the amount of time indicated in table
5.2.
The preheating times shown indicate the
time that a cold and empty oven takes
to reach that temperature.
When the oven has reached the desired
temperature, introduce the food, control
the cooking time and turn off the oven 5
minutes before the theoretical time to
recuperate the stored heat.
For orientative purposes only, some
oven cooking indications are shown on
the following table:
THERMOSTAT DISHES
POSITION
1 - 4 Heating of foods
4 - 5 Meringue - Fruit pies
Cooked fruit
5 - 6 Cakes - Amaretti,
Vegetables
6 Lasagna - Cakes
6 - 7 Roast veal - Pie crusts
8Wild game - Birds
Small fish - Roast pork
9Large fish
Roast beef
9 - 10 Pizza - Red meats
10 Toasted sandwiches
10 Oven cleaning
ELECTRICAL GRILL
The grill element has got 1900 W input
and is controlled by the switch/thermo-
stat by positioning the knob onto the rel-
evant symbol .

15
Fig. 5.4
A
Fig. 5.5
USE OF THE GRILL
Very important: the grill must always
be used with the oven door slightly
open (Fig. 5.4).
The oven door becomes very hot dur-
ing operation.
Keep children away.
Mount shield “A” which permits to pro-
tect the control panel from the heat.
Turn on the grill, as explained in the pre-
ceding paragraphs and let the oven pre-
heat for about 5 minutes with the door
slightly open.
Introduce the food to be cooked, posi-
tioning the rack as close to the grill as
possible.
ROTISSERIE
Except for some models, the ovens are
equipped with a rotisserie for cooking on
the spit using the grill.
This device is made up of:
– an electrical motor mounted on the rear
part of the oven
– a stainless steel rod, equipped with a
detachable athermic grip and 2 record-
able forks
– a rod support to be inserted into the
central rack holders of the oven.
The rotisserie motor is operated by the
switch indicated by the symbol on the
control panel (fig. 5.2).
USE OF THE ROTISSERIE
Very important: the rotisserie must
always be used with the oven door
slightly open and with shield "A”
mounted (Fig. 5.4).
– Insert the dripping pan into the lowest
rack holders of the oven and insert the
rod support into the intermediate rack
holders.
– Put the meat to be cooked onto the
rod, being careful to secure it in the
center with the special forks.
– Insert the rod into the motor opening
and rest it onto the support of the spit
collar; then remove the grip by turning
it to the left.
The rotation direction of the rotisserie
can be either clockwise or counter-clock-
wise.

16
MECHANICAL TIMER
The timer is equipped with a time buzzer
and may be regulated for a maximum
period of 60 minutes.
The regulating knob (fig. 6.1) must be
turned in a clockwise direction until it
reaches the 60 minutes position and
then turned to the desired time by turning
the knob in a counterclockwise direction.
10
20
30
40
50
Fig. 6.1
6 - TIMER

17
* When the appliance is not being used,
it is advisable to keep the gas tap
closed.
From time to time check to make sure
that the flexible tube that connects the
gas line or the gas cylinder to the appli-
ance is in perfect condition and eventu-
ally substitute it, if it shows signs of
wearing or damage.
* The periodical lubrification of the gas
taps must be done only by specialized
personnel. In case of difficulty in the gas
taps operation, call Service.
Attention:
The cooktop becomes very hot
while in operation.
The oven door becomes very hot
during operation.
Keep children away.

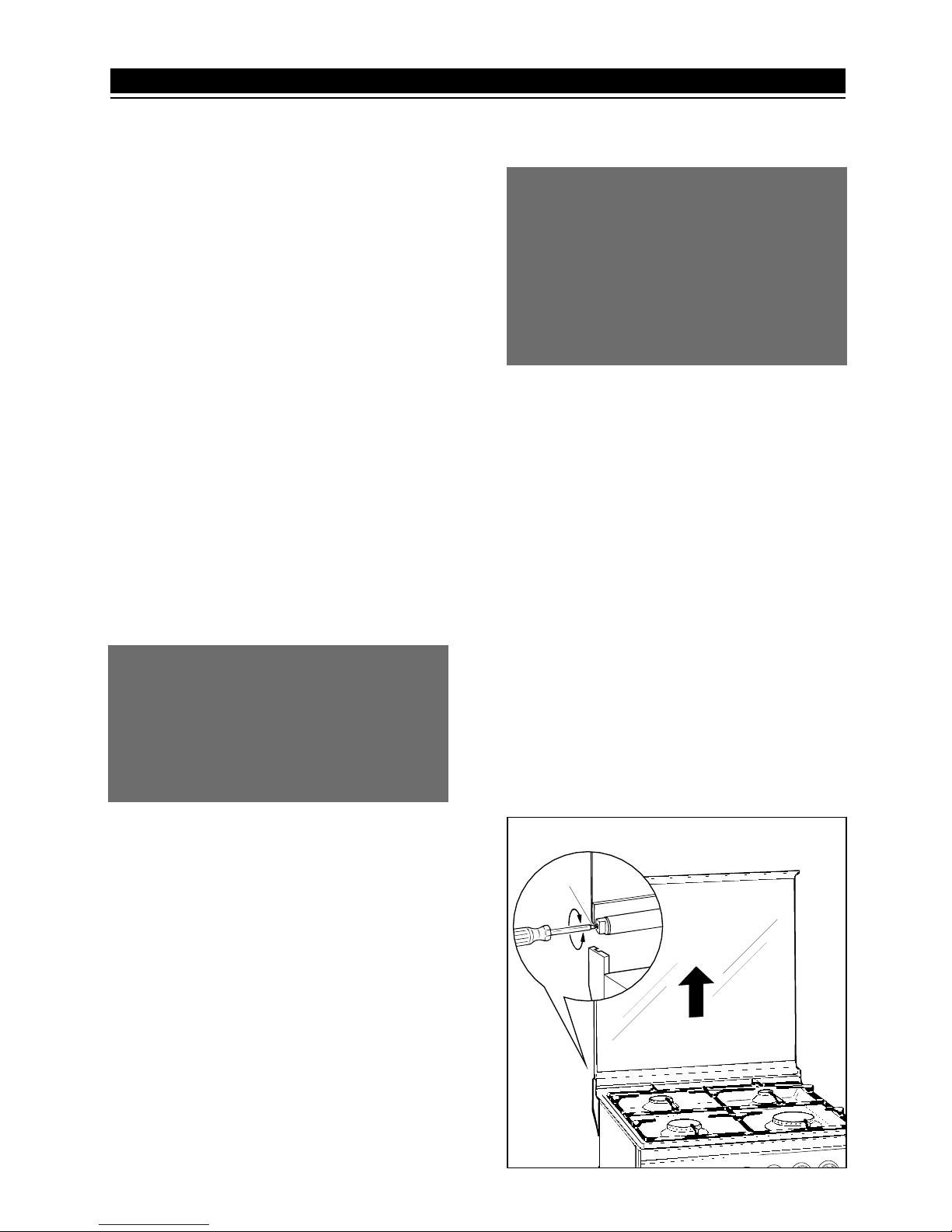

Fig. 7.1
S
D
R
7 - GENERAL ADVICE
Do not lower the glass lid when burn-
ers or electric plates are still hot or
when the oven is working or still hot.
Do not lay on the glass lid hot pans
and heavy kitchen utensils.
CAUTION: glass lids may shatter when
heated. Turn off all the burners
before shutting the lid.
GLASS LID
For cleaning purposes, the lid can be
easily removed upwards once taken to
the upright position.
Should the hinges slip off, replace them
in their housing being careful that:
– The right housing must receive the
hinge marked “D” while the left hous-
ing must receive the hinge marked “S”
(Fig. 7.1).
REGULATING OF THE BALANCE
Lower the lid and check the correct bal-
ance. While opened at 45° it should
hang up.
If necessary, register the calibration of
the hinge springs using the screws “R”
(fig. 7.1).

18
GENERAL ADVICE
It is advisable to clean when the appli-
ance is cold and especially for cleaning
the enamelled parts.
Avoid leaving alcaline or acidic sub-
stances (lemon juice, vinegar, etc.) on
the surfaces. Avoid using cleaning prod-
ucts with a chlorine or acidic base.
ENAMELLED PARTS
All of the enamelled parts must be
washed only with a sponge and soapy
water or with non-abrasive products.
Dry, preferably, with deer skin.
HOT PLATE
Foods burned on the hot plates must
always be cleaned dry.
Do not use water to avoid the forming
of rust. Be careful with the central feeler
of the automatic plates, it must never be
shined and must only be cleaned with a
damp cloth.
After its use, pour a bit of oil onto the
warm plate and rub with a cloth.
Always switch the cooker off at the
mains isolating switch before clean-
ing or touching any electrical part.
BURNERS, GRATES AND RACKS
These parts may be removed and
washed with suitable products.
The burners and their caps must be well
dried after cleaning and put back per-
fectly into their slots.
It is very important to verify the position-
ing of the burner-caps because a mis-
placing in their slots can cause serious
damage.
In the appliances with electrical ignition
for the burners, verify that the electrode
is always cleaned well as to permit the
regular snap of the spark.
8 - CLEANING AND MAINTENANCE
OVEN
The oven must always be cleaned after
every use, using suitable products and
keeping in mind that its operation for 30
minutes on the highest temperature elim-
inates most grime reducing it to ashes.
The clean-up of the oven with catalytic
self-cleaning enamel is done automati-
cally during cooking, and therefore no
intervention is necessary.
Only when the grime is particularly resis-
tant it is advisable to increase the clean-
ing time leaving the electrical elements
on at the maximun temperature, with the
oven empty. It is mandatory not to use
abrasive substances so as not to dam-
age the self-cleaning coating.

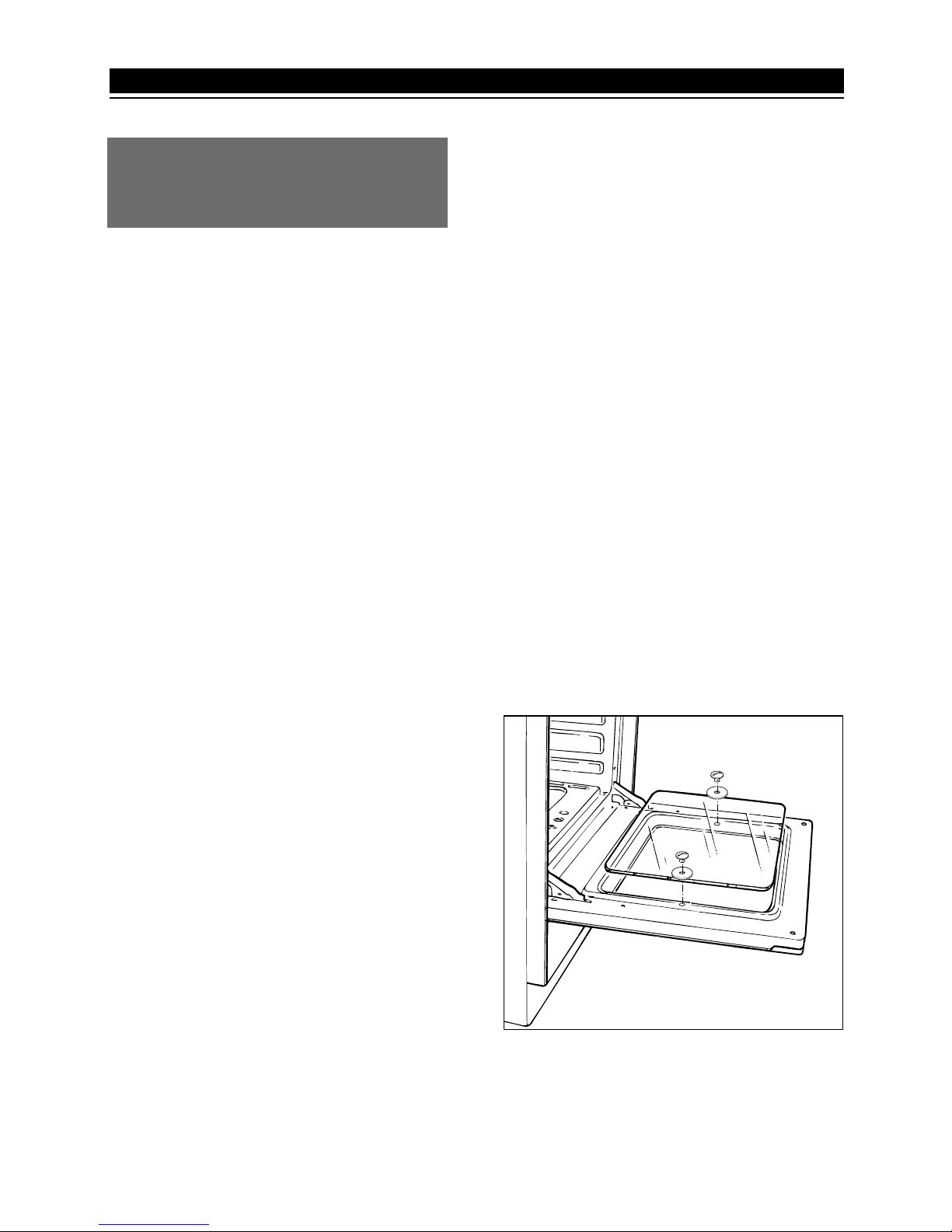

Fig. 8.1
OVEN DOOR
The oven door is cleaned in the same
way that is advisable for the enamelled
surfaces.
The internal glass of the oven door can
be easily removed for cleaning by
unscrewing the two lateral fixing screws
(fig. 8.1).
SUBSTITUTION OF THE OVEN LAMP
Before replacing the oven lamp, make
sure to disconnect the appliance mains.
The light bulb must be a type resistant
to high temperatures (300° C).

19
6 - BATTERY INSTALLATION
BATTERY INSTALLATION
1,5 V
Fig.8.2
Fig.8.3
Models with battery ignition
INSTALLING THE BATTERY
Insert a type C battery (1.5 Volt) into
the battery compartment on the back
of the cooker (fig. 8.2).
This battery is the power supply for
the electronic ignition of gas burners.
Batteries last on average for about two
years (alkaline battery) depending on
how often the electronic ignition is
used.
Notes for battery installation or
replacement:
- Only use a type C 1.5 Volt battery.
- Check for correct polarity (fig. 8.3
and label to the side of the battery
compartment).
Important notes:
- Remove the battery if the cooker is
not going to be used for a long time.
- If the battery leaks, replace it imme-
diately. Avoid touching the leaked
liquid and make sure it does not
come into contact with clothes or
other items.
- Clean the battery compartment care-
fully before installing the new one.
- Note: The battery is a potential sour-
ce of danger for children. Keep them
away.
- Dispose of flat batteries properly.

20
LOCATION
The cooker has “type X” or “Class 1”overheating protection so that it can be installed
next to a cabinet whose height is greater than that of the cooker.
It is advisable that the kitchen furniture near the sides of the cooker is made of
heat resistant material, minimum 75 °K.
500 mm
20 mm
20 mm
800 mm
500 mm
AAddvviicceeffoorrtthheeiinnssttaalllleerr
Fig. 8.4a
