Owner’s Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer when
you require service.
BUILT-IN HOB
MODEL: EGH-K8942G(BK)
EGH-K8943G(BK)

These instructions have been drawn up for your safety and that of others. You
are therefore requested to read them carefully before installing and using the
appliance. Keep this instruction manual for future reference as necessary. If
the appliance is sold or moved, make sure that the manual is handed over to
the new user.
INSTALLATION
Installation of the appliance and its connection to the gas supplies must only
be carried out by qualified technician. It is important to check that the
appliance is connected completely to the gas supplies before using.
- It is risky to modify or attempt to modify the characteristics of this product.
- After removing the appliance from the packaging, make sure that it is not
damaged and in perfect condition. Otherwise, please contact your dealer
before installing the appliance into operation.
- The manufacturer declines all responsibility in case of failure to comply
with the accident prevention regulations.
- Make sure that air is able to circulate freely around the appliance. Installing
the appliance into the built-in cabinet must provide sufficient moving air
flow at the bottom of the appliance to avoid hazard.
- Prior to installation, ensure that the local distribution conditions (nature of
the gas and gas pressure) and the adjustment of the appliance are
compatible.
- Use of a gas cooking appliance produces heat and moisture in the room in
which it is installed. Ensure that the room is well ventilated by keeping the
air intakes open or by installing an extractor hood with discharge pipe.
- If the appliance is used intensively for a long time the effectiveness of the
ventilation will have to be increased, for example by opening a window or
increasing the power of any electric extractor fan.
- Make sure the cabinet or the bottom of the hob is well ventilated and not in
a complete closed compartment.
- After installation, please ensure no gas leakage is detected before using
the appliance.

CHILDREN’S SAFETY
- This appliance must only be used by adults. Make sure that children do not
touch the controls or play with the appliance.
- The exposed parts of this appliance heat up during cooking and remain hot
for some time even after it is switched off. Keep children well away until the
appliance has cooled down.
CLEANING AND MAINTENANCE
- Keep the appliance thoroughly cleaned. Food residues may cause the risk
of fire.
SERVICE AND PARTS
- In the instance of malfunctions, never attempt to repair the appliance
yourself.
- Repairs by unauthorized technician may cause damage and accidents.
Please refer to the contents of this manual. If you do not find the necessary
information, contact the authorized service center.
- Servicing work on this appliance must be carried out by an authorized
technical service centre. Always request the use of original spare parts.
- Use only original parts that match with the appliance, do not modify or add
parts or accessory to use with the appliance.
- This appliance is designed suitable for LPG gas source only. Should you
required to change to other gas sources, please contact our service centre
for purchasing of parts to conversion.
- Caution: Use only low pressure regulator for this appliance.

DESCRIPTION OF THE HOB
1. Control Knobs
2. Triple Ring Burners
3. Pan Support
4. Ignition Point
5. Safety Valve (Thermocouple)
INSTRUCTIONS FOR USE
The symbols on the control knobs corresponding to the following:
No gas flow
Maximum gas flow
Minimum gas flow
2
3
4
1
2
3
4
1
5
5

OPERATING INSTRUCTIONS
Before using the appliance, make sure the ignition knob is in the “OFF”
position and turn on the main cock. After using, ensure to turn off the ignition
knob and main cock.
TURN ON THE APPLIANCE
Press and turn the ignition knob counter clockwise for 3 to
5 seconds to higher flame position slowly. Make sure that
the burner has lit.
When you start to use the unit for the first time or the unit
has not been used for a long period of time, it sometimes
happens that the burner is not ignited easily. This is
because the gas needs to fill up the rubber hose before
reaching to the burners. After lighting the flame, keep the
knob pressed for about 10 seconds. This is necessary to
heat up the thermocouple and activate the safety valve (if
any), which would otherwise cut off the gas flow.
CONTROLLING THE FLAME
Control the knob between max and min to regulate the
flame. Turn the knob counter clockwise to the minimum
position to set the lowest cooking output level.
Remarks: When the flame is reduced suddenly it may
happen to turn off the burner. Always make sure the
burner is ignited when the power is in minimum level.

Turn the ignition knob clockwise up to the OFF position
without pressing it. The gas will stop supply to the burner
and the burner will be switched off.
Remarks: Always make sure the ignition knob is at OFF
position when not in use.
ATTENTION: If the flame does not light after a few attempts, check that the
burner cap and burner base are correctly positioned.
CAUTION: Always ensure the burner cap is placed in its original position
correctly as shown to avoid any incident and damage its original shape.
The manufacture denies all claim arise from the burner due to improper
placement of the burner ring.
DURING USE
This product is designed to cook food for household and for non-professional
purposes. It should not be used for any other purpose.
- After using the appliance, make sure that all controls are in “OFF” position.
- If you use an electrical socket close to this appliance, make sure that the
cables of the appliances you are using are distance away from the cooking
zones of this appliance.
RISK OF DEFLAGRATION
In the event of the burner flames being accidently extinguished, turn off the
burner control knob and open a window or the door to the room. Do not
attempt to re-ignite the burner for at least 1 minute.
The use of a gas cooking appliance results in the production of heat, moisture
and products of combustion in the room in which it is installed. Ensure that the
kitchen is well ventilated especially when the appliance is in use: keep natural
Burner ring is
not positioned properly
Burner ring is
upside down
Burner ring is
placed correctly

ventilation holes open or install a mechanical ventilation device (mechanical
extractor hood)
Prolonged intensive use of the appliance may call for additional ventilation, for
example opening of a window, or more effective ventilation, for example
increasing the level of mechanical ventilation where present.
REPLACE A BATTERY (1.5V SIZE D)
In the instance of a power cut, replace a new battery 1.5V x 1 Size D at the
bottom of the appliance.
ADJUSTMENT ON AIR SHUTTER
Air
Shutter
Air
Shutter

Should the flame be of a yellow flame, burning black smoke, floating flame or
deposit black soot beneath the cooking utensils, this would indicate mis
adjustment of the air shutter. In order to obtain the best flame output, adjust
the air shutter under the appliance by turning the air shutter up and down
direction until the blue color flames are obtained.
EXAMPLE:
Perfect amount of air
The flame is transparent blue and the difference between the inner flame and
the outer can be clearly seen.
Insufficient air
The flame turn red and burns like a handle and unstable.
Too much air
The flame is short and flutters.
Air Shutter
Turn up and down
to adjust

FOR CORRECT USE OF THE HOB
For lower gas consumption and better efficiency, use only flat-bottomed pans
of dimensions suitable for the burners, as shown in the table at the bottom.
Also, as soon as a liquid comes to the boil take care to turn the flame down to
a level that will just keep it boiling.
Burner Minimum pan diameter Maximum pan diameter
Large (Rapid) 180mm 220mm
Small (Auxiliary) 80mm 160mm
During cooking processes involving fats or oils, watch your
foods carefully because these substances may catch fire if
brought to high temperatures.
CAUTION WHEN USING
1. Only use the appliance for cooking purpose only.
2. Do not hang up clothes, towel and etc to dry on the unit.
3. Do not use oversized hot plate which totally covers the burner surface.
4. If the flame is flickering or yellow colour, do not attempt to operate the
appliance (Please refer to adjustment on air shutter).
5. Make sure the air shutter is well adjusted and the flame is properly
burning.
6. Do not use a large iron plate to cover burners.
7. In case of abnormality, including strange sound, abnormal combustion
when the burners are lit, turn off the burners and the main cock
immediately and contact the authorized service technician.
8. When the appliance will not be used for a long period of time, make
sure the cock is turn off.
Warning: The use of inappropriate hob guards can cause accidents.

CLEANING AND MAINTENANCE
Before carrying out cleaning or maintenance, disconnect the appliance from
the electrical mains and gas supplies then allow it to cool down.
GENERAL CLEANING
Wash cast iron with lukewarm water and detergent. Do not use abrasive
cleaner which might damage them.
Wash the burner caps often with boiling water and detergent, taking care to
remove all deposits after cooking.
The trivet can also be washed in a dishwasher.
For stubborn dirt, clean using non-abrasive detergents with lukewarm water.
Do not use scouring pads, steel brush or acids for cleaning.
Clean the hob regularly with a soft cloth with lukewarm water and a little liquid
detergent. Do not use the following products:
- bleaches;
- soaped scouring pads;
- steel brush scouring pads;
- stain removers for baths or sinks.
If the hob gets very dirty, use specific commercial cleansing products.
IGNITION PLUG
Automatic burner ignition is provided (when
installed) by a ceramic plug and a metal electrode.
Periodically clean these parts of the hob
thoroughly. In addition, to avoid ignition difficulties,
check that the cavities in the burner are not
obstructed. To remove deposits from the burner

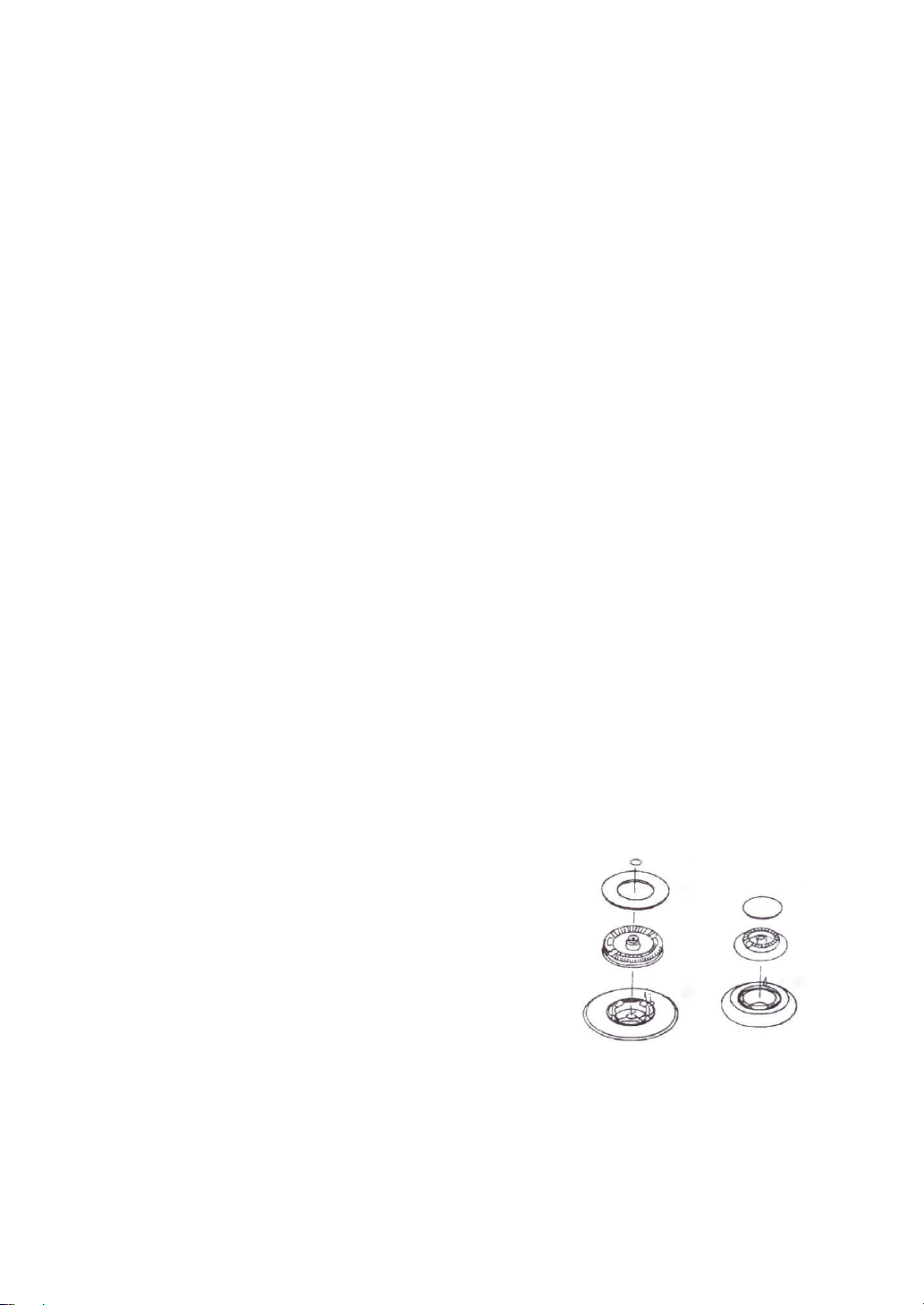

cavities, remove the cap and separate the two parts (see diagram on the right).
After cleaning, put the two parts back together and return them correctly to
their position. After washing, replace the trivet, checking that they are correctly
positioned.

ADDITIONAL INFO (SAFETY CLAUSES)
Consistently clearing the blocked ring hole to prevent backfire. During cooking,
prevent the gravy from over flooding the gravy tray.
The ring hole is blocked by gravy
due to over flooding. It will result
to happen:
1. Back fire may cause breakage
of glass.
2. Flame extinguishes/cannot
sustain.
To clean the inner ring cap which blocked with gravy or soot, please wash the
cap with water to clean up the gravy covered on the surface (Do not wash
when the cap is hot after using).
Then use a fine needle, pin or wire, (size approve. ≤1mm) to clean the hole
that still blocked with gravy or soot. Fit the cap back to original position when it
is completely dry.
INSTRUCTIONS FOR THE INSTALLATION TECHNICIAN
CAUTION: This appliance must only be installed and used in rooms
with permanent ventilation to local standards.

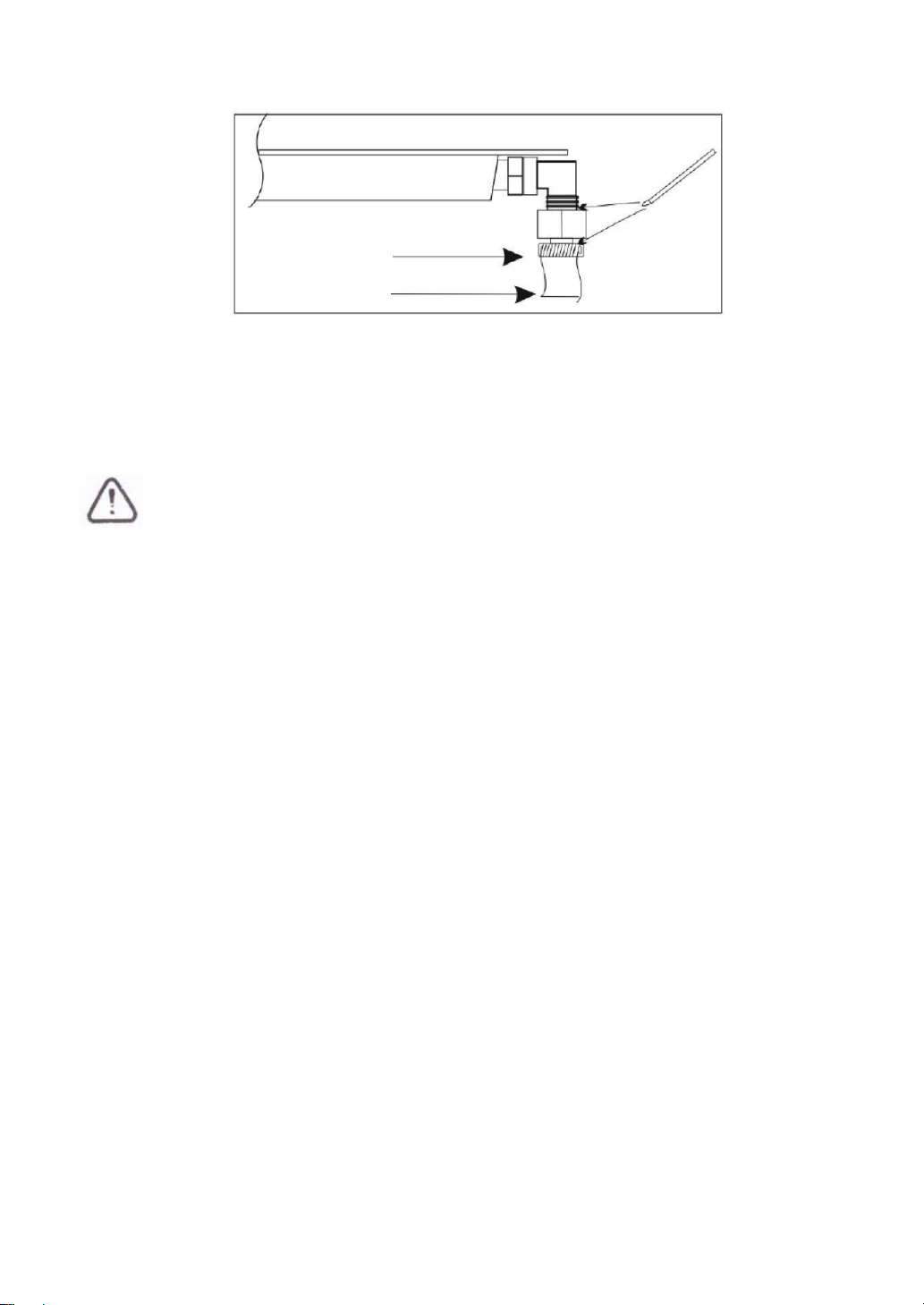

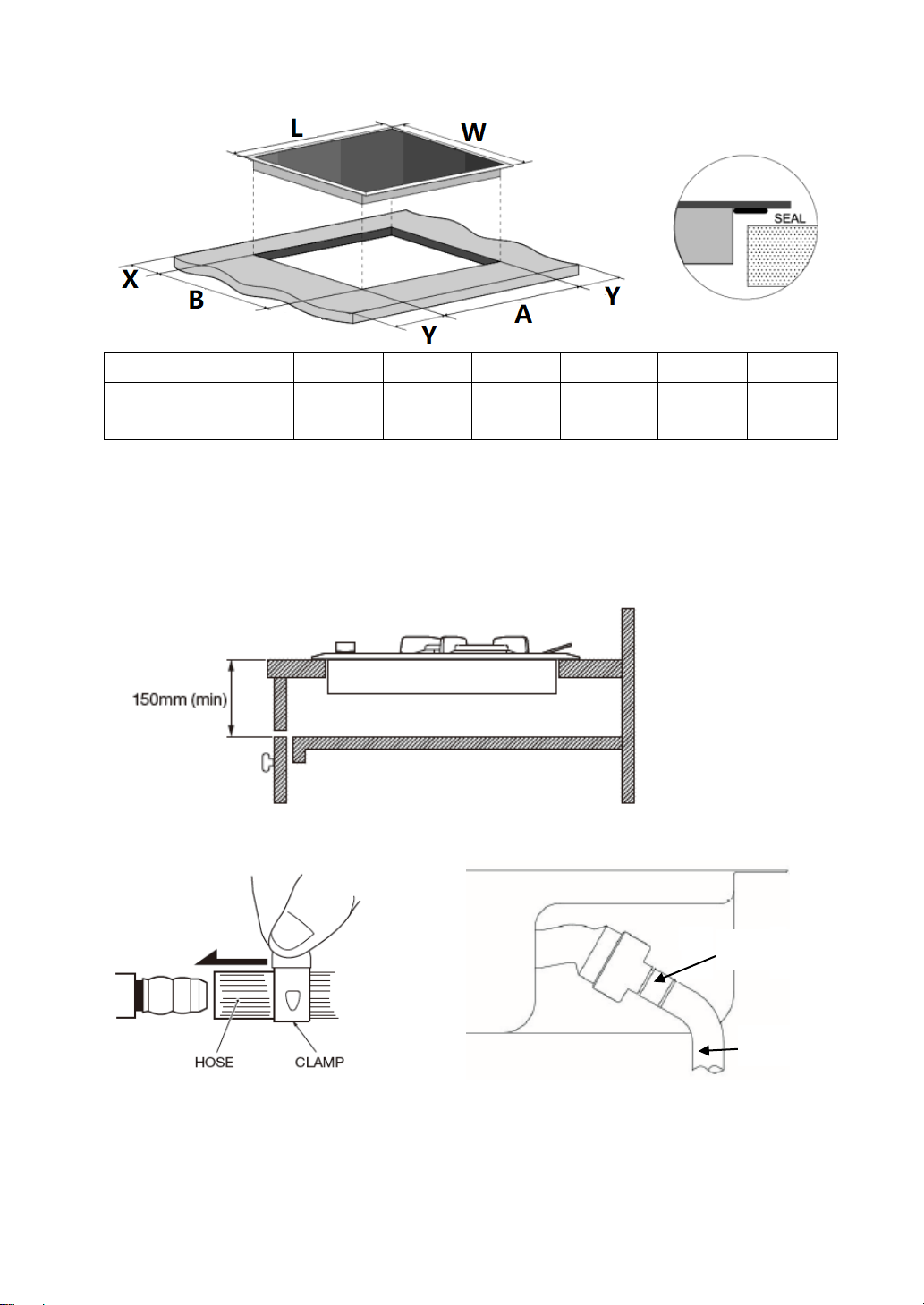

Installation of the appliance and its connection to the gas supplies must only
be carried out by qualified technician. Before any procedure, it is important to
check that the appliance is DISCONNECTED from the gas supplies. The
Manufacturer declines all responsibility for any damage arising from
installation in breach of the regulations in force or from failure to comply with
the accident prevention regulations.

INSTALLATION PREMISES
For proper operation of a gas appliance, the air necessary for the combustion
of the gas must be able to flow into the room naturally. The air must flow into
the room directly through openings in the outside walls. These openings must
have an unobstructed cross-section not less than 2m3/h for each kw of power
(see total power in kw on the appliance rating label).
This opening must be constructed so that it will not be obstructed from inside
or outside, or constructed close to the floor. The opening is recommended to
be on the side opposite to that on which the flue gases are discharged. If it is
not feasible to provide these openings in the room where the appliance is
installed, the necessary air may be taken from an adjacent room, provided
that:
- This room is not a bedroom or a hazardous environment;
- Install the built-in hob in a well-ventilated room and keep it away from any
combustible or flammable objects such as paper or oil.
- Place the built-in hob on a stable and levelled surface.
- If the built-in hob is to be installed close to combustible objects (such as
wooden walls, wooden shelves), it should be installed at least 150mm from
the side walls. Even if the combustible material is protected by stainless
steel sheet, a clearance of 150mm is required for safety purpose. The
clearance between the appliance and above combustible shelves or the
cooker hood must be at least 650mm.

Model
L
W
A
B
X
Y
EGH-K8942G(BK)
760mm
460mm
703mm
403mm
100mm
150mm
EGH-K8943G(BK)
760mm
460mm
703mm
403mm
100mm
150mm
- If the separator is placed underneath the hob, the recommended distance
from the surface of the kitchen worktop should be more than 150mm.
Please refer to diagram below.
- Connect the gas hose with clamp to tighten.
Upon complete of gas installation connections, it is compulsory to check for
the gas leakage at the joint with soap test.
- Turn the burner knob in OFF position and turn on gas supply regulator.
- Apply soap test to joint on connector and hose as below.
CLAMP
HOSE

- Formation of bubbles indicates leakage and must be tightened the hose
clamp and check on all joint parts to ensure there is no faulty.
- Repeat the soap test until everything is fine.
- If there is a bubble after the soap test, please authorized service
technician.
Never use a flame to make this check.
Discharge of flue gases
Gas cooking appliances must discharge their flue gases through hoods
connected directly to flues or the outdoors. If it is not possible to install the
hood an electric fan must be installed on the outside wall or the window of the
room, provided it is possible for the ventilation opening to be increased in
proportion to the delivery rate of the fan.
For a kitchen, the delivery rate of this electric fan must guarantee an hourly air
exchange of 3-5 times its volume. In both instances, the use of flues already
used by other appliances to discharge the flue gases is forbidden.
CLAMP
HOSE
SOAP
TEST

TROUBLESHOOTING
Malfunction
Causes
Solution
After the ignition knob is
released, the flame is
extinguished.
The ignition knob is not
turned on properly.
Turn the ignition knob
counter clockwise.
There is ignition but the
burners do not lit.
Air is trapped in the rubber
gas hose.
Repeat turning the
ignition knob few times.
Ignition point is far from the
inner ring cap.
Move the ignition pin
3-5mm from the inner
ring cap.
The ignition point is wet or
dirty.
Clean or dry the ignition
point.
Insufficient gas supply.
Replace a new gas
cylinder.
Flame flickering,
yellowish or extinguished
when operating.
The air regulator is not
adjusted.
Adjust the air regulator
until even flame
achieved.
Insufficient gas supply.
Replace a new gas
cylinder.
Smell of gas.
Gas leakage from cracks
of rubber hose.
Replace the rubber hose.
Loose connection of
rubber hose.
Secure the rubber hose
with the hose clamp.
If the above problem persists, turn off the appliance immediately. Contact the
authorized service technician for repair.

MAIN SPECIFICATION
