Eldes Alarms FUMEREX User manual

BATTERY POWERED GSM SMOKE&CO ALARM SYSTEM
USER MANUAL
LT VARTOTOJO VADOVAS RU   DE BENUTZERHANDBUCH
V1.1

2
START
PIN
D
O
N
O
T
P
A
I
N
T
+ -
+ -
USB
TEST
LED
RESET
PIN
D
O
N
O
T
P
A
I
N
T
+ -
+ -
USB
TEST
LED
RESET
EN CONTENTS OF PACK LT PAKUOTĖS SUDĖTIS RU   DE INHALT DER PACKUNG
1 x 1 x 1 x 2 x
2
EN Disable PIN code request by insering the SIM card into your
mobile phone and following the appropriate menu steps
LT Išjunkite PIN kodo reikalavimą, įdėdami SIM kortelę į
mobilųjį telefoną ir pasirinkdami aiinkamą meniu punktą
RU e   PIN,  SIM- 
     
DE Deakivieren Sie die PIN-Abfrage, indem Sie die SIM-
Karte in Ihr Handy einsetzen und die entsprechenden
Menüschrite ausführen.

3
FUMEREX is a ceriied standalone, batery powered smoke and carbon
monoxide alarm system. In case of smoke detecion or carbon monoxide
level increase, It will send text SMS to authorized users.
FUMEREX yra seriikuota autonominė, maiinama baterijomis, dūmų ir
anglies monoksido aliarmo sistema. Užiksavus dūmus arba padidėjusį anglies
monoksido lygį, sistema išsiųs SMS žinutes autorizuoiems vartotojams.
FUMEREX ist ein zeriizierter, autarker und bateriebetriebener Rauch-/und Kohlenmonoxidmelder
mit GSM Schnitstelle. Im Falle einer Rauchdetekion oder bei Überschreiten des kriischen
Kohlenmonoxidspiegels, werden die hinterlegten Rufnummern via SMS informiert.
FUMEREX -        ,
  .       
,   SMS   .
3
DE
RU
LT
EN

4
WHERE TO INSTALL
LT KUR MONTUOTI RU  
DE WO ZU INSTALLIEREN
4
WHERE TO INSTALL
0,1 m
(0.33ft)
0,1 m
(0.33ft)
0,3 m
(0.99ft)
Max.
BEST HERE
DE
RU
LT
EN
EN YES LT TAIP
RU  DE JA
EN NO LT NE
RU  DE NEIN

5
WHERE TO INSTALL
5
METAL
MIN
+5°C(41°F)
MAX
+45°C (113°F)
DE
RU
LT
EN

6
HOW TO INSTALL
PIN 3G 2G
PIN 3G 2G
PIN 3G 2G
B
DE
RU
LT
EN
HOW TO INSTALL
LT KAIP MONTUOTI RU  
DE WIE INSTALLIERT MAN
EN Disable PIN code request by insering
the SIM card into your mobile phone and
following the appropriate menu steps
LT Išjunkite PIN kodo reikalavimą, įdėdami
SIM kortelę į mobilųjį telefoną ir
pasirinkdami aiinkamą meniu punktą
RU e   PIN, 
SIM-    
  
DE Deakivieren Sie die PIN-Abfrage,
indem Sie die SIM-Karte in Ihr Handy
einsetzen und die entsprechenden
Menüschrite ausführen.
A

7

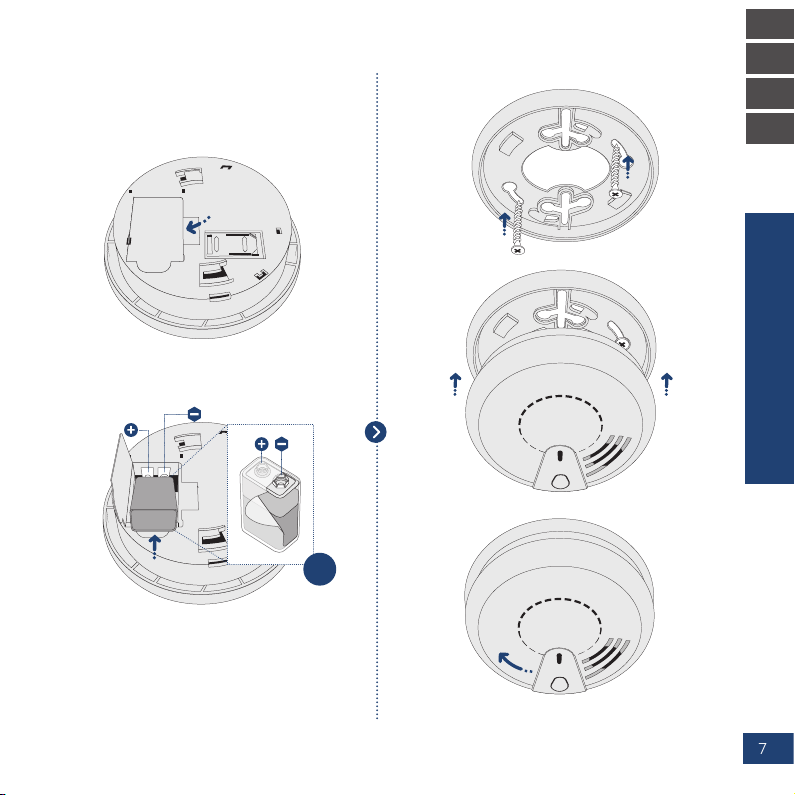

HOW TO INSTALL
PIN 3G 2G
PIN 3G 2G
PIN 3G 2G
PIN 3G 2G
PIN 3G 2G
C
DE
RU
LT
EN

8
HOW TO INSTALL
8
SKAMBUTIS
SMS
PIN 3G 2G
PIN 3G 2G
Welcome! Number +441700XXXX110
is added to the Fumerex user list.
PRESS FOR 2 SEC.
SPAUSKITE 2 SEK.
 2 .
2 SEK. DRÜCKEN
WAIT UNTIL FLASHES (~1MIN)
PALAUKITE MIRKSĖJIMO (~1MIN)
  (~1MIN)
BITTE WARTEN, BIS DAS BLINKEN (~1MIN)
DE
RU
LT
EN
FUMEREX REJECTS YOUR CALL
FUMEREX ATMES JŪSŲ SKAMBUTĮ
FUMEREX   
FUMEREX LEHNT RUFEN
D
CALL TO FUMEREX
PASKAMBINKITE Į FUMEREX
  FUMEREX
AUFRUF AN FUMEREX

9
WHAT I SHOULD KNOW
9
EN
WHAT I SHOULD KNOW
If your unit is in CO criical concentraion level ALARM, keep calm and carry out the following
acions in the priority order:
• Open all windows and doors to increase the rate of venilaion
• Turn of the fuel-burning appliances where possible
• Evacuate the building leaving the windows and doors open and re-enter the property only when
the alarm has stopped
• Get immediate medical assistance for anyone sufering the efects of carbon monoxide
poisoning (nausea, headache), and report that carbon monoxide inhalaion is suspected
• Contact the gas or other fuel supplier on their emergency phone number in order to idenify and
eliminate the source of carbon monoxide emissions
• Do not use the fuel-burning appliance again unil it has been veriied and conirmed by a
competent person according to naional regulaions
CARBON MONOXIDE (CO) POISONING
There could be other sources of carbon monoxide emissions. For example large amount
of city gas, tobacco smoke or smoldering ire can cause CO concentraion ALARM.
CONCENTRATION SYMPTOMS
35 ppm (0.0035%) Headache and dizziness within six to eight hours of constant exposure
100 ppm (0.01%) Slight headache in two to three hours
200 ppm (0.02%) Slight headache within two to three hours; loss of judgment
400 ppm (0.04%) Frontal headache within one to two hours
800 ppm (0.08%) Dizziness, nausea, and convulsions within 45 min; insensible within 2 hours
1,600 ppm (0.16%) Headache, increased heart rate, dizziness, and nausea within 20 min; death in less than 2 hours
ppm - Parts Per Millinion - is used to describe concentraions of contaminants in air.
Carbon monoxide is a product of incomplete combusion of organic mater. It is a toxic gas, but,
being colorless, odorless, tasteless, and iniially non-irritaing, it is very diicult for people to detect.
Clean the outside case of device occasionally with a clean issue to ensure that the holes of
the unit are not blocked with dirt or dust.
Some household substances can afect the sensiivity of the detectors in a short or long
term. Avoid the use of model paint, model glue or nail polish remover close to the alarm. Do
not use aerosol sprays, household cleaners, polishes or perfumes close to the device.
EN
CALL TO FUMEREX
PASKAMBINKITE Į FUMEREX
  FUMEREX
AUFRUF AN FUMEREX

10
SLEEP
WAKE UP
SMOKE or CO
LOW BATTERY
TEST BUTTON
120 S
The system can operate in one of the following modes at a ime:
Sleep – The micro-controller and the GSM modem are disabled and the system will not be able to
accept the SMS text messages or phone calls. This mode is used most of the system’s upime to
signiicantly extend batery life. The system starts up in Sleep mode.
Wake-Up – The micro-controller and the GSM modem are acive and the system is ready to send
SMS text messages, accept the SMS text messages and phone calls. The system will switch to
WAKE-UP mode if any of following events occurs:
BA C
smoke or CO has been
detected (see ALARM
NOTIFICATION)
By default, the system remains in Wake-Up mode for 120-second ime period.
batery is running low
(see BATTERY STATUS
SUPERVISION)
TEST buton has been
pressed (see TEST
PROCEDURE).
HOW FUMEREX WORKS: SLEEP AND WAKE-UP MODES
B
A
C
WHAT I SHOULD KNOW
EN

11
AHOW FUMEREX WORKS: ALARM NOTIFICATION
In the event of smoke/CO detecion, the system will cause an alarm and can noify the listed user
phone number by SMS text message.
In the event of alarm, the system will follow this patern:
• The system switches to Wake-Up mode (see SLEEP AND WAKE-UP MODES).
• The system atempts to send an SMS text message containing alarm text to all listed user
phone numbers simultaneously.
• The system auto-resets the smoke or CO detector when the smoke/CO clears. The system
will not extend the Wake-Up mode period nor deliver any extra SMS text message in case of
alarm recurrence while the Wake-Up mode period is in progress.
• The system may fail to deliver the SMS text message to the listed user phone number due to
the following reasons:
• system or user's phone has been out of GSM signal coverage.
• user’s mobile phone has been switched of.
• The system sends the SMS text message only once and in case of all unsuccessful atempts
within a Wake-Up period, the system will switch to Sleep mode and erase the alarm event
from the memory.
CO related SMS text messages and device indicaions:
• CO criical level 1 – when CO concentraion 30-49ppm remains for more than 120 minutes.
This level causes no audible alarm.
• CO criical level 2 – when CO concentraion 50-99ppm remains for more than 60 minutes.
Indicated by a 2-second beep every 5 seconds and red indicator lash.
• CO criical level 3 – when CO concentraion 100-299ppm remains for more than 10 minutes.
Indicated by a 2-second beep every 5 seconds and red indicator lash.
• CO criical level 4 – when CO concentraion 300ppm and more are reached. Indicated by a
2-second beep every 5 seconds and red indicator lash.
• Fresh air – when CO level decreases from any criical level to 0-29ppm. This level causes no
audible alarm.
• CO sensor ERROR – CO sensor has failed. Please contact your local supplier for repair
service. CO sensor lifeime is 7 years.
WHAT I SHOULD KNOW
EN

12
BHOW FUMEREX WORKS: BATTERY STATUS SUPERVISION
The system supports batery energy supervision feature allowing noify the listed user by SMS
text message when a low batery level is reached. The system measures the batery level every
30 minutes and in case the batery level is below 5% ater two checks in a row, the system will
noify the user regarding this issue.
In the event of low batery, the system will follow this patern:
• The system switches to Wake-Up mode (see SLEEP AND WAKE-UP MODES).
• The system atempts to send an SMS text message regarding low batery event to all listed
user phone numbers simultaneously.
• The system may fail to deliver the SMS text message to the listed user phone number due to
the following reasons:
• system or user's phone has been out of GSM signal coverage.
• user’s mobile phone has been switched of.
• The system sends the SMS text message only once and in case of all unsuccessful atempts
within a Wake-Up period, the system will switch to Sleep mode and erase the alarm event
from the memory.
WHAT I SHOULD KNOW
EN

13
HOW FUMEREX WORKS: TEST PROCEDURE
The TEST buton intended for veriicaion if the unit is operaional as well as to switch it to
Wake-UP mode and send an informaional SMS text message ideniied as the Test SMS, which
provides the following:
• GSM signal strength
• Barrery level
• Sensors tests result
Test your detectors weekly and upon returning from vacaion or when no one has been in the
household for several days. DO NOT use an open lame to test the device. You may ignite and
damage the unit or your home.
To perform the test, please follow the instrucions:
• Firmly push the TEST buton for two seconds and the detector will sound a loud beep. The
alarm will stop sounding ater releasing the TEST buton.
• Stand at arm’s length from the detector when tesing.
In the event of test, the system will follow this patern:
• The system switches to Wake-Up mode (see SLEEP AND WAKE-UP MODES).
• When the system is successfully registered with the GSM network, a red indicator on the front
panel begins to lash approximately twice per second. This indicator is lashing all the ime, when
the system is ready to send SMS text messages, accept the SMS text messages and phone calls.
• The system atempts to send an SMS text message regarding test event to all listed user phone
numbers simultaneously.
• If the TEST buton has been pressed repeatedly while the Wake-Up mode period is in progress,
the Wake-Up mode period will be extended.
• The system may fail to deliver the SMS text message to the listed user phone number due to the
following reasons:
• system or user's phone has been out of GSM signal coverage.
• user’s mobile phone has been switched of.
• The system sends the SMS text message only once and in case of all unsuccessful atempts
within a Wake-Up period, the system will switch to Sleep mode and erase the alarm event from
the memory.
C
WHAT I SHOULD KNOW
EN

14
ADDITIONAL CONFIGURATION BY SMS
Before staring coniguraion you need to wake up your FUMEREX. Press and hold the TEST buton for two
seconds. To conigure the system send the text command to the phone number of FUMEREX from one of the
listed user phone numbers.
ESSENTIAL INFORMATION FOR CONFIGURATION VIA YOUR MOBILE PHONE
• Make sure you don’t leave any spaces at the beginning or end of the message.
• If you receive the message “wrong syntax”, please check your message and try again.
• The " " represents one space character.
Add more users
NUM +441700XXXX111
The system allows you to enter up to 5 dierent mobile numbers
to receive alarm SMS text messages as well as to congure
the system by SMS text message. The rst phone number is
mandatory - all the others can be skipped.
CONFIGURATION
EN
Delete single user
DEL +441700XXXX111

15
CONFIGURATION BY SMS | EN
Set alarm text
Show all users
MSG alarm-text
USERS
[alarm-text] = up to 32 characters alarm text.
e.g. Fire alarm in livingroom!
The system will send an SMS text message containing alarm text to
all listed user phone numbers simultaneously.
FUMEREX will text you all listed users phone numbers.
Delete all users
DEL ALL
Aer deleon of all users You'll have to add at least one new user -
make a call to FUMEREX from new user phone. The system will
automacally reject your call.
CONFIGURATION
EN

16
Meanings of red indicator on the front panel
STATE INDICATOR MEANING
During the smoke alarm Regular short blinks the smoke alarm indicaon
During CO alarm Flashes every 5 seconds the CO alarm indicaon
While you hold pressed
TEST buon Regular short blinks imitang the smoke alarm indicaon
Aer TEST buon
pressed
Short rare blinks normal smoke detector acvity
Regular fast ashes
(twice per second)
indicates that FUMEREX is registered to GSM
network and ready to receive your call or
conguraon command via SMS text message
Troubleshooing
INDICATION POSSIBLE REASON ACTION
Someimes I can
hear quiet beeps
when I press TEST
buton
· Connecing to GSM
network. It may occur with
some networks depending
on the condiions
Please, ignore this indicaion if the GSM
network signal strength in your area is
suicient for SMS text message delivery
Siren does not sound
when I press TEST
buton or in case of
alarm
· Low batery power
· Micro-controller fault
Please, replace the batery. If this acion does
not solve the issue, please contact your local
supplier for waranty repair service.
Unable to receive
any SMS text
message reply/
phone call to the
user phone number
· Insuicient SIM card credit
balance
· No GSM network signal
· Wrong user phone number
· User phone number is not set
· System is operaing in
Sleep mode
Please, very the SIM card balance using one
of the following methods:
a) online by accessing the GSM provider’s
website.
b) remove the SIM card from the device,
insert it into your mobile phone, then dial
and text your personal phone number to
see if the SIM card able to make phone
calls and deliver text messages.
If your problem could not be ixed by the self-guide above, please contact your local distributor. More up to date
informaion about your device and other products can be found at the manufacturer’s website www.eldes.lt
SUPPORT
EN
SUPPORT

17
Restoring Default Parameters
1. Insert the batery into the unit.
2. Press the TEST buton for 2 seconds to wake up the device.
3. Press and hold for 5-6 seconds the RESET buton on the back panel of FUMEREX unil green LED on
the back panel provides several short lashes.
4. Release the RESET buton.
Updaing the Firmware via USB Cable
1. Remove the batery.
2. Press and hold the RESET buton.
3. Connect the device via USB cable to the PC.
4. The new window must pop-up where you will ind the .bin ile. Otherwise open Computer and look for CRP
DISABLED drive.
5. Release the RESET buton.
6. Delete the .bin ile found in the drive.
7. Copy the new irmware .bin ile to the very same window.
8. Unplug USB cable.
Batery replacement
1. Turn FUMEREX counter-clockwise to detach it from the mouning plate.
2. Gently pull the device down.
3. Remove the old batery from the batery pocket.
4. Press TEST buton to fully discharge device internal electrical capaciies.
5. Posiion the new batery into the batery slot based on the posiive/negaive terminals indicated on the
enclosure of FUMEREX.
6. Ensure the plasic batery holder is fully depressed when the batery has been ited.
7. Re-atach FUMEREX to the mouning plate by turning the device clockwise unil it snaps into place.
8. Using the TEST buton, test the device to verify if it is operaional
We strongly recommend using EVE CR9V-P or Energizer LA522 batery.
SUPPORT
EN

18
6. ELECTRICAL AND MECHANICAL CHARACTERISTICS
Bateries........................................................................Primary 9V Lithium 1200mAh ANSI/NEDA 1604LC
Number of bateries ..................................................1
Current consumpion in standby mode...............15μA max
Peak current consumpion in wake-up mode....350mA max
GSM modem frequency ...........................................850/900/1800/1900MHz
Batery operaion ime .............................................18 months*
Smoke detecion type ..............................................Photoelectric chamber
Carbon monoxide detector type ...........................Electrochemical
Sensiivity to smoke .................................................3.0-6.0 % O bs/m
Carbon monoxide concentraion detecion ........0... 400 PPM
Alarm sound level ......................................................85dB at 3m (85dB at 9.84t)
Range of operaing temperatures..........................5... +45°C (41... 113°F)
Humidity ......................................................................0-90% RH @ 0... +40°C (0-90% RH @ 32... 104°F) (non-condensing)
Smoke detector lifeime............................................10 years
Carbon monoxide detector lifeime.......................7 years
Dimensions ..................................................................110mm Ø (4.33in)
* The speciied operaion ime applies in case of no alarms and when having the device tested once a week. The
operaion ime might vary in diferent condiions.
WARNINGS:
Installaion of the system should not be used as a subsitute for proper installaion, use and maintenance
of fuel burning appliances including appropriate venilaion and exhaust systems.
System installaion and any repairs must be done only by fully qualiied, safety aware personnel.
Never atempt to open or damage the system. There is a risk of electrical shock, if the system is
tampered in any ways.
INFORMATION
EN

19
Copyright © “ELDES UAB”, 2018.
All rights reserved.
It is strictly forbidden to copy and
distribute informaion in this document or
pass to a third party without an advanced
writen authorizaion from “ELDES
UAB”. “ELDES UAB” reserves the right
to update or modify this document and/
or related products without a warning.
Hereby, “ELDES UAB” declares batery
powered GSM smoke&CO alarm system
FUMEREX is in compliance with the
essenial requirements and other relevant
provisions of Direcive 1999/5/ EC.
The declaraion of conformity may be
consulted at www.eldes.lt.
Limited Liability
The buyer agrees that the system will reduce the risk of ire, or other danger but
that it does not guarantee against the occurrence of such events. “ELDES UAB”
will not take any responsibility for the loss of personal efects, property or revenue
whilst using the system. The liability of “ELDES UAB” is limited to the value of
the system purchased. “ELDES UAB” is not ailiated with any mobile/wireless/
cellular provider and is therefore not responsible for the quality of such services.
Manufacturer Warranty
"ELDES UAB" warrants this system only to the original purchaser and only in case
of defecive workmanship and materials under normal use of the system for a
period of twenty four (24) months from the date of shipment by the "ELDES UAB".
Warranty obligaions do not cover expandable materials (components, which
require periodic replacement with the operaion of system - power elements
(bateries), holders and enclosures). The warranty remains valid only if the
system is used as intended, following all guidelines outlined in this manual and
in accordance with the operaing condiions speciied. The warranty is void if the
system has been exposed to mechanical impact, chemicals, high humidity, luids,
corrosive and hazardous environments or force majeure factors.
SAFETY INSTRUCTIONS
Batery powered GSM smoke&CO alarm system FUMEREX (laterreferenced
as “the system”) is equipped with a radio transceiver operaing in
GSM850/900/1800/1900 bands. Please read and follow these safety guidelines
in order to maintain safety of operators and people around:
• DO NOT use the system where it can cause potenial danger and interfere with
other devices – such as medical devices.
• DO NOT use the system in hazardous environment.
• DO NOT expose the system to high humidity, chemical environment or
mechanical impact.
ELDES is not a guard insituion. In case of ire or other potenial
danger do not overesimate your abiliies to protect your
household. Contact your emergency services irst if personal
alarm was caused by potenial danger.
FUMEREX is a device that must be installed in limited access
areas.
Remove all bateries before installing.
Never install or carry out maintenance during stormy weather.
The system must be powered by a Primary 9V Lithum 1200mAh
batery only. When insering the batery into the batery slots,
mind the polarity terminals! Any addiional device you connect
to the system, such as a computer, must be powered by an EN
60950-1 approved supply.
To switch the system of, remove the batery.
If you use a computer for the FUMEREX irmware update, it must
be earthed.
Disposal and recycling informaion
The WEEE (Waste Electrical and
Electronic Equipment) symbol on this
product (see let) means it must not
be disposed of in household waste. To
prevent possible harm to human health
and/or the environment, you must
dispose of this product in an approved
and environmentally safe recycling
facility. For further informaion contact
your system supplier, or your local waste
authority.
ELDES UAB,
Ukmerges st. 283B,
Vilnius, Lithuania
EN14604:2005
Smoke, carbon monoxide alarm
FUMEREX
INFORMATION
EN
16
1438-CPR-0455
EN 14604:2005+AC:2008

20
BŪTINA ŽINOTI
Tuo atveju, jeigu Jūsų prietaisas įspėja apie pasiektą kriinį anglies monoksido (CO) lygmenį, išlikite
ramūs ir atlikite šiuos veiksmus nurodyta tvarka:
• Atverkite visus langus ir duris tam, jog galima būtų vėdini patalpas
• Jei turite galimybę, išjunkite kurą deginančius prietaisus
• Išeikite iš pastato, palikę duris ir langus atvirus; sugrįži į būstą galėsite ik tuomet, kai signalizacija
• išsijungs
• Suteikite skubią pirmąją pagalbą kiekvienam, apsinuodijusiam anglies monoksidu ir pajutusiam
• šaluinį poveikį (pykinimą, galvos skausmą), praneškite apie įtariamą anglies monoksido protrūkį
• Susisiekite su dujas ar kitokį kurą iekiančia tarnyba jų skubios pagalbos telefonu tam, kad būtų
• galima nustatyi anglies monoksido protrūkio šalinio vietą ir ją sutvarkyi
• Nesinaudokite kurą deginančiais prietaisais iki kompeteingas reglamentuotas asmuo nepaikrins
• ir nepatvirins, jog tą daryi saugu
APSINUODIJIMAS ANGLIES MONOKSIDU
Be kurą deginančių prietaisų galimi ir kii anglies monoksido šaliniai, kurie gali sukeli CO
pavojaus signalą. Pvz. didelė miesto smogo koncentracija, rusenani ugnis ar cigarečių dūmai.
Anglies monoksidas (CO) - nepilno degimo organinių medžiagų produktas. Tai nuodingos dujos,
tačiau būdamos bespalvėmis, bekvapėmis, beskonėmis ir poveikio pradžioje nekeliančiomis jokio
dirglumo, jos yra sunkiai atpažįstamos.
Tam, kad prietaiso angos neužsikimštų dulkėmis ar purvų, retkarčiais švaria servetėle išvalykite
jo paviršių. Kai kurios buiinės medžiagos ilgainiui arba per trumpą laiką gali paveiki daviklio
jautrumą. Būdami šalia prietaiso, nenaudokite sinteinių dažų, klijų, nagų lako valiklio,
aerozolinių purškalų, namų valymo priemonių, lako ar kvepalų.
LT
KONCENTRACIJAORE SIMPTOMAI
35 ppm (0.0035%) Esant tokiai koncentracijai po 6-8 val. žmogui pasireiškia galvos skausmas, svaigulys
100 ppm (0.01%) Esant tokiai koncentracijai po 2-3 val. pasireiškia nežymus galvos skausmas
200 ppm (0.02%) 2-3 val. eigoje pasireiškia nežymus galvos skausmas, sąmonės sutrikimas
400 ppm (0.04%) Nuolat esant tokiai koncentracijai 1-2 val. eigoje pasireiškia skausmas kaktos srityje
800 ppm (0.08%) Per 45 min. pasireiškia svaigulys, pykinimas ir traukuliai; 2 val. eigoje – sąmonės netekimas
1,600 ppm (0.16%) 20 min. eigoje - galvos skausmas, padidėjęs širdies ritmas, svaigulys, pykinimas; mažiau nei
po 2 val. - miris
ppm – Parts per Million (milijoninės dalys) – santrumpa apibrėžia teršalų dalelių koncentraciją ore.
BŪTINA ŽINOTI
LT
