Eldes ESIM251 User manual

ESIM251
GSM CONTROL SYSTEM

Copyright ©“ELDES UAB”, 2009. All rights reserved.
It is strictly forbidden to copy and distribute information in this document or pass to a third party without an advanced written authorization from“ELDES
UAB”.“ELDES UAB”reserves the right to update or modify this document and/or related products without a warning. Hereby, ELDES UAB declares that this
GSM CONTROL SYSTEM ESIM251 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of
conformity may be consulted at www.eldes.lt
User Manual v1.0
Safety instructions
Please read and follow these safety guidelines and assembly instructions in order to maintain safety of operators and people around:
• GSM control system ESIM251 (further referenced as the system) contains an integrated radio transceiver operating in GSM
850/900/1800/1900 MHz bands.
• Don’tusethesystemwhereitcaninterferewithotherdevicesandcauseanypotentialdanger.
• Don’tmountthesystemnexttomedicalequipmentordevices,iftheyrequireso.
• Don’tusethesysteminhazardousenvironment.
• Don’texposethesystemtohighhumidity,chemicalenvironmentormechanicalimpacts.
• Don’tattempttopersonallyrepairthesystem.
• Systemlabelisonthebottomsideofthedevice.
System ESIM251 is a device mounted in limited access areas. Any system repairs must be done only by qualied, safety aware
personnel.
Mains power must be disconnected before any installation or tuning work starts. The system installation or maintenance
must not be done during stormy conditions.
The system must be powered by main 10-24V 50Hz ~200mA AC or 10-24V 200mA DC power supply which must be
approved by LST EN 60950-1 standard and be easily accessible nearby the device. When connecting the power supply to the
system, switching the terminals places does not have any aect.
AnyadditionaldeviceslinkedtothesystemESIM251(computer,sensors,relaysetc.)mustbeapprovedbyLSTEN60950-1
standard.
External power supply can be connected to AC mains only inside
installation room with automatic 2-pole circuit breaker capable of
disconnecting circuit in the event of short circuit or over-current
condition. Open circuit breaker must have a gap between con-
nections of more than 3mm and the disconnection current 5A.
FuseF1modelMINISMDC050F0.5ABlownfusecannotbereplacedbytheuserandthereplacementfuseshavetobeexactlythe
same as indicated by the manufacturer.
Thedeviceisfullyturnedobydisconnecting2-poleswitchodeviceoftheexternalpowersupplyoranyotherlinked
device that the system ESIM251 is powered from.
Phase
AC 230V
50 Hz/DC 24V
USB cable
Null
ESIM251
PE

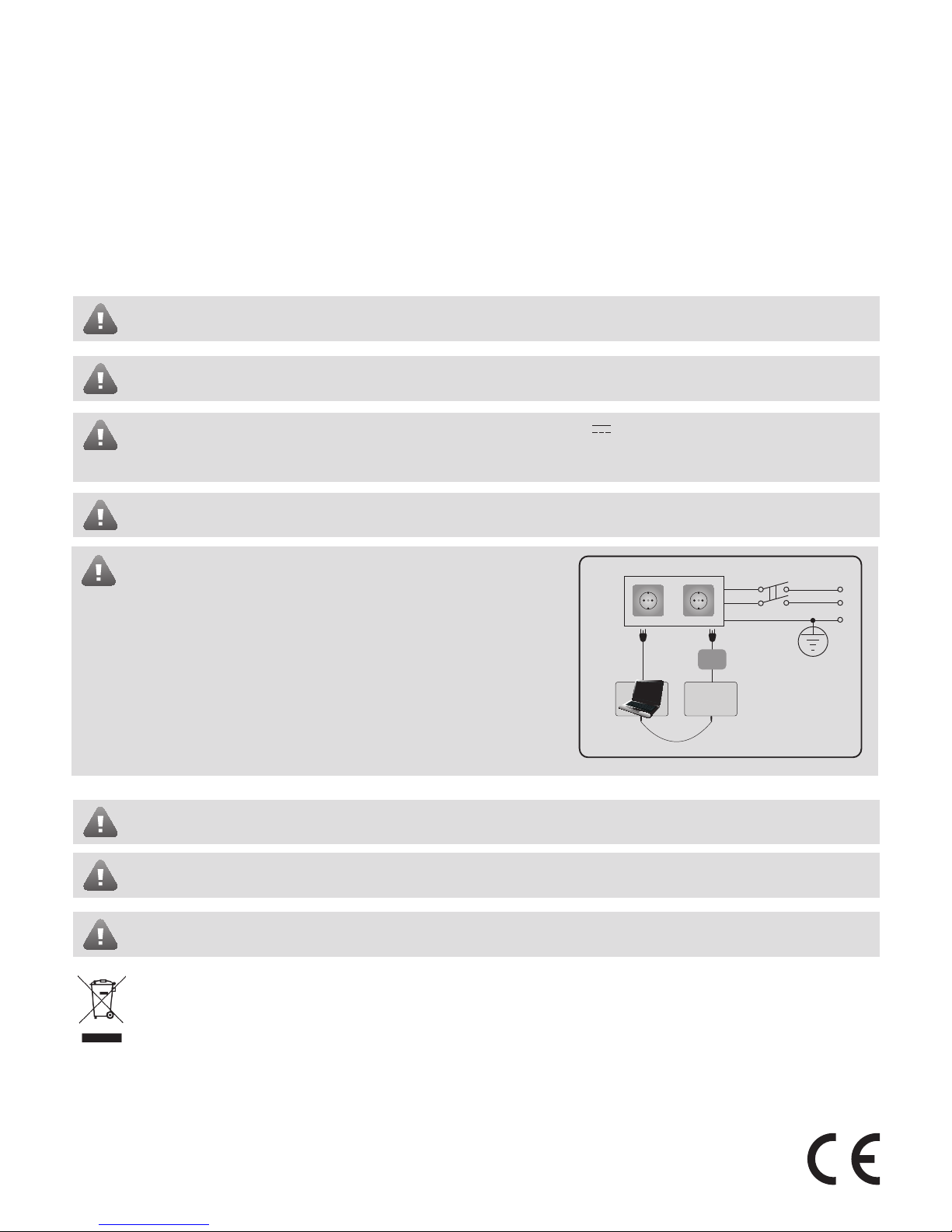

TheWEEE(WasteElectrical andElectronic Equipment)marking onthis productor itsdocumentationindicatesthat intheEU the
product must not be disposed of together with household waste.
If you use I security class computer for setting the parameters it must be connected to earth.

Limited Liability
The buyer must agree that the system will reduce
the risk of re, theft, burglary or other dangers but
does not guarantee against such events.
“ELDES UAB” will not take any responsibility regar-
ding personal, property or revenue loss while using
the system.
“ELDES UAB” responsibility according to local laws
doesnotexceedvalueofthepurchasedsystem.
“ELDES UAB” is not aliated with GSM operators
providing cellular services therefore is not respon-
sible for the quality of cellular services.
Manufacturer Warranty
The system carries a 24-month warranty by the ma-
nufacturer “ELDES UAB”.
Warranty period starts from the day the system has
been purchased by the end user. The warranty is
valid only if the system has been used as intended,
following all guidelines listed in the manual and
within specied operating conditions. Receipt with
purchase date must be kept as a proof.
The warranty is voided if the system has been
exposed to mechanical impacts, chemicals, high
humidity, uids, corrosive and hazardous environ-
ment or other force majeure factors.
Package Content:
The system ESIM251................... 1 pcs
ESIM251 user manual................. 1 pcs
GSM antenna ................................ 1 pcs
Fastening holders........................ 3 pcs
About User Manual
This document describes GSM control system
ESIM251, its operation and installation.
It is very important to read User Manual before
start using the system.
A quick start guide is located in rst two chapters.
Chapter 3 and 4 describe additional system capa-
bilities.
CONTENT
1. General Information
1.1 Function .......................................................................................................4
1.2 Operation Description.............................................................................4
1.3 Technical Specications .........................................................................5
1.4 Connector Functionality.........................................................................5
1.5 Connection Circuit....................................................................................6
1.6 System Installation ...................................................................................7
2. System Pre-operation and the Main Control Commands
2.1 Selecting device language
and verication of SMS central number ...........................................8
2.2 Password Change .....................................................................................8
2.3 User Numbers.............................................................................................9
2.3.1 Saving or Changing Numbers ..............................................9
2.3.2 Verication of Saved Numbers.............................................
9
2.3.3 Deletion of Saved Numbers. .................................................9
2.4 Date and Time Settings ..........................................................................9
3. Additional System Capabilities
3.1 Renaming Zones and Controlled Output...................................... 10
3.2 Enabling/Disabling Zones...................................................................10
3.3 Info on Status SMS.................................................................................11
3.4 Blocking Unknown Numbers.............................................................11
3.5 Remote Microphone Listening .........................................................12
3.6 Managing C1 and C2 Controlled Outputs. Timer ....................... 12
3.7 SMS Message Delivery to Multiple Users .....................................12
3.8 Calling all users ...................................................................................... 13
3.9 Conguration for advanced users................................................... 14
3.9.1 Additional possibilities of conguring
   zones(inputs)alarmandrestore....................................... 25
3.9.2 Additional possibilities of controlling and
   conguringcontrollerC1(relayoutput) ........................27
3.9.2.1 Settings of the output controlled by calls........27
3.9.2.2 Settings of the output controlled
by SMS messages .....................................................28
3.9.2.3 Output control settings by event time.............. 30
4. Appendix
4.1 Restoring Default Parameters. .......................................................... 32
4.2 „ELDES Conguration Tool“ software .............................................32
4.2 Technical Support ..................................................................................32

4
1. General Information
1.1 Function

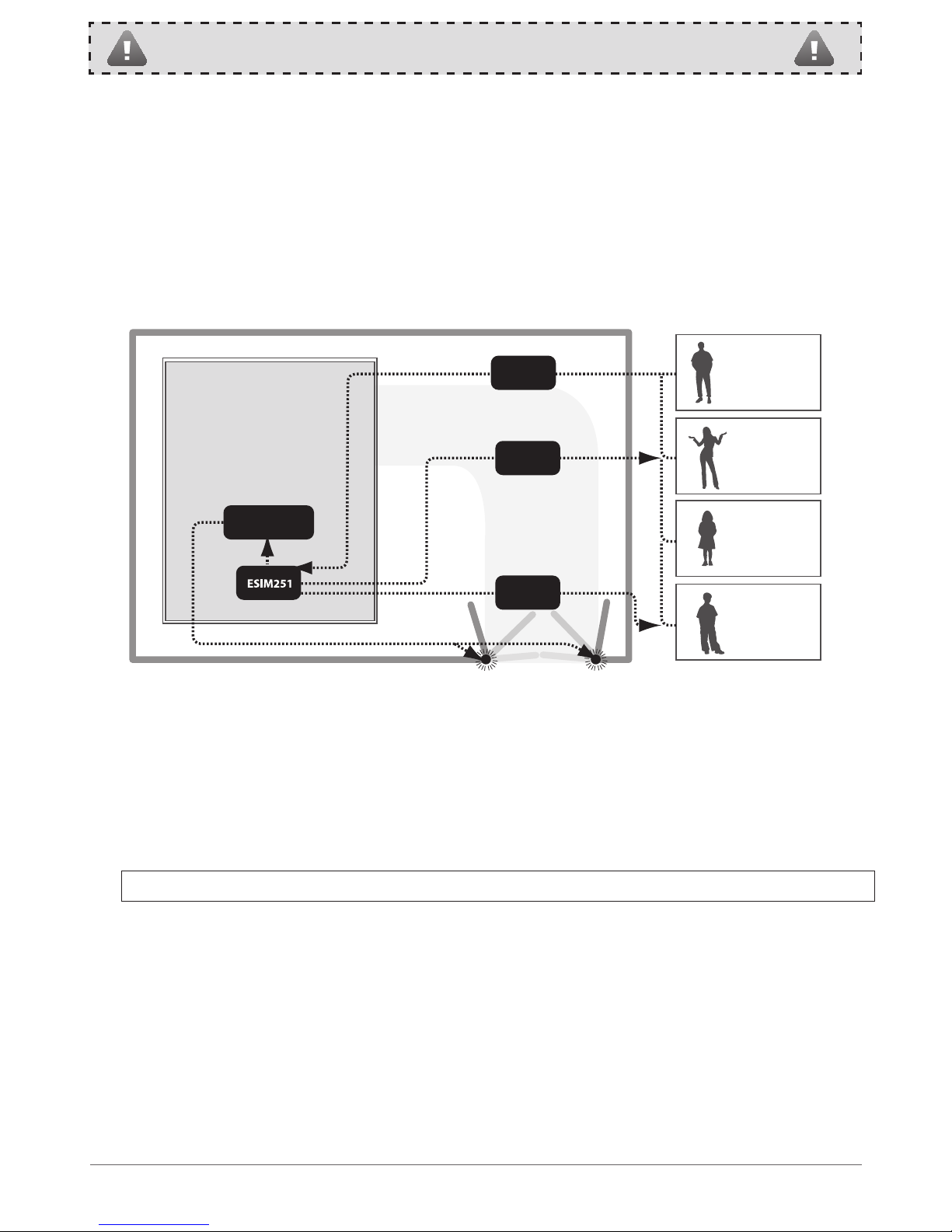

ESIM251 is a microcontroller based device used to inform users about the alarm in automatic or security systems and control one
electric appliance -relay.
1.2 Operation Description
Description of factory default settings.

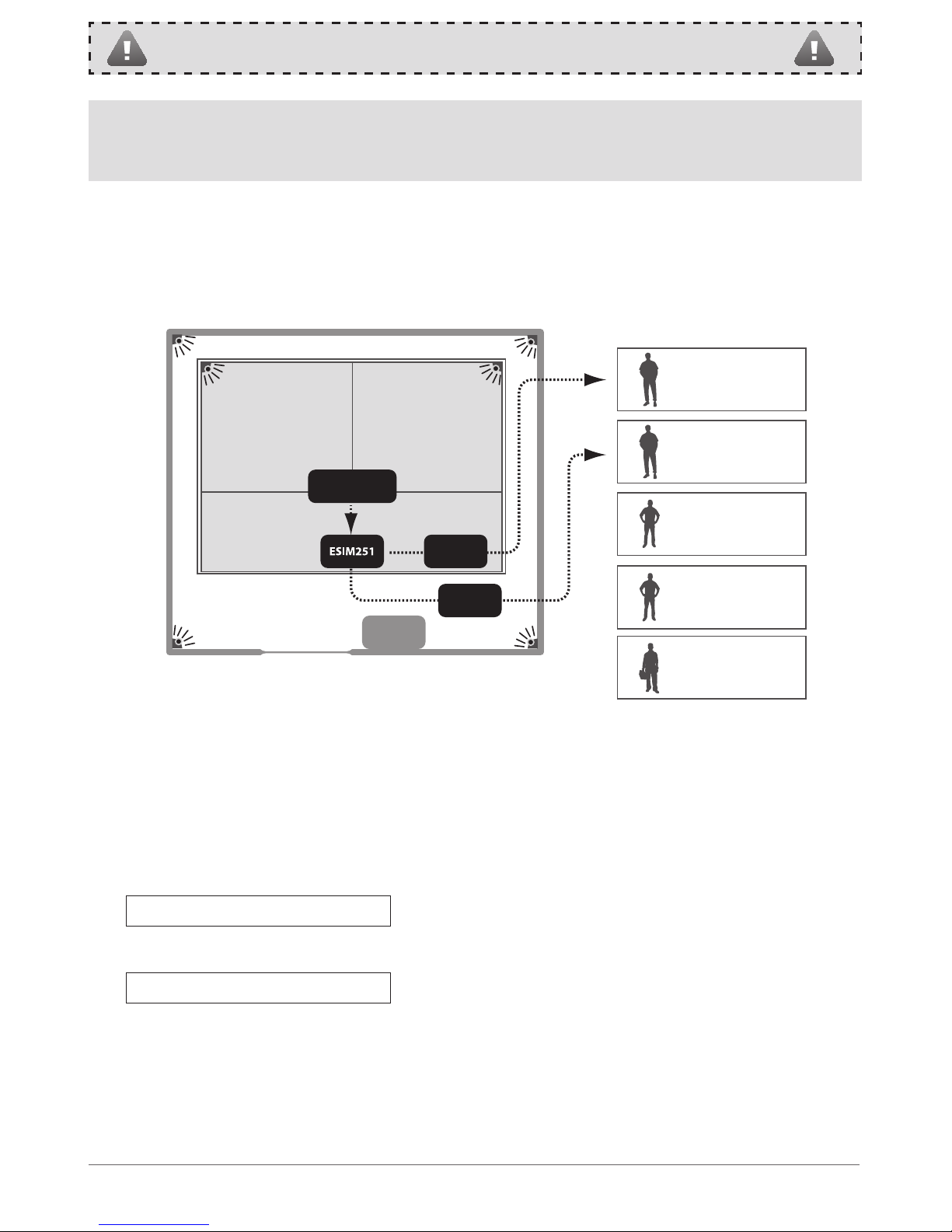

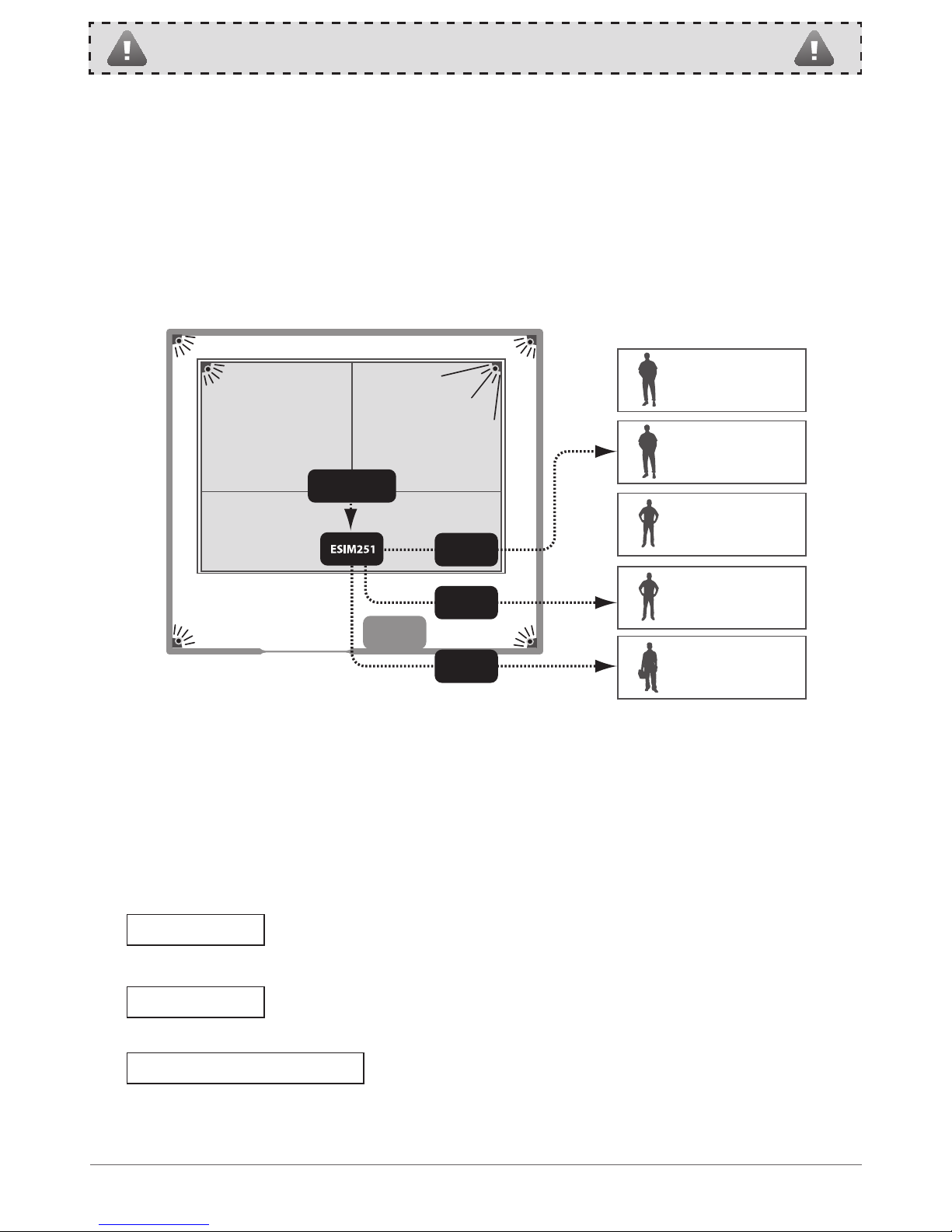

GSM control system ESIM251 operates over GSM network. It works 24/7, i. e. it always reacts to the incoming signal.
When the alarm siren, motion sensor, re alarm sensor, door sensor, any other sensor or PGM output is triggered, ESIM51 system sends
anSMSmessageandcallstothepresetnumbers.SMSmessagewiththenameofthetriggeredzone(input)willcontinuetobesentuntil
successful delivery to one of the users or until it is delivered to all users. The system continues to call until one of the ve users answers
the phone, rejects the call or until the call is ended by the mobile service provider. If the user answers the call, the system activates the
microphone for listening on what is happening in the secured premises. When using audio feature in case of zone trigger or restore event
the user will be able to listen to particular sound record uploaded to the ESIM251 device memory. After the end of the sound record the
system activates the microphone for listening on what is happening in the secured premises. After„hanging the phone“ or after the end
ofthecall(duration-1min.)thesystemwillreturntotheprevioussecuritystate.Please,referto“ELDES Conguration Tool“ software
„Help“ section for more details on audio feature.
ESIM251cancontrol1electronicappliance(arelay)sendingapasswordandaspecialcommandfromaGSMphoneofanyusers.
This feature allows to turn on the heating, lighting, lift the gates, blinds etc.
The system will ignore incoming requests from unknown telephone number or SMS message with wrong password.
List of other congurable system possibilities.
Input types Normally open NO Operation only when the signal is transmitted.
Normally closed NC Operation only when the signal is switched.
Ways of activating an
event
Event when the input is
activated(Alarm) SMS is delivered when the signal is transmitted to the input.
Event when the input is restored
(Restore)
SMS is delivered when the previously transmitted signal in the input
disappears.
Impulse counting SMS is delivered if the number of te preset number of impulses in the
inputisexceeded.Maxvalueis4294967295impulses.
Ways of transmitting an
event
SMS Only SMS or various call combinations can be chosen. It is also possible to
use only calls. Any of the users can be assigned only SMS or only calls or
call combinations. Besides, any of the users can be assigned a particular
input(zone)ortheircombination.E.g.apossibilitytocongurethe
system so that when input Z1 is activated SMS are sent only to users NR1
and NR5, and when Z2 is activated SMS is sent to all users and the call
would be for NR4 and so on. When the functions SMSALL and CALLSALL
are set SMS messages are sent to all users and the call would be delivered
regardless of the fact whether the call was answered, rejected etc.
Calls
Ways of controlling
output(relay)
Turning on/o by SMS
The relay can be turned on/o by sending the command by SMS
message. You can turn on/o:
1. for a permanent status
2. for a set period
3. for a set hour
4. repeating turning on/o.
Turning on/o by a call
The relay can be turned on/o by calling. You can turn on/o:
1. for a permanent status
2. for a set period
3.toggle(relaystatuschangesaftereachcall)
Automatic turning on at the
preset hour
The relay can be turned on for a set period at a set hour.
E. g. the relay is turned on at 18:00 and it is on for 5 hours. After 5 hours it
turns on automatically notifying the user about that.
Event register Event register function When the computer is connected it is possible to see activations, network
strength etc.

USER MANUAL ELDES ESIM251 V1.0
5
1.3 Technical Specications
Electrical and mechanical specications
Supply voltage 10-24V50Hz~200mAmax/10-24V 200mAmax
Current used in standby mode 50mAmax
GSM modem frequency 850/900/1800/1900 MHz
Numberof“low”level(negative)inputs 4
Numberof“high”level(positive)inputs 1
Allowable„low“level(negative)inputvalues Voltage: 0... 1.6V; current: -0.8... -0.4mA
Allowable„high“level(positive)inputvalues Voltage: 5... 50V; current: 0.17.... 1.7mA
Number of outputs 1
Output type NO(relay)
Relayoutputmaximumcommutatingvalues 24V 1A / 24V 50Hz ~0,5A
Dimensions 82x63x20mm
Operating temperature range -20…+55oC
(-30...+55oCwithlimitations)

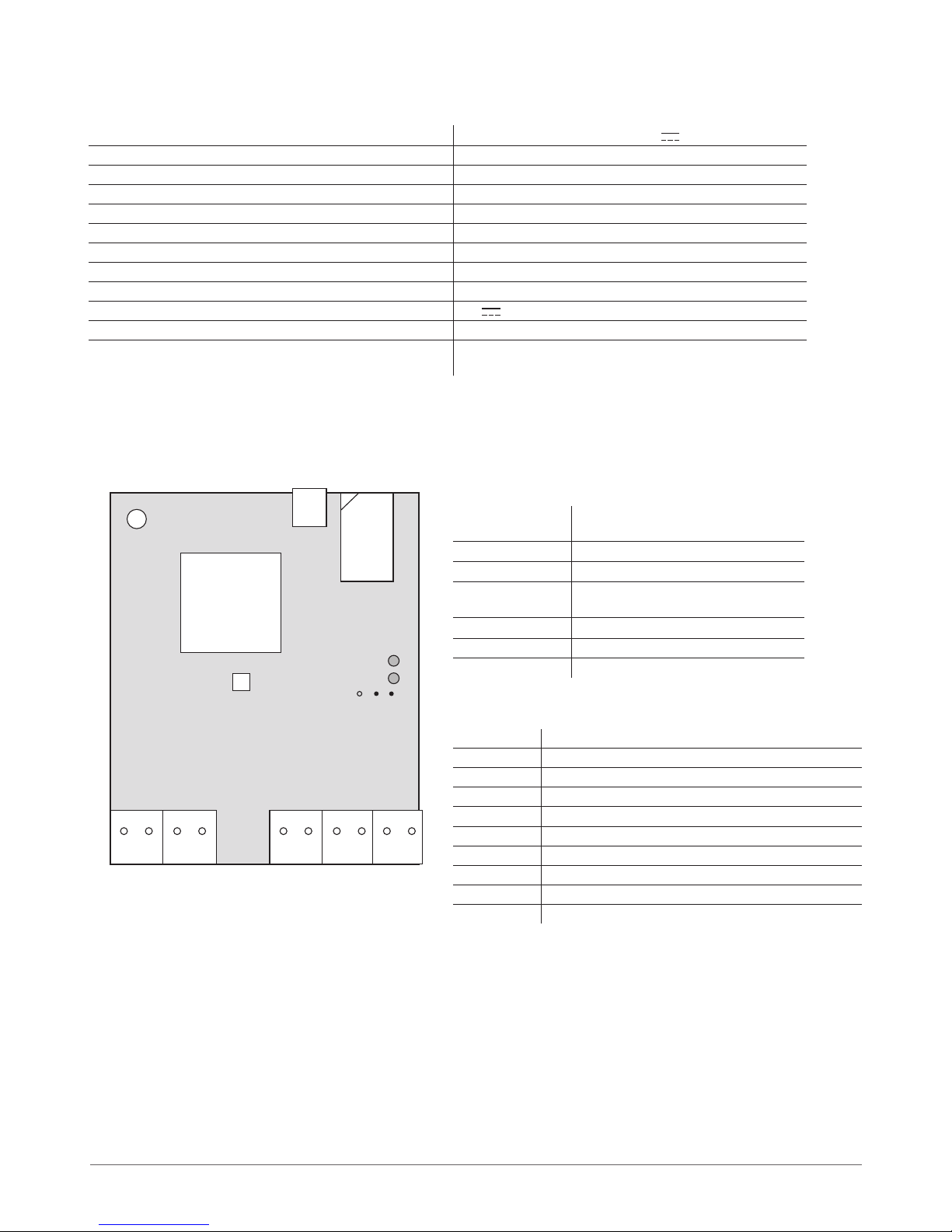

1.4 Connector Functionality
ANT
GSM
MODEM
SIM
CARD
MIC
LED1
LED2
DEFAULT D1 D2
AC/DC RELAY COM- - Z5 Z4 Z3 Z2 Z1
USB
Short explanation of the main units
GSM MODEM GSM network 850/900/1800/1900 MHz
modem
SIM CARD SIM card
LED Light-emitting diodes indicator
DEFAULT Connectors(D1andD2)forrestoring
default settings
ANT GSM antenna SMA type connector
USB Mini USB connector
F1 Fuse
Connector functionality
Labeling Explanation
AC/DC Power supply pins
RELAY Dryrelaycontact.Normallyopen(NO)
RELAY Dryrelaycontact.Normallyopen(NO)
COM Common pin
Z5 “Low” level input Z5
Z4 “Low“ level input Z4
Z3 “Low” level input Z3
Z2 “High”level input Z2
Z1 “Low” level input Z1
Picture 1

6

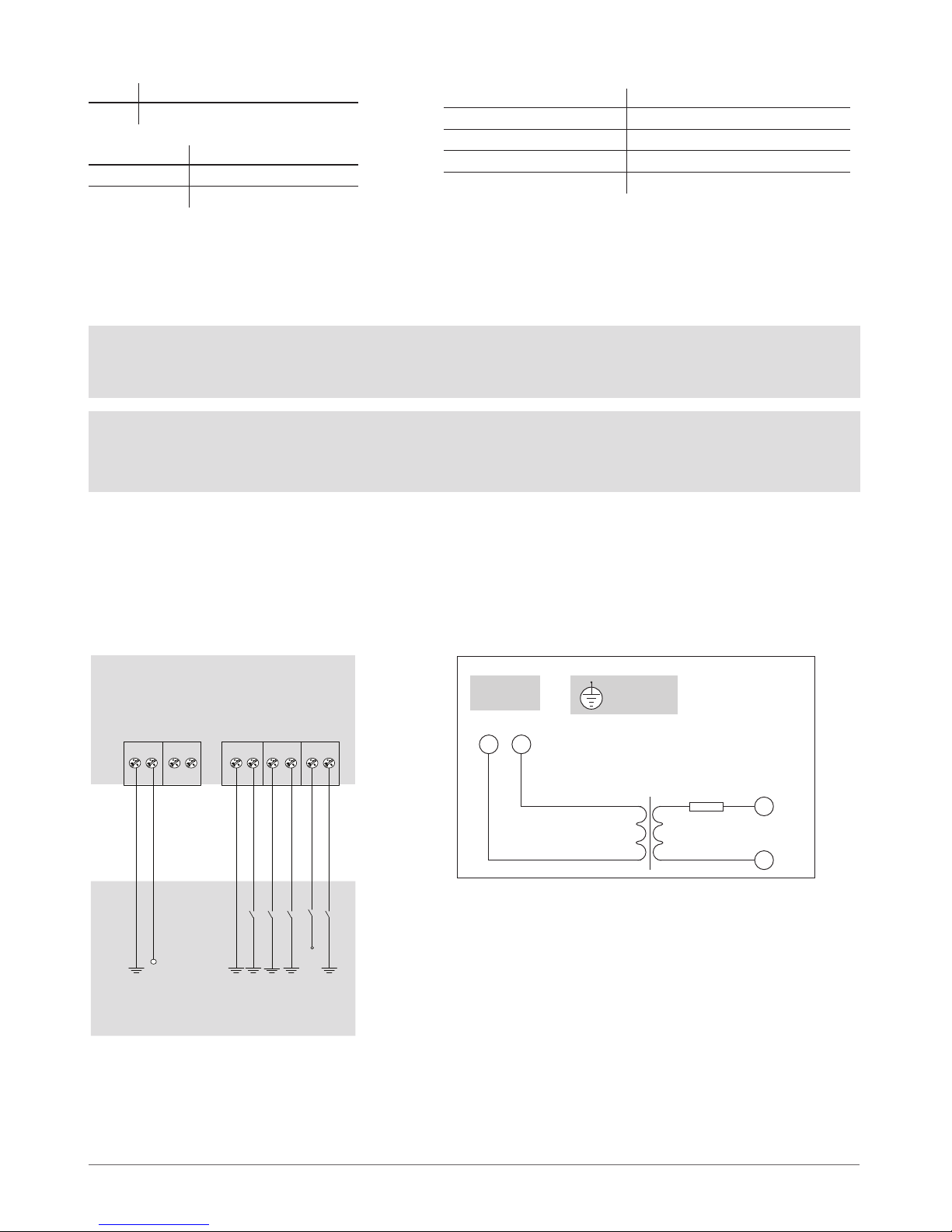

1.5 Connection Circuit
USEFUL INFORMATION
When choosing GSM cellular provider, it is worth inquiring whether the service is used in security application assuring fast and
reliable SMS message delivery and phone call connection.
USEFUL INFORMATION
When choosing GSM cellular provider, it is worth inquiring whether the service is used in security application assuring fast and
reliable SMS message delivery and phone call connection.
ESIM251 and alarm system COM must be connected.
Inputs Z1,Z3,Z4,Z5 are connected to alarm system PGM outputs if PGM are implemented as open collector circuit or any other
circuit and if it commutates with COM.
It is also possible to connect Z1, Z3, Z4, Z5 inputs to, for instance, motion sensor or any other sensor as well as automatics device
provided the inputs are commutated with COM.
Input Z2 is commutated with a “high level” impulse. Impulse duration is >600ms.
Picture 2
Picture3 AC power supply connection circuit
+12V
HIGH
LEVEL
Z1Z2Z3Z4Z5COMRELAYAC/DC
PGM1 PGM3 PGM4 PGM5 PGM2
GSM communication and
control system ESIM251
Alarm system or other appliance
Fuse 500 mA
~230V 50Hz
AC/DC
~10-24V
Metal box
PE contact
LED indicators functionality
LED1 Indicates SIM card status
LED2 Indicates network status
LED1 status Meaning
OFF SIM card is working properly
ON SIM card error
LED2 status Meaning
OFF No network connection
Blinking 3 times per second Poor network connection
Blinking 1 time per second Medium network connection
ON Excellentnetworkconnection

USER MANUAL ELDES ESIM251 V1.0
7
1.6 System Installation
The system can be installed only in a metal or non-ammable plastic enclosure. If the metal enclosure and transformer is used it
isnecessarytogroundtheenclosureusingyellow/greencolourcable.Fortheconnectionof230Vtransformeruse3x0.75mm2
1 thread double isolated cable. The primary circuit of the transformer must be connected through 0.5A fuse. 230V power supply
cables cannot be grouped with low voltage cable group. For the connection of power supply and output connectors use 1 thread
2x0.75mm2cable.Fortheconnectionofinput/outputconnectorsuse0.50mm21threadcable.
1. Fastenthesystemintheboxusingfasteningholders.
2. PlaceSIMcardintheholderbutmakesurethatSIMcardPINcodeisdisabled.(PINcodecanbedisabledbyputtingSIMcard
intomobilephoneandfollowingpropermenus).SIMcardshouldnothaveanyremainingSMSmessages.
3. Connectthecircuitasshowning.No2.Powersupplycablesareconnectedlast).WhenconnectingESIM251toalarmsystem
power supply, usually the security system AUX output is used.
4. WhenACpowersupply(groundtransformator)isusedconnectaccordingtocircuitno.3.Inthiscaseyoudonotneedto
connect any other power supplies.
5. The system will start in less than a minute. LED2 indicator should be blinking or be ON indicating connection to GSM.
Picture3 AC power supply connection circuit

8
2. System Pre-operation and
the Main Control Commands
VERY IMPORTANT!!!
Underscoresymbol‘_’inthismanualisusedtorepresentspace.WhenwritingSMSmessages,everyunderscoresymbolshouldbe
replacedbysinglespacesymbol.XXXX–meanspassword.Don’tleaveanyspaceatthebeginningandtheendofthemessage.
To set ESIM251 system parameters easier and quicker you can use the computer, USB cable and conguration software „ELDES
Conguration Tool“. You can read more in chapter 3.2.
2.1 Selecting device language and verication of SMS central number
The language in which the device communicates with the user can be chosen before changing factory default password.To change
thelanguageinthesystemthatisalreadyconguredresetdefaultsettingsasdescribedin3.1appendix.
Send SMS message with the required language
code to the number of the SIM card inserted in
ESIM251.
E.g., if you want to set the English language send
the following SMS message: EN
30-60 seconds later you should get an SMS message:
„English language conrmed.“ Go to chapter 2.2 upon
reception of this message.
Otherwise check for network connection and call ESIM251 system from your mobile and wait until the system drops the call. You
should get an SMS message asking to change default password. Otherwise check for network connection and change SMS central
number.
SMS central number is saved in SIM card, therefore if SIM card has been used to send SMS messages with a mobile phone,
thenyoudon’t’needtochangeSMScentralnumber.OftenSMScentralnumberisalreadysavedinSIMcardbycellular
operator.
Central number can be entered by sending SMS message:
XXXX – is a password. Default password is four zeros: 0000. SMS central number is provided by cellular network provider.
Example: 0000_SMS_+37069899992
Message should be sent to the number of SIM card which is placed into the system. If all went correct, the system will send a messa-
ge: SMS central number has been successfully changed to [phone]
2.2 Password Change
All SMS commands start with a password, please memorize it. Manufacturer default password is
four zeros 0000, which is necessary to change.
Manufacturer default password can be changed by sending the following SMS message to
ESIM251:
To replace your password, send the following SMS message:
XXXXisanyfourdigitnumberexceptfourzeros.
Non-numerical characters like dots, colons, spaces are not allowed. YYYY is the old system password. If you forgot the password,
default manufacturer password can be restored, see chapter 4.1 for more details.
ESIM 251
0000_
PSW_XXXX
0000_PSW_XXXX
YYYY_PSW_XXXX
Language Code
lithuanian LT
english EN
russian RU
Table of
possible
languages
ESIM 251
XXXX_SMS_+37011111111

USER MANUAL ELDES ESIM251 V1.0
9
2.3 User Numbers
The system ESIM251 allows to pre-program up to ve dierent mobile numbers which will have access to and control the system.
NR1 is mandatory while others can be skipped. All numbers must be entered starting with international country code, e. g. national
code for Lithuania is 370, UK – 44. By default the system starts sending all messages and in the event of alarm starts calling on the
rst number, and if the rst call is unsuccessful, it immediately tries reaching subscriber No2 etc.
2.3.1 Saving or Changing Numbers
SendSMSmessagewiththefollowingtexttoESIM251:
Ones should be replaced with user numbers.
Numbersdon’thavetobeenteredinsequential orderrightaway. E. g.user can enterrst and
fourth number by sending the following SMS message:
Or individually one number at a time:
Numbers can be changed same way as described above. New number will overwrite old one, the-
refore no erasing is necessary.
2.3.2 Verication of Saved Numbers
To inquire the system about pre-programmed numbers, send the following SMS message:
The system will reply with all pre-programmed numbers.
2.3.3 Deletion of Saved Numbers
To erase NR2-NR5, send the following SMS message:
E. g. XXXX_NR3:DEL
The system will not allow erasing rst number NR1. It can only be modied.
2.4 Date and Time Settings
It is important to set correct date and time so that the system can send reports at specied times.
Date and time can be set by sending the following format SMS message:
where MMMM means year; mn - month; dd - day; va - hour; mi - minutes
E. g. XXXX_2009.01.01_14:15
ESIM 251
XXXX_
NR1:370
11111111_
NR4:370
11111111
XXXX_NR1:37011111111_NR4:37011111111
XXXX_NR1:37011111111_NR2:37011111111_NR3:37011111111_NR4:37011111111_
NR5:37011111111
ESIM 251
XXXX_
NR3:370
11111111
ESIM 251
XXXX_
HELPNR
ESIM 251
XXXX_
NR3:DEL
ESIM 251
XXXX_
2009.01.
01_14:15
XXXX_NR3:37011111111
XXXX_HELPNR
XXXX_NR2:DEL_NR3:DEL_NR4:DEL_NR5:DEL
XXXX_MMMM.mn.dd_va:mi

10
3. Additional System Capabilities
3.1 Renaming alarm, restore text and controller names
Manufacturer initially set the following zone and controlled output names:
Zone1, Zone2, Zone3, Zone4, Zone5, OUTPUT1
E. g. if during the alarm Z1 zone was triggered, the system sends SMS message with the text: Zone1
AlarmtextchangesaremadebysendingthefollowingSMSmessage:
E. G. XXXX_Z1:Intrusion though the door;Z2:Fire sensor triggered;
Textscanbechangedallatonceforallzones,severalofthemoronebyone.Maximumtextforonezone
is24characters.Thespaceisequaltoonecharacter.Eachnewtextmustbefollowedbyasemicolon.As
semicolonisusedforseparatingtextsfordierentzones,itcannotbeusedinthemiddleofalarmtexts
itcanonlybeusedattheend.Textscannotbethesameascontrolcommands.
Triggered zone restore text
If you want to be notied by an SMS message when the triggered zone is restored Restore mode must be turned on. The mode is
turned on by sending a particular SMS command. Please refer to chapter 3.9 or conguration program.
ZonerestoretextischangedbysendingthefollowingSMSmesaage:
Controller name can be changed by sending the following SMS message:
Controller name cannot be followed by a semi colon. You cannot change zone names and controller
names at the same time.
E. g. XXXX_C1:PUMP
3.2 Enabling/Disabling Zones
NOTE
Manufacturer set all the zones activated, i. e. in mode ON.
USEFUL INFORMATION
The zones can be enabled/disabled together or separately one by one.
Enabling Zone
Any zone can be enabled by sending the following SMS message:
XXXX_Z1:NewAlarmText;Z2:NewAlarmText;Z3:NewAlarmText;Z4:NewAlarmText;Z5:NewAlarmText;
XXXX_ZR1:NewRestoreText;ZR2:NewRestoreText;ZR3:NewRestoreText;ZR4:NewRestoreT
ext;ZR5:NewRestoreText;
XXXX_C1:NewControllerName
XXXX_Z1:ON;Z2:ON;Z3:ON;Z4:ON;Z5:ON;
ESIM 251
XXXX_Z1:
trespaced;
Z2:
triggered
re
detector;
ESIM 251
XXXX_C1:
PUMP

USER MANUAL ELDES ESIM251 V1.0
11
Disabling Zone
Any zone can be disabled by sending the following SMS message:
E. g. XXXX_Z2:ON; or XXXX_WINDOWS:ON; or XXXX_Z2:OFF; or XXXX_WINDOWS:OFF;
3.3 Info on Status SMS
The system ESIM251 can any time be inquired about signal strength and the status of zones active at the time when SMS message is
sent. At the same time system test is performed. If the answer to the request has been received, it means the system nely operates.
It is also useful for those using prepayment service – you can check if the credit in the account is sucient for sending an SMS
message. Send the following SMS message:
The reply SMS will have following info: e. g. 2008.08.07 11:15
Signal strength satisfactory. Z1:OK/ALARM Z2:OK/ALARM Z3:OK/ALARM Z4:OK/ALARM Z5:OK/ALARM
where OK means that the alarm in zone did not go o. ALARM – if it went o.
By default, this status SMS message will be sent daily at 11:00 in the morning. These parameters can
be congured by sending the following SMS message:
PP – message period in days, valid values [00-10].
VV - time when message is sent, valid values [00-23].
E. g. XXXX_INFO:01.10 means that status message will be sent every 1 day at 10:00.
If PP value is 0, and VV in the range of [1-23], then periodic status messages will be sent multiple times
per day, with period being specied as VV time.
E. g. XXXX_INFO:0.2 means that status message will be sent every 2 hours.
To disable periodic status messages send the following SMS message:
The status messages will not be sent until enabling or restoring default parameters or receiving previously described XXXX_
INFO:PP.VV SMS message.
3.4 Blocking Unknown Numbers
By default ESIM251 system can be controlled from any of the pre-programmed numbers NR1-NR5. However, the user can access
the system and control parameters and outputs from any number as long as password is known.
To enable this feature send the following SMS message:
To disable this feature send the following SMS message:
XXXX_Z1:OFF;Z2:OFF;Z3:OFF;Z4:OFF;Z5:OFF;
XXXX_INFO:PP.VV
XXXX_INFO:00.00
XXXX_STR:ON
XXXX_STR:OFF
XXXX_INFO
ESIM 251
XXXX_
WINDOWS:
OFF;
ESIM 251
XXXX_
INFO:01.
10
ESIM 251
XXXX_
INFO:0.2

12
3.5 Remote Microphone Listening
NOTE
To enable this feature it is necessary to connect microphone connector to MIC slot. The microphone is additional equipment
tha can be purchased in trading centers.
You can listen to what is going on in the secured premises by sending the following SMS message:
The system will ring the sender of the received SMS, and upon answering the call, the user can listen to any sounds in the building.
The phone call must be answered within 20 seconds otherwise the system will stop trying and return to previous state.
3.6 Managing C1 Controller. Timer.
GSM control system ESIM251 contains a controller C1- a relay output. It can be used to control various electrical devices such as
electric pumps, heating, lighting etc. When the controller is enabled RELAY connectors are connected.
The device is turned on by sending the following SMS message:
The device is turned o by sending the following SMS message:
Instead of C1 it is also possible writing a real controller name.
E.g.. XXXX_PUMP:ON
Timer
GSM control system ESIM251 has internal timer clock. This feature allows any controlled output to be switched on or o for a spe-
cied time period. The following SMS command should be sent:
ON – output enabled. OFF – disabled
vv – hours, valid values [00-23] mm – minutes, valid values [00-59] ss - seconds, valid values [00-59]
It is not allowed to have all values equal zeros. Zeros it is not allowed to have all values equal
E. g. to switch the pump on for 01 minutes and 23 seconds, send SMS XXXX_PUMP:ON:00.01.23
If the pump was enabled before and user want to disable it for 01 minute and 23 seconds, send SMS
XXXX_PUMP:OFF:00.01.23
If you want to use more C1 Output capabilities asTOGGLE, automatic enabling and disabling for a particu-
lar hour or control, use conguration software„ELDES Conguration Tool“ or see chapter 3.9.2
3.7 SMS Message Delivery to Multiple Users
Upon activated alarm in security system, ESIM251 SMS messages are repeatedly sent until  rst successful delivery to one of the
users. The system starts with NR1 and if delivery fails, it follows with NR2 etc.
It is also possible to set the system so that it sends SMS message to all recorded users.
XXXX_MIC
XXXX_C1:ON
XXXX_C1:OFF
XXXX_C1:ON/OFF:vv.mm.ss
ESIM 251
XXXX_
PUMP:
ON
ESIM 251
XXXX_
PUMP:
OFF:00.
01.23

USER MANUAL ELDES ESIM251 V1.0
13
To enable this function send the following SMS message:
To disable this function send the following SMS message:
If you want to congure SMS message delivery only for particular users or only for particular zones, refer to chapter 3.9 or use con-
guration program.
3.8 Calling all users
During the alarm, ESIM251 system starts calling NR1. If the call to NR1 was unsuccessful or the subscriber was out of network
coverage the call is forwarded to NR2 etc. If the user rejected the call or answered te call during the alarm the system stops calling.
However, you can set the system to call all recorded users regardless of the fact whether the user answered or rejected the call, was
out of network coverage or was engaged.
To turn on this feature send the following SMS message:
ATTENTION!
Whenthisfeatureisenableditwillnotbepossibletostopcallingthenextuserinthesequenceevenifthecallisanswered.
To disable this function send the following SMS message:
If you want to congure calling only to particular users or only for particular zones, refer to chapter 3.9 or use conguration program.
3.9 Conguration for advanced users
All features described in chapter 3.9 of the user manual can be congured using “ELDES Conguration Tool“ software.
But if there is no possibility of connecting the computer or if you want to change the settings remotely you can do this via SMS
messages. We use changinf these settings by SMS message only for advanced users.
XXXX_SMSALL:ON
XXXX_SMSALL:OFF
XXXX_CALLALL:ON
XXXX_CALLALL:OFF

14
FOR ADVANCED USERS
All these features can be congured using program“ELDES Conguration Tool“
E. g. 1
TheuserwantstoconnectESIM251systemtoanexistingalarminabuildingwhereenterpriseAandandenterpriseBwork.Both
enterprisesusethesamealarmsystemthathastwozones.Thealarmsystemhas5programmableoutputs(PGM).
Task NO1:
Conguring the system so that the director of a particular enterprise is informed about security enabling depending on which enter-
priseemployeeenabledthesecuritysystem.ThedirectorofenterpriseA(NO1)wantstoreceiveanSMSmessageonlyanddoesnot
wanttoreceiveanycalls,thedirectorofenterpriseB(NO2)wantstoreceiveacallanddoesnotwanttoreceiveanySMSmessages.
As per factory default settings SMS message sending feature in the case of alarm is enabled for all users until the rst successful
delivery of the SMS message, it is necessary to remove the users that should not receive any alarm messages. Besides, as per factory
default settings, calling feature in the case of alarm is also enabled for all users therefore call function must be disabled for all users
exceptuserNO2.
a)FirstofallsecuritycentralunitmustbeprogrammedinthewaysothatwhensecurityisenabledinoceA,PGM1istriggered,
and when security is enabled in oce B, PGM2 is triggered.
b)PGM1isconnectedtoESIM251inputZ1,andPGM2isconnectedtoESIM251inputZ2.(PGM2shouldbe“Highlevel”)
c) ThefollowingtwocongurationSMSmessagesmustbesenttoESIM251system:
where SC2345 means that alarm SMS message sending to users NO2-NO5 is disabled after Z1 zone is triggered. CC12345 means
that alarm calls are disabled for all users NO1-NO5 after Z1 zone is triggered.
where SC12345 means that alarm SMS message sending is disabled for all users NO1-NO5 after Z2 zone is triggered. CC1345 means
that all alarm calls are disabled for users NO1, NO3-NO5 after Z2 zone is triggered.
XXXX_SMSEXTRA:Z1:SC2345,CC12345
XXXX_SMSEXTRA:Z2:SC12345,CC1345
Director A
NO1
Director B
NO2
Worker A
NO4
Worker B
NO5
Janitor
NO3
Janitor
Alarm
Calls
PGM1 PGM2
Enterprise A Enterprise B
Alarm system
ESIM151
GATES
PIRPIR
Alarm
SMS

USER MANUAL ELDES ESIM251 V1.0
15
FOR ADVANCED USERS
All these features can be congured using program“ELDES Conguration Tool“
Task NO2:
 Conguringthesystemsothatthejanitor(NO3)isinformedaboutthetriggeredperimetersensorofeldterritorybySMSmessa-
ge and a call; and when the sensor is reset, the janitor receives SMS message only.
As per factory default settings SMS message sending feature in the case of alarm is enabled for all users until the rst successful
delivery of the SMS message, it is necessary to remove the users that should not receive any alarm messages. Besides, as per factory
default settings, calling feature in the case of alarm is also enabled for all users therefore call function must be disabled for all users
exceptuserNO3.SMSmessagesendingfeaturemustalsobeenabledforuserNO3wheninputZ3isrestored.
a)Firstofallsecuritycentralunitmustbeprogrammedinthewaysothatwhenterritorysecurityperimetersensoristriggered
PGM3 is activated.
b)PGM3isconnectedtoESIM251inputZ3
c) ThefollowingcongurationSMSmessagemustbesenttoESIM251system:
where SC1245 means that alarm SMS message sending to users NO1, NO2, NO4 and NO5 is disabled after Z3 is triggered. CC1245
means that alarm call feature is disabled for users NO1, NO2, NO4 and NO5 after zone Z3 I triggered. SE3 means that SMS message
sending feature is enabled for user NO3 after Z3 input is restored.
XXXX_SMSEXTRA:Z3:SC1245,CC1245,SE3
Alarm
SMS/Calls
Restore
SMS
PGM3
Enterprise A Enterprise B
ESIM151
PIRPIR
Director A
NO1
Director B
NO2
Worker A
NO4
Worker B
NO5
Janitor
NO3
Janitor
Alarm system
GATES

16
FOR ADVANCED USERS
All these features can be congured using program“ELDES Conguration Tool“
E. g. 1
TheuserwantstoconnectESIM251systemtoanexistingalarminabuildingwhereenterpriseAandandenterpriseBwork.Both
enterprisesusethesamealarmsystemthathastwozones.Thealarmsystemhas5programmableoutputs(PGM).
Task NO3:
 ConguringthesystemsothattheintrusiontoenterpriseApremisesisreportedtothejanitor(NO3)andenterpriseAemployee
(NO4)bySMSmessagesandcalls.EnterpriseAemployee(NO4)wantstoreceiveacallonlyinthecaseifthejanitor(NO3)doesnot
answerthecall,isoutofnetworkcoverageoratthattimethejanitor’stelephonelineisengaged.
As per factory default settings SMS message sending feature in the case of alarm is enabled for all users until the rst successful
deliveryoftheSMSmessage,itisnecessarytoenablemandatorySMSmessagedelivery(seemoreinchapter3.7)andtoremove
the users who should not receive alarm messages. Besides, as per factory default settings, calling feature in the case of alarm is also
enabledforallusersthereforecallfunctionmustbedisabledforallusersexceptusersNO3andNO4.Asperfactorydefaultsettings
in the case of alarm the system rings until the rst answered call, therefore in this case nothing should be congured.
a)FirstofallsecuritycentralunitmustbeprogrammedinthewaysothatwhensecuritysensorsofenterpriseAaretriggered
the signal is transmitted to security central unit output PGM4.
b)PGM4isconnectedtoESIM251inputZ4
c) ThefollowingcongurationSMSmessagesmustbesenttoESIM251system:
where SMSALL enables mandatory SMS message delivery feature for all users.
Where SC125 means that alarm SMS message delivery feature is disabled for users NO1, NO2 and NO5 after Z4 zone is triggered.
CC125 means that alarm calls are disabled for users NO1, NO2 and NO5 after Z4 zone is triggered.
XXXX_SMSALL:ON
XXXX_SMSEXTRA:Z4:SC125,CC125
Alarm
SMS/Calls
Alarm
SMS/Calls
PGM4
Enterprise A Enterprise B
ESIM151
PIR
PIR
Director A
NO1
Director B
NO2
Worker A
NO4
Worker B
NO5
Janitor
NO3
Janitor
Alarm system
GATES

USER MANUAL ELDES ESIM251 V1.0
17
FOR ADVANCED USERS
All these features can be congured using program“ELDES Conguration Tool“
Task NO4:
 ConguringthesystemsothattheintrusiontoenterpriseBpremisesisreportedtothejanitor(NO3)andenterpriseBemployee
(NO5)bySMSmessagesandcalls,andthedirectorofenterpriseB(NO2)receivesSMSmessageonly.EnterpriseBemployee(NO5)
mustreceivethephonecalleveninthecasewhenthejanitor(NR3)answersthecall.
As per factory default settings SMS message sending feature in the case of alarm is enabled for all users until the rst successful
deliveryoftheSMSmessage,itisnecessarytoenablemandatorySMSmessagedelivery(seemoreinchapter3.7)andtoremove
the users who should not receive alarm messages. Besides, as per factory default settings, calling feature in the case of alarm is also
enabled for all users therefore call function must be disabled for users NO1, NO2 and NO4, and left enabled for users NO3 and NO5.
Also,itisnecessarytoenablemandatorycallingfeatureforallpresetusers(seemoreinchapter3.8).
a) Firstofallsecuritycentralunitmustbeprogrammedinthewaysothatwhensecuritysensorsaretriggeredthesignalmust
be transmitted to security central unit output PGM5.
b)PGMisconnectedtoESIM251inputZ5
c) ThefollowingthreecongurationSMSmessagesmustbesenttoESIM251system:
where SMSALL enables mandatory SMS message delivery feature for all users.
where CALLALL enables mandatory calling feature for all users.
where SC14 means that alarm SMS message sending feature is disabled for users NO1 and NO4 after Z5 zone is triggered.
CC124 means that alarm calls are disabled for users NO1, NO2 and NO4 after Z5 zone is triggered.
XXXX_SMSALL:ON
XXXX_CALLALL:ON
XXXX_SMSEXTRA:Z5:SC14,CC124
Alarm
SMS/Calls
Alarm
SMS/Calls
Alarm
SMS
PGM5
PIR
PIR
ESIM151
Enterprise A Enterprise B
Director A
NO1
Director B
NO2
Worker A
NO4
Worker B
NO5
Janitor
NO3
Janitor
Alarm system
GATES

18
E. g. 2.
TheuserwantstoconnectESIM251systemtotheprogrammableoutputs(PGM)ofanexistingalarmsystem.Houseterritoryis
entered through electrically controlled gates. There are 5 users in total. NO1 is the housekeeper, NO2 is a neighbour, NO3-NO5
are family members.
As per factory default settings SMS message sending feature in the case of alarm is enabled for all users until the rst successful
deliveryoftheSMSmessage,itisnecessarytoenablemandatorySMSmessagedelivery(seemoreinchapter3.7)andtoremove
the users who should not receive alarm messages. Besides, as per factory default settings, calling feature in the case of alarm is also
enabled for all users therefore call function must be disabled for users NO2-NO5 and left enabled for NO1 only.
a)Firstofallsecuritycentralunitmustbeprogrammedinthewaysothatwhensecuritysensorsaretriggeredthesignalmust
be transmitted to security central unit output PGM.
b)PGMisconnectedtoESIM251inputZ1
c)The following two conguration SMS messages must be sent to ESIM251 system:
where SMSALL enables mandatory SMS message delivery for all users.
Where SC345 means that alar SMS message sending is disabled for users NO3, NO4 and NO5 after Z1 zone is triggered.
CC2345 means that alarm calls are disabled for all users exept NO1 after Z1 zone is triggered.
Task NO1:
Conguringthesystemsothathousealarmactivationisreportedtothehousekeeper(NO1)bySMSmessageandacallaswellas
totheneighbour(NO2)butbySMSmessageonly.
XXXX_SMSALL:ON
XXXX_SMSEXTRA:Z1:SC345,CC2345
Housekeeper
NO1
Neighbour
NO2
Family members:
NO3 NO4 NO5
Alarm system
ESIM151
Alarm
SMS
Alarm
SMS/Calls
PIR PIR
PIRPIR
PGM
GATES
FOR ADVANCED USERS
All these features can be congured using program“ELDES Conguration Tool“

USER MANUAL ELDES ESIM251 V1.0
19
As per factory default settings C1 output control via calls is disabled for all users, it is necessary to enable this feature and to set the
users who will be able to control the output. Besides, it is also necessary to set relay status for every user when he/she calls the sys-
tem. In this case the relay must be activated and the activation duration must be 1 second; after this the relay returns to the previous
status. Conrmation call feature must be enabled for user NO5 and it is necessary to choose the length parameters for that call. Also,
conrmation SMS messages have to be enabled for user NO3.
a)FirstofallESIM251systemrelayoutputhastobeconnectedtotheconnectorsofgatecontrolunit.
b)The following conguration SMS message must be sent to ESIM251 system:
where CE1345 means that C1 relay control via call is enabled for users NO1, NO3-NO5.
CS5 means that conrmation call feature is enabled for user NO5 after C1 relay status changes.
CT513 means that user NO5 will receive a conrmation call when the relay gets activated and call duration is 3 seconds.
SS3 means that user NO3 will be informed about C1 relay status change by SMS message.
MS10 means that the relay is activated when user NO1 calls the system.
MS30 means that the relay is activated when user NO3 calls the system.
MS40 means that the relay is activated when user NO4 calls the system.
MS50 means that the relay is activated when user NO5 calls the system.
MS1T0.0.1 means that relay status is changed for 1 second when user NO1 calls the system.
MS3T0.0.1 means that relay status is changed for 1 second when user NO3 calls the system.
MS4T0.0.1 means that relay status is changed for 1 second when user NO4 calls the system.
MS5T0.0.1 means that relay status is changed for 1 second when user NO5 calls the system.
Task NO2:
Conguringthesystemsothathousegatescouldbeopenedviafreecallsbythehousekeeper(NO1)andhisfamilymembers
(NO3),(NO4)and(NO5).AftereverysuccessfulgateopeningtheuserNO5wantstoreceiveaconrmationcall(CALLBACK)the
duration of which is 3 seconds, and the user NO3 wants to receive a conrmation SMS message.
XXXX_SMSEXTRA:COC:CE1345,CS5,CT513,SS3,MS10,MS30,MS40,MS50,MS1T0.0.1,MS3T0.0.1,MS4T0.0.1,MS5T0.0.1
Housekeeper
NO1
Gate controller
ESIM151
Family member
NO3
Family member
NO4
Family member
NO5
Conrmation
SMS
Control
Call
Conrmation
Call
GATES
3 sek.
FOR ADVANCED USERS
All these features can be congured using program“ELDES Conguration Tool“

20
FOR ADVANCED USERS
All these features can be congured using program“ELDES Conguration Tool“
E. g. 3.
The user wants to connect ESIM251 system to the heating system of the house.
As per factory default settings C1 output control via calls is disabled for all users, it is necessary to enable this feature and to set the
users who will be able to control the output – in this case it is user NO1. Besides it is also necessary to set relay status for user NO1
when he/she calls the system. In this case you must set the system so that the relay is activated after one call and deactivated after
anotherone(Toggle)andsoon.UserNO1needstoenableconrmationcallfeatureandsetthelengthparametersforthatcall.To
dierentiate whether the relay was enabled conrmation call will be set to ring for 3 seconds and the conrmation call will ring for
10 seconds when the relay is disabled.
a)FirstofallESIM251systemrelayoutputC1hastobeconnectedtotheconnectorsofheatingsystemcontrolunit.
b) ThefollowingcongurationSMSmessagemustbesenttoESIM251system:
where CE1 means that C1 relay control via call is enabled for users NO1.
CS1 means that conrmation call feature is enabled for user NO1 after C1 relay status changes.
CT113 means that user NO1 will receive a conrmation call when the relay gets activated and call duration is 3 seconds.
CT1010 means that user NO1 will receive a conrmation call when the relay is deactivated and call duration is 10 seconds.
MS12 means that Toggle mode is activated for user NO1 which means that relay status is changed with every call.
Task No1:
 Conguringthesystemsothathouseheatingsystemisturnedonandturnedobytheuser(NO1)viafreecall.Thisusershould
also receive free information abut successful turning on or turning o of the heating system.
User
NO1
User
NO2
Flood detector
Heating
Controller
ESIM151
Conrmation
Call
3sek/10sek
Control
Call
XXXX_SMSEXTRA:COC:CE1,CS1,CT113,CT1010,MS12
