ELBC2000 Electric Brake Controller
Remote Control Interface
The Elecbrakes remote control has been engineered to provide the user with a
simple user friendly in car controller. When connected to the ELBC 2000 devices,
the remote will provide the user with an interface to operate manual override,
change the brake response settings and brake programs. When connected to the
ELBC devices the remote is a secure connection and doesn’t allow for a second
device to pair. All settings are stored in the device on the trailer and will remain
until changed by the user.
TM

Contents
Remote Interface Pg. 5
01. Active Display Screen 6
02. Charging the Remote 8
03. Shut Down Mode 8
04. Sleep Mode 9
05. Activating Remote from Sleep Mode 9
06. Selecting Program 10
07. Changing Program 11
08. Display/Change Forward Brake Responses 12
09, Display/Change Minimum Brake Responses 13
10. Display/Change Reverse Brake Responses 13
11. Manual Override 14
Warranty 17

Remote guide4

1
2
3
5
6
4
1. Battery Indicator
2. Display Screen
3. Increase Button
4. Decrease Button
5. Menu Button
6. Manual Override
5elecbrakes.com
Remote Interface

6Remote Guide
01. Active Display Screen
The remote display screen allows
the user to identify the active state
of the remote.
The battery display highlights the
battery charge state.
1. When powered up the screen
displays the Elecbrakes logo.
2. Once completing its start up the
remote will automatically start to
search for a device. The screen
will display as searching.

7elecbrakes.com

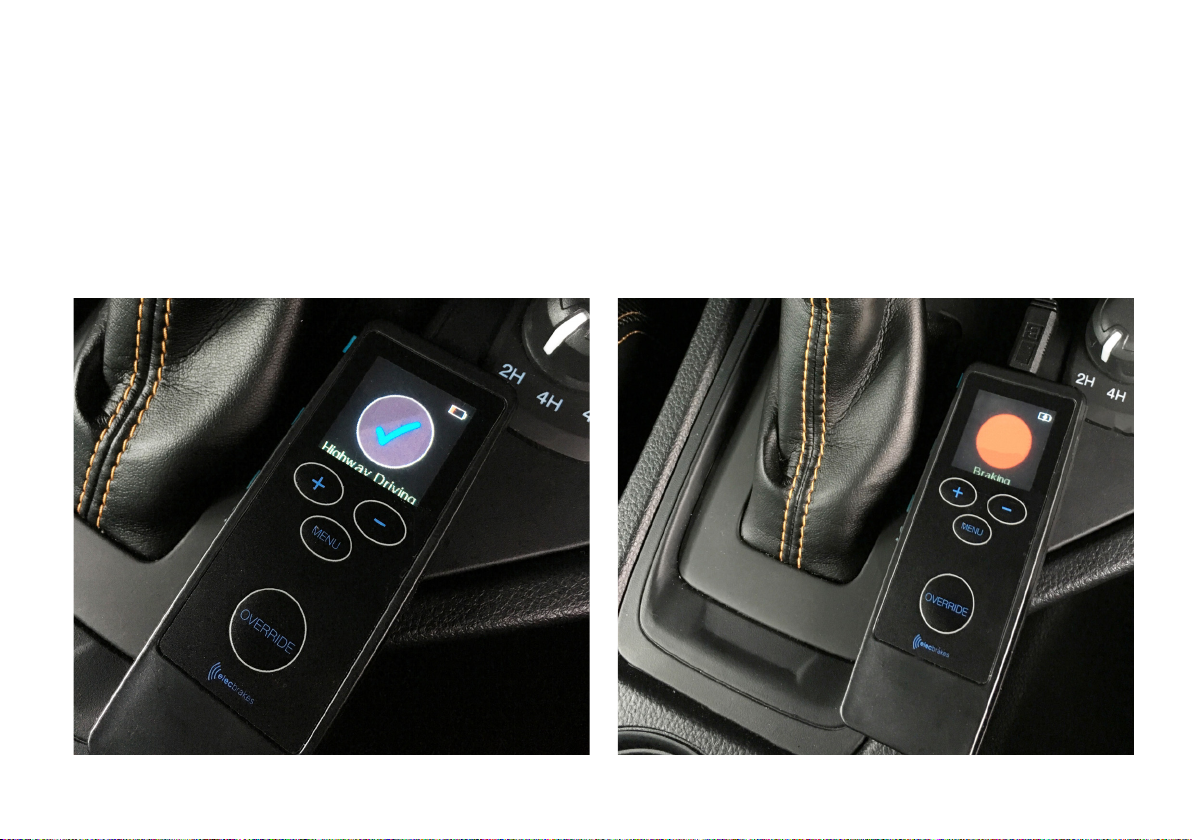

3. When connected to an ELBC 2000 the screen will
display a tick and active program will be displayed.
4. When braking in the vehicle the remote will indicate
red that the trailer is performing a brake response.

8Remote Guide
• The remote comes with a USB charging
cable and a 12v socket plug.
• Connect the cable to the charging port
on the top edge of the unit.
• The remote can be charged via the cars
12v socket or a USB charging plug.
• The battery indicator displays in the top
right corner of the screen.
• Charged displays full cell and green.
• Charging displays with lightning bolt.
• Low Battery Life displays as red.
• The remote can be shut down by depressing the
increase and decrease buttons simultaneously.
• If connected to an ELBC 2000 device and the
shutdown feature is activated the remote will
disconnect from the device.
• To turn the device back on simply push any button.
• The device will search for and connect to the
nearest ELBC 2000 device.
02. Charging the Remote 03. Shut Down Mode

9elecbrakes.com
• The ELBC 2000 remote has a sleep mode
function. Designed to preserve battery
life the sleep mode will activate when the
unit is not used for 1 minute. The screen
will turn off.
• When connected to an ELBC 2000 the remote
will not go into sleep mode.
04. Sleep Mode 05. Activating Remote from Sleep Mode
• To wake the remote, press the menu or the
increase decrease buttons to open active display.

10 Remote Guide

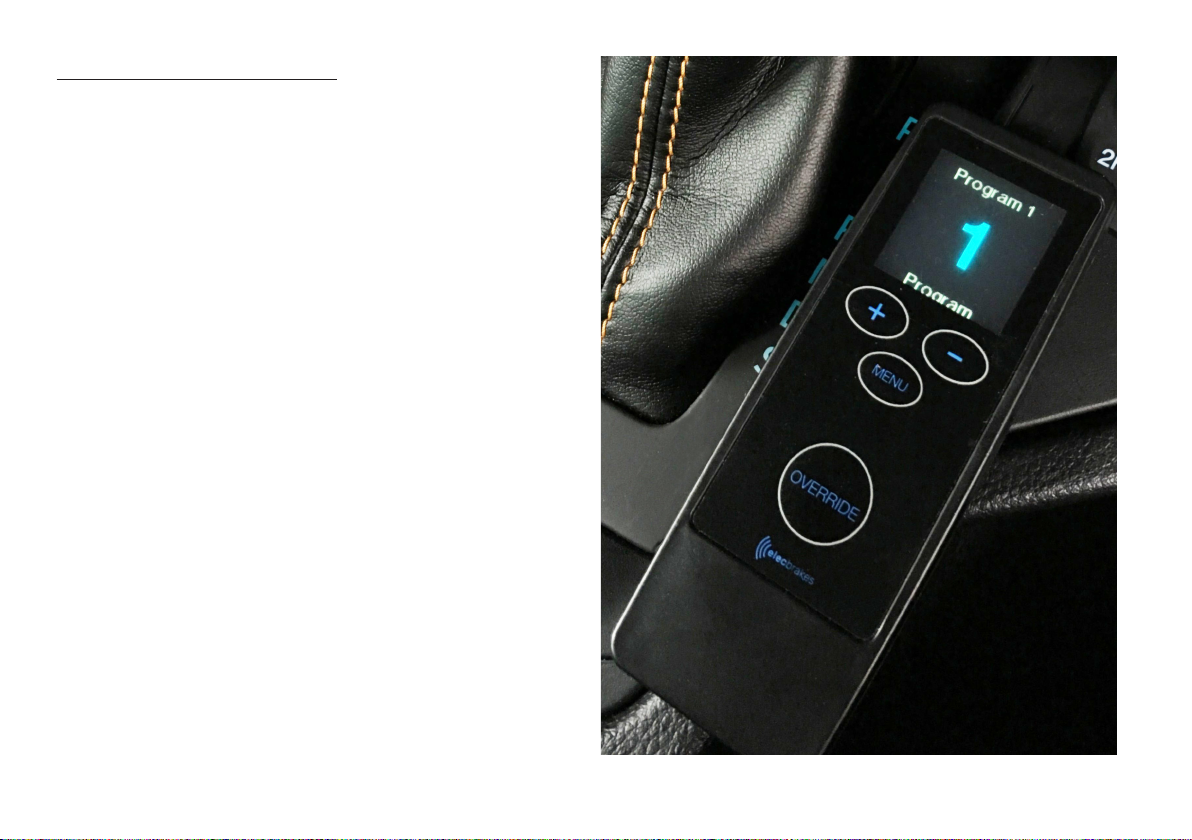

• Press Menu Button once to display active program.
• Active program number displayed (1 – 5) in the
on-screen display.
• Program name displayed at top of screen.
06. Selecting Program

11elecbrakes.com
• From the active screen press the menu button.
• Active program displayed.
• Use increase or decrease buttons to scroll
through programs.
07. Change Program

12 Remote Guide
• Push menu button twice
• Forward response displayed
• Use Increase(+) and Decrease(-) buttons to
change brake response
Note: Forward Response should be ne tuned when
doing >50km/h and moderately pressing brake pedal.
08. Display/Change Forward
Brake Responses

13elecbrakes.com
• Press Menu button 3 times
• Minimum Response displayed
• Use Increase(+) and Decrease(-) buttons to
change brake response
Note: Minimum Response should be ne tuned
when doing 25kmh and lightly pressing brake pedal
09. Display/Change Minimum Response
10. Display/Change Reverse Response
• Press Menu button 4 times
• Reverse Response displayed
• Use Increase(+) and Decrease(-) buttons to change
brake response

14 Remote Guide

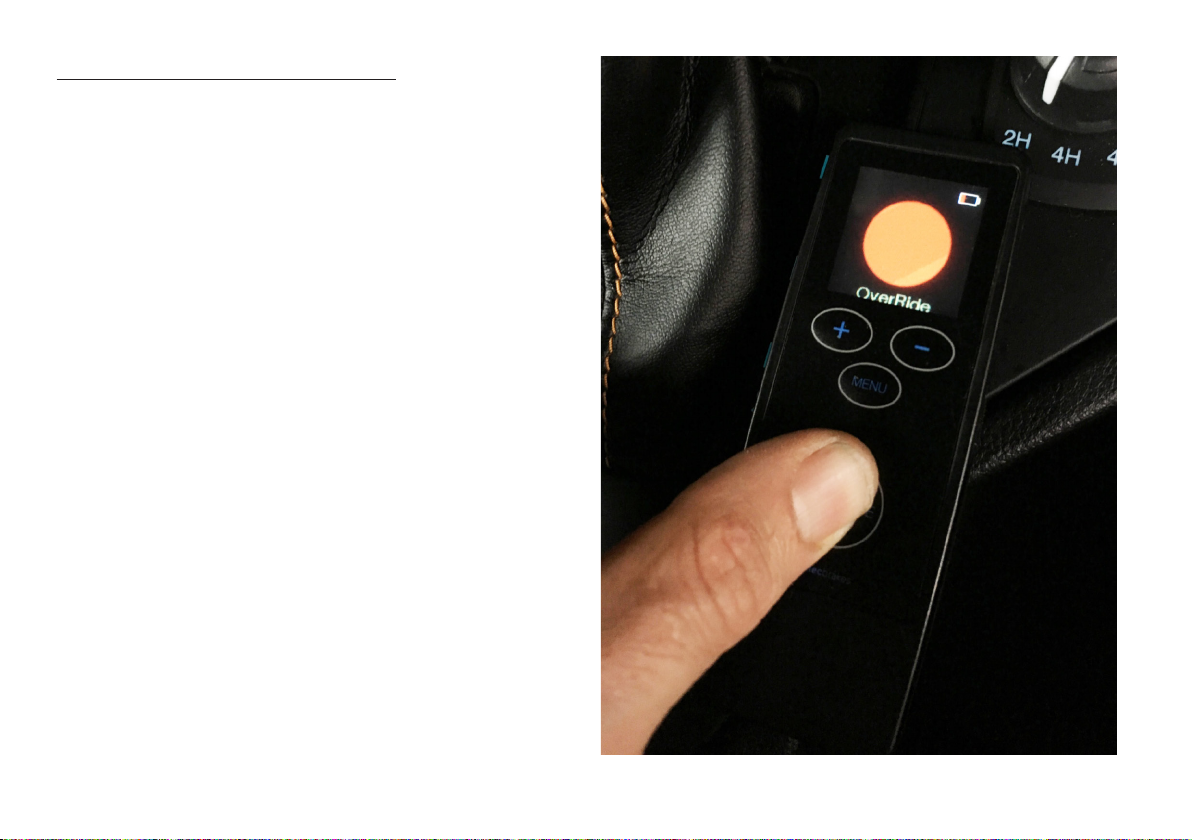

Manual Override allows the driver to apply brake
response on the trailer’s brakes only.
The Remote has a pressure sensitive button, the
harder you press the stronger the brake response.
11. Manual Override Button

15elecbrakes.com
When you take your nger off the manual override
button the brakes will release.

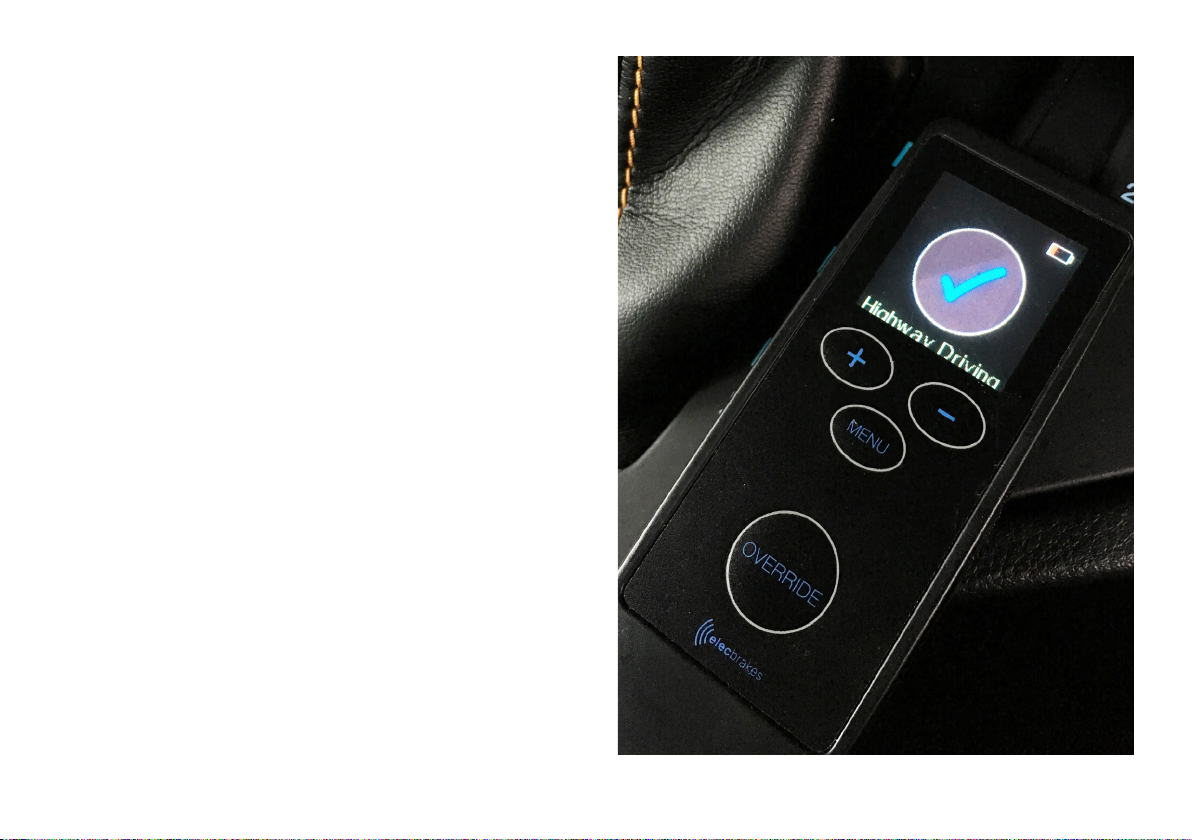

The screen will display as connected.

Remote guide16
