ELECTRICYCLE CITY User manual

Owners Manual
Operation and Maintenance Instructions
Electricycle City

Useful Information:
Vehicle Identification Number (VIN):
Registration Number:
Date of Registration:
Name and Contact of Selling Dealer:
2

Congratulations on your purchase of your new Electricycle -
electric scooter. Not only will you have great fun, you have
chosen an environmentally friendly way of travelling
around.
If you should have any further questions that you cannot
find the answer to here, please do not hesitate to contact
your dealer.
Ride safely and always wear your helmet, gloves and
protective clothing.
3

Important Notice:
Please take the time to thoroughly read this manual before using your scooter
for the first time. This owners manual instructs you in how to operate, inspect
and maintain your electric scooter, as well as giving you tips on how to keep
your scooter in the best possible condition.
Signal words such as “Warning”, “Caution” and “Note” have special meanings
WARNING
WARNING
Warning indicates a potentially hazardous situation which , if not avoided, could
result in death or serious injury
CAUTION
CAUTION
Caution indicates a potentially hazardous situation which, if not avoided, could
result in minor or moderate injury or property damage.
NOTE
NOTE
Note gives information to assist maintenance and performance.
4

Table of Contents:
Page 1 Cover
Page 2 Useful Information
Page 3 Introduction
Page 4 Important Notice
Page 5 Table of Contents
Page 6 General Instructions Before Riding
Page 7 Checks Before Every Use
Page 8 Technical Specifications
Page 9 Equipment Location
Page 10 Ignition Key Positions
Page 11 Left Handle Bar Controls
Page 12 Right Handle Bar Controls
Page 13 Accelerating and Braking
Page 14 Battery Gauge and Charging Instructions
Page 15 Battery Longevity and Performance
Page 16 - 17 Maintenance
Page 18 Troubleshooting
Page 19 Warranty
5

General Instructions Before Riding:
Your Vehicle has been thoroughly inspected by our engineers before delivery
but on the spot checks are equally important. It is always recommended to do
a quick check of the scooter before setting off.
When the key is inserted and turned into the “ON” position, the power indicator
will illuminate. Your scooter is now on and you are now ready to ride.
To avoid unplanned acceleration, always turn the key to the “OFF” position
before dismounting or leaving the scooter unattended.
WARNING
SAFETY NOTICE: Be sure that you are seated on the scooter and
the stands are clear of the floor before touching the throttle
handle. If you twist the throttle before you are ready to go or while
you are mounting/dismounting the scooter, it may run away from
you and could lead to an accident.
This scooter may be ridden in wet conditions, but be sure to avoid soaking it
during cleaning to avoid damaging any of the electric components.
This scooter should not be left in strong direct sunlight for long periods as
some of the electric components may overheat
Motorcyclists must abide by the same traffic rules and regulations as other
motorists. Before taking your scooter on a public road, be familiar with the
traffic rules and regulations and any special requirements for motorcycles.
Riding in “LOW SPEED” mode* and at an economical speed will greatly increase
range and help with battery longevity.
6
*Only available on unrestricted model (125cc Moped)

Checks Before Every Use:
Item
Action
Mirrors
Adjust the mirrors to ensure you can see the traffic
behind you clearly. Clean the mirrors
Brakes
Squeeze the brakes and push the scooter to see
whether it rolls easily. Listen for any noticeable
grinding while the brake is applied. If so, contact
your dealer.
Brake Fluid
Check the fluid gauge to ensure that the brake fluid
is above the indicated level. If not, top it off with a
good brand of brake fluid.
Throttle
With the power off, turn the throttle counter
clockwise then release. The throttle should spring
back to the stop position. If not, contact your dealer.
Tires
Check the tire pressure is 36 PSI
Battery
Check the power level by looking at the gauge and
make sure there is enough charge for your journey.
Lights
Check to make sure all your lights and signals are
working
Nuts and Bolts
Check to make sure that all the nuts and bolts are
tightened and secure
WARNING
Regularly perform a routine maintenance check. Doing so will help
protect you and your scooter.
If any parts are damaged, whether normal or abnormal, please
check with your dealer before riding
7

Technical Specifications:
City 4.o
City 4.oLi
City 4.oLi+
City 5.oLi
Motor
4,000W
4,000W
4,000W
5,000W
Battery
60V 50AH
Silicone
60V 40AH
Lithium
60V 60AH
Lithium
72V 40AH
Lithium
Top Speed
50 mile/hr
55 mile/hr
55 mile/hr
60 mile/hr
Range
30 miles*
50 miles †
80 miles ‡
50 miles †
Brakes
(Front/Rear)
Disk/Disk
Disk/Disk
Disk/Disk
Disk/Disk
Charge
Time
5 - 8 Hours
4 - 6 Hours
5 - 8 Hours
4 - 6 Hours
Battery Life
(Deep
Cycles)
400 Cycles
3000 Cycles
3000 Cycles
3000 Cycles
BMS
NO
YES
YES
YES
Charger
5 amp
11 amp
12 amp
11 amp
Battery Qty
5 cells
20 cells
20 cells
24 cells
Weight
168 kg
131 kg
149 kg
138 kg
Tires
Front & Rear: 4.00 - 13 inch 6PR tubeless tires
Front & Rear: 4.00 - 13 inch 6PR tubeless tires
Front & Rear: 4.00 - 13 inch 6PR tubeless tires
Front & Rear: 4.00 - 13 inch 6PR tubeless tires
Size
L. 203cm x W. 67cm x H. 121cm
L. 203cm x W. 67cm x H. 121cm
L. 203cm x W. 67cm x H. 121cm
L. 203cm x W. 67cm x H. 121cm
*† ‡
8
*This range has been recorded driving at an average speed of 30 miles/hr. If
ridden at 50 miles/hr it will achieve 20-25 miles.
†This range has been recorded driving at an average speed of 30 miles/hr. If
ridden at 55 miles/hr it will achieve 30-35 miles.
‡This range has been recorded driving at an average speed of 30 miles/hr. If
ridden at 55 miles/hr it will achieve 50-55 miles.

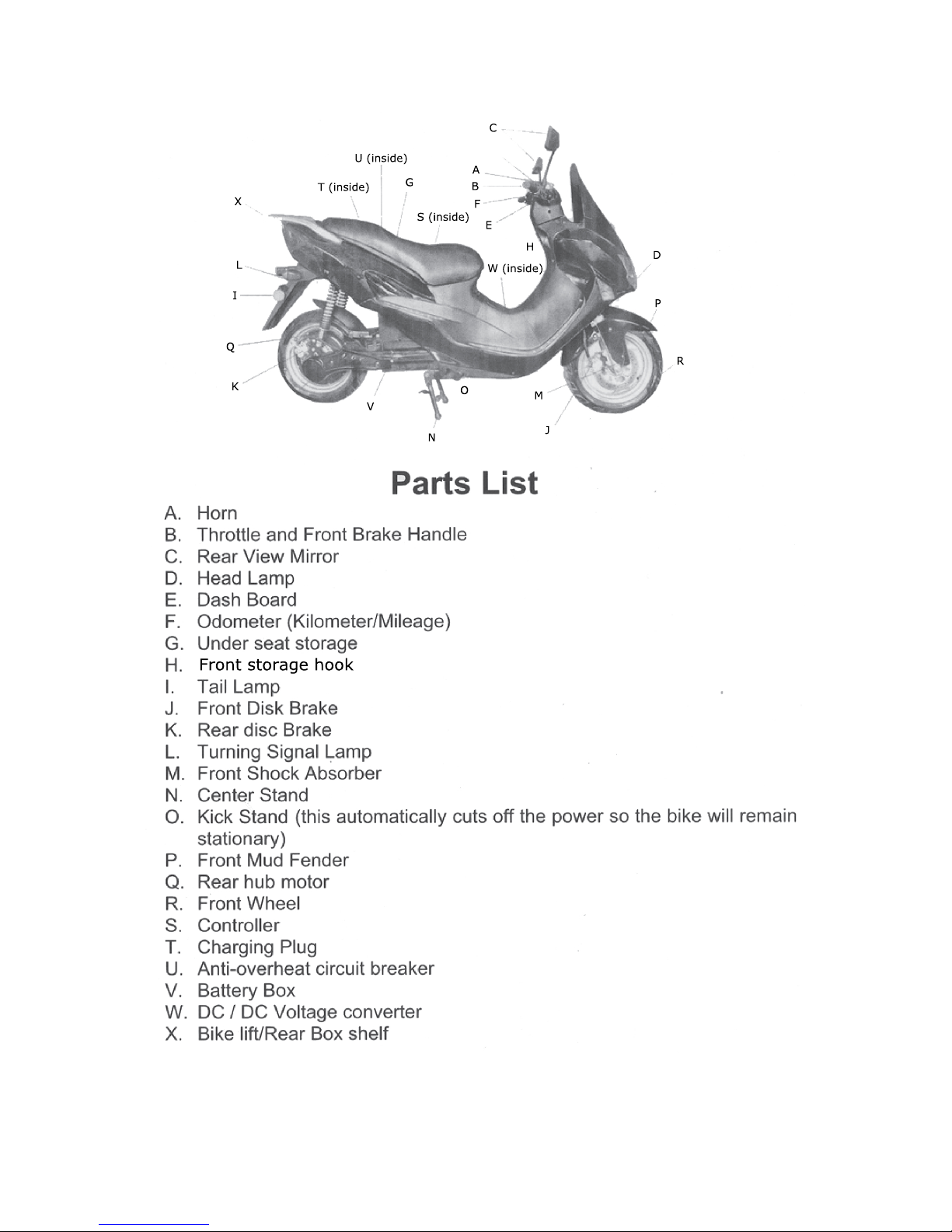

Equipment Location:
6LQVLGH
.
4
,
/
;
9
2
-
0
5
3
1
:LQVLGH
)URQWVWRUDJHKRRN
7LQVLGH
8LQVLGH
+
*
)
(
'
&
%
$
9

Ignition Key Positions:
#
Key Position
Description
1
On
With the Key in the “ON” Position the power is
on and the scooter is ready to ride. The key
cannot be taken out when the power is on.
2
Off
With the Key in the “OFF” Position the power is
off and the key can be taken out.
3
Seat Open
With the Key in the “ON” Position turn the key
clockwise to release the locking mechanism of
the seat.
4
Seat Open
With the Key in the “Off” Position turn the key
counter clockwise to release the locking
mechanism of the seat.
5
Handle Bar Lock
To prevent theft, turn the handle bars to the far
left and with the key in the “OFF” Position push
in the key and turn counter clockwise to lock.
10

Left Handle Bar Controls:
#
Key Position
Description
1
High Beams
High Beam - Push switch up
Low Beam - Push switch down
2
Turning Signals
Left Turn Signal - Slide switch to the left
Right Turn Signal - Slide switch to the right
Turn Off Signal - Press central release button
3
Horn
Sounds Horn - Push red button
4
Rear Brake Handle
When the brake handle is compressed the rear
wheel will slow to a stop and power to the motor
is cut off. Release the handle to engage motor
CAUTION
Electric scooters are silent so use your horn to let others know you
are there.
The Turning Signals do not turn off automatically so remember to
push the central release button to turn them off after your turn.
11

Right Handle Bar Controls:
#
Key Position
Description
1
Front Brake Handle
When the brake handle is compressed the front
wheel will slow to a stop and power to the motor
is cut off. Release the handle to engage motor
2
Throttle
Turn the throttle counter clockwise to increase
speed
3
Economy Switch *
High/Low setting for the motor.
4
Lights
Parking Lights - With the switch in the centre
position the dashboard light, front parking light
and tail light will come on.
Front Headlight - Slide the switch to the left
Light Off - Slide the switch to the right
5
NO USE
Originally the starter button for the petrol version
*
12
*Only available on unrestricted model (125cc Moped)

Accelerating and Braking:
Throttle Tips
1. Turn the key to the “ON” Position and turn the throttle gradually to
accelerate.
2. To prevent losing control of the scooter, turn the throttle slowly until the
speed increases.
3. Do not turn the throttle until you are in the position to drive.
4. To stop, release the throttle and apply the front and rear brakes
simultaneously.
5. To move, release the brakes and turn the throttle gradually.
6. The brushless motor makes a small electromagnetic noise when turning
the throttle to start. This is normal.
7. Do not continually operate at full throttle. Frequently releasing the
throttle and running with inertia will help to increase your range. This
motor has good torque and the inertia momentum is enough to run some
distances without electric power.
CAUTION
Never use the economy switch while accelerating. Using this switch
while accelerating will damage the motor controller. Release the
throttle first.
Braking Tips
1. For safety, this scooter has a circuit brake system. When the front or rear
brake is applied, the motor controller will be disengaged. Release all the
brakes and ensure the taillight is OFF before accelerating again.
2. Less frequent sudden braking will increase the range.
WARNING
For your safety and security turn the key to the “OFF” Position
when you are not riding.
13

Battery Gauge and Charging Instructions:
Colour
Description
Green
The Battery is Fully Charged
Green (2nd)
The Battery is 75% fully Charged
Yellow
The Battery is 50% full
Yellow (2nd)
The Battery has only 25% of its charge left.
Red
When the Battery is empty the motor will be cut off
NOTE
You will only get an accurate reading of the Batteries state of
charge (SOC) while you are riding. When you come to a stop, the
voltage will return and the lights may show the battery has more
charge left then there actually is.
Charging
Turn off the power to the scooter before charging.
Plug one end of the charger into the charging plug on the scooter (located
under the seat) and the other end into a regular (220V) household outlet.
CAUTION
Only the manufacturer’s supplied charger can be used.
14

Battery Longevity and Performance:
For optimum battery lifespan the scooter should be charged after every use.
A battery’s lifespan is measured in cycles. One cycle is a drain on the battery
and a recharge. The less you let the batteries drain the more cycles you will get
out of your batteries. The batteries we use do not retain memory, so you do
not need to discharge the batteries before you recharge them. For this reason
it is always recommended to recharge your scooter as often as possible.
If the scooter is not used for a long period of time it is recommended to charge
the batteries once a month.
NOTE
New battery packs will take a couple of cycles before the batteries
are balanced and the pack is at full capacity. During this period it is
highly recommended to ride your scooter at an economical speed,
avoid heavy acceleration and do not deep drain the batteries.
The heaviest drain on the batteries occurs during acceleration. For
optimum battery lifespan try to avoid heavy acceleration.
Batteries are affected by the temperature, so cold weather will affect
performance.
15

Maintenance:
This electric scooter represents a new generation of environmentally friendly
two-wheeled transportation. They are powered by a brushless electric motor
and sealed batteries so there are no messy oil changes or tune-ups required.
None the less, good maintenance and regular checks will play a major role in
keeping your vehicle in good working condition and prolong the life of your
batteries.
To prevent rust always keep your scooter dry and clean
Regularly check the front and rear tires, suspension and body frame and
all fasteners.
When riding in rain do not go through deep puddles or muddy areas;
excessive water will cause the motor and other electrical components to
suffer undue harm.
To prevent rust from forming on the scooter, avoid parking your scooter
in high humidity and corrosive areas. In winter, wash off the road salt.
To avoid damage to the electrical parts of this scooter, especially the
controller, do not park the scooter in direct sunlight or in heavy rain.
Due to the complexity of the electronic manufacture of this scooter,
customers should never attempt to take out any of the parts or attempt
major maintenance without consulting the dealer (this will invalidate the
warranty)
Never overload and ride the scooter for an extended period of time.
Prolonged use with excessive weight could cause serious damage to the
electronic and mechanical parts.
Always check your scooter and perform necessary routine maintenance -
tires, brakes, nuts and bolts.
16

Maintenance Schedule:
Mileage
Battery
Charger
Tire Pressure
Tire Wear
Brake
System/Fluid
Brake Pads
Nuts & Bolts
First
200
1,000
2,000
3,000
4,000
5,000
6,000
Check
Check
Check
Check
Check
Check
Check
Check
Check
Check
Check
Check
Check
Check
Check/
Adjust
Check/
Adjust
Check/
Adjust
Check/
Adjust
Check
Check
Check
Tighten
Tighten
Tighten
Tighten
Mileage
Battery
Charger
Tire Pressure
Tire Wear
Brake
System/
Fluid
Brake Pads
Nuts & Bolts
7,000
8,000
9,000
10,000
11,000
12,000
Check
Check
Check
Check
Check
Check
Check
Check
Check
Check
Check
Check
Check
Check/
Adjust
Check/
Adjust
Check/
Adjust
Check
Check
Check
Tighten
Tighten
Tighten
17

Troubleshooting:
Problem
Condition
Cause
Solution
When I turn on the
scooter nothing
happens
Power indicator,
lights and motor do
not work
Batteries are flat
Charge scooter
When I turn on the
scooter nothing
happens
Power indicator,
lights and motor do
not work
Loose connection
Check connections
When I turn on the
scooter nothing
happens
Power indicator,
lights and motor do
not work
Problem with
Ignition switch
Contact dealer
When I turn on the
scooter the motor
doesn’t work
Power indicator is
on, lights are
working, back
brake light is on
Side stand is down
Put up side stand
When I turn on the
scooter the motor
doesn’t work
Power indicator is
on, lights are
working, back
brake light is on
Brake handle not
properly released
Contact dealer
When I turn on the
scooter the motor
doesn’t work
Power indicator is
on, lights are
working
Circuit breaker
under seat is off
Make sure switch is
in the ‘ON’ position
When I turn on the
scooter the motor
doesn’t work
Power indicator is
on, lights are
working
Problem with
Throttle
Contact dealer
When I turn on the
scooter the motor
doesn’t work
Power indicator is
on, lights are
working
Problem with
Controller
Contact dealer
When I turn on the
scooter the motor
doesn’t work
Power indicator is
on, lights are
working
Problem with Motor
Contact dealer
When I turn on the
scooter the lights
don’t work
None of the lights
or horn work, but
motor works
Problem with DC
convertor
Change fuse in DC
Convertor
When I turn on the
scooter the lights
don’t work
Horn works
Blown Bulb
Change bulb
When I turn on the
scooter the lights
don’t work
Horn works
Loose connection
Check connections
The batteries will
not charge
Charger light is off
Charger has blown
a fuse
Change fuse in
Charger
The batteries will
not charge
Charger light is off
Loose connection
Check connections
Turn Signals won’t
flash
Lights come on but
do not flash
Flasher unit is
broken
Replace flasher
Unit
18

Warranty:
This scooter comes with a two year unlimited mileage warranty for the bike,
but excludes expendables * and battery.
The battery warranty is one year for the Silicone batteries and two years for
the lithium batteries.
Our responsibility is to rectify any failure that is attributable to poor
manufacturer. This warranty covers factory defects and defaults only. Defects
caused by misuse or negligence are not covered by the terms of the warranty.
19
*Expendables include (but are not limited to): Body panels, Lights, Fuses, Bulbs,
Tires and Brakes.
