Electro-Voice R300-L User manual

R300 UHF Wireless MicropHone
USER GUIDE
EZsync ClearScan
Electro-Voice
R 300
SET
SYNC

2

3
TAB LE oF contents
1. Quick System Setup
 •Receiver.................................................................................................................4
 •Transmitter.............................................................................................................5
 •SystemsOperation..............................................................................................6
2.DetailedComponentDescriptions
 •Receiver.......................................................................................................... 7-14
 •HandheldTransmitter .................................................................................15-16
 •BodypackTransmitter................................................................................. 17-19
3.GuidelinesForBestPerformance.............................................................................20-21
4.TroubleshootingGuide................................................................................................22-23
5.Specications ...............................................................................................................24-25
6.Certications....................................................................................................................... 26
7. ServiceandWarranty ........................................................................................................ 27
8.ComponentsandAccessories........................................................................................ 28
9.AppendixACompatibleChannelGroups...............................................................29-31

4
01QUICK SETUP: receiver
1.Donotconnectthereceivertoanyotherequipmentyet!
2.ConnectthetwoAntennastothereceiver.
3.Installthebladesintothepowersupply,plugitintothebackofthereceiver,
andintoanoutlet.
4.PressthePOWERswitch.Displaywilllightup.
5.Pressandholdthe buttonuntilCLEARSCANscrollsacrossthescreen.
6.WhenCLEARSCANstops,thereceiverwillbesettotheclearestchannel.
7.Turnthereceiveroffandconnectthemixerorotheraudiosystemtothereceiver
XLRConnectororthe¼inchLineLevelJack.
8.Settheaudiomixerorothersysteminputleveltominimum.
9.PressthePowerswitchbuttoninagain.
Receiver “Quick Set-up” is complete.

5

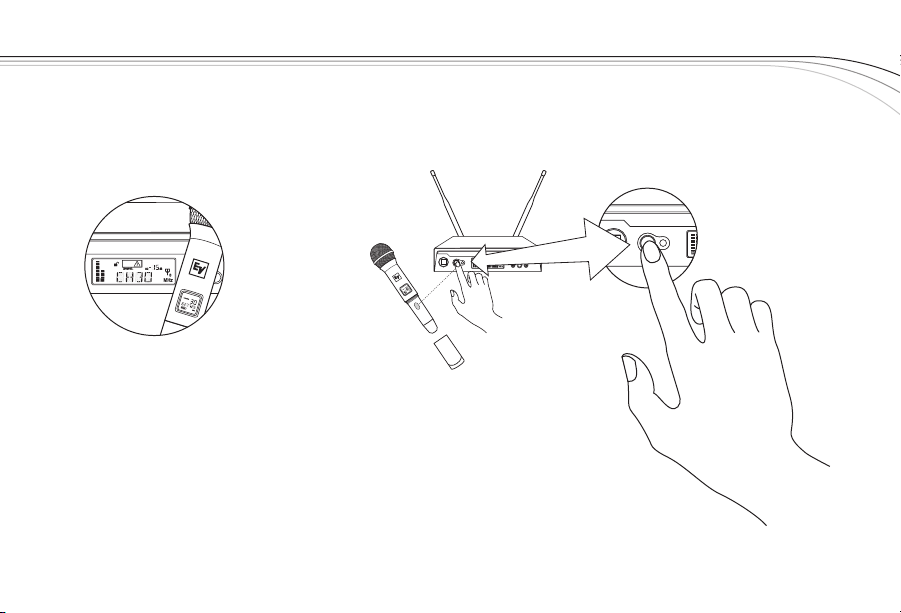

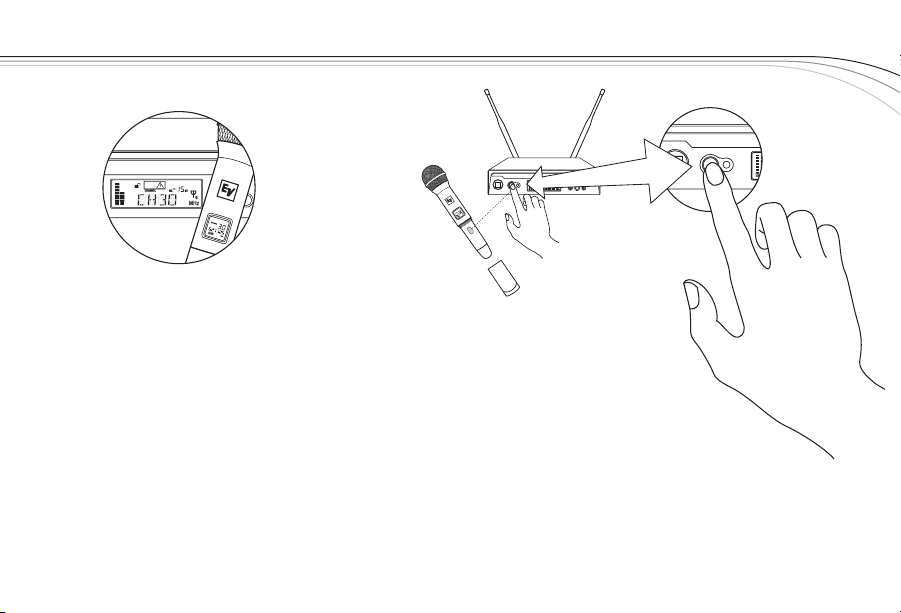

QUICK SETUP: transMitter
1.WiththePowerswitchonthetransmitterOFF,installtwofreshAAbatteriesintothetransmitter.
2.PressthetransmitterPowerSwitchuntilthedisplaycomeson.
3.HoldthetransmitterwiththeEZsyncPortfacingthereceiver,aboutafoot(30cm)away.
4.PresstheSYNCButtononthereceiver,SYNCwillshowinthedisplay.
5.Oncethechannelissetinthetransmitter,thedisplaywillswitchtothemain
displayandshowRFandAudioLevels.
Transmitter “Quick Set-up” is complete.
R300
EZsync Clear
SYNC
EZsync
R300 ClearScan
SET

6
QUICK SETUP: systeMs operation
1.Setthemixer/ampgain.
2.Talkorsingintothemicrophoneorplaytheguitaratanormalvolume.You
shouldhearaudiocomingoutofthesystem.
3.Youmayhavetoadjustthegain(viathecontrolnexttotheconnectoronthe
receiverbackpanel)toprovidethebestinputvolumeforyourmixer/amp.
“Quick Set-up” is now complete. Please enjoy your R300 system.
01

7
SYNC
R300
EZsync Clear
SET
EZsync ClearScan
Electro-Voice
R 300
ANTENNA B ANTENNA A12V .500mA
MIN MAX
VOLUME
LEVEL
-10dB 0dB
BALANCED OUT UNBALANCED OUT
DETAILED coMponent descriptions
2.1 |R300 Receiver
RECEIVER CONTROLS, CONNECTORS
1.PowerON/OFF
2.SYNCDataTransferButton
3.InfraredEZsyncWindow
4.GraphicalDisplay
 a.ChannelorFrequencyDisplay
 b.DiversityIndicator
 c.RFStrengthMeter
 d.AudioLevelMeter
 e.LockIndicator
 f.SquelchLevelIndicator
5.ScrollDownandUp( and )ControlButtons
6.SETControlButton
7.ClearScanControl(pressandhold button)
8.TNCAntennaInputConnectors(2)
9.BalancedOutputVolumeControl
10.XLRBalancedOutputConnector
11.¼InchUnbalancedLineLevelAudioOutputConnector
12.UnbalancedOutputLevelSwitch(-10dBor0dB)
13.DCPowerConnector(12VDC,500mA)
14.PowerCordRetainer
02
8 89 10 11 12 13 14

8
DETAILED coMponent descriptions
2.1 |Receiver Setup & Operation
1.Placethereceiverandantennaswherethereisaclearlineofsighttotheareawherethetransmitter
willbeused.Rotatetheantennastoseparatethemby90degrees.
2. Install the appropriate power connection blades into the power supply and connect the
power supplycordtothereceiver.PlugthepowersupplyintoanACoutlet.Pushthepower
buttontoturnthereceiveronandconrmthatitisonbycheckingthemaindisplayscreen.
3. Manual Channel Change
  a.The and buttonsallowyoutoscrollthroughtheChannels.WhentheChannel
youdesireisdisplayed,stopscrolling.
  b.After2secondsthedisplayedchannelnumberwillstarttoash.
  c.Thenumberwillstopashingandthenewchannelisinstalled.
  d.TurnonthetransmitterandholdtheEZsyncportfacingthereceiverEZSyncport,
aboutafoot(50cm)away.
02
ANTENNA B ANTENNA A12V .500mA
MIN MAX
VOLUME
LEVEL
-10dB 0dB
BALANCED OUT UNBALANCED OUT

9
e.PresstheSYNCbuttononthereceivertotransferthechannelinformation.
f.ThereceiverwilldisplaySYNCuntilthedataistransferred,thenreturntothemainscreen.
g.Thetransmitterdisplayscreenwillnowshowthenewchannelandfrequency.
h.Ifthechanneldatawasnottransferredtothetransmitterafter5seconds,thereceiver
willdisplayERROR.BecertainthatthetransmitterisOnandtheEZsyncportisfacingthereceiver
andtryagain.
i.Ifthedatastilldoesnottransfer,trynewbatteries,ormovetheunittoashadedareaawayfrom
directsunlightbeforetryingagain.
R300
EZsync Clear
SYNC
EZsync
R300 ClearScan
SET
R300
EZsync Clear
SYNC
EZsync
R300 ClearScan
SET

10
DETAILED coMponent descriptions
4. ClearScan: Thisfeatureautomatestheprocessofndingaclearchannel.
  a.Toscanfortheclearestchannelinagroup,pressandhold untilCLEARSCAN
appearsinthedisplay,thenreleasethebutton.
  b.Whenthescaniscomplete,thedisplaywillshowtheclearestavailablechannel.
  c.UsetheSYNCbuttontotransferthenewchannelasinstep3.
5.DuringsetupmakesurethemixeroramplierinputusedfortheR300ismutedor
turneddowntoaminimumlevel.
6.Pluganaudiocable(notsupplied)intothe3pinXLRor¼inchoutputoftheR300.
Note:TheXLRconnectoristhepreferredconnectionsincetheoutputisbalancedandwillbe
moreimmunetonoiseforlongerrunsofcablealthougheithercanbeusedwithgoodresults.
Setthebalancedoutputlevelonthebackpanelto12o’clock(midwayintherange)tostartand
adjustlaterifnecessary.Ifthe¼inchunbalancedoutputisused,startwithadjustmentswitchin
the-10dBsetting.
02

11
7.Withthetransmitteron,speakintothemicrophoneorplaytheguitar.Turnupthelevelonthemixer
oramplieruntilyouareabletohearthedesiredsignal.Ifnoaudioispresent,repeatsetupand
refertothetroubleshootingsection.
Note:Itmaybenecessarytoadjustthereceiveroutputuntilthevolumelevelfromthewireless
systemapproximatesthelevelofanequivalentwiredmicrophone/instrument.
8. DISPLAYThemaindisplaycanbeadjustedtodisplaytheChannelnumberortheFrequency
Note:Atanytimetheitemnotselectedforthemaindisplaycanbeshownfor5secondsby
pushingtheSETbuttononce
  a.PressandholdtheSETbuttonuntilDISPLYshowsinthedisplay.
 b.PressSETandFREQUENCYorCHANNELwillashinthedisplay.
 c.Press forFREQUENCYor forCHANNELandpressSET.
 d.Displaywillreturntothemainscreenandtheselecteditemwillbedisplayed.
 e.Atanytimetheitemnotselectedforthemaindisplaycanbeshownfor5secondsby
pushingtheSETbuttononce.

12
DETAILED coMponent descriptions
9. Change Lock-Out Thisfeaturecanbeusefulwhenthereceiverisinalocationwhere
unauthorizedpersonnelhaveaccesstothereceiver.WiththeLOCKON,thechannelcannot
bechangedandthewordLOCKisdisplayedwhenthe or buttonispushed.
  a.PressandholdtheSETbuttonuntilDISPLYshowsinthedisplay.
  b.Press todisplayLOCK
  c.PressSETandONorOFFwillbedisplayedtoshowthestatusofthelock-out.
  d.Press toturntheLOCKONor toturntheLOCKOFFandpressSET.
  e.Displaywillreturntothemainscreenandpadlocksymbolintheupperleftofthe
displaywillshowthelockstatus.
02

13
10. Squelch Adjustment–Thesquelchsettingcanbeusedtomaximizerangeorimmunitytonoise.
  a.Turnthetransmitteroff.
  b.PressandholdtheSETbuttonuntilDISPLYshowsinthedisplay.
  c.Press twotimestodisplaySQELCH.
  d.PressSETandthesquelchsettinginthemiddlerightofthescreen(SQ10dB)willash.
  e.Press todecreasethesquelchsettingor toincreaseit.
  f.PressSETtoenterthenewsettingandreturntothemainscreen.
  g.Turnonthetransmitterandwalktesttheunit.Maximumsquelch(50dB)maximizesnoise
immunitybutlimitstherange.Minimumsquelch(5dB)willmaximizetherangebutallow
morenoisetobreakthroughthesquelch.Never leave the squelch set to 0dB except for
testing, white noise will be constantly present on the audio outputs.
  h.Repeattonetunesquelchtothedesiredsetting.

14
DETAILED coMponent descriptions
2.1.2 |Receiver Main Operating Screen
Display:
1.RFSignalMeter
2.AudioMeter
3.LockIndicator
4.NoSignalIndicator
5.ChannelNumber(01to32)orFrequency
6.SquelchSetting
7. AntennaDiversityStatusAorBantenna
Controls:
1.Press or tochangechannels
2.Pressandhold for3secondsstartsClearScan,CLEARSCANscrollsacrossthedisplay.
3.PressSEToncetodisplayFREQUENCYorCHANNEL,whicheverisnotshowing
4.PressandholdSETfor3secondstoaccesssettingsmenu.
02

15

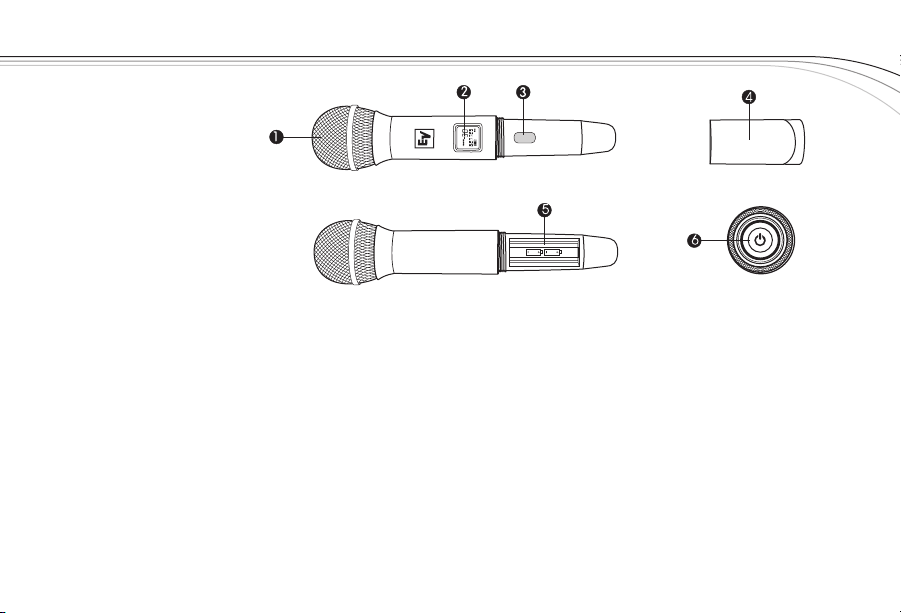

2.2 |Handheld Transmitter
HT-300CONTROLS,CONNECTORSANDINDICATORS
1.MicrophoneElement
2.BacklitLCDDisplay
  a.Channel
  b.Frequency
  c.BatteryLevel
  d.MuteIndicator
3.EZSyncInfraredPort
4.BatteryCover–Screwtype.
5.BatteryCompartment–TwoAABatteries
6.On/Off/Mutebutton

16
DETAILED coMponent descriptions
2.2 |Handheld Transmitter Setup & Operation
1. Insert Batteries.
  a.Removethebatterycompartmentcoverbyunscrewingitcompletely.
  b.InserttwoAAbatteriesasshown,slidingoneupintothehousingtomakeroomfor
theother.
2.Turntheunitonbypressingandholdingtheon/offbuttonfor3seconds,andthedisplaywilllightup.
3.Ifanewchannelisdesired,useEZsyncasinSection2.1andclosebatterycompartment.
4. Verify reception.
  a.WiththetransmitterandreceiveronamatchingChannel,themainreceiverdisplay
shouldbeindicatingaRFsignalonthebargraph.
  b.SpeakintothemicrophoneandtheAudioMeterbargraphshouldindicateaudio
signalpresence.
c. Ifthelevelmetersdonotshowreception,makesurethechannelsarematchingand
refertothetroubleshootingsection.
02

17
5. Mute Function–pressandholdon/offbuttonfor2secondsuntilMUTEappearsintheLCD
DisplaybetweentheChannelandFrequency.Thesoundisthenmuted.Repeattoturnmuteoff.
2.3 |Bodypack Transmitter
BP-300CONTROLS,CONNECTORSANDINDICATORS
1.Antenna–Flexible¼waveantenna 3.TA4MicrophoneConnector
2.PowerOn/Off/MuteButton 4.On/MuteLED–Greenwhentransmitter
ison,Redwhenmuted
continued on next page
5
1
6
1
2
3 4 7
8
9

18
DETAILED coMponent descriptions
2.3 |Bodypack Transmitter continued
5.LCDDisplay
  a.Channel
  b.Frequency
  c.BatteryLevel
  d.MuteIndicator
6.EZsyncinfraredwindow
7. BatteryCompartmentLatch–pushdownlatchandslidecoverasshown.
8.TwoAABatteryCompartment–followpolarityasmarked
9.LAV/INSGainSwitch
02

19
2.3.1 |Bodypack Transmitter Setup & Operation

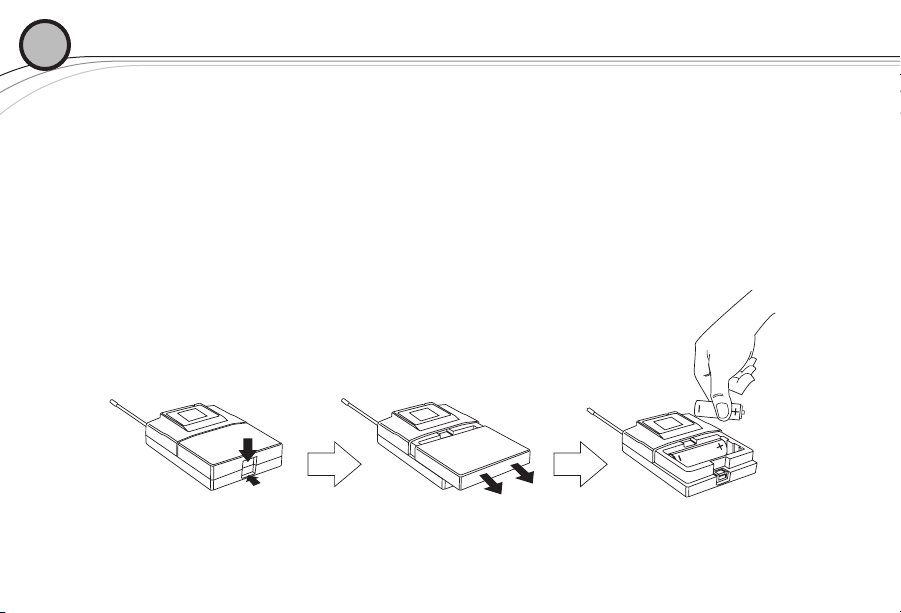

1. Insert Batteries
  a.Openthebatterycompartmentbypressinginonthelatchandslidingthedoordown.
  b.InserttwoAAbatterieswith+and–asindicated.
  c.Closethebatterydoorbypushingup.
2.Turntheunitonbypressingandholdingtheon/offbuttonfor3seconds,andtheLCDdisplaywilllightup.
Ifchannelhasnotbeenset,setchannelaccordingto2.1.
3. Microphone/Guitar Operation.
  a.ForLapelMicrophonesthegainswitchshouldbeintheLAVposition.
  b.ForHeadwornMicrophonesandGuitaroperationthegainswitchshouldbeintheINSposition.
  c.Iflapelmicrophonesaretoosensitiveandtheaudiometeronthereceiverisreachingthepeak,
putthegainswitchinINStolowerthegain.
4. Mute Function–pressandholdon/offbuttonfor2secondsuntilMUTEappearsintheLCDDisplay,
betweentheChannelandFrequency.TheLEDabovethedisplaywillturnredandthesoundismuted.
Repeattoturnmuteoff.

20
GUIDELINESANDRECOMMENDATIONSForBestPerformance
Compatibility
Thetransmitterandreceivermustbeofthesamefrequencybandandsettothesamechannelinorder
toworktogether.TheR300isavailableinthreefrequencybands,A,BandE(Europeonly).Theband
informationisavailableinthelabelonthebottomofthereceiver,thelabelinthebatterycompartmentof
thehandheldtransmitter,andonthebackpanellabelinthebodypack.
Using Multiple Wireless Systems
IfthreeormoreR300systemsand/orotherUHF/VHFwirelesssystemsarebeingusedinthesame
location,properfrequencycoordinationisnecessarytoavoidinterference.SomechannelsintheR300
aredesignedtoworktogether,seethechannelmapsinthebackoftheguideformoreinformation.
ContactyourdealerorElectro-Voiceforassistanceifyouareplanningmoresystemsorusingthe
R300withotherwirelessequipment.
Multiple Systems and R300
TheClearScanfunctioncanbeusedtosetupanytwoR300systems.Justscanwiththerstunit,
setthetransmittertothatclearchannelandleaveiton.Thenscanthesecondunitforanotherclear
channel.If3ormoresystemsareusedinthesameroom,putallofthechannelsinthesamegroupas
indicatedbythechannelmaponpage29-31.
Potential Sources of Interference
Therearemanypotentialsourcesofinterferenceforyourwirelesssystem.Anyelectronicproduct
thatcontainsdigitalcircuitryincludingdigitalsignalprocessors(reverb/multi-effectsunits),electronic
keyboards,digitallightingcontrollers,CDandDVDplayers,andcomputers,allemitRFenergythatcan
03
