Electro-Voice ELX200-BRKT Quick start guide

ELX200 Full‑Range Loudspeaker Accessories
ELX200‑BRKT | ELX200‑BRKT‑W | EBK1‑M10‑3PACK
en Installation note

ELX200 Full-Range Loudspeaker Accessories Table of contents | en 3
Electro-Voice Installation note 2023-08 | 04 | F.01U.332.445
Table of contents
1Safety 4
1.1 Safety point 6
2Installation 7
2.1 Wall mount bracket 7
2.2 Eyebolt kit 11
3Technical data 15
4Product labels 17

4en | Safety ELX200 Full-Range Loudspeaker Accessories
2023-08 | 04 | F.01U.332.445 Installation note Electro-Voice
1 Safety
The ELX200 loudspeakers and rigging accessories in this manual have a minimum structural
safety factor of 8:1 when used as intended. The safety factor is defined as the ratio of the
ultimate-break strength divided by the working-load limit. The ultimate-break strength
represents the force at which a part will structurally fail. The working-load limit is the
maximum load that the user shall apply. The safety factor provides a margin of safety above
the working-load limit to accommodate normal dynamic loading and normal wear.
When ELX200 loudspeaker systems are suspended using the ELX200 rigging accessories as
illustrated in this manual, the resulting loads will be within the working-load limits of both the
loudspeaker systems and the rigging accessories, and a safety factor of at least 8:1 will be
maintained. The use of rigging configurations other than recommended by Electro-Voice in this
manual for either the ELX200 loudspeaker systems or ELX200 rigging accessories are at the
risk of the user.
!
Warning!
Suspending any object is potentially dangerous and should only be attempted by individuals
who have a thorough knowledge of the techniques and regulations of suspending objects
overhead. Electro-Voice strongly recommends that loudspeakers be suspended taking into
account all current national, federal, state, and local laws and regulations. It is the
responsibility of the installer to ensure all loudspeakers are safely installed in accordance
with all such requirements. When loudspeakers are suspended, Electro-Voice strongly
recommends the system be inspected at least once per year or as laws and regulations
require. If any sign of weakness or damage is detected, remedial action should be taken
immediately. The user is responsible for making sure the wall, ceiling, or structure is capable
of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker
not associated with Electro-Voice is the responsibility of others.
Prior to use, inspect the suspension points and associated hardware for any cracks,
deformations, broken welds, corrosion, missing or damaged components which could reduce
the suspension points strength. Replace any damaged hardware. Never exceed the limitations
or maximum recommended load intended for the suspension points. As an added safety
measure, it is suggested the user install an extra suspension point back to the building
structural supports. This redundant safety point should have as little slack as possible (less
than one inch is preferable). Prior to each use, inspect the loudspeaker enclosures for any
cracks, deformations, missing or damaged components, which could reduce enclosure
strength. Replace any loudspeaker systems that are damaged or missing hardware.
!
Warning!
Eyebolts must be fully seated and oriented in the plane of pull. Always use washers under the
eyebolt to distribute the load on the enclosure.

ELX200 Full-Range Loudspeaker Accessories Safety | en 5
Electro-Voice Installation note 2023-08 | 04 | F.01U.332.445
AB
Figure1.1: Eyebolt shown with and without washer; (left Correct A: Washer used; right Incorrect B: No
washer used)
Figure1.2: Eyebolts shown oriented in the plane of pull (left Correct; right Incorrect)
!
Warning!
Never exceed the limitations or maximum recommended working load for Electro-Voice
loudspeakers.
Disregarding this warning could result in serious injury or death.
50 lb per suspension point
0° 30°
60°
90°
Figure1.3: Maximum working load - vertical orientation
!
Warning!
Never suspend an ELX200 loudspeaker in a vertical column array.
Disregarding this warning could result in serious injury or death.
REFERENCE: For more information, see ELX200 Powered Loudspeaker Installation manual
(F.01U.326.891) or ELX200 Passive Loudspeaker Installation manual (F.01U.326.890).

6en | Safety ELX200 Full-Range Loudspeaker Accessories
2023-08 | 04 | F.01U.332.445 Installation note Electro-Voice
1.1 Safety point
Safety point
As an added safety measure, it is suggested the user install an extra suspension point back to
the building structural supports. This safety point should have as little slack as possible (less
than 1-inch is preferable).
Adding a safety point
To add a safety point, do the following:
1. Remove one of the screws from the top of the loudspeaker.
2. Replace the screw with one eyebolt and one washer.
3. Tether the safety point back to the building structural supports.
An added safety point is established back to the structural supports.

ELX200 Full-Range Loudspeaker Accessories Installation | en 7
Electro-Voice Installation note 2023-08 | 04 | F.01U.332.445
2 Installation
Thank you for choosing an ELX200 loudspeaker accessory. This installation note describes
how to install the wall mount brackets and M10 eyebolt kit used with ELX200 full-range
loudspeaker systems.
ELX200 Full-Range Loudspeaker Accessory Installation Note
Loudspeaker Wall Mount Bracket M10 Eyebolt kit
ELX200-10, ELX200-10P, ELX200-12,
ELX200-12P, ELX200-15, and ELX200-15P
ELX200-BRKT EBK1-M10-3PACK
2.1 Wall mount bracket
The wall mount bracket is used to mount an ELX200-10, ELX200-10P, ELX200-12, ELX200-12P,
ELX200-15, or ELX200-15P full-range loudspeaker to the wall or ceiling.
The wall mount bracket kit contains the following:
Quantity Component
1 Upper bracket
1 Lower bracket
1 U-bracket
2 M6 x 20 screws
1 Installation note
Table2.1: Wall mount bracket components

8en | Installation ELX200 Full-Range Loudspeaker Accessories
2023-08 | 04 | F.01U.332.445 Installation note Electro-Voice
Installing the mounts
The ELX200 wall mount bracket is designed for use with all of the ELX200 full-range
loudspeakers.
i
Notice!

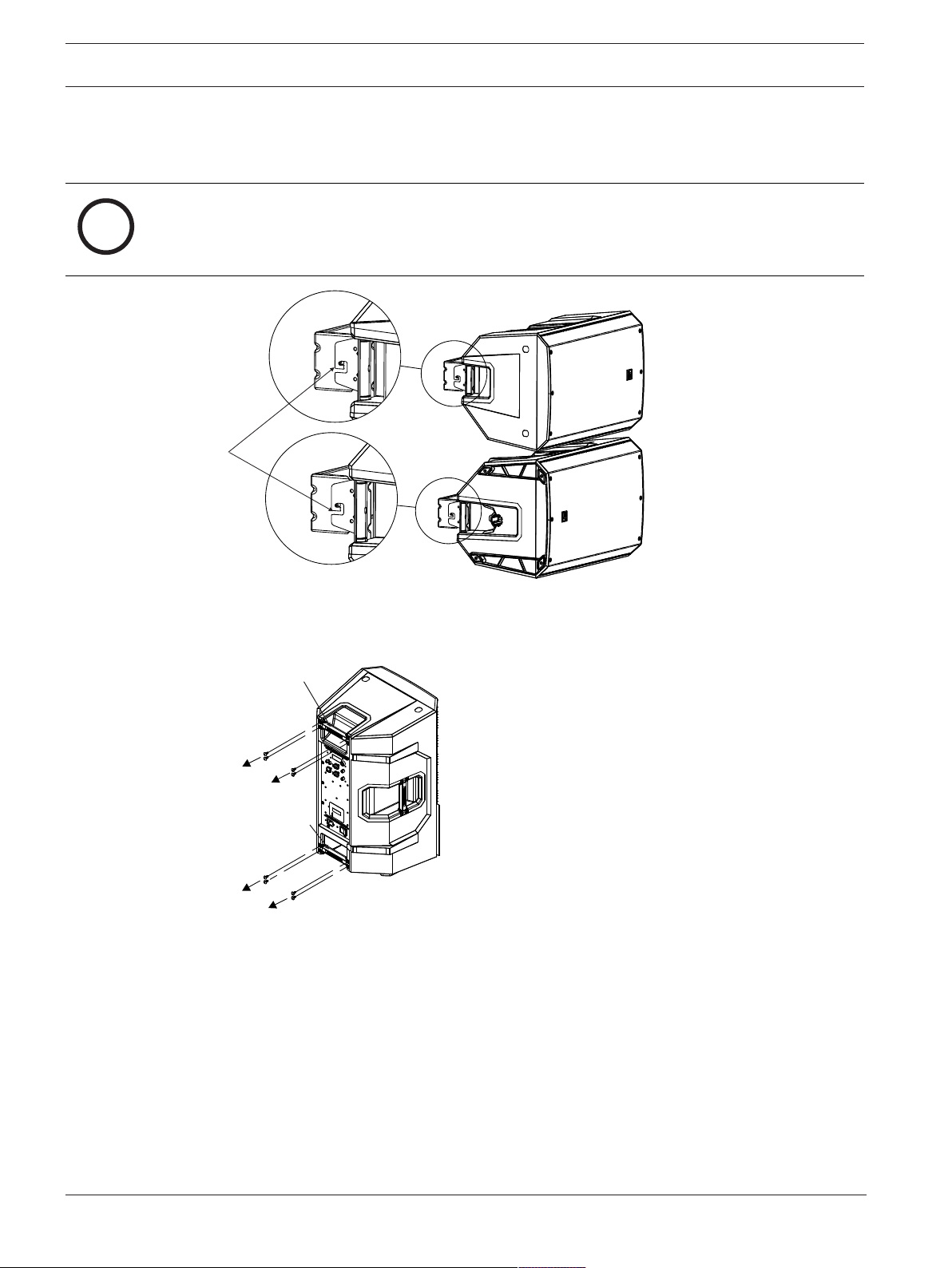

When mounting a loudspeaker horizontally, the lower mount needs to be installed with the
slot opening on the bottom. This may require the upper/lower mounts to be switched
between the top and bottom of the loudspeaker.
A
Figure2.1: Horizontal mounting slot orientation with the lower mount slot opening on the bottom (A)
To attach the mounts to a loudspeaker, do the following:
1. Using a screwdriver, remove the four screws holding the top (A) handle to the chassis.
2. Keep these screws to assemble the upper mount.
B
A
3. Remove the four screws holding the bottom handle (B) (where applicable) to the chassis.
Keep these screws to assemble the lower mount.
4. Using the four screws you removed from the top handle, attach the upper mount (A) to a
10 inch or 12 inch loudspeaker where the top handle was located in the up position.
OR

ELX200 Full-Range Loudspeaker Accessories Installation | en 9
Electro-Voice Installation note 2023-08 | 04 | F.01U.332.445

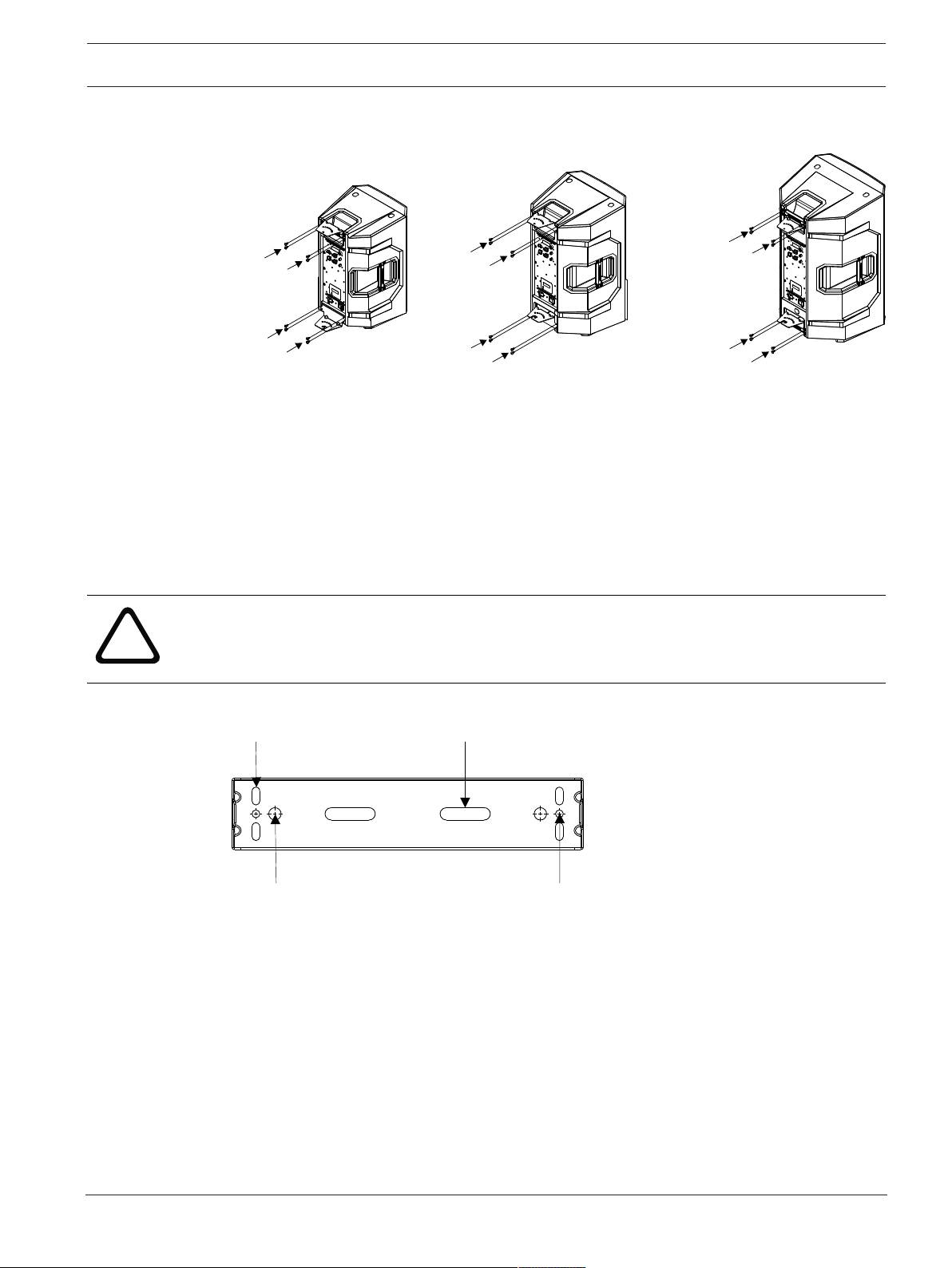

Using the four screws you removed from the top handle, attach the upper mount (B) to a
15 inch loudspeaker where the top handle was located in the down position.
AAB
CDD
ELX200-10/10P ELX200-12/12P ELX200-15/15P
5. Using the four screws you removed from the bottom handle, attach the lower mount (D)
to a 12-inch or 15-inch loudspeaker where the bottom handle was located in the up
position.
OR
Using the four screws you removed from the bottom handle, attach the lower mount (C)
to a 10 inch loudspeaker where the bottom handle was located in the down position.
Mounting a U-Bracket to the wall or ceiling
The U-Bracket is used to mount a loudspeaker to the wall or ceiling.
!
Caution!
We recommend that two or more persons lift and place heavier loudspeakers. Single person
lift and placement of heavier loudspeakers could cause injury.
U-Bracket mounting options
A
B
C
D
A: For wall mounting with bolts (3/8" or M10 bolts) OR pole/truss mounting with U-bolts (2"
or M10 U-bolt) (4 PLS)
B: For ceiling mounting with threaded rods (1/2" or M16 threaded rods) (2 PLS)
C: For ceiling mounting with U-bolt (4" or M16 U-bolt) (2 PLS)
D: For ceiling mounting with threaded rods (3/8" or M10 threaded rods) (2 PLS)

10 en | Installation ELX200 Full-Range Loudspeaker Accessories
2023-08 | 04 | F.01U.332.445 Installation note Electro-Voice
To mount a U-Bracket to the wall or ceiling, do the following:
1. Using the fasteners suitable for the wall material (not supplied), attach the U-Bracket to
the wall or ceiling in a vertical or horizontal position.
2. Using two hands lift the loudspeaker.
3. Place the upper mount (B) onto the pivot pin (A) on top of the U-Bracket.
B
A
4. Ensuring the lower U-Bracket pivot pin (A) is securely placed in the notch; guide the
lower mount with hook (B) into position.
The loudspeaker is loosely hung and allows you to position the loudspeaker.
B
A
5. Position the loudspeaker to the desired angle.
0°
30°
45°
15°
30°
45°
15°

ELX200 Full-Range Loudspeaker Accessories Installation | en 11
Electro-Voice Installation note 2023-08 | 04 | F.01U.332.445
6. Insert one M6 screw (supplied) into each mount at the desired angle.
7. Tighten the two M6 screws (supplied) sufficiently so the loudspeaker does not rotate.
The loudspeaker is set to the desired angle.
2.2 Eyebolt kit
The EBK1-M10 Eyebolt Attachment Kit from Electro-Voice is designed exclusively for ELX200
full-range loudspeakers, for ease of installation. It contains three short shank shoulder
eyebolts, along with four washers for load distribution, which attach to Electro-Voice
loudspeakers that have integrated M10 suspension points. The eyebolt attachment points can
be used to suspend Electro-Voice loudspeakers using hardware rated for overhead lifting. The
loudspeaker is suspended using two main suspension points with one pull-up point in the
back for aiming. Rigging hardware (shackles, etc.) attaching to the eyebolt must fit through
the 25 mm (1 in) opening.
The eyebolt kit contains the following:
Quantity Component
3 M10 x 20 mm (0.787 in) short shank shoulder eyebolts
4 M10 (10.5 mm ID x 20.0 mm OD) washers
1 Datasheet
Table2.2: Eyebolt kit components
i
Notice!
Extra washer provided for leveling of uneven surfaces. ELX200-10/10P may require additional
washer.

12 en | Installation ELX200 Full-Range Loudspeaker Accessories
2023-08 | 04 | F.01U.332.445 Installation note Electro-Voice
0°
30°
60°
90°
A
A
Figure2.2: Load angles and suspension point (Left load angles, center Correct and right Incorrect);
A: Direction of load
Working-Load vs angle of a single eyebolt (6:1 safety factor)
0
23
45
68
91
113
136
159
181
204
227
249
0
50
100
150
200
250
300
350
400
450
500
550
0 10 20 30 40 50 60 70 80 90
Working Load Limit (kg)
Working Load Limit (lbs)
Angle (Degrees)
507 lbs (230 kg) @ 0°
202 lbs (92 kg) @ 30°
112 lbs (51 kg) @ 60°
91 lbs (41 kg) @ 90°
Installing an eyebolt
!
Warning!
Suspending any object is potentially dangerous and should only be attempted by individuals
who have a thorough knowledge of the techniques and regulations of suspending objects
overhead. Electro-Voice strongly recommends that loudspeakers be suspended taking into
account all current national, federal, state, and local laws and regulations. It is the
responsibility of the installer to ensure all loudspeakers are safely installed in accordance
with all such requirements. When loudspeakers are suspended, Electro-Voice strongly
recommends the system be inspected at least once per year or as laws and regulations
require. If any sign of weakness or damage is detected, remedial action should be taken
immediately. The user is responsible for making sure the wall, ceiling, or structure is capable
of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker
not associated with Electro-Voice is the responsibility of others.

ELX200 Full-Range Loudspeaker Accessories Installation | en 13
Electro-Voice Installation note 2023-08 | 04 | F.01U.332.445

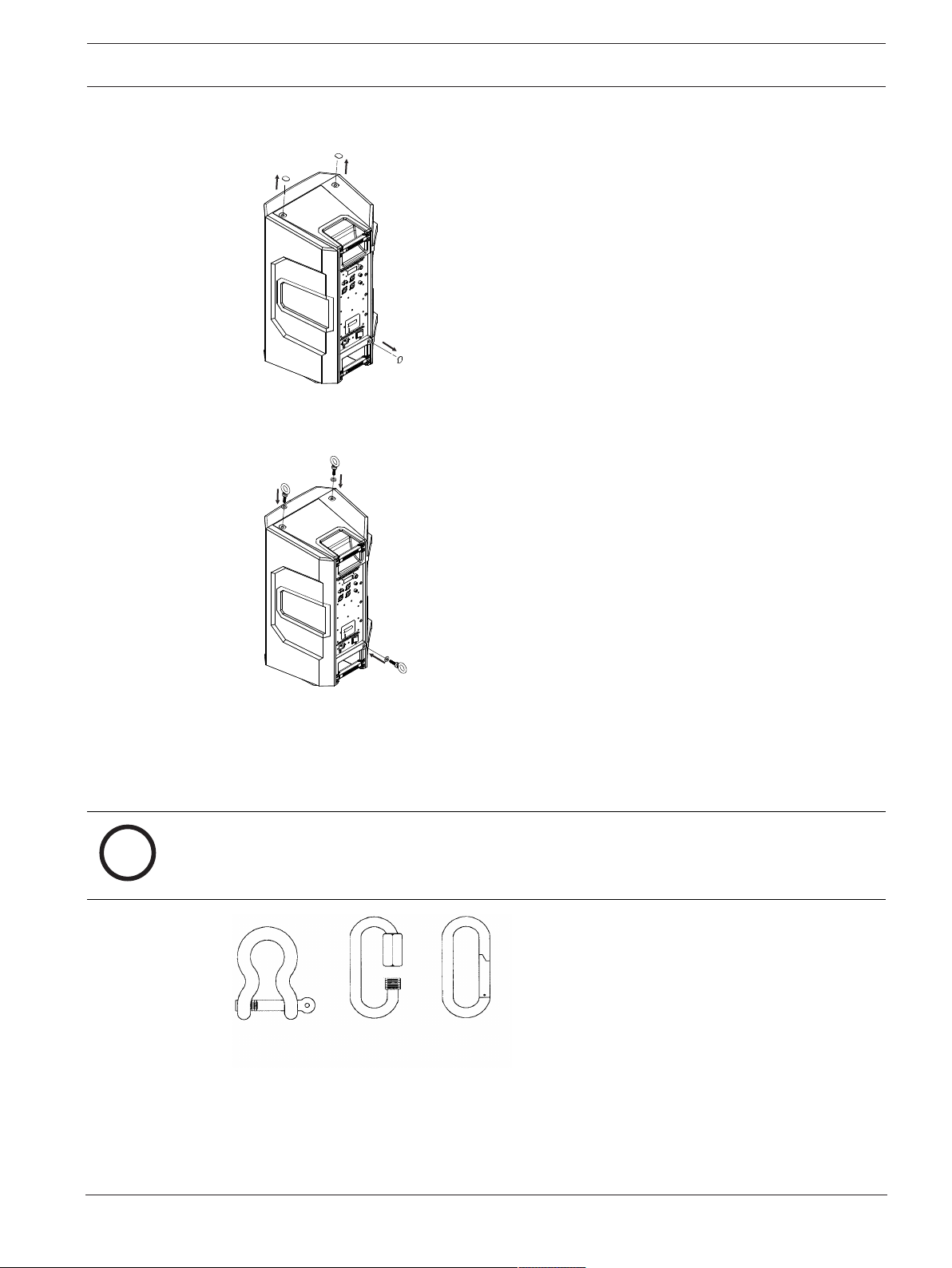

To install an eyebolt, do the following:
1. Remove the fly point cover from the loudspeaker.
2. Repeat this step for all three fly point covers.
3. Screw the lifting eyebolt and M10 washer into the insert until the washer has contacted
the exposed surface.
4. Repeat this step until all three eyebolts and three washers are inserted.
5. Using your fingers, tighten the eyebolt until correct alignment position is obtained, a
maximum of one complete turn.
6. Repeat this step until all three eyebolts are tightened.
i
Notice!
Use certified hardware rated for overhead lifting to suspend the loudspeaker.
A B C
Figure2.3: Examples of useful suspension hardware
A: Anchor shackle
B: Threaded chain connector
C: Carabiner-type snap hook

14 en | Installation ELX200 Full-Range Loudspeaker Accessories
2023-08 | 04 | F.01U.332.445 Installation note Electro-Voice
!
Warning!
Eyebolts must be fully seated and oriented in the plane of pull. Always use the washers to
distribute the load on the enclosure. Over tightening the eyebolt with a wrench, screwdriver,
etc. can result in system failure and injury. Consult the loudspeaker installation manual for
the loudspeaker load ratings and specific requirements.

ELX200 Full-Range Loudspeaker Accessories Technical data | en 15
Electro-Voice Installation note 2023-08 | 04 | F.01U.332.445
3 Technical data
Color: Black or white
Dimensions (H x W x D): 501mm x 102mm x 123mm
(19.72in x 4.02in x 4.84in)
Shipping dimensions (H x W x D): 530mm x 165mm x 145mm
(20.87in x 6.50in x 5.71in)
Net weight: 2.09kg (4.60lb)
Shipping weight: 2.65kg (5.85lb)
Dimensions:
Figure3.1: ZLX200-BRKT dimensions

16 en | Technical data ELX200 Full-Range Loudspeaker Accessories
2023-08 | 04 | F.01U.332.445 Installation note Electro-Voice
EBK1-M10-3PACK specifications
Color: Silver
Eyebolt material: Drop forged steel
Washer material: Zinc-plated steel
Thread diameter: 10 mm
Thread length: 20 mm
Shipping dimensions (H x W x D): 127 mm x 127 mm x 76 mm
(5.0 in x 5.0 in x 3.0 in)
Net weight: 0.31 kg (0.68 lb)
Shipping weight: 0.37 kg (0.82 lb)

ELX200 Full-Range Loudspeaker Accessories Product labels | en 17
Electro-Voice Installation note 2023-08 | 04 | F.01U.332.445
4 Product labels

18 | Product labels ELX200 Full-Range Loudspeaker Accessories
2023-08 | 04 | F.01U.332.445 Installation note Electro-Voice

Bosch Security Systems, LLC
130 Perinton Parkway
Fairport, NY 14450
USA
www.electrovoice.com
© Bosch Security Systems, LLC, 2023
EU importer:
Bosch Sicherheitssysteme GmbH
Robert-Bosch-Platz 1
70839 Gerlingen
Germany
© Bosch Sicherheitssysteme GmbH, 2023
202308281143
