Electro-Voice EVID-844 User manual

t
EVID-844, EVID-844W, EVID-2.1, EVID-2.1W, EVID-408, and EVID-408W
en I Installation Manual
IW11 Electro-Voice
I '
I
I
I

en 3
Table of contents
1 Safety 4
2 Welcome 5
2.1 System features 5
3 System overview 6
3.1 Packing lists 6
3.2
Product information
8
3.3 Dimensions 9
4 Installation
10
4.1 Surface
mount satellite speaker installation
10
4.2 Wall
bracket range of motion
11
4.3 Surface
mount subwoofer installation
11
4.4
Removing subwoofer from the wall 13
5 Wiring
14
5.1 Wattage
tap
14
5.2
70v/100v/4 ohm Mono
15

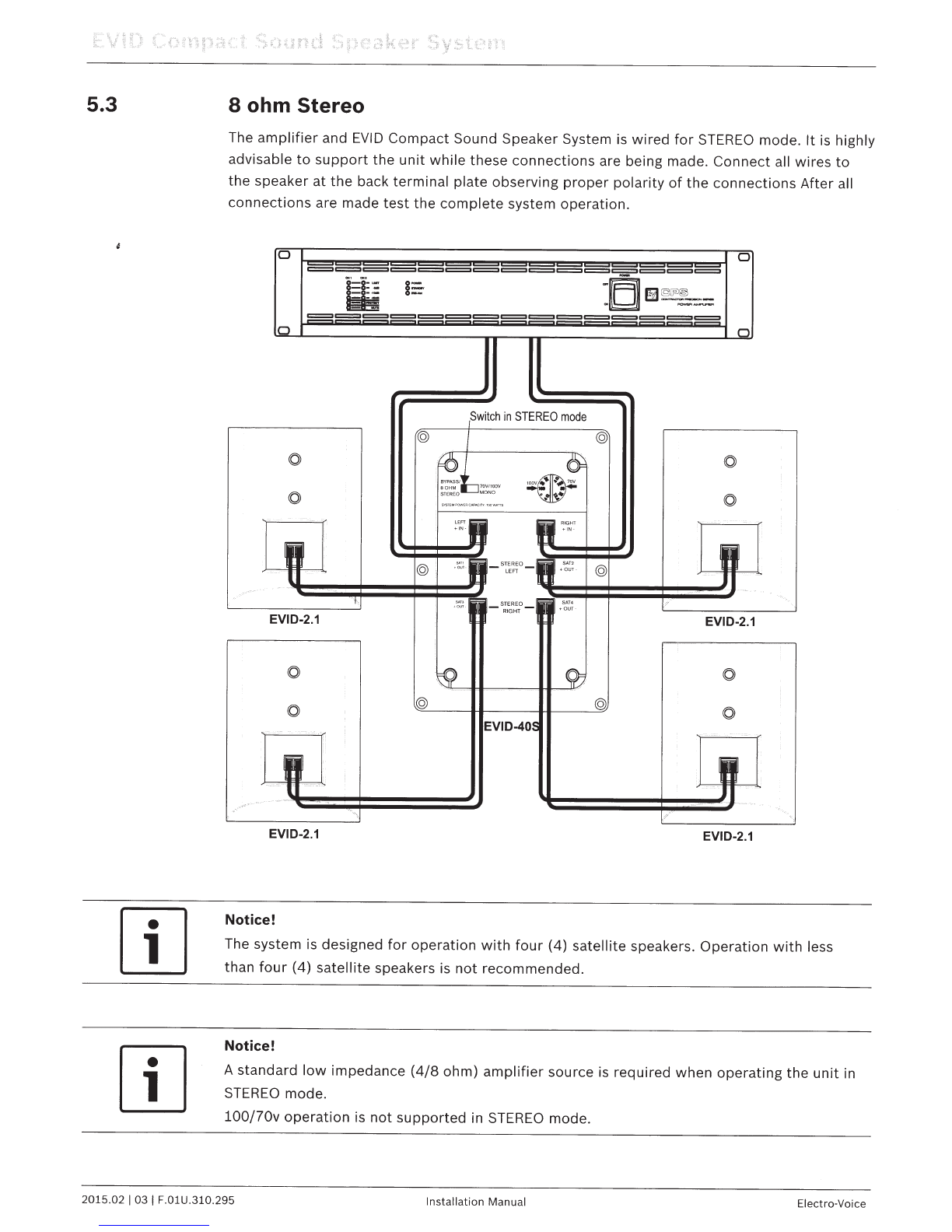

5.3 8 ohm
Stereo
16
6 Troubleshooting
17
7 Technical data
18
7.1 Frequency response
18
Electro-Voice
Installation Manual
2015.02 I 03 I F.01U.310.295

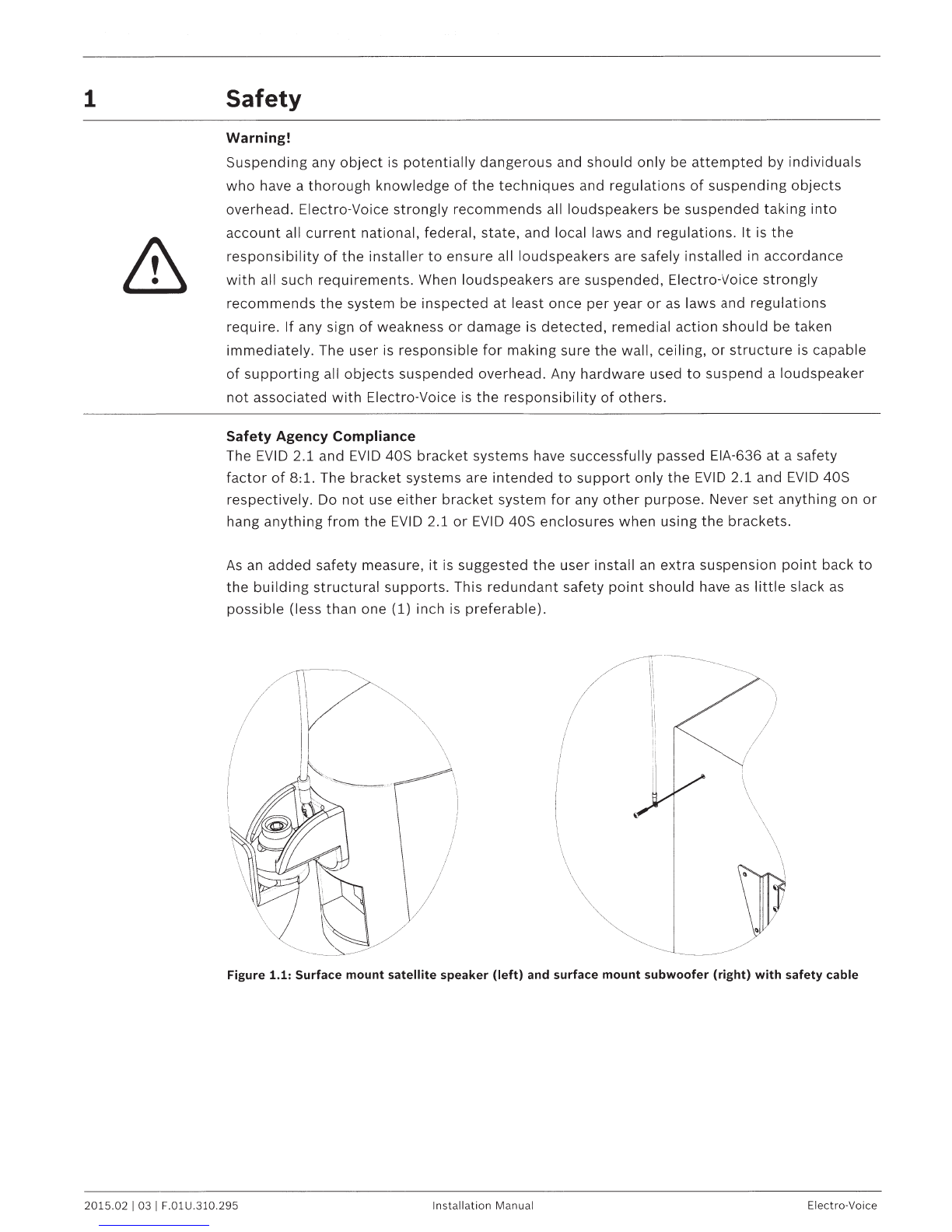

1
Safety
Warning!
Suspending any object is potentially dangerous and should only be attempted by individuals
who have a thorough knowledge of the techniques and regulations of suspending objects
overhead. Electro-Voice strongly recommends all loudspeakers be suspended taking into
account all current national, federal, state, and local laws and regulations. It is the
responsibility of the installer to ensure all loudspeakers are safely installed in accordance
with all such requirements. When loudspeakers are suspended, Electro-Voice strongly
recommends the system be inspected at least once per year or as laws and regulations
require.
If any sign of weakness or damage is detected, remedial action should be taken
immediately. The user is responsible for making sure the wall, ceiling, or structure is capable
of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker
not associated with Electro-Voice is the responsibility of others.
Safety Agency Compliance
The EVID 2.1 and EVID 40S bracket systems have successfully passed EIA-636 at a safety
factor of 8:1. The bracket systems are intended to support only the EVID 2.1 and EVID 40S
respectively. Do
not use either bracket system for any other purpose. Never set anything on or
hang anything from the EVID 2.1 or EVID 40S enclosures when using the brackets.
As an added safety measure, it is suggested the user install an extra suspension point back to
the building structural supports. This redundant safety point should have as little slack as
possible (less than one (1) inch is preferable).
'i
\
\ \ \
Figure 1.1: Surface mount satellite speaker (left) and surface mount subwoofer (right) with safety cable
2015.02 I 03 I F.OlU.310.295
Installation Manual Electro-Voice

2
2.1
Electro-Voice
en 5

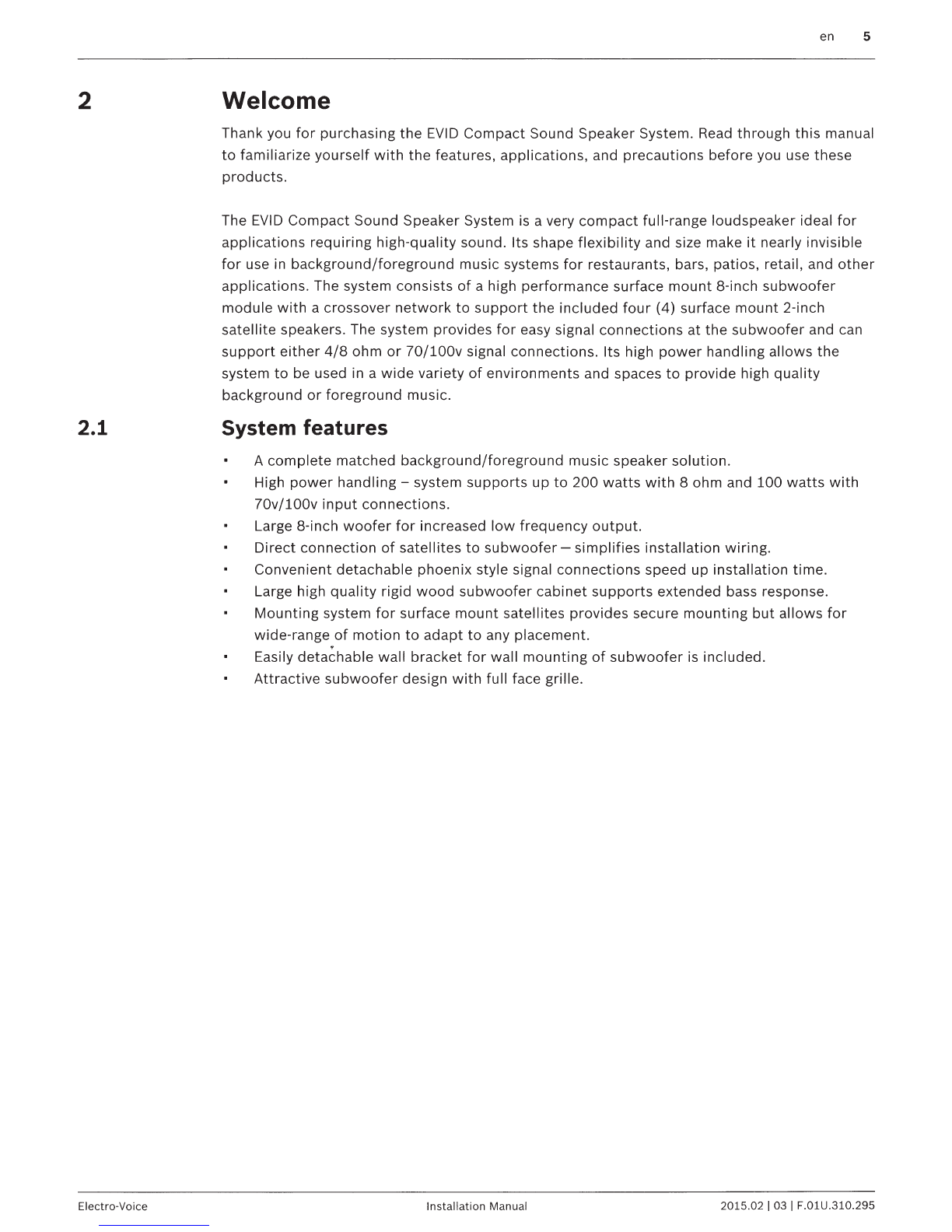

Welcome
Thank you for purchasing the EVID Compact Sound Speaker System. Read through this manual
to familiarize yourself with the features, applications, and precautions before you use these
products.
The EVID Compact Sound Speaker System is a very compact full-range loudspeaker ideal for
applications requiring high-quality sound. Its shape flexibility and size make it nearly invisible
for use in background/foreground music systems for restaurants, bars, patios, retail, and other
applications. The system consists of a high performance surface mount 8-inch subwoofer
module with a crossover network to support the included four (4) surface mount 2-inch
satellite speakers. The system provides for easy signal connections at the subwoofer and can
support either 4/8 ohm or 70/100v signal connections. Its high power handling allows the
system to be used in a wide variety of environments and spaces to provide high quality
background or foreground music.
System features
A complete matched background/foreground music speaker solution.
High
power handling- system supports up to 200 watts with 8 ohm and 100 watts with
70v/100v input connections.
Large 8-inch woofer for increased low frequency output.
Direct connection of satellites to subwoofer- simplifies installation wiring.
Convenient
detachable phoenix style signal connections speed up installation time.
Large high quality rigid wood subwoofer cabinet supports extended bass response.
Mounting system for surface mount satellites provides secure mounting but allows for
wide-range of motion to adapt to any placement.
Easily
deta~hable wall bracket for wall mounting of subwoofer is included.
Attractive subwoofer design with full face grille.
Installation Manual
2015.02 I 03 I F.01U.310.295

3
3.1
Item Qty
A 2
8 2
c
2
D 1
E 2
F 4
G 2
H 1
System overview
Packing lists
The
EVID
Compact
Sound Speaker System
contains
four
(4)
satellite
speakers and one (1)
subwoofer.
When you open
the
box
for
the
full system you
will
find
three
(3) main boxes
inside;
two
(2) boxes
for
the
satellite
speakers and one (1) box
for
the
subwoofer.
The
major
components
included
in one (1) box
for
the
EVID
2.1 surface
mount
satellite
speaker.
Description
EVID
2.1 surface
mount
satellite speakers
Wall
brackets
Speaker brackets
EVID
S44 Engineering Data Sheet
M6 hex drive pan-head screws
M5 pan-head screws
Screw
sockets
Hex
wrench
Table 3.1: Surface Mount Satellite Speaker (1 box)
0
A (x2) -
I
~
0
2015.02
I
03
I
F.01U.310.295
B (x2)
I Y
E(x2)
d
G (x2)
F (x4)
Installation Manual Electro-Voice

en 7

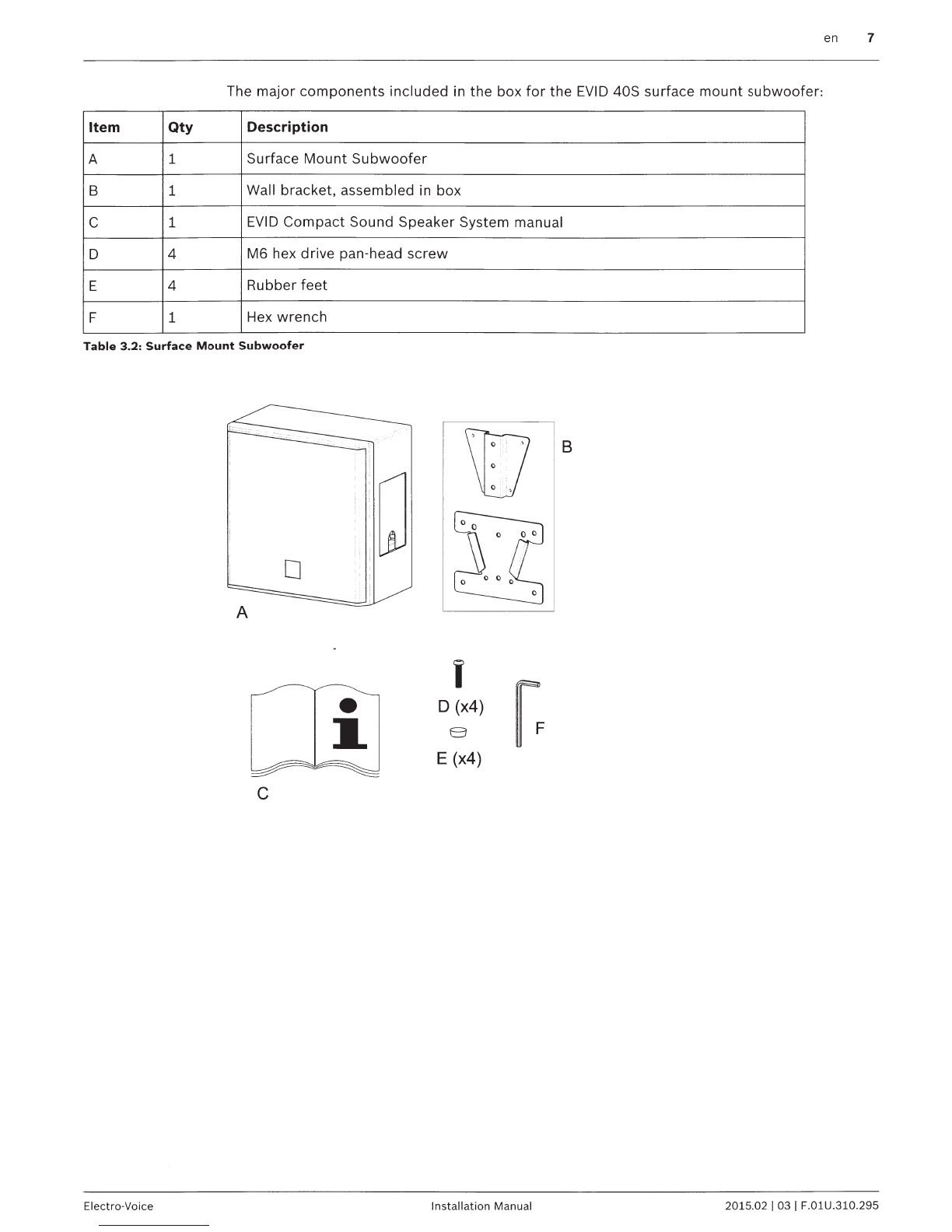

The major components included in the box for the EVID 40S surface mount subwoofer:
Item Qty Description
A 1 Surface
Mount Subwoofer
B 1 Wall bracket, assembled in box
c 1
EVID Compact Sound Speaker System manual
D 4 M6 hex drive pan-head
screw
E 4 Rubber
feet
F 1 Hex
wrench
Table 3.2: Surface Mount Subwoofer
B
I
rF
-D (x4)
I.
B
~
E (x4)
c
Electro-Voice Installation Manual
2015.02 I 03 I F.01U.310.295

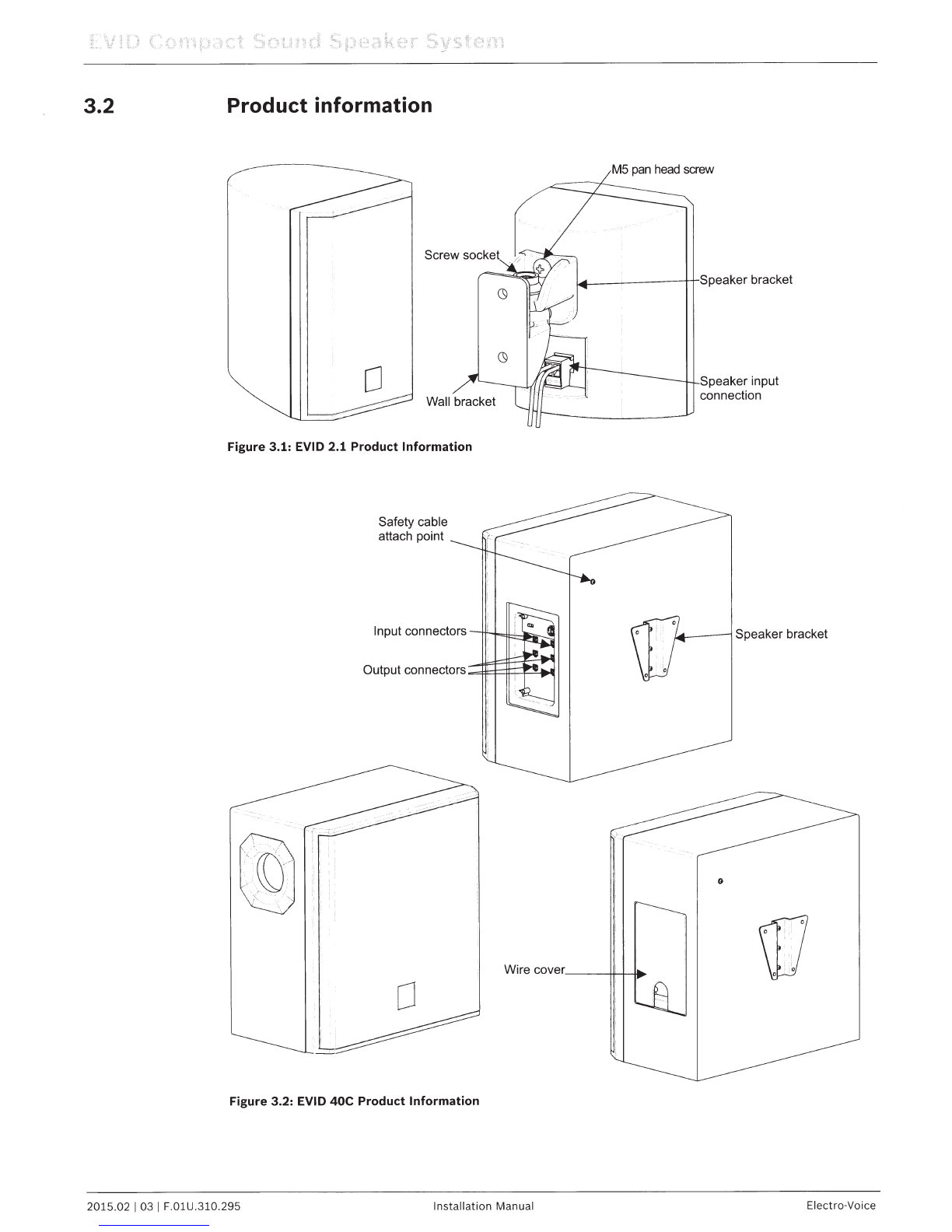

3.2 Product information
0 Wall bracket
Figure 3.1: EVID 2.1 Product Information
Safety cable
attach point
Input connectors
Figure
3.2:
EVID 40C Product Information
2015.02
I
03
IF.01U.310.295
Installation
Manual
M5
pan
head
screw
~--"-----rrSpeaker
bracket
Speaker input
connection
Speaker bracket
Electro-Voice

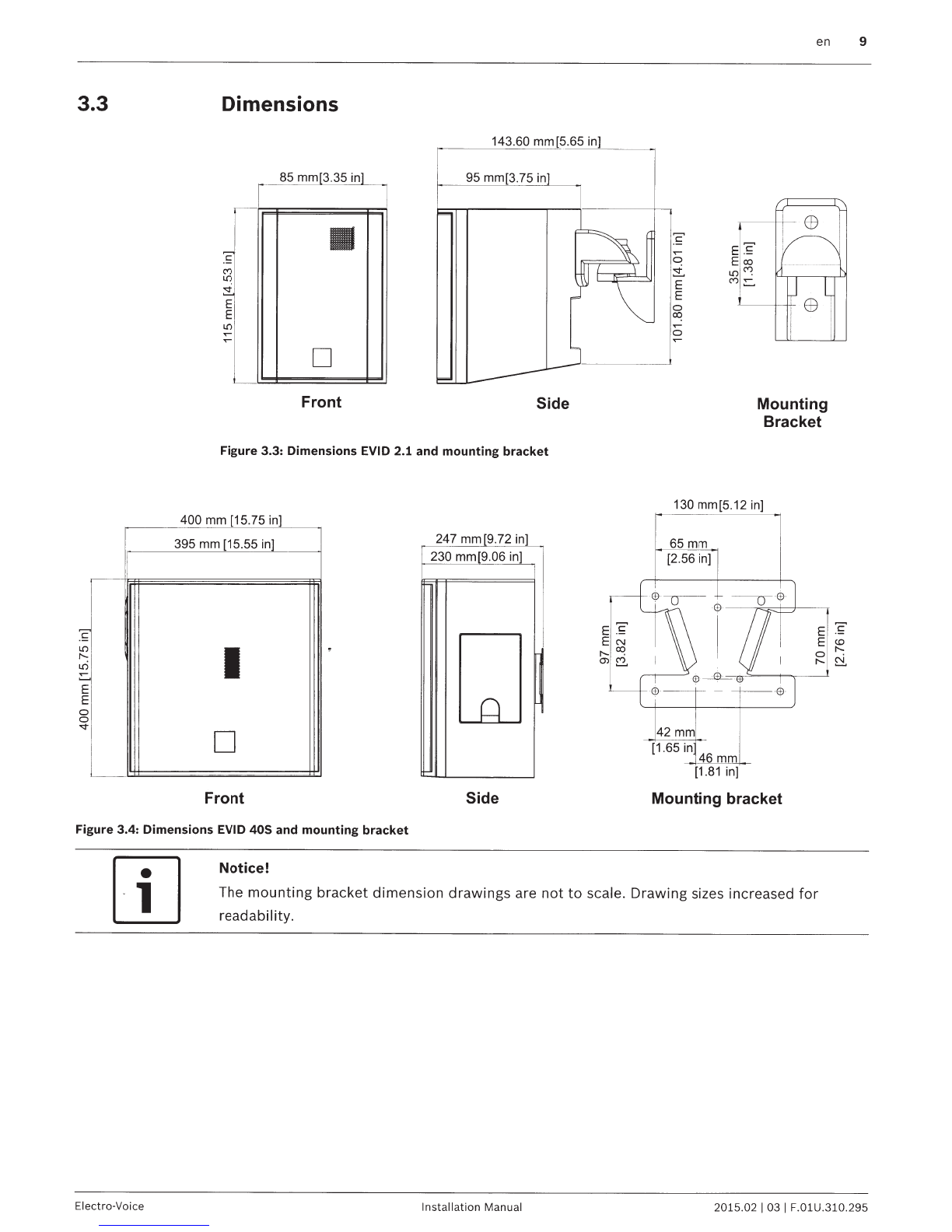

3.3
~
I.()
I'-
u)
~
E
E
0
0
"""
en 9
Dimensions
143.60
mm[5
_
.6_5_in~]
_ __ _
85 mm[3.35 in] 95 mm[3.75 in
•
~
('f)
I.()
~
E
E
I.()
'I""""
'I""""
D
Front Side
Figure
3.3:
Dimensions EVID 2.1 and mounting bracket
400 mm [15.75 in]
395 mm [15.55 in]
I
D
Front
247 mm [9.72 in]
230 mm[9.06 in]
Side
~
'I""""
0
:st.
E
E
0
~
0
E~
Eoo
I.()~
('f)~
Mounting
Bracket
130 mm[5.12 in]
65mm
[2.56 in]
42mm
[1.65
in
46mm
[1.81 in]
Mounting bracket
Figure 3.4: Dimensions EVID
405
and mounting bracket
Electro-Voice
Notice!
The
mounting
bracket
dimension
drawings
are
not
to
scale.
Drawing
sizes increased
for
readability.
Installation
Manual
2015.02
I
03
I
F.01U.310.295

4
4.1
Installation
Surface mount satellite speaker installation
For safety, ensure
the
mounting
surface
supports
more than
the
weight
of
the
speaker. Use
only
industry-accepted
fasteners and
mounting
methods
when
mounting
the
wall bracket.
Consult
an
expert
if
you are unsure.
To install
the
surface mount satellite speaker,
do
the
following:
1. Using a Phillips head
screwdriver
(not
supplied),
tighten
two
(2)
M5
pan-head screws
(not
supplied)
to
attach
the
wall
bracket
to
a secure
mounting
surface.
2.
Using a Philips
screwdriver,
tighten
two
(2)
M5
pan-head screws (supplied)
to
attach
the
speaker
bracket
to
the
rear
of
the
cabinet.
3. Place
the
speaker bracket
onto
the
wall bracket.
4. Using
the
hex
wrench
(supplied),
tighten
the
M6
hex drive pan-head screw
to
secure
the
speaker
bracket
to
the
wall bracket.
For
more
information,
see
Safety, page 4.
2015.02
I
03
I
F.
01U.310.295
Installation
Manual Electro-Voice

4.2
4.3
Electro-Voice
en
11
Wall bracket range
of
motion
The speaker can be
adjusted
from
side
to
side
or
up and
down.
Figure 4.1: Horizontal range
is
160°
and the vertical range
is
60°.
Surface mount subwoofer installation
For safety, ensure
the
mounting
surface
supports
more
than
the
weight
of
the
speaker. Use
only
industry-accepted
fasteners and
mounting
methods
when
mounting
the
wall bracket.
Consult
an
expert
if
you are unsure.
Caution!
Only
mount
the
wall
bracket
in
the
vertical V-shape
position.
Do
not
mount
the
V-bracket
or
wall
bracket
side ways
or
upside
down.
Figure 4.2: Wall bracket correct and incorrect mounting positions
Installation
Manual
2015.02
I
03
I
F.01U.310.295

To
install
the
surface mount subwoofer,
do
the
following:
1. Using a Phillips head
screwdriver
(not
supplied),
tighten
six
(6)
MS pan·head screws
(not
supplied)
to
attach
the
wall
bracket
to
a secure
mounting
surface.
2.
Using
the
hex
wrench
(supplied),
tighten
the
three
(3)
M6
hex drive pan head screws
to
attach
the
V-bracket.
3. Slide
the
V·bracket
into
the
wall bracket.
The
locking
detents engage.
~
I
I
If
I
I
I
I
I
I
I
For
more
information,
see
Safety, page 4.
2015.02
I
03
I
F.01U.310.295
Installation
Manual Electro-Voice

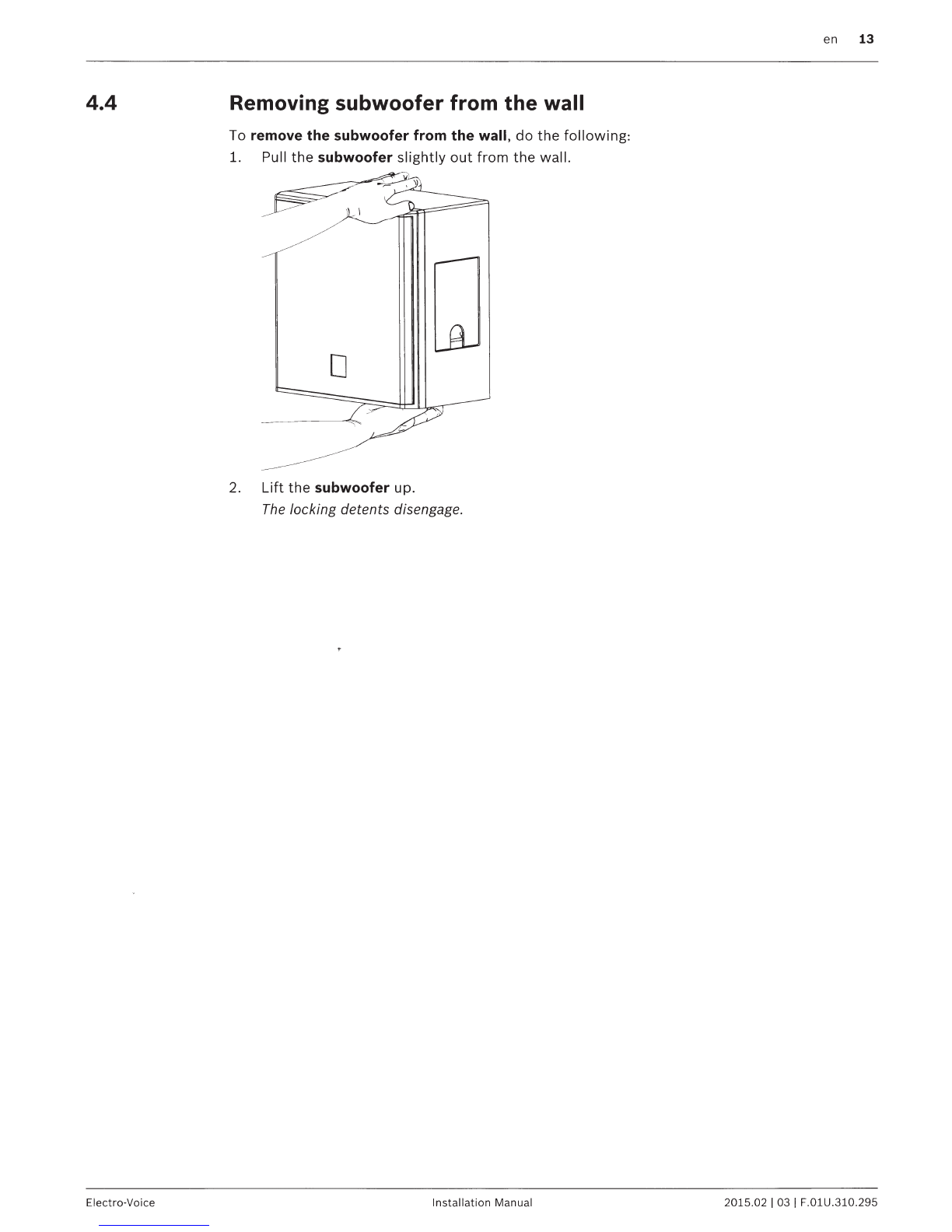

4.4
Electro-Voice
Removing subwoofer from the wall
To remove the subwoofer from the wall, do the following:
1. Pull the subwoofer slightly out from the wall.
0
2. Lift the subwoofer up.
The locking detents disengage.
Installation Manual
en 13
2015.02 I 03 IF.01U.310.295

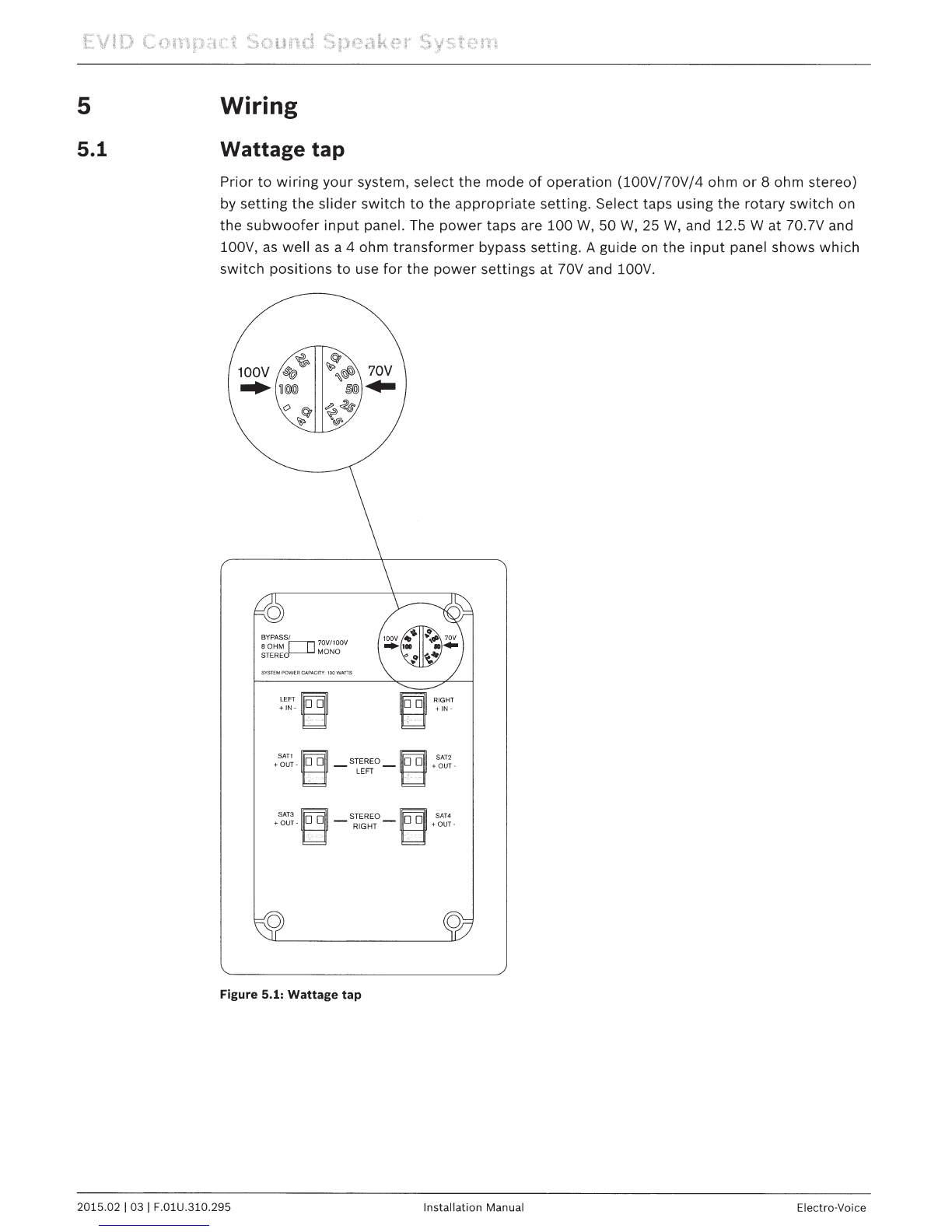

5
5.1
Wiring
Wattage tap
Prior to wiring your system, select the mode of operation (100V/70V/4 ohm or 8 ohm stereo)
by setting the slider switch to the appropriate setting. Select taps using the rotary switch on
the subwoofer input panel. The power taps are 100 W, 50 W, 25 W, and 12.5 W at 70.7V and
100V,
as well as a 4 ohm transformer bypass setting. A guide on the input panel shows which
switch positions to use for the power settings at 70V and 100V.
0
BYPASS/
8
OHM c=o 70V/100V
STEREO
MONO
LEFT llFoiJill ____ ._-_-••· _o_ ---•·-
+IN-1::1
IJFo[Ji] RIGHT
t;;1 +IN-
SAT1 ~ ~ SAT2
+OUT_ 0 __ -_- __ - .· _o_ --· _STEREO_ o ___ ·_·. ·0·-- + OUT_
•·· ••• LEFT .- •...
SATO ~--:_·.--- - -0·-··- - _STERE0_~----_-._--0·-··- SAT4
+OUT- ..•.• •• RIGHT .·• ••. •••• +OUT-
0 0
Figure 5.1: Wattage tap
2015.02 I 03 IF.01U.310.295 Installation Manual Electro-Voice

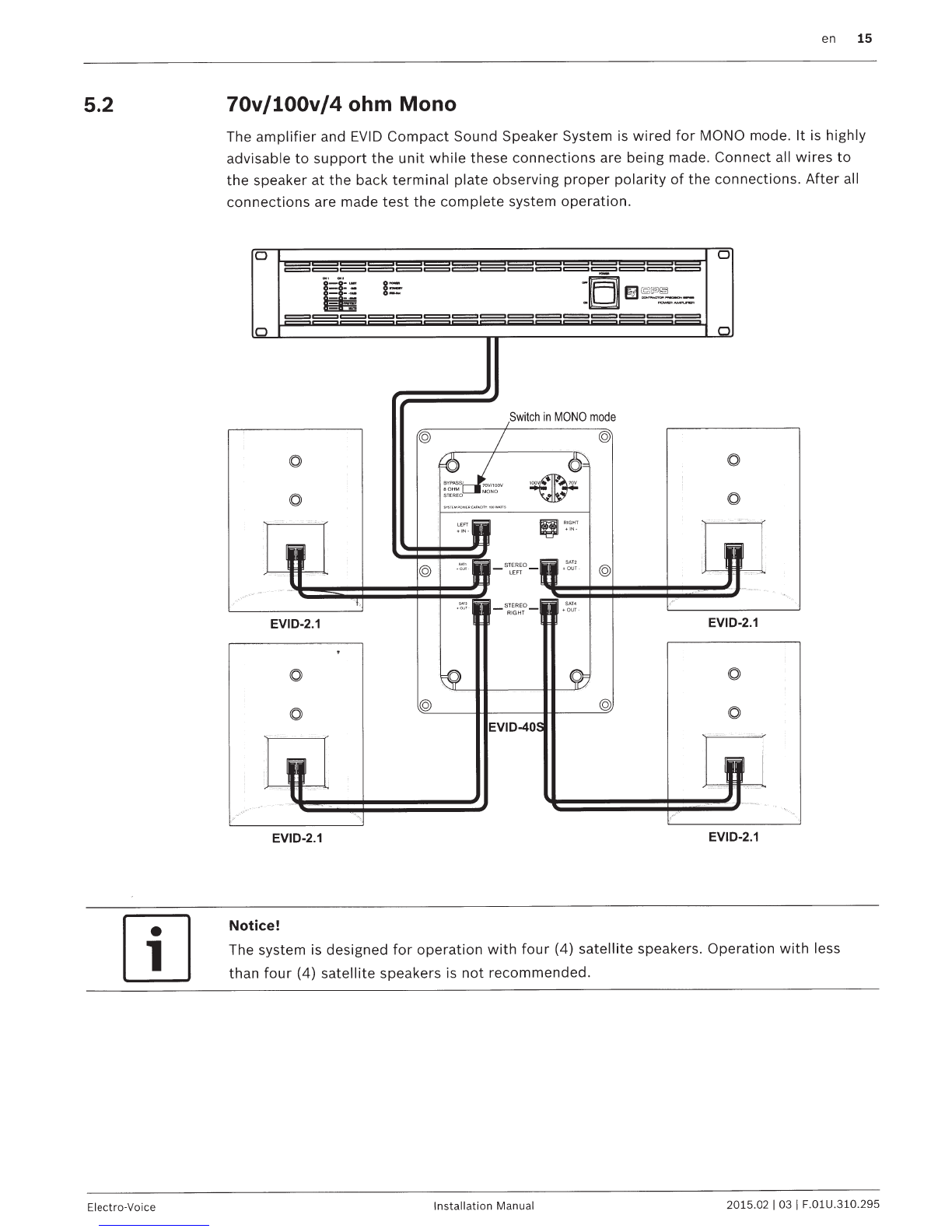

5.2
[]
Electro-Voice
en
15
70v/100v/4
ohm Mono
The
amplifier
and
EVID
Compact
Sound Speaker System is
wired
for
MONO mode.
It
is highly
advisable
to
support
the
unit
while
these
connections
are being made. Connect all
wires
to
the
speaker
at
the
back
terminal
plate observing
proper
polarity
of
the
connections.
After
all
connections
are made
test
the
complete
system
operation.
0 0
0
Switch
in
MONO
mode
@ @
0 D D 0
BO
HM
70VI100V
~
0
ST
EREO MONO
0
SY
STEM
POW
ER
CAP
ACI
TY
1
00W
II.
n S
U RIG
HT
+ I
N-
@
+OUT
S
TERE
O
@
LEFT
+O
UT
EVID-2.1 EVID-2.1
0 D D 0
0
@ @
0
EVID-40
EVID-2.1 EVID-2.1
Notice!
The system is designed
for
operation
with
four
(4)
satellite
speakers. Operation
with
less
than
four
(4)
satellite
speakers is
not
recommended.
Installation
Manual
2015
.
02
I
03
I F.01U.310.
295

5.3
8 ohm Stereo
The
amplifier
and
EVID
Compact
Sound Speaker System is
wired
for
STEREO mode.
It
is highly
advisable
to
support
the
unit
while
these
connections
are being made.
Connect
all wires
to
the
speaker
at
the
back
terminal
plate observing
proper
polarity
of
the
connections
After
all
connections
are made
test
the
complete
system
operation.
0 0
0
Switch
in
STEREO
mode
@ @
0 0
0 0
LE
FT
+ I
N-
@
~
OUT
@
•OU!
EVID-2.1 EVID-2.1
0
D D
0
0
@ @
0
EVID-40
EVID-2.1 EVID-2.1
Notice!
The system is designed
for
operation
with
four
(4)
satellite
speakers.
Operation
with
less
than
four
(4)
satellite
speakers is
not
recommended.
Notice!
A
standard
low
impedance
(4/8
ohm)
amplifier
source is required
when
operating
the
unit
in
STEREO mode.
100/?0v
operation
is
not
supported
in STEREO mode.
2015.02
I
03
I
F.
01U.310.295
Installation Manual Electro-Voice

6
Problem
No Sound
Poor
Low-
Frequency
Response
Intermittent
Output
such as,
Crackling
or
Distortion
Constant
Noise
such
as
Buzzing,
Hissing,
Humming
Electro-Voice
en
17
Troubleshooting
Possible Causes Action
Amplifier
Connect
a
known
working
test
speaker
to
the
amplifier
outputs.
If
there
is no sound, check all
electronics
are on,
the
signal
routing
is
correct,
the
source is active;
the
volume is
turned
up, and so on.
Correct/Repair/Replace
as
necessary.
If
there
is
sound,
the
problem
is
in
the
wiring.
Wiring
Verify you have
connected
the
correct
wire
pairs
to
the
amplifier.
Play
something
at
low
level
through
the
amplifier
(for
example,
from
a
CD
player
or
tuner).
Connect
the
test
speaker in parallel
with
the
malfunctioning
line.
If
the
sound has gone
or
is very weak,
the
line has
a
short
in
it
(possibly
a severe scrape, pinch,
or
staple
puncture).
If
the
sound
level
is
normal
the
wire
is open
(possibly
a
cut
wire
or
missed
connection).
Using
the
test
speaker, move
down
the
line and
test
each
connection/junction
until
you
find
the
problem
and
correct
it. Observe
proper
polarity.
Verify you have
the
inputs
and
outputs
connected
to
the
correct
wires.
If
the
subwoofer
input
panel is
not
correctly
wired,
there
will
be
little
or
no sound. Observe
proper
polarity.
Speakers Wired Out- When
two
(2) speakers are
connected
out
of
polarity
(out
of
phase),
of-Polarity
the
low
frequencies
will
cancel each
other
acoustically. Carefully
observe
the
wire
markings
or
tracers
on
your
speaker wires. Verify
the
amplifier
(
+)
terminal
is
connected
to
the
red speaker
terminals
and
the
amplifier(-)
terminal
is
connected
to
the
black speaker
terminals.
Improperly
Wired Using a
test
speaker
as
described
above, verify all
amplifier
and
Subwoofer
Panel
speaker
wires
are
connected
to
their
proper
terminals
with
the
correct
polarity.
Reversing
just
one (1)
set
of
amplifier
wires
can
cut
out
all
bass
output
from
the
subwoofer.
Faulty
Connection
Check all
connections
at
amplifier
and speakers
to
ensure
they
are
clean and
tight.
If
the
problem
persists,
it
may be in
the
amplifier
or
wiring.
See
other
actions
above.
Defective
Amplifier
If
the
noise is
present
but
no
program
material is playing,
the
likely
or
other
Electronic
cause is
the
signal chain in
the
electronics.
Evaluate each
component
Device
as
necessary
to
isolate
the
problem.
Poor
System Check and
correct
the
system
grounding,
as
required.
Grounding
or
Ground
Loop
If
these suggestions
do
not
solve
your
problem,
contact
your
nearest Electro-Voice
dealer
or
Electro-Voice
distributor.
Installation
Manual
2015.02
I
03
I
F.OlU.310.295

7
7.1
Technical data
EVID 2.1 EVID
405
Frequency Response (-10 dB):
180
Hz
-20 kHz
1
42
Hz
-
300
Hz
1
Power
Handling: 30 W
2
200 W
2
Sensitivity: 84 dB
1
88
dB
1
Impedance: 16
ohms
Dual 8
ohm
I
mono
4 ohm
Maximum SPL:
100
dB
1
114
db
1
Voice Coverage
(H
x V):
150°
X
150°
3
Omnidirectional
Music Program Coverage
(H
x V):
100°
X
100°
4
Omnidirectional
Transducer: 50 mm (1.97 in) 200 mm (7.87 in)
Bracket
Adjustment
Range
(H
x V):
160°
X
60°
Fixed
Connectars: Phoenix (2-pin) Phoenix (2-pin)
Enclosure:
ABS
(fire
rated) Wood (MDF)
Transformer
Taps:
NA
100
W,
50
W,
25
W,
12.5 W
Dimensions
(H
x W x D): 115 mm x 85 mm x 95 mm
400
mm x
400
mm x 230 mm
(4.53 in x 3.35 in x 3.75 in) (15.75 in x
15.75
in x 9.06 in)
Net Weight: (each) 0.5 kg (1.1 lb) 12.05 kg (26.55 lb)
Shipping
Weight: 1 sub and 4 satellites: 18.26 kg (40.25 lb)
Included Accessories: Wall bracket; hex
wrench
Wall
bracket;
hex
wrench
1. Half space (wall
mounting).
2.
Long Term Program Rating, 3
dB
greater
than
continuous
noise
pink
noise rating.
3. Average 1 kHz - 4 kHz.
4. Average 1 kHz - 8 kHz.
Frequency response
110
100
m-
~
~
l"f"
""
I
ll
I
I I
J
~
90
·u;
c::
Q)
tn
80
70 50
100
K
'
'
"""'
"""
~
~
~~~-
\
1000
Frequency (Hz)
Figure
7.1: EVID·2.1
with
EVID-405
frequency
response
-Evid 40S, Half Space
-Ev
id 2.
1,
Half Space
rv
,_
r
'-
~
"'""~
...,~
10000 20000
2015.02
I
03
I
F.01U.310.
295
Installation
Manual Electro-Voice

Bosch Security Systems, Inc
12000
Portland
Avenue
South
Burnsville
MN
55337
USA
www
.electrovoice.com
© Bosch
Security
Systems, Inc,
2015

Electro-Voice I EVI D S44
ID 5
• A complete matched background/foreground music
speaker solution.
• Large 8-inch (200 mm) woofer transducer for
substantial low frequency output.
• Direct connection of satellites to subwoofer-
simplifies installation wiring.
• Mounting br ackets with wide range of motion for
surface mou nt satellites provide easy and secure
mounting of speaker to wall.
• Convenient detachable phoenix style signal
connections speed up installation time.
The EVID Compact Sound Speaker System is a very
compact full-range loudspeaker ideal for applications
requiring high-quality sound. Its shape flexibility and
size make
it nearly invisible for use in background/
foreground music systems for restaurants, bars,
patios, retail, and
other applications. The system
consists
of a high performance surface mount 8-inch
subwoofer module with a crossover network to
support the included four (4) surface mount 2-inch
satellite speakers. The system provides for easy signal
connections at the subwoofer and can support either
4/8 ohm or 70/100v signal connections. Its high power
handling allows the system to be used in a wide
variety of environments and spaces to provide high
quality background or foreground music.
Technical specifications
EVID 2.1 EVID 40S
Frequency Response
180 Hz- 20 kHz
1
42 Hz- 300 Hz
1
(-10 dB):
Power Handling: 30W2 200W2
Sensitivity: 84dB1 88dB1
Impedance: 16 ohms
Dual 8 ohm I mono
4ohm
Maximum SPL: 100 dB
1
114 db
1
Voice Coverage (H x V) : 150°X 150 °3
Omnidirectional
~~~ Electro-Voice
EVID 2.1 EVID 40S
Music Program 100° X 100°
4
Omnidirectional
Coverage (H x V):
Transducer: 50 mm (1.97 in)
200 mm (7 .87 in)
Bracket Adjustment 160° X 60°
Fixed
Range (H x V):
Connectors:
Phoenix (2-pin) Phoe nix (2-pin)
Enclosure:
ABS (fire rated)
Wood (MDF)
Transformer Taps:
NA
100 W, 50 W, 25
W, 12.5 W
Dimensions (H xWx 115 mm x 85 mm x
400 mm x 400 mm
D):
95mm x 230 mm
(4.53 in x3.35 in x (15.75 in x15.75
3.75
in) in x9.06 in)
Net Weight: (each)
0.5 kg (1.11b) 12.05 kg (26.55
I
b)
Shipping Weight: 1 sub and 4 satellites :18.26 kg (40.251b)
Included Accessories: Wall bracket; hex Wall bracket; hex
wrench wrench
1. Half space (wall mounting).
2. Long Term Program Rating, 3 dB greater than
continuous noise pink noise rating.
3. Average 1
kHz- 4 kHz.
4. Average 1
kHz- 8 kHz.
