TechnicalSpecifications:
FRX+ series is designed for applications in highly
reverberant spaces where excellent directivity control down
to 500 Hz is critical. In a trapezoidal enclosure no taller
than a typical compact system and only a bit wider, they
maintain control of coverage angles down to 500 Hz. A 15"
LF transducer is coaxially horn loaded with a mouth nearly
the size of the enclosure to provide excellent LF pattern
control. These professional fixed install speakers deliver a
broad range of performance options including multiple
rotatable horn patterns, matching sub-woofer, easily
switchable passive or bi-amp operation, and EV’s world
renownedtransducertechnologyforresponsethatissmooth
and linear. The FRX+ is an economical and flexible solution
for the most demanding installations.
Same size full-range and sub-woofer systems allow the
installer to construct arrays covering the most demanding
acoustical environments while maintaining an aesthetic
and uniform installation. The structural integrity of the
FRX+ cabinets allows for vertical arrays up to 2 boxes in
height. All FRX+ systems are available in black or white
EVCoatTM, and unfinished. The PI version includes
stainless steel hardware and a multilayer stainless steel
grille that protects against rain, sprayed water, and dust
to IEC 529 IP 44 Mil Spec 810 humidity, salt spray, and UV
specifications. External components and fasteners are
aluminum and stainless steel. Performance may be
further enhanced by bi-amping with the Electro-Voice Dx-
38 Digital Sound System Processor. A 300W line
transformer is available as a contractor installed item.
esnopseR.qerF
1
:)Bd3-(zHk51-zH06
egnaR.qerF
1
:)Bd01-(zHk61-zH25
:LPSdetaluclaCxaMBd331
:egarevoClatnoziroH°09
:egarevoClacitreV°04
:gnildnaHrewoPFLkaePW0061,suounitnoCW004
:gnildnaHrewoPFHkaePW042,suounitnoCW06
:gnildnaHrewoPevissaPkaePW0061,suounitnoCW004
:)pmA-iB(ytivitisneSFLm1/W1,Bd401
:)pmA-iB(ytivitisneSFHm1/W1,Bd901
metsySevissaP :ytivitisneS m1/W1,Bd401
:ecnadepmI).niM(smho2.7,)lanimoN(smho8
:recudsnarTFLsmho8,revirD)mm183("51X51LD
:recudsnarTFH.pmoCmgarhpaiD)mm15("2t2HD smho8,revirD
revossorCevissaP :ycneuqerF zH0531
:srotcennoCspirtsreirrabowT
:lairetaMerusolcnEdoowylphcriBylp-31
:ellirG)leetSsselniatSnoisreVIP(leetsAG61
:cepSlatnemnorivnE)44PInoisreVIP(,42PI925CEI 018DTSLIM
:remrofsnarT4egaPeeS
:)DxWxH(miD"0.72x"5.82x"5.13 )mm686x427x008(
:)hcae(thgieWteN)gk0.96(sbl251
:thgieWgnippihS)gk2.17(sbl751
GeneralDescription:

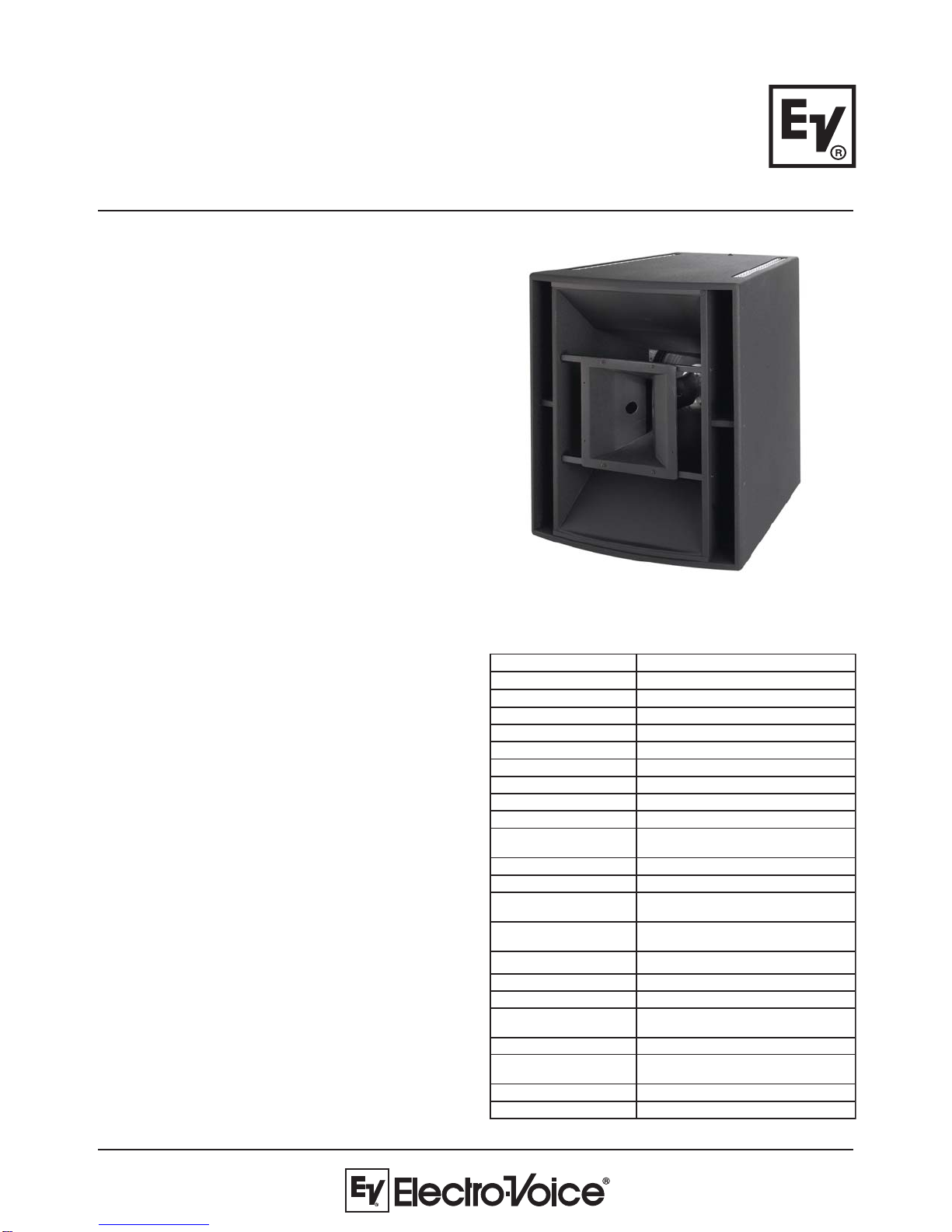

FRX+940/FRX+940PI
15-InchTwo-Way
Horn-Loaded 90° x 40°
Coaxial Speaker System
Key Features:
• Pattern Control to 500 Hz
• 90° x 40° coverage
• Built-in L-track rigging
• Available in black, white and
unfinished
• Passiveorbi-ampoperation
• Highsensitivity,104dB
• Ring-Mode Decoupling / RMDTM
• Full Coaxial Design
• WeatherizedVersion Available (FRX+940PI)
1FullSpacemeasurement. HalfSpaceusewillimproveLFresponse.

Impedance:Frequency Response (Full Space):
Horizontal Off Axis Frequency Response:Beamwidth:
Vertical Off Axis Frequency Response
(up/down):
Directivity:
Block Diagram:
FRX+940/FRX+940PI Full Range Loudspeaker

Horizontal 1/3 Octave Polars:
Engineering Data Sheet
Vertical 1/3 Octave Polars:

U.S.A. and Canada only. For customer orders, contact Customer Service at:
800/392-3497 Fax: [phone]
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
+ 49 9421-706 0 Fax: + 49 9421-706 265
Other International locations. For customer orders, contact Customer Service at:
+ 1 952 884-4051 Fax: + 1 952 736-4212
For warranty repair or service information, contact the Service Repair department at:
800/685-2606
For technical assistance, contact Technical Support at: 866/78AUDIO
Specifications subject to change without notice.
12000 Portland Avenue South, Burnsville, MN 55337
Phone:[phone],Fax:[phone]
www.electrovoice.com
© Telex Communications, Inc. 6/2007
Part Number 38110-124 Rev. H
Architectural & Engineering Specs:
Theloudspeakersystemshallbeacoaxial,two-wayfullrangedesignconsisting ofa15-inch woofer,ahigh-frequencycompression
driver on a molded constant-directivity horn and a dividing network providing an acoustic crossover frequency of 1,350 Hz. The
systemshallbe configurableinabiampmode bymovingasingleconnector inthecrossovernetwork. Theloudspeaker shallmeet
thefollowingperformancecriteria;power-handling,400watts,baseduponANSI/EIARS-426-A1980standardforfull-rangeloudspeaker
systems; frequency response, smooth and usable at high SPL levels from 60 Hz to 15 kHz; pressure sensitivity, 104 dB SPL
(passive mode) or 105 dB (LF)/109 dB (HF) in biamp mode for 1W at 1m; impedance, 8 ohms nominal, 7 ohms minimum. The
system shall have a distribution pattern of 90° nominal horizontally from 500 Hz to 15 kHz and 40° nominal vertically from 500
Hz to 15 kHz. The enclosure shall be constructed from 13-ply birch plywood and braced appropriately, and the grille shall be
constructed from 16 GA powder-coated steel backed by acoustically transparent fabric. The PI version shall have multilayer
stainless steel grille, stainless steel fasteners, and aluminum hardware. The dimensions shall be 800 mm (31.5 in.) high by
724 mm (28.5 in.) wide by 686 mm (27.0 in.) deep. Net weight shall be 68.95 kg (152 lb).
The two-way loudspeaker shall be the Electro-Voice FRX+940 or FRX+940PI.
Dimension Drawings:
Part number 301401-000 transformer kit is available to mount
internally to any FRX+ System. The kit includes a special 300 Watt
line transformer for operating on 70, 100, and 140 volt distributed
line systems, wiring harness, instructions, and hardware. At 300
Watts it has a bandwidth of 35 Hz to 15 kHz ±±
±±
±1dB.
Line Transformer Kit: FRX+940PartNumbers
• 301238-000 - Unfinished
• 301238-001 - Black
• 301238-002 - White
FRX+940PIPartNumbers
• 301393-001 - Black
