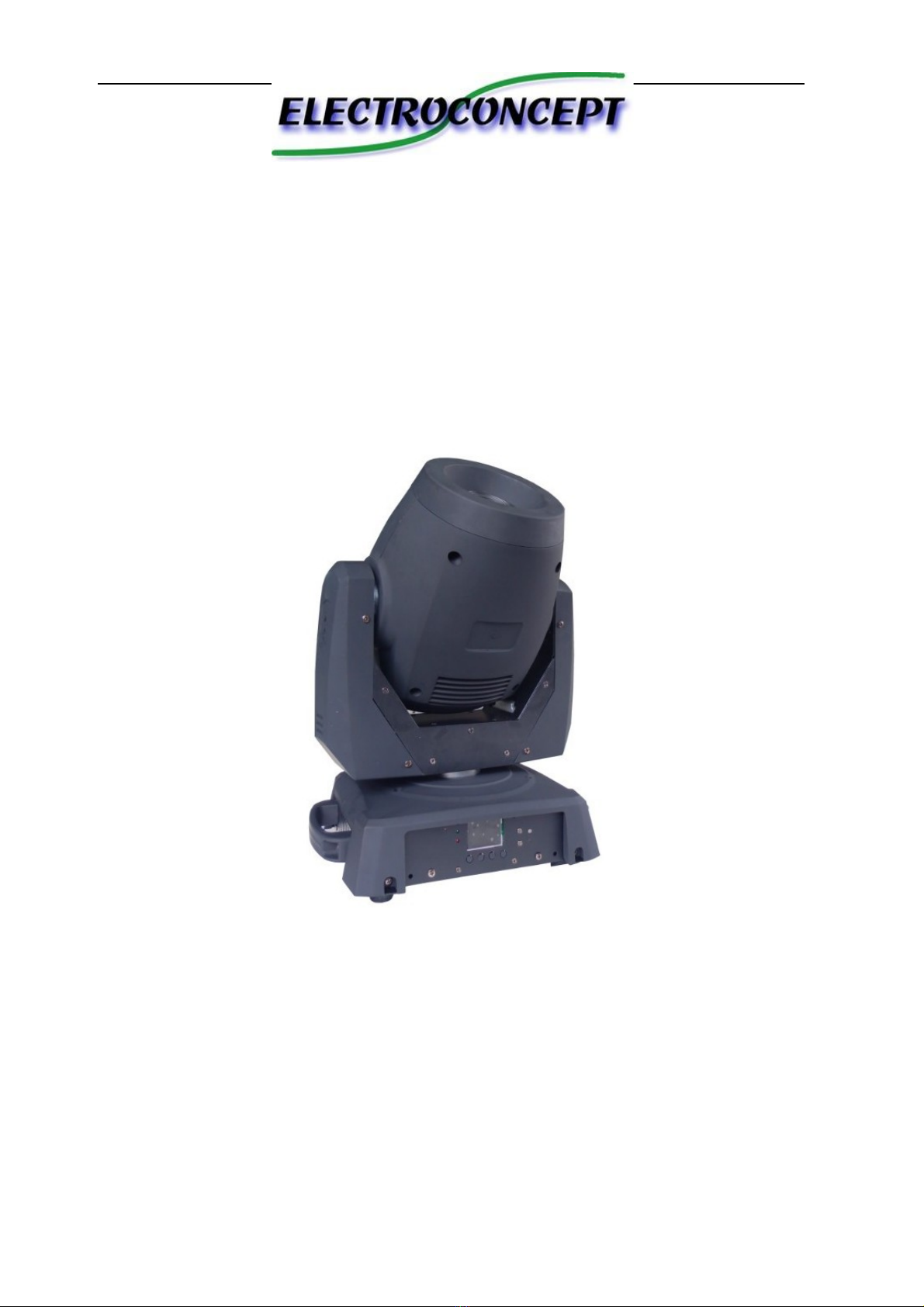

Electroconcept M SPOT 120 User manual

M SPOT 120
PROFILE 120 SPOT LED
Instruction manual
Thank you for purchasing this product.
Please carefully read this manual before using this moving head.

Responsibility :
On no account the Electroconcept company shall be held responsible for any damages of any nature
whatsoever, notably the operating loss, destruction of consumables (tape, disc, CD) or any other
financial loss resulting from the use or the impossibility to use your equipment. n addition
Electroconcept shall not be held responsible for damages due to an improper use of this product.
Warranty :
Electroconcept products have a 2 years manufacturer warranty. The equipment shall be returned
prepaid (at the customer's own expense). Any freight collect will be refused. The equipment shall be
returned in its original packaging. The equipment's restitution will be at our own expense.
Are excluded from warranty: damages due to fault, negligence, lack of maintenance by the user
(broken, burnt, heated, wet, sandy...etc devices), already installed devices of which the failure would
originate from an improper installation or use by the customer.
This manual is an integral part of this product, you will need to keep it during all of your product shelf-
life. n the event of cession of your product to a third party, you must also give this manual to this third
party.
TABLE OF ONTENTS
1. Safety instructions
2. Technical specifications
3. Moving head starting up
1. Access to main functions
2. DMX wiring
4. DMX control channels and values
5. Troubleshooting
6. Cleaning
1. Safety instructions
2

Please carefully read these instructions as they include
valuable information for installation, operation and
maintenance of this device
Warning
Keep this manual for future consultations. f you resell your moving head to an other
individual, make sure to also give him this manual.
Unpack and carefully check that the moving head didn’t take any damages during the
transport before using it.
Before any connection, make sure that both the voltage and the frequency of your power
source match your moving head specifications.
Check your device as well as your equipment’s grounding.
This device is only meant for indoor use ; protect it from heat and humidity (allowed
ambient temperature from 10 to 40°C).
The moving head must be set up in a ventilated area, at least 50cm away from any adjacent
surface. Check that no ventilation hole is blocked.
Unplug the moving head’s power source before any maintenance or handling operation.
Only replace the fuse by a fuse of the same type.
n order to avoid any fire hazard, check for any flammable source nearby.
Use safety cables to secure the moving head. Hold the moving head only by its carrying
handles to avoid degradation and risk of injury.
Switch off the power and let the moving head cool down for about 15 minutes before
transport, for the moving head’s surface may be hot still.
n the event of a serious functioning problem, stop immediately to use the device. Do no
ever try to repair the device by yourself. Repairs made by unqualified individuals may
cause damages or malfunctions. Contact the nearest approved technical support center.
Always use spare parts of the same type.
Do not ever touch the led with your bare fingers after use to avoid serious injuries, for the
led may be very hot still.
Do not start the moving head without led to avoid degradation of the box..
Replace the box and the lenses if they are visually damaged (for example cracks or
deep cuts during transport or handling). This is essential.
Do not look straight at the light going out of led when the moving head is switched on.
n order to prevent any risks of electrical shock you must not remove the cover. There is no
useful part for the user inside. Refer the repair to qualified personnel.
Installation
3

The moving head must be attached via its screw holes to the support with help of the provided
hook. Always make sure the moving head is firmly attached to avoid vibrations and sliding
during the operation.. Always make sure the structure to which the moving head is attached is
secured and able to bear 10 times the moving head’s weight.
2. Technical specifications.
This device does not produce radio interference. This device meets European and
French requirements. ompliance has been established, and statements and
respective documents have been registered by the manufacturer. This device has been
made for indoor decorative lighting effects.
Power supply
- AC 220-250V 50/60Hz
Power
- 180 W
Lamp
- LED 120W
Shutter/Dimmer
- Blackout, 0~100 variable strobe speed and soft transition
Movement
- Pan: 540/630°
- Tilt: 270°
Functions
- color wheel 8 colors + white
- gobos wheel 7 static gobos+ open
- 3 facet rotating prism
- linear focus
Weight/Dimensions
- 10,5 Kg / 330x240x360 mm
Operating mode
-DMX Control 15 or 19 channels./Stand-Alone with built-in microphone/Stand-Alone with
automatic mode /Master/Slave Mode
3.Moving head starting up
3.1. Access to main functions
ontrol panel:
”MENU“ “▼ ” “▲” ”ENTER”
Press the “MENU” button to access to functions then « ▼ » or « ▲ » to browse through sub-menus,
« ENTER » to confirm.“MENU” to go back.
2 Operating mode are available : DMX control or Stand-Alone mode.
4

DESCR PT ON DU MENU
Mode DMX
Stand-Alone mode : Auto 1 /Auto 2 Auto 3 /Auto 4
XYeffect1/XYeffect2/XYeffect3/XYeffect4/ Random
Sound mode
adresse DMX DMX address select on from 001 to 512
hannel mode DMX 14 or 18 channels mode select on
erse ON/OFF pan inversion
Y reverse ON/OFF tilt inversion
XY exchange ON/OFF
XY encoder ON/OFF pos t on sensor
Screen mode ON backlight on
OFF backlight shuts off after 30 seconds
Version vers on of f rmware /DMX channel /t me s nce act vat on/number of total hours.
Reset ON/OFF
3.2 DMX wiring
This product uses 3-pin XRL connectors for the DMX512 connection:
Pin 1 : Ground , Pin 2 : Data (-), Pin 3 : Data (+).
Example : connection between different fixtures in Master/Slave mode:
NB : in order to reduce signal errors, think of using a plug a the end of your DMX link.
4.DMX ontrol channels and values115 or 19 channels
CHANNEL VALUE FUNCTION
1 PAN 0-255 Pan
2 PAN fin 0-255 Pan Fin
3 T LT 0-255 Tilt
5

4 T LT fin 0-255 Tilt Fin
5 Speed 0-255 Pan/T lt speed
6 Shutter
0-3
4-251
255-255
Shutter closed
STROBOSCOPE from slow to fast
Shutter open
7 Dimmer 0-255 General dimmer
8 ,Colors
0-4
5-9
10-14
15-19
20-24
25-29
30-34
35-39
40-44
45-49
50-54
55-59
60-64
65-69
70-74
75-79
80-84
85-89
90-255
White
White + Red
Red
Red + Orange
Orange
Orange + Green
Green
Green+ Light Blue
Light Blue
Light Blue + Purple
Purple
Purple + Yellow
Yellow
Yellow + Blue
Blue
Blue + Rose
Rose
Rose + White
Clockwise rotation from slow to fast
Counter-clockwise rotation from slow to fast
9、Gobos wheel 0-4
5-9
10-14
15-19
20-24
25-29
30-34
35-39
40-129
130-134
135-220
221-225
226-230
231-235
236-240
241-245
246-250
White
Gobo1
Gobo2
Gobo3
Gobo4
Gobo5
Gobo6
Gobo7
Counter-clockwise rotation from slow to fast
STOP
Clockwise rotation from slow to fast
Gobo1 Shake
Gobo2 Shake
Gobo3 Shake
Gobo4 Shake
Gobo5 Shake
Gobo6 Shake
6

251-255 Gobo7 Shake
10 Gobos
rotation
0-63
64-127
128-191
192-255
Angle adjustment
Counter-clockwise Gobos rotation
Clockwise Gobos rotation
Gobos Shake rotation from slow to fast
11 Focus 0-255 Focus 0 – 100 %
12 Prism
0-127
128-255 No effect
Prism effect
13 Prism rotation
0-63
64-127
128-191
192-255
Angle adjustment
Counter-clockwise rotating prism
Clockwise rotating prism
Shake prism from slow to fast
14 Macro
0-5
6-10
51-100
101-150
151-255
Progressive Led shutdown.
mmediate Led shutdown
Program 1
Program 2
Program 3
15 Reset
0-25
26-76
77-127
128-255
No function
Wheels reset
PAN/T LT reset
General reset
16 Color effects 0-4
5-9
10-14
15-19
20-24
25-29
30-34
35-39
40-44
45-49
50-54
55-59
60-64
65-69
70-74
75-79
80-89
85-89
90-94
95-114
115-134
135-154
155-174
White
White + Red
Red
Red + Orange
Orange
Orange + Green
Green
Green+ Light Blue
Light Blue
Light Blue + Purple
Purple
Purple + Yellow
Yellow
Yellow + Blue
Blue
Blue + rose
Rose
Rose + White
White
Red
Orange
Green
Light Blue
7

175-194
195-214
215-234
235-254
255
Purple
Yellow
Blue
Rose
White
17 Colors speed 0-255 Color wheel rotation speed from fast to slow
18 Prism speed 0-255 Prism rotation speed from fast to slow
19 Gobos wheel
speed
0-255 Gobos wheel rotation speed from fast to slow
. Troubleshooting
A. The moving head does not work, no lights nor fan :
1. Check the power cord and the main fuse.
2. Check that your electrical system is working.
B. No response to DMX controller
1. A dot must flash on the dev ce control screen. If t’s not the case, check f cables are properly connected and
n good cond t on.
2. If the dot flashes, check your address ng as well as the polar ty of your DMX w r ng.
3. Try an other DMX controller
4. Avo d to lay your DMX cables alongs de h gh-voltage l nes to avo d nterference.
C.In Master/Slave Mode some devices don’t properly respond
1. Check cables and the connect on d agram.
2. Check that devices are properly assigned in Master/Slave mode.
6. Cleaning
Before any clean ng operat on, unplug the mov ng head power cord n order to avo d any electrocut on r sk.
Clean ng the opt c must be done per od cally n order to opt m ze the mov ng head’s br ghtness. The clean ng
frequency depends on the operat ng env ronment. Smoke and dust may cause a large accumulat on of d rt upon
the mov ng head’s opt cs :
-Clean t w th a soft dry cloth.
- Do not use l qu d or detergent products.
- Clean external lenses approximately every 20 days, with a soft dry cloth, without overly pressing on the lenses.
La gare 69620 CHAMELET
8
