Electroconcept M WASH 520P User manual

M WASH 520P
SPIDER LED 5X20 RGBW
Instruction manual
Than you for purchasing this product.
Please carefully read this manual before using this moving
head.
Responsibility :
On no account the Electroconcept company shall be held responsible for any damages of any nature
whatsoever, notably the operating loss, destruction of consumables (tape, disc, CD) or any other
financial loss resulting from the use or the impossibility to use your equipment. n addition
Electroconcept shall not be held responsible for damages due to an improper use of this product.
Warranty :

Electroconcept products have a 2 years manufacturer warranty. The equipment shall be returned
prepaid (at the customer's own expense). Any freight collect will be refused. The equipment shall be
returned in its original packaging. The equipment's restitution will be at our own expense.
Are excluded from warranty: damages due to fault, negligence, lack of maintenance by the user
(broken, burnt, heated, wet, sandy...etc devices), already installed devices of which the failure would
originate from an improper installation or use by the customer.
This manual is an integral part of this product, you will need to keep it during all of your
product shelf-life. In the event of cession of your product to a third party, you must also give
this manual to this third party.
TABLE OF CONTENTS
1. Safety instructions
2. Technical specifications
3. Moving head starting up
1. Access to main functions
2. DMX wiring
4. DMX control channels and values
. Troubleshooting
6. Cleaning
1. Safety instructions
Please carefully read these instructions as they include
valuable information for installation, o eration and
maintenance of this device
Warning
Keep this manual for future consultations. f you resell your moving head to an other
individual, make sure to also give him this manual.
Unpack and carefully check that the moving head didn’t take any damages during the
transport before using it.
Before any connection, make sure that both the voltage and the frequency of your power
2

source match your moving head specifications.
Check your device as well as your equipment’s grounding.
This device is only meant for indoor use ; protect it from heat and humidity (allowed
ambient temperature from 10 to 40°C).
The moving head must be set up in a ventilated area, at least 50cm away from any adjacent
surface. Check that no ventilation hole is blocked.
Unplug the moving head’s power source before any maintenance or handling operation.
Only replace the fuse by a fuse of the same type.
n order to avoid any fire hazard, check for any flammable source nearby.
Use safety cables to secure the moving head. Hold the moving head only by its carrying
handles to avoid degradation and risk of injury.
Switch off the power and let the moving head cool down for about 15 minutes before
transport, for the moving head’s surface may be hot still.
n the event of a serious functioning problem, stop immediately to use the device. Do no
ever try to repair the device by yourself. Repairs made by unqualified individuals may
cause damages or malfunctions. Contact the nearest approved technical support center.
Always use spare parts of the same type.
Do not ever touch the led with your bare fingers after use to avoid serious injuries, for the
led may be very hot still.
Do not start the moving head without led to avoid degradation of the box..
Re lace the box and the lenses if they are visually damaged (for exam le cracks or
dee cuts during trans ort or handling). This is essential.
Do not look straight at the light going out of led when the moving head is switched on.
n order to prevent any risks of electrical shock you must not remove the cover. There is
no useful part for the user inside. Refer the repair to qualified personnel.
Installation
The moving head must be attached via its screw holes to the support with help of the provided
hook. Always make sure the moving head is firmly attached to avoid vibrations and sliding
during the operation.. Always make sure the structure to which the moving head is attached is
secured and able to bear 10 times the moving head’s weight.
2. Technical specifications.
This device does not produce radio interference. This device meets
European and French requirements. Compliance has been established, and
statements and respective documents have been registered by the
manufacturer. This device has been made for indoor decorative lighting
effects.
3

Power supply
- AC 220-250V 50/60Hz
Power
- 130 W
Lamp
- 5 LED RGBW 20W With beam angle of 4°
Shutter/Dimmer
- Blackout, 0~100 variable strobe speed and soft transition
Movement
- Pan: 540°
- Tilt: endless
Weight/Dimensions
- 8,2 Kg / 420x200x300 mm
Operating mode
-DMX Control 17 or 32 channels./Stand-Alone with built-in microphone/Stand-Alone with
automatic mode /Master/Slave Mode
3.Moving head starting up
3.1. Access to main functions :
Control anel:
”MENU“ “▼ ” “▲” ”ENTER”
Press the “MENU” button to access to functions then « ▼ » or « ▲ » to browse through sub-menus,
« ENTER » to confirm.“MENU” to go back.
3 Operating modes are available : DMX control , Stand-Alone/Sound mode and Manual
mode
MENU DESCRIPTION
Set RunMode DMX
Stand-Alone mode : Auto 1 /Auto 2 Auto 3 /Auto 4
Sound mode
DMX Address
DMX address selection from 001 to 12
Channel mode
DMX 17 or 32 channels mode selection
Auto Speed
Auto mode speed
Inverse Pan
ON/OFF ipan inversion
Inverse Tilt
ON/OFF tilt inversion
XY exchange
ON/OFF
XY encoder
ON/OFF position sensor
4

No DMX Signal Moving head behavior in case of DMX signal loss
Keep = keep last received DMX values
Clear = reset of DMX values
Display
LCD standby screen : DMX Address / Blackout / None
Load default
Back to factory configuration
Manu
Pan, Tilt, Dimmer,..
Manual setting of the moving head
Sys
Ver version of firmware /DMX channel /time since
activation/number of total hours.
System errors
Recorded system errors
Total Fixture Hours
Operating hours factory tests included
Partial Fixture Hours
Operating hours since power up
Advan
Reservé
Restricted
3.2 DMX wiring
This product uses 3-pin XRL connectors for the DMX512 connection:
Pin 1 : Ground , Pin 2 : Data (-), Pin 3 : Data (+).

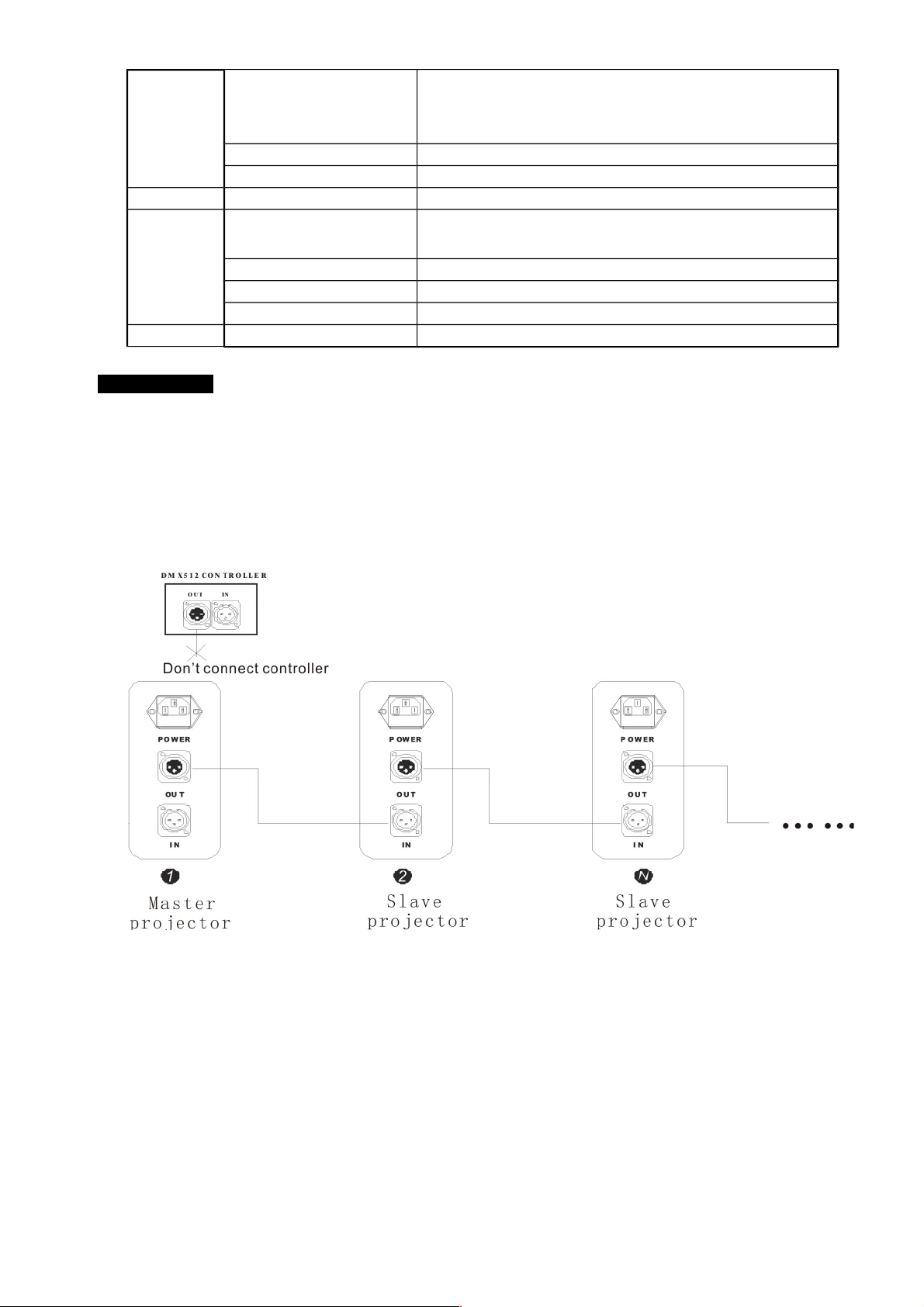

Example : connection between different fixtures in Master/Slave mode:
All fixtures must be at the same DMX address, the 1rst projector in Automatic or Sound mode,
following projectors in DMX mode at the same address of the Master projector.
NB : in order to reduce signal errors, think of using a plug a the end of your DMX link
5

4.DMX Control channels and values 116 16 channels
CHANNEL VALUE FUNCTION
1 PAN 0-2 Pan
2 PAN fin 0-2 Pan Fin
3 TILT 0-2 Tilt
4 TILT fin 0-2 Tilt Fin
Speed 0-2 Pan/Tilt speed
6 Endless Tilt
rotation
0-
6-149
1 0-2
No function
Clockwise rotation from fast to slow
Counter-clockwise rotation from fast to slow
7 Dimmer 0-2 General dimmer
8 Red 0-2 Red intensity 0 to 100 %
9 Green 0-2 Green intensity 0 to 100 %
10 Blue 0-2 Blue intensity 0 to 100 %
11 White 0-2 White intensity 0 to 100 %
12 Strobe 0-9
10-2
No function
Strobe from slow to fast
13 Macros,
Colors
0
1-17
18-3
36- 3
4-71
72-89
90-107
108-12
126-143
144-161
162-179
180-197
198-21
216-233
234-2
No function
Red
Green
Blue
White
Red+Green
Red+Blue
Red+White
Green+Blue
Green+White
Blue+White
Red+Blue+White
Red+Green+White
Green+Blue+White
Red+Green+Blue+White
14 Macro
-Program
Of color defined
by color
channels
0-10
11-20
21-40
41- 0
1-60
61-70
71-80
81-90
91-100
101-110
No function
Static 1
Static 2
Static 3
Static 4
Static
Color Macro 1
Color Macro 1
Color Macro 1
Color Macro 1
6

111-120
121-130
131-140
141-1 0
1 1-160
161-170
171-200
201-230
231-2
Color Macro 1
Color Macro 1
Color Macro 1
Color Macro 1
Color Macro 1
Color Macro 1
Black OUT
FULL ON
No function
Macros Colors
Programs
0-9
10-36
37-63
64-90
91-117
118-144
14 -171
172-200
201-230
231-2
No function
Program 1
Program 2
Program 3
Program 4
Program
Program 6
Program 7
Program 8
Program 9
16 speed
0-2
Speed of macro programs from slow to fast
17 Reset 0-2 0
2 1-2
No function
General reset
32 channels
CHANNEL VALUE Function
1 PAN 0-2 Pan
2 PAN fin 0-2 Pan Fin
3 TILT 0-2 Tilt
4 TILT fin 0-2 Tilt Fin
speed 0-2 Pan/Tilt speed
6 Endless Tilt
rotation
0-
6-149
1 0-2
No function
Clockwise rotation from fast to slow
Counter-clockwise rotation from fast to slow
7 Dimmer 0-2 General dimmer
8
Macros,Colors
0
1-17
18-3
36- 3
4-71
72-89
90-107
108-12
126-143
144-161
162-179
180-197
No function
Red
Green
Blue
White
Red+Green
Red+Blue
Red+White
Green+Blue
Green+White
Blue+White
Red+Blue+White
7

198-21
216-233
234-2
Red+Green+White
Green+Blue+White
Red+Green+Blue+White
9 Macros
Programs
0-9
10-36
37-63
64-90
91-117
118-144
14 -171
172-200
201-230
231-2
No function
Program 1
Program 2
Program 3
Program 4
Program
Program 6
Program 7
Program 8
Program 9
10 Speed 0-2 Speed of macro programs from slow to fast
11 Strobe 0-9
10-2
No function
Strobe from slow to fast
12 Red1 0-2 Intensity of 1rst red led 0 to 100 %
13 Green1 0-2 Intensity of 1rst green led 0 to 100 %
14 Blue1 0-2 Intensity of 1rst blue led 0 to 100 %
1 White1 0-2 Intensity of 1rst white led 0 to 100 %
16 Red2 0-2 Intensity of 2nd red led 0 to100 %
17 Green2 0-2 Intensity of 2nd green led 0 to 100 %
18 Blue2 0-2 Intensity of 2nd blue led 0 to 100 %
19 White2 0-2 Intensity of 2nd white led 0 to 100 %
20 Red3 0-2 Intensity of 3rd red led 0 to 100 %
21 Green3 0-2 Intensity of 3rd green led0 to 100 %
22 Blue3 0-2 Intensity of 3rd blue led 0 to 100 %
23 White3 0-2 Intensity of 3rd white led 0 to 100 %
24 Red4 0-2 Intensity of 4th red led 0 to 100 %
2 Green4 0-2 Intensity of 4th green led 0 to 100 %
26 Blue4 0-2 Intensity of 4th blue led 0 to 100 %
27 White4 0-2 Intensity of 4th white led0 to 100 %
28 Red 0-2 Intensity of th red led 0 to 100 %
29 Green 0-2 Intensity of th green led 0 to100 %
30 Blue 0-2 Intensity of th blue led 0 to 100 %
31 White 0-2 Intensity of th white led 0 to100 %
32 Reset 0-2 0
2 1-2
No function
General reset
8

5. Troubleshooting
A. The moving head does not work, no lights nor fan :
1. Check the power cord and the main fuse.
2. Check that your electrical system is working.
B. No res onse to DMX controller
1. A dot must flash on the device control screen. f it’s not the case, check if cables are
properly connected and in good condition.
2. f the dot flashes, check your addressing as well as the polarity of your DMX wiring.
3. Try an other DMX controller
4. Avoid to lay your DMX cables alongside high-voltage lines to avoid interference.
C. In Master/Slave Mode some devices don’t ro erly res ond
1. Check cables and the connection diagram.
2. Check that devices are properly assigned in Master/Slave mode.
6. Cleaning
Before any cleaning operation, unplug the moving head power cord in order to avoid any
electrocution risk. Cleaning the optic must be done periodically in order to optimize the
moving head’s brightness. The cleaning frequency depends on the operating environment.
Smoke and dust may cause a large accumulation of dirt upon the moving head’s optics :
-Clean it with a soft dry cloth.
- Do not use liquid or detergent products.
- Clean external lenses approximately every 20 days, with a soft dry cloth, without overly
pressing on the lenses.
