CentoLight Mood 1818WP User manual

Carefully read this manual and properly take care of it
Leggete questo manuale e conservatelo per future consultazioni
User Manual
Manuale Utente
18x18W RGBWA+V 6in1 Waterproof LED PAR Light
ENG
ITA
PAR per Uso Esterno (IP65) con 18 LED da 18W RGBWA+V 6in1
Mood 1818WP

22
Dear customer,
First of all thanks for purchasing a CENTOLIGHT® product. Our mission is to satisfy
all possible needs of light designers and professionals of entertainment lighting, by
offering a wide range of products based on the latest technologies.
We hope you will be satisfied with this fixture and, if you want to collaborate, we
are looking for a feedback from you about product operation and possible im-
provements to be introduced in the next future. Go to our website www.centolight.
com and send an e-mail with your opinion; this will help us to build equipment ever
closer to professional’s real requirements.
The CENTOLIGHT Team
Gentile Cliente,
Grazie per aver scelto un prodotto CENTOLIGHT®. La nostra missione è quella di
soddisfare ogni possibile richiesta da parte di light designers e professionisti dell’il-
luminotecnica per l’intrattenimento, offrendo una vasta gamma di apparecchiature
basate su tecnologie di ultima generazione.
Speriamo di aver soddisfatto le vostre aspettative e, se voleste collaborare, sarem-
mo lieti di ricevere un vostro feedback sulla qualità del prodotto al fine di migliorare
costantemente la nostra produzione. Visitate il nostro sito www.centolight.com ed
inviateci una mail con la vostra opinione; questo ci aiuterà a sviluppare nuovi pro-
dotti quanto più vicini alle vostre esigenze.
Il Team CENTOLIGHT

33
Eng
Table of ConTenTs
1 - Before You Begin 4
1.1. What is included- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
1.2. Unpacking Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
1.3. Accessories - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
1.4. Disclaimer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
2 - Safety Instructions 5
2.1. Symbols Meaning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
3 - MOUNTING AND RIGGING 5
3.1. Rigging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
3.2. Heat - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
3.3. Servicing - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
4 - Introduction 7
4.1. Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
5 - Product Overview 7
6 - Product Setup 8
6.1. Rear Panel Description- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
6.2. Power and Wiring - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
6.3. Mains Connections - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
6.4. Dmx Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
6.5. DMX Terminator - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
6.6. 3-Pin vs 5-Pin DMX cables - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
7 - Menu Operation 11
7.1. Operation Modes - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
8 - DMX Channel Chart 12
8.1. 6CH Mode (d001) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
8.2. 10CH-1 (A001) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
8.3. 10CH-2 (H001) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
9 - Troubleshooting 14
10 - Specication 14
11 - Warranty And Service 15
12 - Warning 16

44
MOOD 1818WP User Manual
Eng
1 - before You begin
Thank you for purchasing MOOD 1818WP waterproof Par. Enjoy your new equipment
and make sure to read this manual carefully before operation. This user manual is
made to provide both an overview of controls, as well as information on how to use
them.
1.1. What is included
Package include:
y1x CENTOLIGHT MOOD 1818WP PAR light
y1x 1.5m Power Cable (Euro-Plug to Waterproof Powercon)
yThis User Manual
ATTENTION: Packaging bag is not a toy! Keep out of reach of children!!! Keep in
a safe place the original packaging material for future use.
1.2. Unpacking Instructions
Carefully unpack the product immediately and check the content to make sure all
the parts are in the package and are in good condition.
If the box or the contents (the product and included accessories) appear damaged
by the shipping, or show signs of mishandling, notify the carrier or dealer/seller
immediately. In addition, keep the box and contents for inspection.
If the fixture must be returned to the manufacturer, it is important that it is returned
in the original manufacturer box and packing. Please do not take any action without
first contacting your dealer or getting in touch with our after-sales support service
(visit www.centolight.com for details).
1.3. Accessories
CENTOLIGHT can supply a wide range of quality accessories that you can use with
your fixture, like Clamps, Cables, Splitters, DMX controllers, and a wide range of
other fixtures.
All products in our catalogue has been long tested with this device, so we recom-
mend you to use Genuine CENTOLIGHT Accessories and Parts.
Ask your CENTOLIGHT dealer or check out our website www.centolight.com for any
accessories you could need to ensure best performance of the product.

55
MOOD 1818WP User Manual
Eng
1.4. Disclaimer
The information and specifications contained in this User Manual are subject to
change without notice. CENTOLIGHT assumes no responsibility or liability for any
errors or omissions and reserves the right to revise or to create this manual at any
time.
Copyright© 2021 CENTOLIGHT. All rights reserved.
2 - safeTY insTruCTions
yRead these instructions
yKeep these instructions
yHeed all warning
yFollow all instructions

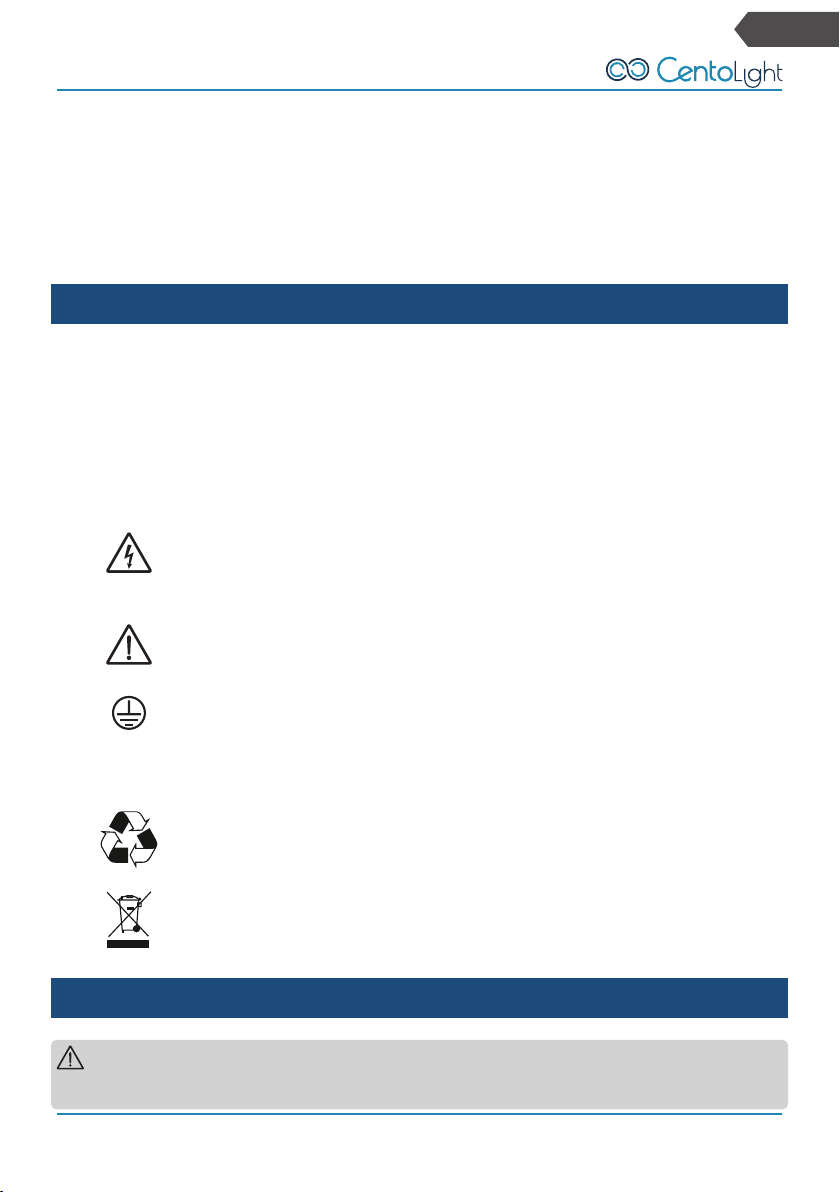

2.1. Symbols Meaning
The symbol is used to indicate that some hazardous live termi-
nals are involved within this apparatus, even under the normal
operating conditions, which may be sufficient to constitute the
risk of electric shock or death.
The symbol is used to describe important installation or config-
uration problems. Not following advice and information on how
to avoid such problems may lead to product malfunction.
This symbol indicates a protective grounding terminal.
WARNING: Describes precautions that should be observed to prevent the
danger of injury or death to the operator.
To protect the environment, please try to recycle packing materi-
al and exhausted consumables as much as possible.
Don’t throw this product away just as general trash, please deal
with the product follow the abandon electronic product regula-
tion in your country.
3 - MounTing anD rigging
Pay attention to safety! Please consider the EN 60598-2-17 and the national
standard during installation. Only authorized technicians can carry out it.

66
MOOD 1818WP User Manual
Eng
3.1. Rigging
yThe installation of the fixture has to be built and constructed in a way that it
can hold 10 times the weight for 1 hour without any harming demolition. The
installation must always be secured with a secondary safety attachment, e.g. an
appropriate catch net. This secondary safety attachment must be constructed in
a way that no part of the installation can fall down if the main attachment fails.
yWhen rigging, de-rigging or servicing the fixture staying in the area below the
installation place, on bridges, under high working places and other endangered
areas is forbidden. The operator has to make sure that the safety measure and
the machine’s technical installation is approved by an expert before taking into
operation for the first time and after changes before taking into operation an-
ther time. He has also to make sure that an expert approves safety measure and
the machine’s technical installation once a years.
IMPORTANT: Overhead rigging requires extensive experience, including (but not
limited to) calculating working load limits, installation material being used, and
periodic safety inspection of all installation material and the projector. If you
lack these qualications, do not attempt the installation yourself, but instead
use a professional structural rigger. Improper installation can result in bodily
injury or property loss.
yIf the fixture shall be lowered from the ceiling or high joists, professional trussing
systems have to be used. The fixture must never be fixed swinging freely in the
room.
CAUTION: Use appropriate clamps to rig the xture on the truss. Make sure that
the device is xed properly! Ensure that the structure (truss) to which you are
attaching the xtures is secure.
3.2. Heat
yDo not use in a confined space. Always install the product in a location with
adequate ventilation, at least 20in (50 cm) from adjacent surfaces.
yThe apparatus should be located away from heat sources such as radiators,
stoves or other appliances that produce heat.
Don not use it when maximum ambient temperature is higher than 50°C. Work
temperature ranges from -20°C to 50°C (-4°F to 122°F).

77
MOOD 1818WP User Manual
Eng
3.3. Servicing
yDo not implement any servicing other than those means described in the man-
ual. Refer all servicing to qualified service personnel only. The internal compo-
nents of the equipment must be purchased from the manufacturer. Only use
accessories/attachments or parts recommended by the manufacturer.
4 - inTroDuCTion
Especially designed for outdoor use thanks to the IP65 protection degree, CentoLi-
ght MOOD 1818WP is the right choice for architectural or live applications when a
compact yet powerful and silent projector is required.
It offers a complete color palette thanks to the 6in1 LED technology, which provides
Red, Green, Blue, White, Amber and Violet basic colors. The accurate and smooth
color mixing, the 6CH/7CH/10CH DMX control mode, the Master/Slave, Auto, and
Sound Active modes make this fixture extremely versatile. Power and DMX connec-
tions are completely waterproof to ensure maximum protections to rain and mud
infiltrations.
4.1. Features
yMade to resist to rigors of external weather conditions
ySuitable for outdoor architectural and live applications
yIP65 protection degree with waterproof connectors
yTotally silent operation
yDMX512 protocol, Master/Slave mode, Sound Active mode, Auto Run mode
yLight source: 18x18W RGBWA+V 6in1 long life-span LED
yLight Emission: 30000 Lux @1m (RGBWA+V max)
yBeam Angle: 40°

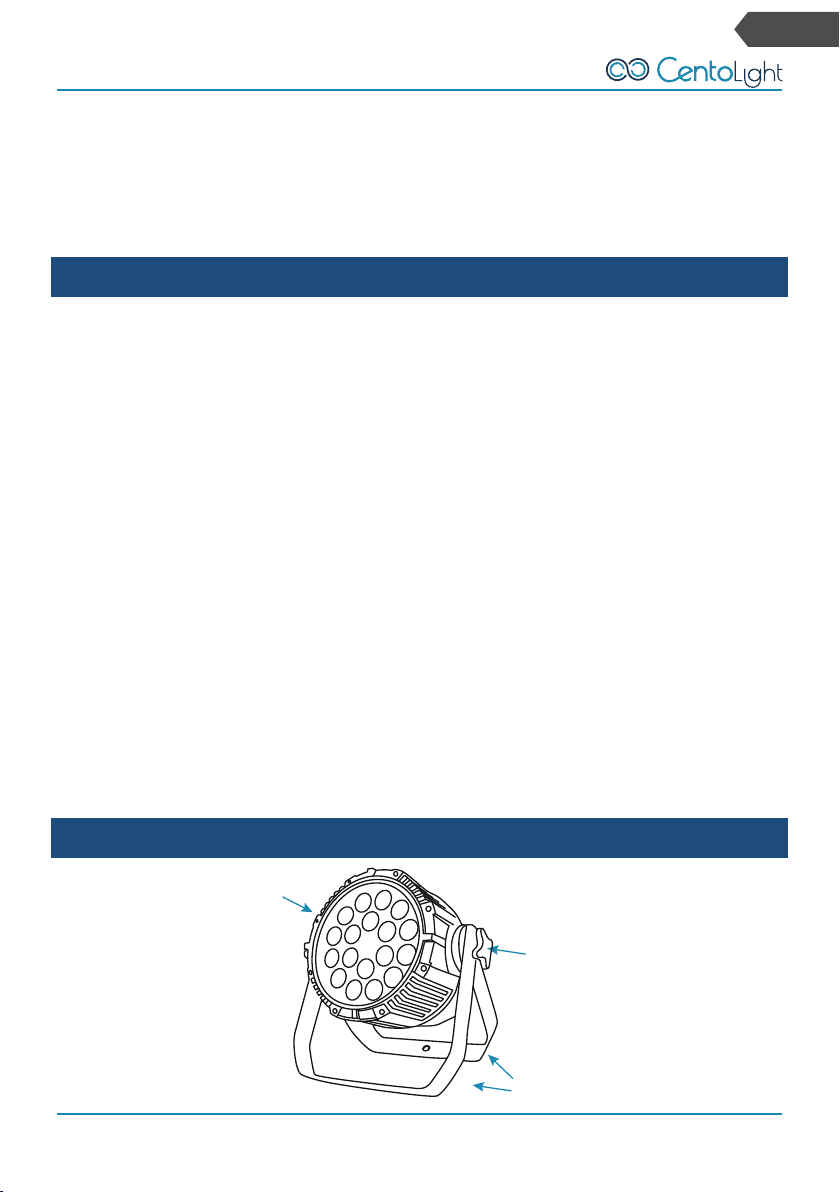

5 - ProDuCT overview
Brackets
Adjustment
knob
18W 6in1
Leds

88
MOOD 1818WP User Manual
Eng
6 - ProDuCT seTuP
POWER OUT
POWER IN
(100-240v/50-60Hz)
DMX OUT
DMX IN
ENTERMENU
1
3
2
4
5
6.1. Rear Panel Description
The operation panel includes power and DMX connectors, as well as LED display
and control buttons.
1) Power Input Socket
Plug the power-cord into an AC socket properly configured for this fixture. Please
read “6.2. Power and Wiring” on page 9 for details.
2) Power Output Socket
POWER OUT socket - Mood 1818WP is equipped with an out power connector to be
used as power mains source in case of cascade connection up to a maximum of
10 fixtures.
1st Unit 5th Unit4th Unit3rd Unit2nd Unit
Power Input
100-240Vac - 50/60Hz
up to 10 units
3) DMX Input
Male 3-pin XLR sockets for connection to a DMX control device

99
MOOD 1818WP User Manual
Eng
4) DMX Output
Female 3-pin XLR socket for sending the DMX control signal to other units.
5) 4 Digit LED Display & Control Buttons
This section of rear panel shows the operating mode and allows the user to setup
the unit
1
42
3
1. MENU Button - Short-press it to switch the setting pages (please read para-
graph “7 - Menu Operation” on page 11 for further details about menus and
settings).
2. UP Button - It scrolls up individual items in the selection menu and sub-menus
for system settings (DMX address, Operation Mode, etc.) and increases values/
settings of parameters.
3. DOWN Button - It scrolls down individual items in the selection menu and sub-
menus for system settings (DMX address, Operation Mode, etc.) and decreases
values/settings of parameters.
4. ENTER Button - Press ENTER to access menu levels and confirm parameter
value changes.
6.2. Power and Wiring
yAlways make sure that the voltage of the outlet to which you are connecting the
product is within the range stated in paragraph “10 - Specification” on page
14 or rear panel of the product (AC100V-240V 50/60Hz).
yMake sure the power cord is not crimped or damaged. Never connect this prod-
uct to a dimmer pack or rheostat.
yNever disconnect the product from power cord by pulling or tugging on the cord.
yTo avoid electric shock, all fixtures must be connected to circuits with a suitable
ground and circuit breaker.
6.3. Mains Connections
Connect the device to the mains with the supplied power cable. Wire correspon-
dence is as follows:

1010
MOOD 1818WP User Manual
Eng
Cable (EU) Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth
The earth must to be connected! Pay attention to the safety! Before taking into
operation for the rst time, the installation has to be approved by an expert.
6.4.Dmx Connection
When use a DMX controller, please make sure that there is no interference
sources (e.g. intercom, high frequency radio waves and radiation source).
DMX machines are designed to receive data through a serial Daisy Chain. A Daisy
Chain connection is where the DATA OUT of one fixture connects to the DATA IN of
the next fixture. The order in which the machines are connected is not important
and has no effect on how a controller communicates to each of them. Use an order
that provides for the easiest and most direct cabling.
3-Pin XLR
Pin 1: GND
Pin 2: DMX -
Pin 3: DMX +
OUTPUTINPUT
DMX use of 3-Pin XLR Connectors
DMX Termonator
Unit 1 Unit 2 Last Unit
DMX 512
Connect machines using shielded 2-conductor twisted pair cable with 3-pin XLR
male to female connectors. The shield connection is pin 1, while pin 2 is Data Nega-
tive (S-), and pin 3 is Data positive (S+).
CAUTION: Wires must not come into contact with each other; otherwise the x-
tures will not work at all, or will not work properly.
6.5. DMX Terminator
DMX is a resilient communication protocol, however errors still occasionally occur.
In order to prevent electrical noise from disturbing and corrupting the DMX control
signals, a good habit is to connect DMX output of last fixture in the chain to a DMX
terminator, especially over long signal cable runs.

1111
MOOD 1818WP User Manual
Eng
The DMX terminator is simply an XLR connector with a 120Ω (ohm), 1/4 Watt resistor
connected across Signal (-) and Signal (+), respectively, pins 2 and 3, which is then
plugged into the output socket on last projector in the chain. The connections are
illustrated below.
120ohm, 1/4W
Resistor
DMX Terminator
Complimentary signal cable can transmits signals to 20 unit xtures at most.
Signal amplier is a must to connect more xtures.
6.6.3-Pin vs 5-Pin DMX cables
DMX connection protocols used by controllers and fixtures manufacturers are not
standardized around the world. However, two are the most common standards:
5-Pin XLR and 3-Pin XLR system. If you wish to connect this fixture to a 5-Pin XLR in-
put fixture, you need to use an adapter-cable or make it by yourself. Below you can
see the wiring correspondence between 3-Pin and 5-Pin plug and socket standards
5-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
7 - Menu oPeraTion
By pressing MENU button, the display will show the main function menu.
Display Instruction
A001 (A001 - A512) 10-1 channel mode
d001 (d001 - d512) 6 channel mode
H001 (H001 - H512) 10-2 channel mode
CL01 (CL01 - CL32) 32 build-in color
CC01 (CC01 - CC99) Color jump effect, speed from slow to fast
EE01 (EE01 - EE99) Slow off-quick on effect, speed from slow to
fast
FF01 (FF01 - FF99) Color fade effect, speed from slow to fast
ST01 (ST01 - ST32)
SP01 - SP99 1-32 kinds of strobe effect Speed from slow to fast

1212
MOOD 1818WP User Manual
Eng
SOU1 (SE01-SE99)
SOU2 (SE01-SE99)
SOU3 (SE01-SE99)
Sound Effects:
SOU1: led changeable effect
SOU2: strobe effect
SOU3: Lightning strobe effect
R255 (R000—R255) Red Dimmer, 0-100%
G255 (R000—R255) Green Dimmer, 0-100%
B255 (R000—R255) Blue Dimmer, 0-100%
W255 (R000—R255) White Dimmer, 0-100%
Y255 (R000—R255) Amber Dimmer, 0-100%
P255 (R000—R255) Ultra Violet Dimmer, 0-100%
7.1. Operation Modes
The unit has several working modes:
yAuto mode - Built-in programs (Color Jump, Color Fade, Strobe)
ySound mode - 3 built-in Sound modes
yMaster/Slave mode - When active, the unit controls other PARs connected via
DMX cables. To set Master mode please refer to “7 - Menu Operation” on page
11.
You can use CL01 (CL01 to CL32) in case of 32-internal colors, or CC01 (CC01 to
CC99) for jump function, or EE01 (EE01 to EE99) in case of color change program,
FF01 (FF01 to FF99) for color fade, ST01 (ST01 to ST32) for strobe effect, SOU1-
3 (SE01 to SE99) to set Strobe effect type, R255 - G255, B255, W255, Y255, and
P255 for single fix colors. The controlled units must be set to Slave mode; slave is
A001/d001/H001.
yDMX512 mode - DMX512 control via controller.
8 - DMX Channel CharT
8.1. 6CH Mode (d001)
Channel Value Description
CH1 000 - 255 Red Dimmer 0 - 100%
CH2 000 - 255 Green Dimmer 0 - 100%
CH3 000 - 255 Blue Dimmer 0 - 100%
CH4 000 - 255 White Dimmer 0 - 100%
CH5 000 - 255 Amber Dimmer 0 - 100%
CH6 000 - 255 Ultra Violet Dimmer 0 - 100%
8.2. 10CH-1 (A001)
Channel Value Description
CH1 000 - 255 Linear dimmer, 0-100%
CH2 000 - 255 Red Dimmer, 0-100%

1313
MOOD 1818WP User Manual
Eng
CH3 000 - 255 Green Dimmer, 0-100%
CH4 000 - 255 Blue Dimmer, 0-100%
CH5 000 - 255 White Dimmer, 0-100%
CH6 000 - 255 Amber Dimmer, 0-100%
CH7 000 - 255 Ultra Violet Dimmer, 0-100%
CH8
Strobo
000 - 009 Strobo (No Function)
010 - 255 Strobo, Slow to fast
CH9
Macro Function
000 - 009 No function
010 - 050 Static color
051 - 100 Slow off, quick on
101 - 150 Led jump
151 - 200 Led fade
201 - 220 SOU1: led changeable effect
221 - 240 SOU2: strobe effect
241 - 255 SOU3: Lightning strobe effect
CH10
Color change /
Speed adjust-
ment
(Works with CH9)
000 - 255
(When CH9: 010-050) push CH10 to a static color selection
(When CH9: 051-200) push CH10 for the additional speed.
Speed changes from slow to fast.
8.3. 10CH-2 (H001)
Channel Value Description
CH1 000 - 255 Linear dimmer, 0-100%
CH2
Strobo
000 - 008 Strobo (No Function)
009 - 255 Strobo, Slow to fast
CH3
Macro Function
000 - 009 No function
010 - 050 Static color
051 - 100 LED jump
101 - 150 Slow off, quick on
151 - 200 Led fade
201 - 255 Sound active
CH4
Color change /
Speed adjust-
ment
(Works with CH3)
000 - 255
(When CH3: 010-050) pushes CH4 to a static color selection
(When CH9: 051-200) pushes CH4 for the additional speed.
Speed changes from slow to fast.
CH5 000 - 255 Red Dimmer, 0-100%
CH6 000 - 255 Green Dimmer, 0-100%
CH7 000 - 255 Blue Dimmer, 0-100%
CH8 000 - 255 White Dimmer, 0-100%
CH9 000 - 255 Amber Dimmer, 0-100%
CH10 000 - 255 Ultra Violet Dimmer, 0-100%

1414
MOOD 1818WP User Manual
Eng
9 - TroubleshooTing
Problem Probable Cause(s) Remedy
No response from fixture when
power is applies No power to fixture Check power cables
Check mains plug
Fixture does not reset correctly Electronic failure Contact service technician*
No light, LED cuts out intermit-
tently, or burns out too quickly
LED missing or blown Disconnect fixture and contact ser-
vice technician* fo LED replacement
Fixture or LED is too hot Allow fixture to cool. If problem per-
sists, contact service technician*
Fixture resets but does not
respond correctly to controller
(DMX mode operation)
Controller not connected Connect controller
Incorrect addressing of the
fixtures Check address setting on fixture and controller
Bad data link connection Inspect cables and correct poor con-
nections and/or broken cables.
Conflict between tracking and
vector control Eliminate scene cross-fade on controller
Data link not terminated Insert termination plug in output of
last fixture**
Defective fixture or 2 devices
transmitting on link
Bypass fixtures one at a time until
normal operation is regained: un-
plug both connectors and connect
them directly together
* To contact CentoLight service, see “11 - Warranty And Service” on page 15 or visit www.centolight.com
** For instruction on how to install a DMX terminator, see “6.5. DMX Terminator” on page 10.
10 - sPeCifiCaTion
Light source 18 x 18W RGBWA+V 6in1 LED
Beam angle 40°
Lux @ 1m R 2500 Lux, G 6600 Lux, B 1170 Lux, W8650 Lux, A 2900 Lux, V 50 Lux,
RGBWA+V 21000 Lux
CRI ≥75
DMX Channel Modes 6CH, 10CH-1, 10CH-2
Cooling System Convection (No Fan)
Power Supply Type Switching (internal)
Mains 100-240V - 50/60Hz
Consumption 340W
Light Size (LxDxH) 260x310x250 mm - 10.24x12.21x9.84 in (bracket installed)
Light Weight 4 kg - 8.82 lbs.
Packing Size (LxDxH) 290x290x340 mm - 11.42x11.42x13.38 in
Packing Weight 4.5 kg - 9.92 lbs.
Note: Our products are subject to a process of continual further development. Therefore modifications to the technical
features remain subject to change without further notice.

1515
MOOD 1818WP User Manual
Eng
11 - warranTY anD serviCe
All CENTOLIGHT products feature a limited two-year warranty. This two-year
warranty starts from the date of purchase, as shown on your purchase receipt. The
following cases/components are not covered by this warranty:
yAny accessories supplied with the product
yImproper use
yFault due to wear and tear
yAny modification of the product effected by the user or a third party
CENTOLIGHT shall satisfy the warranty obligations by remedying any material or
manufacturing faults free of charge at CENTOLIGHT’s discretion either by repairing
or exchanging individual parts or the entire appliance. Any defective parts removed
from a product during the course of a warranty claim shall become the property of
CENTOLIGHT.
While under warranty, defective products may be returned to your local CENTOLI-
GHT dealer together with the original proof of purchase. To avoid any damages in
transit, please use the original packaging if available. Alternatively, you can send
the product to CENTOLIGHT SERVICE CENTER – Via Enzo Ferrari, 10 – 62017 Porto
Recanati - Italy. In order to send a product to service center, you need an RMA num-
ber. Shipping charges have to be covered by the owner of the product.
For further information please visit www.centolight.com

1616
MOOD 1818WP User Manual
Eng
12 - warning
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only
This symbol indicates that this product is not to be disposed of with your household
waste, according to the WEEE Directive (2012/19/UE) and your national law.
This product should be handed over to a designated collection point, e.g., on an au-
thorized one-for-one basis when you buy a new similar product or to an authorized
collection site for recycling waste electrical and electronic equipment (WEEE).
Improper handling of this type of waste could have a possible negative impact on
the environment and human health due to potentially hazardous substances that
are generally associated with EEE. At the same time, your cooperation in the correct
disposal of this product will contribute to the effective usage of natural resources.
For more information about where you can drop off your waste equipment for recy-
cling, please contact your local city office, waste authority, approved WEEE scheme
or your household waste disposal service.

1717
Manuale Utente MOOD 1818WP
Ita
soMMario
1 - Prima Di Iniziare 18
1.1. Cosa è Incluso - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
1.2. Istruzioni per il Disimballaggio - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
1.3. Accessori- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
1.4. Limiti di Responsabilità - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 19
2 - Istruzioni di Sicurezza 19
2.1. Significato dei simboli - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 19
3 - Montaggio e Appendimento 19
3.1. Installazione Sospesa - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
3.2. Calore - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
3.3. Manutenzione - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21
4 - Introduzione 21
4.1. Caratteristiche - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21
5 - Panoramica del Prodotto 21
6 - Setup del prodotto 22
6.1. Descrizione del Pannello Posteriore - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22
6.2. Alimentazione e cablaggio- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23
6.3. Connessioni di Rete- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23
6.4. Connessioni DMX - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 24
6.5. Terminatore DMX - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 24
6.6. Cavi DMX 3-Poli/5-Poli- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25
7 - Funzionamento dei Menu 25
7.1. Modalità di funzionamento - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
8 - Assegnazioni e valori dei canali DMX 26
8.1. 6CH Mode (d001) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
8.2. 10CH-1 (A001) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
8.3. 10CH-2 (H001) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27
9 - Risoluzione dei Problemi 28
10 - Speciche Tecniche 28
11 - Garanzia e Assistenza 29
12 - Avviso UE e SEE (Norvegia, Islanda, Liechtenstein) 30

1818
Manuale Utente MOOD 1818WP
Ita
1 - PriMa Diiniziare
Grazie per aver acquistato CentoLight MOOD 1818WP. Prima di iniziare, assicuratevi
di leggere attentamente questo manuale. Esso è stato creato per fornire sia una
panoramica dei controlli, sia informazioni su come usarli.
1.1. Cosa è Incluso
La confezione include:
y1x faro CENTOLIGHT MOOD 1818WP
y1x Cavo di Alimentazione (Spina Schuko - Powercon Impermeabile)
yQuesto Manuale d’uso
ATTENZIONE: La confezione non è un giocattolo! Tenere fuori dalla portata dei
bambini! Conservare in un luogo sicuro il materiale di imballaggio originale.
1.2. Istruzioni per il Disimballaggio
Tirare fuori dall’imballo il prodotto con attenzione e controllare il cartone per assi-
curarsi che tutte le parti siano nella confezione e siano in buone condizioni.
Se la confezione o il contenuto (il prodotto e gli accessori inclusi) risultano danneg-
giati dalla spedizione o mostrano segni di maltrattamento, avvisare immediata-
mente il vettore o il rivenditore. Inoltre, conservare la scatola e il contenuto per una
eventuale ispezione.
Se l’apparecchiatura dovesse essere restituita al produttore, è importante che
venga riportata o spedita nell’imballo originale del produttore. Si prega di non
intraprendere alcuna azione senza prima contattare il proprio rivenditore o aver
contattato il nostro servizio di assistenza post-vendita (visitare www.centolight.com
per i dettagli).
1.3. Accessori
CENTOLIGHT fornisce un’ampia gamma di accessori di qualità che è possibile utiliz-
zare con le sue apparecchiature, come materiali di consumo, cavi, splitter, controller
DMX e un’ampia gamma di altri dispositivi.
Tutti i prodotti nel nostro catalogo sono stati testati a lungo con questo dispositivo,
quindi ti consigliamo di utilizzare accessori e ricambi originali CENTOLIGHT.
Chiedete al vostro rivenditore CENTOLIGHT o visitate il nostro sito web www.centoli-
ght.com per eventuali accessori di cui potreste aver bisogno per garantire le migliori
prestazioni al vostro prodotto.

1919
Manuale Utente MOOD 1818WP
Ita
1.4. Limiti di Responsabilità
Le informazioni e le specifiche contenute in questo manuale utente sono soggette
a modifiche senza preavviso. CENTOLIGHT non si assume alcuna responsabilità per
eventuali errori od omissioni e si riserva il diritto di rivedere o creare questo manua-
le in qualsiasi momento.
Copyright© 2021 CENTOLIGHT. Tutti i diritti riservati.
2 - isTruzioni Di siCurezza
yLeggete queste istruzioni
yConservate queste istruzioni
yPrestate attenzione a tutti gli avvertimenti
ySeguite tutte le istruzioni
2.1. Signicato dei simboli
Questo simbolo viene utilizzato per indicare che all’interno di
questo apparecchio sono presenti terminali sotto tensione, anche
in condizioni operative normali, che possono essere sufficienti a
costituire il rischio di scosse elettriche o morte.
Questo simbolo è usato per descrivere importanti problemi di
installazione o configurazione. Il mancato rispetto dei consigli e
delle informazioni su come evitare tali problemi può portare al
malfunzionamento del prodotto.
Questo simbolo indica un terminale di messa a terra.
ATTENZIONE Descrive precauzioni da osservare per prevenire lesioni o morte
dell’operatore.
Per proteggere l’ambiente, cercare di riciclare il più possibile il
materiale di imballaggio e i materiali di consumo esauriti
Non gettare questo prodotto come spazzatura generica, conferire
il prodotto seguendo le normative sui rifiuti elettronici in vigore
nel vostro paese.
3 - MonTaggio eaPPenDiMenTo
Prestare attenzione alla sicurezza! Si prega di fare sempre riferimento alla
direttiva EN 60598-2-17 e agli standard nazionali in fase di installazione. Solo
personale autorizzato può eseguire l’installazione.

2020
Manuale Utente MOOD 1818WP
Ita
3.1. Installazione Sospesa
yL’installazione del dispositivo deve essere progettata e costruita in un modo che
possa sopportare 10 volte il peso per 1 ora, senza alcun cedimento o danneg-
giamento della struttura. L’installazione deve essere sempre protetta con un
dispositivo di sicurezza secondario, ad esempio un cavo di sicurezza. Questo di-
spositivo deve essere realizzato in un modo tale che nessuna parte del prodotto
possa cadere se il fissaggio principale cedesse.
yDurante le operazioni di montaggio, smontaggio o manutenzione del faro è
vietato consentire lo stazionamento o anche solo il passaggio nell’area sotto-
stante l’installazione. L’operatore deve assicurarsi che l’installazione e i sistemi
di sicurezza siano approvati da un esperto prima di avviare per la prima volta il
funzionamento dopo aver apportato qualsiasi modifica. Deve inoltre assicurarsi
che un esperto approvi nuovamente l’installazione e i dispositivi di sicurezza
ogni anno.
IMPORTANTE: il montaggio su strutture sospese richiede un’esperienza specica;
tra cui (ma non soltanto) il calcolo dei limiti di carico di lavoro, la scelta del
materiale di installazione e l’ispezione periodica del proiettore e dei dispositivi
di sicurezza. Se non si dispone di tali qualiche, è bene non procedere con l’in-
stallazione da soli, ma si consiglia di rivolgersi a professionisti specializzati.
L’installazione impropria può provocare lesioni personali anche molto gravi.
ySe il faro deve essere alzato verso / o abbassato dal soffitto o da travi sospese,
è consigliabile usare sistemi di tralicci professionali. L’apparecchio non deve mai
essere lasciato oscillare liberamente.
ATTENZIONE: utilizzare i morsetti appropriati per montare l’apparecchio sul
traliccio. Assicurarsi che il dispositivo sia ssato correttamente e che il traliccio
stesso sia sicuro.
3.2. Calore
yNon usare in uno spazio ristretto. Installare sempre il prodotto in una posizione
con un’adeguata ventilazione, almeno 20 pollici (50 cm) da superfici adiacenti.
Assicurarsi che nessuna fessura di ventilazione sull’alloggiamento del prodotto
sia bloccato.
yL’apparecchio dovrebbe essere situato lontano da fonti di calore come radiato-
ri, stufe o altri apparecchi che producono calore.
Non usarlo quando la temperatura massima ambientale è superiore a 50 °C. La
temperatura ottimale di lavoro va da -20 °C a 50 °C (da -4 °F a 122 °F).
