MODELS 710 • 714 • 721 • 722
USE AND CARE USE AND CARE
WARNING: DISCONNECT ELECTRICAL POWER SUPPLY AND
LOCK OUT SERVICE PANEL BEFORE CLEANING OR SERVIC-
ING THIS UNIT.
BULB REPLACEMENT
Gently pull light lens away from grille. Push lens clips in toward
center of unit and remove lens.
Use bulbs that do not exceed recommended wattages.
MOTOR LUBRICATION
The motor is permanently lubricated. Do not oil or disassemble
motor.
CLEANING
TO CLEAN LENS AND GRILLE: Gently pull light lens away from
grille. Push lens clips in toward center of unit and remove lens.
Remove bulbs. Remove acorn nut in center of reflector, lower
assembly, and unplug light socket.
CAUTION: Unplug lights from WHITE receptacle. Use a mild
detergent, such as dishwashing liquid) and dry with a soft
cloth. Clean frame with a soft cloth and a product made for
cleaning wood. Do not use abrasive cloth, steel wool pads, or
scouring powders.
TO CLEAN FAN ASSEMBLY: Unplug fan assembly (BLACK
receptacle). To remove motor plate: Find the single tab on the motor
plate (located next to the receptacles). Push up near motor plate tab
while pushing out on side of housing. Or insert a straight-blade
screwdriver into slot in housing (next to tab) and twist screwdriver.
Gently vacuum fan, motor and interior of housing. METAL AND
ELECTRICAL PARTS SHOULD NEVER BE IMMERSED IN WATER.

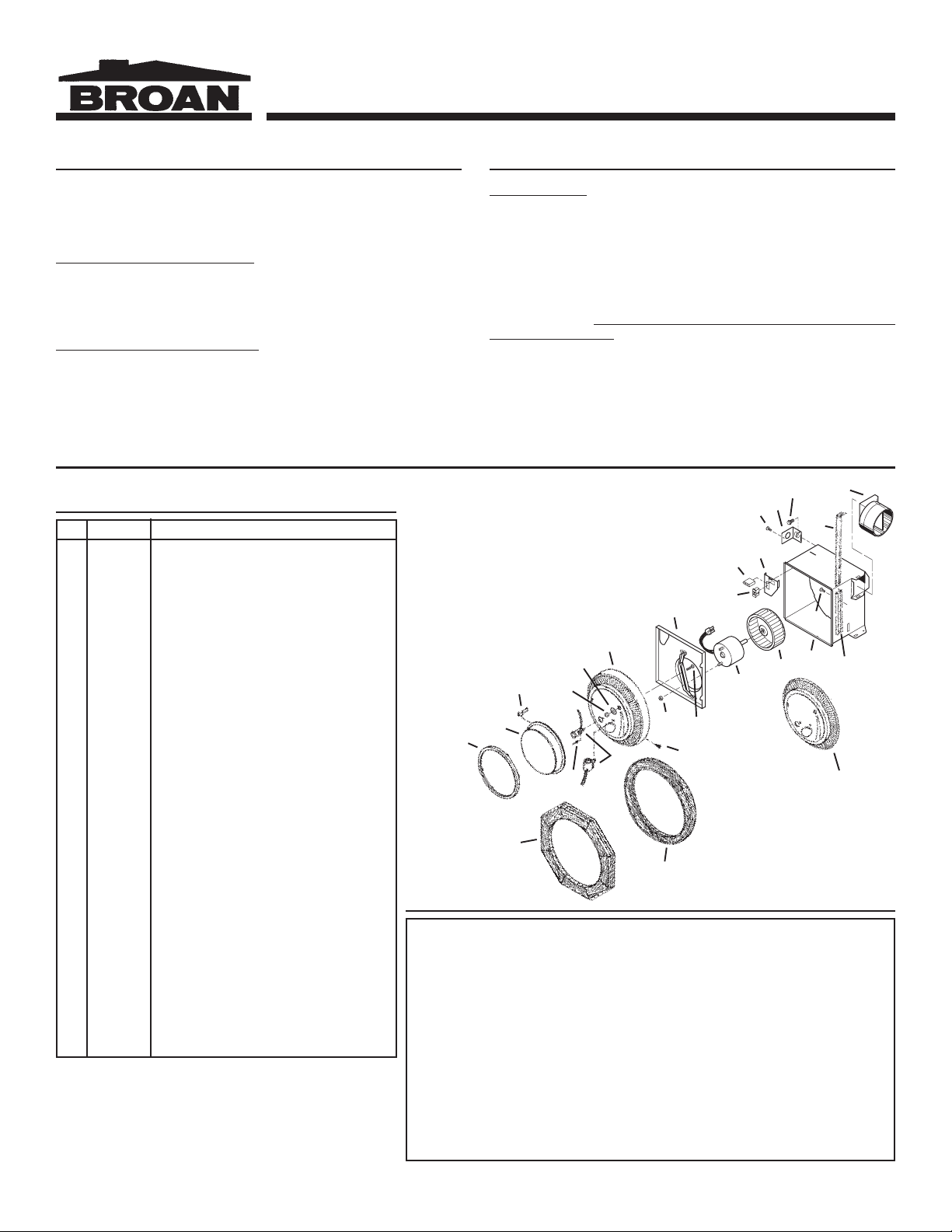

SERVICE PARTS
WARRANTY
99042908F
BROAN-NUTONE ONE YEAR LIMITED WARRANTY
Broan-NuTone warrants to the original consumer purchaser of its products that such products will be free from defects in
materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Duringthisone-yearperiod,Broan-NuTonewill,atitsoption,repairorreplace,withoutcharge,anyproductorpartwhichis
foundtobedefectiveundernormaluseandservice.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS AND TUBES. This warranty does
not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse,
negligence,accident,impropermaintenanceor repair(otherthan byBroan-NuTone),faulty installationorinstallation contrary
to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states
donot allow limitation on how long an implied warrantylasts, so the above limitation may not apply toyou.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE
PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE
LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION
WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or
consequentialdamages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This
warranty supersedes all prior warranties.
Toqualify for warranty service, you must (a) notify Broan-NuTone at the address ortelephone number below, (b) give the
modelnumber and part identification and (c)describethe nature of any defect intheproduct or part. At the timeofrequesting
warrantyservice, you must present evidence of the original purchase date.
Broan-NuToneLLC,926 West State Street, Hartford, WI 53027 (1-800-637-1453)
KEY PART NO. DESCRIPTION
1 97003932 Damper/Duct Connector
2 97014922 Housing
3 99270982 Receptacle - Black
4 99770085 Wire Harness
5 98009613 Wire Panel
6 98008868 Wiring Plate
7 99150575 Screw, #8-18 x .375* (5 req.)
8 99020276 Blower Wheel
9 99080517 Motor
10 97014926 Motor Plate
11 99260425 Nut - #8-32 Keps* (2 req.)
12 99150583 Grille Screw*
13 97005316 Acorn Nut*
14 99250399 Washer .875 dia.*
15 99160417 Screw - #8-32 x .375*
16 99770086 Lamp Socket Harness
17 99230343 Rivet - .125 Dia. x .275*
18 97015173 ReflectorAssembly - Brass Finish (Model 710)
(Includes Reflector & Key Nos. 16, 17 & 18)
18 97015175 Reflector Assembly - Chrome Finish (Model 714)
(Includes Reflector & Key Nos. 16, 17 & 18)
19 99140155 Spring Clip (2 req.)
20 99390052 Retainer Ring - Brass Finish
20 99390134 Retainer Ring - White Finish
20 99390075 Retainer Ring - Chrome Finish
21 99050020 Lens ONLY
97008781 LensAssembly - Brass Finish Ring
(Models 710, 721, 722)
(Includes Key Nos. 20, 21 & 22)
97008913 LensAssembly - Chrome Finish Ring (Model 714)
(Includes Key Nos. 20, 21 & 22)
23 97015177 Frame & ReflectorAssembly - Round (Model 721)
(Includes Reflector & Key Nos. 16, 17 & 18)
24 97015178 Frame & Reflector Assembly - Octagon (Model 722)
(Includes Reflector & Key Nos. 16, 17 & 18)
25 98007763 Slide Channel (2 req.)
26 98003036 SupportAngle (4 req.)
27 99150471 Ground Screw
* Standard Hardware - May be purchase locally.
Order replacement parts by PART NO. - Not by KEY NO.
1
2
3
45
6
7
8
9
10
11 12
13
15
16
17
18
19
20 21
REFLECTOR
23
24
14
7
25
26
27

®
Page 1
MODELS 710 • 714 • 721 • 722
!
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR IN-
JURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If
you have questions, contact the manufacturer at the address or
telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel
and lock the service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a quali-
fied person(s) in accordance with all applicable codes and stan-
dards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to
prevent backdrafting. Follow the heating equipment
manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air Con-
ditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage elec-
trical wiring and other hidden utilities.
DESIGNER SERIES
FAN/LIGHT WITH/NIGHT LIGHT
READ AND SAVE THESE INSTRUCTIONS
Installer: Leave this manual with the homeowner.
Homeowner: Use and Care information on page 4.
WARNING
6. Ducted fans must always be vented to the outdoors.
7. If this unit is to be installed over a tub or shower, it must be marked
as appropriate for the application and be connected to a GFCI
(Ground Fault Circuit Interrupter) - protected branch circuit.
8. Never place a switch where it can be reached from a tub or
shower.
9. This unit must be grounded.
CAUTION
1. For general ventilating use only. Do not use to exhaust hazard-
ous or explosive materials and vapors.
2. This product is designed for ceiling installation only. This product
is designed for installation in ceilings up to a 12/12 pitch. Ductwork
must point up. DO NOT MOUNT THIS PRODUCT IN A WALL.
3. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
4. Please read specification label on product for further informa-
tion and requirements.
TYPICAL INSTALLATIONS
HOUSING
CEILING
JOIST
CEILING
MATERIAL
POWER CABLE
GRILLE
MOUNTING
BRACKETS
HOUSING
CEILING
JOIST
CEILING
MATERIAL
POWER CABLE
GRILLE
MOUNTING
BRACKETS
For a rigid mount: Brackets can
be joined together with a
#8 x 3/8 self-tapping screw
16”-ON-CENTER
CEILING JOISTS
24”-ON-CENTER
CEILING JOISTS
MOUNTING
TAB
SUSPENDED
CEILING MATERIAL
POWER
CABLE
4" ROUND
DUCT
HOUSING
GRILLE
SUSPENDED CEILINGS
Housing hung with wires -
3-point mount.
