Alliance Laundry Systems HC18MC2 User manual

Programming
www.comlaundry.com
Washer-Extractors
Cabinet Hardmount – Coin and OPL
Mechanical Timer
Refer to Page 6 for Model Identification
HOT WARM WARM COLD
HEAVILY
SOILED
PERM-
PRESS
NORMAL
WASH
DELICATE
KNITS
CHM1762C
CHM1762C
Part No. F232133R4
June 2008
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
https://appliancetechmanuals.com

https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2008 Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
F232133 1
Table of
Contents
Safety Information.............................................................................. 2
Important Safety Instructions ............................................................... 2
Safety Decals ........................................................................................ 4
Operator Safety..................................................................................... 5
Introduction......................................................................................... 6
Model Identification ............................................................................. 6
Nameplate Location.............................................................................. 7
Replacement Parts ................................................................................ 7
Customer Service.................................................................................. 7
Programming ...................................................................................... 9
Setting the Jumpers With Circuit Board............................................... 9
Setting the Jumpers Without Circuit Board.......................................... 12
Programming the Digital Coin Meter ................................................... 15
Setting the Parameters .......................................................................... 16
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
2F232133
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMITF232133 3
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
2F232133
Safety Information
Precautionary statements (“DANGER,” “WARNING”
and “CAUTION”), followed by specific instructions,
are found in this manual and on machine decals. These
precautions are intended for the personal safety of the
operator, user, servicer, and those maintaining the
machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION MANUAL for the proper
grounding of the washer.
3. Do not wash textiles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, kerosene, waxes, cooking oils,
dry-cleaning solvents, or other flammable or
explosive substances as they give off vapors that
could ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas is
flammable; do not smoke or use an open flame
during this time.
6. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is
moving.
DANGER indicates the presence of a
hazard that will cause severe personal
injury, death, or substantial property
damage if the danger is ignored.
DANGER
WARNING indicates the presence of a
hazard that can cause severe personal
injury, death, or substantial property
damage if the warning is ignored.
WARNING
CAUTION indicates the presence of a
hazard that will or can cause minor
personal injury or property damage if the
caution is ignored.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING
https://appliancetechmanuals.com

Safety Information
3
F232133 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
9. Do not install or store the washer where it will be
exposed to water and/or weather.
10. Do not tamper with the controls.
11. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that the user understands and has the
skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power source.
13. Use washer only for its intended purpose,
washing textiles.
14. Never wash machine parts or automotive parts in
the machine. This could result in serious damage
to the basket.
15. ALWAYS disconnect the washer from electrical
supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
16. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections for water, drain, electrical power and
grounding must comply with local codes and be
made by licensed personnel when required.
17. To reduce the risk of fire, textiles which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc. or anything
containing wax or chemicals such as in mops and
cleaning cloths, must not be put into the washer.
These flammable substances may cause the
fabric to catch on fire by itself.
18. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
19. Keep washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have washer checked by a qualified
service person.
20. If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
21. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
22. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT
bypass the loading door switch by permitting the
washer to operate with the loading door open.
23. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of the reach of children at all times
(preferably in a locked cabinet).
24. Always follow the fabric care instructions
supplied by the textile manufacturer.
25. Never operate the washer with any guards and/or
panels removed.
26. DO NOT operate the washer with missing or
broken parts.
27. DO NOT bypass any safety devices.
28. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNINGS and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining or operating the washer.
Any problems or conditions not understood should be
reported to the dealer, distributor, service agent or the
manufacturer.
https://appliancetechmanuals.com

Safety Information
F232133
4© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
IMPORTANT: Ensure that the recommended
clearances for inspection and maintenance
are provided. Never allow the inspection and
maintenance space to be blocked.
Safety Decals
Safety decals appear at crucial locations on the
machine. Failure to maintain legible safety decals
could result in injury to the operator or service
technician.
To provide personal safety and keep the machine in
proper working order, follow all maintenance and
safety procedures presented in this manual. If
questions regarding safety arise, contact the
manufacturer immediately.
Use manufacturer-authorized spare parts to avoid
safety hazards.
This machine must be installed, adjusted,
and serviced by qualified electrical
maintenance personnel familiar with the
construction and operation of this type of
machinery. They must also be familiar
with the potential hazards involved.
Failure to observe this warning may result
in personal injury and/or equipment
damage, and may void the warranty.
SW004
WARNING
Install the machine on a level floor of
sufficient strength. Failure to do so may
result in conditions which can produce
serious injury, death and/or property
damage.
W703
WARNING
Be careful around the open door,
particularly when loading from a level
below the door. Impact with door edges
can cause personal injury.
SW025
CAUTION
Never touch internal or external steam
pipes, connections, or components.
These surfaces can be extremely hot and
will cause severe burns. The steam must
be turned off and the pipe, connections,
and components allowed to cool before
the pipe can be touched.
SW014
WARNING
https://appliancetechmanuals.com

Safety Information
5
F232133 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operator Safety
To ensure the safety of machine operators, the
following maintenance checks must be performed
daily:
1. Prior to operating the machine, verify that all
warning signs are present and legible. Missing or
illegible signs must be replaced immediately.
Make certain that spares are available.
2. Check door interlock before starting operation of
the machine:
a. Attempt to start the machine with the door
open. The machine should not start with the
door open.
b. Close the door without locking it and attempt
to start the machine. The machine should not
start with the door unlocked.
c. Close and lock the door and start a cycle.
Attempt to open the door while the cycle is in
progress. The door should not open.
If the door lock and interlock are not functioning
properly, call a service technician.
3. Do not attempt to operate the machine if any of
the following conditions are present:
a. The door does not remain securely locked
during the entire cycle.
b. Excessively high water level is evident.
c. Machine is not connected to a properly
grounded circuit.
Do not bypass any safety devices in the machine.
NEVER insert hands or objects into
basket until it has completely stopped.
Doing so could result in serious injury.
SW012
WARNING
Never operate the machine with a
bypassed or disconnected balance
system. Operating the machine with
severe out-of-balance loads could result
in personal injury and serious equipment
damage.
SW039
WARNING
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
6F232133
Introduction
Model Identification
Information in this manual is applicable to these
models:
HC18MC2 HC30MX2 HC80MD3 SC20MD2 SC35MN2 SC80MH3 UC30MX2
HC18MDX HC30MY2 HC80MH3 SC20ML2 SC35MN3 SC80MN3 UC35MC2
HC18MD2 HC35MC2 HC80MN3 SC20MN2 SC35MV2 SC80MV3 UC35MC3
HC18MH2 HC35MD2 HC80MV3 SC20MX2 SC35MV3 UC18MC2 UC35MD2
HC18MN2 HC35MDX NC18MD2 SC20MY2 SC35MX2 UC18MC3 UC35MD3
HC18MV2 HC35MH2 NC18MDX SC25MC2 SC40MD2 UC18MD2 UC35MH2
HC18MX2 HC35MN2 NC18MX2 SC25MD2 SC40ML2 UC18MD3 UC35MH3
HC20MD2 HC35MX2 NC25MD2 SC25MH2 SC40MN2 UC18MH2 UC35MN2
HC20ML2 HC35MV2 NC25MDX SC25ML2 SC40MX2 UC18MH3 UC35MN3
HC20MN2 HC40MD2 NC25MX2 SC25MN2 SC40MY2 UC18MN2 UC35MV2
HC20MX2 HC40ML2 NC27MD2 SC25MV2 SC50MC2 UC18MN3 UC35MV3
HC20MY2 HC40MN2 NC27MDX SC25MX2 SC50MC3 UC18MV2 UC35MX2
HC25MC2 HC40MX2 NC27MX2 SC25MY2 SC50MD2 UC18MV3 UC40MN2
HC25MD2 HC40MY2 NC35MD2 SC27MC2 SC50MD3 UC18MX2 UC50MC2
HC25MDX HC50MC2 NC35MDX SC27MD2 SC50MH2 UC20MD2 UC50MC3
HC25MH2 HC50MD2 NC35MX2 SC27MH2 SC50MH3 UC20ML2 UC50MD2
HC25ML2 HC50MH2 NC50MD2 SC27MN2 SC50ML2 UC20MN2 UC50MD3
HC25MN2 HC50ML2 NC50MDX SC27MV2 SC50MN2 UC20MX2 UC50MH2
HC25MV2 HC50MN2 NC50MX2 SC27MX2 SC50MN3 UC25MC2 UC50MH3
HC25MX2 HC50MV2 SC18MC2 SC30MD2 SC50MV2 UC25MD2 UC50MN2
HC25MY2 HC50MX2 SC18MC3 SC30ML2 SC50MV3 UC25MH2 UC50MN3
HC27MC2 HC50MY2 SC18MD2 SC30MN2 SC50MX2 UC25MN2 UC50MV2
HC27MD2 HC60MC2 SC18MD3 SC30MX2 SC50MY2 UC25MV2 UC50MV3
HC27MDX HC60MD2 SC18MH2 SC30MY2 SC60MD2 UC25MX2 UC50MX2
HC27MH2 HC60ML2 SC18MH3 SC35MC2 SC60ML2 UC27MC2 UC60MN2
HC27MN2 HC60MN2 SC18MN2 SC35MC3 SC60MN2 UC27MD2 UC80MC3
HC27MV2 HC60MX2 SC18MN3 SC35MD2 SC60MX2 UC27MN2 UC80MD3
HC27MX2 HC60MY2 SC18MV2 SC35MD3 SC60MY2 UC27MX2 UC80MH3
HC30MD2 HC80MC3 SC18MV3 SC35MH2 SC80MC3 UC30ML2 UC80MN3
HC30ML2 HC80MD2 SC18MX2 SC35MH3 SC80MD3 UC30MN2 UC80MV3
HC30MN2
https://appliancetechmanuals.com

Introduction
7
F232133 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Nameplate Location
The nameplate is located at the rear of the machine and
inside door. Always provide the machine’s serial
number and model number when ordering parts or
when seeking technical assistance.
Replacement Parts
If literature or replacement parts are required, contact
the source from whom the machine was purchased or
contact Alliance Laundry Systems LLC at
[phone] for the name and address of the
nearest authorized parts distributor.
Customer Service
For technical assistance, call:
[phone]
Ripon, Wisconsin
www.comlaundry.com
CHM167R
1Nameplate
CHM167R
1
https://appliancetechmanuals.com

Introduction
F232133
8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
* Denotes Brand
Model Number Familiarization Guide
Sample Model Number: *C60MX20060001
CModel Number Prefix
60 Washer-Extractor Capacity (pounds dry weight of laundry)
MType of Electrical Control
XActuation (X = Prep for coin)
2Washer-Extractor Speed Capability (2 = 2 speed)
OElectrical Characteristics
U6 Design Series
0001 Option Identification (varies from machine to machine)
CHM2028N
CHM2028N
*C60MX2OU60001
00000000000
500000
208 – 240
60 3 3
0
18
3
60
N/A N/A
470
7
EXAMPLE OF NAMEPLATE
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9
F232133
Programming
The wash cycle program in machines equipped with a
mechanical timer can be modified to a limited extent.
The following changes can be made:
●The prewash time may be set to two minutes,
four minutes or omitted altogether.
●The wash time may be set to either four minutes
or eight minutes.
●The water level for the wash step may be set to
either low or high.
●The water temperature for the rinses may be set
to either cold or warm.
●The final spin time may be set to either
two minutes or four minutes.
Setting the Jumpers With Circuit
Board
NOTE: The odd-numbered side of the timer is used
to change the duration of individual cycle steps.
The even-numbered side of the timer is used to
adjust the rinse temperature or to change the water
level for the wash step.
1. Disconnect the power to the machine.
2. Unlock and raise top cover.
3. Remove control module cover.
4. Locate the mechanical timer in the middle of the
control module.
5. Install or remove jumpers on the odd side to set
desired cycle time. Refer to Figure 1 and Table 1
for jumper configurations for odd-side options.
Figure 1
To reduce the risk of electric shock,
serious injury or death, earth (ground) the
dryer frame externally by connecting one
end of a grounding wire under ground
screw on cabinet rear and the other end
to a known effective ground.
W356
WARNING
B165R
B165R
JP1
JUMPER INSTALLED
JUMPER REMOVED
https://appliancetechmanuals.com

Programming
F232133
10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

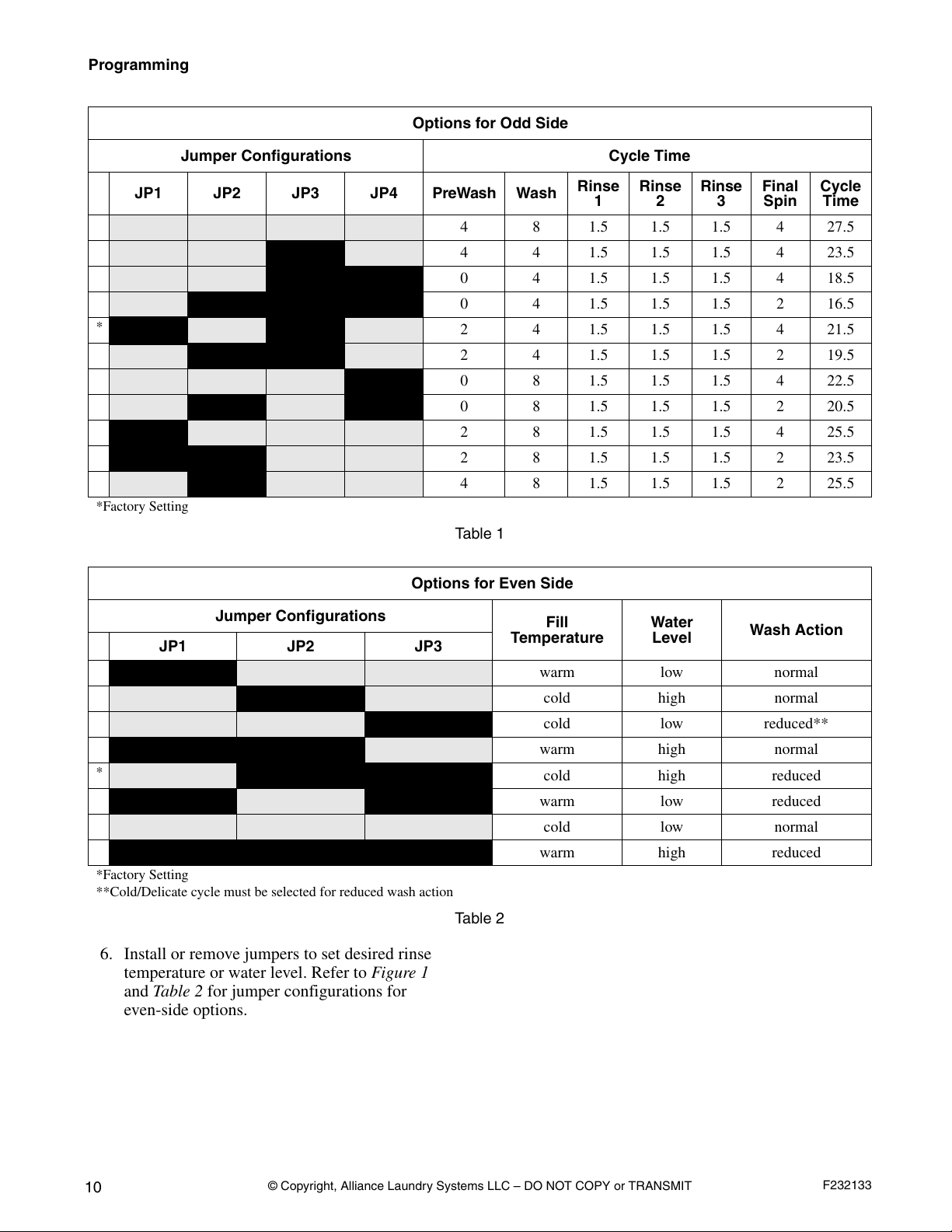

6. Install or remove jumpers to set desired rinse
temperature or water level. Refer to Figure 1
and Table 2 for jumper configurations for
even-side options.
Options for Odd Side
Jumper Configurations Cycle Time
JP1JP2JP3JP4PreWashWash
Rinse
1
Rinse
2
Rinse
3
Final
Spin
Cycle
Time
4 8 1.5 1.5 1.5 4 27.5
4 4 1.5 1.5 1.5 4 23.5
0 4 1.5 1.5 1.5 4 18.5
0 4 1.5 1.5 1.5 2 16.5
*2 4 1.5 1.5 1.5 4 21.5
2 4 1.5 1.5 1.5 2 19.5
0 8 1.5 1.5 1.5 4 22.5
0 8 1.5 1.5 1.5 2 20.5
2 8 1.5 1.5 1.5 4 25.5
2 8 1.5 1.5 1.5 2 23.5
4 8 1.5 1.5 1.5 2 25.5
*Factory Setting
Tab l e 1
Options for Even Side
Jumper Configurations Fill
Temperature
Water
Level Wash Action
JP1 JP2 JP3
warm low normal
cold high normal
cold low reduced**
warm high normal
*cold high reduced
warm low reduced
cold low normal
warm high reduced
*Factory Setting
**Cold/Delicate cycle must be selected for reduced wash action
Table 2
https://appliancetechmanuals.com

Programming
11
F232133 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7. After the jumpers have been set, replace the
control module cover.
8. Close and lock top cover.
9. Reconnect power to machine.
To avoid personal injury, recommended
inlet water temperature should be no
higher than 125°Fahrenheit (51°Celsius).
W709
WARNING
https://appliancetechmanuals.com

Programming
F232133
12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Setting the Jumpers Without Circuit
Board
NOTE: The following procedures must be
performed by a qualified electrician familiar
with the construction and operation of this type
of machinery.
1. Disconnect power to the machine.
2. Unlock and raise the top cover.
3. Remove the control module cover.
4. The mechanical timer is located in the middle of
the control module. The odd-numbered side of
the timer is used to change the duration of
individual cycle steps. Refer to Figure 2.
Eleven possible jumper configurations are
available for changing the cycle time. Refer to
Table 3.
Figure 2
1b 1 1a
3b 3 3a
5b 5 5a
7b 7 7a
9b 9 9a
11b 11 11a
13b 13 13a
15b 15 15a
17b 17 17a
19b 19 19a
Mechanical Timer Cycle Time Options
Jumper Setting PreWash Wash Rinse 1 Rinse 2 Rinse 3 Final
Spin
Cycle
Time
None 4 8 1.5 1.5 1.5 4 27.5
1a to 3a 4 4 1.5 1.5 1.5 4 23.5
1a to 3a to 3b -- 4 1.5 1.5 1.5 4 18.5
1a to 3a to 3b to 5b -- 4 1.5 1.5 1.5 2 16.5
1a to 3a to 5a* 2 4 1.5 1.5 1.5 4 21.5
1a to 3a to 5a to 5b 2 4 1.5 1.5 1.5 2 19.5
1a to 3b -- 8 1.5 1.5 1.5 4 22.5
1a to 3b to 5b -- 8 1.5 1.5 1.5 2 20.5
1a to 5a 2 8 1.5 1.5 1.5 4 25.5
1a to 5a to 5b 2 8 1.5 1.5 1.5 2 23.5
1a to 5b 4 8 1.5 1.5 1.5 2 25.5
*Factory Setting
Table 3
https://appliancetechmanuals.com

Programming
13
F232133 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
5. Install or remove jumpers to achieve the desired
cycle time. Figure 3 through Figure 12 illustrate
the possible combinations.
NOTE: Do not remove the cover from the
mechanical timer. Removing this cover will void
the warranty.
No jumpers installed on the board
Removing all the jumpers from 1a extends the cycle
time, making it as long as possible. Refer to Figure 3.
NOTE: Do not remove the wire from the 1a
terminal on timer. Removing this wire disables the
timer. To extend cycle time, remove the wires after
the 1a terminal on timer.
Figure 3
1a to 3a
This jumper configuration shortens the wash step from
eight minutes to four minutes. Refer to Figure 4.
Figure 4
1a to 3a to 3b
This configuration eliminates the prewash step and
shortens the wash step from eight minutes to four
minutes. Refer to Figure 5.
Figure 5
1a to 3a to 3b to 5b
This configuration eliminates the prewash step,
shortens the wash step from eight minutes to four
minutes, and shortens the final spin time from four
minutes to two minutes. Refer to Figure 6.
Figure 6
1a to 3a to 5a
This is the factory-preset jumper configuration. This
configuration shortens the prewash step from four
minutes to two minutes and shortens the wash step
from eight minutes to four minutes. Refer to Figure 7.
Figure 7
1a to 3a to 5a to 5b
This configuration shortens the prewash step from four
minutes to two minutes, shortens the wash step from
eight minutes to four minutes, and shortens the final
spin time from four minutes to two minutes. Refer to
Figure 8.
Figure 8
1b 1 1a
3b 3 3a
5b 5 5a
1b 1 1a
3b 3 3a
5b 5 5a
1b 1 1a
3b 3 3a
5b 5 5a
1b 1 1a
3b 3 3a
5b 5 5a
1b 1 1a
3b 3 3a
5b 5 5a
1b 1 1a
3b 3 3a
5b 5 5a
https://appliancetechmanuals.com

Programming
F232133
14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
1a to 3b
This configuration eliminates the prewash step. Refer
to Figure 9.
Figure 9
1a to 3b to 5b
This configuration eliminates the prewash step and
shortens the final spin time from four minutes to two
minutes. Refer to Figure 10.
Figure 10
1a to 5a
This configuration shortens the prewash step from four
minutes to two minutes. Refer to Figure 11.
Figure 11
1a to 5a to 5b
This configuration shortens the prewash step from four
minutes to two minutes and shortens the final spin
time from four minutes to two minutes. Refer to
Figure 12.
Figure 12
1a to 5b
This configuration shortens the final spin time from
four minutes to two minutes. Refer to Figure 13.
Figure 13
6. The even-numbered side of the program timer
can be configured with jumpers to adjust the
rinse temperature or to change the water level for
the wash step. Refer to Figure 14.
Figure 14
Figure 15 and Figure 16 illustrate the different options
available.
1b 1 1a
3b 3 3a
5b 5 5a
1b 1 1a
3b 3 3a
5b 5 5a
1b 1 1a
3b 3 3a
5b 5 5a
1b 1 1a
3b 3 3a
5b 5 5a
1b 1 1a
3b 3 3a
5b 5 5a
0b 0 0a
2b 2 2a
4b 4 4a
6b 6 6a
8b 8 8a
10b 10 10a
12b 12 12a
14b 14 14a
16b 16 16a
18b 18 18a
20b 20 20a
https://appliancetechmanuals.com

Programming
15
F232133 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
2a to 2b
This jumper configuration changes the fill temperature
for the rinses from cold to warm for all cycles. Refer to
Figure 15.
Figure 15
10a to 10b
This jumper configuration changes the water level for
the wash segment from low to high for all cycles.
Refer to Figure 16.
Figure 16
7. After the jumpers have been set, replace the
control module cover.
8. Close and lock the top cover.
9. Reconnect power to the machine.
Programming the Digital Coin Meter
Verify the software version to be a single-coin acceptor
or a dual-coin acceptor by checking the label on the
coin counter board located in the control module
behind the coin meter face. Refer to Figure 17.
For single-coin acceptors, the software version
identification code is “ONECOIN V2.62”; for
dual-coin acceptors, the code is “TWOCOIN V2.85”.
Figure 17
0b 0 0a
2b 2 2a
4b 4 4a
To avoid personal injury, recommended
inlet water temperature should be no
higher than 125°Fahrenheit (51°Celsius).
W709
WARNING
8b 8 8a
10b 10 10a
12b 12 12a
B164R
1Left Program Button
2Right Program Button
3Coin Counter Board
12
3
https://appliancetechmanuals.com

Programming
F232133
16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Setting the Parameters
1. Locate the two buttons above and to the left of
the microprocessor. Refer to Figure 17.
2. Press and release both buttons at the same time to
enter PROGRAM Mode. The digital display will
show “AtS”.
3. Press either the left or right button until the
desired parameter is displayed. Refer to Table 4
to see parameters and their meanings.
4. Press and release both buttons at the same time
to display the setting for the selected parameter.
Press the left or right button to change the
parameter setting. When setting numerical
values, the right button increases the displayed
value and the left button decreases the
displayed value. Pressing and holding one of the
buttons causes the displayed value to change
more rapidly.
5. Once the desired parameter value is displayed,
press and release both buttons at the same time to
accept the new value.
6. To change another parameter setting, return to
step 3.
7. To return to RUN Mode, press the right or left
button until the digital display shows “End”.
Press and release both buttons at the same time.
The display will then either show a vend price or
alternately flash “PAY” and a vend price.
Display Programming Parameters
AtS – Amount to Start Amount value required to start a single wash. Single coin: value must be evenly
divisible by the APC setting. Dual coin: value should be evenly divisible by both
Cn1 and Cn2 values.
APC – Amount Per Coin Value of each coin inserted into the coin meter.
Cn1 – Coin 1
(Dual coin only)
Value of each coin inserted to the right slot of the coin meter (as viewed from the
front).
Cn2 – Coin 2
(Dual coin only)
Value of each coin inserted to the left slot of the coin meter (as viewed from the front).
ACC – Accumulate How the display will show the start amount. Set to “UP” to display value of coins
inserted in the meter; set to “Dn” to display the difference between the value of the
inserted coins and the AtS.
FLS – Flash Set to “YES” to have the display flash; set to “no” to have the display not flash.
Crd – Credit
(Dual coin only)
Determines whether or not overpayment by a customer is credited to the next wash. Set
to “YES” for the amount of overpayment to be credited to the next wash. The display
will show either a reduced vend price or the amount of overpayment, depending on the
setting of the ACC parameter; set to “no” for no credit given to overpayment.
Lot – Lock-Out Time Determines the amount of time in seconds the coin counter board will pause when a
bad coin is inserted. When a bad coin is inserted, the display will read “Err” for this
amount of time.
Rot – Relay-On Time
Ctr – Counter Read-only parameter keeps track of the number of cycles the washer-extractor has
performed.
dPt – Decimal Point Determines the position of the decimal point in the digital display. Set to “000” for no
decimal point; set to “001” for the decimal point to display on the right side of the
center digit; set to “002” to display on the left side of the center digit.
Tab l e 4
