Electrolux EBA60010X User manual

Espresso coffee machine
user manual
EBA 60010 X

ENGLISH
CONTENTS
1. Description of the coffee machine
2. Description of the control panel: touch control
3. Safety instructions
4. Instructions for the first use of the machine
5. Accessories
6. Drawer
7. Making Coffee
8. Hot water
9. Steam
10. Programming the quantity of ground coffee
11. Programming the quantity of coffee poured in the cup
12. Programming the quantity of hot water
13. Coffee menus
14. Cleaning
15. Installation
16. What to do if …
17. Technical specifications
18. After-sales Service, spare parts and guarantee
3

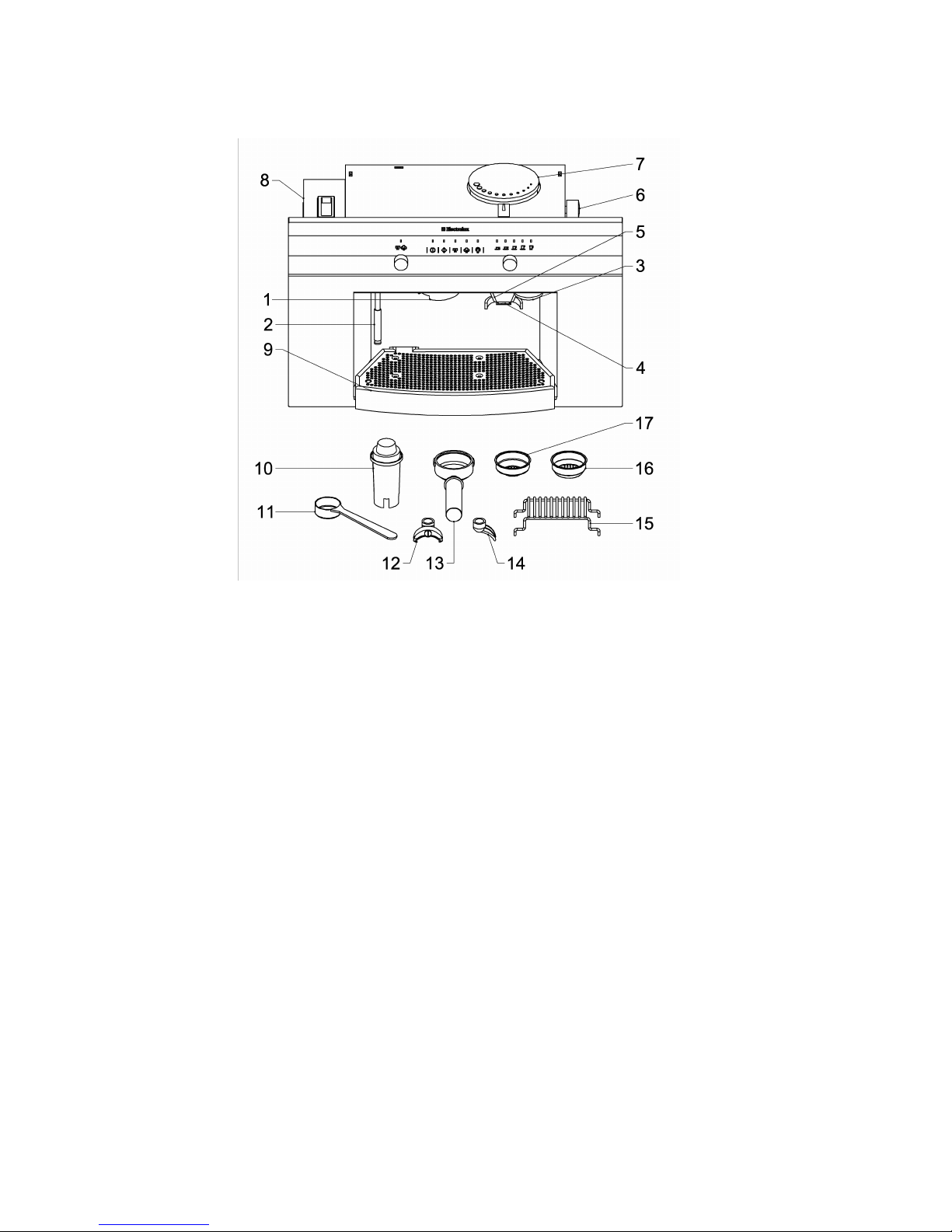

1. DESCRIPTION OF THE COFFEE MACHINE
1. Filter holder ring nut
2. Steam/water nozzle
3. Coffee press
4. Coffee Grinder button
5. Coffee measuring device
6. Grinding regolation knob
7. Coffee beans container
8. Water reservoir
9. Drip tray
10. Brita filter
11. scoop
12. Two way nozzle /2cups
13. Filter holder
14. One-way nozzle/1cup
15. Rack for espresso making
16. Two-cup filter
17. One-cup filter
4

2. DESCRIPTION OF THE CONTROL PANEL:
TOUCH CONTROLS
1. Water temperature indicator
2. ON/stand-by indicator
3. Coffee indicator
4. Water indicator
5. Steam indicator
6. Light indicator
7. LEDs of coffee measures (Small coffee, large coffee, 2 small cups of strong
coffee, 2 large cups of weak coffee)
8. Water refill indicator
9. Steam/water knob
10. ON-OFF/stand-by control
11. Coffee control
12. Hot water control
13. Steam control
14. Light control
15. Coffee programme selector knob
TOUCH CONTROLS: Instructions of use
Touch controls are the exclusive characteristic of this model. In fact pressing lightly on
the respective symbol will enable the corresponding function of the machine. However
these touch keys must be pressed, although lightly, just in the case of a common
pushbutton, to prevent functions from being enabled accidentally.
5

3. SAFETY
Please read this instruction book before using thè appliance and retain for
future reference. These warnings are provided in the interests of your safety,
ensure you understand them fully before using the appliance.
Intended use
• The appliance is intended for use in the home. If the appliance is used for
purposes other than those intended or used incorrectiy, no liability can be
accepted by thè manufacturer for any damage that may be caused.
• Alterations or changes to the appliance are not permitted for reasons of
safety.
Prior to initial start-up
• Check the appliance for transport damage. Under no circumstance should
a damaged appliance be plugged in! In the event of damage, please con-
tact your retailer.
Safety of children
• Keep packaging material away from children.
• Please make old appliances unusable prior to disposal. Pull out the mains
plug, and cut off the mains cable.
DURING THE OPERATION
CAUTION:
The filtering unit will always be kept very hot to obtain an excellent coffee.
Therefore please use this machine with extreme care to avoid being scalded.
•This machine must be used only by grown-up people. Make sure that children
cannot touch the its controls nor play with the machine.
•Modifying or merely trying to modify the characteristics of this product is very
dangerous, and will invalidate your guarantee.
•Always keep this machine clean.
•The external parts of this machine become very hot while it is operating
and they will not cool down immediately after the machine is switched
off. Keep children out of reach until the machine has cooled down
completely.
•Before cleaning or servicing the machjine, make sure that it is
disconnected from the power supply.
•In case of malfunction, never try to repair the machine yourself. Consult this
manual and if the necessary information cannot be found, please contact the
nearest Service Force Center. This machine must be serviced exclusively by an
authorized Service Force Center. Always ensure the use of genuine spare parts.
6

FOR INSTALLATION AND SERVICING
Keep this instruction manual together with the machine for any future
reference. If the machine is sold or transferred to another person, make
sure that this instruction manual is given to the new user, so that he/she
can become familiar with the machine’s functions and with the
recommendations given.
•This machine must be installed and connected to the mains by a
COMPETENT PERSON. Make sure that the machine is DISCONNECTED
from the power supply before any servicing operation.
•After unpacking the machine make sure that the product has not suffered any
damage and that the power cord is in perfect condition. In case of damage, plase
contact your retailer or our customer service dept.
•The Manufacturer declines all responsibility if the safety rules are not
complied with.
SOME HINTS OF ENVIRONMENTAL PROTECTION
PACKAGE
•All the packing materials are environmentally friendly and they can be recycled.
Please help in preserving the environment, by using the proper channels of
separate collection of rubbish.
DISPOSAL
Appliance Packaging Information
Ali materiais are environmentally sound.
The plastics can be recycled and are identifìed as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior.
>PS< for polystyrene foam, e.g. thè pads, which are ali free of chiorofluorocarbon.
The carton parts are made from recycled paper and shouid be disposed ofat a waste-
paper recycling collection location.
Diposal of Old Appliances
• Use an authorised disposai site.
Contact your Locai Council or Environmental Health Office to see if there
are facilities in your area to recycle the appliance.
CE This machine complies with the directive BT 73/23
Electrical safety rules EN 60335-1 (August 1995 - Safety for electrical household and
similar appliances – General Standard) and EN 60335-2-15 (April 1996 – Specific Rules
concerning the equipment for heating liquids).
Directive EMC 89/336 in conformity with the following standards:
-55014-1; 55014-2; 61000-3-2; 61000-3-3
7

The symbol on the product or on its packaging indicates that this product may
not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent potential negative consequences
for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your household waste
disposal service or the shop where you purchased the product.
4. INSTRUCTIONS FOR THE FIRST USE OF THE MACHINE
FILLING UP THE WATER
RESERVOIR
•Squeeze together the
unlocking levers available
under the drip tray and pull the
machine as it is shown in the
figure.
•Gently pull the coffee machine
forward from the housing by
sliding it along the telescopic
runners.
8

Hardness of water:
•Before filling up the water reservo
make sure that the decalcifying Brita filt
has been soaked in cold water for at lea
30 min. Follow the instructions printed on
the filter package. After this operation
insert the filter into position inside th
water reservoir as it is shown in t
figure.
ir,
er
st
e
he
g
k
l
of
Brita filters are available from m
t, at
the
Remove the reservoir and fill it with
approximately 2.5 litres of water as shown.
•place the water reservoir in its
ousing tanking care to fully engage the
•If the machine will not be used for lon
periods, change the water in the tan
and drain the boiler: the machine wil
hold and dispense about half a litre
water (refer to the chapter”Hot water”).
•ost
supermarkets and domestic goods outles
our After-Sales Service Centres or at
Shops of Authorized Spare Parts.
•
re own
h
water valve on the base.
9

•nsure the mains ON/OFF switch(at rear) is
N
•the machine back into the housing
ntill a “CLICK” can be heard. This indicate
FILLING UP THE CONTAINER WITH COFFEE BEANS
E
O
push
u
that the machine has been locked in
position.
Press the unlocking levers available
under the drip tray and pull the machine
Pull the coffee machine forward from
the housing along the tele
•
as it is shown in the figure.
•scoping
runners .
10

•Pour approximately 200 g of coffee
beans into the container on the top as
•ush the machine back into the housing untill
“CLICK” can be heard. This indicate that the
WATER REFILL INDICATOR CONTR
shown in the figure.
p
a
machine has been locked in position.
OL PANEL-8
•This machine has a sensor which detects the when the water reservoir is empy
the reservoir empy led will illuminate. the machine will not operate untill the wate
se
r
rvoir is re filled. Manually re start the programme. re
11

INITIAL START-UP
•Ensuring the water reservoir is full, turn the steam/water knob anti clockwise
as shown above.
•Switch the coffee machine on by pressing the on-off/stand-by control pressed
until the red LED stops flashing and remains lit. This indicates the opera g
condition of the machine (flashing: STAND-BY; lit ON; out OFF). tin
•At the same time the water temperature indicator will be on; this LED
indicates the heating phase of the water inside the boiler.Place a container
below the steam spant and press the hot water control as above.
CAU
TION! Hot air and steam may precede the hot water.
12

•When the water is flowing close the steam/water knob by turning clockwise.
(if necessary, repeat the process several times)
•When the water temperature light goes out, the machine has reached the correct
temperature and it is ready to make coffee. Only the on-off indicator are now lit.
RESETTING STANDARD VALUES
•This coffee machine ke the optimum Italian
espresso, as approved by the coffee University of Naples and complying with ILLY
is calibrated in the factory to ma
standards.The values set for large coffee comply with German standards.
•If the standard values have to be reset, from the stand-by switch the machine on
by pressing both the on/off and hot-water buttons at the same time.
13

•All the LEDs will briefly illuminate to indicate the factory values have been reset.
.B.: The standard values only concern the quantity of water required for
N
each cup of coffee. Then the measures of ground coffee will not vary.
CAUTION –
ADJUSTING THE GROUND COFFEE
•This machine is calibrated in the factory for an optimum level of ground
coffee. Too “coarse” ground coffee whith result in too “fine” a ground coffee will
Press the unlocking levers available under
the drip tray and pull the machine as it is
result in very strong coffee,delivered by “drops” and tasting “……”.
The time required for an espresso will range from 15-25 seconds.
•
shown in the figure.
14

•Pull the coffeee machine forward
from it’s hausing by sliding it along
Turning the proper adjusting knob
•usch the machine back into the housing
it’s telescopic runners .
•(A-10) will adjust the coffee
texttureTurning the knob in
clockwise direction will lead to a
fine texture for a stronger coffee.
Turning the knob anti-clockwise will
lead to a coarse texture for a
weaker coffee. The set grinding
level can be read on the lid of the
coffee case: bigger circles mean
“coarse” grinding level (fast-flowing
weak coffee), whereas smaller
circles mean “fine” grinding level
(slow-flowing strong coffee).
P
until a “click” can be heard.Tthis indicates
that the machine is locked in position.
15

STAND-BY MODE
Once powered and inserted into the cabinet, the machine is in stand-by mode: this
•will be signaled by the on/off LED blinking.
•Keep the on/off button pressed as it is shown in the figure.
•As soon as the machine is ready to operate, the LED will be kept on as it is shown
.ACCESSORIES
•This espresso machine is equipped with a filter holder that can receive two filters,
-up in the filter for one cup.
•right quantity of ground
•nozzles: a nozzle is used to deliver one cup
in the figure. Repeat the operation to enable the STAND-BY mode again.
5
that is:
for one c
-for two cups.
When using a paper pod, put it
There is also a measuring spoon that can determine the
coffee exactly (approximately 7.2 g).
This machine is also equipped with two
of coffee, whereas the other nozzle can serve two cups of coffee and it is provided
with adjusting screw; these nozzles will alternately be screwed onto the filter
holder according to the needs.
16

7. COFFEE
USING COFFEE BEANS

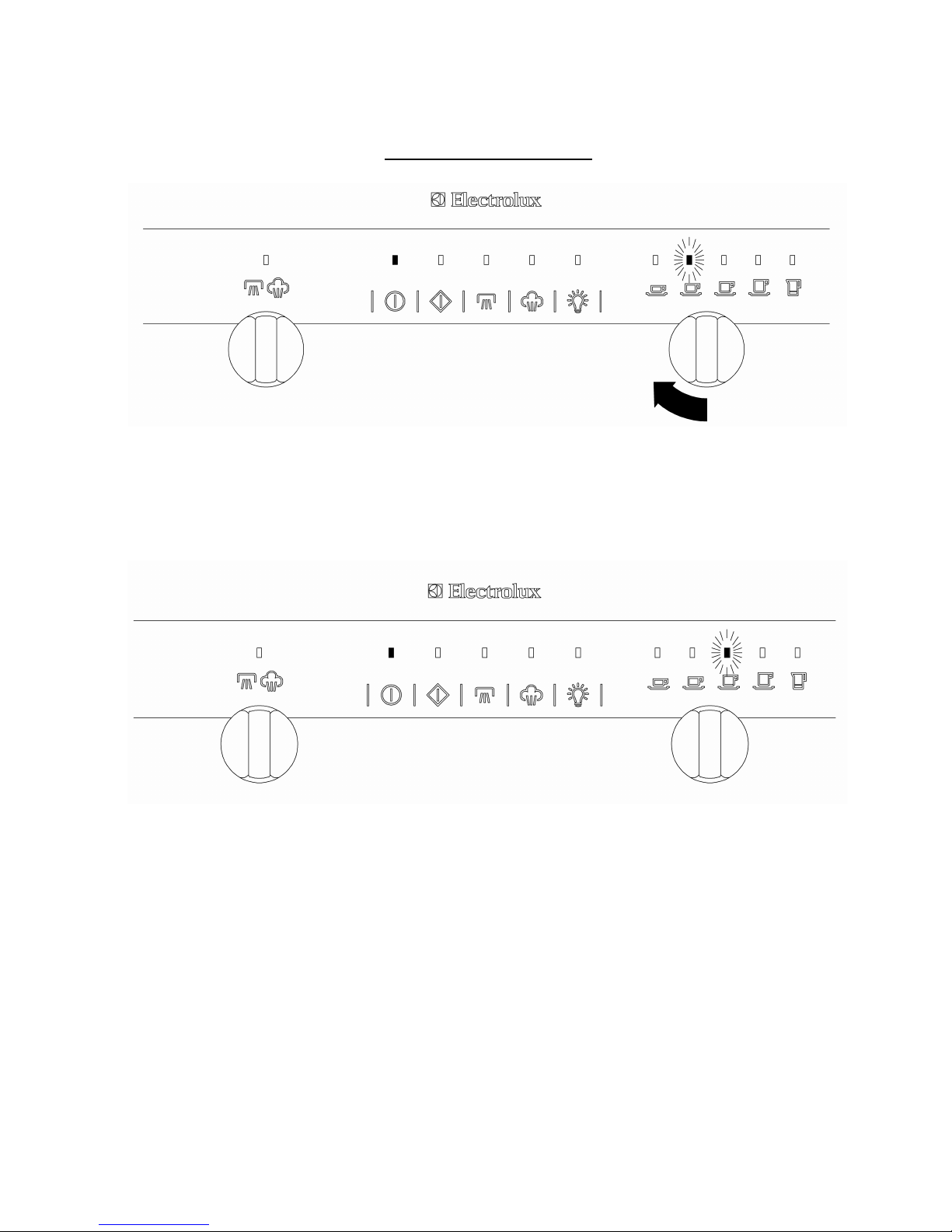

•Turn the knob (B-19) to the desired coffee measure.
Turning in a clockwise direction will select the programme immediately on the right
•of that previously selected chosen before; on the contrary turning anticlockwise
will select the programme immediately on the left.
17

•Insert the filter holder under the
When the filter has been filled with
Insert the filter holder into the filter
coffee measuring device by
pressing the button briefly. The
programmed quantity of ground
coffee will automatically be
dispended into the filter.
•the desired quantity, press the
ground coffee firmly against the
press as shown.
•holder ring nut.
18

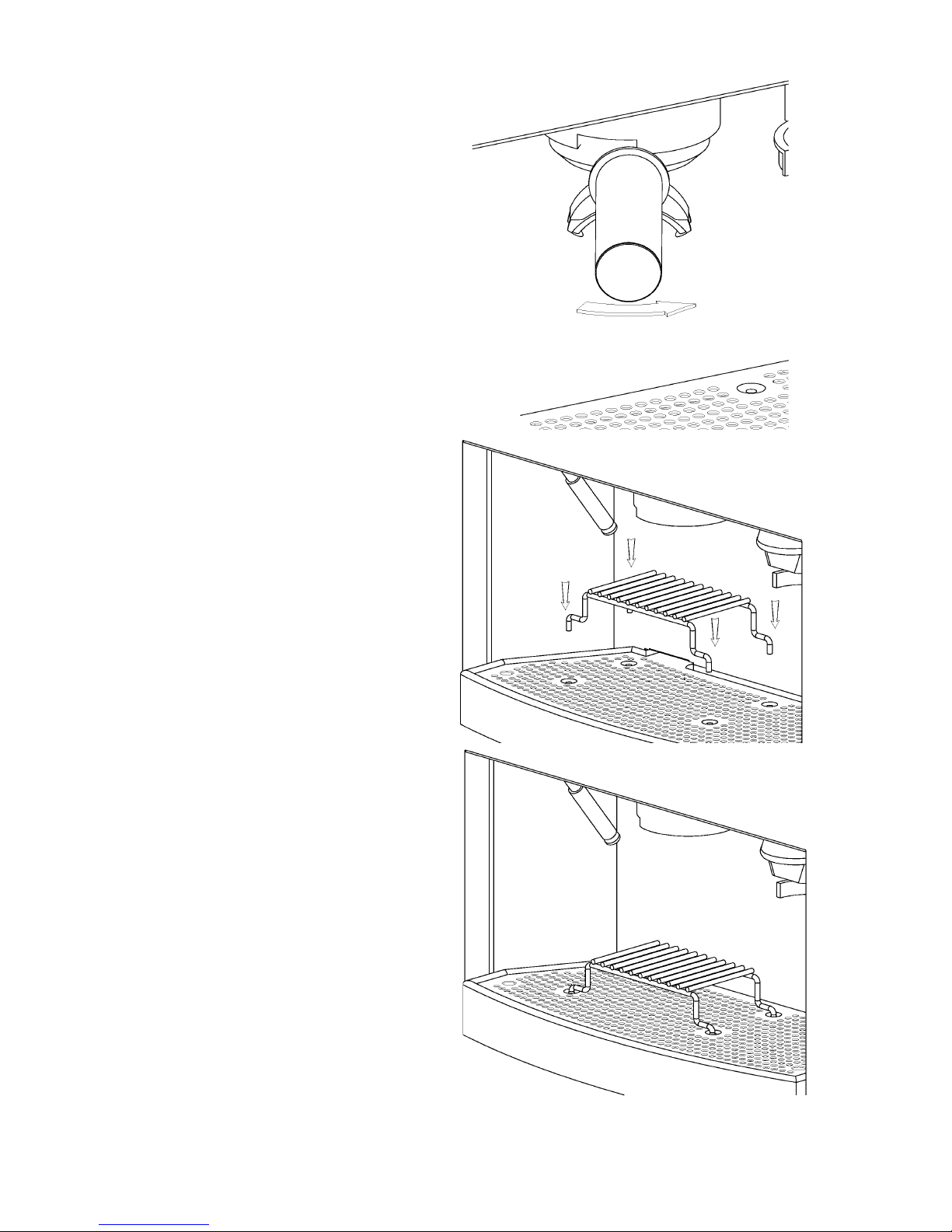

•Lock the filter holder firmly
If preparing espresso use the
•this is stable
Position the cup/s under the
larger cups
turning the handle from left to
right.
•special cup rack inserting it’s feet
into the four holes in the drip
tray.
Ensure
•nozzle and make sure that the
red LED of water temperature is
out, or wait until it goes out.
Before proceding.
Alternatively,place
directly on the drip tray. Position
the cups under the nozzle and
make sure that the hot water
indicator is out, or wait until it
goes out before proceding.
19

•Press the coffee control as shown coffee will be dispensed into the cup(s) Remove
the filter holder from the ring nut and dispose of the used coffee making care as
the filter will be hot.
•When the two-cup nozzle is used,
the two cups od coffee are not
always filled at the same level.
Adjust the screw as shown in a
clockwise direction for more coffee
in the right hand cup and
anticlockwise for more coffee in
the left hand.
USING COFFEE PODS (E.S.E. SYSTEM)
•E.S.E. (Easy Serving Espresso) international standard for brewing coffee using a
coffee pod (i.e.: a single portion of
roasted coffee) E.S.E. system is
easy, practical and environmentally
friendly.it’s individual packaging
makes this a very clean and easy
way of making fresh coffee
20
