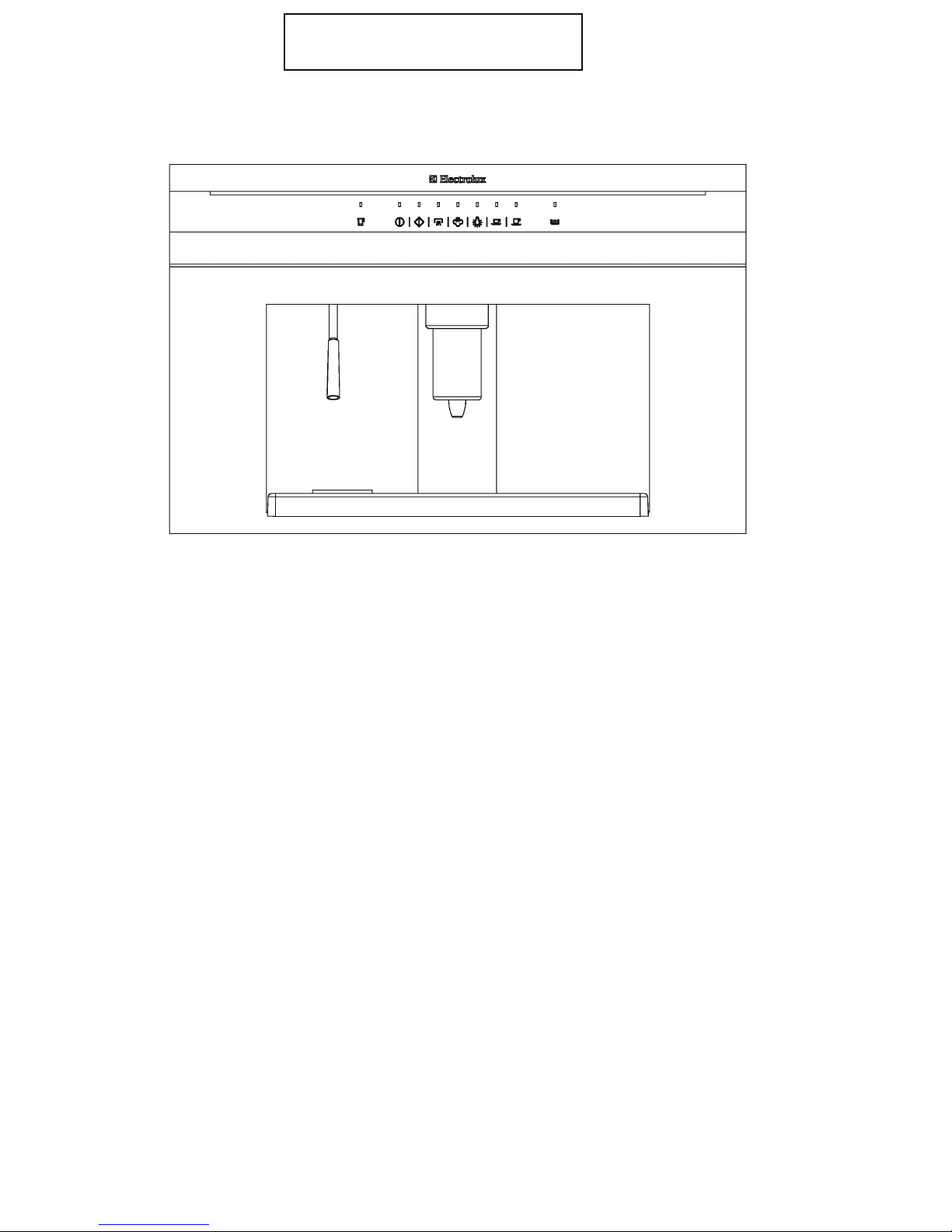

Electrolux EBA 60002 X User manual

Automatic coffee machine
user manual
EBA 60000 X / EBA 60002 X

ENGLISH
CONTENTS
1. Safety instructions
2. Description of the coffee machine
3. Description of the control panel: touch control
4. Instructions for the first use of the machine
5. Making Coffee
6. Hot water
7. Steam
8. Programming the amount of coffee beans to be grinded
9. Programming the volume of coffee dispended in the cup
10. If you wish to reset the standard values
11. Signals and alarms
12. Coffee menus
13. Cleaning
14. Installation
15. Something not working....
16. Technical specifications
17. After-sales Service, spare parts and guarantee
2/37

1. SAFETY INSTRUCTION
Please read this instruction book before using the appliance and retain for
future reference. These warnings are provided in the interests of your safety,
ensure you understand them fully before using the appliance.
Intended use
•The appliance is intended for use in the home. If the appliance is used for
purposes other than those intended or used incorrectiy, no liability can be
accepted by the manufacturer for any damage or injury that may be caused. •
• Alterations or changes to the appliance are not permitted for reasons of
safety.
Prior to initial start-up
•Check the appliance for transport damage. Under no circumstance should
a damaged appliance be plugged in! In the event of damage, please con-
tact your retailer.
Safety of children
•Keep packaging material away from children. Risk of suffocation!
•Please make old appliances unusable prior to disposal. Pull out the mains
plug, and cut off the mains cable.
DURING USE
CAUTION:
The filtering unit will always be kept very hot to obtain an excellent coffee.
Therefore please empty the “used” coffee tank with extreme care to avoid
being scalded.
•This machine must be used only by adults. Make sure that children cannot
touch the controls nor play with the machine.
•Modifying or merely trying to modify the characteristics of this product is very
dangerous, and will invalidate your guarantee.
•Always keep this machine clean.
•The external parts of this machine become very hot while it is operating
and they will not cool down immediately after the machine is switched
off. Keep children out of reach.
•Before cleaning or servicing the machine, make sure that it is
disconnected from the power supply.
•In case of malfunction, never try to repair the machine yourself. Consult this
manual and if the necessary information cannot be found, please contact the
nearest Service Force Centre. This machine must be serviced exclusively by an
authorised Service Force Centre. Always ensure the use of genuine spare parts.
3/37

FOR INSTALLATION AND SERVICING
Keep this instruction manual together with the machine for any future
reference. If the machine is sold or transferred to another person, make sure
that this instruction manual is given to the new user, so that he/she can
become familiar with the machine’s functions and with the
recommendations given.
•This machine must be installed and connected to the mains by a
COMPETENT PERSON. Make sure that the machine is DISCONNECTED
from the power supply before any servicing operation.
•After unpacking the machine make sure that the product has not suffered any
damage and that the power cord is in perfect condition. In case of damage, please
contact your retailer or our customer service dept.
•The Manufacturer declines all responsibility if the safety rules are not
complied with.
SOME HINTS OF ENVIRONMENTAL PROTECTION
PACKAGE
•All the packing materials are environmentally friendly and they can be recycled.
Please help in preserving the environment, by using the proper channels of
separate collection of rubbish.
DISPOSAL
Appliance Packaging Information
All materials are environmentally sound.
The plastics can be recycled and are identifìed as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior.
>PS< for polystyrene foam, e.g. thè pads, which are ali free of chlorofluorocarbon.
The carton parts are made from recycled paper and should be disposed of at a waste-
paper recycling collection location.
Diposal of Old Appliances
• Use an authorised disposal site.
Contact your Local Council or Environmental Health Office to see if there
are facilities in your area to recycle the appliance.
The symbol on the product or on its packaging indicates that this product may
not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent potential negative consequences
for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your household waste
disposal service or the shop where you purchased the product
4/37

CE This machine complies with the directive BT 73/23
Electrical safety rules EN 60335-1 (August 1995 - Safety for electrical household and
similar appliances – General Standard) and EN 60335-2-15 (April 1996 – Specific Rules
concerning the equipment for heating liquids).
Directive EMC 89/336 in conformity with the following standards:
-55014-1; 55014-2; 61000-3-2; 61000-3-3
ELECTRICAL CONNECTION
Any electrical work required to install this appliance should be carried out by a qualified
electrician or competent person.
WARNING: THIS APPLIANCE MUSTBE EARTHED.
Should the appliance power supply cable need to be replaced, this must be carried out
by a Service Force agent. The manufacturer declines any liability should this safety
measure not be observed.
Before switching on, make sure the electricity supply voltage is the same as that
indicated on the appliance’s rating plate.

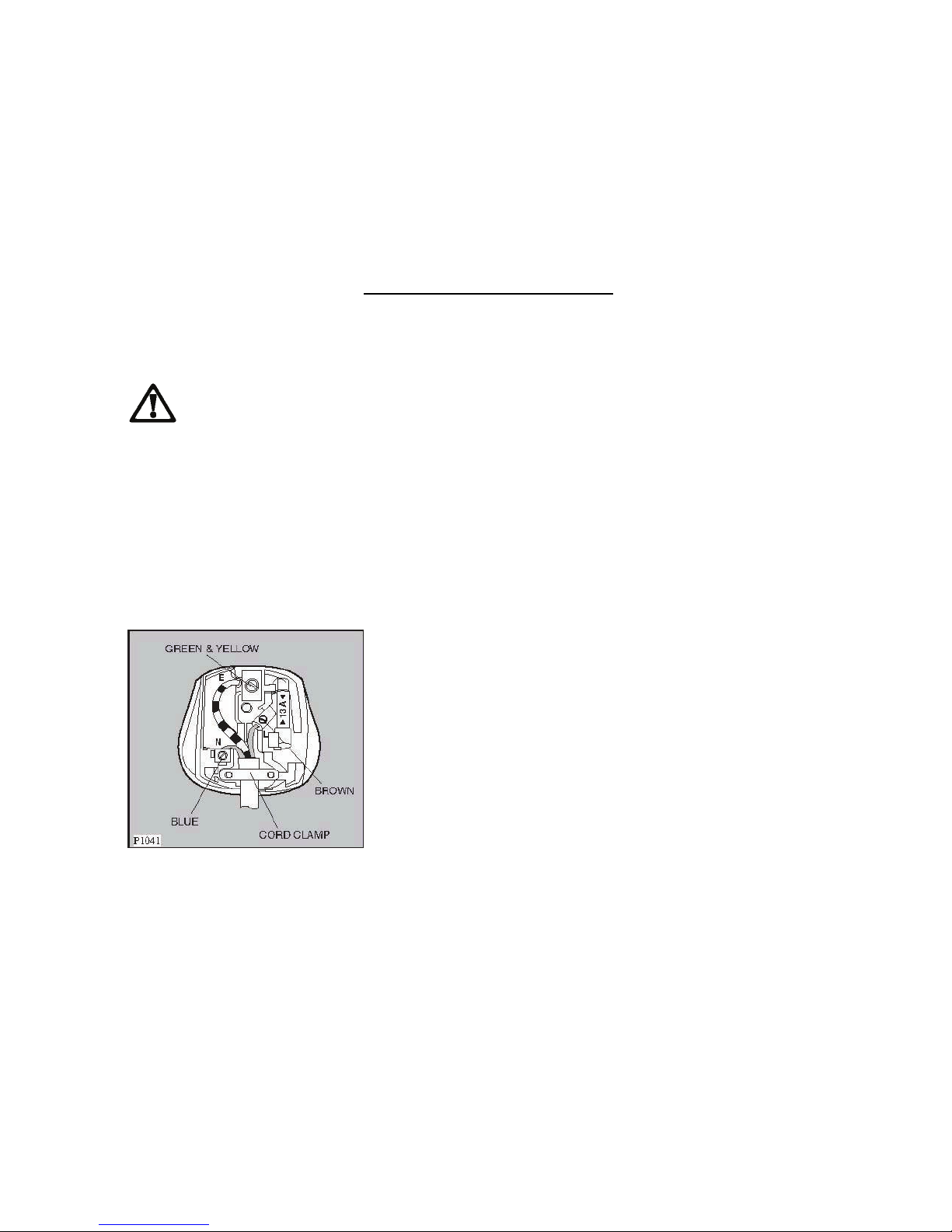

The appliance should be fitted with a 13amp plug. The plug should be fitted with a
13amp ASTA approved BS1363/A fuse. The mains lead of the appliance should be
connected as described below. The wires in the mains lead are coloured in accordance
with the following code:
•Green and Yellow - Earth
•Blue - Neutral
•Brown - Live
In the plug the colours of the wires may not correspond with the markings identified
with the terminals in your plug:
1) Connect the Green and Yellow (earth) wire to the terminal in the plug which is
marked with the letter "E" or the earth symbol or coloured green and yellow.
2) Connect the Blue (neutral) wire to the terminal in the plug which is marked
with the letter "N" or coloured black.
3) Connect the Brown (live) wire to the terminal in the plug which is marked with
the letter "L" or coloured red.
4) Upon completion there must be no cut, or stray strands of wire present and
the cord clamp must be secure over the outer sheath.
5/37

THE PLUG MUST STILL BE ACCESSIBLE AFTER THE APPLIANCE HAS
BEEN INSTALLED.
THE APPLIANCE SHOULD NOT BE CONNECTED TO THE ELECTRICAL
SUPPLY BY MEANS OF AN EXTENSION CABLE
PERMANENT CONNECTION
In the case of permanent connection it is necessary that you install a double pole
switch between the appliance and the electricity supply (mains), with a minimum gap
of 3mm between the switch contacts and of a type suitable for the required load in
compliance with the current electrical regulations.
The switch must not break the yellow and green earth cable at any point.
6/37

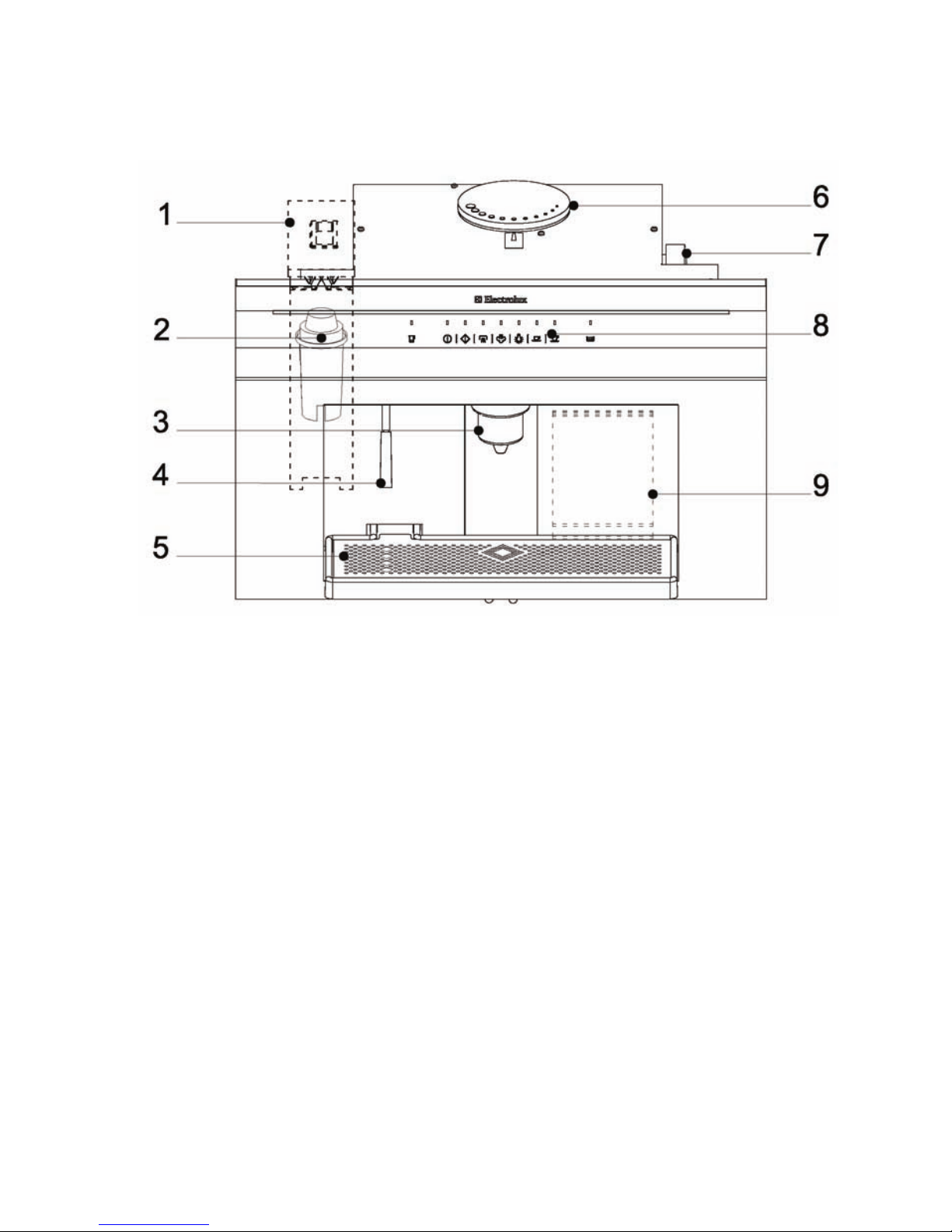

2. DESCRIPTION OF THE COFFEE MACHINE
1. Water reservoir
2. Brita filter
3. Coffee Outlet
4. Steam/water nozzle
5. Drip tray
6. Coffee beans container
7. Grinding regulation knob
8. Control panel
9. “Used” coffee drawer
7/37

3. DESCRIPTION OF THE CONTROL PANEL:
TOUCH CONTROLS
1. Water refill indicator
2. ON-OFF/stand-by indicator
3. Start indicator
4. Hot water selector indicator
5. Steam selector indicator
6. Light selector indicator
7. Espresso coffee indicator
8. Regular coffee indicator
9. Used Coffee 'drawer full' indicator
10. ON-OFF/stand-by control
11. Start control
12. Hot water selector control
13. Steam selector control
14. Light selector control
15. Espresso coffee control
16. Regular coffee control
TOUCH CONTROLS: Instructions for use
These touch controls must be pressed precisely to prevent functions from being
enabled accidentally. Pressing lightly on the respective symbol will enable the
corresponding function.
8/37

4INSTRUCTIONS FOR THE FIRST USE OF THE MACHINE
FILLING UP THE WATER RESERVOIR
•Squeeze together the
unlocking levers found under
the drip tray
•Gently pull the coffee machine
forward from the housing by
sliding it along the telescopic
runners.
9/37

Hardness of water:
•Before filling up the water reservoir, make
sure that the decalcifying Brita filter has
been soaked in cold water for at least 30
min. Follow the instructions printed on the
filter package. After this operation insert the
filter into position inside the water reservoir
as shown in the figure.
•If the machine will not be used for long
periods, empy the water from tank.
•Brita filters are available from most
supermarkets and domestic goods outlest, a
our After-Sales Service Centres or at the
Shops of Authorized Spare Parts.
t
•Remove the reservoir and fill it with
approximately 2.5 litres of water as shown.
•replace the water reservoir in its own
housing tankig care to fully engage the
water valve into the docking station.
10/37

•Ensure the mains ON/OFF switch(at
rear) is ON
•push the machine back into the housing
until a “CLICK” can be heard. This
indicate that the machine has been
locked in position.

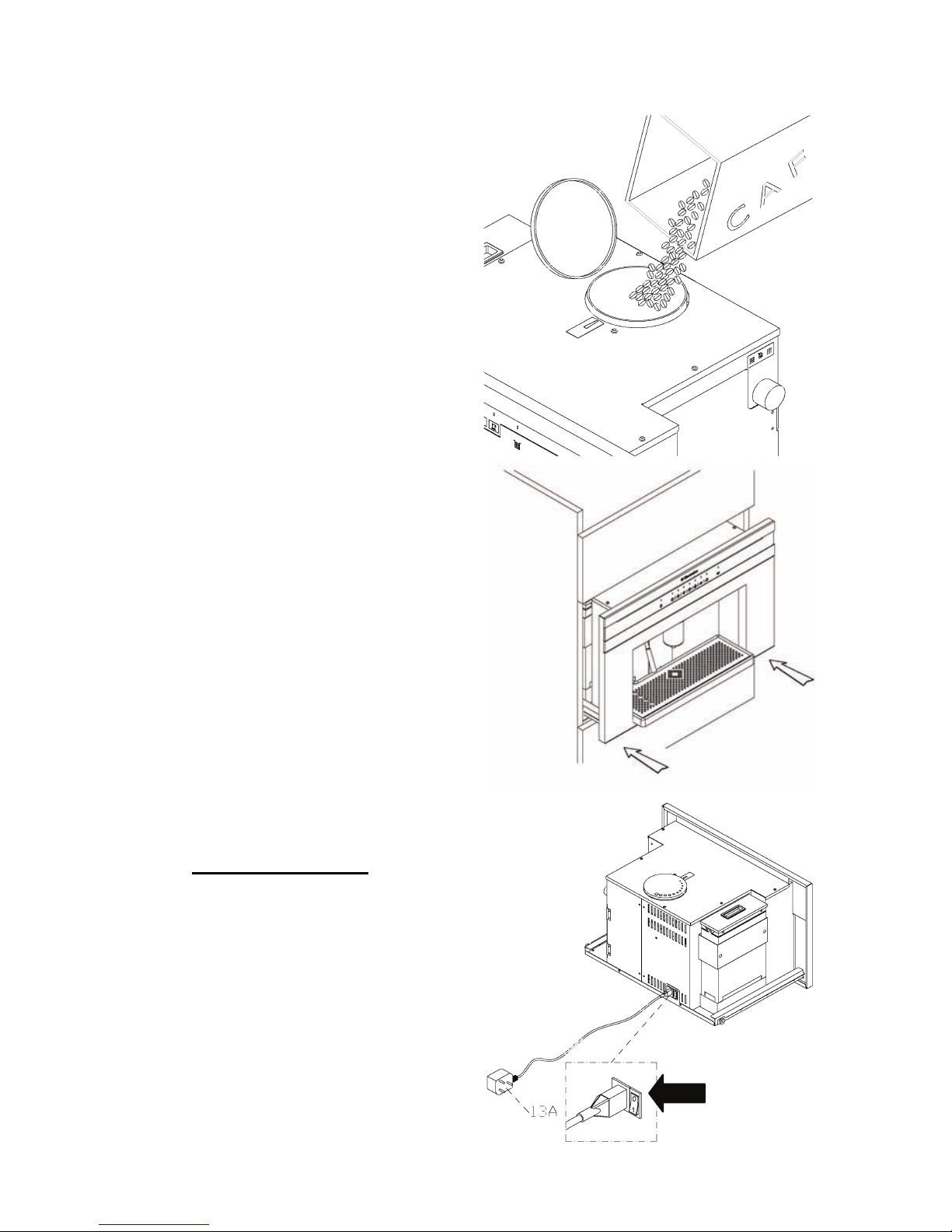

FILLING UP THE CONTAINER WITH COFFEE BEANS
•Press the unlocking levers located under
the drip tray and pull the machine as it
is shown in the figure.
11/37
•pull the coffee machine forward from the
housing along the telescopic runners .

•Pour approximately 200 g of coffee
beans into the container on the top a
shown in the figure. s
•Push the machine back into the housing
until a “CLICK” can be heard. This
indicate that the machine has been
locked in position.
INITIAL START-UP
•Put the main switch in position 1
•The led corresponding to the ON-OFF
control will blink rapidly for 3 minutes.
12/37

•The machine is be in stand-by mode when the ON-OFF LED is blinking slowly,
it is then ready to be switched on.
•Ensuring the water reservoir and the coffee beans container are full, switch
the coffee machine on by pressing the on-off control and the corresponding
LED stops flashing and remains lit.
ADJUSTING THE TEXTURE GROUND COFFEE
CAUTION
13/37
•This machine is calibrated in the factory for an optimum level of ground
coffee. Too “coarse” ground coffee will result in a weaker coffee. Too “fine”
ground coffee will result in very strong coffee, delivered by “drops” and tasting
“bitter”.
The time required for an espresso will
range from 20-30 seconds.
•Press the unlocking levers available
under the drip tray and pull the m
as shown in the figure. achine

•Pull the coffee machine forward from it’s
housing by sliding it along it’s telescopic
runners.
•Turning the knob will ad just the coffee
texture. Before adjusting, make a note
of the original setting so that the
machine can be reset, if required, to
the factory settings. Turning the knob
in the clockwise direction will lead to a
fine texture for a stronger coffee.
Turning the knob anti-clockwise will
lead to a coarse texture for a weaker
coffee. The set grinding level can be
read on the lid of the coffee case:
bigger circles means “coarse” grinding
level (fast-flowing weak coffee),
whereas smaller circles means “fine”
grinding level (slow-flowing strong
coffee).
•Push the machine back into the
housing until a “click” can be heard.
This indicates that the machine is
locked in position.
14/37

STAND-BY MODE
•Once powered and inserted into the cabinet, the machine is in stand-by mode: this
will be signaled by the on/off LED blinking.
•Press the start control to switch on the machine: the start LED will be illuminated.
•To come back to the stand-by mode, press the start control once again.
CAUTION:
On start-up, the machine initiates the pre-warming phase for the firs 3
minutes. During this phase the ON/OFF LED will blink quickly and the
machine will be not able to execute any operation. Then the LED blinks
slowly and the machine is ready to operate.
15/37

5MAKING COFFEE
•Press the control corresponding to the desired selection.
•Press the start control within 10 seconds and the machine will make the coffee
selected.
•The machine will stop automatically
CAUTION: the desired function will be disabled if the start control is not pressed
within 10 seconds. It will then be necessary to repeat the procedure.
HOW TO OBTAIN AN EXCELLENT ESPRESSO
•The brewing time for an excellent espresso will be about 15 - 25 seconds.
Elements affecting this brewing time are the grinding level of the coffee and the
quantity of ground coffee. If necessary, the grinding level, as well as the quantity
of ground coffee can be modified (refer to Chapters 8 & 9. Instructions for the first
use of the machine).
Useful advice:coffee is an hygroscopic element that is its quality and characteristics
strictly depend on weather (humidity). Coffee should be ground coarser if humidity in
the air is very high, otherwise it will become thick and not flow freely; on the contrary,
the coffee should be ground finer in dry conditions.
16/37

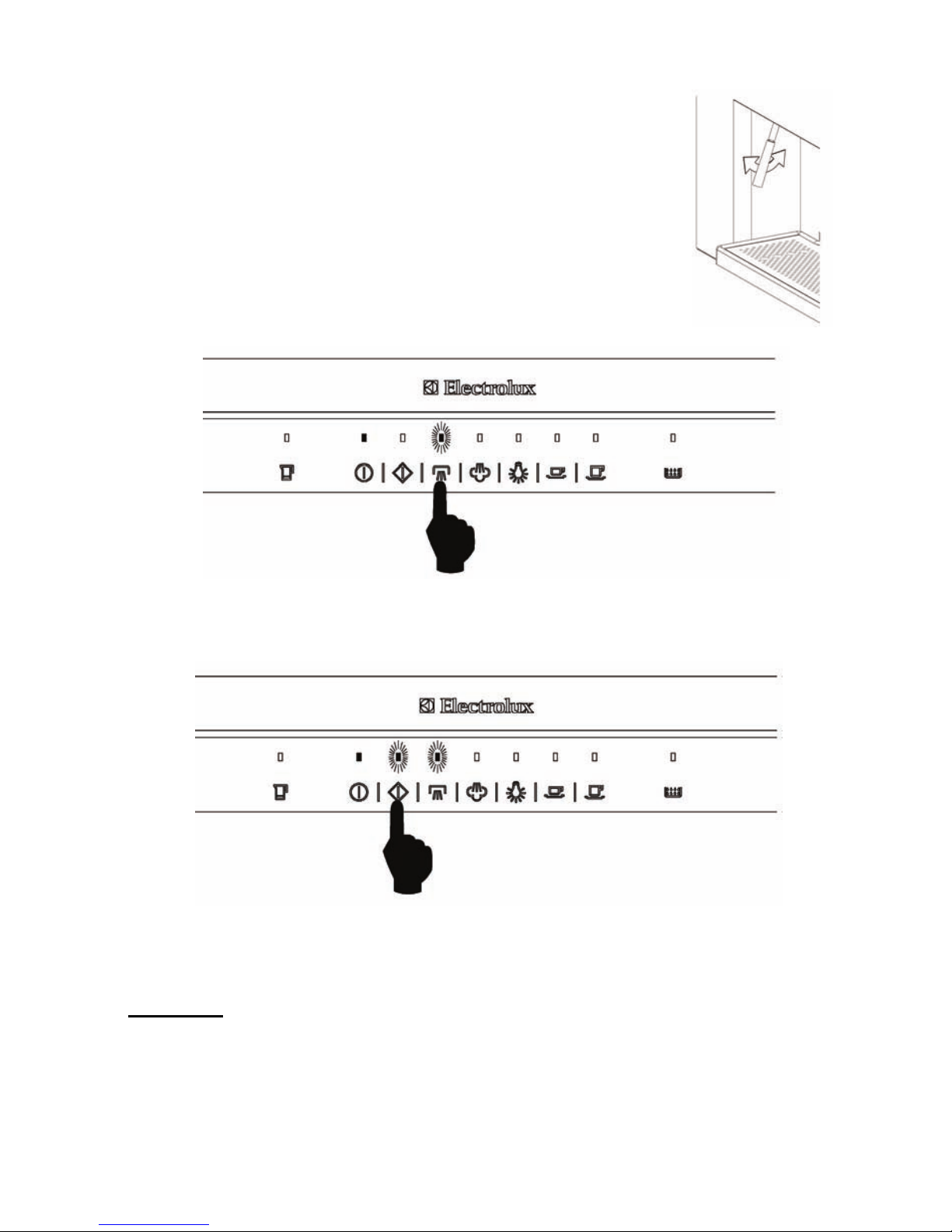

6HOT WATER
•The steam/water pipe can be moved to the back of the
cabinet when not in use.
Pull forward when required.
Do not touch when HOT!
•To dispense hot water, place a container under the steam/water nozzle; then
press the water control.
•Press and hold the start control within 10 seconds until the desired amount is
dispensed. To stop the water flowing, simply release the control.
CAUTION: the desired function will be disabled if the start control will be is not
pressed within 10 seconds. It will then be necessary to repeat the procedure.
17/37

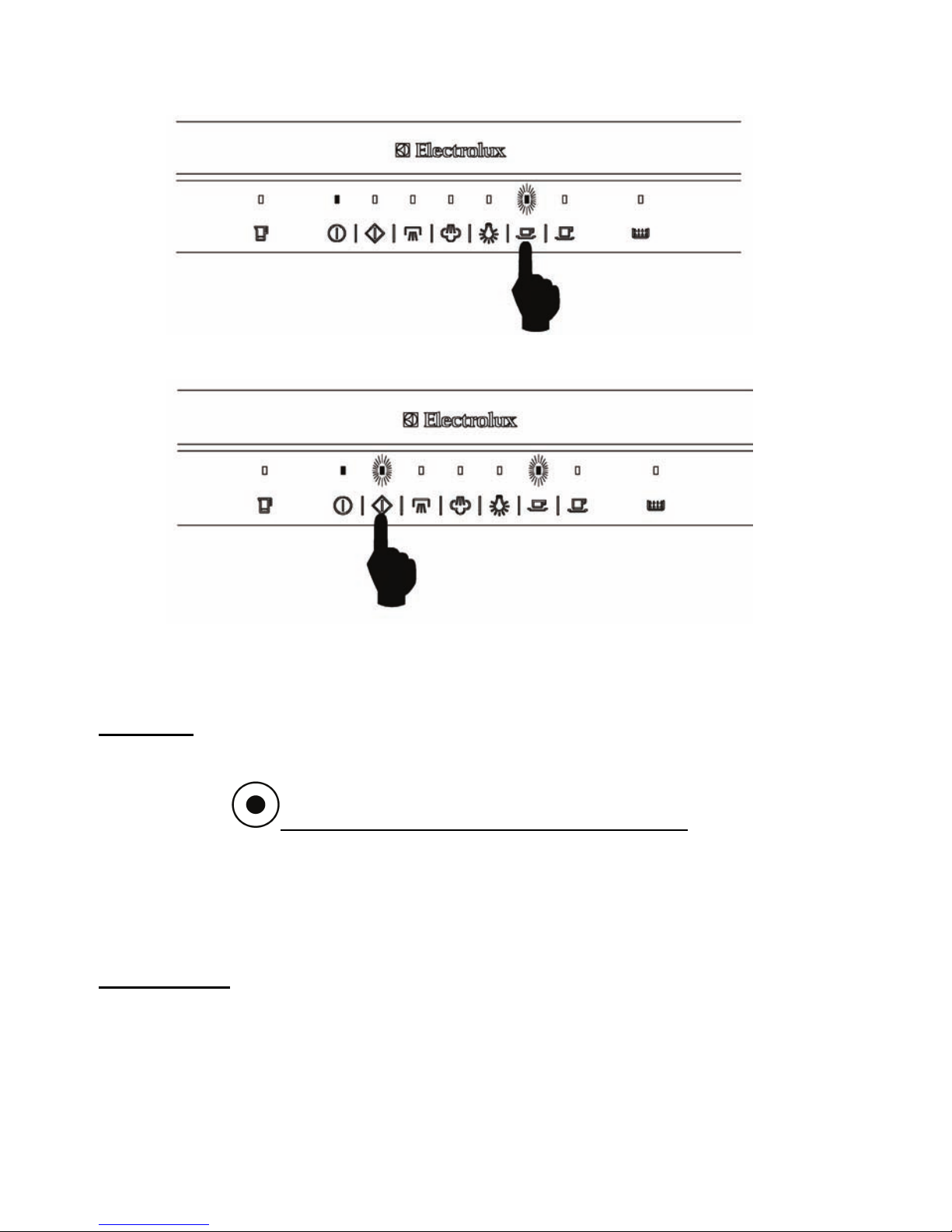

7STEAM
HEATING LIQUIDS
•Press the steam control and the corresponding indicator blinks for 20 seconds.
The machine will be ready to make steam when the indicator stops blinking and
remains lit.
•Place a jug with the liquid to be heated under the steam nozzle.
•Press and hold the start control within 10 seconds and wait for the steam function
to commence.
CAUTION:the desired function will be disabled if the start control is not pressed
within 10 seconds. It will then be necessary to repeat the procedure.
•The steam will continue to spray till the start control is released.
MILK FOR CAPPUCCINO: Pour some cold milk (100cc min.) in a deep jug and
heat it using steam. Agitate the milk jug a little and wait until the foam is
ready (one minute min.). To improve the result gently beat a little the jug on
the table after that the foam is ready.
18/37

8PROGRAMMING THE AMOUNT OF COFFEE BEANS TO BE
GRINDED
•This espresso machine has already been calibrated in factory to dispense the
ideal measure of ground coffee for one cup of espresso.
•However this quantity of ground coffee can be increased or reduced, then the
selected measure is stored. The programmable measure of ground coffee
refers to both the espresso selection and to regular coffee selection.

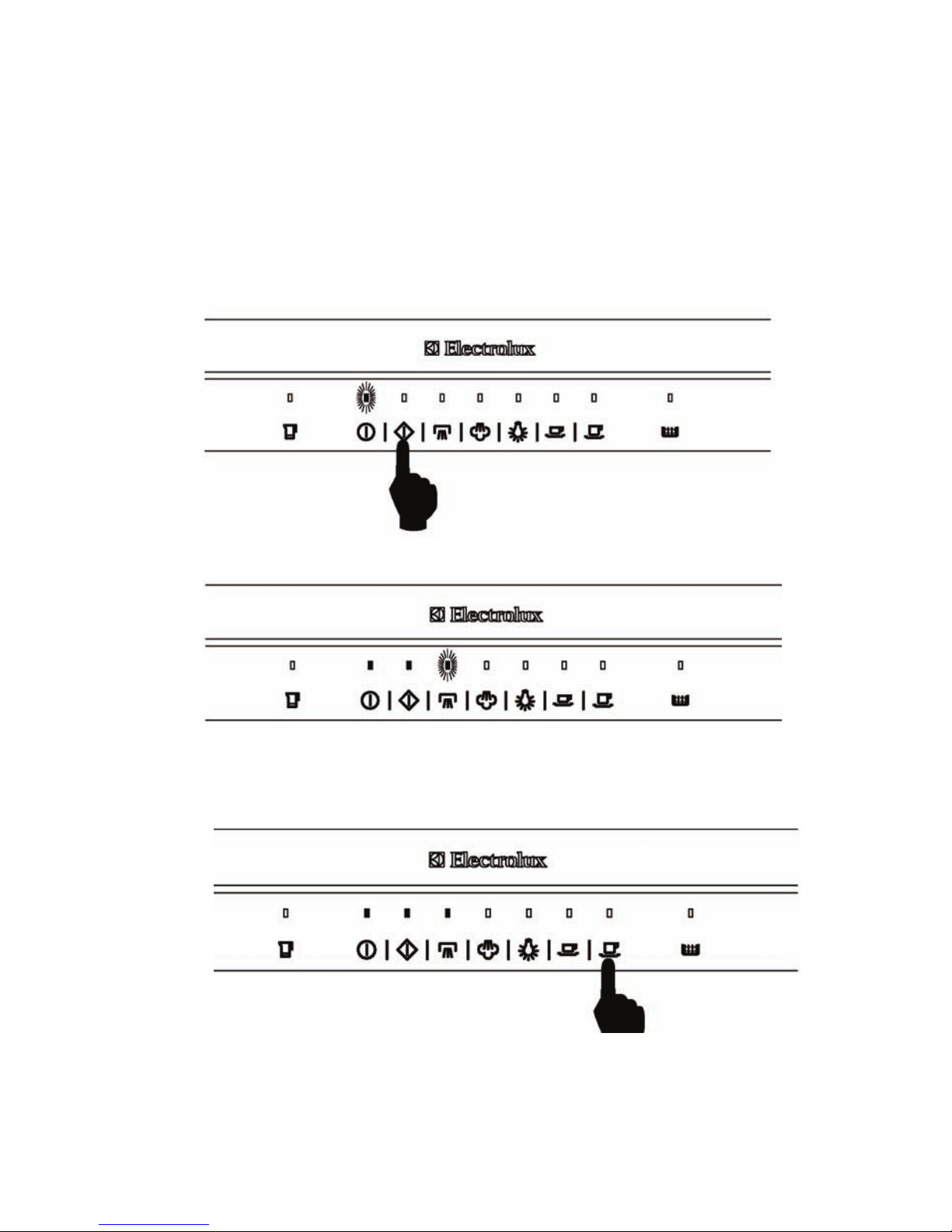

•Put the machine on stand-by mode as described.
•Keep the start control pressed for 10 seconds.
•Some LEDS will flash, working as indicators, (the more are the LEDS
illuminated the greater the quantity of coffee). Before adjusting make a note
of the original setting so that the machine can be reset to the factory settings
if required.
•To increase or decrease the quantity of ground coffee just press the
“espresso” control to decrease and “regular coffee” control to increase.
19/37
