Electrolux E46GC67ESS - 46" Sealed Burner Gas Cooktop User manual

Installation InstructionsInstallation Instructions
Installation InstructionsInstallation Instructions
Installation Instructions
Cooktop
5995426250E30GC64ESS E36GC65ESS E46GC66ESS E46GC67ESS

2Safety
IMPORTANT SAFETY INSTRUCTIONS
Safety Precautions
Do not attempt to install or operate your unit until you have read the safety
precautions in this manual. Safety items throughout this manual are labeled with a
Warning or Caution based on the risk type.
Definitions
!
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
Indicates installation, operation or maintenance information which is important but
not hazard related.
!
CACA
CACA
CAUTIONUTION
UTIONUTION
UTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury.
CACA
CACA
CAUTIONUTION
UTIONUTION
UTION
CAUTION used without the safety alert symbol indicates a potentially hazardous
situation which, if not avoided, may result in property damage.
!
WARNINGWARNING
WARNINGWARNING
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.

3
!
WARNINGWARNING
WARNINGWARNING
WARNING
• Read all instructions before using the appliance.
• Improper installation, adjustment, alteration, service, or maintenance can cause
personal injury or property damage. Refer to these instructions and the
accompanying Use & Care Manual. For assistance or additional information,
consult a qualified installer, service agency, manufacturer (dealer), or the gas
supplier.
• For your safety:
- Do not obstruct the flow of combustion and ventilation air to the unit.
- Keep appliance area clear and free from combustible material, gasoline and
other flammable vapors and liquids.
- Do not use or attempt to use this appliance in the event of a power failure.
• This unit is designed as a cooking appliance. Never use it for warming or heating
a room.
• This appliance must not be used in combination with surface (countertop)
ventilation systems. The use of an overhead hood or downdraft is recommended
for ventilation.
• This appliance must be installed with the gas pressure regulator supplied with it.
• Disconnect the electrical supply before installing or servicing the appliance.
• This appliance must be grounded. Connect only to a properly grounded
electrical supply. Refer to “Electrical Requirements”.
• Install or locate this appliance only in accordance with these installation
instructions.
• Use this appliance only for its intended use as described in this manual. Do not
use corrosive chemicals or vapors in this appliance. This type of appliance is not
designed for industrial or laboratory use.
• As with any appliance, close supervision is necessary when used by children.
• Do not operate this appliance if it has a damaged electrical cord, plug, conduit or
wires, if it is not working properly, or if it has been damaged or dropped.
• This appliance should be serviced only by qualified service personnel.
• Some products, such as whole eggs, and sealed containers, such as closed glass
jars, may explode and should not be heated on this cooktop.
Safety
SAFETY PRECAUTIONS

4Safety
!
WARNINGWARNING
WARNINGWARNING
WARNING
• Based on safety considerations, the top burner flame should be adjusted so it
does not extend beyond the edge of the cooking utensil.
• Cooking utensils should not be used on the open top broiler section.
• If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury, or death.
• What to do if you smell gas:
- Do not try to light any appliance.
- Do not touch any electrical switch, do not use any phone in your building.
- Immediately call the gas supplier from a neighbor’s phone.
- Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call the fire department.
• For your safety:
- Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
• Installation of this appliance must be performed by a qualified installer, service
agency or the gas supplier.

5
Finding Information
READ AND SAVE THESE INSTRUCTIONS
Read all instructions before installing the cooktop.
For your safety, please read and observe all safety instructions. This guide will help
you anticipate all installation connections.
QUESTIONS?
For toll-free telephone support in the U.S. and Canada:
1-877- 4ELECTROLUX (1-877-435-3287)
For online support and Internet product information:
www.electroluxusa.com
©2005 Electrolux Home Products, Inc.
Post Office Box 212378, Augusta, Georgia 30917, USA
All rights reserved. Printed in the USA
Attach your sales
receipt to this
page for future
reference.
NONO
NONO
NOTETE
TETE
TE
Installer: Leave instructions with owner.
Owner: Read your cooktop Use & Care Manual. It contains important safety information
for operating this appliance. It also has many suggestions for getting the best results
from your cooktop.

6Finding Information
TABLE OF CONTENTS
Safety ................................................................... 2
Definitions .......................................................... 2
Important Safety Instructions .............................. 2
Safety Precautions ............................................. 3
Finding Information ........................................... 5
Please Read And Save This Guide ................... 5
Questions? ........................................................ 5
Table Of Contents .............................................. 6
Preparing for Installation .................................. 7
Verifying Package Contents ............................... 7
Cabinet/Counterop Preparation ......................... 7
Making the Gas/Electric Connection .............. 10
Requirements .................................................. 10
Installation ........................................................ 12

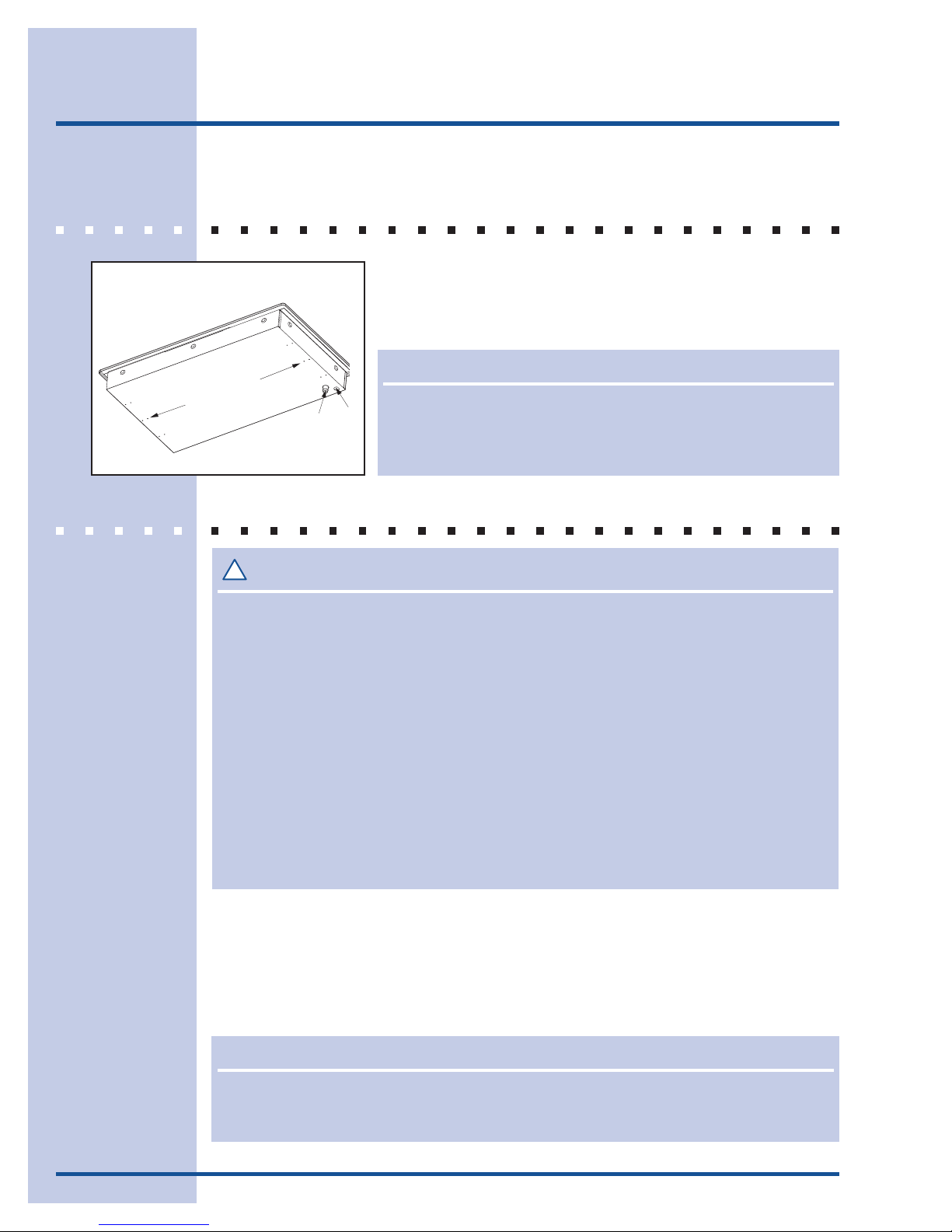

Installing the Cooktop ....................................... 12
Connecting the Gas ......................................... 12
Gas and Electric Requirements Table .............. 13
Installing the Burner Components .................... 14
Making the Electrical Connection ..................... 15
Operation ........................................................... 16

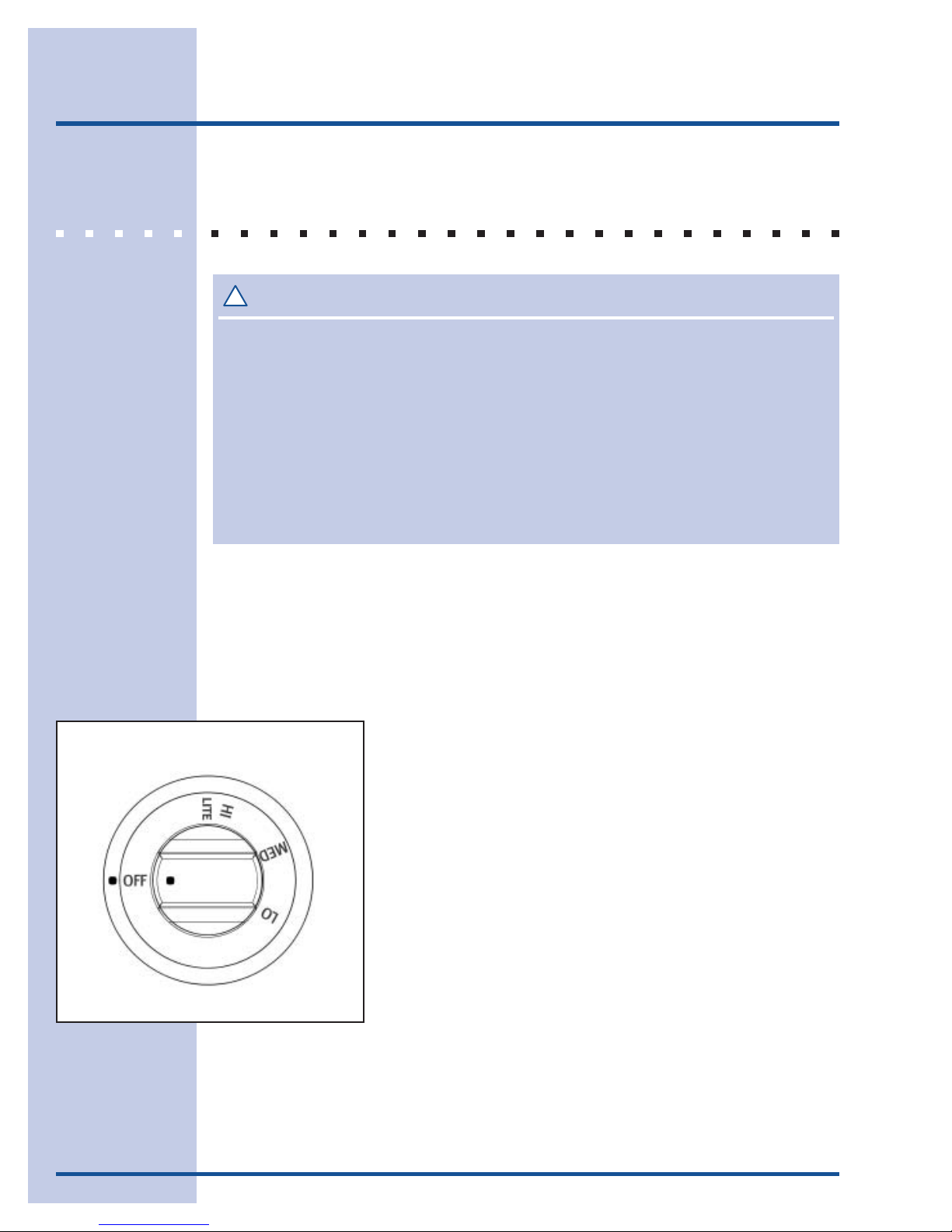

Verifying the Operation .................................... 16

7
Preparing for Installation
VERIFY PACKAGE CONTENTS
• Use & Care Manual • Cleaning Kit
• Hold Down Bracket Kit • Grill Drip Pan (E46GC67ESS only)
• Grate/Burner Cap Pack • Grill U-Burner (E46GC67ESS only)
• Burner Set • Grill Heat Control Channels (E46GC67ESS only)
• Gas Pressure Regulator • Grill (E46GC67ESS only)
• LP Conversion Kit • Grease Control Box (E46GC67ESS only)
CABINET/COUNTERTOP PREPARATION
The installation of this built-in appliance must be completed by a qualified appliance
technician or contractor. Proper installation is the owner’s responsibility.
Carefully check the location where the cooktop is to be installed. The cooktop
should be placed for convenient access, but away from drafts that may be caused
by open doors and windows or by HVAC duct outlets. Make certain that gas and
electrical power can be provided in the selected locations. Plan the installation so
that all minimum clearances are met or exceeded. Dimensions shown provide
minimum clearances, unless otherwise noted.
!
WARNINGWARNING
WARNINGWARNING
WARNING
• To reduce the risk of personal injury caused by reaching over a hot appliance,
cabinet storage space located directly above the cooktop should be avoided.
• Keep appliance area clear and free from combustible materials, gasoline and
other flammable vapors and liquids.
• Failure to provide proper clearances may result in a fire hazard!
• Do not store combustible materials or items adversely affected by heat
immediately below the cooktop.
• The back edge of the cooktop must remain a minimum of 2 1/2" (64mm) from any
combustible backsplash material. This will require special cabinet and
countertop dimensions.

8Preparing for Installation
Plan the installation so that the electrical connection, gas
shut-off valve, and pressure regulator are accessible from the
front of the cabinet.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
• When installing the cooktop into a laminated (Formica, etc.) or synthetic (Corian,
etc.) countertop, radius the corners of the cutout to prevent cracking of the
countertop.
• Follow the countertop manufacturer’s instructions regarding the minimum corner
radius, use of heat reflective tape, reinforcement of corners, etc.
• If cabinet storage space is to be provided directly above the cooktop, the risk of
personal injury may be reduced by installing a ventilating hood that projects
horizontally a minimum of 5 inches beyond the face of the cabinets.
• Allow a minimum 1/4 inch clearance between the bottom of the any cooktop
chassis and all combustible surfaces, including the upper edge of a drawer

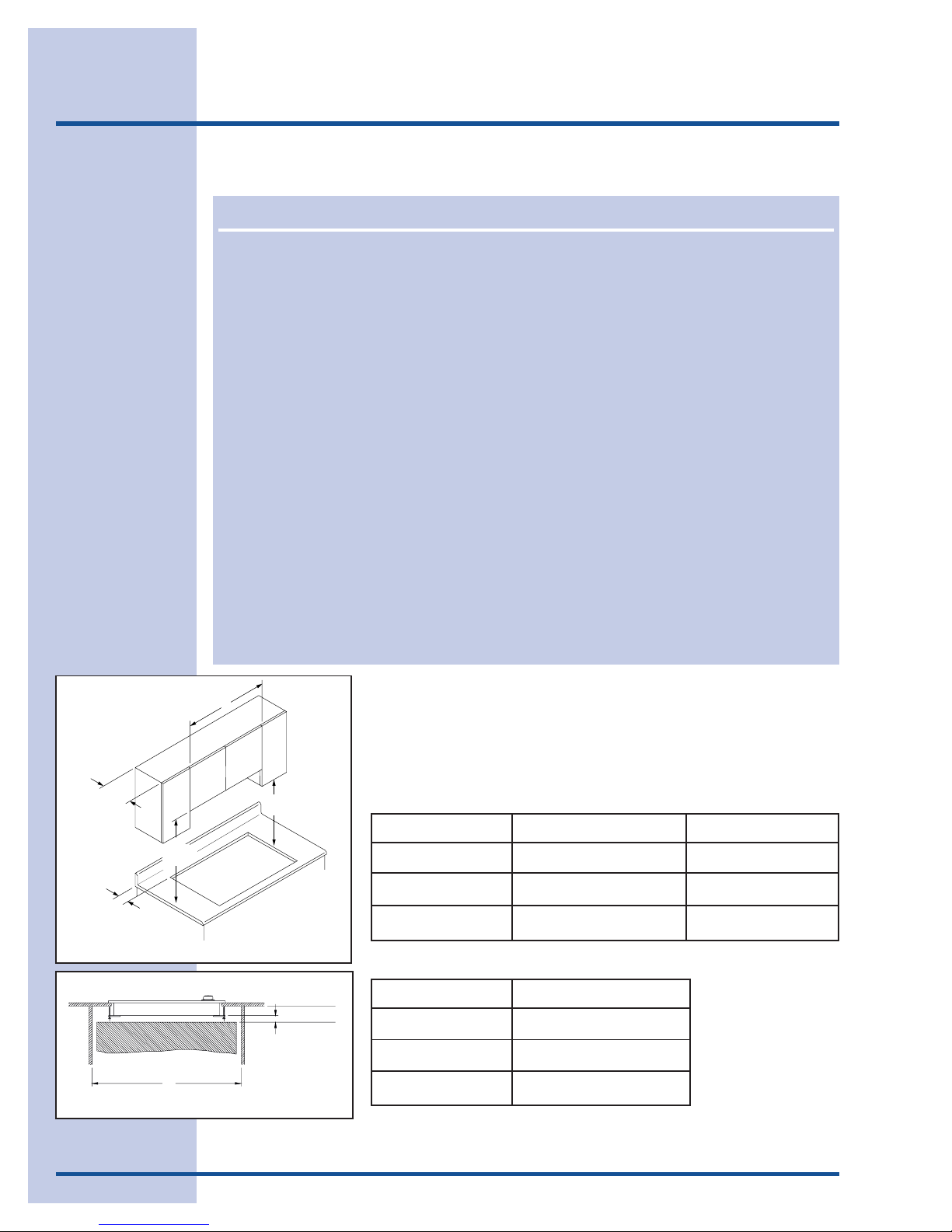

installed below the cooktop. See Figure 1 and related table.
• Access to the underside of the cooktop and the junction box must be provided for
inspection and service.
• A fixed shelf should not be installed below the cooktop.
• Clearance inside the cabinet must allow for proper side mounting bracket
installation. See Figure 2 and related table.
• All models are designed for 24” (610mm) minimum base cabinet depth.
• The maximum depth of cabinets installed above cooking tops is 13 inches
(330mm).
13"
(330mm)
Maximum
A
3 1/8"
(79mm)
18"
(457mm)
Minimum
30"
(762mm)
Minimum
Clearances to Combustibles
1/4” (6mm)
Mimimum clearance
to combustible
surfaces
B
Under Cabinet Clearances
Model
E30GC64ESS
E36GC65ESS
E46GC66ESS/67ESS
“A” Minimum “A” Maximum
30” (762mm) 36” (914mm)
36” (914mm) 42” (1067mm)
54” (1372mm)48” (1219mm)
Model
E30GC64ESS
E36GC65ESS
E46GC66ESS/67ESS
“B” Minimum
29” (737mm)
35 1/4” (895mm)
46” (1168mm)
Figure 1
Figure 2

9
30"
(762mm)
21"
(533mm)
4" (102mm)
Chassis height
1/4" (6mm) Min.
to combustibles
below chassis
27 1/2"
(699mm)
19 7/8" (505mm)
3 1/8"
(79mm)
7 1/2" (191mm) Min.
to combustible
side wall above
the cooktop
(both sides)
2 1/4"
(57mm) Min.
Vertical
combustible
surface
Rear
wall
2"
(51mm) Min.
25" (635mm)
Minimum
Cutout Dimensions for the
E30GC64ESS
21"
(533mm)
4" (102mm)
46"
(1168mm)
44 1/2"
(1130mm)
19 7/8" (505mm)
3 1/8"
(79mm)
1/4" (6mm) Min.
to combustibles
below chassis
7 1/2" (191mm) Min.
to combustible
side wall above
the cooktop
(both sides)
Vertical
combustible
surface
Rear
wall
2 1/4"
(57mm) Min.
2"
(51mm) Min.
25" (635mm)
Minimum
6 1/2"
(165mm)
30 1/2"
(775mm)
14"
(356mm)
Cutout Dimensions for the
E46GC66ESS and E46GC67ESS
(E46GC67ESS model shown)
36"
(914mm)
21"
(533mm)
19 7/8"
(505mm)
33 3/4"
(857mm)
4" (102mm)
Chassis height
3 1/8"
(79mm)
1/4" (6mm) Min.
to combustibles
below chassis
7 1/2" (191mm) Min.
to combustible
side wall above
the cooktop
(both sides)
2 1/4"
(57mm) Min.
Vertical
combustible
surface
Rear
wall
2"
(51mm) Min.
25" (635mm)
Minimum
Cutout Dimensions for the
E36GC65ESS
Preparing for Installation
Figure 3
Figure 4
Figure 5

10 Making the Gas/Electric Connection
REQUIREMENTS
Gas Supply Requirements
Check your local building codes for the proper method of installation. In the
absence of local codes, this appliance should be installed in accordance with the
National Fuel Gas Code ANSI Z223.1/NFPA 54. Be certain that the appliance being
installed is correct for the gas service being provided. Refer to the data plate
located on the bottom of the cooktop chassis.
!
WARNINGWARNING
WARNINGWARNING
WARNING
• If the gas or electric service provided does not meet the product specifications,
do not proceed with the installation. Call the selling dealer, the gas supplier, or a
licensed electrical or plumbing contractor.
• The grounding plug must not, under any circumstances, be cut or removed.
• This appliance must be installed by a licensed plumber or gas fitter when
installed within the Commonwealth of Massachusetts.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
• All gas cooktops have the gas and electrical located in the back right corner as
you face the front of the appliance.
• Each cooktop ships with a factory regulator in the box. All models utilize 1/2”
regulators.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
• No adjustment of burner settings is required. All valves and air mixture shutters
found in this appliance have been factory preset for natural gas.
• An LP Conversion Kit is included with this product. Do not use any other
conversion method or components other than the kit enclosed.

11
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
• If the electrical supply circuit does not have a grounding-type receptacle, it is the
responsibility of the customer to have the existing receptacle changed by an
electrician to a properly grounded receptacle.
• The power supply must be properly polarized. Reverse polarity will result in
continuous sparking of the electrodes, even after flame ignition. If the power
supply is not properly polarized, it is the responsibility of the customer to have
the polarity corrected.
• If there is any doubt as to whether the wall receptacle is properly grounded or
polarized, have it checked by a qualified electrician prior to installing the
cooktop.
• Do not plug the cooktop into Ground Fault Circuit Interrupter (GFCI) receptacles.
The cooktop spark ignition module can cause a GFCI to trip.
Making the Gas/Electric Connection
Gas and Electrical Supply Requirements
The correct voltage, frequency and amperage must be supplied to the appliance
from an isolated, grounded circuit which is protected by a properly sized circuit
breaker or time-delay fuse.
The cooktop must be connected to the power supply with copper wire only. The
use of aluminum wire may result in unsatisfactory connections. Flexible armored or
nonmetallic, sheathed copper cable (with a grounding wire) should be used to
supply electrical power to the junction box or receptacle.
The cooktop’s factory-equipped, three-prong grounding plug must be inserted into a
mating grounding-type receptacle in accordance with National Electric Code and
applicable state, municipal and local codes.
Be certain to locate the junction box or electrical outlet so the electrical supply may
be easily disconnected in the event that service becomes necessary. Also, provide
extra slack in the cable to allow the cooktop to be removed for servicing.

12 Installation
INSTALLING THE COOKTOP
Place and center the cooktop within the cutout. Secure the
cooktop to the countertop utilizing the two (2) hold-down
brackets provided. Do not overtighten the screws. See
Figure 6.
CONNECTING THE GAS
Attach the gas pressure regulator (included with the cooktop) to cooktop pipe nipple
inlet.
Install a gas shut-off valve (not included with the cooktop) in the main gas supply
line in an accessible location near the cooktop. Complete connection of the gas
supply to the cooktop by installing 1/2 inch flexible gas line (not included with the
cooktop) between the pressure regulator and the shut-off valve.
!
WARNINGWARNING
WARNINGWARNING
WARNING
• The maximum gas supply pressure to the regulator must not exceed 1/2 pound
per square inch.
• Verify that the proper gas supply has been provided.
• Do not apply excessive pressure when tightening connections and fittings.
• Do not use plumber’s putty or Teflon tape on gas compression connections. It
can defeat the proper sealing of these fittings. Use plumber’s putty or Teflon tape
only on pipe thread fittings.
• Turn all cooktop control valves to the “OFF” position, then turn on the gas
supply. Check all supply lines and connections for leaks using a soap and water
solution. Do not use a flame to check for leaks. After verifying that there are no
gas leaks, turn off the gas supply to the cooktop by turning the gas shut-off valve
to the off position. Leak testing of the appliance shall be conducted according to
the manufacturer’s instructions.
• For LP gas installations, the LP gas tank must have its own high-pressure
regulator. This is in addition to the pressure regulator supplied with the cooktop.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
To prevent damage to the gas pressure regulator, install the regulator only after the
cooktop is mounted in its permanent position. Ensure that the arrow on the regulator
points in the direction of the gas flow towards the cooktop.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
Do not use a hardening compound or caulking to permanently
seal the cooktop into place, as the unit must be readily
removable for service. If such a hardening compound is used,
removal of the unit will be at the customer’s expense.
Gas Electri
c
Hold down
bracket mounting
holes (both sides)
Figure 6

13
Installation
GAS AND ELECTRIC REQUIREMENTS TABLE
Refer to the following table for more information on gas and electric requirements.
Model No. Electrical
circuit
required
Total
connected
load
Gas type Manifold
pressure
Minimum gas
supply
pressure
E30GC64ESS
120VAC,
60Hz, 15A
0.25 Amps
(0.03 Kw)
Natural
Natural
Natural
Natural
4” Water Column
4” Water Column
4” Water Column
4” Water Column
5” Water Column
5” Water Column
5” Water Column
5” Water Column
E46GC67ESS
E46GC66ESS
E36GC65ESS
Above models
converted
to LP
Liquid Propane 10” Water Column 11” Water Column

14 Installation
INSTALLING THE BURNER COMPONENTS
Burner Components
Remove the brass burner rings, porcelain burner caps, and porcelain grates from
their shipping packages. Place each burner ring onto its corresponding burner
base, being certain that the five alignment tabs slide into the matching notches in
the base. Set each porcelain burner cap on top of its corresponding burner ring.
Place each grate onto the cooktop, being certain that the rubber feet are positioned
in the locating dimples.
Grill Components
Remove the grill components from inside the main
carton. Remove all of the packing materials from
the Grill, U-burner, Heat Control Channels, Grease
Control Box and the Drip Pans.
Begin your set up by placing the Drip Pans inside
on the bottom of the open grill burner box area,
using the dimples to locate the Drip Pan. Next, slip
the open end of the U-burner onto the gas stub
located in the front inside of the grill burner box, and
insert the bracket on to opposite end of the U-
burner into the slot located on the Grease Control
Box. Proceed to install the Heat Control Channels,
which sit on top of four pins at the inside front and
back of the grease control box. Finally, set the grill
in place on the top of the cooktop.
!
WARNINGWARNING
WARNINGWARNING
WARNING
Never attempt to operate the cooktop with any of the burner rings, burner caps, grates
or grill components removed.
NONO
NONO
NOTETE
TETE
TE
The U-burner is adjusted at the factory and does not require any field adjustment for
proper function.
Grate
Burner Cap
Burner Ring
Top Frame
Burner Head (Fixed)
Burner Components
Figure 7

15
Installation
MAKING THE ELECTRICAL CONNECTION
Plug the three-prong plug from the appliance into the properly grounded and
polarized wall receptacle.
!
WARNINGWARNING
WARNINGWARNING
WARNING
• Ensure that the power supply is disconnected before proceeding.
• Verify that the power supply matches the ratings found on the appliance data
plate before proceeding.
• The complete appliance must be properly grounded at all times when electrical
power is applied.
• Do not ground the appliance with the neutral (white) house supply wire. A
separate ground wire must be utilized.
• If aluminum house supply wiring is utilized, splice the appliance copper wires to
the aluminum house wiring using special connectors designed and agency-
certified for joining copper and aluminum.
• Follow the connector manufacturer’s recommended procedure carefully.
Improper connection can result in a fire hazard!

16 Operation
VERIFYING THE OPERATION
Before beginning the test procedure, ensure that the gas supply is turned off at the
shut-off valve, all cooktop control valves are in the “OFF” position, and all burner
rings, burner caps, and grates are properly positioned on the cooktop.
Rotate one knob at a time counterclockwise to the “HI/LITE” position. Verify that all
ignitors spark continuously, then return the knob to the “OFF” position. Repeat for
!
WARNINGWARNING
WARNINGWARNING
WARNING
• If the cooktop fails to operate properly, ensure that the electrical power supply
and gas supply are turned on and that all installation steps have been carefully
followed. Call a qualified service technician if the cooktop still does not operate
properly.
• The cooktop and shut-off valve must be disconnected from the gas supply piping
during any pressure testing exceeding 1/2 pound per square inch (3.5 kPA).
• The cooktop must be isolated from the gas supply piping by closing the shut-off
valve during any pressure testing at or below 1/2 pound per square inch (3.5 kPA).
Figure 8
all knobs. See Figure 8.

17
Operation
Turn on the main gas supply to the cooktop by opening the gas shut-off valve. Test
each burner separately by pressing and turning one control knob at a time
counterclockwise to the “HI/LITE” position. All ignitors will spark simultaneously. (It
will take approximately four seconds for ignition to occur, at which time all igniters
will stop sparking. If ignition does not occur within four seconds, turn off the knob,
wait for at least two minutes to allow any gas to dissipate, then repeat this ignition
test.) The control knob can then be rotated counterclockwise from “HI” to “LOW” to
adjust the flame height progressively. Repeat the ignition test for all burners.
When installed properly, the flame will be steady and quiet. It will also have a sharp,
blue inner cone that will vary in length proportional to the burner size. Flame
adjustment will not be necessary.
Read and understand the accompanying Use & Care Manual prior to cooking with
this appliance. The Use & Care Manual contains additional important safety,
service and warranty information.

1-877-4Electrolux www.electroluxusa.com
www.electroluxca.com

1
ICON PROFESSIONAL Cooktop

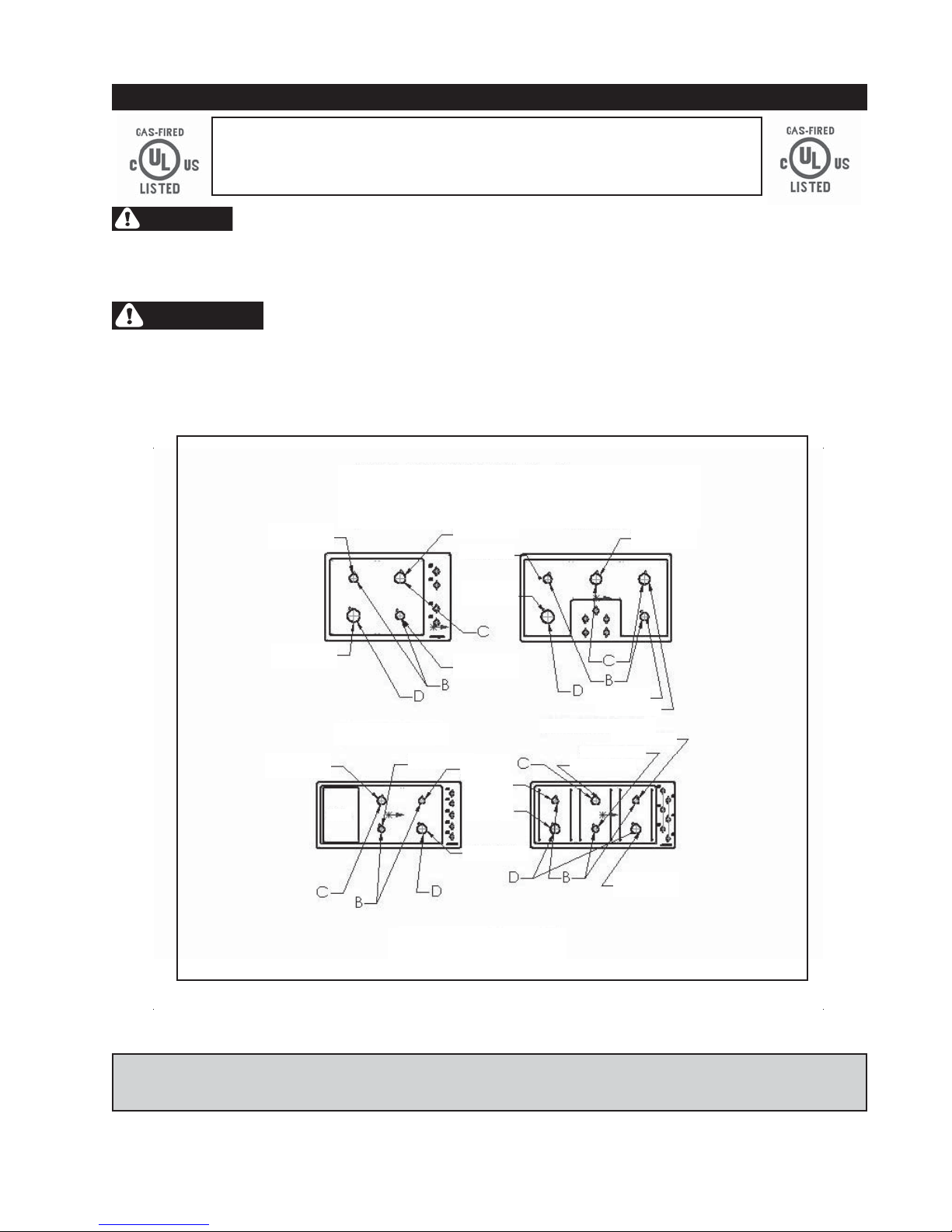

Burner Sizes & IDENTIFICATION
LEFT REAR
E30GC64ESS E36GC65ESS
E46GC67ESS E46GC66ESS
RIGHT REAR CENTER
LEFT FRONT
LEFT REAR
RIGHT FRONT
LEFT FRONT
RIGHT FRONT
RIGHT REAR
RIGHT REAR
CENTER FRONT
CENTER REAR
LEFT REAR LEFT
FRONT RIGHT REAR
LEFT REAR
LEFT
FRONT
RIGHT FRONT
RIGHT FRONT
INDIVIDUAL BURNER RATE
B Burner = 8500 BTU/hr
C Burner = 12500 BTU/hr
D Burner = 14000 BTU/hr
GRILL
Instructions for converting cooktop to operate on Liquefied Petroleum Gas
INSTALLATION AND SERVICE MUST BE PERFORMED BYAQUALIFIED
INSTALLER.
IMPORTANT: SAVE FOR BUILDING INSPECTORS USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
This conversion kit must be installed by a qualified service technician in accordance with the
manufacturers instructions and all applicable codes and requirements of the authority having jurisdiction. Failure to follow
these instructions may result in fire, explosion or production of carbon monoxide causing property damage, personal injury
or loss of life. The qualified service agency is responsible for the installation of this kit. The installation is not complete until
the converted appliance is checked as specified in the manufacturer’s instructions supplied with this kit.
Before proceeding with the conversion, shut off the gas supply before disconnecting electrical
power to the cooktop. Be sure the unit is unplugged before installing conversion kit. Failure to do so could cause serious
bodily injury.
STEP1: Determine your model from the figure shown below. Compare the cooktop to be converted to the illustration. The
combination of the burners and knob location yields the model number and correct conversion kit. Install main orifice and bypass
orifice at the location specified in the kit.
NOTE: For elevations above 2000 ft., appliance rating shall be reduced at the rate of 4% for each 1000 ft. above sea level.
IMPORTANT: After replacing the natural gas to LP orifices, be sure to keep the original factory installed natural gas orifices
for future conversion back to natural gas. The tables provided on the page 9 of these instructions provide the locations for
the natural gas orifices.
Figure 1
CAUTION
WARNING

2
Instructions for converting cooktop to operate on Liquefied Petroleum Gas
REFER TO THE TABLE FOR YOUR MODEL NUMBER AS IDENTIFIED IN STEP 1.
ORIFICE SIZES ARE IN MILLIMETERS X 100 AND SHUTTER GAP IS IN INCHES.
MODEL NUMBER: E30GC64ESS
Kit PN: 76061-1
Burner Position
LEFT FRONT
RIGHT FRONT
LEFT REAR
RIGHT REAR
Main Orifice
106
86
86
101
Bypass Orifice
40
34
34
38
Shutter Gap
.34
.24
.24
.32
MODEL NUMBER: E36GC65ESS
Kit PN: 76061-2
Burner Position
LEFT FRONT
RIGHT FRONT
CENTER
LEFT REAR
RIGHT REAR
Main Orifice
106
86
99
86
99
Bypass Orifice
40
37
38
37
38
Shutter Gap
.40
.34
.29
.36
.36
MODEL NUMBER: E46GC66ESS
Kit PN: 76061-4
Burner Position
LEFT FRONT
RIGHT FRONT
CENTER FRONT
LEFT REAR
RIGHT REAR
CENTER REAR
Main Orifice
115
115
88
88
88
105
Bypass Orifice
42
42
37
37
37
38
Shutter Gap
.38
.35
.35
.36
.33
.32
MODEL NUMBER: E46GC67ESS
Kit PN: 76061-3
Burner Position
LEFT FRONT
RIGHT FRONT
GRILL
LEFT REAR
RIGHT REAR
Main Orifice
91
112
93
107
91
Bypass Orifice
36
41
73
38
34
Shutter Gap
.23
.40
No change required
.34
.33
STEP 2: FIND THE LP KIT INCLUDED WITH THESE INSTRUCTIONS. Use the correct table for the model
number identified in Step 1 and Figure 1 “ Burner Sizes and Identification” to locate the position for each
orifice included with the kit. Each orifice nut spud is stamped with its size.
Note: Included with this kit is a tool for removing the ring that retains the burner head.All burner heads must
be freed to allow the cooktop top frame to be removed. See Figure 2 in Step 3.
