1. SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
- Read the supplied instructions.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away unless continuously supervised.
•Children of less than 3 years of age should be kept
away unless continuously supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
ENGLISH 3

1.2 General Safety
•Do not change the specification of this appliance.
•If the tumble dryer is put on top of a washing machine,
use the stacking kit. The stacking kit, available from
your authorized vendor, can be used only with the
appliance specified in the instructions supplied with
the accessory. Read it carefully before installation
(refer to the Installation leaflet).
•The appliance can be installed as freestanding or
below a kitchen counter with correct space (refer to
the Installation leaflet).
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from being
fully open.
•The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
•WARNING: The appliance must not be supplied
through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on
and off by a utility.
•Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Do not exceed the maximum load of 7 kg (refer to the
"Programme chart" chapter).
•Do not use the appliance if items have been soiled
with industrial chemicals.
•Wipe away lint or packaging debris that has
accumulated around the appliance.
•Do not run the appliance without a filter. Clean the lint
filter before or after each use.
•Do not dry unwashed items in the tumble dryer.
www.electrolux.com4

•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
•Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
•Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
•WARNING: Never stop a tumble dryer before the end
of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature can be less
than 5°C or higher than 35°C.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical
when being moved.
• The rear surface of the appliance
must be put against the wall.
• When the appliance is in its
permanent position, check that it is
fully level with the aid of a spirit level.
If it is not, adjust the feet accordingly.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
ENGLISH 5

• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
• This appliance is for household use
only.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• Only dry fabrics which are applicable
to dry in the tumble dryer. Follow the
instructions on the fabric label.
• If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start the dryer.
• Do not drink or prepare food with the
condensed water/distilled water. It can
cause health problems to people and
pets.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the
tumble dryer.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• To prevent damage to the cooling
system be careful when you clean the
appliance.
2.5 Compressor
WARNING!
Risk of damage to the
appliance.
• The compressor and its system in the
tumble dryer is filled with the special
agent which is free from fluoro-chloro-
hydrocarbons. This system must stay
tight. The damage of the system can
cause a leakage.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
www.electrolux.com6

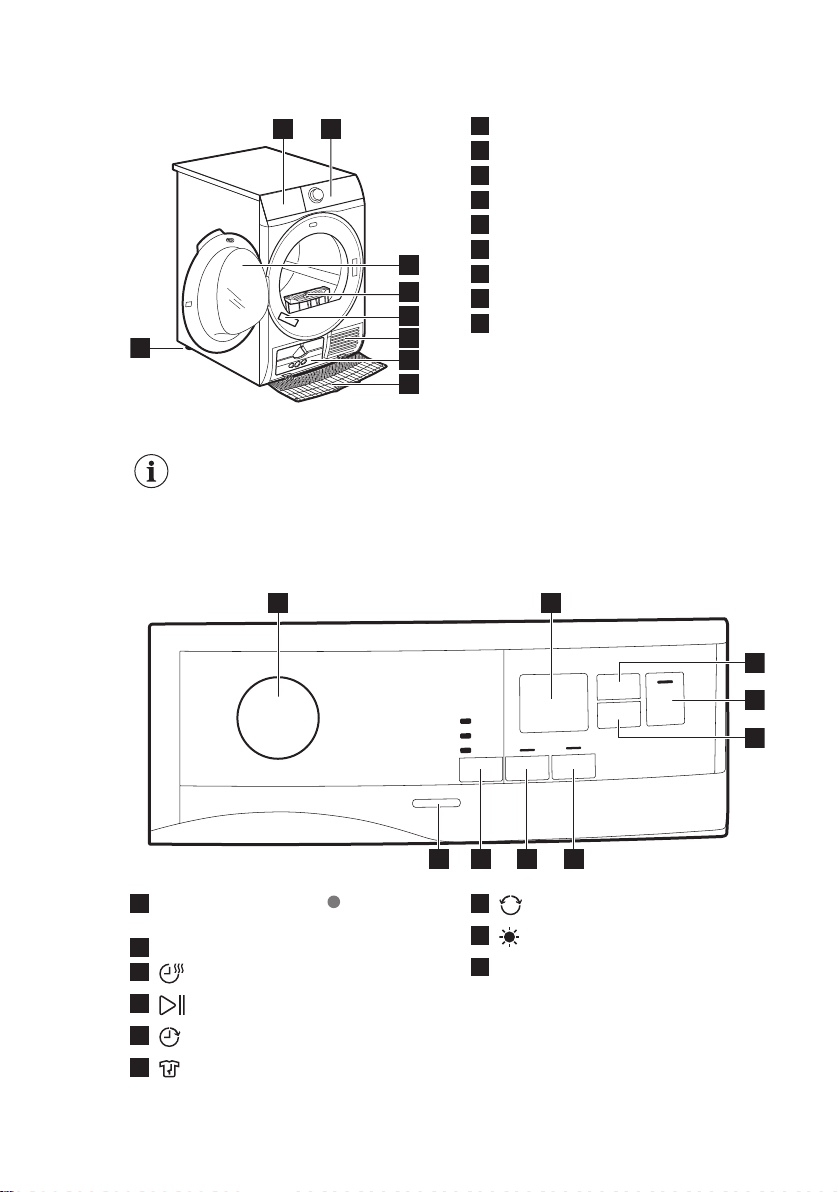

3. PRODUCT DESCRIPTION
1 2
5
3
4
6
7
8
9
1Water container
2Control panel
3Appliance door
4Filter
5Rating plate
6Airflow slots
7Heat Exchanger lid
8Heat Exchanger cover
9Adjustable feet
For ease of loading laundry
or ease of installation the
door is reversible. (see
separate leaflet).

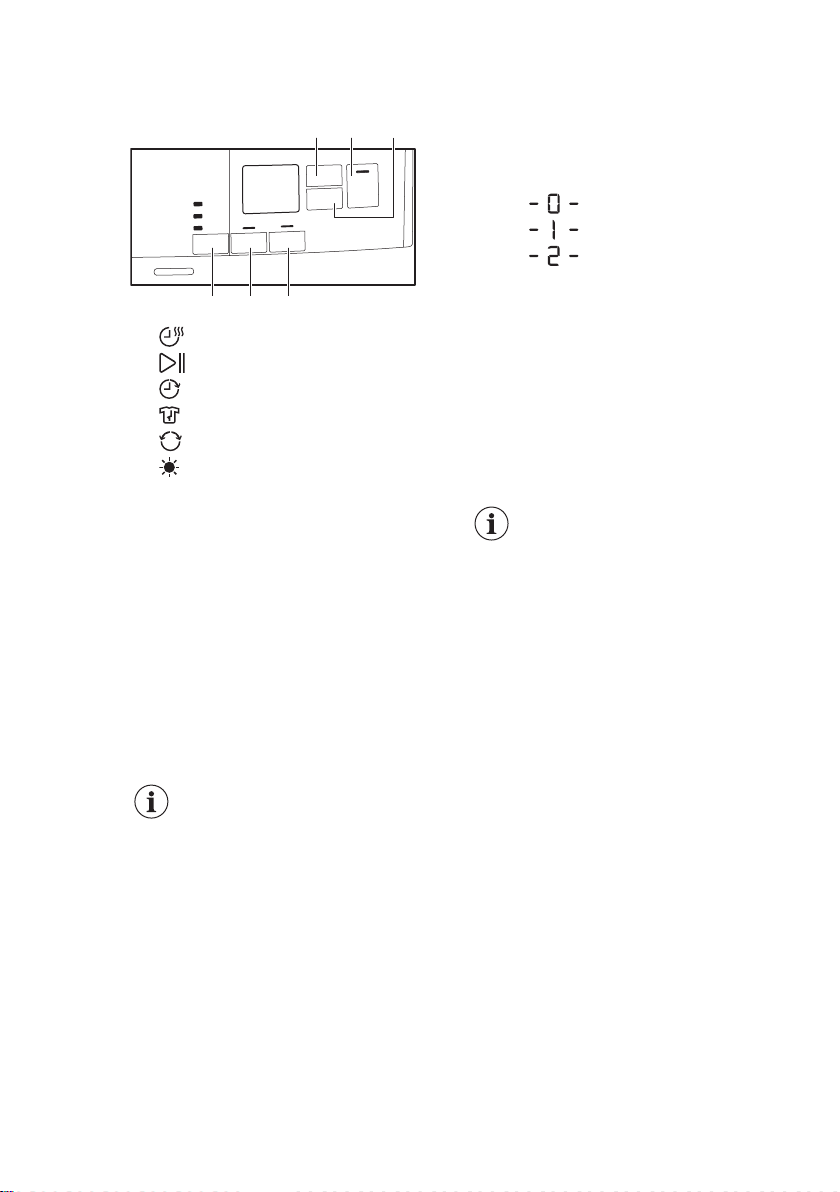

4. CONTROL PANEL
1
89 7 6
3
5
4
2
1Programme knob and RESET
switch
2Display
3 Time Dry touch button
4 Start/Pause touch button
5 Delay Start touch button
6 Extra Anticrease touch button
7 Reverse Plus touch button
8 Dryness Level touch button
9On/Off button
ENGLISH 7

Press the touch buttons with
your finger in the area with
the symbol or name of the
option. Do not wear gloves
when you operate the
control panel. Make sure
that the control panel is
always clean and dry.
4.1 Display
Symbol on the display Symbol description
time drying option on
delay start option on
indicator: check Heat Exchanger
indicator: clean filter
indicator: drain the water container
child lock on
wrong selection or knob is in the "Reset" po‐
sition
programme duration
- time Drying duration
- delay start duration
5. PROGRAMME TABLE
Programme Load 1) Properties / Fabric type2)
3) Cotton Eco 7 kg Cotton fabrics - Cupboard dry /
Cotton 7 kg Cotton fabrics. Programme for
daily usage. /
www.electrolux.com8

Programme Load 1) Properties / Fabric type2)
Synthetics 3,5 kg Synthetic and mixed fabrics. /
Delicates 4 kg Delicate fabrics such as viscose,
rayon, acrylic, and their blends. /
Bedlinen 3kg
Bed linen such as single and
double sheets, pillowcases, du‐
vet cover. /
Duvet 3 kg
Single or double duvets and pil‐
lows (with feather, down or syn‐
thetic fillings). /
Refresh 1kg Refreshing textiles that were in storage.
Silk 1 kg Silk suitable for tumble drying. /
Wool 1 kg
Woollen fabrics. Gentle drying of washable
woollens. Remove items immediately when
the programme is completed.
Sport 2 kg Sportswear, thin and light fab‐
rics, microfiber, polyester. /
Denim 4 kg
Leisure clothing such as jeans,
sweat-shirts of different material
thicknesses (e.g. at the neck,
cuffs and seams).
/
Mixed 3kg
Cotton and synthetic fabrics.
Low temperature programme.
Delicate programme with warm
air.
/
1) The maximum weight refers to dry items.
2) For fabric mark meaning see chapter
HINTS AND TIPS: Preparing the laundry.
3) The Cotton Cupboard Dry ECO programme is the “Standard cotton programme” ac‐
cording to Commission Regulation EU n 392/2012. It is suitable for drying normal wet cotton
laundry and it is the most efficient programme in terms of energy consumption for drying wet
cotton laundry.
6. OPTIONS
6.1 Dryness Level
This function helps to increase dryness
of the laundry. There are 3 options:
• Extra Dry
• Cupboard Dry
• Iron Dry
6.2 Reverse Plus
Increase drum reversing frequency to
reduce items twisting and entanglement.
To increase uniformity of drying result
and help reduce creases. Recommended
for large or long items (e.g. sheets,
trousers, long dresses)"
ENGLISH 9

6.3 Extra Anticrease
Extends the anti-crease phase by 60
minutes at the end of the drying cycle.
This function reduces creases. The
laundry can be removed during the anti-
crease phase.
6.4 Time Dry
You can set the programme duration,
from a minimum of 10 minutes to a
maximum of 2 hours. The required
duration is related to the quantity of
laundry in the appliance.
We recommend that you set
a short duration for small
quantities of laundry or for
only one item.
6.5 Time Dry on Wool
programme
Option suitable for Wool programme to
adjust final dryness level.
6.6 Options table
Programmes1) Dryness Level Re‐
verse Plus
Extra
Anticrease
Time
Dry
Cotton Eco ■ ■
Cotton ■ ■ ■ ■ ■ ■
Synthetics ■ ■ ■ ■ ■ ■
Delicates ■ ■
Bedlinen ■ ■
Duvet ■
Refresh ■
Silk ■ ■
Wool ■ ■ 2)
Sport ■ ■
Denim ■ ■ ■ ■
Mixed ■ ■ ■
1) Together with the programme you can set 1 or more options. To activate or deactivate
them, press the related touch button.
2) See chapter OPTIONS: Time Drying on Wool programme
www.electrolux.com10
