Electrolux T5190 User manual

User manual
Tumble dryer
T5190
Type N1190..
Original instructions
438 9096-20/EN
2017.11.27

Contents
Contents
1 Safety Precautions ..............................................................................................................................5
1.1 General safety information..........................................................................................................7
1.2 Commercial use only..................................................................................................................7
1.3 Symbols....................................................................................................................................7
2 Program description ............................................................................................................................8
2.1 General.....................................................................................................................................8
2.2 Program description...................................................................................................................8
2.3 Option buttons .........................................................................................................................10
3 Handling........................................................................................................................................... 11
3.1 Load ....................................................................................................................................... 11
3.2 How to start the machine .......................................................................................................... 11
3.2.1 Panel with buttons and control knob.................................................................................12
3.2.2 Panel without buttons .....................................................................................................13
3.2.3 Coin operated machines .................................................................................................14
3.3 Additional functions..................................................................................................................16
3.4 When program has ended ........................................................................................................17
4 Error codes .......................................................................................................................................17
5 Maintenance .....................................................................................................................................17
5.1 General...................................................................................................................................17
5.2 Every day................................................................................................................................18
5.3 Machines with moisture measurement.......................................................................................18
5.4 Maintenance to be carried out by qualified service personnel ......................................................18
The manufacturer reserves the right to make changes to design and component specifications.

User manual 5
1 Safety Precautions
• The machine is not to be used if industrial chemicals have been used
for cleaning.
• Do not dry unwashed items in the machine.
• Items that have been soiled with substances such as cooking oil, ace-
tone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and
wax removers should be washed in hot water with an extra amount of
detergent before being dried in the machine.
• Items such as foam rubber (latex foam), shower caps, waterproof tex-
tiles, rubber backed articles and clothes or pillows fitted with foam rub-
ber pads should not be dried in the machine.
• Fabric softeners or similar products should be used as specified by
the fabric softener instructions.
• The final part of a drying cycle occurs without heat (cool down cycle)
to ensure that the items are left at a temperature that ensures that the
items will not be damaged.
• Remove all objects from pockets such as lighters and matches.
• WARNING. Never stop the machine before the end of the drying cycle
unless all items are quickly removed and spread out so that the heat
is dissipated.
• Adequate ventilation has to be provided to avoid the back flow of
gases into the room for appliances burning other fuels, including open
fires.
• Exhaust air must not be discharged into a flue which is used for ex-
hausting fumes from appliances burning gas or other fuels.
• The machine must not be installed behind a lockable door, a sliding
door or a door with a hinge on the opposite side to that of the machine
in such a way that a full opening of the machine is restricted.
• If the machine has a lint trap this has to be cleaned frequently.
• The lint must not be accumulated around the machine.
• DO NOT MODIFY THIS APPLIANCE.
• Servicing shall be carried out only by authorized personnel.
• Only authorized spare parts shall be used.
• When performing service or replacing parts, the power must be
disconnected.

6User manual
• When the power is disconnected, the operator must see that the ma-
chine is disconnected (that the plug is removed and remains removed)
from any point to which he has access. If this is not possible, due to
the construction or installation of the machine, a disconnection with a
locking system in the isolated position shall be provided.
• In accordance with the wiring rules: mount a multi-pole switch prior to
the machine to facilitate installation and service operations.
• The openings in the base, shall not be obstructed by a carpet.
• Maximum mass of dry cloth: 10.6 kg.
• A-weighted emission sound pressure level at working stations: <70
dB(A).
Gas heated tumble dryer:
• Before installation, check that the local distribution conditions, nature
of gas and pressure and the adjustment of the appliance are
compatible.
• The machine is not to be installed in rooms containing cleaning ma-
chines with perchloroethylene, TRICHLOROETHYLENE or CHLOR-
OFLUOROCONTAINING HYDROCARBONS as cleaning agents.
• If you can smell gas:
– Do not switch on any equipment
– Do not use electrical switches
– Do not use telephones in the building
– Evacuate the room, building or area
– Contact the person responsible for the machine
• Additional requirements for the following countries; AT, BE, BG, HR,
CY, CZ, DK, EE, FI, FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL,
NO, PL, PT, RO, SK, SI, ES, SE, CH, TR, UK:
– The appliance can be used in public areas.
– This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental capa-
bilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play

User manual 7
with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
• Additional requirements for other countries:
– This appliance is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given super-
vision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to en-
sure that they do not play with the appliance.
1.1 General safety information
In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma-
chine should be placed in room temperature for 24 hours before being used for the first time.
1.2 Commercial use only
The machine/machines covered by this manual is/are made for commercial and industrial use only.
1.3 Symbols
Caution
Caution, hot surface
Read the instructions before using the machine

8User manual
2 Program description
2.1 General
The machine is equipped with a number of programs adapted to the range of use to which the machine is intended
— different markets use different programs. The following program description is a short description of some exam-
ples of programs that can be used.
For a complete and detailed information about the all the available drying programs, please refer to ELS web-site.
It is recommended to follow the care labelling of the garment as far as possible.
For best possible drying result it is advisable to dry garments of the same quality for each drying cycle.
Note!
Do not tumble dry wool or silk.
2.2 Program description
There are two types of programs, automatic programs and time programs.
Automatic programs has moisture detection and will stop when selected dryness is achieved.
Time programs has no moisture detection and will stop when the preset or selected time has ended.
The following table shows some examples of available programs and a short description of those:
Automatic programs Description
NORMAL
Cotton and terry.
Normal/medium temperature.
The program will stop when preset dryness/selected option is achieved (Extra dry, Dry or Iron dry).
LOW Synthetic (example of synthetic fabrics: polyester, polyamide, polyacrylic and elastan), viscose, polycotton and
delicate fabrics.
Low temperature.
The program will stop when preset dryness/selected option is achieved (Extra dry, Dry or Iron dry).
Time programs Description
NORMAL Cotton and terry.
Different drying times can be selected.
The program will stop when the time is up.
LOW Synthetic (example of synthetic fabrics: polyester, polyamide, polyacrylic and elastan), viscose, polycotton and
delicate fabrics.
Different drying times can be selected.
The program will stop when the time is up.
NO HEATING Airing bedspreads, duvets and bedclothes.
Different drying times can be selected.
The program will stop when the time is up.

User manual 9
The following table shows some examples of different programs that are used for special markets such as hospitals,
restaurants, camping sites etc. and a short description of those:
Automatic programs Description
NORMAL
EXTRA DRY
Denim and terry.
The program will stop when set dryness is achieved.
LOW
EXTRA DRY
Viscose and polycotton.
The program will stop when set dryness is achieved.
NORMAL
DRY
Cotton and terry.
The program will stop when set dryness is achieved.
LOW
DRY
Synthetic (example of synthetic fabrics: polyester, polyamide, polyacrylic and elastan), viscose, polycotton and
delicate fabrics.
The program will stop when set dryness is achieved.
NORMAL
IRON DRY
Cotton.
The program will stop when set dryness is achieved.
LOW
IRON DRY
Synthetic (example of synthetic fabrics: polyester, polyamide, polyacrylic and elastan), viscose, polycotton and
delicate fabrics.
The program will stop when set dryness is achieved.
Time programs Description
NORMAL Cotton and terry.
Different drying times can be selected.
The program will stop when the time is up.
LOW Synthetic (example of synthetic fabrics: polyester, polyamide, polyacrylic and elastan), viscose, polycotton and
delicate fabrics.
Different drying times can be selected.
The program will stop when the time is up.
NO HEATING Airing bedspreads, duvets and bedclothes.
Different drying times can be selected.
The program will stop when the time is up.
The following table shows some examples of available programs used on coin operated machines and a short de-
scription of those:
Time programs Description
HIGH
Cotton and terry.
The program will stop when the time is up.
MEDIUM Cotton and terry.
The program will stop when the time is up.
LOW Synthetic (example of synthetic fabrics: polyester, polyamide, polyacrylic and elastan), viscose, polycotton and
delicate fabrics.
The program will stop when the time is up.
NO HEATING Airing bedspreads, duvets and bedclothes.
The program will stop when the time is up.

10 User manual
2.3 Option buttons
The machine is equipped with a number of options adapted to the range of use to which the machine is intended —
different markets use different options.
The following table shows some examples of available options and a short description of those:
Option button Description
ECO PROGRAM Dries using less energy.
CARE PROGRAM Drying of sensitive fabrics. Only suitable for use with small loads.
QUICK PROGRAM The program will be ready as quick as possible.
EXTRA DRY Through drying of thick or multilayered fabrics.
Drying stops when “EXTRA DRY” is achieved.
DRY Ready to put in cupboard/closet. Through drying of fabrics of even thicknesses.
Drying stops when “ DRY” is achieved.
IRON DRY Damp. Ready for ironing. For thin textiles which are to be ironed.
Drying stops when “IRON DRY” is achieved.

User manual 11
3 Handling
3.1 Load

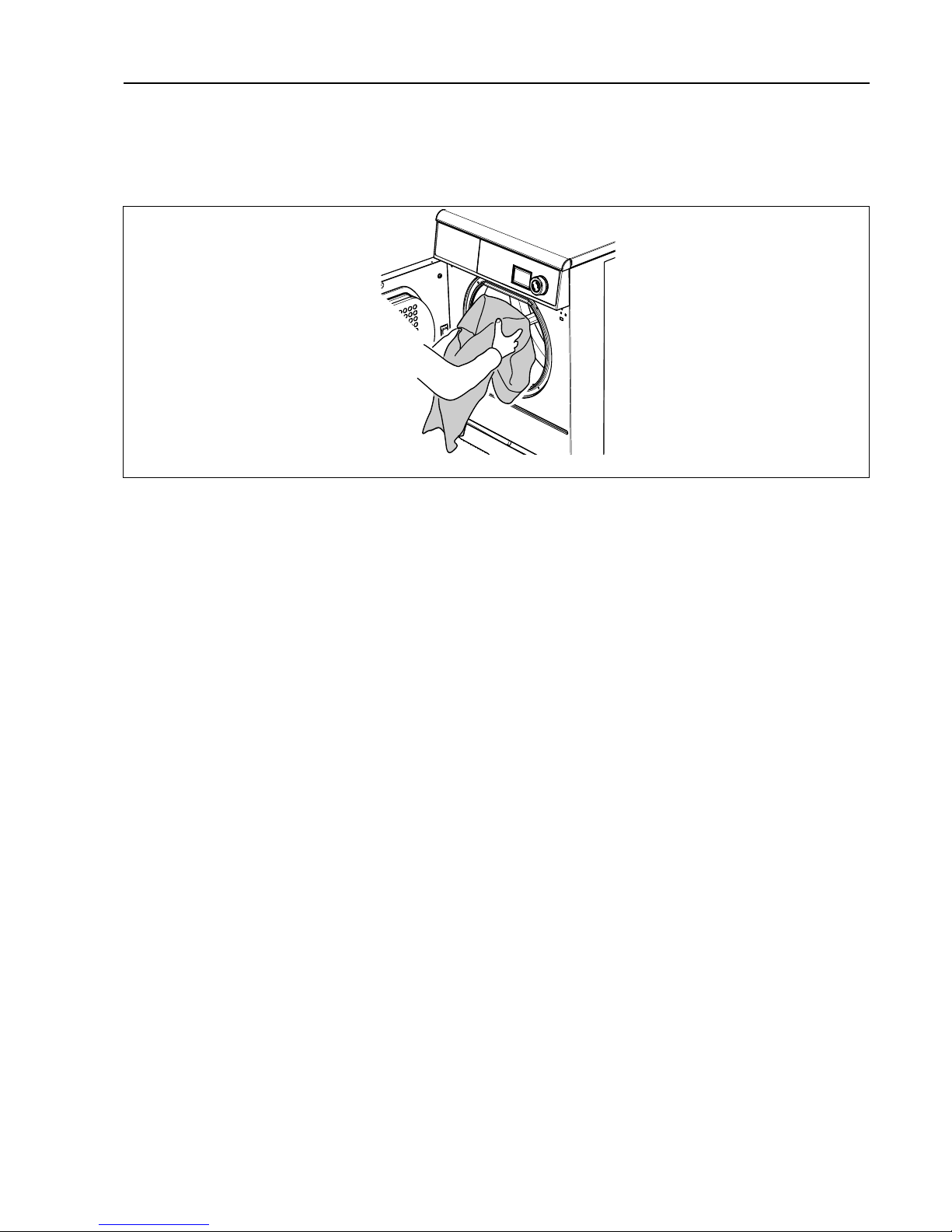

Load the goods into the machine according to recommendations and close the door.
Make sure the filter is clean and clean if necessary.

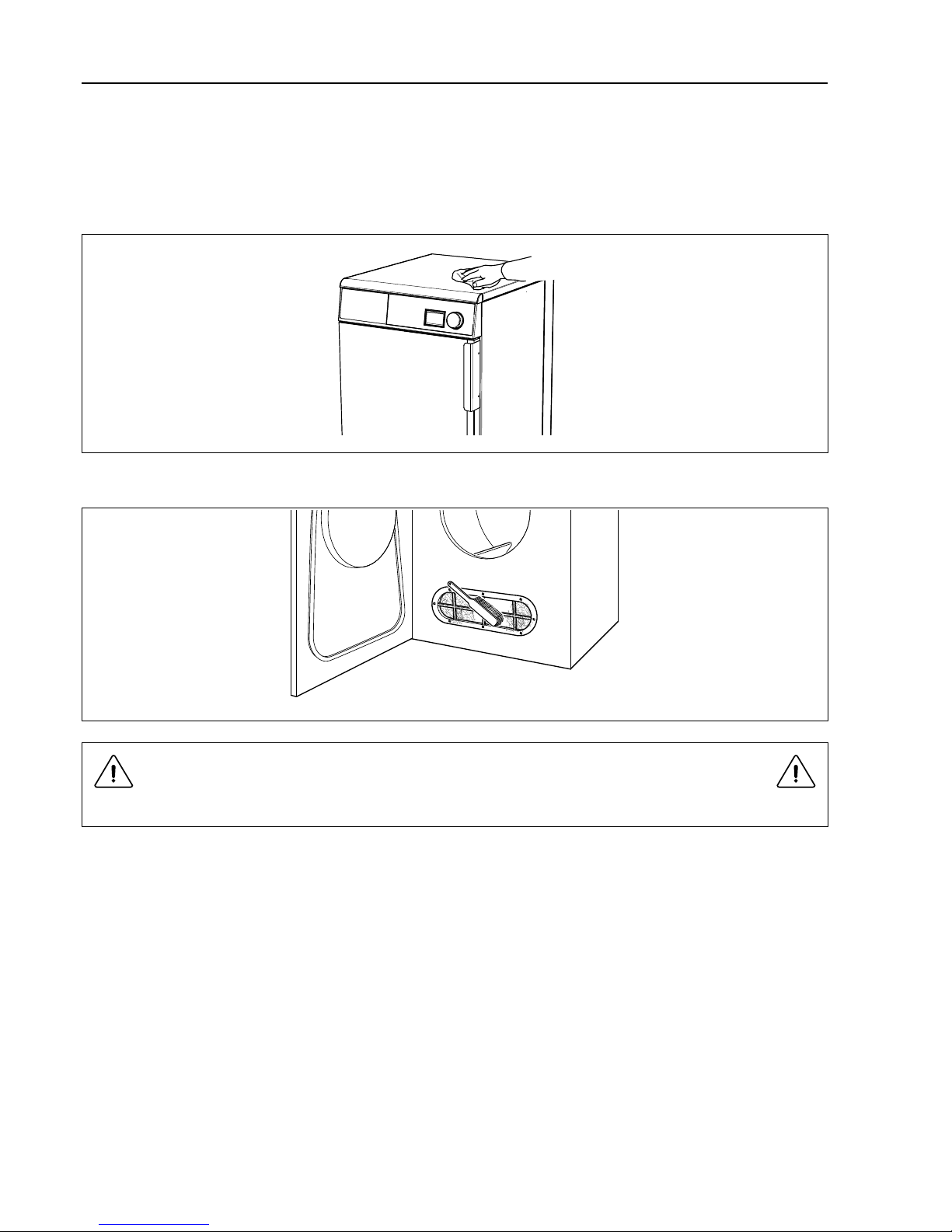

fig.7361
The maximum load is 10.6 kg.
3.2 How to start the machine
This manual cover different types of machine models. Check the panel on your machine and follow the description
for your type of machine.

12 User manual

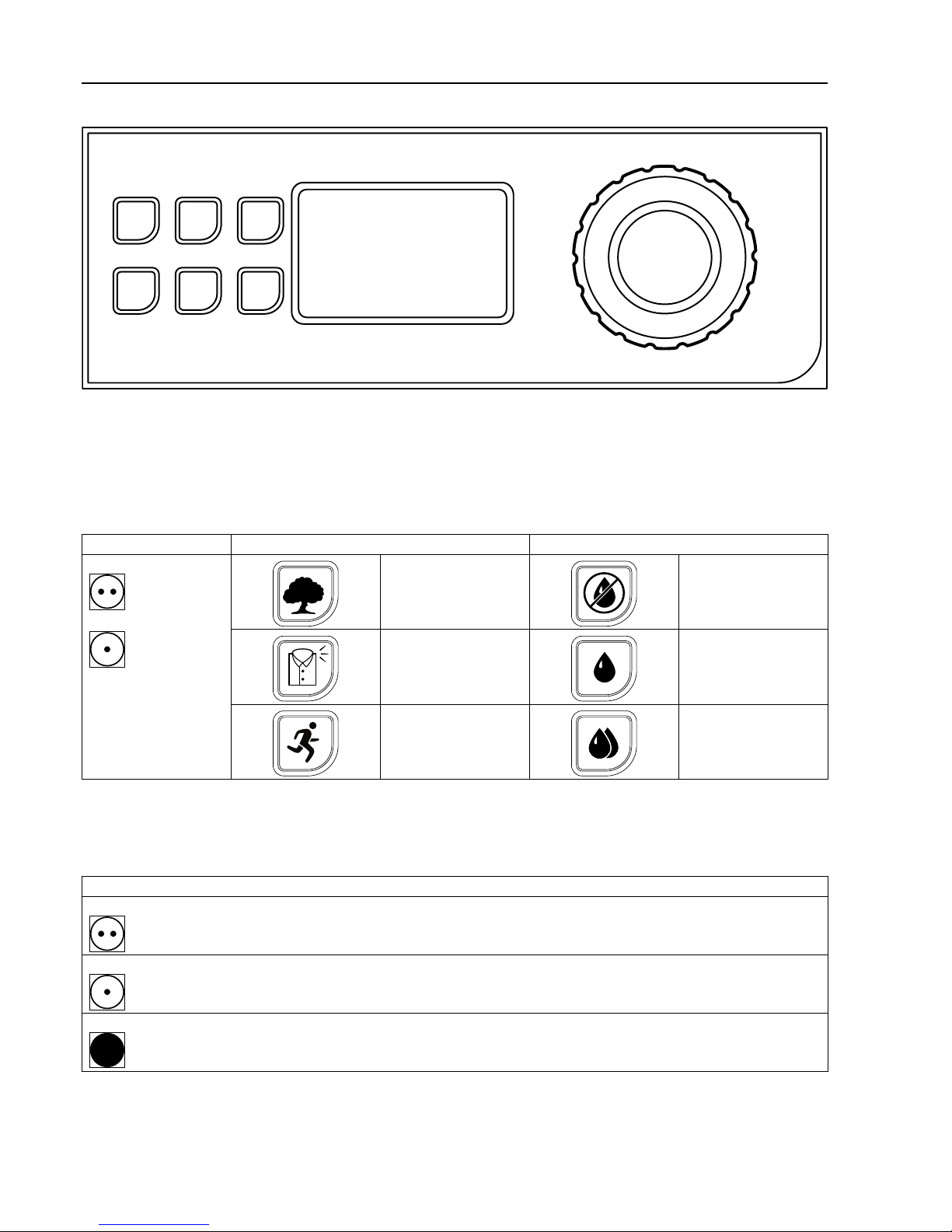

3.2.1 Panel with buttons and control knob

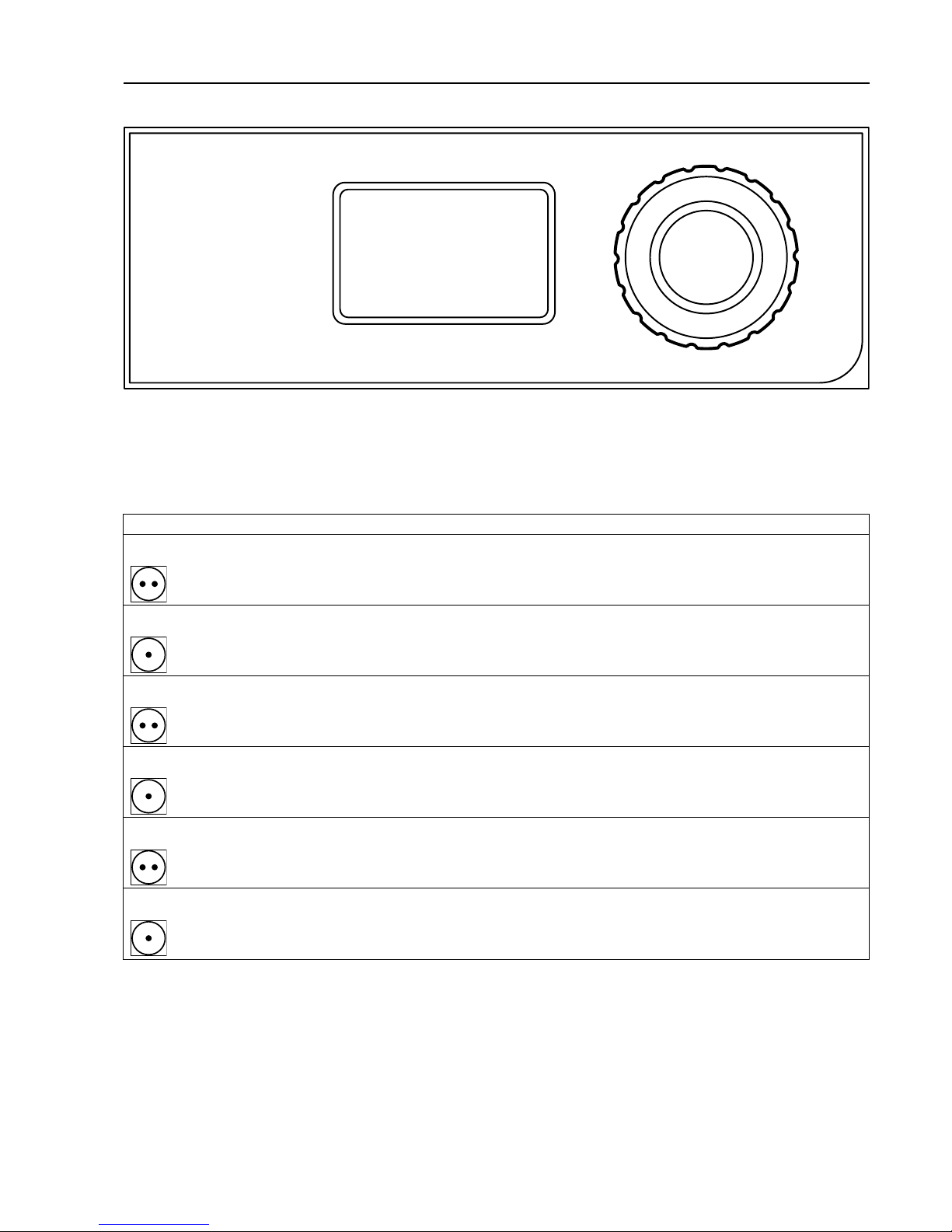

Select program:
Automatic programs
Select program by turning the control knob.
For automatic programs it is possible to select one of the drying triangle options and/or one of the dryness options.
Example of programs Drying triangle options Dryness options
NORMAL
LOW
ECO PROGRAM EXTRA DRY
CARE PROGRAM DRY
QUICK PROGRAM IRON DRY
Start the machine by pressing the control knob.
Time programs
Select program by turning the control knob.
Example of programs
NORMAL
LOW
NO HEATING
Note!
For Time programs no options are available.
Start the machine by pressing the control knob.
After start it is possible to change the time for the selected program. Turn the control knob to set the desired time.

User manual 13
3.2.2 Panel without buttons
Select program:
Automatic programs
Select program by turning the control knob.
Example of programs
NORMAL
EXTRA DRY
LOW
EXTRA DRY
NORMAL
DRY
LOW
DRY
NORMAL
IRON DRY
LOW
IRON DRY
Start the machine by pressing the control knob.

14 User manual
Time programs
Select program by turning the control knob.
Example of programs
NORMAL
LOW
NO HEATING
Start the machine by pressing the control knob.
After start it is possible to change the time for the selected program. Turn the control knob to set the desired time.
3.2.3 Coin operated machines
3.2.3.1 Panel without buttons
Select program by turning the control knob.
Example of programs
HIGH
MEDIUM
LOW
NO HEATING
Insert correct amount of coins to start the machine and/or press the control knob.
After start it is possible to add time for the selected program. Insert more coins to add time.

User manual 15
3.2.3.2 Panel without control knob
Select program by pressing the temperature button.
Example of programs
HIGH
MEDIUM
LOW
NO HEATING
Insert correct amount of coins to start the machine and/or press the start button.
After start it is possible to add time for the selected program. Insert more coins to add time.

16 User manual
3.3 Additional functions
There is a menu with additional functions available for selection after start. When pressing the control knob / start but-
ton (on machines without control knob) the menu will appear on the display.
Select from the menu by turning the control knob / pressing the temperature button/-s and press the control knob /
start button to activate.
Note!
Some of the functions may not be available or active on your machine.
Pause
It is possible to pause an ongoing program.
Select PAUSE and activate.
For some machines it is also possible to pause directly when pressing the control knob / start button.
When pressing the control knob / start button again the program will continue.
End a program
It is possible to end a program after start.
Select END PROGRAM and activate.
When pressing the control knob / start button the program will be ended.
Status
Select STATUS MENU and activate.
The status menu shows the status for inlet air temp, outlet air temp, RMC and heat for the machine.
Statistics
Select STATISTICS and activate.
The statistics menu shows total run hours and trip run hours for the machine.
Change drum speed (only on machines with MCU)
Select CHANGE DRUM SPEED and activate.
Change the drum speed with the control knob / pressing the temperature button/-s.

User manual 17
3.4 When program has ended
Note!
For the best possible drying result it is important to empty the machine as soon as the program has ended.
If the machine is not emptied as soon as the program has ended the drum will rotate in short intervalls in order to
keep the goods from being wrinkled.
Clean the filter after each drying cycle for best performance.
fig.7570
4 Error codes
A fault in the program or in the machine is indicated by an error code on the display.
Some of these error codes can be solved easily without contacting service personnel.
Error
code
Text Cause/Action
12:11 DRYING ERROR WITH RMC
PROGRAM
The longest permitted RMC time has been exceeded. (Applies only to machines with RMC).
The machine is overfilled or the garment is too wet.
12:12 DRYING ERROR WITH AUTOSTOP
PROGRAM
The longest permitted automatic stop time has been exceeded. (Applies only to machines with
automatic stop).
The machine is overfilled or the garment is too wet.
12:18 REDISTRIBUTION OF LOAD
NEEDED
Machine indicates that load is blocking the airflow.
Redistribute the load.
Restart the machine to clear error message.
20:1 O.H. DRUM MOTOR The motor is too hot.
The machine will restart automatically when the temperature on the motor is OK (if the door
has not been opened).
For other error codes or repeated error codes, disconnect the power for 30 seconds. If the error code keeps coming
back, contact authorized service personnel.
5 Maintenance
5.1 General
It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically
performed.
Note!
Lack of maintenance may deteriorate the performance of the machine and may cause damage to
components.

18 User manual
5.2 Every day
Check that the machine does not operate with the door open, if so, the machine must be placed out of order until re-
pairs are made.
Note!
Contact qualified service personnel to disconnect power from the affected machine.
Clean the door, door gasket and other external parts.
fig.7362A
Check that the filter is clean and unbroken. Clean or replace if necessary.
fig.7570
Remove any lint and dust around the machine.
5.3 Machines with moisture measurement
At regular basis, wipe off/clean drum and lifters with citric acid (Acidum citricum). If soap/softener residue remains, it
is recommended also to use a coarse sponge.
5.4 Maintenance to be carried out by qualified service personnel
After 1600 hours of operation or once a year, whichever comes first, contact qualified service personnel to perform
maintenance.

Electrolux Laundry Systems Sweden AB
341 80 Ljungby, Sweden
www.electrolux.com/professional
Share more of our thinking at www.electrolux.com
