Electrolux E30EW75GSS - 30" Single Electric Wall Oven User manual

30" ELECTRIC SINGLE WALL OVEN
Sabbath Mode (Star-K®Certified)
OVEN FEATURES
Oven Cavity (Cu.Ft.)
Cobalt Blue Interior
CustomConvect3™Convection System
Hidden Bake Element
Convection Conversion
Preheat Control
Keep Warm
Light Clean/Heavy Clean
Self-Cleaning with Auto-Safety Latch™
Self-Cleaning Cycle
Self-Cleaning Rack Removal Alert
Dual Radiant™Baking System
Eight-Pass Broil & Radiant Bake Element
Smooth-Glide™Racks
Standard Racks
Halogen Lighting
Porcelain Broiler Pan with Grill
CONTROL PANEL FEATURES
Electronic Oven Control
Electronic Clock/Timer
Electronic Temperature Display
Glass Wave-Touch™Control with Blue LED Display
Toggle Control
Automatic Oven – Delay, Cook & Off
Electronic Lockout
Automatic Oven Shutoff – 12 Hour
Auto Set™Control – Convection
Programmable for °F or °C
Integrated Halogen Oven Light – Touch Pad
DOOR STYLE
Cool-Touch™Door
Removable Door
Extra-Large Window
Stainless Door Handle/Towel Bar
SPECIFICATIONS
Oven Cavity Dimensions –
Height
Width
Depth
Overall Exterior Dimensions –
Height
Width
Depth (Including Door)
(with 90° Door Open)
Power Supply Location
Approved for Under-Counter Installation*
Amps@240/208 Volts
Connected Load (kW Rating) @ 240/208 Volts
Bake Element (Watts@240/208 Volts)
Broil Element (Watts@240/208 Volts)
Armored Electrical Cable
Product Weight
Shipping Weight (Approx.)
UPC (0-57112-)
*Single Wall Oven is approved to be used beneath Electrolux ICON™gas cooktop models
E36GC70FSS and E30GC70FSS; and Electrolux ICON™electric cooktop models
E36IC75FSS, E30IC75FSS, E36EC70FSS and E30EC70FSS. Gas and electric cooktop
models NOT approved for use in this installation are E36GC75GSS, E36EC75ESS,
E36GC76GPS, E30GC74GPS, E48GC76EPS, E30EC65ESS and E36EC65ESS.
NOTE: Always consult local and/or national electric codes. Refer to Product Installation
Guide for detailed installation instructions on the web at electroluxusa.com.
Specifications subject to change.
Yes
4.2
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
3
1
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
16-1/2"
24-1/8"
18-1/32"
29-1/4"
30"
24-5/8"
47-7/8"
Left Bottom Rear
Yes
16.6/14.4
4.0/3.0
2200
4000
Included
175 Lbs.
193 Lbs.
09630-8
electroluxusa.com
Wave-Touch™Control Panel Technology
A simple touch, anywhere on the panel, lights
oven controls and provides access to all
oven functions. This allows easy programming
while keeping activated functions lighted for
easy monitoring.
Smooth-Glide™Oven Racks
Fully extending oven racks with a centered
easy-grip handle make access to oven contents
safe and easy. Patented ball bearing rack system
allows racks to glide effortlessly.
Multi-Option Cooking
with Temperature Probe
Seven cooking modes with eight functions for
essential versatility. The temperature probe
monitors the cooking progress and automatically
indicates when the meat is precisely cooked.
CustomConvect3™Convection System
A third cooking element using a variable-speed
technology fan, when combined with temperature-
setting options, provides premium performance
with more cooking choices.
Designed for the well-lived home.
Electric Single Wall Oven
E30EW75GSS designer series
30" Electric Single Wall Oven Specifications
•
Product Weight – 175 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt,
60 Hertz AC only electrical supply with ground required on separate
circuit fused on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =16.6/14.4 Amps
•
Always consult local and/or national electric codes.
•
Minimum 23-1/4" clearance for oven door depth when open.
•
Suggested distance from floor is 31". Minimum required distance
is 4-1/2".
•
Minimum 24" deep cutout dimension is critical for proper installation,
to ensure that oven’s faceplate will fit flush against cabinet front.
•
Full oven base of solid plywood or similar material required, capable
of supporting 200 Lbs.
•
Base must be level and cabinet front must be square with finish-cut
bottom edge.
•
Single Wall Oven is NOT approved to be used in stackable or
side-by-side installation.
•
Single Wall Oven is approved to be used in under-counter installation.
(Refer to 30" Single Wall Oven Under-Counter Installation Specifications
page.)
•
Single Wall Oven is approved to be used beneath Electrolux ICON™gas
cooktop models E36GC70FSS and E30GC70FSS; and Electrolux ICON™
electric cooktop models E36IC75FSS, E30IC75FSS, E36EC70FSS and
E30EC70FSS. (Refer to Cooktop Installation Over 30" Single Electric
Wall Oven Specifications page.)
Gas and electric cooktop models NOT approved for use in this installation
are E36GC75GSS, E36EC75ESS, E48GC76EPS E36GC76GPS,
E30GC74GPS, E30EC65ESS and E36EC65ESS.
•
Single Wall Oven is approved to be used in combination with any
Electrolux ICON™Warmer Drawer. (Refer to model-specific Warmer
Drawer Product Sheet for Combination Installation Specifications.)
•
Single Wall Oven is approved to be used in combination with any
Electrolux ICON™High-Speed Oven or Built-In Microwave. (Refer
to Combination Installation Specifications page.)
Note: Refer to Product Installation Guides for detailed instructions
on the web at electroluxusa.com.
Electric Single Wall Oven
E30EW75GSS designer series
High standards of quality at Electrolux Major Appliances mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxusa.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxca.com
E30EW75GSS 08/07 © 2007 Electrolux Major Appliances, NA Printed in the U.S.A.
Allow at least
23 1/4" clearance
for door depth
when open 24 5/8"
27 7/8"
28 1/4"
29 1/4"
Spacer
7/8"
30"
3" max.
Electrical
junction
box location
4"x 4"
opening
to route
armoured
cable
2" min.
28 1/2"min.
29"max.
24"min.*
(critical
dimension)
30"min.
11/2"
min.
31"
suggested
distance
41/2"
min.
required
28 1/2"
min.
28 7/8"
max.
Full base
required
to support
200 lbs.
Bottom cutout
edge must be
finish cut
*Critical dimension –
MUST be applied
Gas Cooktop Installation
Over 30"Single Electric Wall Oven
High standards of quality at Electrolux Major Appliances mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxusa.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxca.com
GC_EW INST 08/07 © 2007 Electrolux Major Appliances, NA Printed in the U.S.A.
For all approved gas cooktop models, a minimum
height opening of 6-1/2" (from top of counter) required
in right cabinet side panel and/or filler panel, to route
gas and electric hookups. (Refer to Gas Cooktop
Utility Hookup Diagram)
Oven cutout
120V/60Hz
grounded
outlet, for
gas cooktop
Cooktop
cutout**
28 1/2" min.
28 7/8" max.
240/208V
Junction box
for wall oven
Approx. 3"
24" min.
cutout depth
To route armoured cable to junction box through left cabinet side panel
and/or filler panel, cut minimum 4" x 4" opening in wood base and runner
*Critical dimension – MUST be applied
**For cooktop cutout dimensions refer to model-specific
product sheets or installation instructions on the web
5"
61/2"
min.
Pressure regulator
Manual shutoff valve
(Must be accessible)
Cabinet sides
and/or filler panel
Flare union
Manifold
pipe
Flexible connector Flare
union
4"
Countertop
18"max.
120V/60Hz
grounded outlet
Cooktop
Gas
Cooktop
Utility
Hookup
Side filler panels necessary to isolate oven from
adjoining cabinets. Panel height may need to
be modified to accommodate the depth of approved
gas cooktop models
4-1/2" maximum height allowed
from oven base to floor if cooktop
is installed directly over wall oven.
(5" maximum height allowed
with no cooktop.)
Side View
Cooktop
Wall Oven
36"
min.
Unit will overlap cutout (minimum) edges by 1"
Install 3/4" full plywood base on 2 runners, flush
with toe plate, capable of supporting 200 lbs.
24"min.*
281/2"min.
29"max.
30" Single Electric Wall Oven Under-Counter
Installation Specifications
•
Product Weights – (E30EW75GPS) 178 Lbs. / (E30EW75GSS) 175 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =16.6/14.4 Amps
•
Always consult local and/or national electric codes.
•
Minimum 23-1/4" clearance for oven door depth when open.
•
Minimum 24" deep cutout dimension is critical for proper installation,
to ensure that oven’s faceplate will fit flush against cabinet front.
•
Full oven base of solid plywood or similar material required, capable
of supporting 200 Lbs. Install over two runners and flush with toe plate.
•
Base must be level and cabinet front must be square with finish-cut
bottom edge.
•
Side filler panels necessary to isolate oven from adjoining cabinets.
•
Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.
Gas Cooktop Installation
Over 30" Single Electric Wall Oven Specifications
Single Wall Ovens are approved to be used beneath Electrolux ICON™
gas cooktop models E36GC70FSS and E30GC70FSS (gas cooktop
models NOT approved for use in this installation are E36GC75GSS,
E48GC76EPS, E36GC76GPS and E30GC74GPS).
For detailed Gas Cooktop installation, refer to model-specific
product sheet and installation guide on the web.
•
Side filler panels necessary to isolate oven from adjoining cabinets.
Panel height may need to be modified to accommodate the depth of
approved gas cooktop models.
•
Minimum height opening of 6-1/2" (from top of counter) required in right
cabinet side panel and/or filler panel, to route gas and electric hookups.
•
Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: Refer to Product Installation Guides for detailed instructions
on the web at electroluxusa.com.

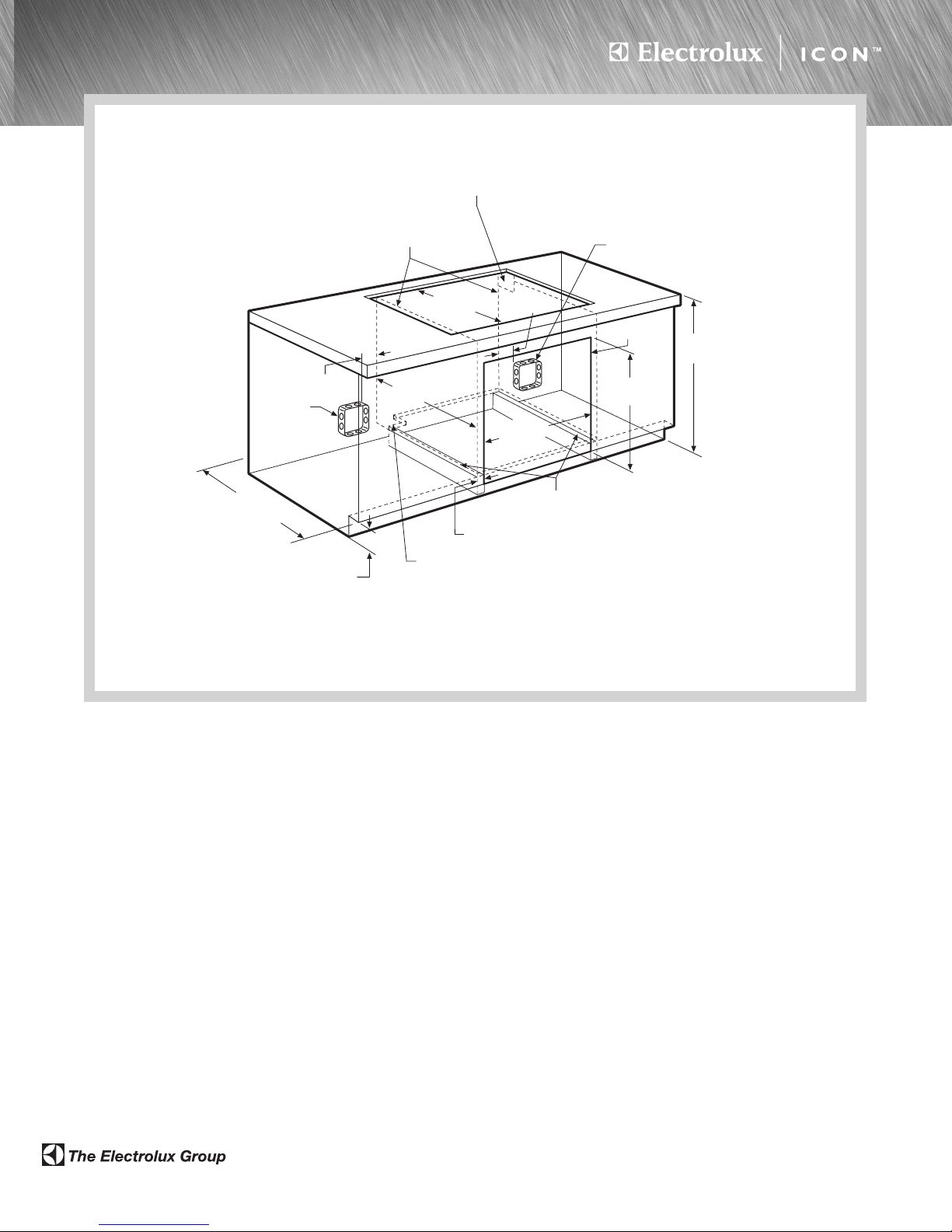

Electric Cooktop Installation
Over 30"Single Electric Wall Oven
High standards of quality at Electrolux Major Appliances mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxusa.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxca.com
EC_EW INST 08/07 © 2007 Electrolux Major Appliances, NA Printed in the U.S.A.
30" Single Electric Wall Oven Under-Counter
Installation Specifications
•
Product Weights – (E30EW75GPS) 178 Lbs. / (E30EW75GSS) 175 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =16.6/14.4 Amps
•
Always consult local and/or national electric codes.
•
Minimum 23-1/4" clearance for oven door depth when open.
•
Minimum 24" deep cutout dimension is critical for proper installation,
to ensure that oven’s faceplate will fit flush against cabinet front.
•
Full oven base of solid plywood or similar material required, capable
of supporting 200 Lbs. Install over two runners and flush with toe plate.
•
Base must be level and cabinet front must be square with finish-cut
bottom edge.
•
Side filler panels necessary to isolate oven from adjoining cabinets.
•
Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.
Electric Cooktop Installation Over
30" Single Electric Wall Oven Specifications
Single Wall Ovens are approved to be used beneath Electrolux ICON™
electric cooktop models E36IC75FSS, E30IC75FSS, E36EC70FSS and
E30EC70FSS (electric cooktop models NOT approved for use in this
installation are E36EC75ESS, E30EC65ESS and E36EC65ESS).
For detailed Electric Cooktop installation, refer to model-specific
product sheet and installation guide on the web.
•Side filler panels necessary to isolate oven from adjoining cabinets.
Panel height may need to be modified to accommodate the depth of
approved electric cooktop models.
•
To route armoured cable to junction box, cut minimum 4" x 4" opening
in right cabinet side panel.
•
Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: Refer to Product Installation Guides for detailed instructions
on the web at electroluxusa.com.
For all approved electric cooktop models, cut minimum
4" x 4" opening in right cabinet side panel and/or filler
panel, to route armoured cable to junction box
Oven cutout
28 1/2" min.
28 7/8" max.
4-1/2" maximum height allowed
from oven base to floor if cooktop
is installed directly over wall oven.
(5" maximum height allowed
with no cooktop.)
240/208V
Junction box
for wall oven
Approx. 3"
24" min.
cutout depth
*Critical dimension – MUST be applied
**For cooktop cutout dimensions refer to model-specific
product sheets or installation instructions on the web
240/208V
Junction box
for electric
cooktop
Approx. 3"
36"
min.
Cooktop
cutout**
To route armoured cable to junction box through left cabinet side panel
and/or filler panel, cut minimum 4" x 4" opening in wood base and runner
Side filler panels necessary to isolate oven from
adjoining cabinets. Panel height may need to
be modified to accommodate the depth of approved
electric cooktop models
24"min.*
281/2"min.
29"max.
Unit will overlap cutout (minimum) edges by 1"
Install 3/4" full plywood base on 2 runners, flush
with toe plate, capable of supporting 200 lbs.
High-Speed Oven/Electric Single Wall Oven
Combination Installation
High standards of quality at Electrolux Major Appliances mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxusa.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxca.com
SO_EW INST 09/07 © 2007 Electrolux Major Appliances, NA Printed in the U.S.A.
High-Speed Oven/Electric Single Wall Oven
Combination Installation Specifications
•
Always consult local and/or national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 24"deep cutout dimension is critical for proper combination
installation, to ensure that each built-in product’s faceplate will fit
flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Wall Oven cutout
to floor, 31"suggested.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 23-1/4" clearance needed for Wall Oven door depth
when open.
30" High-Speed Ovens Specifications
•
Product Weights – (E30SO75FPS/E30SO75ESS) 115 Lbs.
•
Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only
electrical supply with ground required on separate circuit fused on
both sides of line.
•
Connected Load (kW Rating) @ 240 Volts = 3.3kW
•
Amps @ 240 Volts =13.2 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 130 Lbs.
•
Minimum 2-5/8"clearance required from bottom of High-Speed Oven
cutout to top edge of Wall Oven’s faceplate, leaving a 2"visible area
between both product faceplates.
30" Electric Single Wall Ovens Specifications
•
Product Weights – (E30EW75GPS) 178 Lbs. / (E30EW75GSS) 175 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =16.6/14.4 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 200 Lbs.
Note: Refer to Product Installation Guide for detailed instructions
on the web at electroluxusa.com.
* Minimum 25/8"
clearance required
from bottom of
Built-In High-Speed
Oven cutout to top
edge of Wall Oven’s
faceplate, leaving
a 2"visible area
between both product
faceplates
** Critical dimension –
MUST be applied
24"min. 30"min.
3" max.
281/2"min.
287/8"max.
E30EW75GPS
E30EW75GSS
Electric Single
Wall Oven Cutout 28 1/2"min.
29"max.
4"x 4" opening
to route armoured
cable
24"min.**
(critical
dimension)
2" min.
31"
suggested
distance
41/2"
min.
required
Bottom cutout
edge must be
finish cut
Full base required
to support 200 lbs.
Electrical junction
box location
For detailed product dimensions
and installation specifications, refer
to model-specific product sheet and
installation instructions on web
22 3/8" min.
22 7/8" max.
Full plywood base
required to support
130 lbs.
240V/60Hz
grounded electrical
outlet should NOT
be located within
shaded area
2111/16"min.
223/16"max.
2"
(visible
area)*
C
L
201/4"
163/4"
E30SO75FPS
E30SO75ESS
High-Speed
Oven Cutout
Microwave Oven/Single Electric Wall Oven
Combination Installation
High standards of quality at Electrolux Major Appliances mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxusa.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxca.com
MO_EW INST 08/07 © 2007 Electrolux Major Appliances, NA Printed in the U.S.A.
Microwave Oven/Single Electric Wall Oven
Combination Installation Specifications
•
Always consult local and/or national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 24"deep cutout dimension is critical for proper combination
installation, to ensure that each built-in product’s faceplate will fit
flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Wall Oven cutout
to floor, 31"suggested.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 23-1/4" clearance needed for Wall Oven door depth
when open.
30" Built-In Convection Microwave Specifications
•
Product Weight – 60 Lbs.
•
Voltage Rating –120V/ 60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts =1.55kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
•
Minimum 3-1/8"clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2"visible area
between both product faceplates.
30" Electric Single Wall Ovens Specifications
•
Product Weights – (E30EW75GPS) 178 Lbs. / (E30EW75GSS) 175 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =16.6/14.4 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 200 Lbs.
Note: Refer to Product Installation Guide for detailed instructions
on the web at electroluxusa.com.
24"min. 30"min.
31/8" min.*
3" max.
261/2"min.
27"max.
281/2"min.
287/8"max.
E30EW75GPS
E30EW75GSS
Single Electric
Wall Oven Cutout
Full plywood base
required to support
100 lbs.
28 1/2"min.
29"max.
E30MO65GSS
Microwave Oven
Cutout
4"x 4" opening
to route armoured
cable
5"
11 1/2"
120V/60Hz
grounded electrical
outlet should NOT
be located within
shaded area
197/8"min.
203/8"max.
24"min.**
(critical
dimension)
2" min.
31"
suggested
distance
41/2"
min.
required
Bottom cutout
edge must be
finish cut
Full base required
to support 200 lbs.
Electrical junction
box location
For detailed product dimensions
and installation specifications,
refer to model-specific product
sheet and installation instructions
on the web
* Minimum 31/8"
clearance required
from bottom of
Built-In Microwave
Oven cutout to top
edge of Wall Oven’s
faceplate, leaving
a 2"visible area
between both product
faceplates
** Critical dimension –
MUST be applied
High-Speed Oven/Single Electric Wall Oven/
Warmer Drawer Combination Installation
High standards of quality at Electrolux Major Appliances mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxusa.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxca.com
SO_EW_WD INST 08/07 © 2007 Electrolux Major Appliances, NA Printed in the U.S.A.
High-Speed Oven/Single Electric Wall Oven/Warmer Drawer
Combination Installation Specifications
•
Always consult local and/or national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 24"deep cutout dimension is critical for proper combination
installation, to ensure that each built-in product’s faceplate will fit
flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Warmer Drawer
cutout to floor.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 23-1/4" clearance needed for Wall Oven door depth
when open.
30" High-Speed Ovens Specifications
•
Product Weights – (E30SO75FPS/E30SO75ESS) 115 Lbs.
•
Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical
supply with ground required on separate circuit fused on both sides
of line.
•
Connected Load (kW Rating) @ 240 Volts = 3.3kW
•
Amps @ 240 Volts =13.2 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 130 Lbs.
•
Minimum 2-5/8"clearance required from bottom of High-Speed Oven
cutout to top edge of Wall Oven’s faceplate, leaving a 2"visible area
between both product faceplates.
30" Electric Single Wall Ovens Specifications
•
Product Weights – (E30EW75GPS) 178 Lbs. / (E30EW75GSS) 175 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =16.6/14.4 Amps
•
To support Wall Oven, two 3"-wide x 3/4" thick planks must be installed
as a base, capable of supporting 200 Lbs. Do NOT use full base, since
planks are necessary to allow for proper air displacement.
30" Warmer Drawers Specifications
•
Product Weights – (E30WD75GPS/E30WD75GSS) 49 Lbs. /
(E30WD75GTT) 41 Lbs.
•
Voltage Rating –120V/450W/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: Refer to Product Installation Guide for detailed instructions
on the web at electroluxusa.com.
For detailed product dimensions
and installation specifications,
refer to model-specific product
sheet and installation instructions
on the web
24"min.
3"max.
††
30"min.
97/8"min.
10 1/4"max.
13/4"min.†
22 3/8" min.
22 7/8" max.
E30EW75GPS
E30EW75GSS
Single Electric
Wall Oven Cutout
Full plywood base
required to support
130 lbs.
Full plywood base
required to support
100 lbs.
281/2"min.
287/8"max.
28 1/2"min.
29"max.
E30SO75FPS
E30SO75ESS
High-Speed
Oven Cutout
Two 3" wide
by 3/4" thick
planks must be
installed, capable
of supporting
200 lbs.
E30WD75GPS
E30WD75GSS
E30WD75GTT
Warmer Drawer
Cutout
4"x 4" opening to route
armoured cable
28 1/2"min.
29"max.
240V/60Hz
grounded electrical
outlet should NOT
be located within
shaded area
41/2"min.
required
2111/16"min.
223/16"max.
24"min.**
(critical
dimension)
Electrical junction
box location
Bottom of
oven cutout
115/8"min.**
(critical
dimension)
* Minimum 25/8"
clearance required
from bottom of
Built-In High-Speed
Oven cutout to top
edge of Wall Oven’s
faceplate, leaving
a 2"visible area
between both product
faceplates
** Critical dimension –
MUST be applied
† Maximum height
depends on critical
dimension (115/8")
†† Electrical junction
box for Wall Oven
must be lower than
the Warmer Drawer
cutout
2"
(visible
area)*
C
L
201/4"
163/4"
Microwave Oven/Electric Single Wall Oven/
Warmer Drawer Combination Installation
High standards of quality at Electrolux Major Appliances mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxusa.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxca.com
MO_EW_WD INST 09/07 © 2007 Electrolux Major Appliances, NA Printed in the U.S.A.
Microwave Oven/Electric Single Wall Oven/Warmer Drawer
Combination Installation Specifications
•
Always consult local and/or national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 24"deep cutout dimension is critical for proper combination
installation, to ensure that each built-in product’s faceplate will fit
flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Warmer Drawer
cutout to floor.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 23-1/4" clearance needed for Wall Oven door depth
when open.
30" Built-In Convection Microwave Specifications
•
Product Weight – 60 Lbs.
•
Voltage Rating –120V/ 60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts =1.55kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
•
Minimum 3-1/8"clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2"visible area
between both product faceplates.
30" Electric Single Wall Ovens Specifications
•
Product Weights – (E30EW75GPS) 178 Lbs. / (E30EW75GSS) 175 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =16.6/14.4 Amps
•
To support Wall Oven, two 3"-wide x 3/4" thick planks must be installed
as a base, capable of supporting 200 Lbs. Do NOT use full base, since
planks are necessary to allow for proper air displacement.
30" Warmer Drawers Specifications
•
Product Weights – (E30WD75GPS/E30WD75GSS) 49 Lbs. /
(E30WD75GTT) 41 Lbs.
•
Voltage Rating –120V/450W/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: Refer to Product Installation Guide for detailed instructions
on the web at electroluxusa.com.
24"min.
3"max.
††
30"min.
97/8"min.
10 1/4"max.
13/4"min.†
261/2"min.
27"max.
E30EW75GPS
E30EW75GSS
Electric Single
Wall Oven Cutout
Full plywood base
required to support
100 lbs.
Full plywood base
required to support
100 lbs.
281/2"min.
287/8"max.
28 1/2"min.
29"max.
E30MO65GSS
Microwave Oven
Cutout
Two 3" wide
by 3/4" thick
planks must be
installed, capable
of supporting
200 lbs.
E30WD75GPS
E30WD75GSS
E30WD75GTT
Warmer Drawer
Cutout
4"x 4" opening to route
armoured cable
28 1/2"min.
29"max.
5"
11 1/2"
120V/60Hz
grounded electrical
outlet should NOT
be located within
shaded area
41/2"min.
required
197/8"min.
203/8"max.
24"min.**
(critical
dimension)
Electrical junction
box location
Bottom of
oven cutout
115/8"min.**
(critical
dimension)
2"
(visible
area)*
For detailed product dimensions
and installation specifications, refer
to model-specific product sheet and
installation instructions on web
* Minimum 31/8"
clearance required
from bottom of
Built-In Microwave
Oven cutout to top
edge of Wall Oven’s
faceplate, leaving
a 2"visible area
between both product
faceplates
** Critical dimension –
MUST be applied
† Maximum height
depends on critical
dimension (115/8")
†† Electrical junction
box for Wall Oven
must be lower than
the Warmer Drawer
cutout

Other manuals for E30EW75GSS - 30" Single Electric Wall Oven

1

This manual suits for next models

1

Other Electrolux Oven manuals

Electrolux DDO61GAWN User manual

Electrolux

Electrolux DDO61GAWN User manual

Electrolux EOB6696 Operation manual

Electrolux

Electrolux EOB6696 Operation manual

Electrolux EOU 6330 User manual

Electrolux

Electrolux EOU 6330 User manual

Electrolux EIKM6047 User manual

Electrolux

Electrolux EIKM6047 User manual

Electrolux KOIGH00K User manual

Electrolux

Electrolux KOIGH00K User manual

Electrolux FQ63 User manual

Electrolux

Electrolux FQ63 User manual

Electrolux EOB68200 User manual

Electrolux

Electrolux EOB68200 User manual

Electrolux HOOT11E User manual

Electrolux

Electrolux HOOT11E User manual

Electrolux EVYP9841A User manual

Electrolux

Electrolux EVYP9841A User manual

Electrolux EKB000W User manual

Electrolux

Electrolux EKB000W User manual

Electrolux Built-In Dishwasher User manual

Electrolux

Electrolux Built-In Dishwasher User manual

Electrolux KODDP76K User manual

Electrolux

Electrolux KODDP76K User manual

Electrolux EOT1513X User manual

Electrolux

Electrolux EOT1513X User manual

Electrolux EOB 2613 Operation manual

Electrolux

Electrolux EOB 2613 Operation manual

Electrolux EOB8S39H User manual

Electrolux

Electrolux EOB8S39H User manual

Electrolux EKM10460X User manual

Electrolux

Electrolux EKM10460X User manual

Electrolux EON1000 User manual

Electrolux

Electrolux EON1000 User manual

Electrolux EOB 944 User manual

Electrolux

Electrolux EOB 944 User manual

Electrolux KOHHH000X User manual

Electrolux

Electrolux KOHHH000X User manual

Electrolux Kitchenette oven Profi-Steam EBK SL7 User manual

Electrolux

Electrolux Kitchenette oven Profi-Steam EBK SL7 User manual

Electrolux E1101-5 User manual

Electrolux

Electrolux E1101-5 User manual

Electrolux EOQ 105 User manual

Electrolux

Electrolux EOQ 105 User manual

Electrolux LYRIC 51 User manual

Electrolux

Electrolux LYRIC 51 User manual

Electrolux EOC6851 User manual

Electrolux

Electrolux EOC6851 User manual

Popular Oven manuals by other brands

Brandt BOP7568LX User instructions

Brandt

Brandt BOP7568LX User instructions

NODOR 40 4800 Instructions for use

NODOR

NODOR 40 4800 Instructions for use

Whirlpool AKP 733 IX User and maintenance manual

Whirlpool

Whirlpool AKP 733 IX User and maintenance manual

Hamilton Beach Flexi-Grill 31395 use & care

Hamilton Beach

Hamilton Beach Flexi-Grill 31395 use & care

Smeg S10XMF instruction manual

Smeg

Smeg S10XMF instruction manual

Zanussi FBI 523 A Instructions for use and care

Zanussi

Zanussi FBI 523 A Instructions for use and care

Quincy lab Bench Series operating manual

Quincy lab

Quincy lab Bench Series operating manual

Frigidaire FGET2765KFA Factory parts catalog

Frigidaire

Frigidaire FGET2765KFA Factory parts catalog

Wood Stone BISTRO 4343 Installation and operation manual

Wood Stone

Wood Stone BISTRO 4343 Installation and operation manual

Maytag X9112VUV owner's guide

Maytag

Maytag X9112VUV owner's guide

LG LSWS300BD owner's manual

LG

LG LSWS300BD owner's manual

Frigidaire CGES3065KF1 Service Service data sheet

Frigidaire

Frigidaire CGES3065KF1 Service Service data sheet

NEFF U1452N3GB How to connect

NEFF

NEFF U1452N3GB How to connect

Bellini BDFS905X-F Installation & operation instructions

Bellini

Bellini BDFS905X-F Installation & operation instructions

Cuisinart TOB-130 INSTRUCTION AND RECIPE BOOKLET

Cuisinart

Cuisinart TOB-130 INSTRUCTION AND RECIPE BOOKLET

Dometic FO250SA Use and maintenance

Dometic

Dometic FO250SA Use and maintenance

Bosch HGL10E150 instruction manual

Bosch

Bosch HGL10E150 instruction manual

NEFF B14M42.5AU instruction manual

NEFF

NEFF B14M42.5AU instruction manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
