SAFETY INFORMATION
Before the installation and use, read this
manual carefully:
•Foryourpersonalsafety and the safety of
your property
• For the respect of the environment
• For the correct operation of the appli-
ance.
Always keep these instructions with the ap-
pliance also if you move or sell it.
The manufacturer is not responsible if incor-
rect installation or use results in damage.
Children and vulnerable people safety
• This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use
of the appliance in safe way and under-
stand the hazards involved. Children shall
not play with the appliance.
• Keep all packaging away from children.
There is the risk of suffocation or physical
injury.
• Keep children and animals away from the
appliance when the door is open or the
appliance is in operation. There is the risk
of injury or other permanent disability.
• If the appliance has Child Lock or Key
Lock (Control Lock) function, use it. It
prevents children and animals from acci-
dental operation of the appliance.
General safety
• Do not change the specifications of this
appliance. There is the risk of injury and
damage to the appliance.
• Do not let the appliance stay unattended
during operation.
• Switch off the appliance after each use.
Installation
• Only an approved electrician can install
and connect the appliance. Contact an
approved service centre. This is to pre-
vent the risks of structural damage or
physical injury.
• Make sure that the appliance is not dam-
aged because of transport. Do not con-
nect a damaged appliance. If necessary,
contact the supplier.
• Remove all packaging, stickers and lay-
ers from the appliance before first use.
Do not remove the rating plate. It can in-
validate the guarantee.
• Make sure that the appliance is discon-
nected from the power supply during the
installation.
• Be careful when you move the appliance.
The appliance is heavy. Always use safe-
ty gloves. Do not lift the appliance by the
handle.
• The electrical installation must have an
isolation device which lets you discon-
nect the appliance from the mains at all
poles. The isolation device must have a
contact opening width of minimum 3
mm.
• You must have correct isolation devices:
line protecting cut-outs, fuses (screw
type fuses removed from the holder),
earth leakage trips and contactors.
• Before the installation, make sure that the
kitchen cabinet has the recess dimen-
sions applicable.
• Make sure that the appliance is installed
below and adjacent safe structures.
• Keep the minimum distances to the other
appliances and units.
• The appliance cannot be positioned on a
base.
2 electrolux

• Built in ovens and built in cooking surfa-
ces are attached with special connection
system. To prevent damage to the appli-
ance, only use an appliance with the ap-
pliances from the same manufacturer.
Electrical connection
• The appliance must be earthed.
• Make sure that the electrical data on the
rating plate agree with your domestic
power supply.
• Information on the voltage is on the rating
plate.
• Always use a correctly installed shock-
proof socket.
• Do not use multi-way plugs, connectors
and extension cables. There is the risk of
fire.
• Do not replace or change the mains ca-
ble. Contact the service centre.
• Make sure not to squash or cause dam-
age to the mains plug (if applicable) and
cable behind the appliance.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug
– if applicable.
Use
• The appliance is only for domestic use.
Do not use the appliance for commercial
and industrial use.
• Only use the appliance for domestic
cooking tasks. This is to prevent physical
injury to persons or prevent damage to
property.
• Do not use the appliance as a work sur-
face or storage surface.
• The interior of the appliance and the ac-
cessories become hot during use. There
is the risk of burns. Use safety gloves
when you insert or remove the accesso-
ries or pots.
• Be careful when you remove or install the
accessories to prevent damage to the
oven enamel.
• Always stay away from the appliance
when you open the door while the appli-
ance is in operation. Hot steam can re-
lease. There is the risk of skin burns.
• To prevent damage or discoloration to
the enamel:
– do not put any objects directly on the
appliance floor and do not cover it with
aluminium foil;
– do not put hot water directly into the
appliance;
– do not keep moist dishes and food in
the appliance after you finish the cook-
ing.
• Discoloration of the enamel has no effect
on the performance of the appliance so it
is not a defect in the sense of the warran-
ty law.
• Do not apply pressure on the open door.
• Always close the appliance door when
you cook, even while grilling.
Steam cooking
• Do not open the oven door during Steam
cooking. Steam can release. There is the
risk of skin burns. There is the risk that
steam causes moisture damage to units.
Care and cleaning
• Before maintenance, switch off the appli-
ance and disconnect the appliance from
the power supply.
• Before maintenance, make sure that the
appliance is cold. There is the risk of
burns. There is the risk that the glass
panels can break.
• Keep the appliance clean at all times. A
build-up of fats or other foodstuff can re-
sult in a fire.
• Regular cleaning prevents the surface
material from deteriorating
• Use a deep baking tray for very moist
cakes to prevent that fruit juices cause
stains that can be permanent.
•Foryourpersonalsafety and the safety of
your property, only clean the appliance
with water and a soap. Do not use flam-
mable products or products that can
cause corrosion.
• Do not clean the appliance with steam
cleaners, high-pressure cleaners, sharp
objects, abrasive cleaning agents, abra-
sive sponges and stain removers
• If you use an oven spray, follow the in-
structions from the manufacturer.
• Do not clean the glass door with abrasive
cleaning agents or metal scraper. Heat
resistant surface of the inner glass can
break and shatter.
electrolux 3

• When the door glass panels are dam-
aged they become weak and can break.
You must replace them. Contact the
service centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Do not clean catalytic enamel (if applica-
ble).
Risk of fire
• Open the door carefully. The use of ingre-
dients with alcohol can cause a mixture
of alcohol and air. There is the risk of fire.
• Do not let sparks or open flames come
near the appliance when you open the
door.
• Do not put flammable products or items
that are wet with flammable products,
and/or fusible objects (made of plastic or
aluminium) in, near or on the appliance.
Oven lamp
• Bulb lamps used in this appliance are
special lamps selected for household ap-
pliances use only. They cannot be used
for the full or partial illumination of a
household room.
• If it becomes necessary to replace the
lamp use one of the same power and
specifically designed for household appli-
ances only.
• Disconnect the appliance from the power
supply before the replacement of the
oven lamp. There is the risk of electrical
shock.
Service centre
• Only an approved engineer can repair or
work on the appliance. Contact an ap-
proved service centre.
• Use only original spare parts.
Disposal of the appliance
• To prevent the risk of physical injury or
damage
– Disconnect the appliance from the
power supply.
– Cut off the mains cable and discard it.
– Discard the door catch. This prevents
children or small animals from being
closed inside of the appliance. There is
the risk of suffocation.
PRODUCT DESCRIPTION
General overview
5
4
3
2
1
1
12
11
3
2
5
4
6
7
8
9
10
1Water drawer
4 electrolux

2Electronic programmer (display and
touch sensor fields)
3Heating element
4Oven lamp
5Meat probe socket
6Fan
7Oven lamp
8Rear wall heating element
9Steam generator with cover
10 Oven shelf runners, removable
11 Bottom heat
12 Shelf positions (levels)

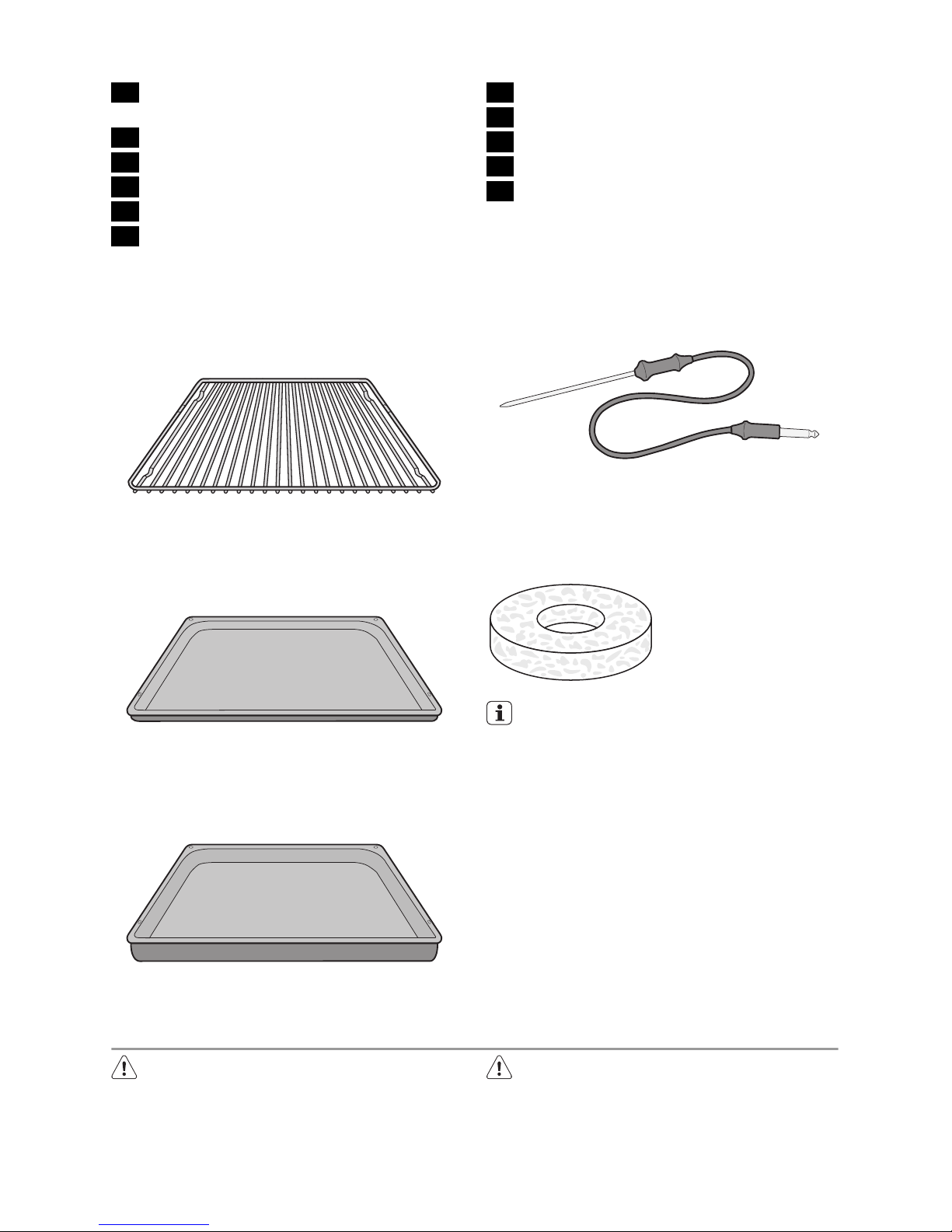

Oven accessories
Oven shelf - for cookware, cake tins,
roasts.
Flat baking tray - for cakes and
biscuits.
Deep roasting pan - To bake and roast
or as pan to collect fat.
Meat probe - To measure how far the
meat is cooked.
Quick Sponge 180 - For absorbing
residual water from the steam
generator.
Flat baking tray and deep roasting pan
are not suitable for Full Steam cooking.
DAILY USE
Warning! Refer to "Safety information"
chapter.
Initial Cleaning
• Remove all parts from the appliance.
• Clean the appliance before first use.
Caution! Do not use abrasive cleaning
agents! This can damage the surface.
Refer to chapter "Care and Cleaning".
electrolux 5

First Connection
When you connect the appliance to the
mains or after the power cut you have to
set the language, display contrast, display
brightness and time of the day. Touch +or
-to set the value. Touch OK to confirm.
Electronic programmer
123
45
1Menu option symbol (with oven shelf
level)
2Clock
3Heat indicator
4Temperature / weight
5Time functions
Panel sensor fields overview
Sensor
field Function Comment
To activate and deactivate the ap-
pliance.
To show the main menu. The set function deactivates (except for the count-
down timer).
To move down and up in the menu. When a function is on:
• Touch the sensor field one time: Open the high-
er menu (function remains on). After 5 seconds
the appliance switches to the initial menu option
• Touch the sensor field two time: Change to the
higher menu and move up and down (the func-
tion deactivates)
,
To set the values (example: temper-
ature, time, weight, degree to
cook).
To operate the value:
• Touch the sensor field one time: The symbol
flashes
• Touch the sensor field two time: You can set the
value
To set the values:
• Touch the sensor field one time: To set the value
in slow steps
• Hold down the sensor field: To set the value in
fast steps
To set the display to zero, when you set a
cook time or the time
•Touch+ and - at the same time.
To set the time functions, more
functions and Meat probe.
To confirm.
6 electrolux

Touch the sensor fields to operate the
appliance. Make sure, that you only
touch one sensor field. If you apply
your finger too flat, you could touch
more sensor fields.
Display symbols
During appliance operation display shows
various symbols.
Symbol Display (ex-
amples) Function
Minute Mind-
er 4:30 The countdown timer is on.
Time 10:00 The display shows the time set.
Duration 1:00 Shows the time required for the cooking cycle.
End Time 14:50 The display shows the time, when the cook time is com-
pleted.
Start after
some time 0:45
The display shows the time when the appliance starts to
cook. (When you use End Time and Cook Time com-
bined).
Temperature 1.
2.
1. Indicates temperature level in the cavity. Display
shows it also after you deactivate the appliance and
the cavity is still warm.
2. Rapid heat-up is active. It reduces heat up time.
Weight 1,5 kg The display shows that automatic weight system is active
or weight can be changed.
Meat probe 75°C
• The Meatprobe is installed
• The Meatprobe Automatic is on.
• You can change the core temperature.
Heat+Hold 80°C The display shows the function is active.
The menus in overview
Main menu
Symbol Menu item Application
Assisted Cooking Contains list of automatic cooking programmes.
Heating Functions Contains list of oven heating functions.
My Programmes Contains list of favourite cooking programmes
created by user.
Cleaning Menu Contains oven cleaning functions.
Basic Settings You can use it to set other oven settings.
Submenus
Submenus for: Assisted Cooking
Symbol Submenu
Pork/Veal
Beef/Game/Lamb
Poultry
Fish
electrolux 7

Symbol Submenu
Cake
Desserts
Pizza/Pie/Bread
Casseroles/Gratins
Side Dishes
Combi Steaming
Convenience
Specials
Submenus for: Heating Functions
Oven function Application
Fan Cooking For baking on up to three oven levels at the same
time. Set the oven temperatures 20-40 °C lower than
when using Conventional.
Moist Fan Cooking For energy-saving baking and cooking of mainly dry
bakery items as well as for baking in tins on one level.
Conventional Cooking For baking and roasting on one oven level
Pizza Setting For baking on one oven level dishes that require more
intensive browning and a crispy base. Set the oven
temperatures 20-40 °C lower than when using con-
ventional.
Turbo Grill For roasting larger joints of meat or poultry on one
level. The function is also suitable for gratinating and
browning.
Economy Grill For grilling flat foodstuffs placed in the middle of the
grill and for toasting.
Dual Grill For grilling flat foodstuffs in large quantities and for
toasting.
Bottom Heat For baking cakes with crispy or crusty bases.
Slow Cook For preparing especially tender, succulent roasts.
Quarter Steam + Heat For baking and roasting and warming up frozen or
chilled foods.
Half Steam + Heat For foods with a high moisture content and for reheat-
ing foods.
Full Steam For fruit, vegetables, fish, potatoes, rice, pasta or spe-
cial side-dishes.
8 electrolux

Submenus for: My Programmes
Symbol Submenu
-1 - My Programmes
-2- My Programmes
-...
-Edit Programme Name
Submenus for: Cleaning Menu
Symbol Submenu
Steam Cleaning
Cleaning Assistant
Submenus for: Basic Settings
Symbol Submenu Description
Set Time of Day Sets the current time on the clock.
Time Indication When ON, the displays shows the current time
when you deactivate the appliance.
Set+Go When ON you can choose Set+Go function in the
Select Options window.
Heat+Hold When ON you can choose Heat+Hold function in
the Select Options window.
Time Extension Activates and deactivates the Time Extension
function.
Display Contrast Adjusts display contrast by degrees.
Display Brightness Adjusts display brightness by degrees.
Set Language Sets the language for the display.
Buzzer Volume Adjusts the volume of the touch-tones and signals
by degrees.
Key Tones Activates and deactivates the touch fields tone.
Alarm/Error Tones Activates and deactivates the alarm tone (if you try
to set option which is not available).
Service Shows the software version and configuration.
Factory Settings Reset all settings to factory settings (including My
Programmes ).
Activating and deactivating the
appliance
Touch to activate or deactivate the ap-
pliance.
Operation of the menus:
1. Activate the appliance.
2. Touch or to select the menu op-
tion.
3. Touch OK to move to submenu or ac-
cept setting.
At every point you can get back to the main
menu with .
Starting a heating function
1. Select Heating Functions menu. Touch
OK to confirm.
2. Select heating function. Touch OK to
confirm.
3. Set the temperature. Touch OK to con-
firm.
electrolux 9

Switching off the heating function
Touch to cancel the procedure.
The display shows the main menu.
Setting the oven temperature
Touch +or -to set the temperature.
The appliance starts to heat.
When the appliance operates at the set
temperature, an acoustic signal
sounds.
Showing the oven temperature
Touch +or -at the same time.
The display shows the oven temperature.
Inserting the oven accessories
Put in the slide-in accessories so that the
double side edges are at the back of the
oven and point down to the bottom. Push
the slide-in accessories between the guide-
bars of one of the oven levels.
The deep roasting pan and the oven
shelf have double side edges. These
edges and the shape of the guide-bars
causes the anti-tilt safety for the oven
accessories.
Inserting the oven shelf and deep
roasting pan together
Put the oven shelf on the deep roasting
pan. Push the deep roasting pan between
the guide-bars of one of the oven levels.
Automatic programmes
These 3 automatic programmes give opti-
mum settings for each type of meat or oth-
er recipes:
• Meat programmes with Weight Automat-
ic ( Assisted Cooking menu)
• Meat programmes with Meatprobe Auto-
matic ( Assisted Cooking menu)
• Recipe Automatic ( Assisted Cooking
menu)
Assisted Cooking with Weight
Automatic
This function automatically calculates the
roasting time. To use the function, It is nec-
essary to input the food weight.
Activating the function:
1. Activate the appliance.
2. Select Assisted Cooking . Touch OK to
confirm.
3. Select the category and dish. Touch OK
to confirm.
4. Select the Weight Automatic . Touch
OK to confirm.
5. Touch +or - to set the food weight.
Touch OK to confirm.
The automatic program starts. You can
change the weight at any time. Touch +or
-to change the weight. When time ends,
an acoustic signal sounds. Touch a sensor
field to deactivate the signal.
10 electrolux

With poultry programmes turn over the
food after 30 minutes. The display
shows a reminder.
Assisted Cooking with Recipe
Automatic
This appliance has a set of recipes you can
use. Recipes are fixed and you cannot
change them.
Activating the function:
1. Activate the appliance.
2. Select Assisted Cooking menu. Touch
OK to confirm.
3. Select the category and dish. Touch OK
to confirm.
4. Select the Recipe Automatic . Touch
OK to confirm.
When you set the option Manual , the
display shows automatic settings but
you can change them.
Assisted Cooking with Meatprobe
Automatic
1. Activate the appliance.
2. Touch or to set the function As-
sisted Cooking , the necessary category
and the dish.
3. Touch or to set the function
Meatprobe Automatic .
4. Touch OK to confirm.
The display shows „ Meatprobe “.
5. Install the meat probe.
When the programme ends, an acoustic
signal sounds.
Use a sensor field to deactivate the
acoustic signal.
6. Remove the meat probe.
Meatprobe
Meat probe measures the core temperature
of the meat. When the meat reaches set
temperature the oven deactivates automati-
cally.
There are two temperatures to be set
• The oven temperature
• The core temperature
Important! Only use the meat probe
supplied or genuine replacement parts.
1. Activate the appliance.
2. Put the tip of the meat probe into the
centre of the meat.
3. Put the plug of the meat probe into the
socket on the side wall of the oven.
The display shows Meatprobe .
4. Touch +or -in less than 5 seconds to
set the core temperature.
5. Set the oven function and, if necessary,
the oven temperature.
The appliance calculates the provisional
end time for the set temperature (at
least 120°C) again and again. This pro-
cedure can take approximately 30 mi-
nutes. The display constantly shows the
new provisional end time.
The meatprobe must stay in the meat
and in the meatprobe socket during the
cooking process.
6. When the meat reaches set core tem-
perature, an acoustic signal sounds.
The appliance deactivates automatically.
Use a sensor field to stop the signal.
7. Remove the meatprobe plug from the
socket and remove the meat from the
oven.
Warning! The meat probe is hot! There
is the risk of burns! Be careful when
you remove the tip and plug of the
meat probe.
8. Switch off the appliance.
For meat programmes with the meatp-
robe , refer to automatic programmes .
My Programmes menu
You can store your favourite settings like
duration, temperature or oven function.
electrolux 11

They are available in My Programmes
menu. You can store 20 programmes.
Storing a programme
1. Activate the appliance.
2. Select the oven function or Assisted
Cooking function.
3. Touch again and again until the
display shows " SAVE ". Touch OK to
confirm.
4. The display shows the first free memory
position.
Touch OK to confirm.
5. The first letter flashes.
Touch +or - to change the letter. Touch
OK to confirm.
6. Touch or to move the cursor to
the right or to the left. Touch OK to con-
firm.
The letter flashes.
7. Repeat steps 5 and 6 again to write
name of the program.
Touch and hold OK to save.
You can overwrite a memory position in
storage. (Refer to the section „Storing a
programme“. At step 4 touch or
to choose memory position you
want to overwrite.)
You can change the name of a Pro-
gramme in the menu ” Edit Programme
Name ”.
Activating the programme
1. Activate the appliance.
2. Select My Programmes menu. Touch
OK to confirm.
3. Select your favourite programme name.
Touch OK to confirm.
Steam cooking functions
Important! Always use the steam cooking
functions together with the clock functions:
DURATION or END (see section
Clock Functions DURATION / END ).
Important! Use only water as a liquid!
When there is not water left buzzing sound
operates. When you fill drawer with water
the buzzing tone switches off again.
Because of the automatic steam dis-
persal period of approximately 5 mi-
nutes at the end of the cooking time
and the heating up time of approxi-
mately 2 minutes, settings less then 10
minutes have small effect.
Steam also release when the door is open.
Full Steam
1. Fill water (650 ml) into the water drawer
in the control panel.
The water supply is for approximately
30 minutes.
2. Start the oven with the On/Off control
.
3. Use or control to select the
menu option Cleaning Menu .
4. Confirm with .
5. Use or control to select the
menu option Full Steam .
6. Confirm with .
7. Use or to set temperature.
8. Use to set the DURATION func-
tion or END . Set the cooking
time or switch-off time with or .
The first steam shows after approxi-
mately 2 minutes. When the oven rea-
ches set temperature an acoustic signal
sounds.
Another acoustic signal sounds at the
end of cooking time.
9. Stop the signal and the oven with the
On/Off control .
After the oven cools down, soak up all re-
maining water from the steam generator
with the Quick Sponge and clean if it is
necessary with some vinegar.
Let the oven dry fully with the open door.
Half Steam + Heat and Quarter Steam +
Heat
The continual change from fan to steam
takes place automatically, with Half Steam
+ Heat .
To set Half Steam + Heat and Quarter
Steam + Heat function use the same pro-
cedure as for Full Steam .
12 electrolux

Clock functions
Symbol Function Description
Minute Minder To set a countdown (max 2 hours 30 minutes). This function
has no effect on the operation of the appliance.
Duration To set how long the appliance has to be in operation (max. 23 h
59 min).
End Time To set the switch-off time for an oven function (max. 23 h 59
min).
You can use Duration and End Time at
the same time, if the appliance is to ac-
tivated and deactivated automatically
later.
If you set the time for a clock function, the
time starts to count down after 5 seconds.
Setting the clock functions
1. Activate the appliance. Set the heating
function and, if necessary, the tempera-
ture.
2. Touch again and again until the
display shows the necessary clock func-
tion and the related symbol.
3. Touch +or - to set the necessary time.
Touch OK to confirm.
When the appliance operates at the set
time, an acoustic signal sounds. The
appliance deactivates. The display
shows a message.
4. Touch a sensor field to stop the signals.
With the Minute Minder you must acti-
vate the appliance to set the clock
function. You do not have to set a
heating function.
With the Duration and End Time , after
90 % of the set time, an acoustic signal
sounds. The appliance deactivates.
The appliance uses the residual heat to
continue the cooking process until the
time is completed (3-20 minutes).
When you use Meat Probe, Duration
and End Time do not work.
Time Extension
The Time Extension makes the oven func-
tion continue after the set time ends.
• Applicable for all oven functions with Du-
ration or Weight Automatic .
• Not applicable for oven functions with
Meatprobe .
Activating the function:
1. When the cooking time ends, an acous-
tic signal sounds. Touch any sensor
field.
2. The display shows the message for
Time Extension for five minutes.
3. Touch to activate.
4. Set Time Extension period. Touch OK
to confirm.
SET+GO
SET+GO function lets you set an oven
function (or programme) and use it later
with one touch of the sensor field.
Activating the function:
1. Activate the appliance.
2. Set the heating function.
3. Touch again and again until the
display shows Duration .
4. Set the time.
5. Touch again and again until the
display shows SET+GO .
6. Touch OK to confirm.
To start SET+GO touch any sensor field
(except ). The set oven function starts.
When the oven function ends, an acoustic
signal sounds.
When the oven function operates, the
function Key Lock is on.
You can activate and deactivate the
SET+GO function in the Basic Settings
menu.
Heat+Hold
The Heat+Hold function keeps prepared
food warm at 80° for 30 minutes. It acti-
vates after the baking or roasting procedure
ends.
electrolux 13

Conditions for the function:
• The set temperature is more than
80°C.
• The function duration is set.
Activating the function
1. Activate the appliance.
2. Select the oven function.
3. Set the temperature above 80°C.
4. Touch again and again until the
display shows Heat+Hold . Touch OK
to confirm.
When the function ends, an acoustic signal
sounds.
The Heat+Hold function operates for 30 mi-
nutes.
The Heat+Hold function stays on if you
change the oven functions.
You can activate or deactivate the
function in Basic Settings menu.
Key Lock
The Key Lock prevents an accidental
change of the oven function .
Activating the Key Lock
1. Activate the appliance.
2. Set the oven function.
3. Touch again and again until the
display shows Key Lock
4. Touch OK to confirm.
The Key Lock is active.
Deactivating the Key Lock
1. Touch .
2. Touch OK to confirm.
The Key Lock is not active.
If you deactivate the appliance, the Key
Lock deactivates.
Child Lock
The Child Lock prevents an accidental op-
eration of the appliance .
Activating the Child Lock
1. Deactivate the appliance.
2. Touch and at the same time at
the same time until the display shows a
message.
Deactivating theChild Lock
1. Do the above steps again.
The automatic switch-off
If you do not change the temperature
or stop the oven after some time, the
oven stops automatically.
The last temperature set flashes in the
display.
The oven stops with the temperature
of:
• 30 - 120° C after 12.5 hours
• 120 - 200° C after 8.5 hours
• 200 - 230° C after 5.5 hours
Using the oven after an automatic
switch-off
Use .
Heat-up indicator
When you activate an oven function, the
bar on the display comes on. The bar
shows that the temperature increases.
Rapid heat-up indicator
For some oven functions the rapid heat-up
function decreases the heat-up time auto-
matically. The bar of the indicator moves
from right to left until the oven reaches the
target temperature.
Residual heat indicator
When you deactivate the appliance, the dis-
play shows the residual heat. You can use
the heat to keep the food warm.
Cooling fan
When the appliance operates, the cooling
fan switches on automatically to keep the
surfaces of the appliance cool. If you switch
off the appliance, the cooling fan continues
to operate until the appliance cools down.
Mechanical door lock
The door lock is deactivated by default.
Activating the door lock

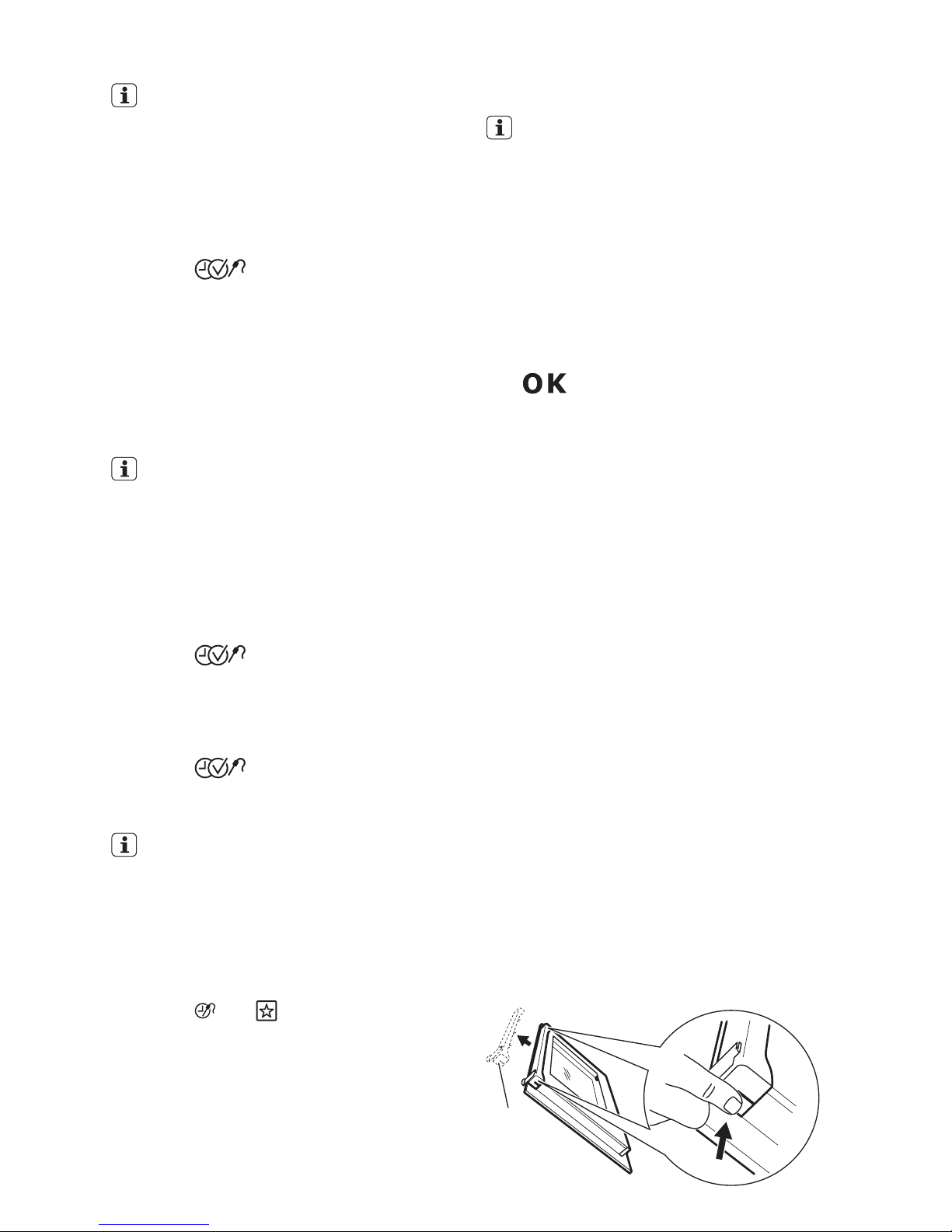

1. Press the door trim (B) at each side. The
seal releases.
2. Pull the door trim up and remove it.
2
B
1
14 electrolux

3. Remove the lever (1), move it 4 mm to
the left (2) and put it back in (3).
3
1
2
4. Hold the door trim (B) at each side and
position it on the inner edge of the door.
Put the door trim into the top edge of
the door.
B
Important! There is a guide bar (C) on the
open side of the door trim (B). Push the
guide bar between the outer door panel
and the guide corner (D). Make sure that
the seal (E) engages.
D
E
C
Opening and closing the door
To open the door, press and hold the lever.
Close the door without pressing the lever.
Deactivating the door lock
Do the above procedure again and move
the lever back to the right. You can also
fully remove the door lock:
1. Remove the door trim. Refer to "Activat-
ing the door lock".
2. Remove the lever (1).
1
3. Remove the stop (2) from the bottom
side of the door trim (B). Put the stop
where the lever was (3).
3
2
4. Put the door trim back in. Refer to "Acti-
vating the door lock".
Important! Deactivating the appliance
does not deactivate the mechanical door
lock.
CARE AND CLEANING
Warning! Refer to "Safety information"
chapter.
electrolux 15

• Clean the front of the appliance with a
soft cloth with warm water and cleaning
agent.
• To clean metal surfaces use a usual
cleaning agent
• Clean the oven interior after each use.
Thus you can remove dirt more easily
and it does not burn on.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all oven accessories (with a soft
cloth with warm water and cleaning
agent) after each use and let them dry.
• If you have nonstick accessories, do not
clean them using an aggressive agents,
sharp edged objects or dishwasher. It
can destroy nonstick coating!
Steam Cleaning
1. Place water (approximately 150 ml) and
1 tablespoon of vinegar directly into the
steam generator.
2. Use or to open Cleaning Menu .
3. Use to confirm.
4. Use or to open Steam Cleaning .
5. Use to confirm.
The oven starts to heat-up and the dis-
play shows the duration of the process
(15 minuts).
6. You can hear an acoustic signal when
the programme is completed.
Use any button to switch off the acous-
tic signal.
7. Wipe out the oven with a soft cloth.
Remove water from the steam genera-
tor with the Quick Sponge and rub dry.
Keep the door open for approxi-
mately 1 hour to let the oven dry
fully.
Cleaning assistant
Cleaning Assistant tells you the steps to op-
erate Steam Cleaning .
Activate and deactivate the Cleaning Assis-
tant in the CLEANING MENU .
Shelf support rails
You can remove the shelf support rails to
clean the side walls.
Removing the shelf support rails
1. Carefully pull the rail up and out of the
front catch.
2. Lightly move the rail on the front catch
inwards.
3. Pull the rail out of the rear catch.
Installing the shelf support rails
Install the shelf support rails in the opposite
sequence.
Steam generation system
Caution! Dry the steam generator after
each use. Soak up water with the
Quick sponge.
16 electrolux

Remove a lime residue with water and
vinegar.
Caution! Chemical de-scaling agents
can damage the oven enamel. Obey
instructions of the manufacturer!
Water drawer and steam generator
1. Fill the water and vinegar mixture (ap-
proximately 250 ml) through the water
drawer in the steam generator.
Let to operate for approximately 10 mi-
nutes.
2. Remove the water and vinegar with a
soft sponge.
3. Use clean water (100-200 ml) to flush
the steam generation system through
the water drawer.
4. Remove water from the steam genera-
tor with the sponge and rub dry.
5. Keep the door open to let the oven dry
fully.

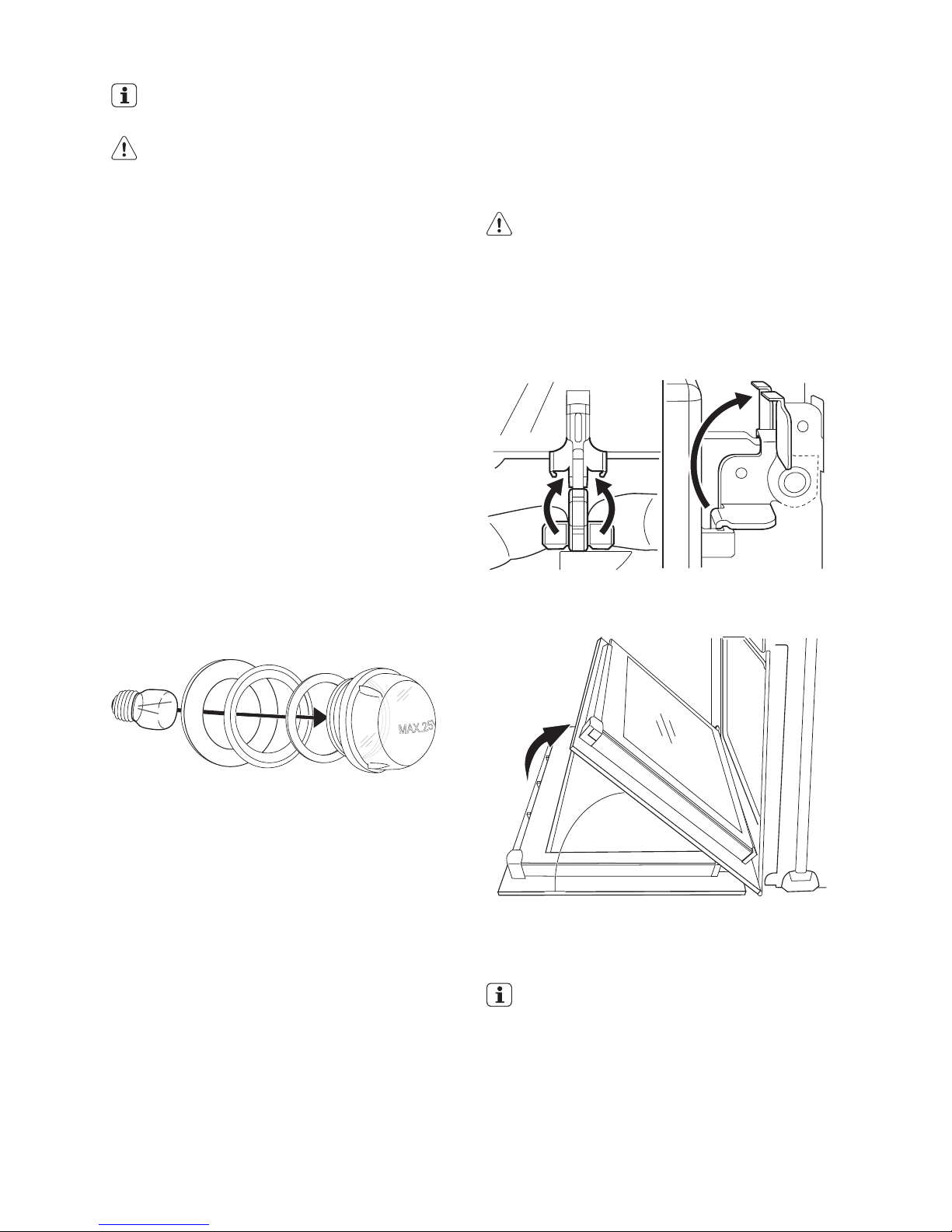

Replacing the rear oven light bulb/cleaning
the glass cover
1. Turn the glass cover anti-clockwise to
remove it.
2. Remove seals and metal ring, and clean
the glass cover.
3. Replace the oven light bulb with appli-
cable 300°C heat-resistant oven light
bulb.
4. Fit seals and metal ring to the glass cov-
er.
5. Install the glass cover.
Replacing the oven lamp (left side of
the appliance)
Cleaning the glass cover
1. Remove the left shelf support rail.
2. Use a cross-tip screwdriver to remove
the glass cover.
3. Take off the metal frame and seal and
clean.
4. If necessary: Replace the oven lamp.
Technical data: 25 Watt, 230 V, heat re-
sistant.
5. Install metal frame and seal and tighten
screws.
6. Install the left shelf support rail.
Oven door and glass panels
To clean the oven door remove it.
Caution! Be careful when you remove
the door from the appliance. The door
is heavy!
Removing the oven door
1. Open the oven door as far as it goes.
2. Lift up clamping levers (A) on the two
door hinges fully.
A
A
3. Close the oven door until the first posi-
tion (angle approximately 45°).
45°
4. Hold of the oven door with one hand on
each side and pull it away from the oven
at an upwards angle.
Put the oven door with the outer side
down on a soft and level surface to
prevent scratches
To install the door follow the procedure in
reverse.
electrolux 17

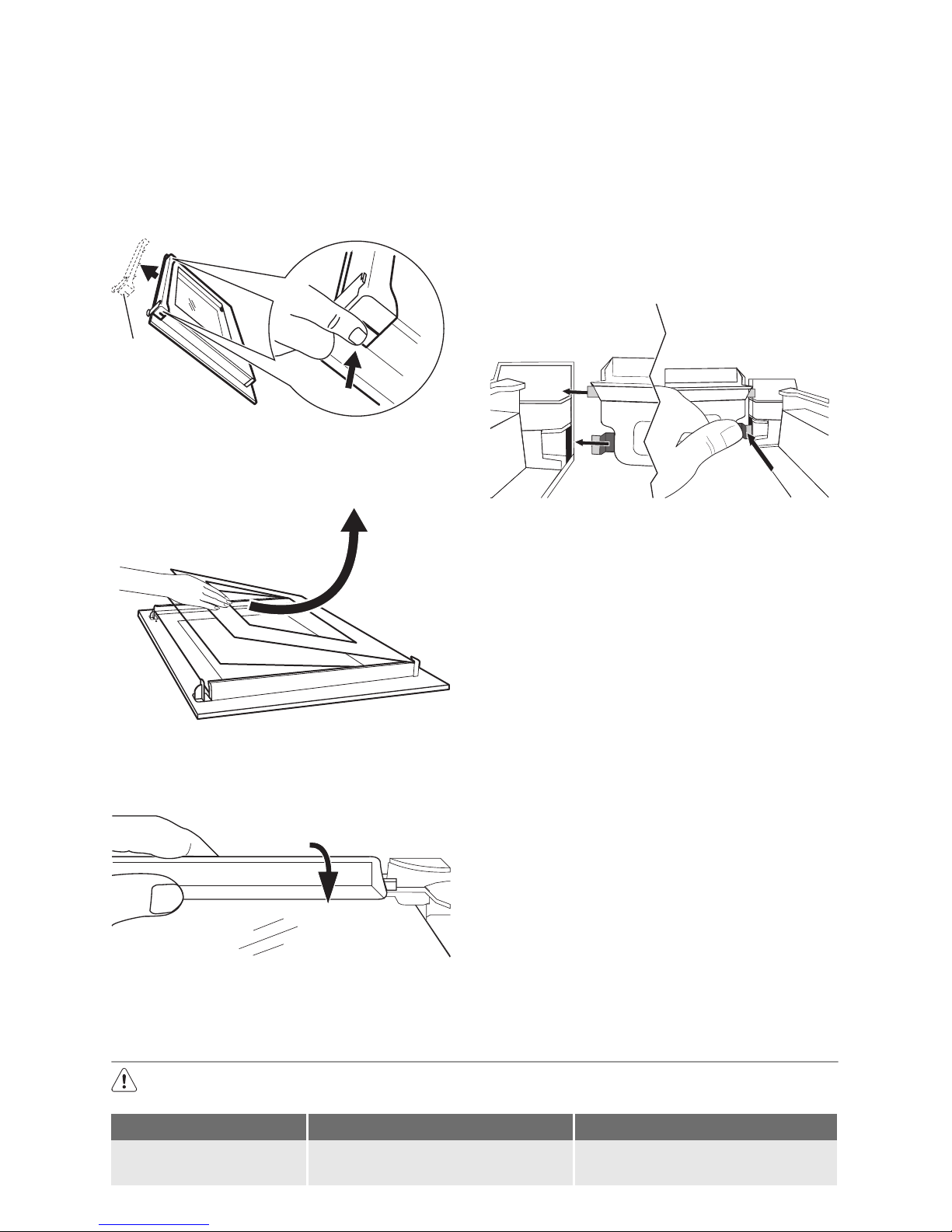

Removing and cleaning the door glasses
and water collection channel
1. Hold the door trim (B) on the top edge
of the door at the two sides and push
inwards to release the clip seal.
2. Pull the door trim to the front to remove
it.
2
B
1
3. Hold the door glass panels on their top
edge one by one and pull them up-
wards out of the guide
4. Tip the water collection channel towards
the door glass and lift upwards to re-
move from the guide.
5. Clean the door glass panels and water
collection channel with a solution of wa-
ter and washing-up liquid and dry them
carefully.
To install panels and water collection
channel follow the procedure in reverse.
Insert the snap-in hook of the water collect-
ing channel sideways into the guide. Apply
some pressure from above to snap in hook
on the other side.
Then insert the glass panels. Smaller panel
first, then the larger.
WHAT TO DO IF…
Warning! Refer to "Safety information"
chapter.
Problem Possible cause Remedy
The oven does not heat
up
The oven is switched off Activate the oven
18 electrolux

Problem Possible cause Remedy
The oven does not heat
up
The clock is not set Set the clock
The oven does not heat
up
The necessary settings are not set Check the settings
The oven does not heat
up
The Child Lock is activated Refer to "Deactivating the Child
Lock"
The oven does not heat
up
The fuse is released Make sure, if the fuse is the cause
for the malfunction. If the fuse re-
leases again and again, refer to an
authorized electrician
The display shows F11 The meat probe plug is not cor-
rectly installed into the meat probe
socket
Install the meat probe plug as far
as possible
The oven lamp does not
operate
The oven lamp is defective Refer to "Replace the oven lamp"
If you cannot find a solution to the problem
yourself, contact your dealer or the service
centre.
The necessary data for the service centre is
on the rating plate. The rating plate is on
the front frame of the oven cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
ENVIRONMENT CONCERNS
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
Packaging material
The packaging material is environmen-
tally-friendly and recyclable. Plastic
parts are marked with international ab-
breviations such as PE, PS, etc. Dis-
pose of the packaging material in the
containers provided for this purpose at
your local waste management facility.
electrolux 19

892946358-A-352010
www.electrolux.com/shop
