1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Children of less than 8 years of age and persons with
very extensive and complex disabilities shall be kept
away from the appliance unless continuously
supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•WARNING: Keep children and pets away from the
appliance when it operates or when it cools down.
Accessible parts become hot during use.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Only a qualified person must install this appliance and
replace the cable.
•This appliance must be connected to the mains with a
H05VV-F type cable to withstand the temperature of
the rear panel.
•This appliance is intended for use up to an altitude of
2000 m above sea level.
ENGLISH 3

•This appliance is not intended to be used on ships,
boats or vessels.
•Do not install the appliance behind a decorative door
in order to avoid overheating.
•Do not install the appliance on a platform.
•Do not operate the appliance by means of an external
timer or separate remote-control system.
•WARNING: Unattended cooking on a hob with fat or
oil can be dangerous and may result in fire.
•NEVER try to extinguish a fire with water, but switch
off the appliance and then cover flame e.g. with a lid
or a fire blanket.
•CAUTION: The cooking process has to be supervised.
A short term cooking process has to be supervised
continuously.
•WARNING: Danger of fire: Do not store items on the
cooking surfaces.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door or the glass of hinged
lids of the hob since they can scratch the surface,
which may result in shattering of the glass.
•Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they
can get hot.
•If the glass ceramic surface / glass surface is cracked,
switch off the appliance and unplug it from the mains.
In case the appliance is connected to the mains
directly using junction box, remove the fuse to
disconnect the appliance from power supply. In either
case contact the Authorised Service Centre.
•WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
•Always use oven gloves to remove or put in
accessories or ovenware.
•Before maintenance, cut the power supply.
www.electrolux.com4

•WARNING: Ensure that the appliance is switched off
before replacing the lamp to avoid the possibility of
electric shock.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Be careful when you touch the storage drawer. It can
get hot.
•The means for disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
•WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by
the manufacturer of the appliance in the instructions
for use as suitable or hob guards incorporated in the
appliance. The use of inappropriate guards can cause
accidents.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• The kitchen cabinet and the recess
must have suitable dimensions.
• Keep the minimum distance from
other appliances and units.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
• Parts of the appliance carry current.
Close the appliance with furniture to
prevent touching the dangerous parts.
• The sides of the appliance must stay
next to appliances or units with the
same height.
• Do not install the appliance adjacent
to a door or under a window. This
prevents hot cookware to fall from the
appliance when the door or the
window is opened.
• Make sure to install a stabilizing
means in order to prevent tipping of
the appliance. Refer to Installation
chapter.
2.2 Electrical Connection
WARNING!
Risk of fire and electric
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
ENGLISH 5

• Do not use multi-plug adapters and
extension cables.
• Do not let mains cables touch or
come near the appliance door or the
niche below the appliance, especially
when it operates or the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
• Fully close the appliance door before
you connect the mains plug to the
mains socket.
2.3 Use
WARNING!
Risk of injury and burns.
Risk of electrical shock.
• This appliance is for household use
only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not use the appliance as a work
surface or as a storage surface.
WARNING!
Risk of fire and explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and
oils when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion.
• Used oil, that can contain food
remnants, can cause fire at a lower
temperature than oil used for the first
time.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and
air.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly
on the bottom.
– do not put aluminium foil on the
appliance or directly on the
bottom of cavity.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or
stainless steel has no effect on the
performance of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• Do not keep hot cookware on the
control panel.
• Do not let cookware boil dry.
www.electrolux.com6

• Be careful not to let objects or
cookware fall on the appliance. The
surface can be damaged.
• Do not activate the cooking zones
with empty cookware or without
cookware.
• Cookware made of cast iron,
aluminium or with a damaged bottom
can cause scratches. Always lift these
objects up when you have to move
them on the cooking surface.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
2.4 Care and Cleaning
WARNING!
Risk of injury, fire, or
damage to the appliance.
• Before maintenance, deactivate the
appliance.
Disconnect the mains plug from the
mains socket.
• Make sure the appliance is cold.
There is the risk that the glass panels
can break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service
Centre.
• Be careful when you remove the door
from the appliance. The door is
heavy!
• Fat and food remaining in the
appliance can cause fire.
• Clean regularly the appliance to
prevent the deterioration of the
surface material.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• If you use an oven spray, follow the
safety instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
2.5 Internal lighting
WARNING!
Risk of electric shock.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
• Use only lamps with the same
specifications.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
3. INSTALLATION
WARNING!
Refer to Safety chapters.

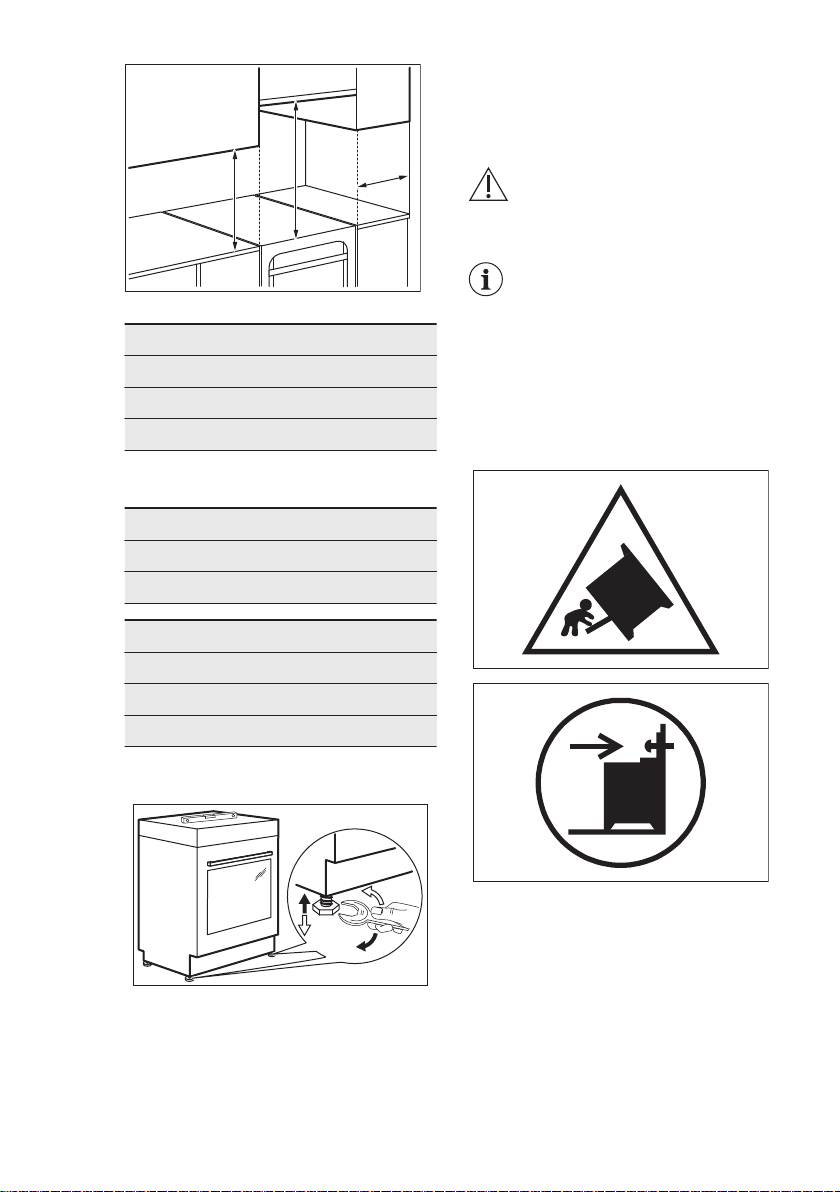

3.1 Location of the appliance
You can install your freestanding
appliance with cabinets on one or two
sides and in the corner.
For minimal distances for fitting check
the table.
ENGLISH 7

A
C
B
Minimum distances
Dimension mm
A400
B650
C150
3.2 Technical data
Voltage 230 V
Frequency 50 - 60 Hz
Appliance class 1
Dimension mm
Height 858
Width 600
Depth 600
3.3 Levelling of the appliance
Use small feet on the bottom of
appliance to set the appliance top
surface level with other surfaces.
3.4 Anti-tilt protection
Set the correct height and area for the
appliance before you attach the anti-tilt
protection.
CAUTION!
Make sure you install the
anti-tilt protection at the
correct height.
Make sure that the surface
behind the appliance is
smooth.
You must install the anti-tilt protection. If
you do not install it, the appliance can tilt.
Your appliance has the symbol shown on
the picture (if applicable) to remind you
about the installation of the anti-tilt
protection.
1. Install the anti-tilt protection 232 -
237 mm down from the top surface of
the appliance and 110 - 115 mm from
the side of the appliance into the
circular hole on a bracket. Screw it
into the solid material or use
applicable reinforcement (wall).
www.electrolux.com8

110-115
mm
232- 237
mm
2. You can find the hole on the left side
at the back of the appliance. Lift the
front of the appliance and put it in the
middle of the space between the
cupboards. If the space between the
bench cupboards is larger than the
width of the appliance, you must
adjust the side measurement to
centre the appliance.
If you changed the
dimensions of the cooker,
you must align the non-tip
device correctly.
CAUTION!
If the space between the
bench cupboards is larger
than the width of the
appliance, you must adjust
the side measurement to the
centre of the appliance.
3.5 Electrical installation
WARNING!
The manufacturer is not
responsible if you do not
follow the safety precautions
from Safety chapters.
This appliance is supplied without a main
plug or a main cable.
WARNING!
Before you connect the
mains cable to the terminal,
measure the voltage
between phases in the
house network. Then, refer
to the connection label at the
back of the appliance to use
the correct electrical
installation. This order of
steps prevents from
installation errors and
damage to the electrical
components of the
appliance.
Applicable types of cables for
different phases:
Phase Min. size cable
1 3x6.0 mm²
3 with neutral 5x1.5 mm²
WARNING!
The power cable must not
touch the part of the
appliance shaded in the
illustration.
ENGLISH 9

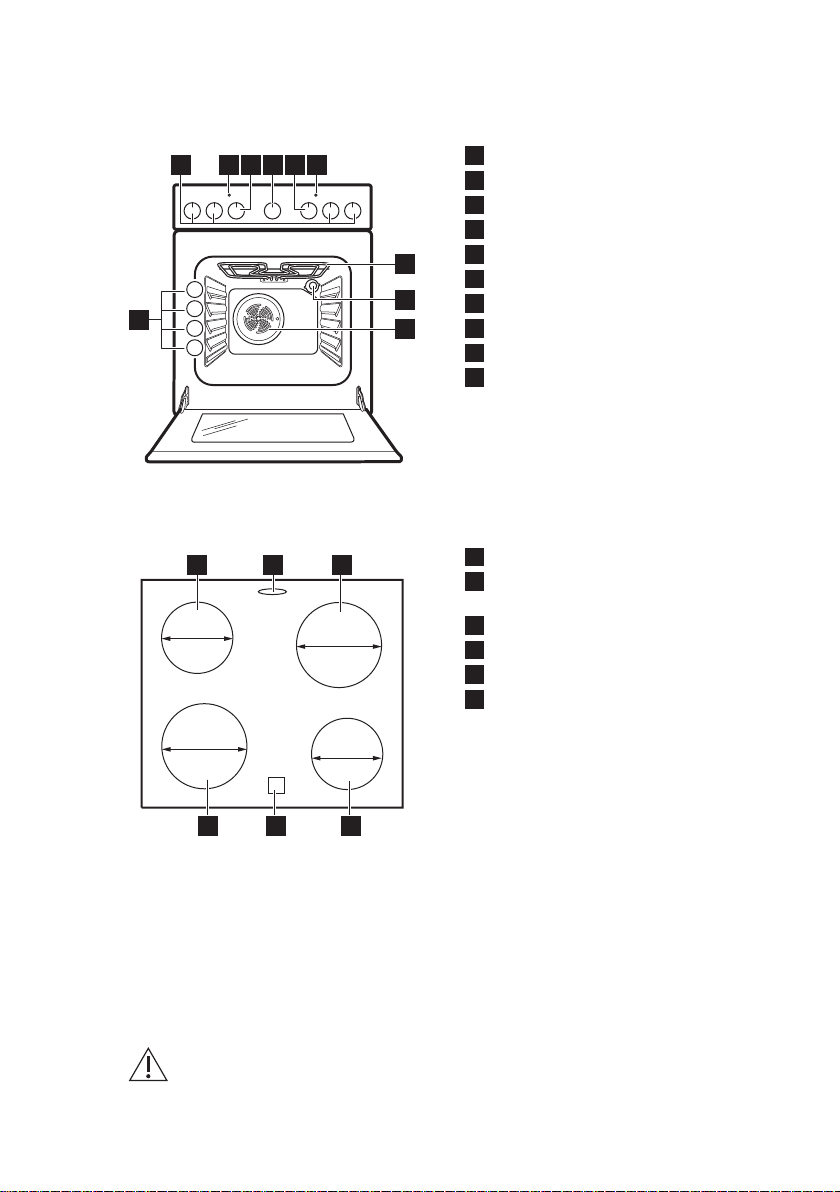

4. PRODUCT DESCRIPTION
4.1 General overview
2 3 4 651
7
9
8
10
1
2
3
4
1Knobs for the hob
2Temperature indicator / symbol
3Knob for the temperature
4Knob for the Minute Minder
5Knob for the oven functions
6Hob lamp / symbol / indicator
7Heating element
8Lamp
9Fan
10 Shelf positions
4.2 Cooking surface layout
180 mm
180 mm
140 mm
140 mm
6 5
1 2 3
4
1Cooking zone 1200 W
2Steam outlet - number and position
depend on the model
3Cooking zone 1800 W
4Cooking zone 1200 W
5Residual heat indicator
6Cooking zone 1800 W
4.3 Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Baking tray
For cakes and biscuits.
•Storage drawer
The storage drawer is below the oven
cavity.
5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
5.1 Initial Cleaning
Remove all accessories from the oven.
Refer to "Care and cleaning" chapter.
www.electrolux.com10

Clean the oven and the accessories
before the first use.
Put the accessories back to their initial
position.
5.2 Preheating
Preheat the empty oven before first use.
1. Set the function . Set the
maximum temperature.
2. Let the oven operate for 1 hour.
3. Set the function . Set the
maximum temperature. The
maximum temperature for this
function is 210 °C.
4. Let the oven operate for 15 minutes.
5. Turn off the oven and let it cool
down.
Accessories can become hotter than
usual. The oven can emit an odour and
smoke. Make sure that the airflow in the
room is sufficient.
6. HOB - DAILY USE
WARNING!
Refer to Safety chapters.
6.1 Description of cooking
zones
The cooking zones are fitted with
thermostat and operate intermittently
(goes off and on again) depending on the
selected heat level.
6.2 Heat setting
Sym‐
bols
Function
Off position
Keep warm
1 - 9 Heat settings
Use the residual heat to
decrease energy
consumption. Deactivate the
cooking zone approximately
5 - 10 minutes before the
cooking process is
completed.
Turn the knob for the selected cooking
zone to a necessary heat setting.
The hob control indicator comes on.
To complete the cooking process, turn
the knob to the off position.
If all cooking zones are deactivated, the
hob control indicator goes out.
6.3 Using the simple cooking
zone
To use a simple cooking zone, turn the
appropriate knob to one of the following
positions: 1-9.
For heat settings 1-3, the
zone remains red for about
2-3 seconds and then
deactivates.
The zone operates at its
maximum power level once
you set the heat level to 8 or
9.
6.4 Residual heat indicator
WARNING!
There is a risk of burns from
residual heat.
The indicator comes on when a cooking
zone is hot, but it does not function if
mains power is disconnected.
7. HOB - HINTS AND TIPS
WARNING!
Refer to Safety chapters.
7.1 Cookware
The cooking results depend on the
cookware material
•recommended: aluminium, copper
ENGLISH 11

•not recommended: stainless steel,
cast iron, glass
The bottom of the cookware
must be as thick and flat as
possible.
Ensure pan bases are clean
and dry before placing on
the hob surface.
Do not use cookware on the
ceramic hob with bases with
pronounced edges or ridges,
e.g. cast iron pans. These
could scratch or scour the
hob surface permanently.
Cookware made of
enamelled steel and with
aluminium or copper
bottoms can cause a colour
change on the glass-ceramic
surface.
To save energy and ensure that the hob
operates properly the cookware bottom
must have a suitable minimum diameter
(at least the same as the zone diameter).
7.2 Examples of cooking
applications
The data in the table is for
guidance only.
Heat setting Use to: Time
(min)
Hints
- 1 Keep cooked food warm. as nec‐
essary
Put a lid on the cookware.
1 - 2 Hollandaise sauce, melt: but‐
ter, chocolate, gelatine.
5 - 25 Mix from time to time.
1 - 2 Solidify: fluffy omelettes,
baked eggs.
10 - 40 Cook with a lid on.
2 - 3 Simmer rice and milkbased
dishes, heat up ready-
cooked meals.
25 - 50 Add at least twice as much
liquid as rice, mix milk
dishes halfway through the
procedure.
3 - 4 Steam vegetables, fish,
meat.
20 - 45 Add a couple of tablespoons
of liquid.
4 - 5 Steam potatoes. 20 - 60 Use max. ¼ l of water for
750 g of potatoes.
4 - 5 Cook larger quantities of
food, stews and soups.
60 -
150
Up to 3 l of liquid plus ingre‐
dients.
6 - 7 Gentle fry: escalope, veal
cordon bleu, cutlets, rissoles,
sausages, liver, roux, eggs,
pancakes, doughnuts.
as nec‐
essary
Turn halfway through.
7 - 8 Heavy fry, hash browns, loin
steaks, steaks.
5 - 15 Turn halfway through.
www.electrolux.com12

Heat setting Use to: Time
(min)
Hints
9 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.
8. HOB - CARE AND CLEANING
WARNING!
Refer to Safety chapters.
8.1 General information
• Clean the hob after each use.
• Always use cookware with a clean
base.
• Scratches or dark stains on the
surface have no effect on how the hob
operates.
• Use a special cleaner suitable for the
surface of the hob.
• Use a special scraper for the glass.
8.2 Cleaning the hob
•Remove immediately: melted plastic,
plastic foil, sugar and food with sugar,
otherwise, the dirt can cause damage
to the hob. Take care to avoid burns.
Use a special hob scraper on the
glass surface at an acute angle and
move the blade on the surface.
•Remove when the hob is
sufficiently cool: limescale rings,
water rings, fat stains, shiny metallic
discoloration. Clean the hob with a
moist cloth and a non-abrasive
detergent. After cleaning, wipe the
hob dry with a soft cloth.
•Remove shiny metallic
discoloration: use a mixture of
baking powder and lemon juice or
vinegar.
9. OVEN - DAILY USE
WARNING!
Refer to Safety chapters.
9.1 Turning the oven on and off
1. Turn the knob for the oven functions
to select an oven function.
2. Turn the knob for the temperature to
select the temperature.
The lamp turns on when the oven
operates.
3. To turn off the oven, turn the knobs
for the oven functions and
temperature to the off position.
9.2 Safety thermostat
Incorrect operation of the oven or
defective components can cause
dangerous overheating. To prevent this,
the oven has a safety thermostat which
interrupts the power supply. The oven
turns on again automatically when the
temperature drops.
9.3 Oven functions
Sym‐
bol
Oven function Application
Off position The oven is off.
ENGLISH 13

Sym‐
bol
Oven function Application
Conventional Cooking To bake and roast food on one shelf position.
Grilling To grill flat food and to toast bread
The maximum temperature for this function is
210 °C.
Bottom Heat To bake cakes with crispy bottom and to preserve
food.
Fan Cooking To roast or roast and bake food with the same
cooking temperature on more than one shelf posi‐
tion, without flavour transference.
Defrost To defrost food (vegetables and fruit). The de‐
frosting time depends on the amount and size of
the frozen food.
To use this function, the knob for the temperature
must be in the off position.
Moist Baking This function is designed to save energy during
cooking. For the cooking instructions refer to
"Hints and tips" chapter, Moist Baking. The oven
door should be closed during cooking so that the
function is not interrupted and to ensure that the
oven operates with the highest energy efficiency
possible. When you use this function, the temper‐
ature in the cavity may differ from the set temper‐
ature. The heating power may be reduced. For
general energy saving recommendations refer to
"Energy Efficiency" chapter, Oven - Energy Sav‐
ing. This function was used to comply with the en‐
ergy efficiency class according to EN 60350-1.
10. OVEN - CLOCK FUNCTIONS
10.1 Minute Minder
Use it to set a countdown time.
This function has no effect
on the operation of the
appliance.
1. Set an oven function and the
temperature.
2. Turn the knob for the timer as far as
it goes, then turn it to necessary time
period.
After the time period is completed, an
acoustic signal sounds.
11. OVEN - USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.

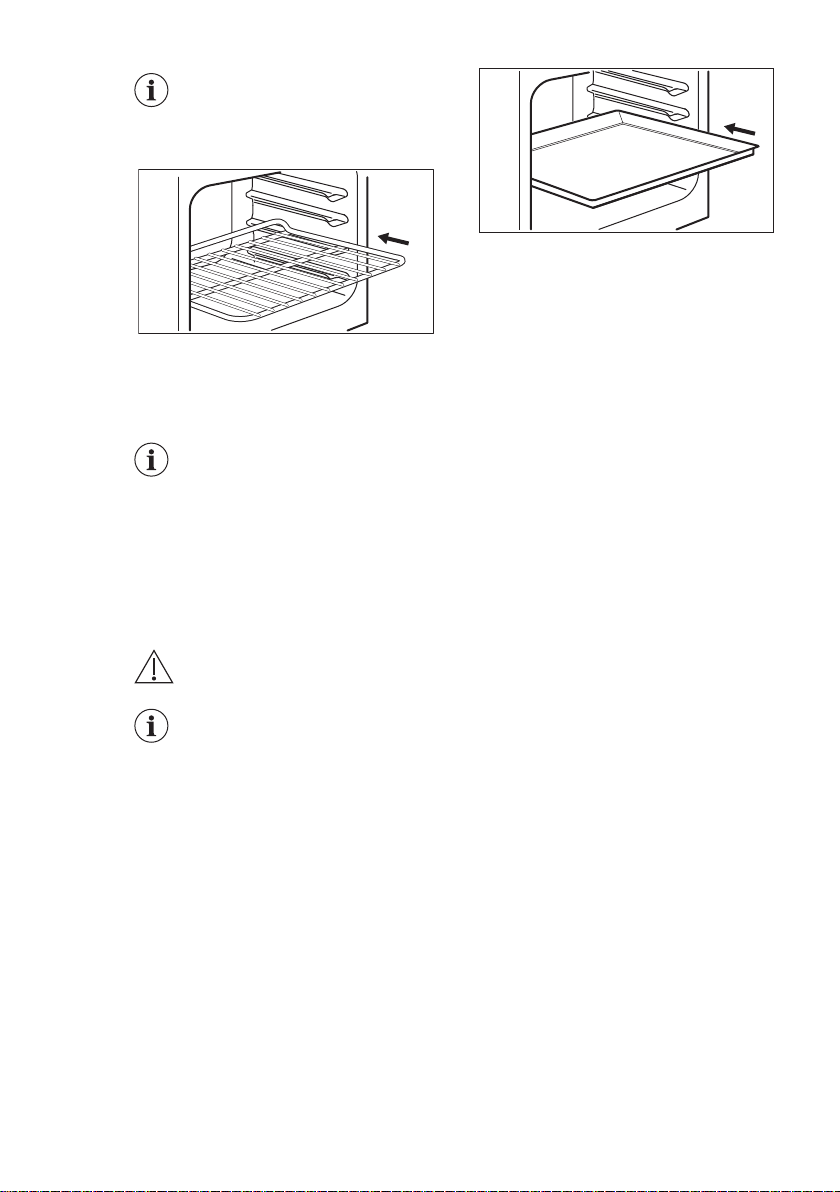

11.1 Inserting the accessories
Wire shelf:
www.electrolux.com14

The wire shelf has a special
shape in the rear which
helps with the heat
circulation.
Put the shelf on the correct shelf
position. Make sure it does not touch the
back wall of the oven.
Tray:
Do not push the baking tray
all the way to the back wall
of the cavity. This prevents
the heat from circulating
around the tray. The food
may be burnt, especially in
the rear part of the tray.
Put the tray or deep pan on the shelf
position. Make sure it does not touch the
back wall of the oven.
12. OVEN - HINTS AND TIPS
WARNING!
Refer to Safety chapters.
The temperature and baking
times in the tables are
guidelines only. They
depend on the recipes and
the quality and quantity of
the ingredients used.
12.1 General information
The appliance has four shelf positions.
Count the shelf positions from the bottom
of the appliance floor.
The appliance has a special system
which circulates the air and constantly
recycles the steam. With this system you
can cook in a steamy environment and
keep the food soft inside and crusty
outside. It decreases the cooking time
and energy consumption to a minimum.
Moisture can condense in the appliance
or on the door glass panels. This is
normal. Always stand back from the
appliance when you open the appliance
door while cooking. To decrease the
condensation, operate the appliance for
10 minutes before cooking.
Clean the moisture after each use of the
appliance.
Do not put the objects directly on the
appliance floor and do not put aluminium
foil on the components when you cook.
This can change the baking results and
cause damage to the enamel.
12.2 Baking
For the first baking, use the lower
temperature.
You can extend the baking time by 10 –
15 minutes if you bake cakes on more
than one shelf position.
Cakes and pastries at different heights
do not always brown equally. There is no
need to change the temperature setting if
ENGLISH 15

an unequal browning occurs. The
differences equalize during baking.
Trays in the oven can distort during
baking. When the trays are cold again,
the distortions disappear.
12.3 Baking cakes
Do not open the oven door before 3/4 of
the set cooking time is up.
If you use two baking trays at the same
time, keep one empty level between
them.
12.4 Cooking meat and fish
Leave the meat for approximately 15
minutes before carving so that the juice
does not seep out.
To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke
condensation, add water each time after
it dries up.
12.5 Cooking times
Cooking times depend on the type of
food, its consistency, and volume.
Initially, monitor the performance when
you cook. Find the best settings (heat
setting, cooking time, etc.) for your
cookware, recipes and quantities when
you use this appliance.
12.6 Conventional Cooking
Food Quantity
(g)
Tempera‐
ture (°C)
Time (min) Shelf
posi‐
tion
Accessories
Flat cake 1) 1000 160 - 170 30 - 35 2 baking tray
Yeast cake
with apples
2000 170 - 190 40 - 50 3 baking tray
Drip pan cake 1500 160 - 170 45 - 55 2) 2 baking tray
Chicken, whole 1350 200 - 220 60 - 70 2 wire shelf
1 baking tray
Chicken, half 1300 190 - 210 35 + 30 3 wire shelf
1 baking tray
Flan bread 3) 800 230 - 250 10 - 15 2 baking tray
Stuffed yeast
cake 4)
1200 170 - 180 25 - 35 2 baking tray
Pizza 1000 200 - 220 25 - 35 2 baking tray
Cheese cake 2600 170 - 190 60 - 70 2 baking tray
Swiss apple
flan 4)
1900 200 - 220 30 - 40 1 baking tray
Christmas
cake 4)
2400 170 - 180 55 - 65 5) 2 baking tray
www.electrolux.com16

Food Quantity
(g)
Tempera‐
ture (°C)
Time (min) Shelf
posi‐
tion
Accessories
Quiche Lor‐
raine 4)
1000 220 - 230 40 - 50 1 1 round tray (di‐
ameter: 26 cm)
Peasant
bread 6)
750 + 750 180 - 200 60 - 70 1 2 light trays
(length: 20 cm)
Romanian
sponge cake 1)
600 + 600 160 - 170 40 - 50 2 2 light trays
(length: 25 cm)
on the same
shelf position
Romanian
sponge cake -
traditional
600 + 600 160 - 170 30 - 40 2 2 light trays
(length: 25 cm)
on the same
shelf position
Yeast buns 4) 800 200 - 210 10 - 15 2 baking tray
Swiss roll 1) 500 150 - 170 15 - 20 1 baking tray
Meringue 400 100 - 120 40 - 50 2 baking tray
Crumble
cake 4)
1500 180 - 190 25 - 35 3 baking tray
Buttered
cake 1)
600 180 - 200 20 - 25 2 baking tray
1) Preheat the oven for 10 minutes.
2) After you switch off the appliance, leave the cake in the oven for 7 minutes.
3) Preheat the oven for 20 minutes.
4) Preheat the oven for 10 - 15 minutes.
5) After you switch off the appliance, leave the cake in the oven for 10 minutes.
6) Set the temperature for 250 °C and preheat the oven for 18 minutes.
12.7 Fan Cooking
Food Quantity
(g)
Tempera‐
ture (°C)
Time (min) Shelf
position
Accessories
Flat cake1) 1000 150 30 2 baking tray
Flat cake1) 1000
+ 1000
155 40 1 + 3 baking tray
Yeast cake with
apples
2000 170 - 180 40 - 50 3 baking tray
Drip pan cake 1200 150 - 160 30 - 352) 2 baking tray
ENGLISH 17

Food Quantity
(g)
Tempera‐
ture (°C)
Time (min) Shelf
position
Accessories
Chicken, whole 1400 180 55 2 wire shelf
1 baking tray
Stuffed yeast
cake
1200 150 - 160 20 - 30 2 baking tray
Pizza 1000
+ 1000
200 - 210 30 - 40 1 + 3 baking tray
Pizza 1000 190 - 200 25 - 35 2 baking tray
Cheese cake 2600 160 - 170 40 - 50 1 baking tray
Swiss apple
flan3)
1900 180 - 200 30 - 40 2 baking tray
Christmas
cake3)
2400 150 - 160 35 - 402) 2 baking tray
Quiche Lor‐
raine3)
1000 190 - 210 30 - 40 1 1 round tray
(diameter: 26
cm)
Peasant
bread 4)
750 + 750 160 - 170 40 - 50 1 baking tray
Romanian
sponge cake3)
600 + 600 155 - 165 40 - 50 2 2 light trays
(length: 25
cm) on the
same shelf
position
Romanian
sponge cake -
traditional
600 + 600 150 - 160 30 - 40 2 2 light trays
(length: 25
cm) on the
same shelf
position
Yeast buns1) 800 190 15 3 baking tray
Yeast buns 5) 800 + 800 190 15 1 + 3 baking tray
Swiss roll1) 500 150 - 160 15 - 20 3 baking tray
Meringue 400 110 - 120 30 - 40 2 baking tray
Meringue 400 + 400 110 - 120 45 - 55 1 + 3 baking tray
Crumble cake 1500 160 - 170 25 - 35 3 baking tray
Sponge cake1) 600 150 - 160 25 - 35 2 baking tray
www.electrolux.com18

Food Quantity
(g)
Tempera‐
ture (°C)
Time (min) Shelf
position
Accessories
Buttered cake1) 600 + 600 160 - 170 25 - 35 1 + 3 baking tray
1) Preheat the oven for 10 minutes.
2) After you switch off the appliance, leave the cake in the oven for 7 minutes.
3) Preheat the oven for 10 - 15 minutes.
4) Set the temperature for 250 °C and preheat the oven for 10 - 20 minutes.
5) Preheat the oven for 15 minutes.
12.8 Moist Baking
Food Tem‐
pera‐
ture
(°C)
Time
(min)
Shelf
posi‐
tion
Accessories
Bread and pizza
Buns 190 25 - 30 2 baking tray or grill- / roasting
pan
Bread rolls 200 40 - 45 2 baking tray or grill- / roasting
pan
Frozen pizza 350 g 190 25 - 35 2 wire shelf
Cakes in baking tray
Swiss roll 180 20 - 30 2 baking tray or grill- / roasting
pan
Brownie 180 35 - 45 2 baking tray or grill- / roasting
pan
Cakes in tin
Soufflé 210 35 - 45 2 six ceramic ramekins on wire
shelf
Sponge flan base 180 25 - 35 2 flan base tin on wire shelf
Sponge cake 150 35 - 45 2 cake tin on wire shelf
Fish
Fish in pouches 300
g
180 25 - 35 2 baking tray or grill- / roasting
pan
Whole fish 200 g 180 25 - 35 2 baking tray or grill- / roasting
pan
Fish fillet 300 g 180 30 - 40 2 pizza pan on wire shelf
Meat
ENGLISH 19

Food Tem‐
pera‐
ture
(°C)
Time
(min)
Shelf
posi‐
tion
Accessories
Meat in pouch 250 g 200 35 - 45 2 baking tray or grill- / roasting
pan
Meat skewers 500 g 200 30 - 40 2 baking tray or grill- / roasting
pan
Small baked items
Cookies 170 25 - 35 2 baking tray or grill- / roasting
pan
Macarons 170 40 - 50 2 baking tray or grill- / roasting
pan
Muffins 180 30 - 40 2 baking tray or grill- / roasting
pan
Savoury cracker 160 25 - 35 2 baking tray or grill- / roasting
pan
Shortcrust pastry
biscuits
140 25 - 35 2 baking tray or grill- / roasting
pan
Tartelettes 170 20 - 30 2 baking tray or grill- / roasting
pan
Vegetarian
Mixed vegetables in
pouch 400 g
200 20 - 30 2 baking tray or grill- / roasting
pan
Omelette 200 30 - 40 2 pizza pan on wire shelf
Vegetables on tray
700 g
190 25 - 35 2 baking tray or grill- / roasting
pan
12.9 Information for test institutes
Food Function Temper‐
ature
(°C)
Accessories Shelf
position
Time
(min)
Small cakes (16
per tray)
Conventional
Cooking
160 baking tray 3 20 - 30
Small cakes (16
per tray)
Fan Cooking 150 baking tray 3 20 - 30
Apple pie (2 tins
Ø20 cm, diagonally
off set)
Conventional
Cooking
190 wire shelf 1 65 - 75
www.electrolux.com20
