Electrolux 50 Series User manual

Index
Important Safeguards ..........2
Service Information ..............4
Use.......................................5
How To Maintain...................6
Motor Filter ...........................6
Brush Roll & Belt..................7
Warranty...............................8
Hand Held
Vacuum Cleaner
Household Type
Owner’s Guide
50 Series
IMPORTANT
For any advice
on your cleaner and
to order dust bags,
filters and
accessories
please telephone
Customer Care
08706 055055
www.electrolux.com
71520 9/21/05, 10:09 AM1

2
IMPORTANT SAFEGUARDS
When using an electrical appliance, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.
WARNING
To reduce the risk of fire, electric shock or injury:
•Do not use outdoors or on wet surfaces.
•Do not leave vacuum cleaner when plugged in. Turn off the switch and unplug
the electrical cord when not in use and before servicing.
•Do not allow to be used as a toy. Close attention is necessary when used by or
near children.
•Use only as described in this manual. Use only manufacturer’s recommended
attachments.
•Do not use with damaged cord or plug. If vacuum cleaner is not working as it
should, has been dropped, damaged, left outdoors, or dropped into water, return it
to a service center before using.
•Do not pull or carry by cord, use cord as a handle, close door on cord, or pull cord
around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord
away from heated surfaces.
•Do not use extension cords or outlets with inadequate current carrying capacity.
•Turn off all controls before unplugging.
•Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
•Do not handle plug or vacuum cleaner with wet hands.
•Do not put any object into openings. Do not use with any opening blocked; keep
free of dust, lint, hair, and anything that may reduce airflow.
•This vacuum cleaner creates suction and contains a revolving brush roll. Keep
hair, loose clothing, fingers, and all parts of body away from openings and moving
parts.
•Do not pick up anything that is burning or smoking, such as cigarettes, matches, or
hot ashes.
•Do not use without motor filter in place.
•Use extra care when cleaning on stairs.
•Do not use to pick up flammable or combustible liquids such as gasoline, or use in
areas where they may be present.
•Store your cleaner indoors in a cool, dry area.
•Keep your work area well lighted.
•Unplug electrical appliances before vacuuming them.
SAVE THESE INSTRUCTIONS
71520 9/21/05, 10:09 AM2

3
BEFORE YOU START
CHECK THE VOLTAGE
First check the voltage shown on the data plate (see rear view) to make sure that the
cleaner is of the correct voltage for your electricity supply. If it is not, do not use the
cleaner but refer back to your dealer.
CONNECTING TO YOUR ELECTRICITY SUPPLY
Permanently connected to the cleaner is a mains supply (2-core) cable fitted with a non-
rewirable plug incorporating a 13A fuse.
In the event of the fuse requiring replacement, the fuse cover should be removed using
a small screwdriver. The old fuse MUST be replaced by a 13A ASTA approved BS1362
fuse or a BSI approved fuse. The cover must be replaced before the plug is used again.
Intheeventoflossofthefusecover,replacementscanbe obtained from your Electrolux
retailer and must be of the same colour as indicated by the coloured insert on the base
of the plug.
Ifdifficultyisexperiencedinobtainingareplacement,contactanElectroluxServiceAgent
or phone [phone].
In no circumstances must the plug be used without a correct fuse cover fitted.
If the plug that is fitted to your appliance is not suitable for your socket outlet, it must
be cut off and the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to prevent the hazard of shocks in case it
should be plugged into a 13 amp socket in another part of your home.
The wires in the mains cable of this appliance are coloured in accordance with the
following code: Blue: Neutral. Brown: Live.
As the colours of the wires in the mains cable of this appliance may not correspond with
the coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the terminal which is marked with
the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked
with the letter L or coloured red.
If using a three-pin plug, do not make any connection to the terminal marked with the
letter E or by the earth symbol or coloured green or green-and-yellow. This cleaner is
double insulated and no earth connection is necessary.
It is in your interest to ensure that the plug is correctly attached to the mains cable. In
case of doubt, have it done by a qualified electrician, as Electrolux cannot regard the
repairof faults ontheplugconnection as aservicethatcanbe givenfreeofchargeunder
the terms of the guarantee.

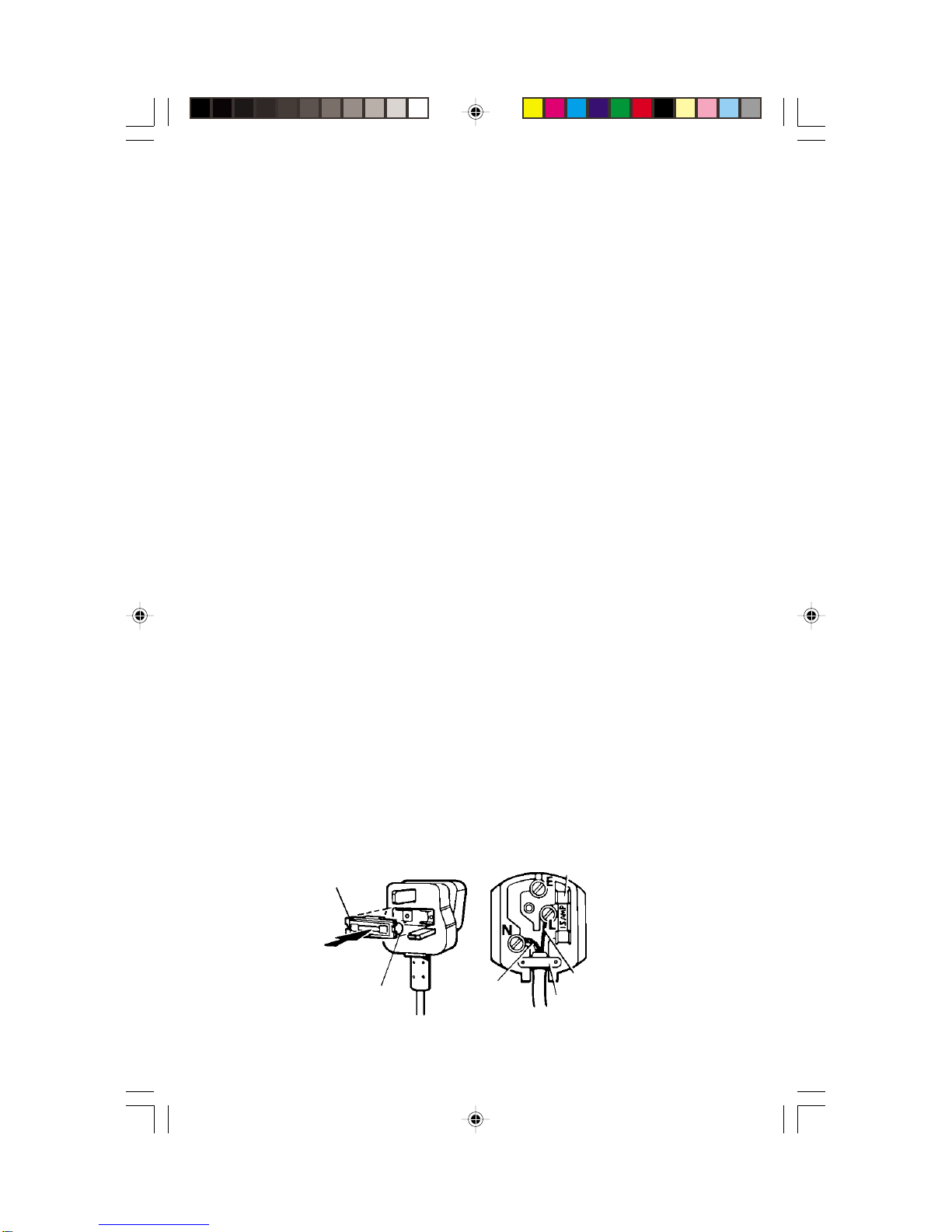

Fuse
Cover
Fuse Blue Brown
Cord
Clamp
13 Amp Fuse
71520 9/21/05, 10:09 AM3

4
Rating Plate
The model, type, and serial numbers are
indicatedontheratingplate located on the back
side of the cleaner. For prompt and complete
service information, always refer to these
numbers when inquiring about service.
Model & Type No. _________________
Serial No. ________________________
ELECTROLUX
MODEL TYPE SERIAL NO.
VOLTS WATTS HERTZ
SERVICE
Shouldyou require serviceon yourElectroluxcleaner,pleasetelephone 08706 055055.
Important - in the event of the mains supply cable of this cleaner requiring replacement,
we recommend that this be carried out by a Electrolux Service Agent.
Spares
New filters and belts can be obtained from Authorised Electrolux Dealers and electrical
retailers.If difficulty isexperiencedin obtaining spares pleasecallus on 08706 055055.
71520 9/21/05, 10:09 AM4

5
HOW TO USE
The lightweight vacuum cleaner is designed to be used for quick, convenient, and easy
cleanups. Moving the nozzle over carpeting, rugs, or upholstery provides suction and
bristleagitationtoclean dirt, lint, and threads from surfaces.TheconvenientRiserVisorTM
nozzle cover rotates upward to clean floors or downward to clean stair risers or furniture
backs.

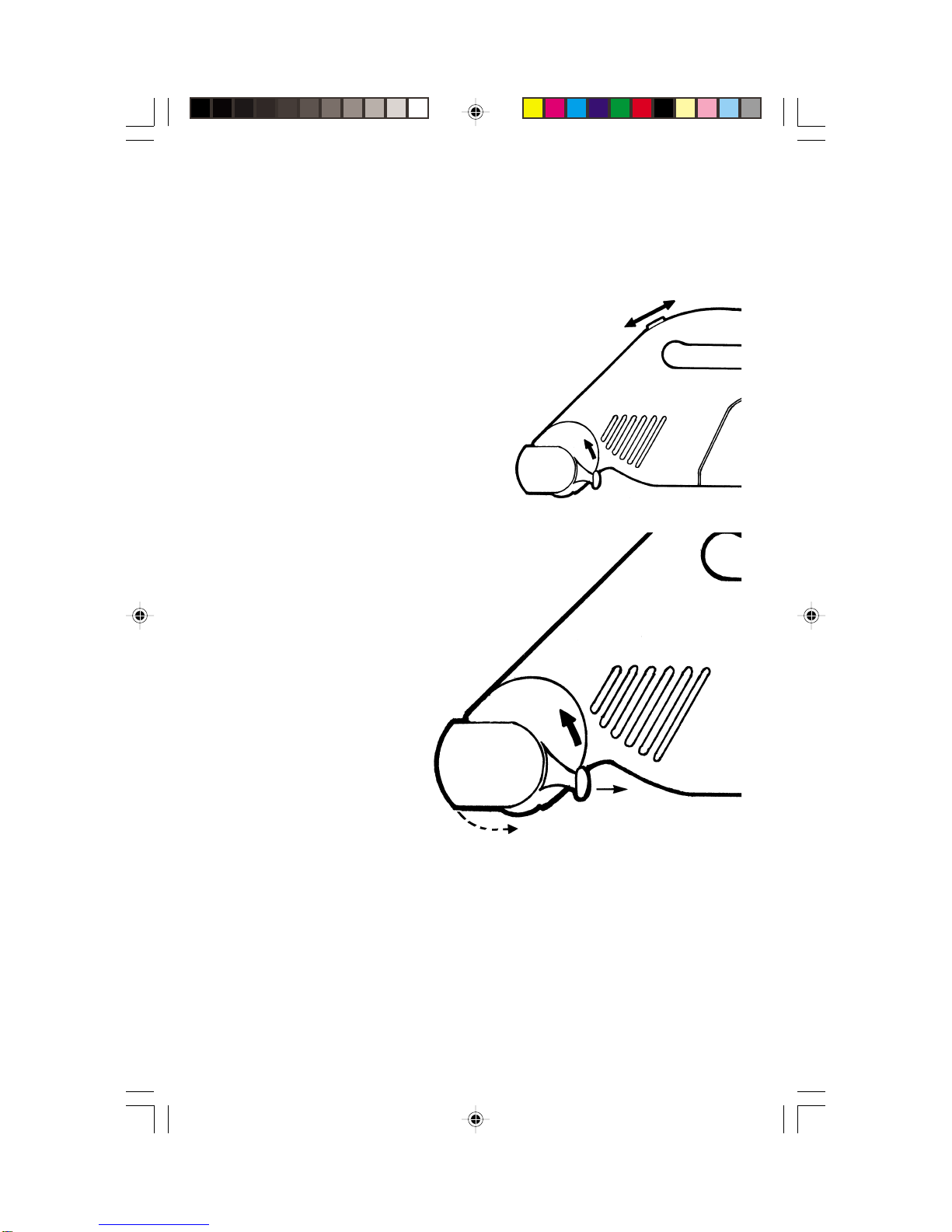

Power Switch
The power switch is located on the top
ofthehandle. Slide the switchforwardto
turn the motor ON; slide back to turn the
motor OFF.
Caution: To prevent injury, turn off the switch before rotating the Riser Visor
nozzle cover.
Cord Storage
Windthe cord loosely aroundthevacuum cleaner unitforstorage. Fasten the plugtothe
cord to prevent unwinding.
Riser VisorTM
Nozzle Cover
The Riser Visor nozzle
features a rotating cover
overthe brushroll.Whenthe
cover is in the normal
position, the brush roll
action is toward the bottom
side of the nozzle to clean
flatareassuchasstairsteps
or upholstery. Pull back on
the release lever and pull
upward to rotate the cover
downward and expose the
brush roll to the front of the
nozzle for cleaning stair
risers or furniture backs.
Cover
Pull
Release
Lever
Back
Forward
71520 9/21/05, 10:09 AM5

6
HOW TO MAINTAIN
The instructions given in this booklet serve as a guide to routine maintenance. Keep the
vacuum cleaner at top operating efficiency. Clean the filter and empty the dust container
regularly. If the dust container is visibly full before finished cleaning, empty as needed.
Adamaged or extremely soiled motor filter should be replaced. Pull back on the rubber
gasket to remove the used motor filter from the filter support frame. Keep the frame and
discard the used motor filter. Put the new filter over the frame and secure the lip of the
frame into the rubber gasket.
Additional filters are available from the Electrolux Customer Care line, 08706 055055.

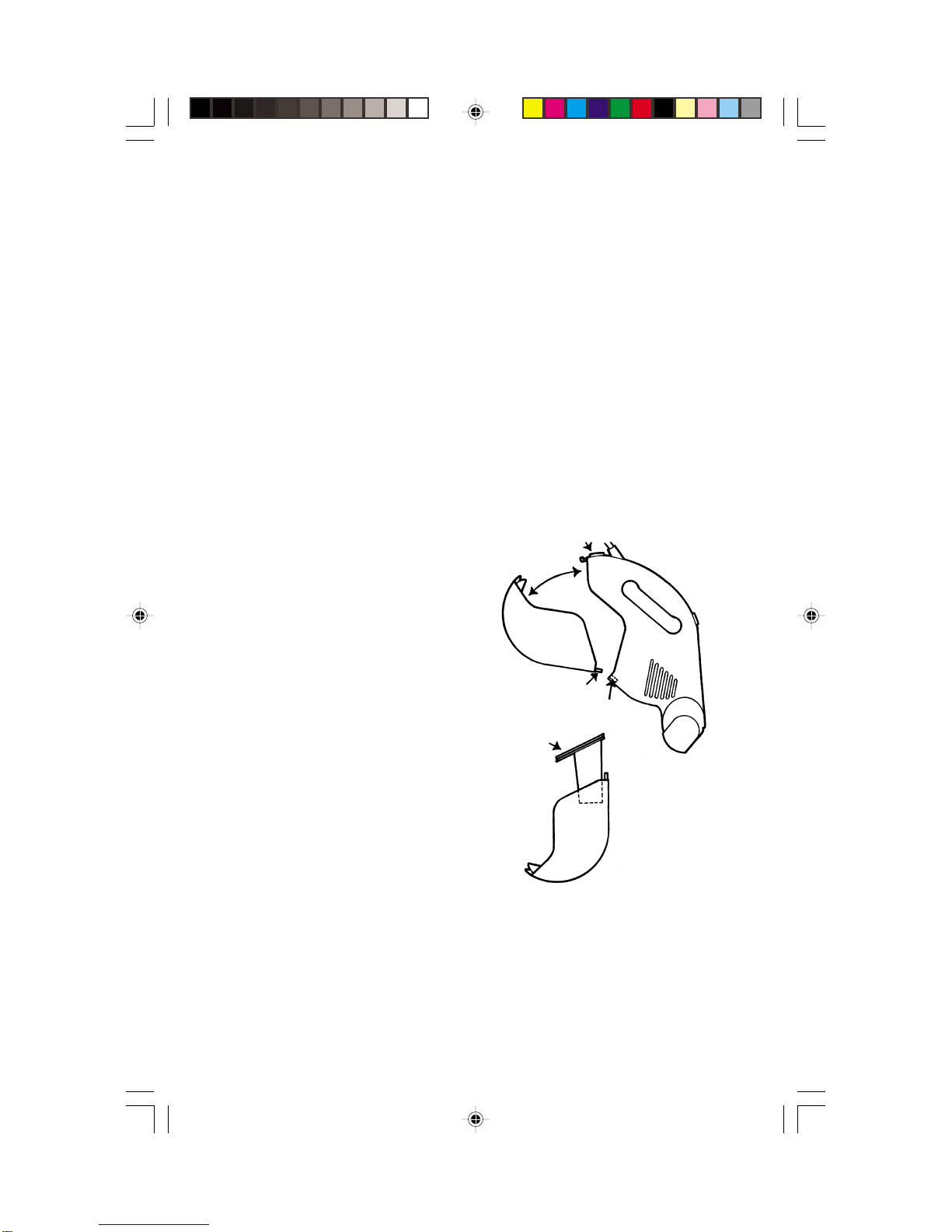

Press the dust container latch, located
below the electrical cord, and rotate the
dust container off the unit. Grasp the
motor filter and pull up to remove.
Shake dust container contents into a
suitable container. Brush dust and dirt
from motor filter. If further cleaning is
desired, hand launder the washable
motor filter in warm water using a mild
detergent. Air dry thoroughly before
returning it to the dust container.
Replace motor filter into top of dust
container so rim of filter is seated
completelyinsidethecontainer. Place the
dustcontainer tab into theslotin the unit.
Pivot the sections together until the dust
container latch locks the container in
place.
Tab
Latch
Motor
Filter
Slot
Dust Container and Motor Filter
Emptythe dust containerand cleanthemotor filter regularlytokeep the vacuumcleaner
operatingefficiently. Makesurethe filter issecurelyattached in place beforevacuuming.
Failure to replace the filter will allow dust to enter the motor section which will damage
thevacuumcleaner. Somefine particles can restrictairflow very quickly andwill decrease
performance even before the dust container appears full. For that reason, when
vacuumingcarpetfreshenersorcleaners,powder, plaster dust, or similarfinesubstances,
the dust container and filter may need cleaning more often.
NOTE: Turn off the switch and unplug the electrical cord before emptying the
dust container and cleaning the motor filter.
71520 9/21/05, 10:09 AM6

7
Additional belts are available from the Electrolux Customer Care line, 08706 055055.

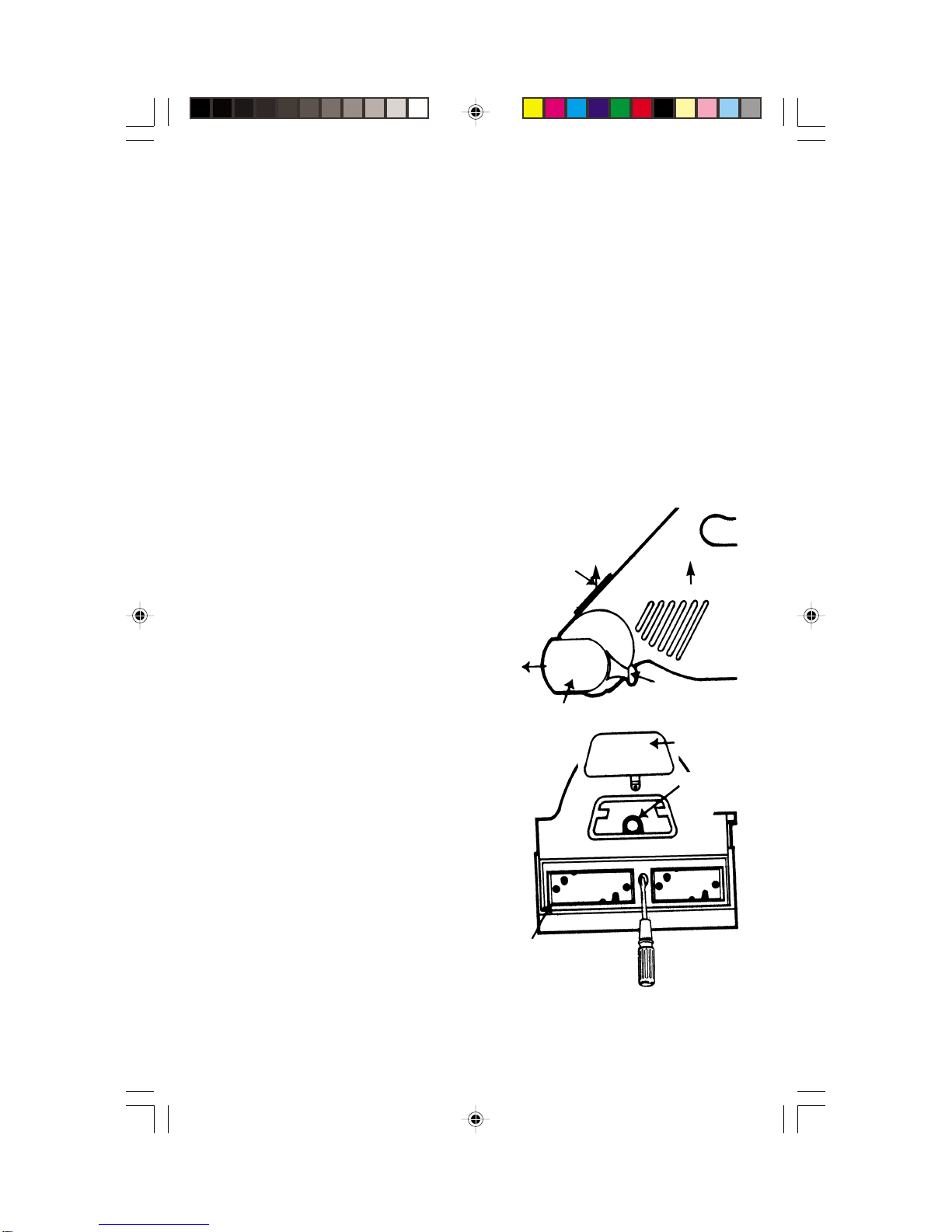

Pullbackonthe release lever and gently
pry the nozzle cover from both sides of
the housing.
Place vacuum cleaner so nozzle
openingisinview. Loosen the screwand
pry off the belt view cover to remove
belt from motor pulley. Rotate the
brush roll guard down and off the
housing. Lift out brush roll.
Place belt around brush roll. Hold the
brush roll so the shortest section is on
the right side and the flat sides of the
end caps are aligned with slots in the
nozzle. Push brush roll into cleaner.
Place lower side of belt around left
side of motor pulley and rotate into
position.
Place hook on lower side of brush roll
guard into the knob on lower side of
nozzle.Rotateguardupwardtoposition.
Holdbeltview cover to top oftheopening
and slide cover down into place. Snap
corners into position and secure with
screw.
Replace brush roll nozzle cover so the
release tab is on the right side of the
cleaner.
Brush Roll
The rotating brush roll sweeps and combs the carpet nap. Keep the brush roll free from
hair and threads so it will continue to be effective.
NOTE: Turn off the switch and unplug the electrical cord before cleaning the
brush roll.
Brush Roll Belt
The brush roll belt drives the brush to agitate, sweep, and comb the carpet nap. Even
though the belt may not need to be changed often, it should be checked regularly to be
sure it is in good condition. Replace the belt if it is stretching, cracking, or slipping. Cut
away any hair or thread wound around the brush roll or the belt pulley because the
buildup could cause the belt to rotate unevenly.
NOTE: Turn off the switch and unplug the electrical cord before replacing belt.
Belt pulleys can become hot during normal use. To prevent injury, avoid
touching the belt pulley when servicing the drive belt.
Brush Roll
Guard
Motor
Pulley
and
Belt
Lever
Nozzle
Cover
Belt
View
Cover
Belt
View
Cover
71520 9/21/05, 10:09 AM7

LUTON, BEDFORDSHIRE, LU4 9RJ
Featuresofthe Electrolux vacuum cleanerand accessories suppliedwith itare protected
in Great Britain and abroad by Patents or Registered Designs.
This appliance conforms with the requirements of the amended E.E.C. directive No. 89/
336/EEC relating to electromagnetic compatibility (EMC) CE.
Electrolux, may introduce modifications to their product from time to time, and
consequently the details given in this booklet are subject to alteration without notice.
Guarantee
This guarantee is in addition to your statutory and other legal rights.
This product is for household use only.
Electrolux products are carefully designed, manufactured, tested and inspected
and, in consequence, we undertake to replace or repair any part found to be
defective in material or workmanship, within one year of delivery to the original
purchaser, free of charge. You may be required to take the product to your nearest
service provider if the product requires attention during the first year.
There are certain conditions which may invalidate this guarantee:
a. It is dependent upon the appliance being correctly installed and used in
accordancewiththeCompany’sinstructionsundernormal domesticconditions
within the United Kingdom or the Republic of Ireland.
b. ServiceatalltimesmustbecarriedoutbyanElectroluxServiceRepresentative
or authorised agent.
c. Theguaranteemay be invalidated by unauthorised repair or modificationofthe
appliance.
d. YoumaybechargedbyElectroluxifyoucallforanengineertoresolveaproblem
that we believe is covered in the instruction booklet.
The Company does not accept liability for defects arising from neglect, misuse or
accident.Thisguaranteeexcludessuchnormalwearingpartsasclothsandbrushes
as the life of these depends upon the amount and nature of use.
Proof of the date of purchase will be required before service under guarantee is
provided. For further assistance call our customer care line on 08706 055055.
Important:
Forfuturereferencewesuggestyourecordthefollowingdetailshere,andkeepthe
receipt with the handbook as proof of purchase.
Purchased from___________________________________________________
Date purchased_________________ Model no _________________________
(s57226B)
Part No. 71520 (10/01) ©2001 Electrolux
Printed in China
71520 9/21/05, 10:09 AM8
