Electrolux CHDI 8610 Specification sheet

CHDI 8610
Cooker Hood
Operating and Installation Instructions

2
Contents
Safety warnings 3
FortheUser 3
FortheInstaller 3
Description of the Appliance 5
Extractor version 5
Filter version 6
Hood Operation 7
Control device for grease and charcoal filters 8
Grease filter LED 8
Charcoal filter LED 8
Resetting the saturation indicator 8
Maintenance and care 9
Cleaning the hood 9
Metalgreasefilter 9
Removingthemetalgreasefilter 9
Charcoalfilter 10
Changingthe light bulb 11
What to do if 12
Service and Spare Parts 13
Guarantee Conditions 14
Technical Specifications 16
Mountingaccessories included 16
Electrical connection 16
Safetywarnings for the electrician 16
Installation 17
Printed on recycled paper
AEG - putting words into action

3
Safety warnings
For the User
• Thecookerhoodisdesignedtoextract unpleasant odours from the
kitchen, it will not extract steam.
• Alwayscover lighted elements, to prevent excess heat from damag-
ing the appliance. In the case of oil, gas and coal fired cookers it is
essential to avoid open flames.
• Also, when frying, keep the deep frying pan on the cooker top/
cooker under careful control.
• The hot oil in the frying pan might ignite due to overheating.
• The risk of self-ignition increases when the oil being used is dirty.
• It is extremely important to note that overheating can cause a fire.
•Never carry out any flambé cooking under the hood.
•Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch
off the automatic circuit breaker).
•It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
For the Installer
• When used as an extractor unit, the hood must be fitted with a
150mm diameter hose.
Should there already be a pipe of diameter 125 mm that ducts to
the outside through the walls or roof, it is possible to use the 150/
125 mm reduction flange provided. In this case the hood will be
slightlynoisier.
•When installing the hood, make sure you respect the following
minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers 600 mm
gas cookers 650 mm
coal and oil cookers 700 mm min.
• The national Standard on fuel-burning systems specifies a maxi-
mum depression of 0.04 mbar in such rooms.
• The air outlet must not be connected to chimney flues or combus-
tion gas ducts. The air outlet must under no circumstances be
connected to ventilation ducts for rooms in which fuel-burning
appliances are installed.

4
• It is advisable to apply for authorization from the relevant controlling
authority when connecting the outlet to an unused chimney flue or
combustion gas duct.
The air outlet installation must comply with the regulations laid down
by the relevant authorities.
• When the unit is used in its extractor version, a sufficiently large
ventilation hole must be provided, with dimensions that are approxi-
mately the same as the outlet hole.
• National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected
to a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
• Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approxi-
mately 500-600 cm2 large to avoid the possibility of a depression
being created during operation of the hood.
• If you have any doubts, contact the relevant controlling authority or
building inspector’s office.
• Since the rule for rooms with fuel burning appliances is “outlet hole
of the same size as the ventilation hole”, a hole of 500-600 cm2,
which is to say a larger hole, could reduce the performance of the
extractor hood.
• If the hood is used in its filtering function, it will operate simply and
safely in the above conditions without the need for any of the
aforementioned measures.
• When the hood is used in its extractor function, the following rules
must be followed to obtain optimal operation:
— short and straight outlet hose
— keep bends in outlet hose to a minimum
— never install the hoses with an acute angle, they must
always follow a gentle curve only
— keep the hose as large as possible (preferably the same diam-
eter as the outlet hole).
• Failure to observe these basic instructions will drastically reduce the
performance and increase the noise levels of the extractor hood.

5
Description of the Appliance
Extractor version
• The hood is supplied as an extractor unit and can also be used with
a filtering function by fitting one charcoal filter (special accessory).
• Youwillneedanoriginal AEG charcoal filter for this function (Avail-
ablefrom your local AEG Service Force Centre).
• The air is discharged to the outside through a pipe, which must be
fitted to connection flange A. Fig. 1.
• In order to obtain the best performance the hose should have a
diameter equal to the outlet hole.
For the extractor version this pipe must have a diameter of 150 mm.
Should there already be a pipe of diameter 125 mm that ducts to
the outside through the walls or roof, it is possible to use the 150/
125 mm reduction flange provided. In this case the hood will be
slightlynoisier.
Fig. 1
A

6
Filter version
• The air is filtered through a charcoal filter and returned to the
kitchen through the top grill of the outlet pipe.
• When the hood is used in the filter version it must be fitted with an
originalAEG charcoal filter.

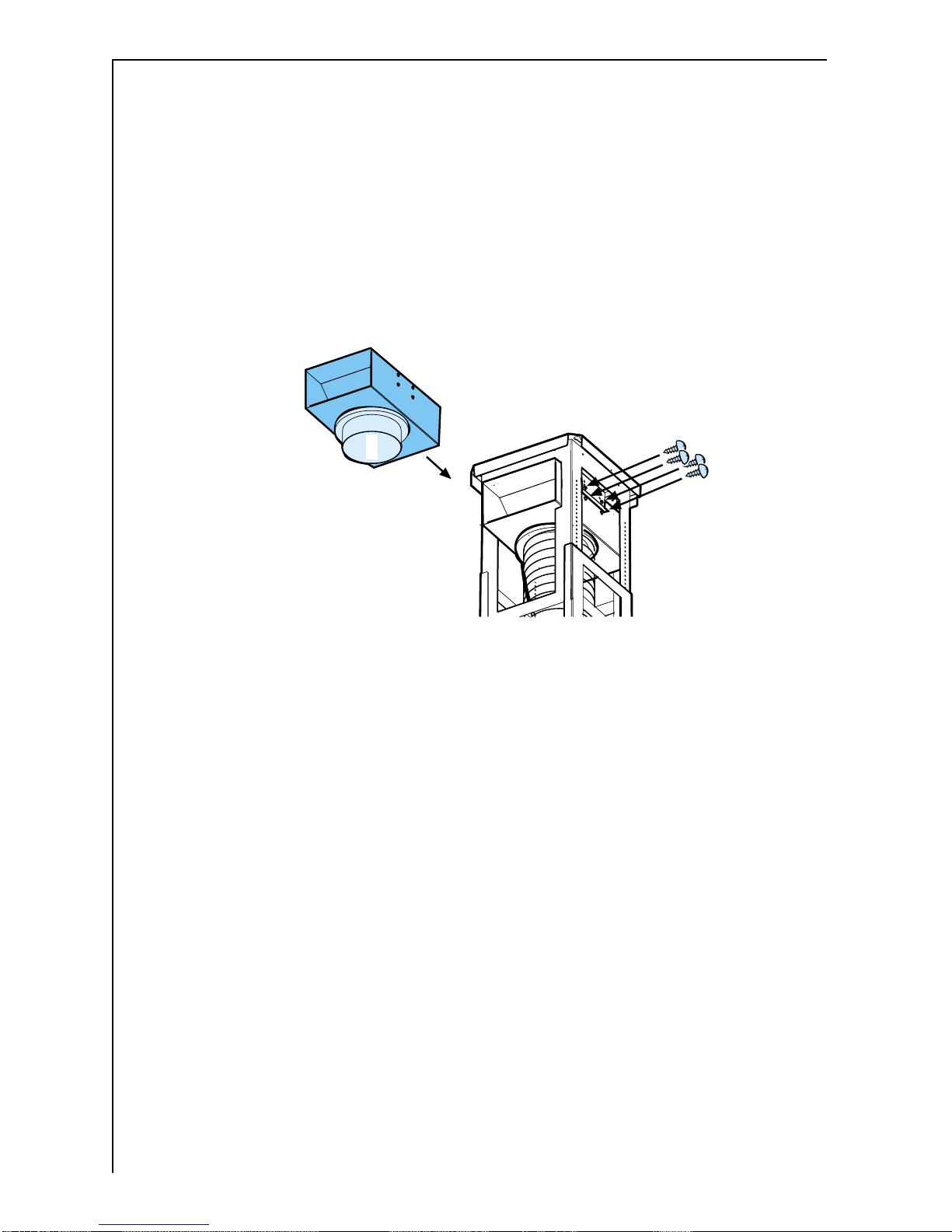

• Fix the deflector using 4 screws Ø 3.5x6.5 mm. Fig. 2.
F
Fig. 2

7
Hood Operation
• Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking, you will
then get an under pressure in the kitchen. The hood should be left
on after cooking for about 15 minutes or until all the odours have
disappeared.

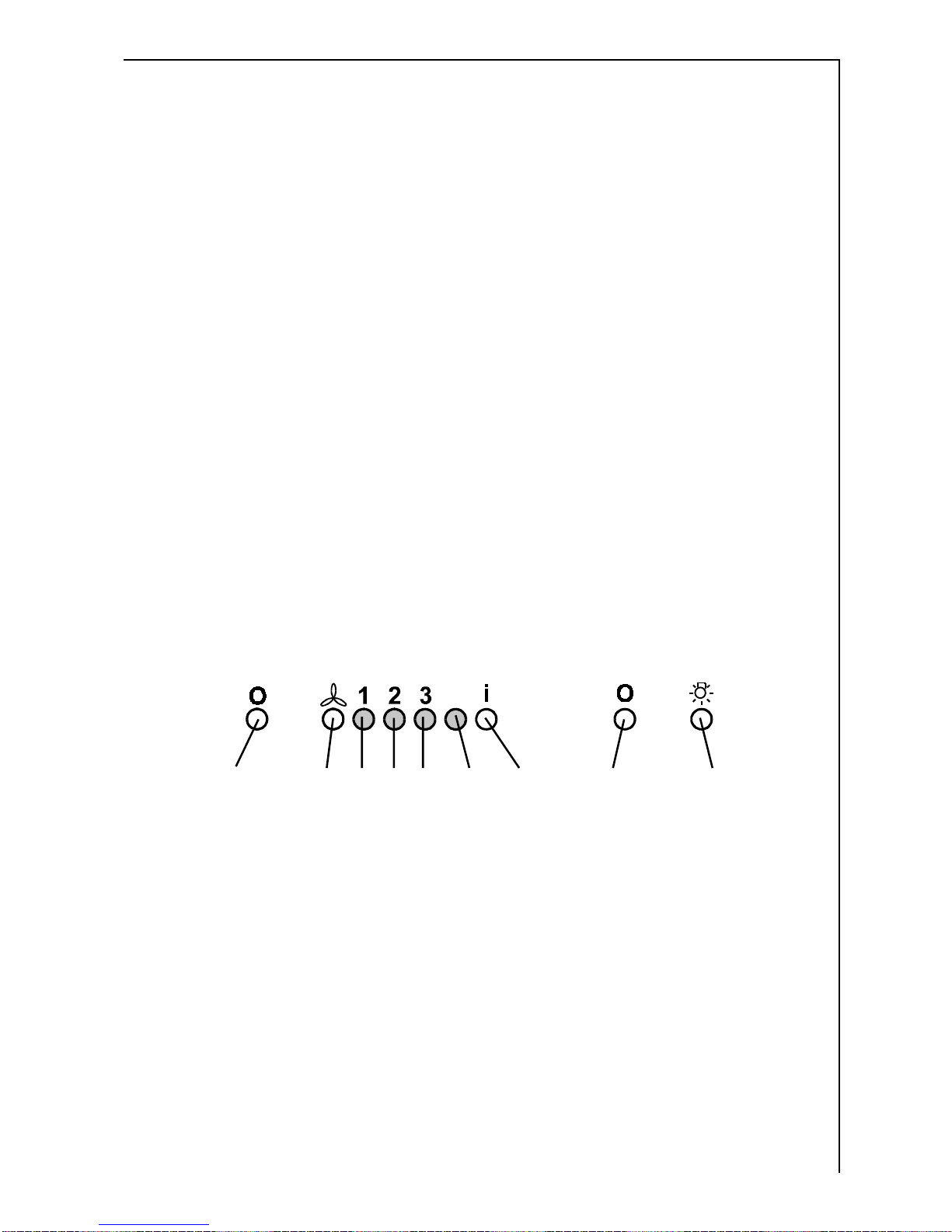

The control switches are located on the unit’s front panel:
A- Mainswitch,hoodoff.
B- Start and choice of motor speed 1-2-3-1-2.........
C- Indicates speed 1 (LED).
D- Indicates speed 2 and saturation of the grease filter (LED)
E- Indicates speed 3 and saturation of the charcoal filter (LED)
(flashing LED)
F- Indicates Intensive speed (LED).
G- Intensive speed on/off. The Intensive speed runs for 5 minutes:
If the hood is on when the Intensive speed is activated, the hood
reverts to previous speed after 5 minutes.
If the hood is off when the Intensive speed is activated, the hood
will be turned off after 5 minutes.
To interrupt the Intensive speed, press button A or B.
H- Light OFF
I- Light ON
Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds, then turn the hood back on again.
Correct ventilation
If the cooker hood is to work correctly there must be an under
pressure in the kitchen. It is important to keep the kitchen windows
closed and have a window in an adjacent room open.
Important
This is not applicable for recirculation. Great care must be taken if
the hood is used at the same time as a burner or fireplace (e.g. gas,
diesel, coal or wood heaters, water heaters, etc.), as the hood will
expel air which is required by these other appliances. In this situa-
tion, ensure that a window is open. The negative pressure in the
room must not exceed 0,04 mbar to prevent fumes being drawn
back into the room by the cooker hood.
ABCDEFGH I

8
Control device for grease and charcoal filters
This hood is fitted with a device that signals when it is necessary to
clean the grease filter or the charcoal filter (in the case of recirculation
version with charcoal filter).
On delivery, the hood is not supplied with an charcoal filter, so the
saturation indicator will be disabled.
If the hood is to be used with a charcoal filter, the saturation
indicator light must be enabled as follows:
Press buttons B and G simultaneously and hold them for 3 seconds.
At first only the grease filter LED D will light up, but when the charcoal
filter LED E lights up the saturation indicator will be enabled.
To disable it: Press buttons B and G again simultaneously and hold
them for 3 seconds, until the charcoal filter LED goes out.
Grease filter LED (D)
LED D will start to flash when it is time to clean the grease filter.
Cleaning will be necessary after 40 working hours. Always comply with
themaintenanceinstructionsforthegreasefilter (see page 9).
Charcoal filter LED (E)
The charcoal filter LED E will start to flash when the charcoal filter
needs to be replaced.
This operation is necessary after approximately 160 working hours.
(Pleasesee page 10 for instructions onCleaning/replacing).
Resetting the saturation indicator
After cleaning or replacing the filters, press button A for 3 seconds
until the grease filter LED D or the charcoal filter LED E stops flashing.

9
Maintenance and care
•The hood must always be disconnected from the electricity
supply before beginning any maintenance work.
Cleaning the hood
• Clean the outside of the hood using a damp cloth and a mild deter-
gent.
• Never use corrosive, abrasive or flammable cleaning products.
• Never insert pointed objects in the motor’s protective grid.
• Wash the outside surfaces using a delicate detergent solution.
Never use caustic detergents or abrasive brushes or powders.
• Only ever clean the switch panel and filter grille using a damp cloth
and delicate detergents.
• It is extremely important to clean the unit and change the filters at
the recommended intervals. Failure to do so will cause grease
deposits to build up that could constitute a fire hazard.
Metal grease filter
• Thepurpose of the greasefilters is to
absorbgrease particles which form
duringcooking and it must always be
used, either in the external extraction or
internalrecycling function.
Attention: the metal grease filters must
be removed and washed, either by
hand or in the dishwasher, every four
weeks.

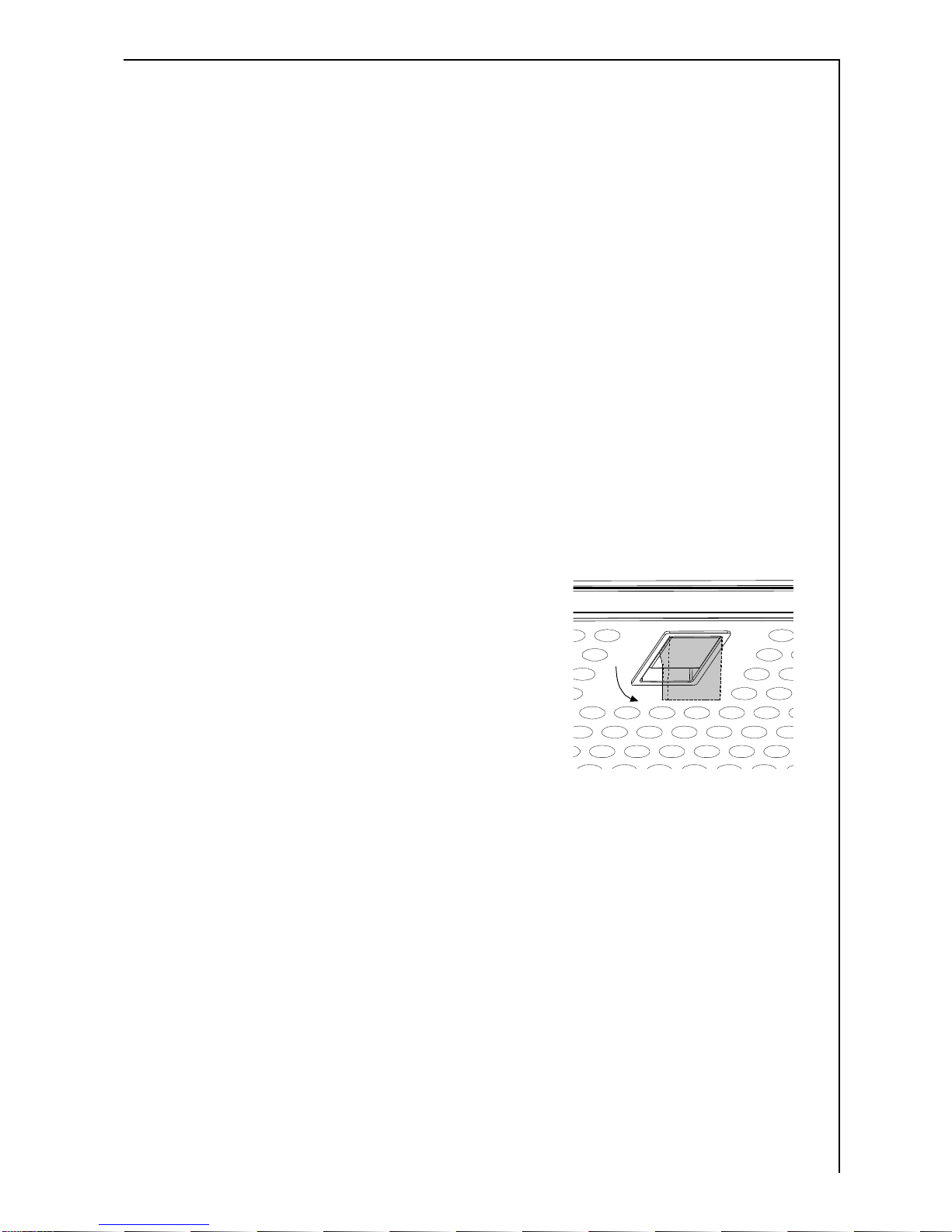

Removing the metal grease filter
• First, push the metal grease filter stop backwards, then extract the
filter, pulling downwards. Fig. 3.
Hand washing
•Soak grease filters for about one hour in hot water with a grease-
loosening cleaner, then rinse off thoroughly with hot water. Repeat
the process if necessary. Refit the grease filters when they are dry.
Dishwasher
•Place grease filters in the dishwasher. Select the most powerful
washingprogramme and highest temperature,atleast65°C. Repeat
the process. Refit the grease filters when they are dry.
When washing the metal grease filter in the dishwasher a slight
discolouration of the filter can occur, this does not have any impact
on its performance.
Fig. 3

10
Charcoal filter
• The charcoal filter should only be used if you want to use the hood in
itsfilteringfunction.
• To do this you will need an original AEG charcoal filter.
•Cleaning/replacing the charcoal filter
Thecharcoalfilterscannotbe cleaned, we recommend that they
shouldbe replaced approximately every three monthsormoreoften if
the hood is used for more than three hours per day.
•Fitting
Remove the frame iwhich supports the filter hby unscrewing it
from the hood g(Fig. 4). Insert the charcoal filter inside the frame
and put all parts back in their place.
•To remove proceedinthereverseorder.
• Always specify the hood model code number and serial number
when ordering replacement filters. This information is shown on the
registration plate located on the inside of the unit.
• Thecharcoal filter can be ordered from your local AEG Service Force
Centre.
Fig. 4
i
g
h

11
Warning
• Failure to observe the instructions on cleaning the unit and chang-
ing the filters could cause a fire hazard. You are therefore strongly
recommended to follow these instructions.
• The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to observe the above safety recommendations.
Changing the light bulb
• Disconnect the cooker hood from the mains supply.
• Remove the lamp cover, use a screw driver as a lever. Fig. 5.
• Replace the old bulb with a new one of the same type.
• Refitthe lampcover.
• If the light does not come on, make sure the bulb has been inserted
incorrectlybeforecontacting your local AEG Service Force Centre.
Fig. 5

12
What to do if
Ifyourappliancefailstoworkproperlypleasecarryoutthefollowingchecks.
Symptom Solution
The cooker hood will not start... Check that:
The hood is connected to the
electricitysupply.
Check that the fan speed control is
set to 1, 2 or 3.
Thecooker hoodis notworking Check that:
effectively.. The fan speed is set high enough
. for the task.
The grease filters are clean.
The kitchen is adequately vented to
allow the entry of fresh air.
If set up for recirculation, check that
the charcoal filter is still effective.
If set up for extraction, check that
the ducting and outlets are not
blocked.
The cooker hood has switched off The safety cut-out device has been
duringoperation... tripped.
Turnoffthehobandthenwaitforthe
device to reset.
Ifthehoodhasbeeninstalled below
the heights indicated in the
installation instructions the motor
will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local Service
Force Centre, quoting the model and serial number.
Please note that it will be necessary to provide proof of purchase for any
in-guarantee service calls.
In-guarantee customers should ensure that the above checks have been
made as the engineer will make a charge if the fault is not a mechanical or
electrical breakdown.

13
Service and spare parts
In the event of your appliance requiring service, or if you wish to
purchase spare parts, contact your local AEG Service Force Centre by
telephoning 08705 929 929
Your call will be automatically routed to the Service Centre covering
your post code area.
For the address of your local Service Force Centre and further infor-
mation about Service Force, please visit the website at
www.serviceforce.co.uk
Please ensure that you have read the section „What to do if....“ as the
engineer will make a charge if the fault is not a mechanical or electri-
cal breakdown even the appliance is under warranty.
Please note that proof of purchase is required for in-guarantee
service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning.
When you contact us we need to know:
• Your name
• Address and post code
• Telephone number
• Clear and concise details of the fault
• Name and model of the appliance*
• E number*
* This information can be found on the rating plate, which can be seen
when the grease filters are removed.
Customer Care
Forgeneral enquiries concerning yourAEGappliances, or for further
information on AEG products, please contact our Customer Care
Departmentattheaddress below or visit our website at
www.aeg.co.uk CustomerCareDepartment
AEG Domestic Appliances
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel.: [phone]*
* calls to this number may be recorded for training purposes.

14
Guarantee conditions
AEG offer the following guarantee to the first purchaser of this appliance.
1. The guarantee is valid for 12 months commencing when the appliance
is handed over to the first retail purchaser, which must be verified by
purchase invoice or similar documentation. The guarantee does not
cover commercial use.
2. The guarantee covers all parts or components which fail due to faulty
workmanship or faulty materials. The guarantee does not cover
appliances where defects or poor performance are due to misuse,
accidental damage, neglect, faulty installation, unauthorised
modification or attempted repair, commercial use or failure to observe
requirements and recommendations set out in the instruction book.
This guarantee does not cover such parts as light bulbs, removable
glassware or plastic.
3. Should guarantee repairs be necessary the purchaser must inform the
nearest customer service office (manufacturer`s service or authorised
agent). AEG reserves the right to stipulate the place of the repair (i.e.
the customer`s home, place of installation or AEG workshop).
4. The guarantee or free replacement includes both labour and materials.
5. Repairs carried out under guarantee do not extend the guarantee
period for the appliance. Parts removed during guarantee repairs
become the property of AEG.
6. The purchaser`s statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your guarantee
moves with you to your new home subject to the following qualifications:
- The guarantee starts from the date you first purchased your product.
- The guarantee is for the same period and to the same extent for labour
and parts as exist in the new country of use for this brand or range of
products.
- This guarantee relates to you an cannot be transferred to another user.
- Your new home is within the European Community (EC) or European
Free Trade Area.
- The product is installed and used in accordance with our instructions
and is only used domestically, i.e. a normal household.
- The product is installed taking into account regulations in your new
country.

15
BeforeyoumovepleasecontactyournearestCustomerCareCentre,listed
below,togivethemdetailsofyournewhome.Theywillthenensurethatthe
local Service Organisation is aware of your move and able to look after you
and your appliances.
France Senlis [phone]
Germany Nürnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

16
Technical Specifications
Dimensions:
Height x Width x Depth (in cm) 80-106,5 x 100 x 65
Maximum absorbed power: 250 W
Motor absorption: 1 x 170 W
Lighting: 4 x 20 W
Length of the cable: 150 cm
Mounting accessories included
1ReductionflangeØ 150-125
1 Deflector
6 Wood-screws 6 x 70 mm
6 Wall plugs Ø 10 mm
10 Nuts
8 Metal-screw 3 x 9 mm
14 Metal-screw 4 x 8 mm
10 Metal-screw 4 x 7 mm
Electrical connection
Safety warnings for the electrician
The electric outlet should be placed on the wall inside the chimney. The
hood has a power cable, 150 cm, with earth connection and the rated
voltageis
220 - 240 V.
Connect the hood to the mains supply via a double pole switch
which has 3 mm minimum separation between the contacts.
The switch must be accessible at all times.
Thefollowing is valid in the United Kingdom only:
- the wire which is coloured green and yellow must be connected to
the terminal which is marked with the letter E or by the earth symbol
( ),or coloured green or green and yellow;
- the wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black, -
- the wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.

17

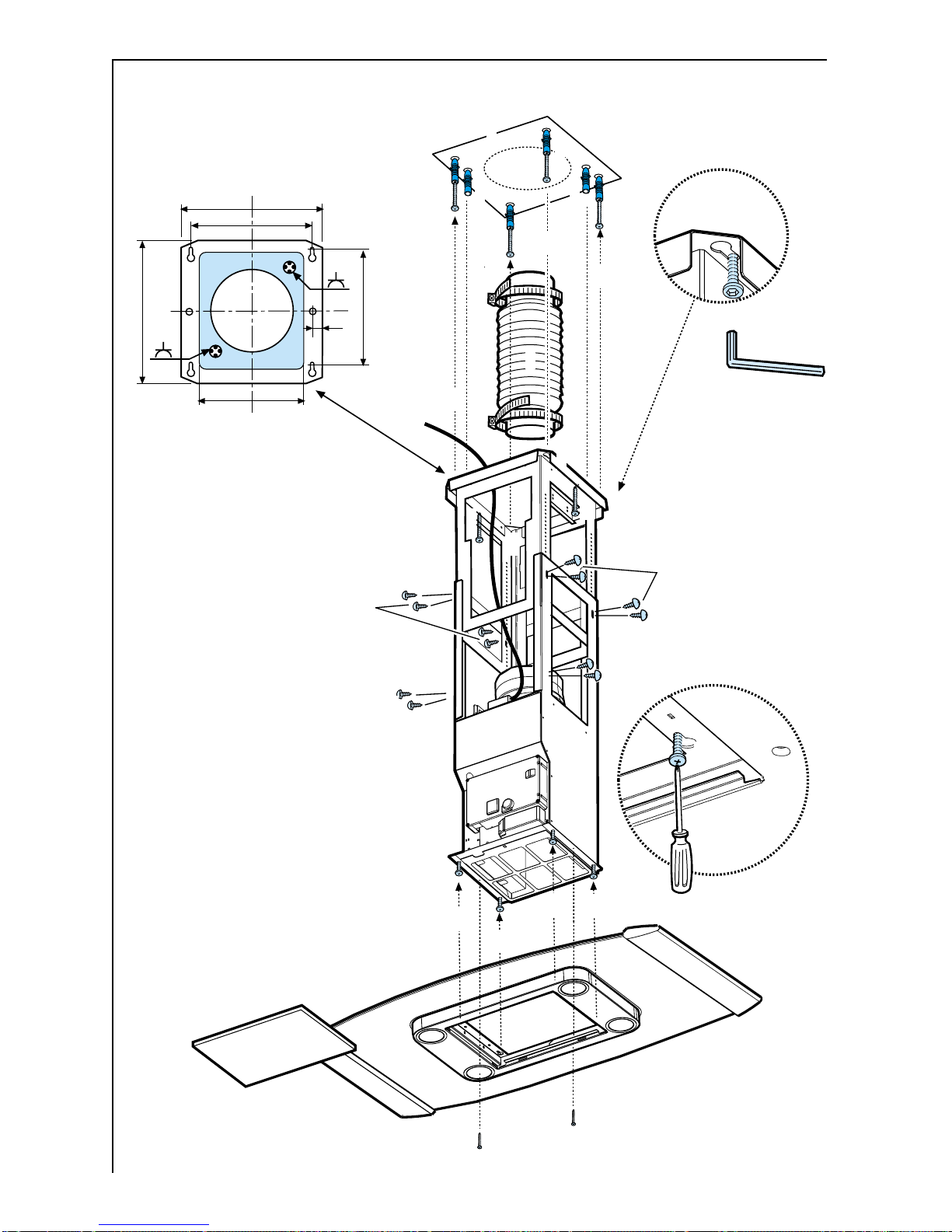

Installation - Fig. 6-7-8
Expansion plugs are provided to secure the hood to most types of
ceilings. However, a qualified technician must verify suitability of the
materials in accordance with the type of ceiling. The ceiling must be
strong enough to take the weight of the hood.
During electrical connection ensure the power supply is disconnected
at the domestic mains switch.
• Adjust extension of the hood support structure, as the final height of
the hood depends on this, and remember that with installation
completed the hood must be at least 60 cm above the hob top for
electric cookers and 75 cm for gas or mixed fuel cookers.
• Fix the two sections of the structure using 8 screws (2).
• Place the ceiling hole diagram directly above the hob top (3 - the
centre of the diagram must match the centre of the hob top and the
edges must be parallel to the sides of the hob top – the side of the
diagramwith the wording FRONTcorrespondstothe control panel
side). Prepare the electrical connection.
• Drill as shown (6 holes for 6 wall plugs – 4 plugs for fixture), screw
the outer screws leaving a space of about 1 cm. between the screw
head and the ceiling (4).
• Fit an exhaust pipe inside the support (5) and connect it to the motor
compartment connection ring (exhaust pipe and fixing brackets are
not supplied).
• Hook the frame onto the 4 screws (6 - see also step 4).
CAUTION!The side ofthesupportwith connection boxcorresponds
to the side of the control panel with hood assembled.
• Tighten the 4 screws (7).
• Insert and tighten another 2 screws in the remaining free holes (8)
for secure fixing.
• Carry out the electrical connection (9) to the mains power supply,
only turn on the power supply upon completion of assembly.
• Hook the hood onto the support (10) , ensuring it fits properly – to
hook the hood onto the support partially tighten 4 screws (see also
step 12).
• Secure the hood to the support using two screws (11); this will also
help centre the two sections.
• Tighten the 4 screws securing the support to the hood (12).

18
2a
3
4
4
4
4
44
6
6
7
7
7
7
8
8
2a
5
7
9
10
10
10 10
11
11
14,5
273
273
244
214
190
6
12
2b
2b
Fig. 6

19
• Forextractorversions (13A), connect the other endofthe exhaust
pipe to the flue.
For filter versions (13F), fit deflector F to the support and secure it to
the bracket supplied using 4 screws, then connect the exhaust pipe
to the connection ring located on the deflector.
• Fit the nuts with fixing hooks (14) supplied inside the top and bottom
sections of the flues at the rectangular slots. A total of 10 nuts must
be fitted.
• Join the two top sections of the flue to cover the support (15) so that
one of the slots on the sections is situated on the same side of the
control panel and the other on the opposite side. Screw the two
sections together with 4 screws (2 each side- see the plan diagram
for joining the two sections).
• Fix the top flue assembly to the support, near the ceiling, with two
screws (16 - one each side).

20
15
15
15
15
15
16
16
15
15
13F
F
13A
15
14
Fig. 7
