INSTRUCTION BOOK
FOR ELECTROLUX PREMIER
COOKER HOOD
EPHOOD
cod. 4329455 03 - 010910
UK

2
Thank you for buying an Electrolux product.
To enable you to use your appliance effectively and safely, please read this instruction book carefully before using
the appliance and retain for future reference. If you require guidance in the use of the appliance or require further
information on Electrolux Products, please contact our Customer Care epartment.
Customer Care epartment
Electrolux
55 - 77 High Street
Slough
Berkshire Tel: [phone]
SL1 1 Z
To register ownership, please ensure you complete and return the guarantee card supplied with the
appliance.
For the User
Important Safety Information
Your Appliance
Operating Instructions
The Controls
To Operate
Recirculation
Extraction
aintenance and Cleaning
External Cleaning
Charcoal Filter
To Replace the Charcoal Filter
Synthetic Paper Grease Filter
To Replace the Paper Grease Filter
Changing the Light Bulb
Something Not Working
Service and Spare Parts
Guarantee Conditions
For the Installer
Installation Instructions
Technical Information
Electrical Connections
Electrical Requirements
Electrical Connection
Installing the Cooker Hood
Installation Requirements
ucting
Positioning
Clearance Height
Clearance Height above other Manufacturers
Cooking Appliances
Charcoal Filter
Unpacking
Fitting the Wall Brackets
Venting
To Fit the ucting
To Remove the Charcoal Filter
Recirculation
Wall Cabinet Fitting
Fitting the Cooker Hood to the Wall
Levelling
Service Force Centres
To register ownership, please ensure you
complete and return the guarantee card supplied
with the appliance.
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instruction book
Safety instructions Step by step instructions

3
I PORTANT SAFETY INFOR ATION
These warnings are provided in the interests of your safety. Ensure that you understand them all before
installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of
the meanings of these warnings contact the Customer Care Department.
Installation
• Any installation work must be undertaken by a
qualified electrician or a competent person.
• This hood must be installed in accordance with the
installation instructions and all measurements must
be adhered to.
• If the cooker hood is installed for use above a gas
appliance then the provision for ventilation must be
in accordance with the Gas Safety Codes of
Practice BS.6172, BS.5440 and BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the Gas Safety
(Installation & Use) Regulations, the Building
Regulations issued by the epartment of the
Environment, the Building standards (Scotland)
(Consolidated) Regulations issued by the Scottish
evelopment epartment.
• The fan motor of this cooker hood incorporates a
cut-out device which will operate if the cooker hood
is installed below the minimum height
recommended under section ‘Clearance Height’, or
if the motor becomes overheated. If the cut-out
device is activated, switch off the fan motor and
allow the cooker hood to cool. The cut-out device
will reset itself when the fan motor has cooled
significantly.
• It is dangerous to alter the specifications or modify
this product in any way.
• When installed between adjoining wall cabinets the
wall cabinets must not overhang the hob.
• If the room where the hood is to be used contains a
fuel burning appliance such as a central heating
boiler then its flue must be of the room sealed or
balanced flue type.
• If other types of flue or appliances are fitted ensure
that there is an adequate supply of air to the room.
• The ducting system for this appliance must not be
connected to any existing ventilation system which
is being used for any other purpose.
• o not install above a cooker with a high level grill.
Child Safety
• This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the appliance.
During Use
• This product is for domestic use only.
• Never leave frying pans unattended during use as
over-heated fats and oils might catch fire.
• Never do flambé cooking under this cooker hood.
• o not leave naked flames under the hood.
aintenance and Service
• This appliance can be a hazard if the synthetic
paper and charcoal filters are not replaced as
recommended.
• Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
more serious malfunction. Refer to your local
Electrolux Service Force Centre. Always insist on
genuine spare parts.

4
YOUR APPLIANCE
OPERATING INSTRUCTIONS
This cooker hood is designed to extract
unpleasant odours from the kitchen,
it will not extract steam.
To obtain the best performance it is
advisable to switch on the hood a few
minutes before you start cooking and
leave it running for approximately 15
minutes after finishing.
The cooker hood controls are located on
the right hand side, in the front fascia
panel above the glass visor.
The Controls
Fan ON/OFF/Speed Control
Position 0 - Off
Position 1 - Low
Position 2 - Normal
Position 3 - Boost
Light ON/OFF control
0 - Off
1 - On
To Operate
Select the required fan speed and light if
required.

5
The appliance can be installed to recirculate
or extract contaminated air. The cooker hood
is more effective when used in the extraction
mode.
Recirculation
The cooker hood is supplied specified for use
in the recirculation mode with the charcoal
filter fitted.
In the recirculation mode contaminated air is
passed through the charcoal filter to be
purified and recirculated into the kitchen
through a recirculation grille.
Extraction
In the extraction mode the contaminated air
enters the cooker hood, passes through the
grease filter and out through the ducting to the
atmosphere.
When the ducting position is selected the
charcoal filter is not required.
Never do flambé cooking under this cooker
hood.
Take extra care when frying and never leave
frying pans unattended during use as over-
heated fats and oils might catch fire.
o not leave naked flames under the cooker
hood.
Ensure the visor is open when using the hob
even if the fan on the hood is not switched on.
Ensure heating areas on your hob are covered
with pots and pans when using the hob and
cooker hood simultaneously.

6
AINTENANCE AND CLEANING
Before carrying out any maintenance or
cleaning isolate the cooker hood from the
mains supply.
The cooker hood must be kept clean, a build
up of grease or fat can be a fire hazard.
External Cleaning
Wipe the cooker hood frequently with warm
soapy water using a mild detergent.
Always wear protective gloves when cleaning
the hood.
Never use scouring pads or abrasive cleaners.
Never use excessive amounts of water when
cleaning particularly around the control panel.
Charcoal Filter
The charcoal filter cannot be cleaned.
The filter should be replaced at least every
three months or more frequently if the hood
is used more than three hours per day.
To Remove/Replace the Charcoal
Filter

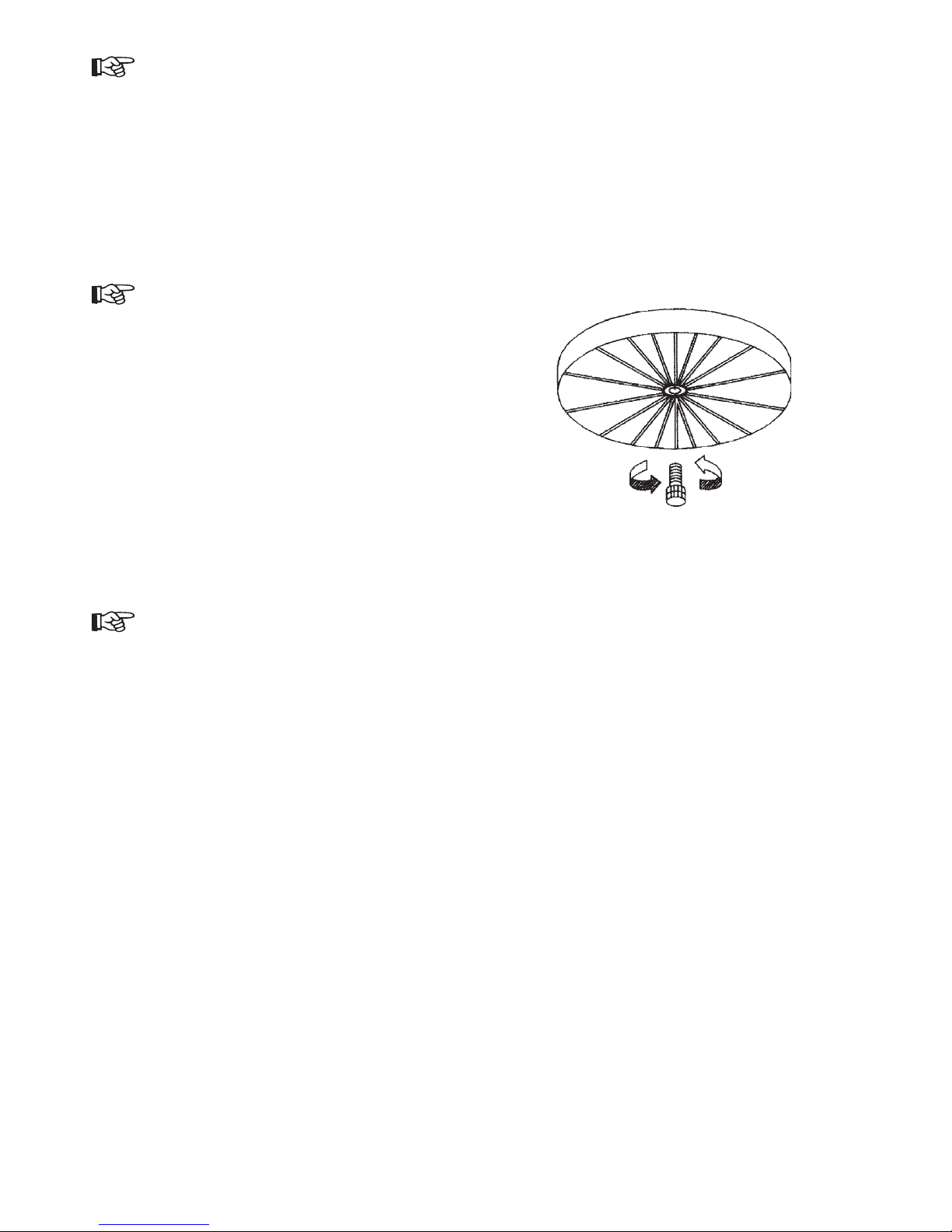

1. Open the visor and remove the metal inlet
grille.
2. Carefully remove the screw from the centre of
the charcoal filter, while holding the filter
securely.
3. Clean the metal inlet grille and motor support
before replacing the charcoal filter.

7
Synthetic Paper Grease Filter
The filter has saturation indicators, which are
small squares made from a series of dots.
When the white paper inside the squares
becomes saturated with grease the coloured
dots start to run and spread across the paper,
indicating that the filter has reached saturation
point and must be replaced.
The synthetic paper grease filter cannot be
cleaned.
It must not be washed.
To Replace the Synthetic Paper
Grease Filter
1. Open the glass visor.
2. Press inwardly on the two slide catches and
the grille will open from the front.
3. Slide the right edge of the grille forward until it
clears the guide and then unhook the left hinge
pin.

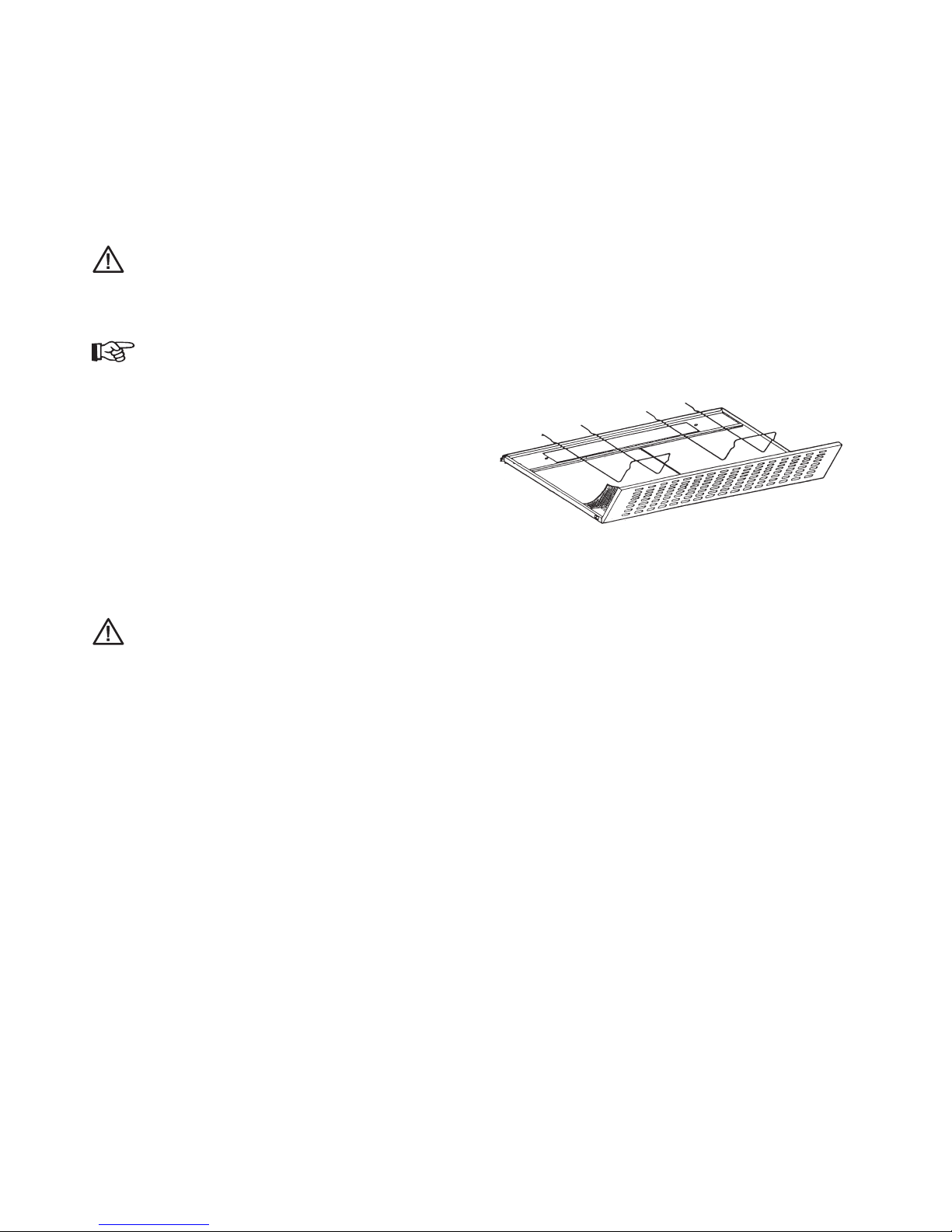

4. Carefully ease out the metal wire retaining
clips.
5. Clean the metal grille and clips before
replacing the filter.
Handle the wire clips with care and keep away
from children as they have sharp points.
This appliance can be a fire hazard if the
grease and charcoal filters are not cleaned and
replaced as recommended.
Changing the Light Bulb
If a lamp fails to function check that the bulb is
screwed into the holder.
If bulb failure has occurred then it should be
replaced with a 220-240V 40W clear
cylindrical shape bulb with a small E14
screw thread.
Charcoal filters, grease filters and light
bulbs can be obtained from your local
Service Force

8
SO ETHING NOT WORKING
SERVICE AND SPARE PARTS
If, having followed these instructions carefully, your cooker hood fails to work properly please carry out
the following checks.
Symptom
The cooker hood will not start
The cooker hood is not working effectively
The cooker hood has switched off during
operation
If after all these checks, the fault persists,
contact your local Service Force Centre,
quoting the model and serial number.
Please note that it will be necessary to
provide proof of purchase for any
in-guarantee service calls.
Solution
• Check the hood is connected to the electricity
supply.
• Make sure the switch is in the ‘ON’ position.
• The fan speed is set high enough for the task
• The grease filter is clean.
• The kitchen is adequately vented to allow the
entry of fresh air.
• If set up for recirculation, check that the
charcoal filter is still effective.
• If set up for extraction, check that the ducting
and outlets are not blocked.
• The safety cut-out device has been tripped.
• Tum off the hob and then wait for the device to
reset.
In-guarantee customers should ensure
that the above checks have been made as
the engineer will make a charge if the fault
is not a mechanical or electrical
breakdown.
If you require an engineer or spare parts
contact your local Service Force Centre by
telephoning:
08705 929929
Your telephone call will be routed to your local
Service Force Centre. The addresses are
listed in the back of the book.
For general assistance with your appliance or
for further information on Electrolux products
please contact our Customer Care epartment.
Customer Care epartment,
Electrolux
55 - 77 High Street
Slough
Berkshire
SL1 1 Z
Tel: [phone]*
* calls to this number may be recorded for training
purposes.

9
GUARANTEE CONDITIONS
We, Electrolux, undertake that if within twelve months of the date of the purchase this Electrolux built-in appliance
or any part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will,
at our option repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition
that:
• The appliance has been correctly installed and used only on the electrical supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
operating and maintenance instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
• All service work under this guarantee must be undertaken by Electrolux Service Force Centre.
• Any appliance or defective part replaced shall become the property of this company.
Home visits are made between 8.30am and 5.30pm onday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
EXCLUSIONS
This Guarantee does not cover:
• amage or calls resulting from transportation, improper use or neglect, the replacement of any lilght bulbs or
removable parts of glass or plastic.
• Costs incurred for calls to put right appliances improperly installed or calls to appliances outside the United
Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are the subject of rental
agreements.
• Products of Electrolux manufacture which are not marked by Electrolux.
This guarantee is in addition to your statutory and legal rights.
ELECTROLUX EUROPEAN GUARANTEE
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country
of use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
Before you move please contact your nearest Customer Care Centre, listed below, to give them details of
your new home. They will then ensure that the local Service Organisation is aware of your move and able
to look after you and your appliances.
France Senlis [phone]
Germany Nurnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

10
INSTALLATION INSTRUCTIONS
It is dangerous to alter the specifications or attempt to modify this product in any way.
Technical Information

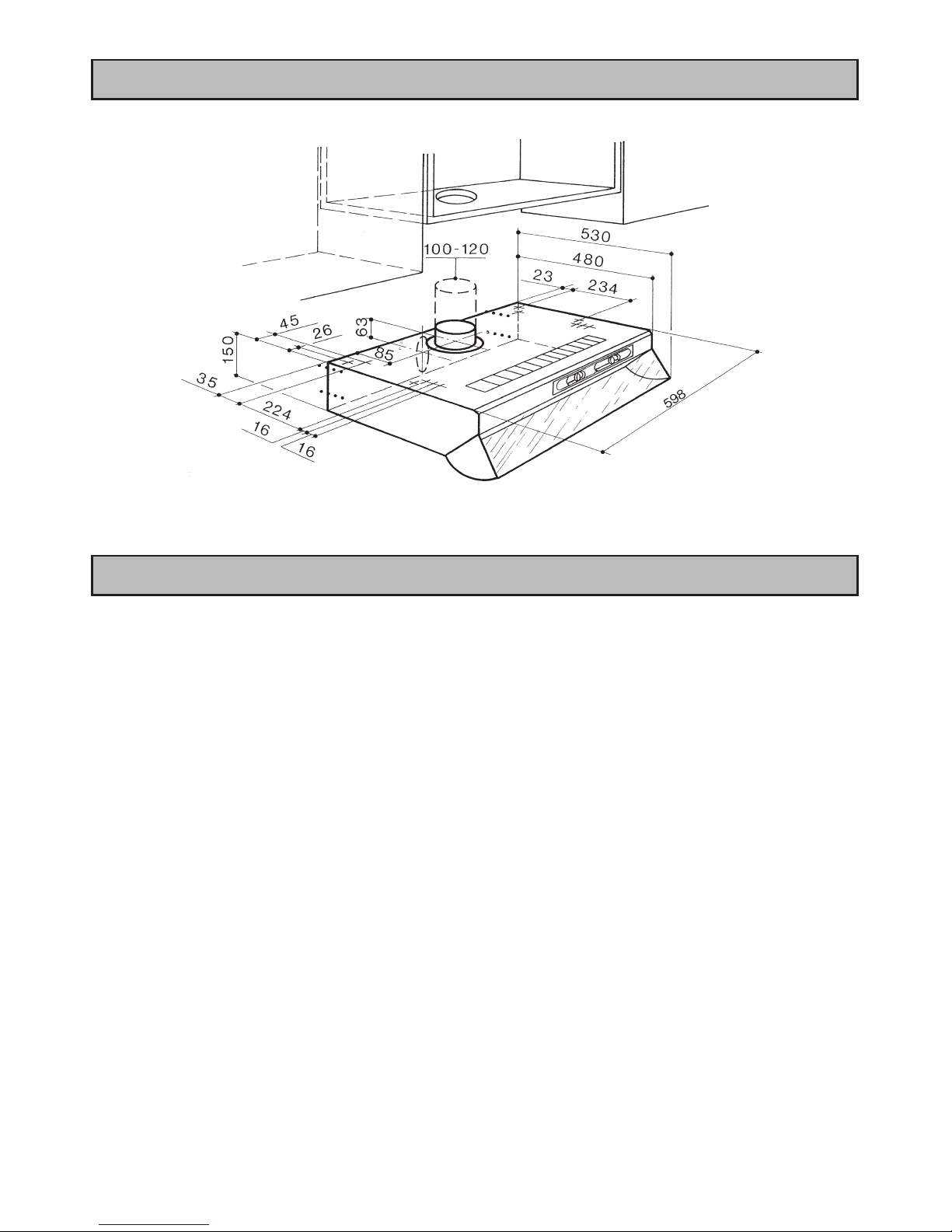

DI ENSIONS HEIGHT: 15cm
WI TH: 60cm
EPTH: 48cm
EPTH WITH VISOR OPEN: 53cm
WEIGHT GROSS: 8,5kg
NET: 7,4kg
ELECTRICAL SUPPLY: Voltage (50Hz) 220-240 V
POWER CONSU PTION: 190W
FAN OTOR: 110W
LA P: 2 x 40 W 80W
SUITABLE FOR INSTALLATION
ABOVE: ELECTRIC HOB: 7KW (max)
GAS HOB: 10KW (max)
SLOT-IN GAS COOKER 13.5KW (max)
SLOT-IN ELECTRIC COOKER 12.4KW (max)
Note: CE arking certifies that this appliance complies with the requirements
laid down in EEC directive 89:336. (Electromagnetic compatibility) and
subsequent modifications and Low Voltage directive 72/23/E.
ELECTRICAL CONNECTIONS
WARNING: DOUBLE INSULATED-DO NOT
EARTH
Electrical Requirements
Any permanent electrical installation must
comply with the latest I.E.E. Regulations and
local Electricity Board regulations. For your own
safety this should be undertaken by a qualified
electrician e.g. your local Electricity Board, or a
contractor who is on the roll of the National
Inspection Council for Electrical Installation
Contracting (NICEIC).
Electrical Connection
Before connecting to the mains supply ensure
that the mains voltage corresponds to the
voltage on the rating plate inside the cooker hood.
This appliance is fitted with a 2 core mains
cable and must be permanently connected to
the electricity supply via a double-pole switch
having 3mm minimum contact gap on each
pole. A Switched Fuse Connection Unit to
BS.1363 Part 4, fitted with a 3 A fuse is a
recommended mains supply connection
accessory to ensure compliance with the Safety
Requirements applicable to fixed wiring
instructions.
This appliance conforms to BS.800: 1988 and
EEC irective No. 78 308 regarding
suppression of radio and television
interference.

11
INSTALLING THE COOKER HOOD
Please ensure that when the appliance is
installed it is easily accessible to an
engineer in the event of a breakdown.
All installations must comply with the local
authorities requirements for the discharge of
exhaust air.
Incorrect installation may affect the safety of
this cooker hood.
Installation Requirements
Before installation check the wall to which the
cooker hood is to be fitted for electric cables,
water pipes or gas.
If it is necessary to fix the hood to a hollow
construction plaster or partition board
structure then it should be sufficiently
reinforced to be quite rigid in the area of the
cooker hood mounting brackets, and the
appropriate rawl plugs used for this type of
fixing (not supplied).
Ducting
The ducting must be fire retardant 100mm (4ins)
in diameter and the length should be no
more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the
efficiency of the hood and reduce the airflow.
Positioning
The cooker hood is designed to be fitted over
a cooking appliance at the clearance heights
stated, providing the maximum output of the
appliance beneath does not exceed the
maximums quoted in the Technical Specifications.
If the output of the appliance below the
cooker hood exceeds the maximum output
quoted, please refer to the cooker
manufacturer’s installation instructions.

12
Clearance Heights

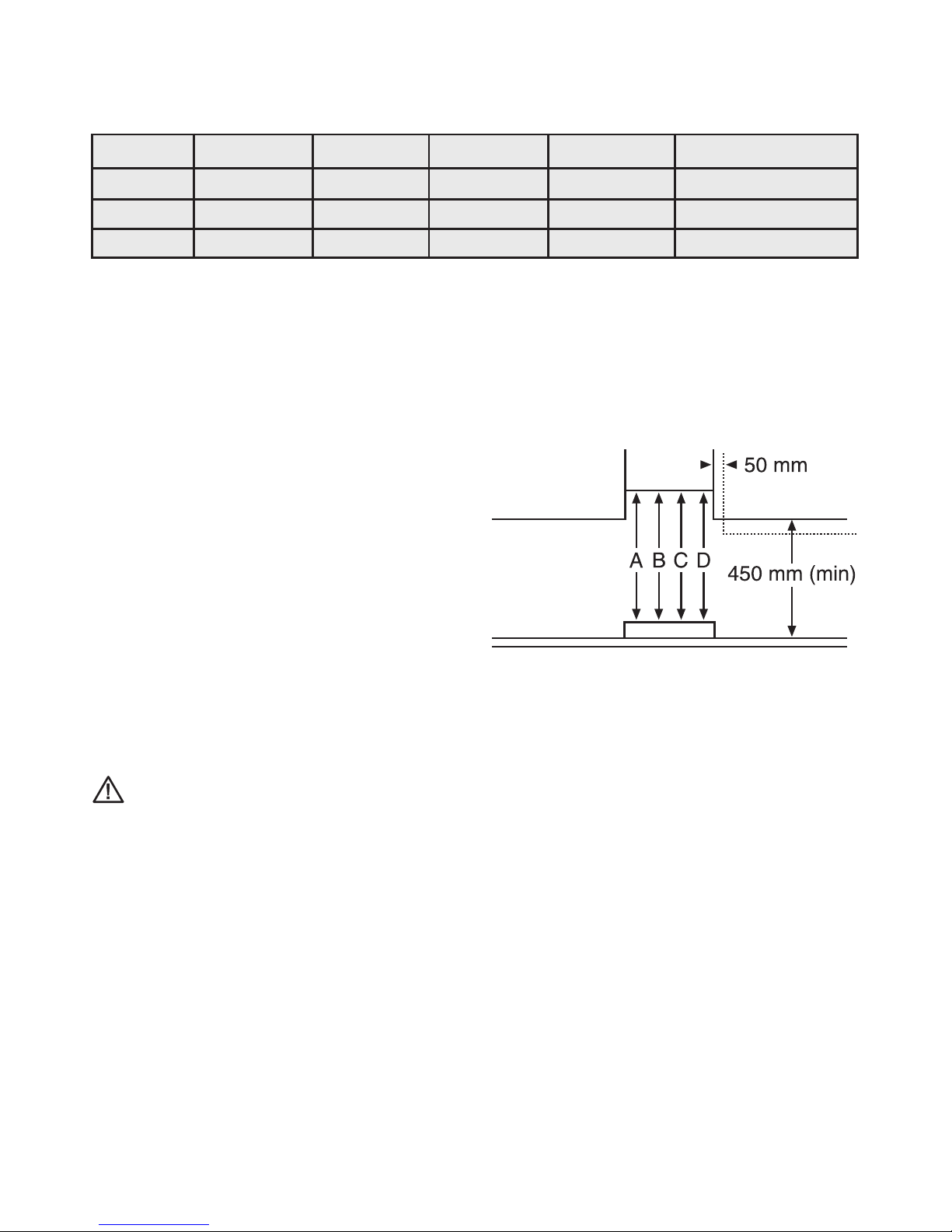

When installing above an Electrolux hob (as specified in the table below) the minimum distance between the
surface of the hob elements/pan supports and the lower grille of the cooker hood must be 60cm (23 5/8”).
ODEL FRONT LEFT REAR LEFT REAR RIGHT FRONT RIGHT TOTAL
EPCH 1.7Kw 1.2Kw 1.7Kw 1.2Kw 5.8Kw
EPEH 1.5Kw 1.0Kw 2.0Kw 1.5Kw 6.0Kw
EPGH 3.0Kw 2.0Kw 2.0Kw 1.0Kw 8.0Kw
A: Built-in Electric Hob: 650mm minimum clearance
B: Built-in Gas hob: 700mm minimum clearance
C: Slot-in Electric Cooker: 685mm minimum clearance
: Slot-in Gas Cooker: 787mm minimum clearance
Hob
Clearance Heights above other
anufacturers Cooking Appliances
When installed above any other make of
cooking appliance the distance must be as
follows:
A minimum clearance height of 650mm(25 1/2 ”) is
required when installed above a built-in electric hob,
or 700mm (27 1/2 ”) when installed above a built-in
gas hob.
A minimum clearance height of 685mm (27”) is
required when installed above a slot-in electric oven,
or 787mm (30 1/2 ”) when installed above a slot-in gas
oven.
When installed between adjoining wall
cabinets, the wall cabinets must not overhang
the hob and the distance between the
underside of the cabinet and the worktop
must be 450mm. If the height of the wall
cabinet is less than 450mm a gap of 50mm
must be maintained either side of the hob.
This cooker hood must not be installed above
a cooking appliance with a high level grill.

13
Unpacking
The fittings supplied to install this cooker
hood can be found with the instruction book
inside the packaging and consists of the
following:
ucting spigot
Blanking plate
Wall Fitting
The cooker hood is fitted to the wall using the
keyhole slots in the back of the hood.
1. Mark the position on the wall for the two
Ø 8mm dia screw holes (A) as illustrated in the
drawing opposite at 568mm.
2. Check that the hole distances are correct and
are level using a spirit level.
3. At this stage it is important to allow 25mm (1”)
clear space above the cooker hood to enable it
to be hooked onto the screws and for
subsequent removal for decorating or
servicing.
4. Insert the screws and tighten to a distance of
5mm.
Venting
The hood is more effective when used in the
extraction setting (ducted to the outside).
Venting kits may be purchased through your
retailer or IY store, and must be ducted to
an outside vent of 100mm (4”) minimum.
The ducting used must be manufactured from
fire retardant material which should conform to
the relevant British Standard or IN4102-B1.
When the hood is ducted externally the
charcoal filter must be removed and the
slider control must be in the ducting position.

14
To Fit the Ducting
1. Fit the ducting spigot and blanking plate, by
aligning the interlocking lugs on the fittings,
with the recesses in the aperture.
2. Insert and turn anti-clockwise to lock the spigot
and blanking plate into position.
3. Remove the charcoal filter and ensure the
slider control is in the ducting position.
To Remove the Charcoal Filter
1. Open the visor and remove the metal inlet
grille.
2. Carefully remove the screw from the centre of
the charcoal filter while holding the filter
securely.
3. The charcoal filter can now be removed.
Recirculation
The charcoal filter must be fitted for
recirculation and the slider control must be in
the recirculation position.
Wall Cabinet Fitting
Before fitting the cooker hood beneath any
type of wall cabinet ensure it is firmly fixed to
the wall in accordance with the manufacturer’s
instructions.
1. Use the paper template provided to mark the
hole positions on the underside of the cabinet.
Ensure the front edge of the template is
aligned with the front edge of the cabinet
carcase.
2. Check the distances are correct with a tape
measure as stated on the template. The four
holes are 5mm (
1
/
4
”) diameter.
3. If the ducting spigot is being used cut a
circular hole using a pad saw or similar cutter.

15
To Level the Cooker Hood
1. Remove the lower grille by pressing inwardly
on the two slide catches located towards either
side of the grille towards the front. The grille
will open from the front.
2. Slide the right edge of the grille forward until it
clears the guide and then unhook the left hinge
pin.
3. Support the grille when removing it from the
guides carefully.
4. The two levelling screws will be visible towards
either end of the back panel.
5. Turn the screws clockwise to lift the front edge
of the hood and use a spirit level to check the
hood is positioned at right angles to the wall
before fitting the security system.
6. The wall brackets have two studs and when
the cooker hood is hung onto the brackets the
studs project through the holes above the
levelling screws.
7. When the hood is level fit the two shake proof
washers and nuts supplied to fully secure the
cooker hood.

16

17

18

19

55 - 77 High Street - Slough
BERKSHIRE SL1 1DZ
© Electrolux Household Appliances Limited 2000
