Electrolux ICON RH42PC60GS User manual

Glass & Stainless Canopy Hood
RH42PC60G S
Glass Canopy Design
Sophisticated style makes this ventilation
unit as attractive as it is functional. Glass
canopy hood has sleek curved design –
making it a focal point of the kitchen.
600 CFMs / 4-Speed Fan
Features a powerful 4-speed dual centrifugal
fan supplying 600 CFM of air movement.
Effectively and quietly removes smoke, vapors
and smells from the kitchen.
Quad Halogen Lights
Island cooking surface area is brightly lit by
quad halogen lights, paired in groups of two
and set at two separate levels.
Electronic Controls
with LCD Display
Easy-to-operate electronic controls
provide convenient access to all fan,
clock and timer settings.
electroluxappliances.com
Wall OvensWarmer DrawersCooktopsBuilt-In Ranges
Freestanding
Ranges
MicrowavesVent HoodsDishwashersRefrigerators
FreezersUnder Counter
42" GLASS & STAINLESS CANOPY ISLAND HOOD
Features
Nominal Width
Installation Type
Style
Air Discharge
Air Delivery (CFM)
Blower Type
Electronic Controls with LCD Display
Fan Speeds
Sound Level (dBA)
Quad Halogen Lights
Washable Stainless Steel Filters
Exhaust Duct
Duct Required
Accessories
Duct-Free Kit – RHDFP60GS
Specifications
Overall Exterior Dimensions –
Width
Height (With One Cover)
(With Flue Extension)
Depth
Voltage Rating
Connected Load (kW Rating) @120 Volts‡
Product Weight
Shipping Weight
Sones Rating
* Ventilation is convertible to be either ducted outside, or recirculated inside requiring no ducting.
(Recirculated option requires use of optional Duct-Free Kit.)
‡For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and/or national electric codes. Check local building codes for
installation requirements, as they may very per locale. Refer to Product Installation Guide
for detailed installation instructions on the web at www.electroluxappliances.com.
Specifications subject to change.
42"
Island/Peninsula
Stainless Steel/
Glass Canopy
Vertical
600
Dual Centrifugal
Yes
4
73.8
Yes
Yes
Convertible*
8" Round
Optional
41-7/8"
28" min.
35" min.
57" max.
25-3/16"
120V/60Hz /15A
0.516
87 Lbs.
90 Lbs.
9.0

Glass & Stainless Canopy Hood
RH42PC60G S
High standards of quality at Electrolux Major Appliances mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
RH42PC60G 02/08 © 2008 Electrolux Major Appliances, NA Printed in the U.S.A.
42" Glass & Stainless Canopy Island Hood Specifications
•
Product Weight – 87 Lbs.
•
Island/Peninsula Installation
•
Ventilation is convertible to be either ducted outside, or recirculated
inside requiring no ducting.
•
Sones Rating – 9.0
•
Voltage Rating –120V/60 Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.516 kW (For use on
adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.)
•
Amps @120 Volts = 4.16 Amps
•
Always consult local and/or national electric codes. Check local
building codes for installation requirements, as they may vary per locale.
•
Minimum installation height allowed from bottom of hood to cooking
surface is 24"- 30" for electric and 30" for gas. (NOT more than 36"
recommended.)
•
To prepare mounting surface, adequate structure and support must be
provided, capable of supporting 150 lbs.
Ducted Option Specifications
•
For outside ventilation only.
•
Exhaust Duct Required – 8" round
•
For most efficient airflow exhaust, use a straight run or as few elbows
as possible.
•
Use metallic flex ducting only to connect rigid duct directly to transitions
(if allowed by code).
•
Thermal breaks such as short section of nonmetallic duct, should
be used in areas of extreme cold.
•
Cold weather installations should have additional backdraft damper
installed.
•
Refer to web for detailed duct preparation installation instructions.
Ductless (Recirculated) Option Specifications
•
If ducting to outside is not an option, vent hood can be converted to
ductless with use of optional Duct-Free Kit (RHDFP60GS).
•
Refer to web for detailed convertible ventilation installation instructions.
Pre-Installation Calculations
•
Select hood preference height (P) that is comfortable for user
(24"- 30" minimum allowed, NOT more than 36" recommended).
•
Calculate hood height (H) for installation (H = K-C-P).
•
Confirm that (H) is within minimum to maximum range for hood.
If not, adjust installation.
•
Calculate chimney structure height (S). Use formulas, check
dimensions of hood. Save calculation for use later in installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
•
Duct-Free Kit – (RHDFP60GS).

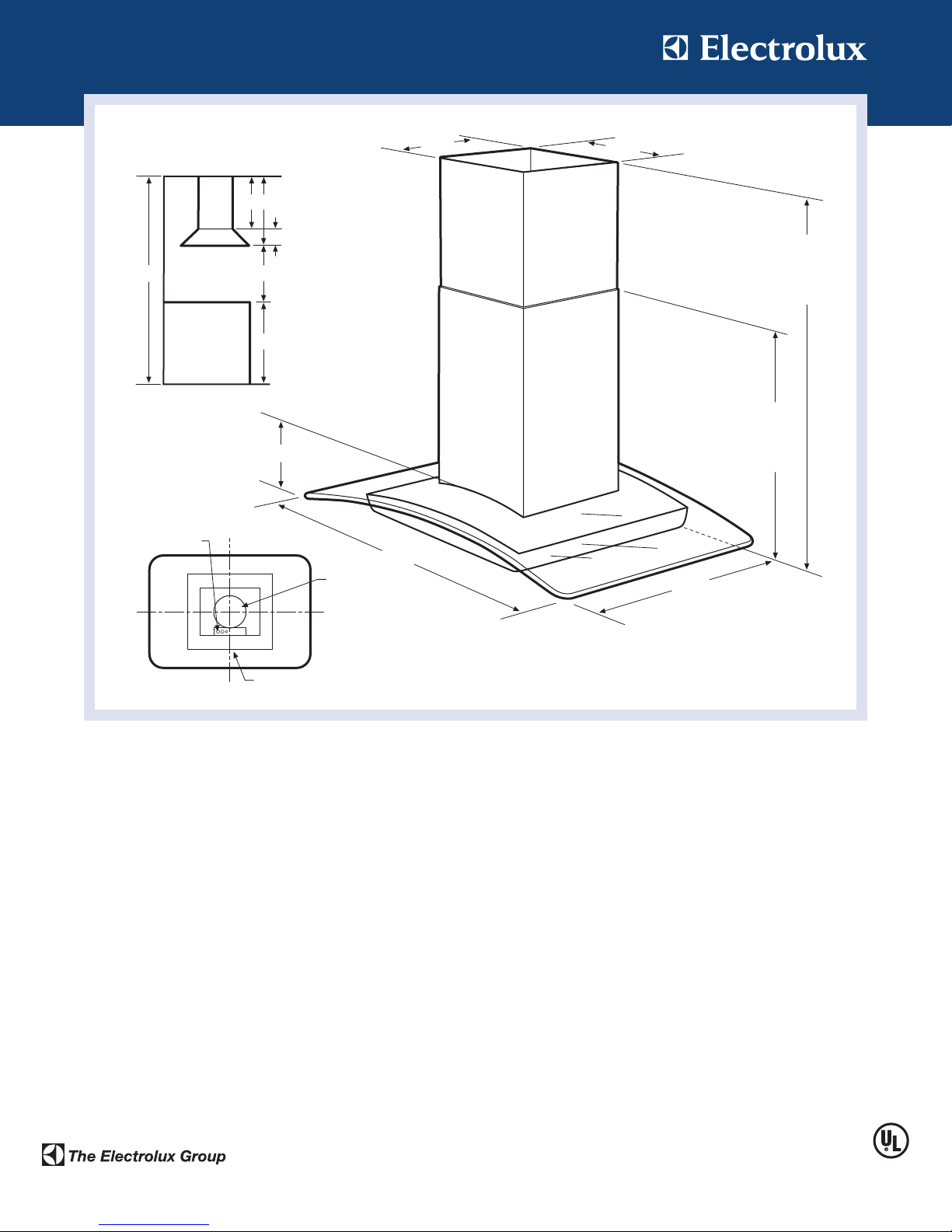

Top
Controls
Wiring box
Air outlet -
77/8" diam.
Dimensions
from base of
hood to ceiling,
and include
clearance
required for
installation.
417/8"
253/16"
211/16"
121/8"13 3/16"
35"
min.
57"
max.
28"
(min.
height
with one
cover)
K = Kitchen height
C = Counter height
P = Preferred height
of hood bottom
above counter
(24"- 30"
allowed, NOT
more than 36"
recommended)
A = Canopy height
H = Hood height for
installation
H = K-C-P
S = Chimney
structure height
for installation
S = H-A
PRE-INSTALLATION CALCULATIONS
SH
A
KP
C
Counter Height
36" standard
